Model #13953985D Craftsman garage door opener

Here are the diagrams and repair parts for Craftsman 13953985D garage door opener, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 57 parts

Garage Door Opener Gear and Sprocket Assembly

#2

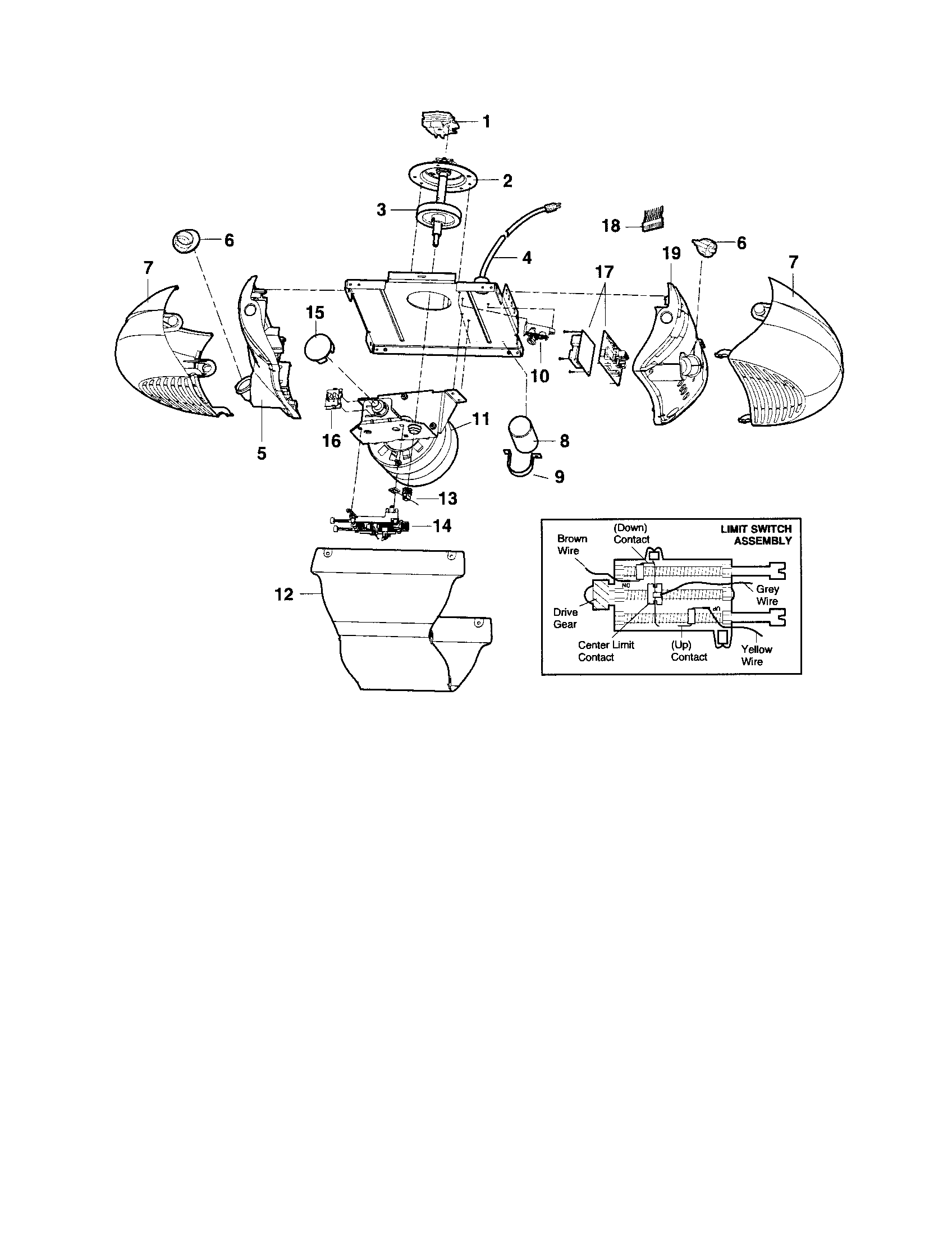

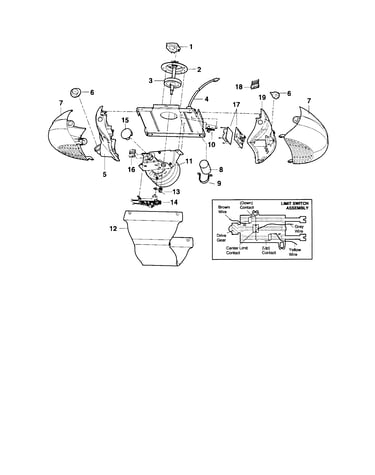

Motor unit assembly Diagram

Garage door opener gear and sprocket assembly

Part #41C4220A

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Drive and Worm Gear Kit

#3

Motor unit assembly Diagram

Garage door opener drive and worm gear kit

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Rail Extension Kit, 8-ft

#3

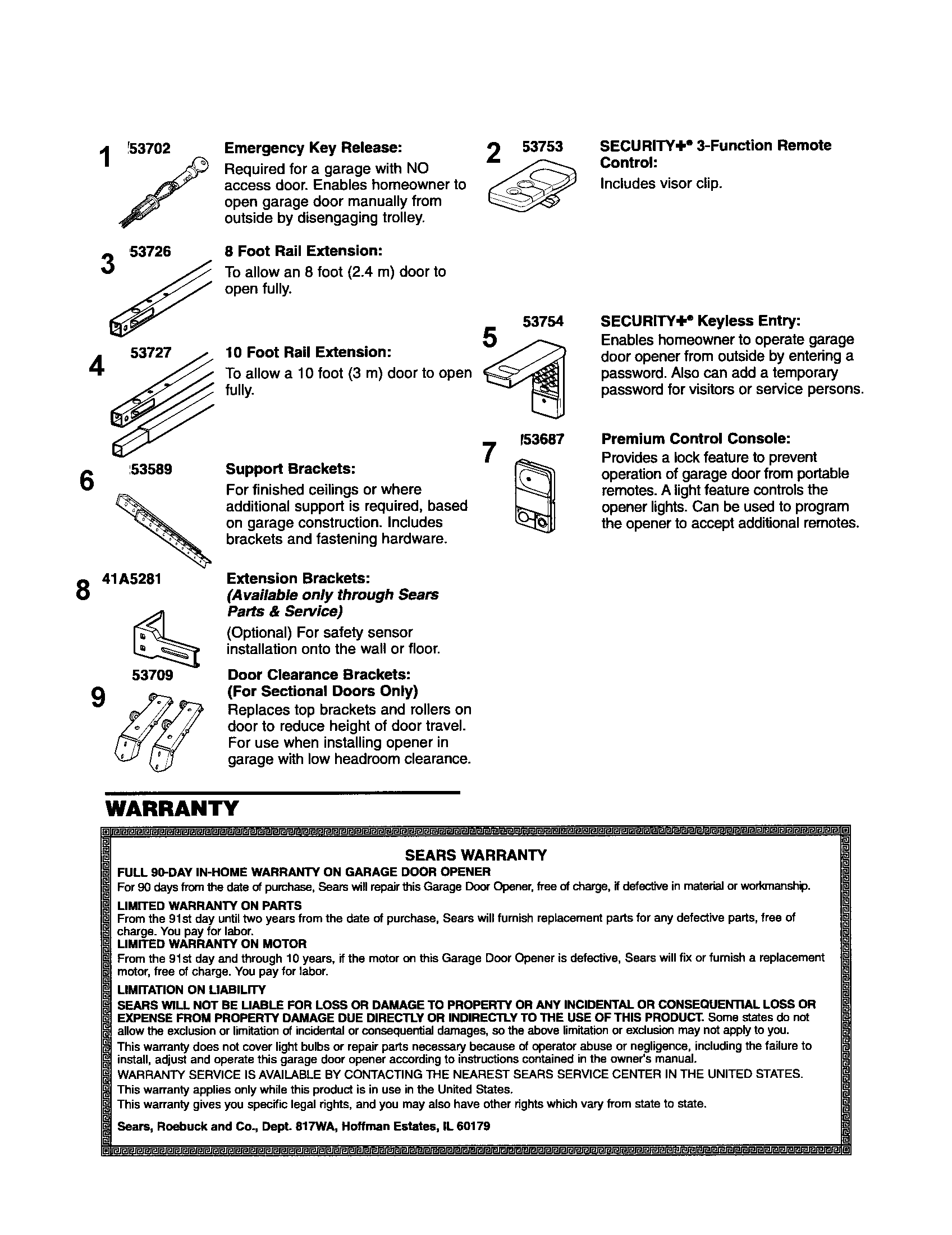

Accessories / warranty Diagram

$32.68

In Stock

Garage Door Opener Safety Sensor Kit

#15

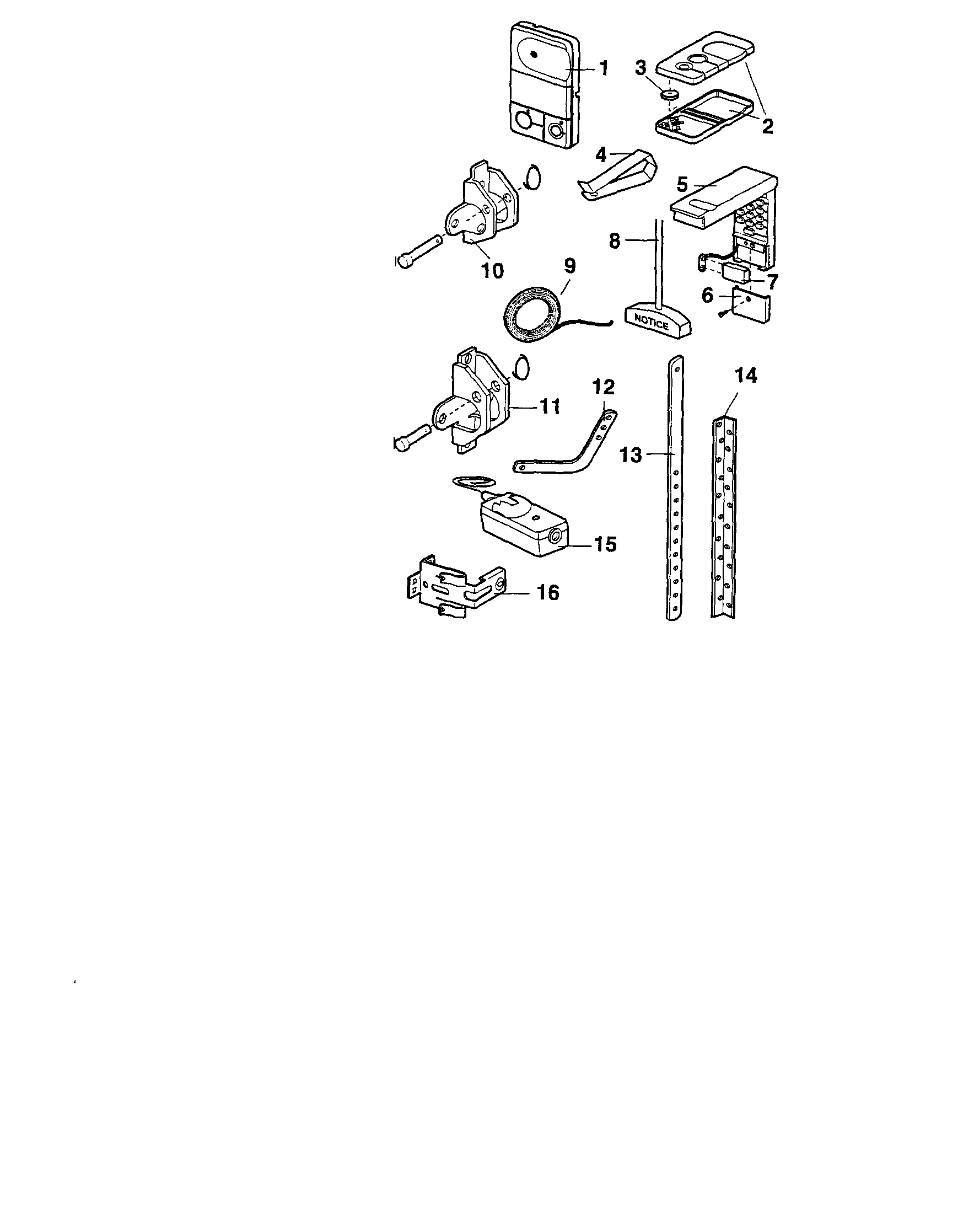

Accessories parts Diagram

Garage door opener safety sensor kit

Part #41A5034

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Chain Idler Pulley

#4

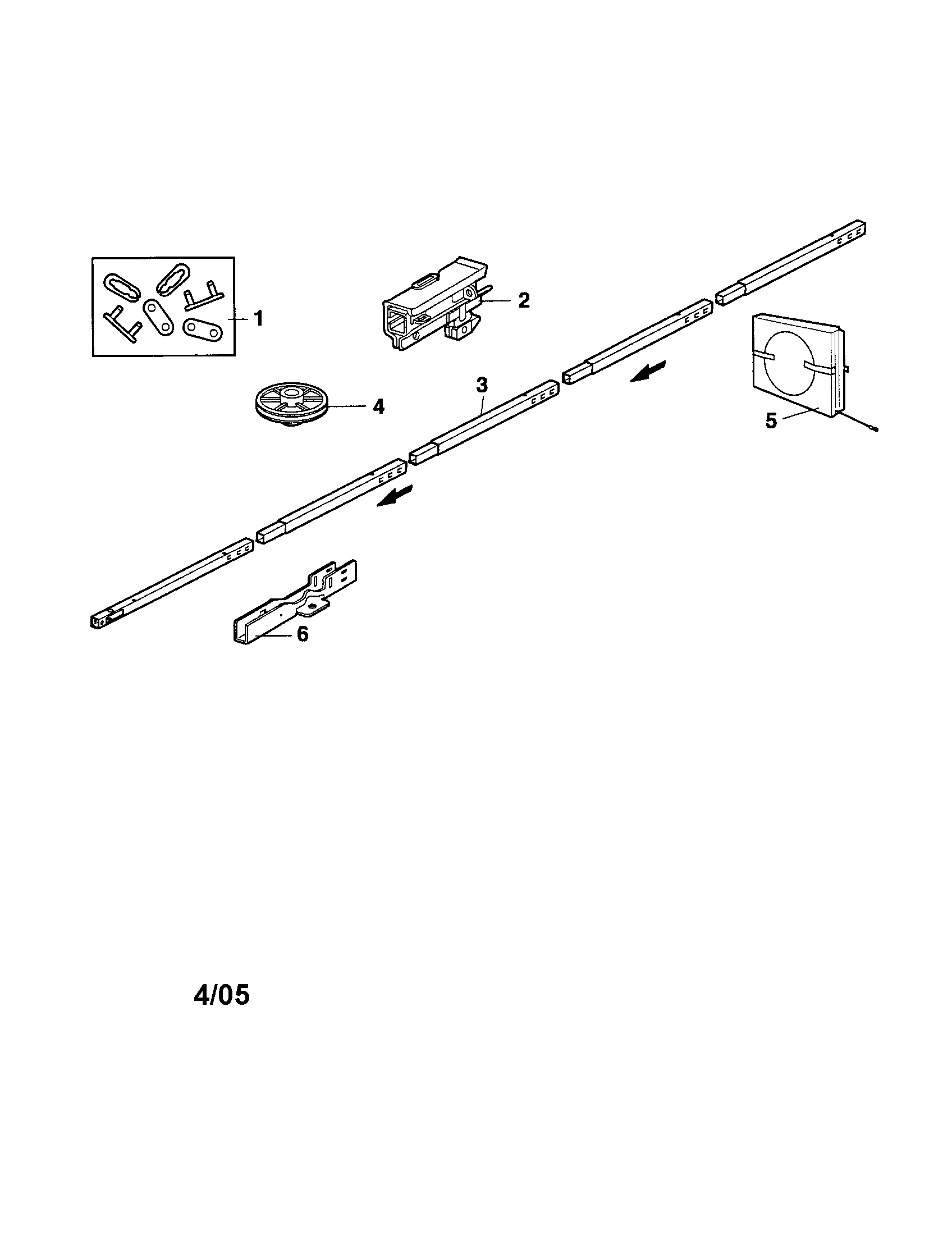

Rail assembly Diagram

Garage door opener chain idler pulley

Part #144C56

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener RPM Sensor Assembly

#16

Motor unit assembly Diagram

Garage door opener rpm sensor assembly

Part #41C4398A

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Chain and Cable Assembly

#5

Rail assembly Diagram

Garage door opener chain and cable assembly

Part #41A5807

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Low-Voltage Wire Harness

#18A

Motor unit assembly Diagram

Garage door opener low-voltage wire harness

Part #41C5498

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Rail Extension Kit, 10-ft

#4

Accessories / warranty Diagram

Garage door opener rail extension kit, 10-ft

Part #53727

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Hanging Bracket

#14

Accessories parts Diagram

Garage door opener hanging bracket

Part #12B776

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all garage door openers

Choose a symptom to see related garage door opener repairs.

Main causes: loose fasteners, broken brackets, need preventive maintenance, worn drive gears, loose or worn belt, loose chain
Main causes: safety sensor beams blocked, safety sensors not aligned, downforce setting needs adjustment, damaged garage door tracks
Things to do: check garage door travel, tighten brackets and fasteners, test safety sensors, check travel limits and force limits
Main causes: faulty logic control board, bad RPM sensor, broken gears in the drive system, bad drive motor
Main causes: garage door opener misaligned, travel limits need adjustment, bad travel limit switches, faulty logic control board
Main causes: neighbor's remote programmed at the same time as yours, faulty wall control wiring, bad wall control unit
Main causes: radio interference, weak remote batteries, sunlight interference with safety sensor beams, safety sensors need adjustment
Main causes: garage door locked, damaged garage door tracks, up-force setting needs adjustment, RPM sensor failure, bad drive motor
