Electrolux
Washer

Model # ELFW4222AW Official Electrolux washer

Here are the diagrams and repair parts for Official Electrolux ELFW4222AW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

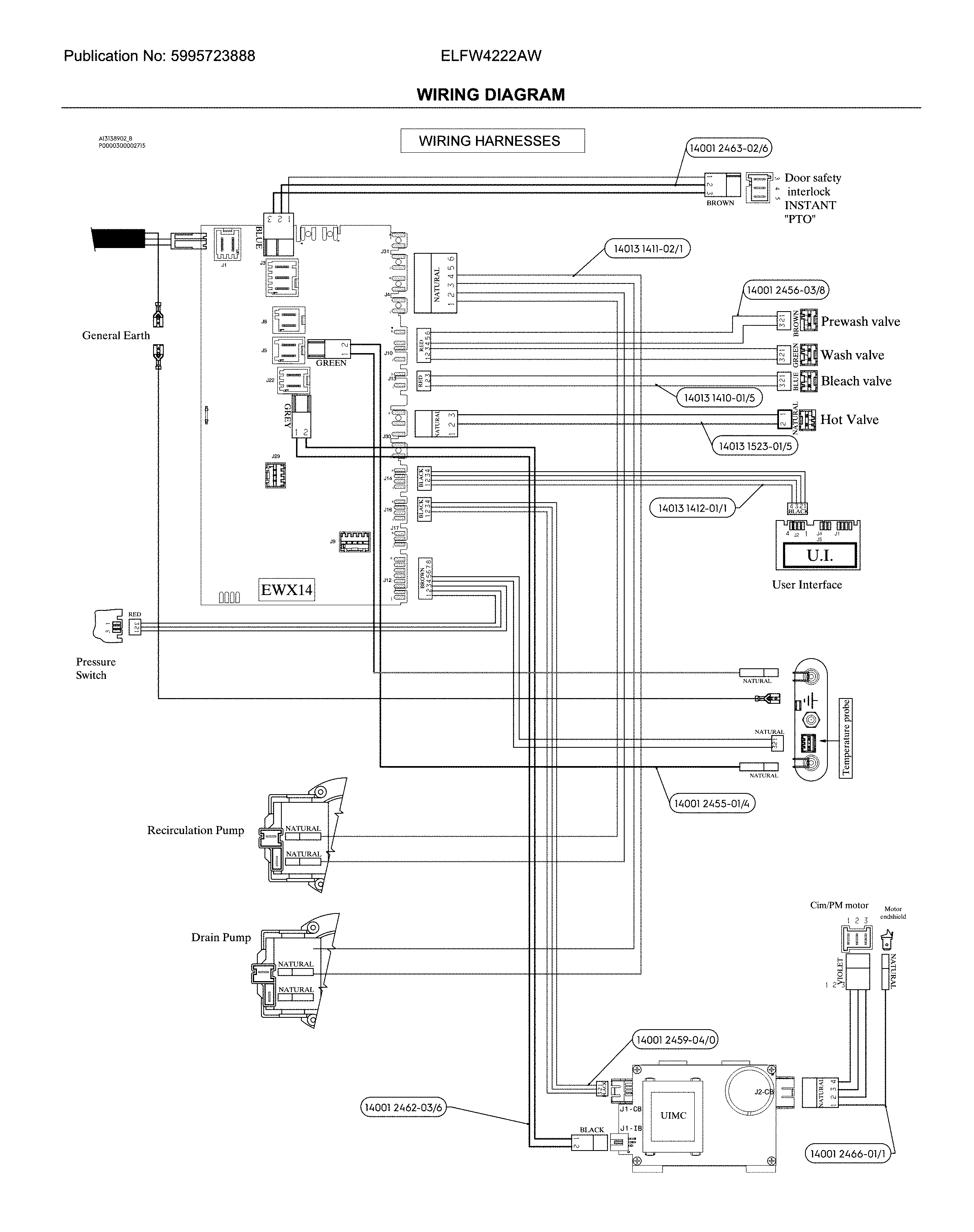

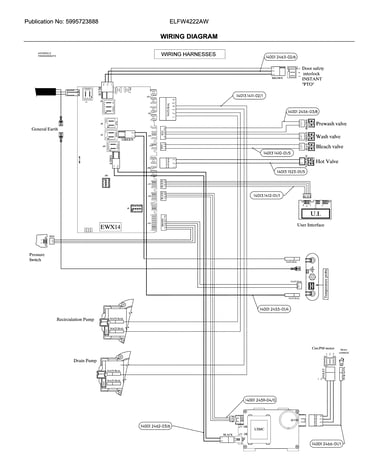

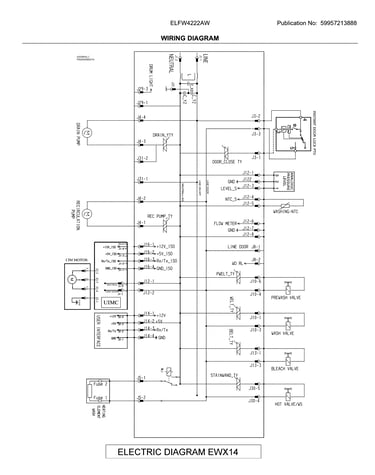

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Washer 3-way Water Inlet Valve 132518842
#507

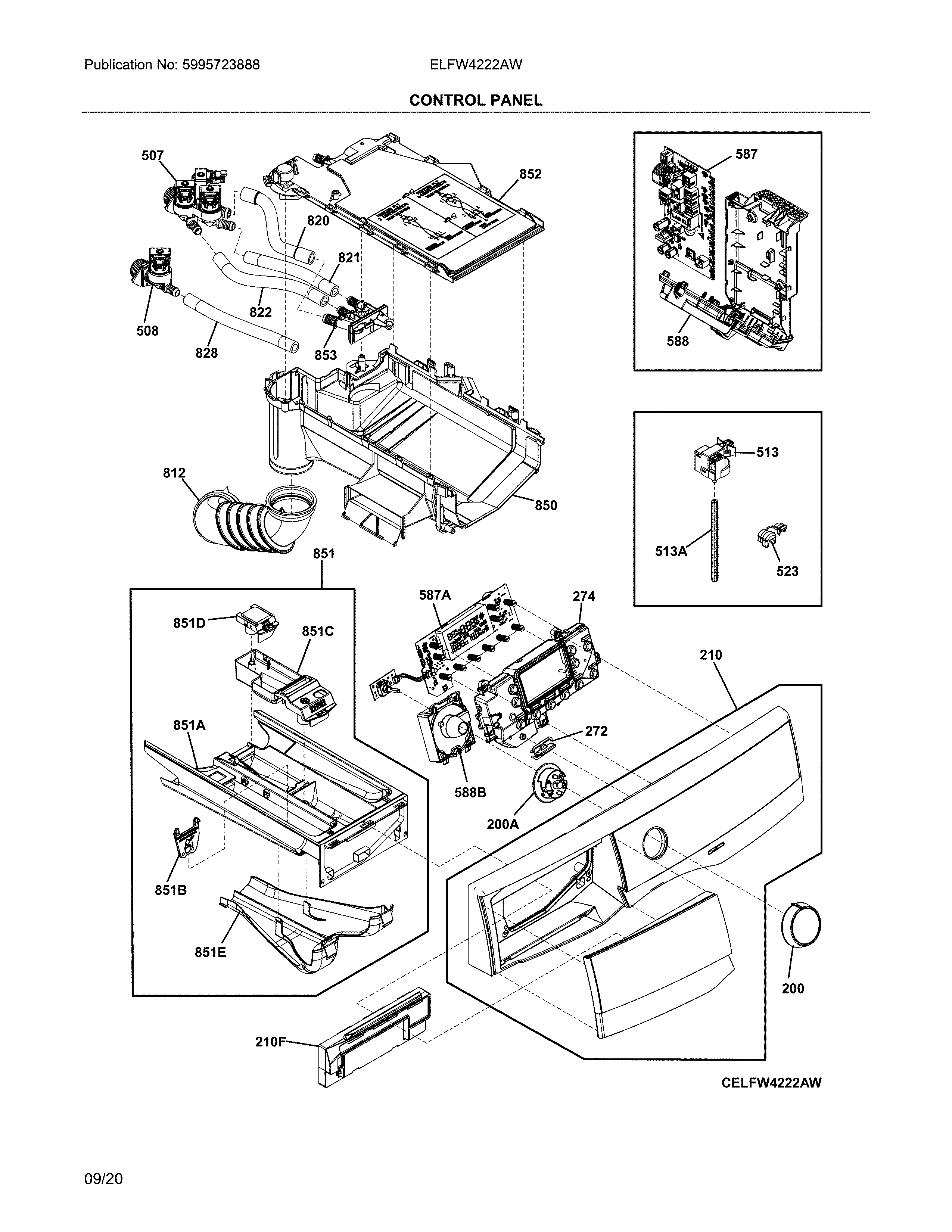

Control panel diagram

Washer 3-way water inlet valve

Part #132518842

$76.70 |
6% OFF Phone Price : $81.70
In Stock
Washer Door Lock 808455304
#521

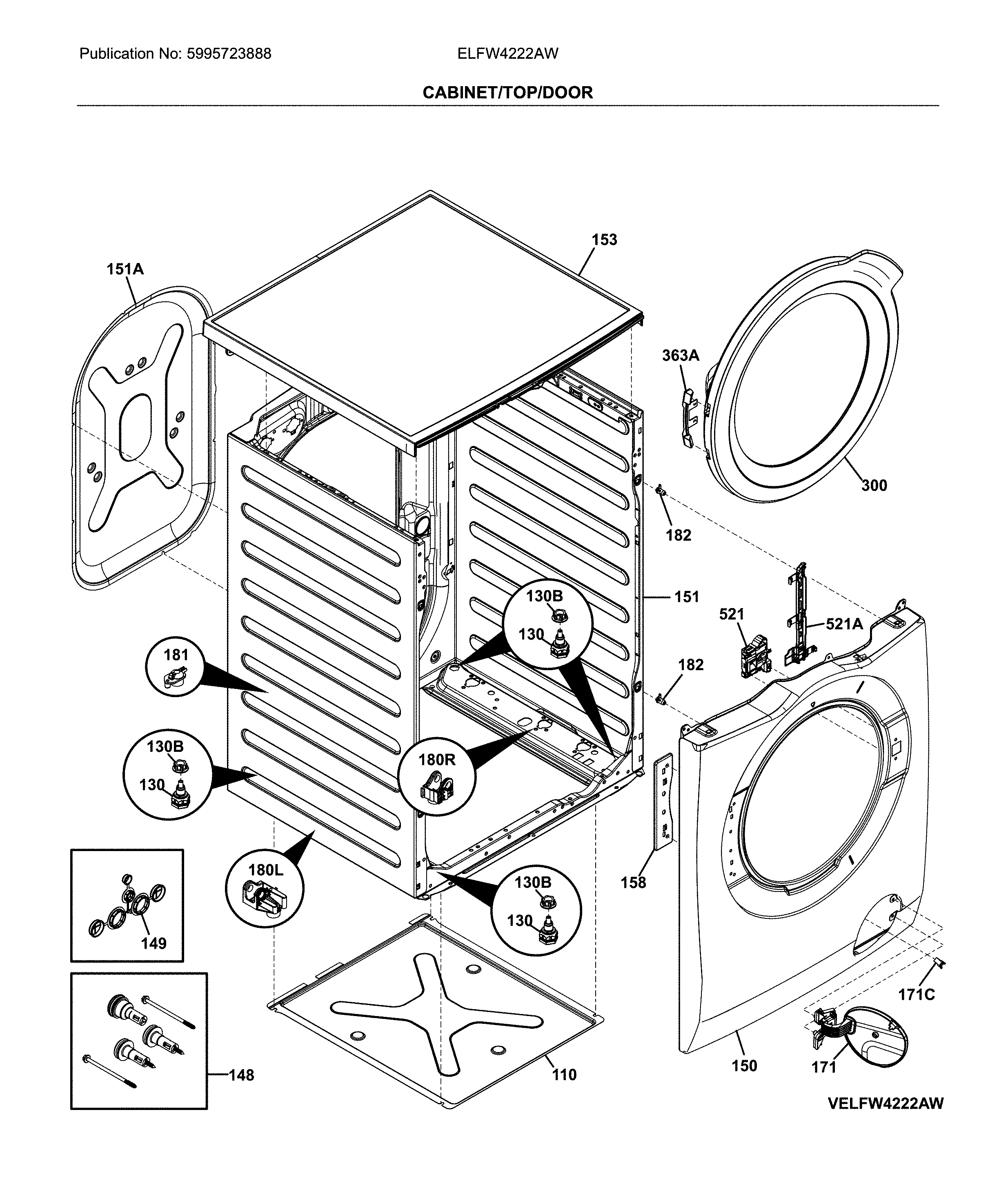

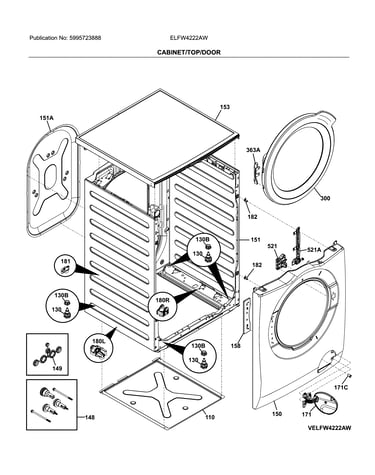

Cabinet/top/door diagram

Washer door lock

Part #808455304

$70.89 |
7% OFF Phone Price : $75.89
In Stock
Washer Door Boot A00466828
#608

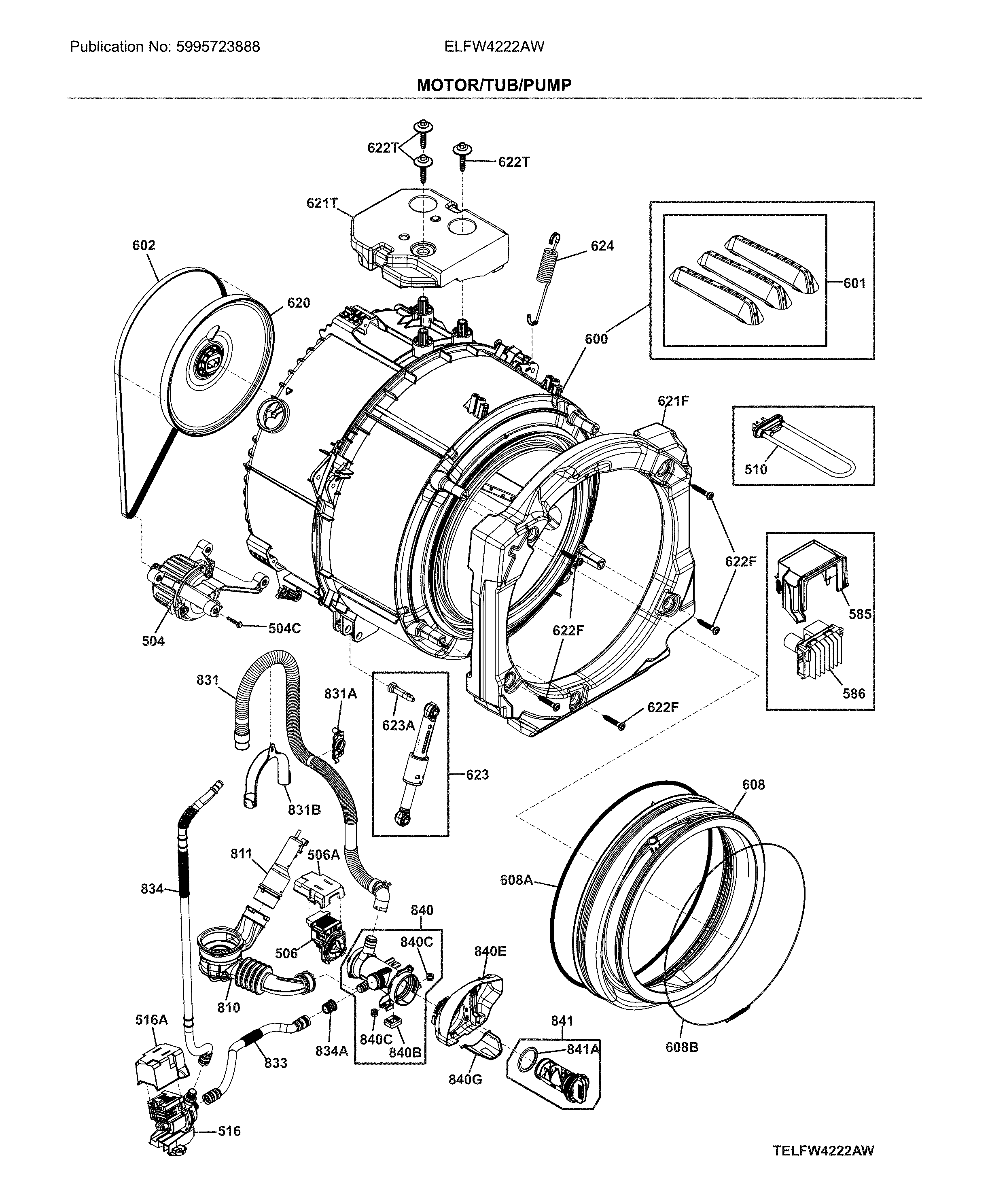

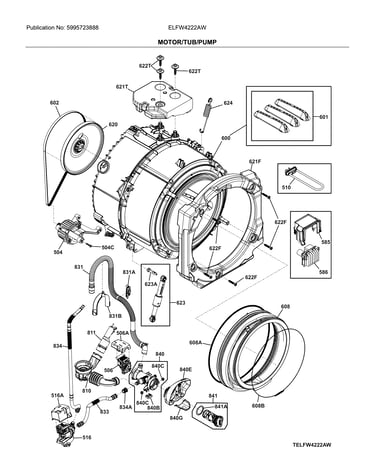

Motor/tub/pump diagram

Washer door boot

Part #A00466828

$132.24
In Stock
Washer Drain Pump 132611913
#506

Motor/tub/pump diagram

Washer drain pump

Part #132611913

$113.36 |
8% OFF Phone Price : $123.36
In Stock
Washer Dispenser Drawer 132507511
#851

Control panel diagram

Washer dispenser drawer

Part #132507511

$157.01 |
6% OFF Phone Price : $167.01
In Stock
Spring 132768400
#624

Motor/tub/pump diagram

Spring

Part #132768400

$81.64
In Stock
Washer Baffle 405536790
#601

Motor/tub/pump diagram

Washer baffle

Part #405536790

$54.06 |
8% OFF Phone Price : $59.06
In Stock
Hose 124291600
#831

Motor/tub/pump diagram

Hose

Part #124291600

$38.64
In Stock
Recirculation Hose 132756501
#834

Motor/tub/pump diagram

Recirculation hose

Part #132756501

$53.02 |
9% OFF Phone Price : $58.02
In Stock
Switch 132819501
#513

Control panel diagram

Switch

Part #132819501

Replaced by #379221604

?
Manufacturer substitution
This part replaces 132819501. Substitute parts can look different from the original.
$35.91
In Stock
