Model # RSK25LASACCC Official RCA refrigerator - s series

Here are the diagrams and repair parts for Official RCA RSK25LASACCC refrigerator - s series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

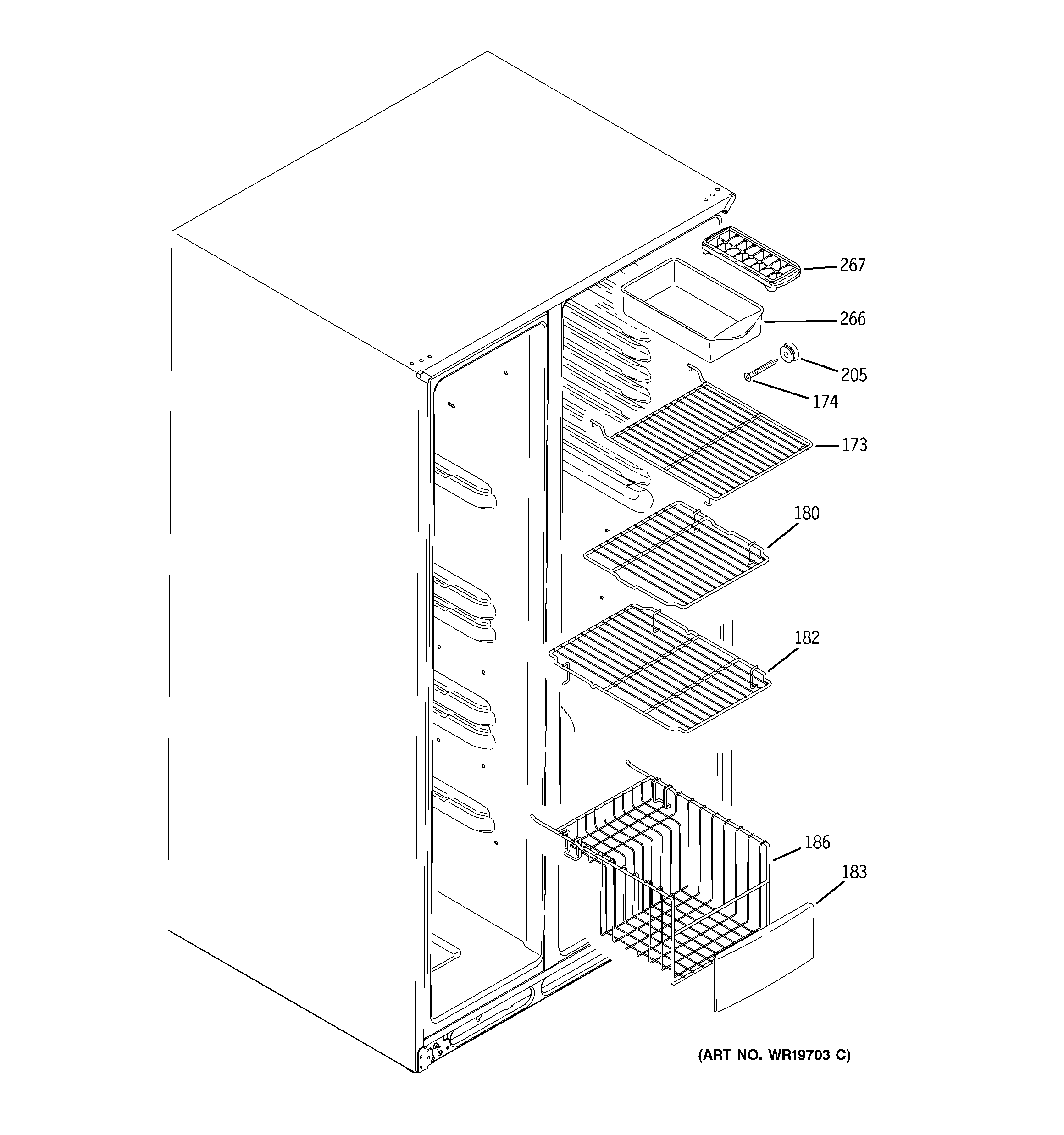

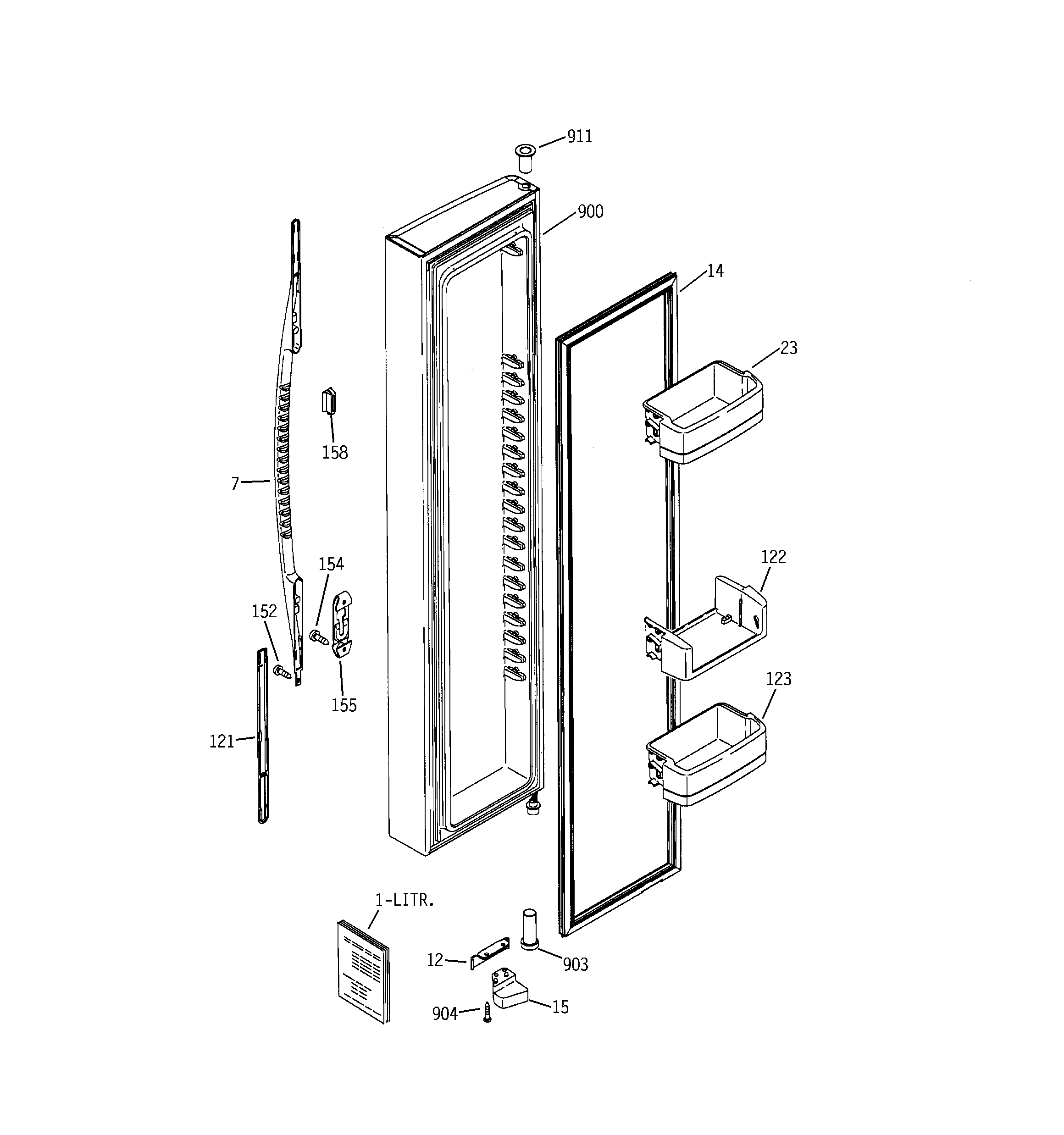

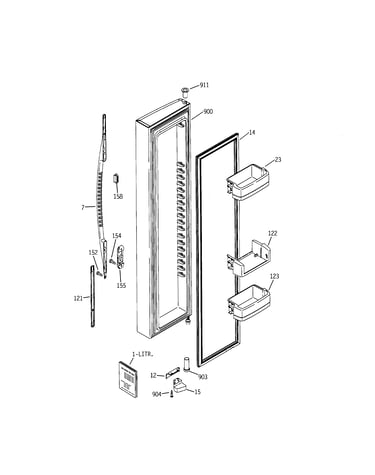

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |

Ge Profile Refrigerator Temperature Sensor WR55X10025
Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10028
#237

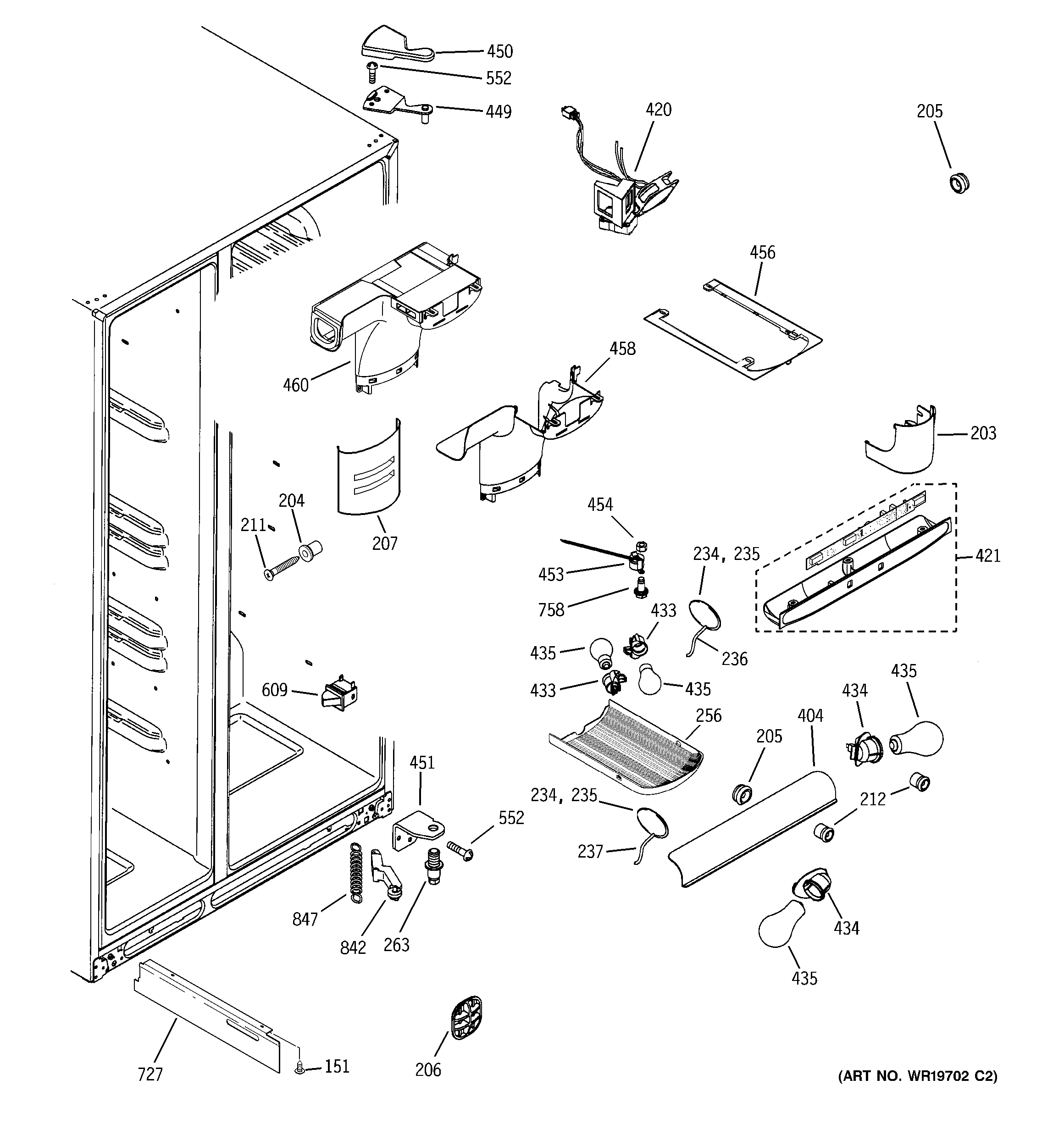

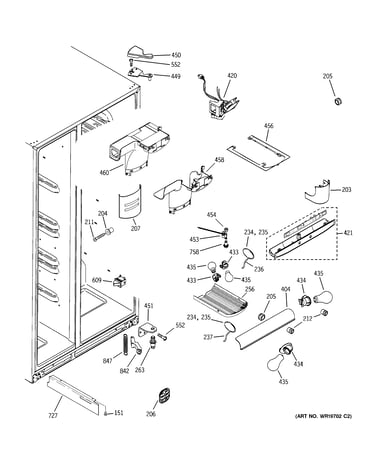

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10028

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10028. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10027
#236

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10027. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10026
#233

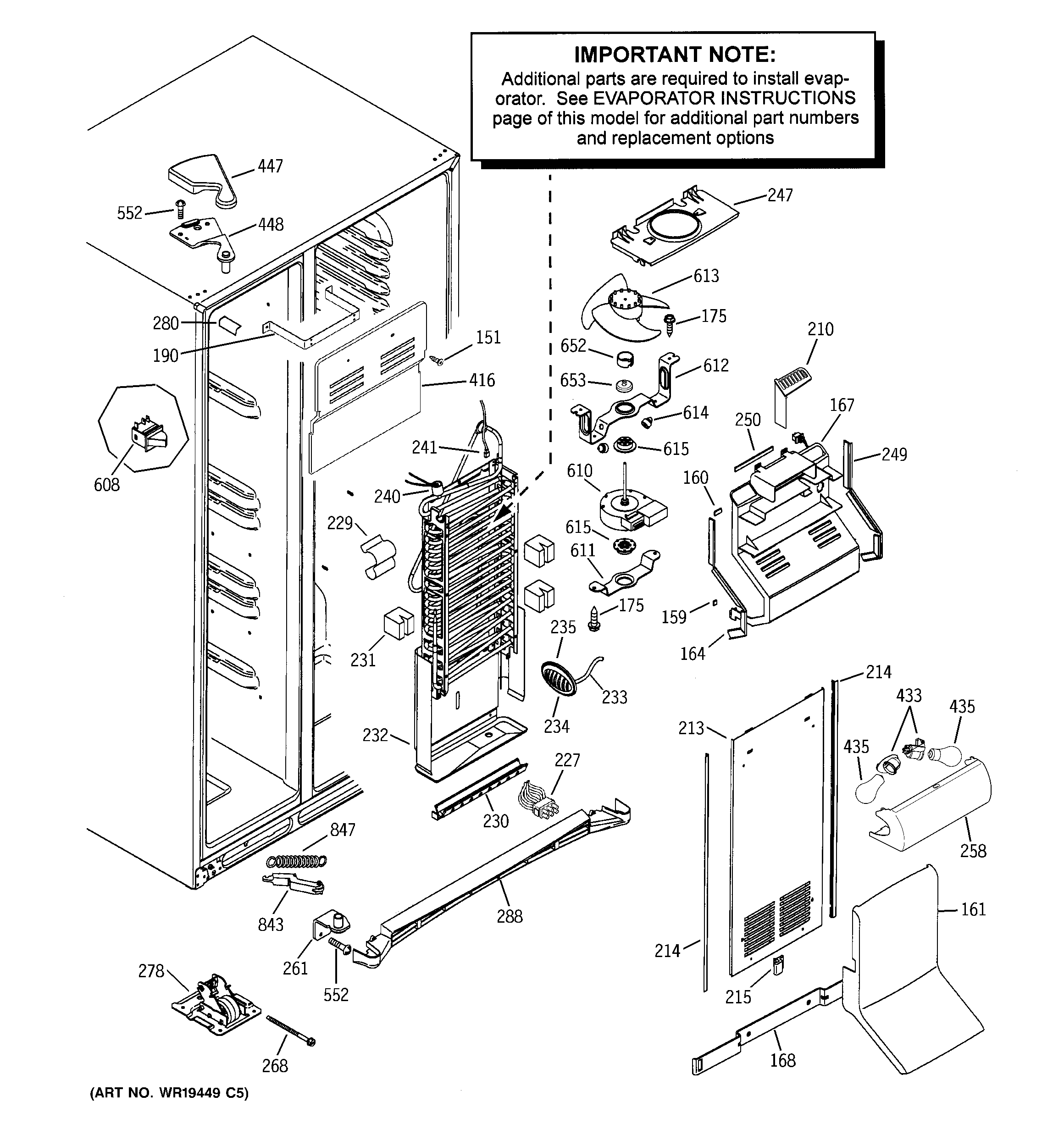

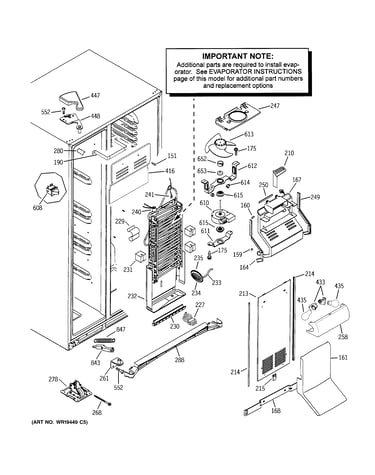

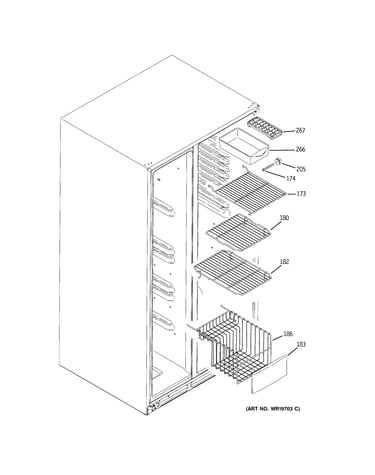

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10026

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10026. Substitute parts can look different from the original.
BEST SELLER
$19.47
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

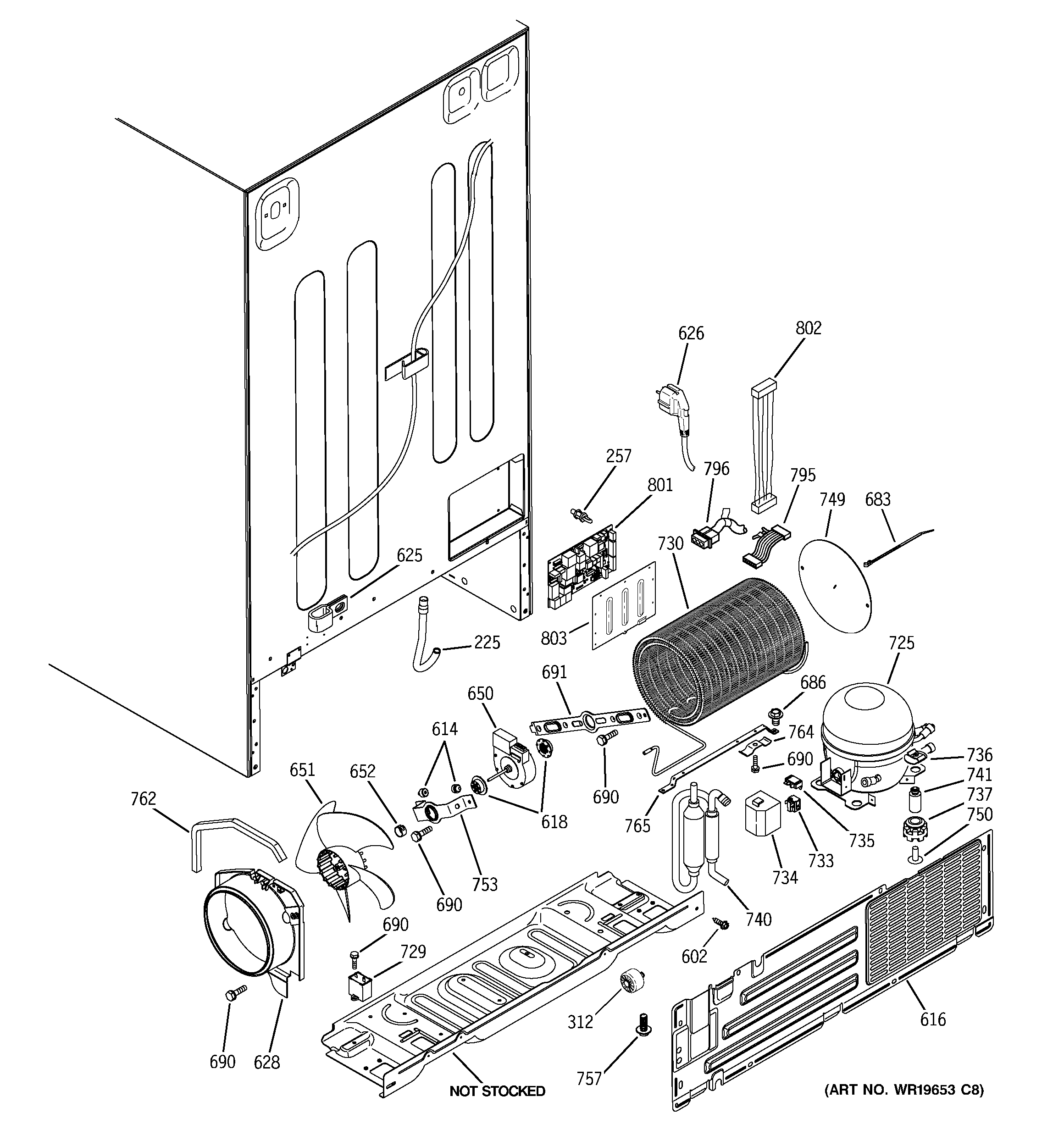

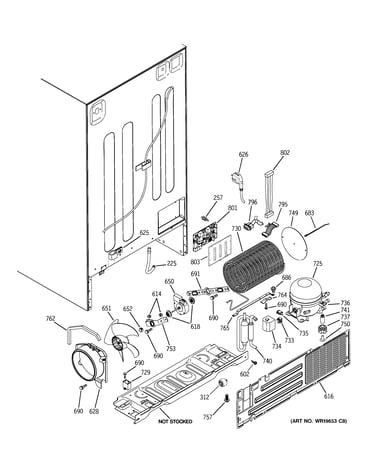

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08
7% OFF Phone Price : $91.08
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Light Switch WR23X10175
#609

Fresh food section diagram

Refrigerator light switch

Part #WR23X10175

Replaced by #WR23X31507

?
Manufacturer substitution
This part replaces WR23X10175. Substitute parts can look different from the original.
BEST SELLER
$65.01
8% OFF Phone Price : $71.01
In Stock
Insert Module WR71X10289
#127

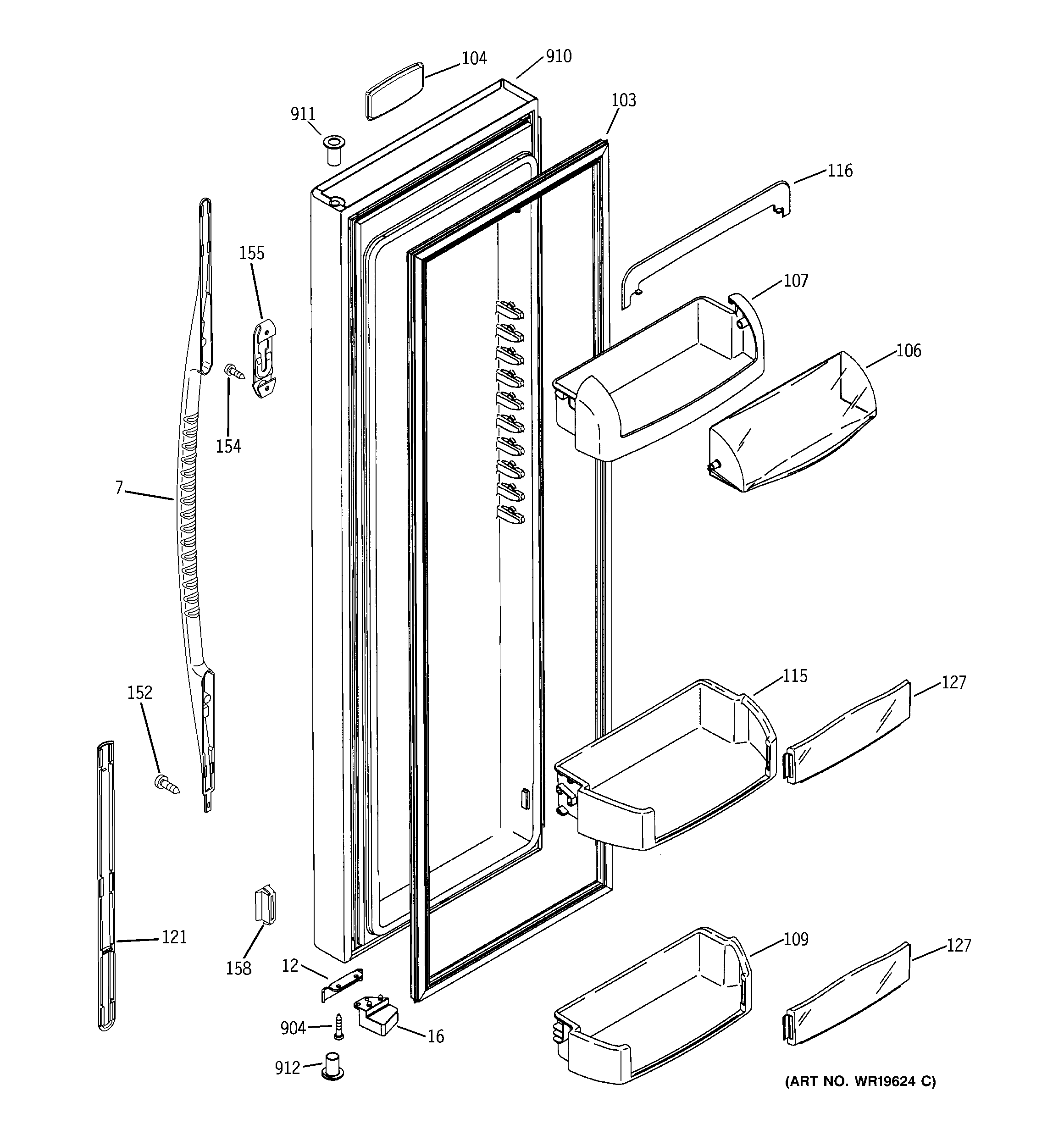

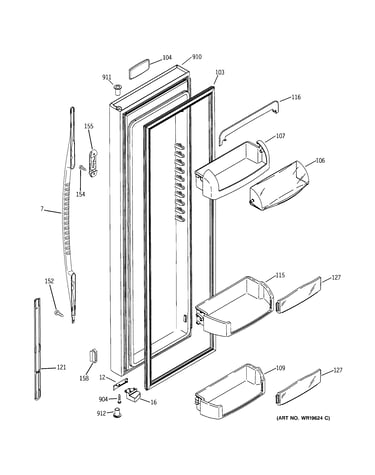

Fresh food door diagram

Insert module

Part #WR71X10289

Replaced by #WR71X10761

?
Manufacturer substitution
This part replaces WR71X10289. Substitute parts can look different from the original.
BEST SELLER
$24.83
19% OFF Phone Price : $30.83
In Stock
Ge Profile Refrigerator Glass Shelf WR32X10156
#409

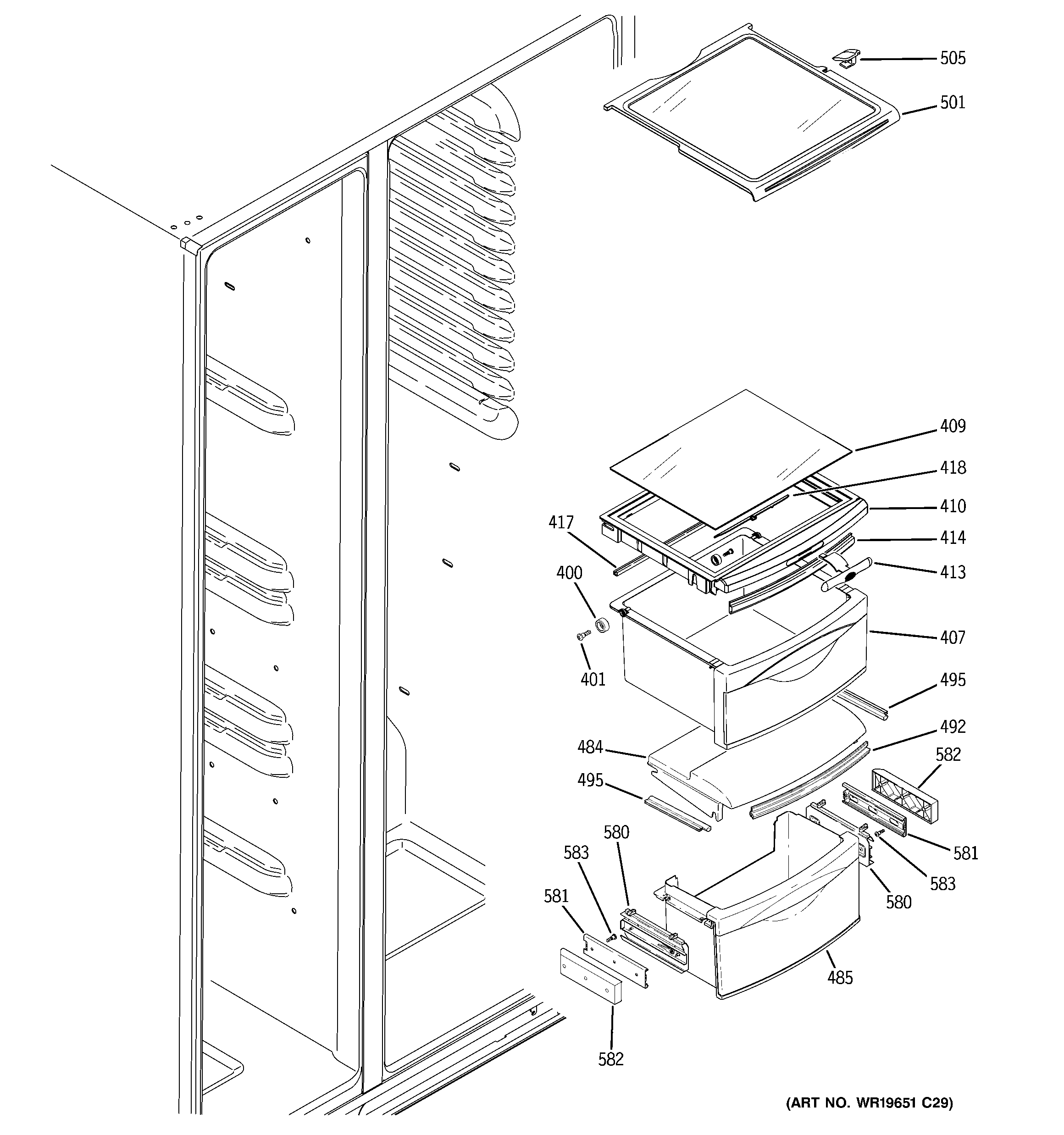

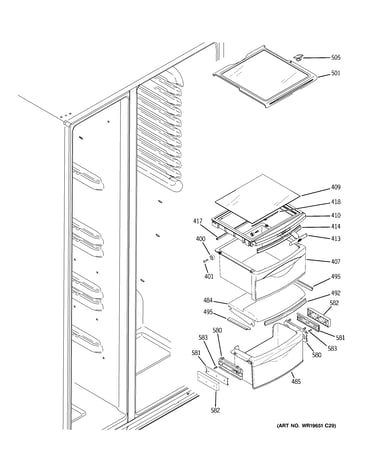

Fresh food shelves diagram

Ge profile refrigerator glass shelf

Part #WR32X10156

$43.56
12% OFF Phone Price : $49.56
In Stock
