Model # TDG546RED0 Official Tappan gas dryer - 5995285177

Here are the diagrams and repair parts for Official Tappan TDG546RED0 gas dryer - 5995285177, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

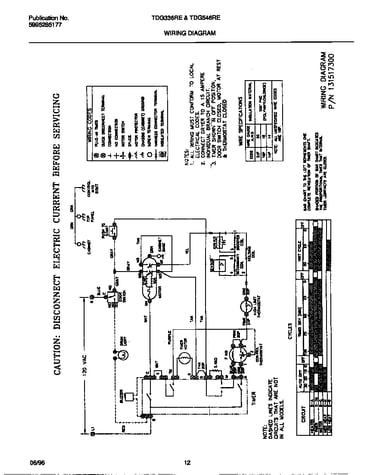

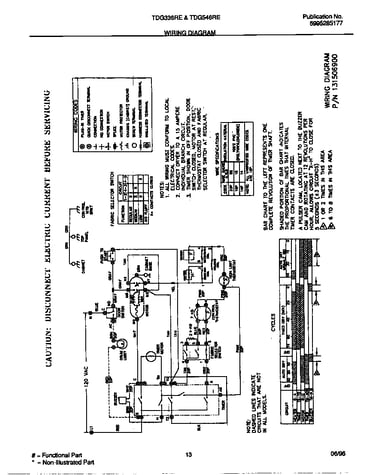

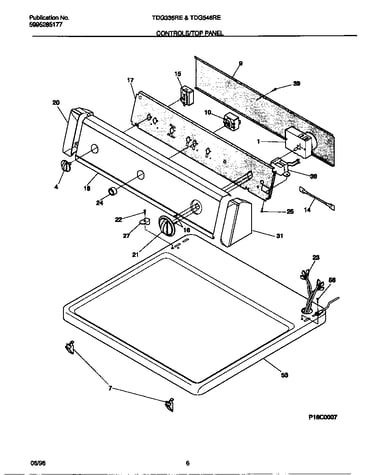

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 112 parts  |
Belt 5303283471
#25

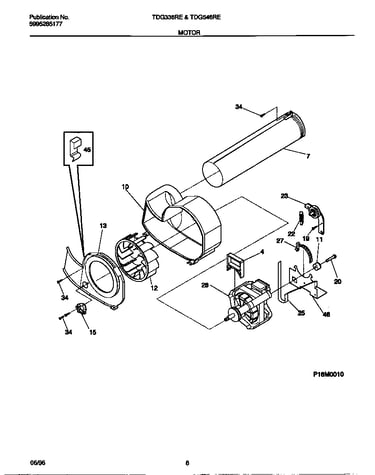

Motor diagram

Belt

Part #5303283471

Replaced by #134503600

?
Manufacturer substitution
This part replaces 5303283471. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
26% OFF MSRP : $20.00
In Stock
Dryer Drum Bearing Kit (replaces 000142850, 142850, 3281153, Q000142850, Wq142850) 5303281153

#NI

All parts diagram

Dryer drum bearing kit (replaces 000142850, 142850, 3281153, q000142850, wq142850)

Part #5303281153

BEST SELLER
$28.62 |
16% OFF MSRP : $34.00
In Stock
Catch 5307521419
#25

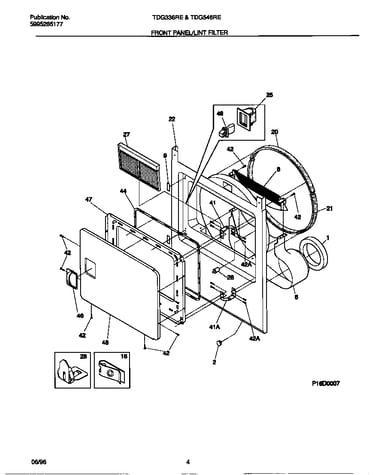

Front panel/lint filter diagram

Catch

Part #5307521419

Replaced by #131658800

?
Manufacturer substitution
This part replaces 5307521419. Substitute parts can look different from the original.
BEST SELLER
$60.65 |
8% OFF Phone Price : $65.65
In Stock
Glide 5303937123
#20

Front panel/lint filter diagram

Glide

Part #5303937123

Replaced by #5303937139

?
Manufacturer substitution
This part replaces 5303937123. Substitute parts can look different from the original.
BEST SELLER
$42.36 |
11% OFF Phone Price : $47.36
In Stock
Idler Pulley 131434600
#23

Motor diagram

Idler pulley

Part #131434600

Replaced by #131863007

?
Manufacturer substitution
This part replaces 131434600. Substitute parts can look different from the original.
BEST SELLER
$47.89 |
9% OFF Phone Price : $52.89
In Stock
Bracket 5303281023
#13

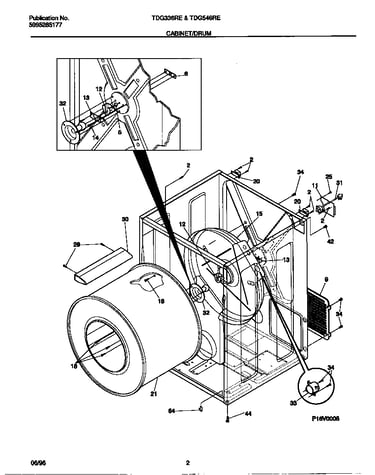

Cabinet/drum diagram

Bracket

Part #5303281023

Replaced by #131724301

?
Manufacturer substitution
This part replaces 5303281023. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$9.78 |
42% OFF MSRP : $17.00
In Stock
Dryer Screw 131477000
#18

Cabinet/drum diagram

Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$9.78 |
42% OFF MSRP : $17.00
In Stock
Booster Coil 5303307292
#72

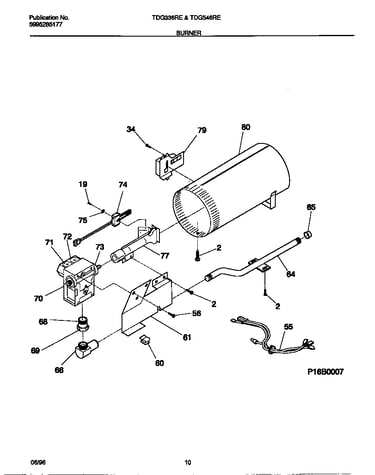

Burner diagram

Booster coil

Part #5303307292

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307292. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
12% OFF Phone Price : $42.09
In Stock
Coil-seconda 5303307291
#71

Burner diagram

Coil-seconda

Part #5303307291

Replaced by #5303931775

?
Manufacturer substitution
This part replaces 5303307291. Substitute parts can look different from the original.
BEST SELLER
$37.09 |
12% OFF Phone Price : $42.09
In Stock
