Panasonic
Upright Vacuum

Model # MC-V5257 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V5257 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

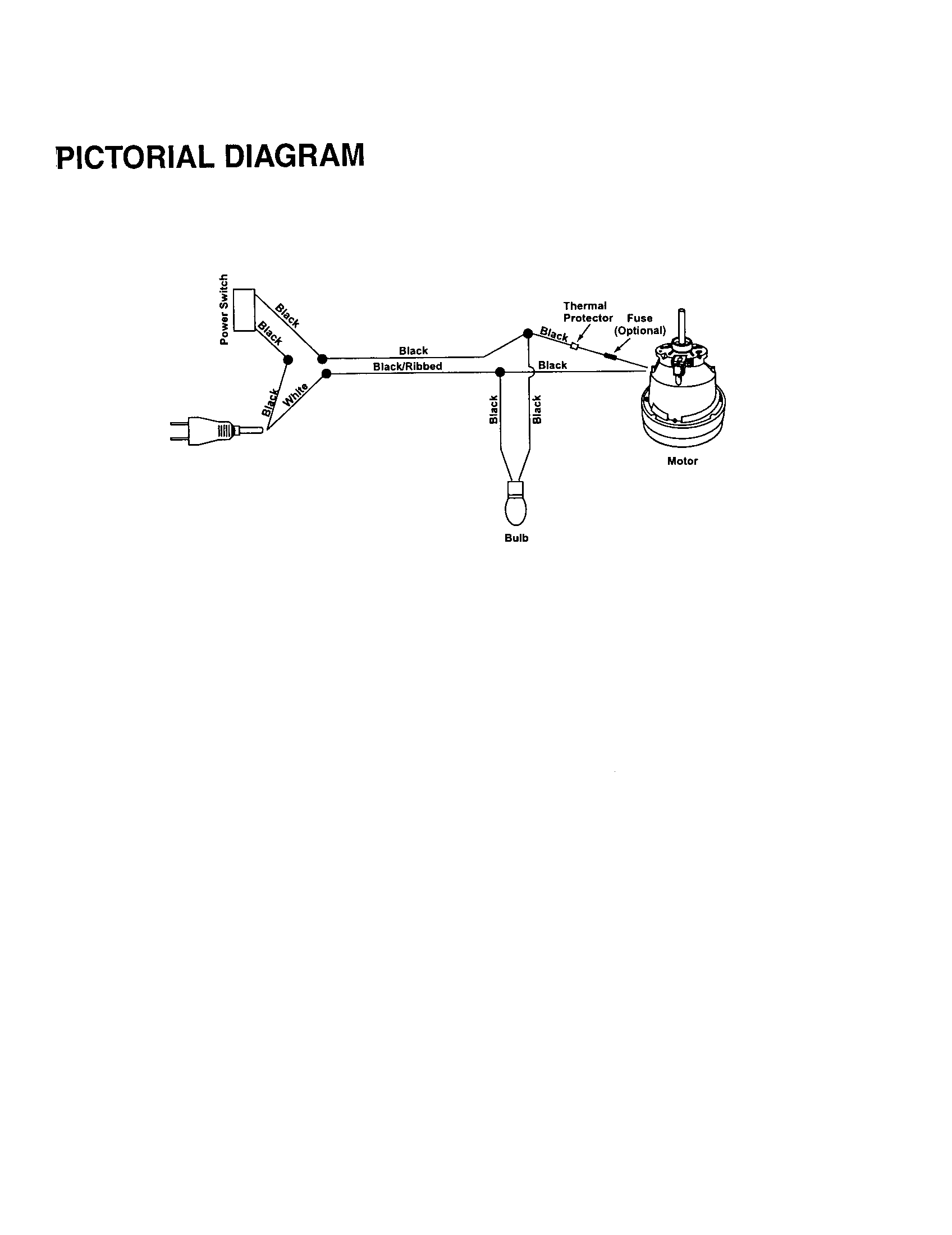

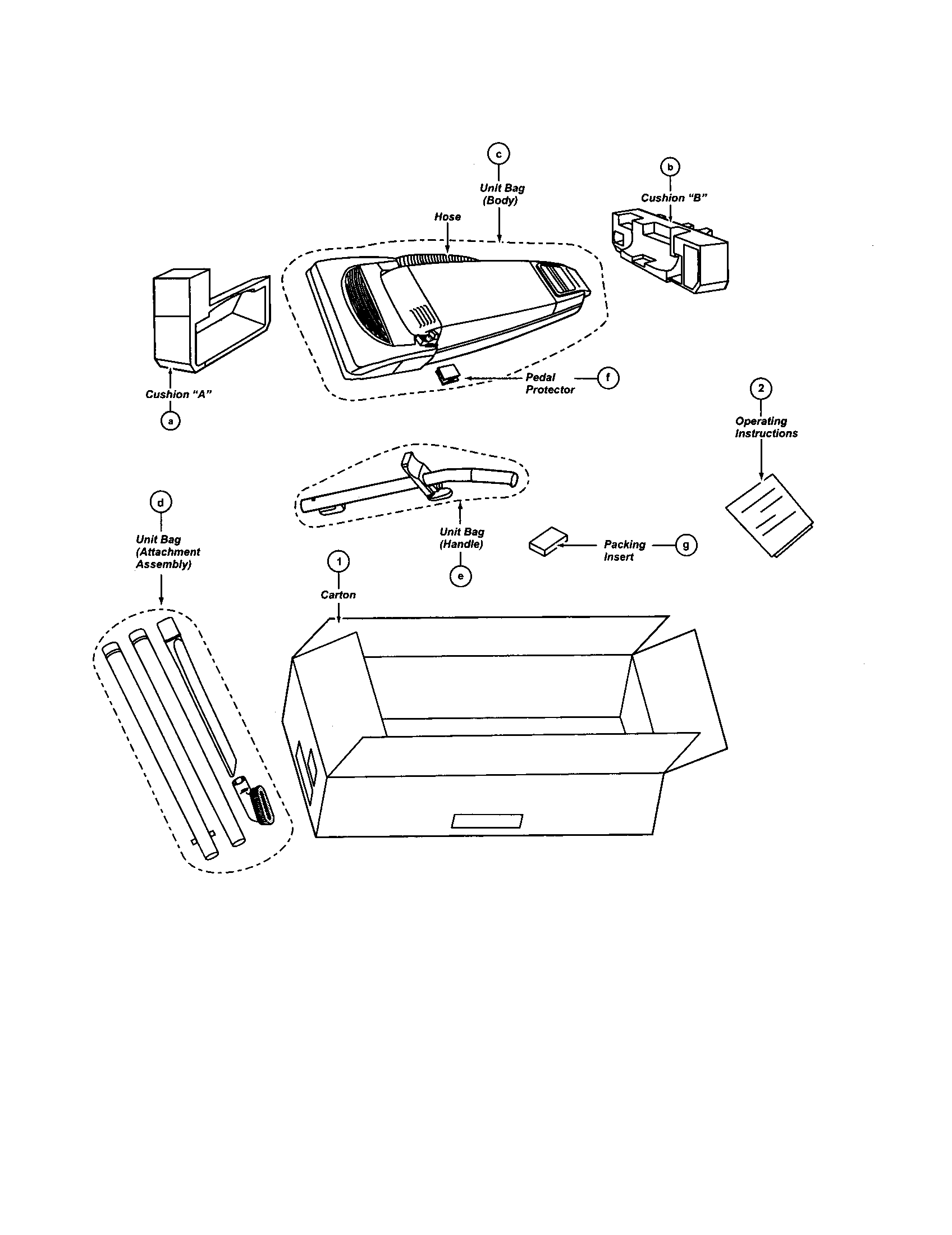

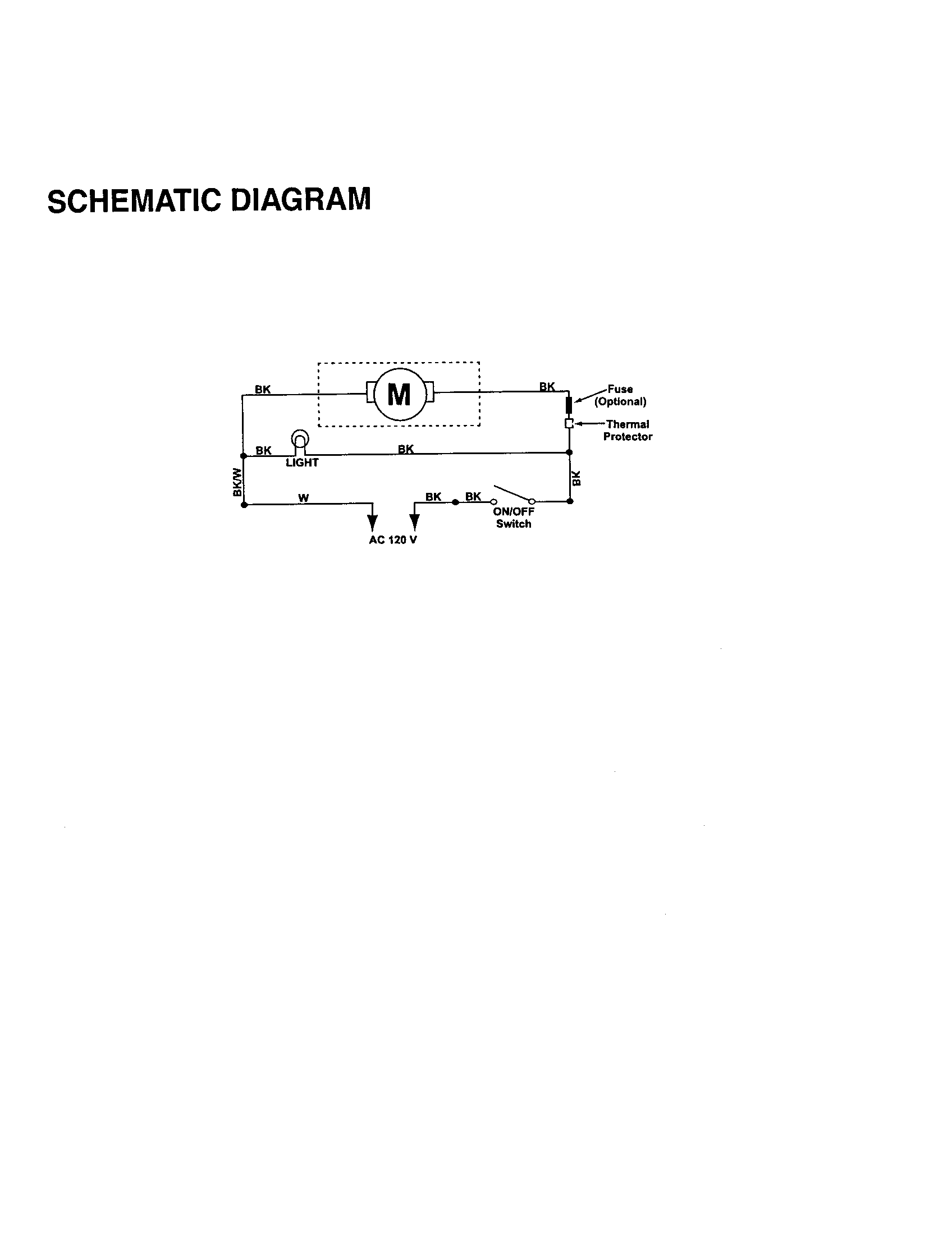

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Panasonic Pedal AMC47A-2V0U
#A-11

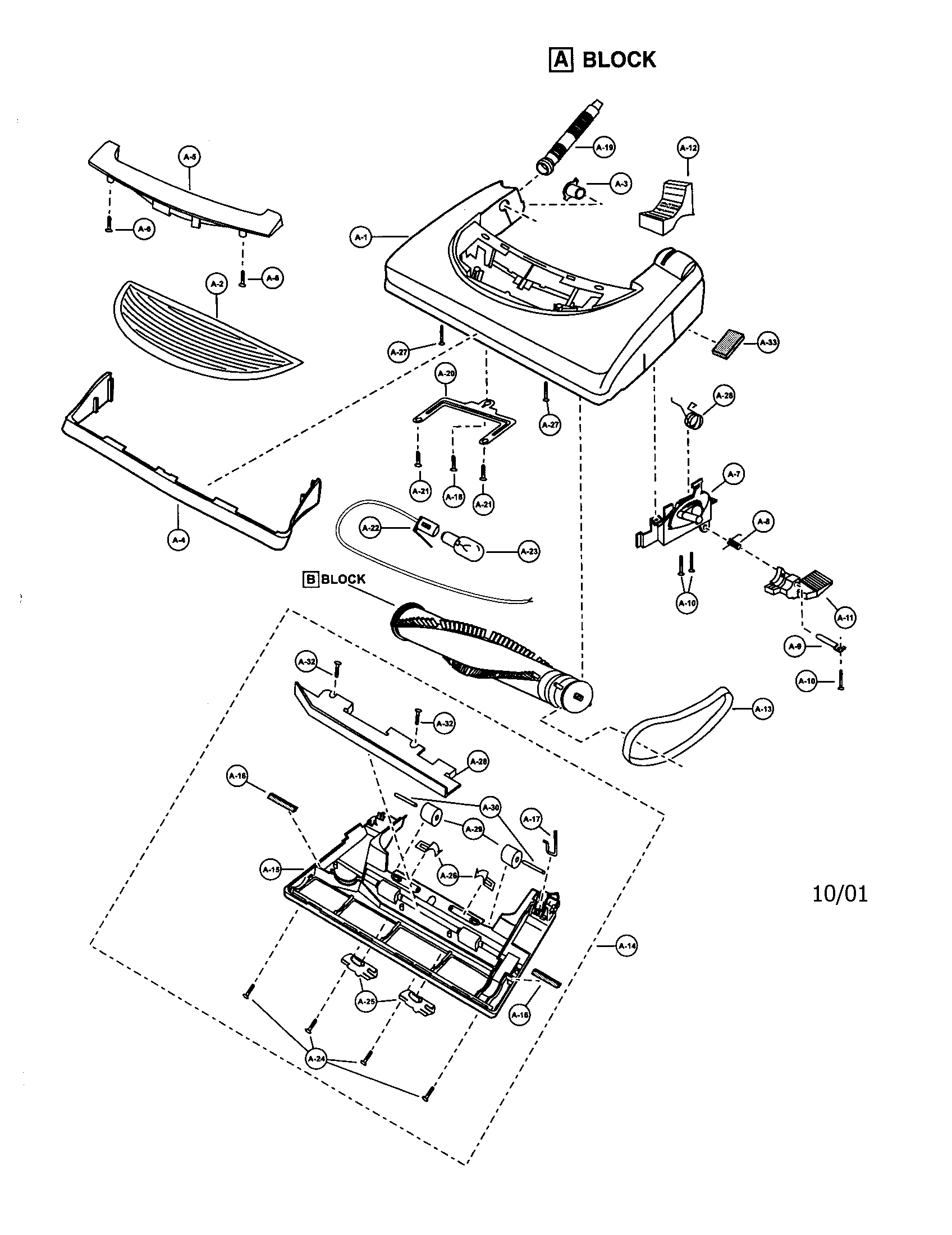

Nozzle housing diagram

Panasonic pedal

Part #AMC47A-2V0U

$8.99
In Stock
Panasonic Washer AXWG6E115FY
#C-18

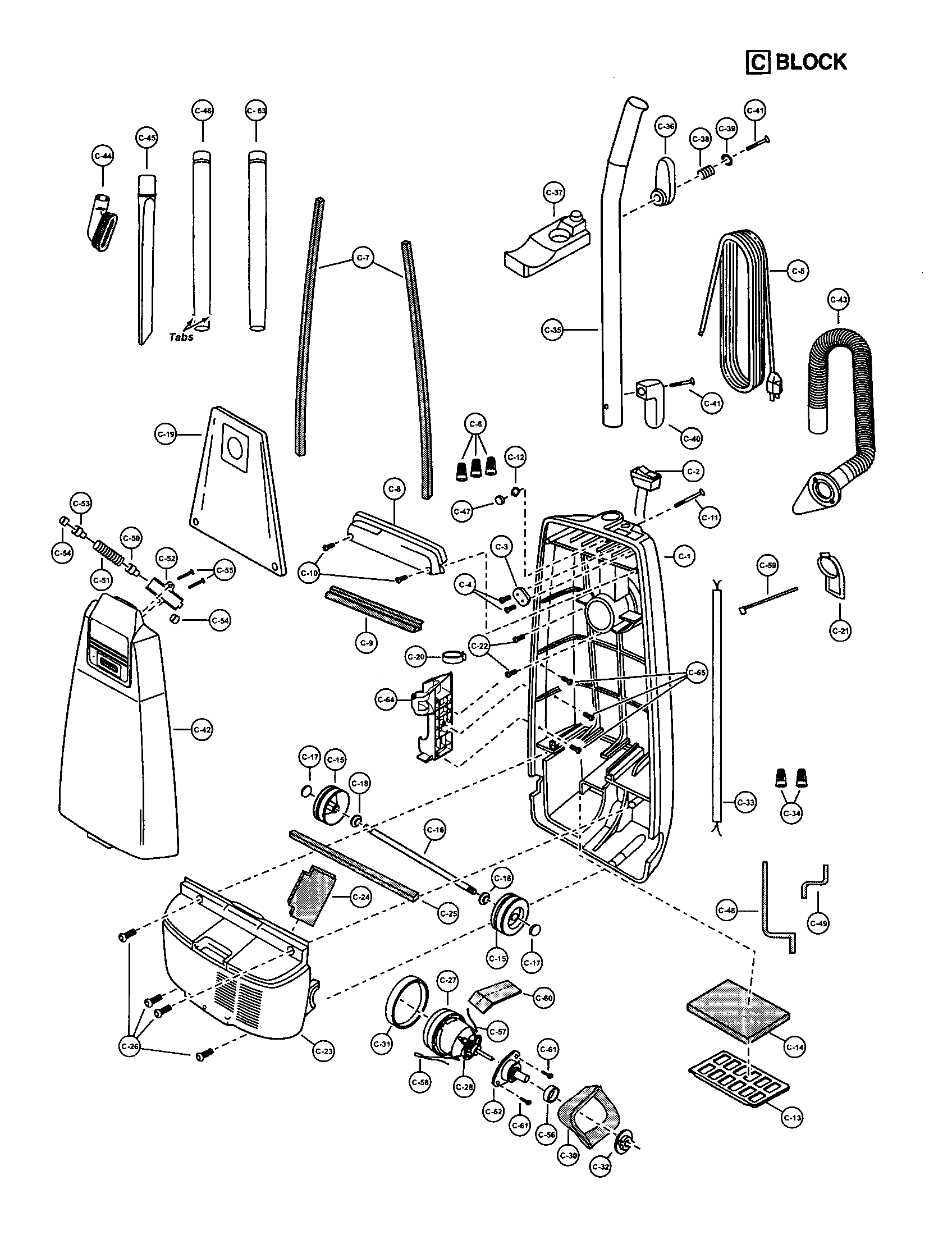

Body/motor housing/motor diagram

Panasonic washer

Part #AXWG6E115FY

$40.99
In Stock
Panasonic Connector AMC-1CTCE23
Panasonic connector

Part #AMC-1CTCE23

$47.49
In Stock
Panasonic Spring AC58AAFVZ00
#A-8

Nozzle housing diagram

Panasonic spring

Part #AC58AAFVZ00

$16.99
In Stock
Panasonic Holder AC84RJMZ00
#B-10

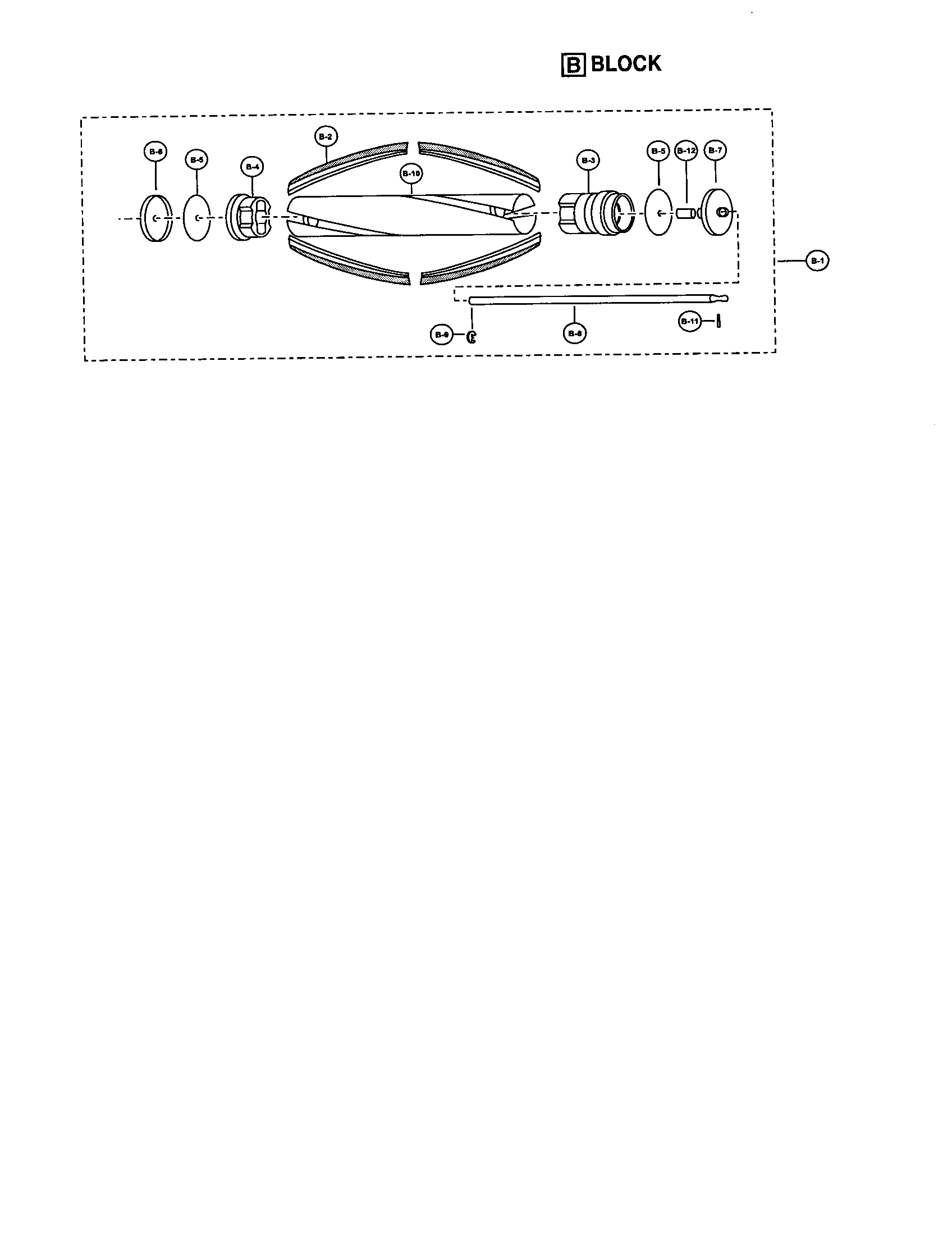

Agitator assembly diagram

Panasonic holder

Part #AC84RJMZ00

$77.99
In Stock
Panasonic Shaft AMC25S-V00
#A-3

Nozzle housing diagram

Panasonic shaft

Part #AMC25S-V00

This item is not returnable
$7.49
In Stock
Panasonic Cover AC24HAFVZU01
#A-5

Nozzle housing diagram

Panasonic cover

Part #AC24HAFVZU01

$31.99
In Stock
Panasonic Agitator AC92SATEZ00
#B-1

Agitator assembly diagram

Panasonic agitator

Part #AC92SATEZ00

$155.99
In Stock
Panasonic Wheel AC90QNGZV06
#A-29

Nozzle housing diagram

Panasonic wheel

Part #AC90QNGZV06

$19.99
In Stock
Panasonic Packing AC19FJPZV06
#C-25

Body/motor housing/motor diagram

Panasonic packing

Part #AC19FJPZV06

This item is not returnable
$5.99
In Stock
