Model #ZISS480NNBSS GE side-by-side refrigerator

Here are the diagrams and repair parts for GE ZISS480NNBSS side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

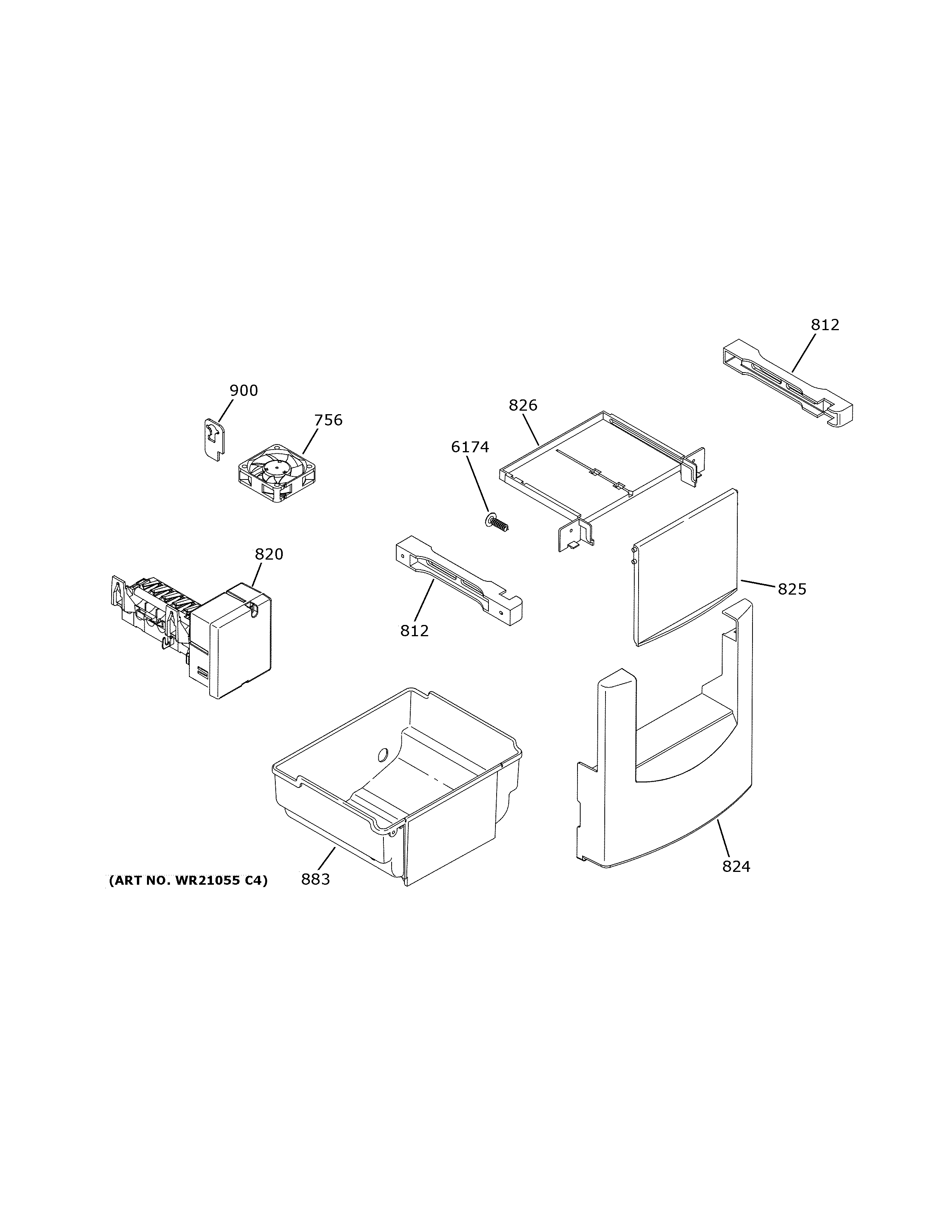

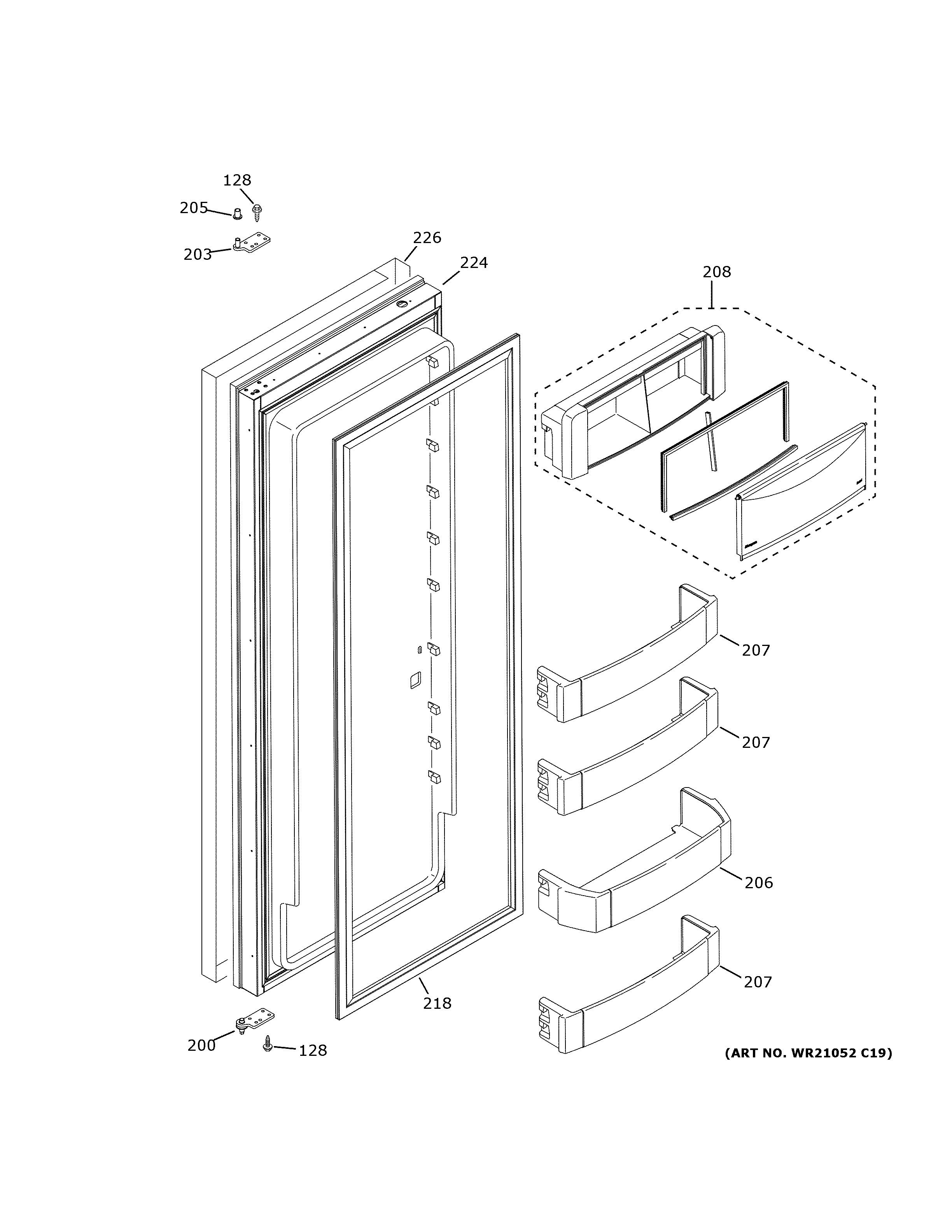

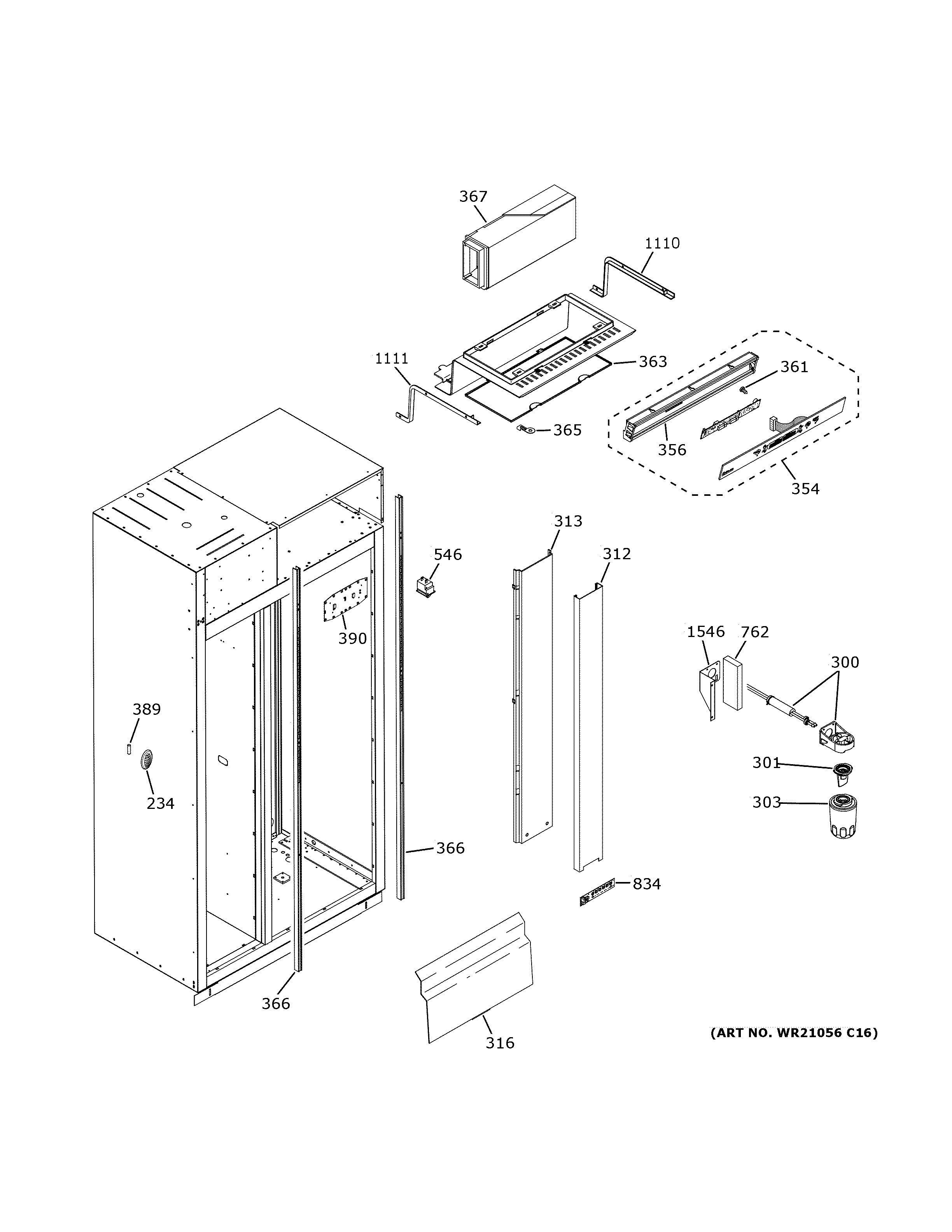

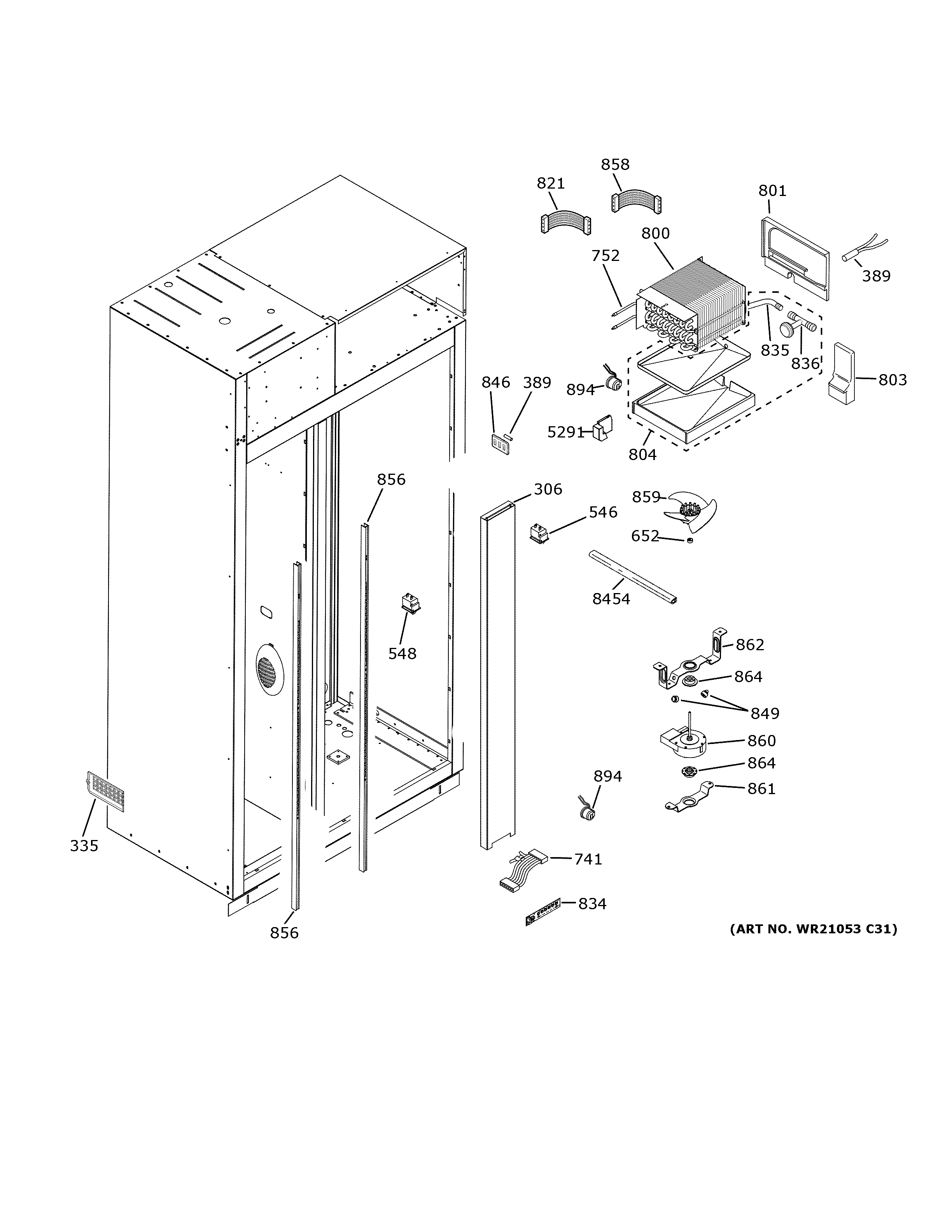

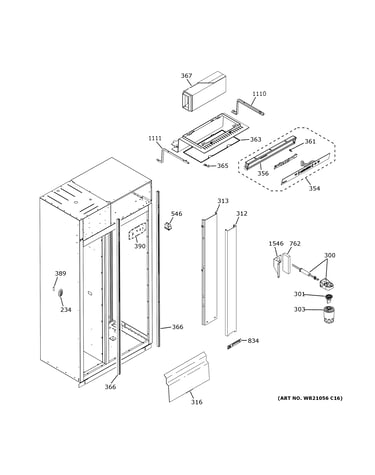

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 39 parts

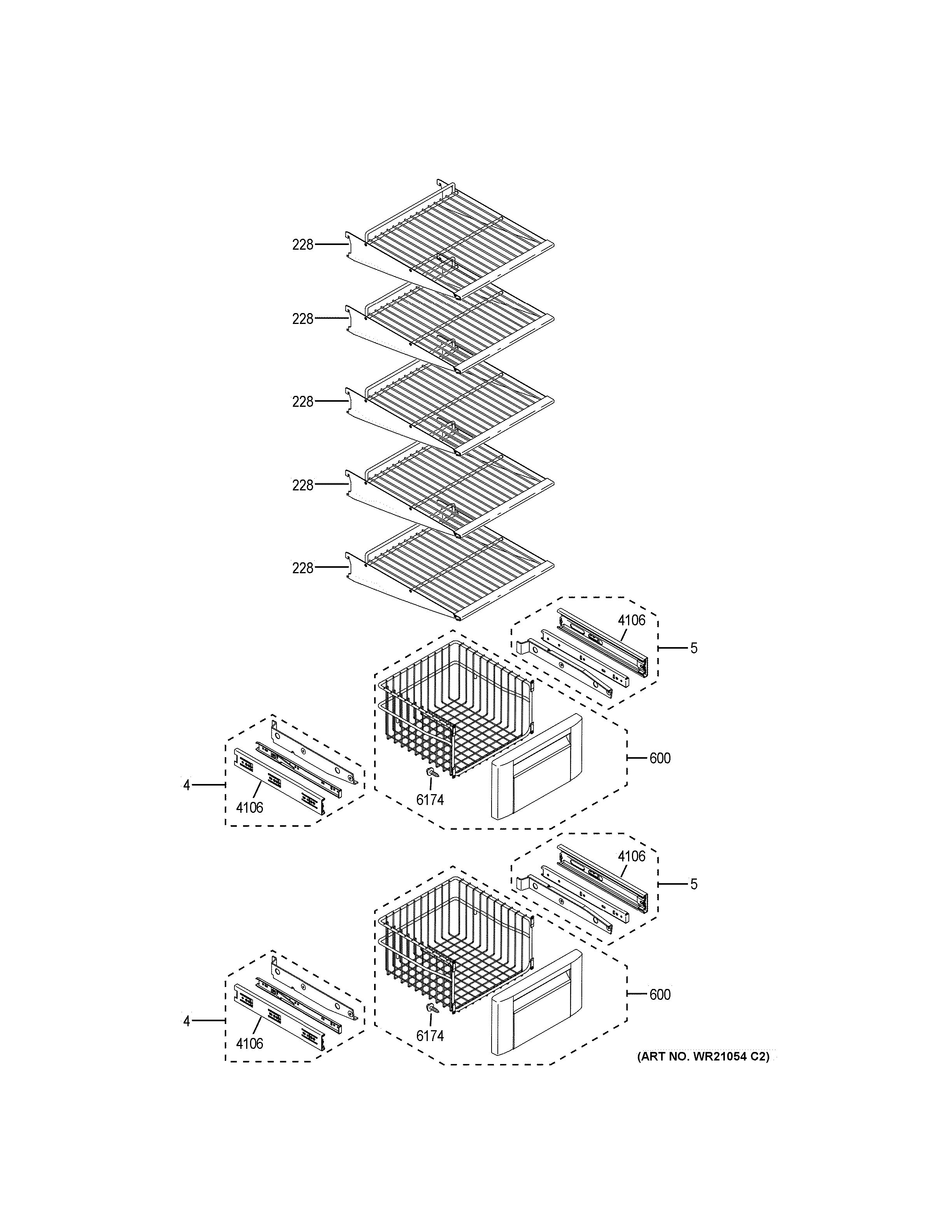

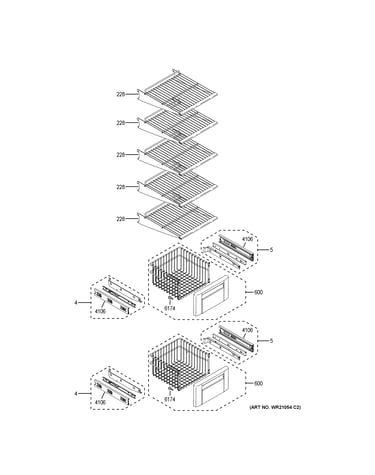

    Freezer Basket Bumper

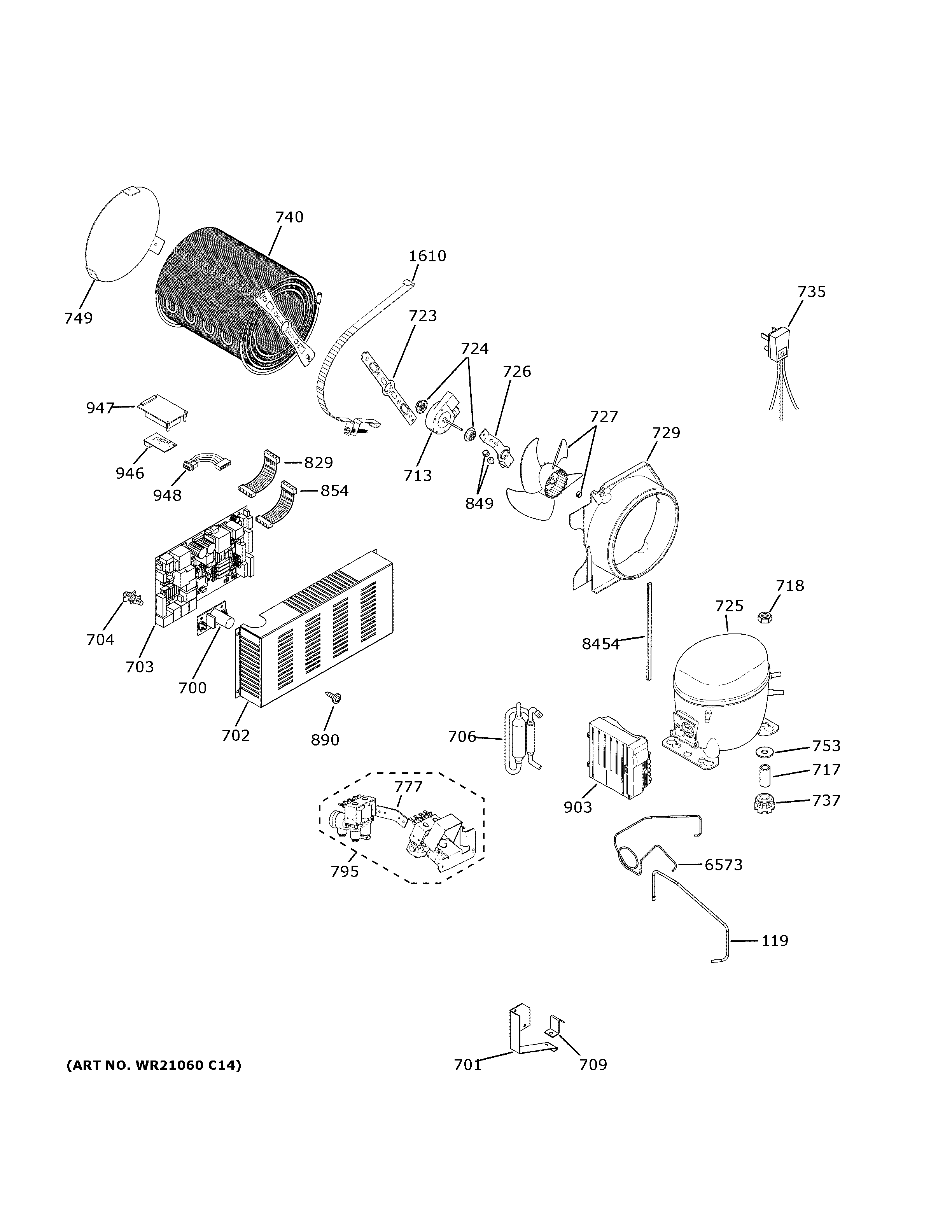

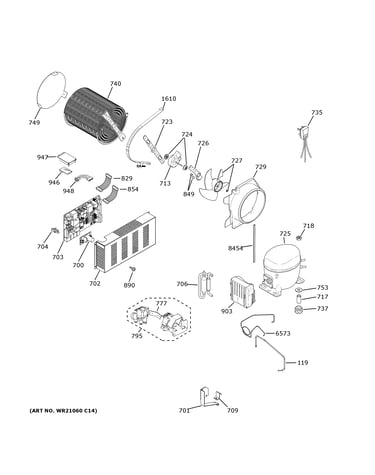

    Machine compartment Diagram

    Freezer basket bumper

    Part #WR02X10540
    This item is not returnable

    In Stock

    Refrigerator Freezer Statement Door Handle

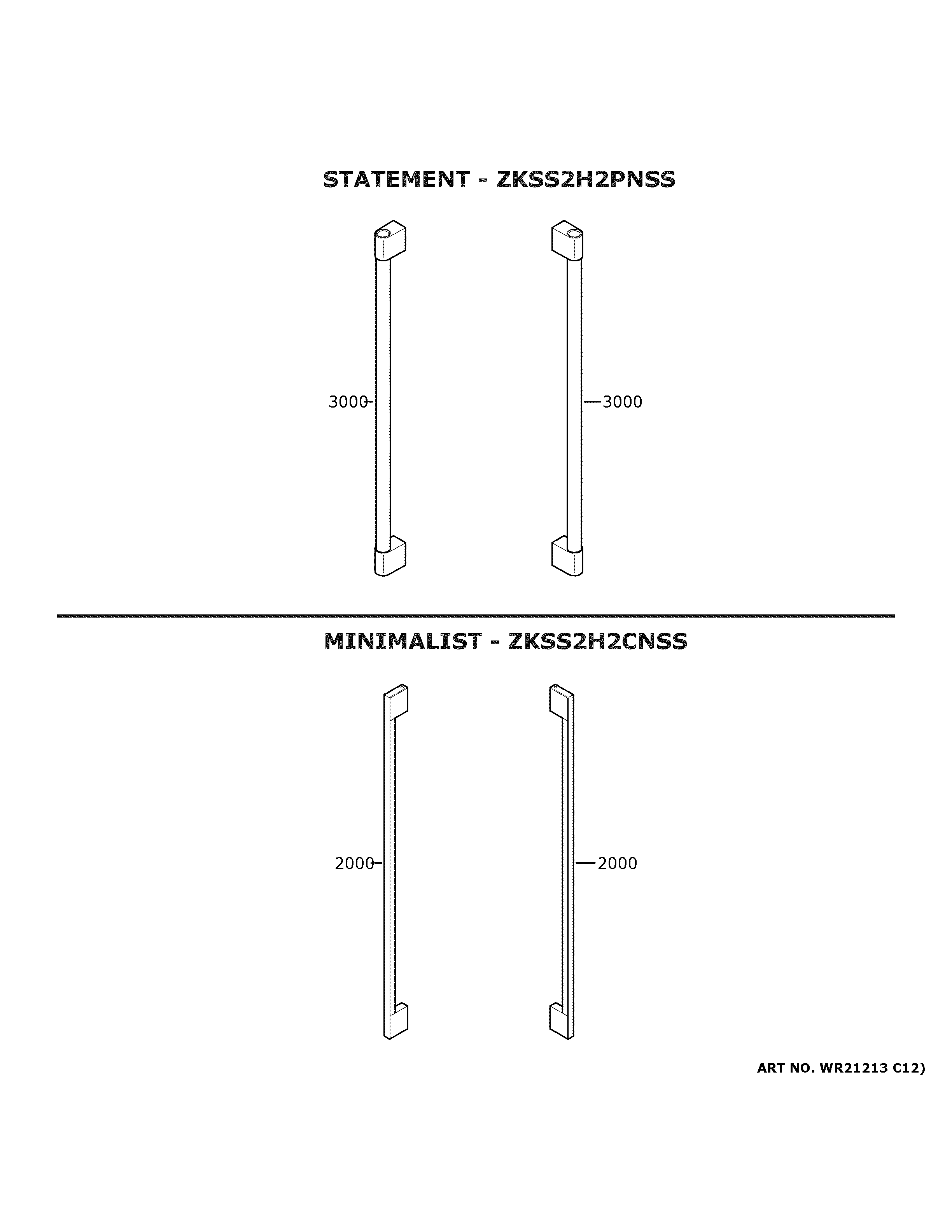

    Monogram customization Diagram


    In Stock

    Fz Bottom Hi

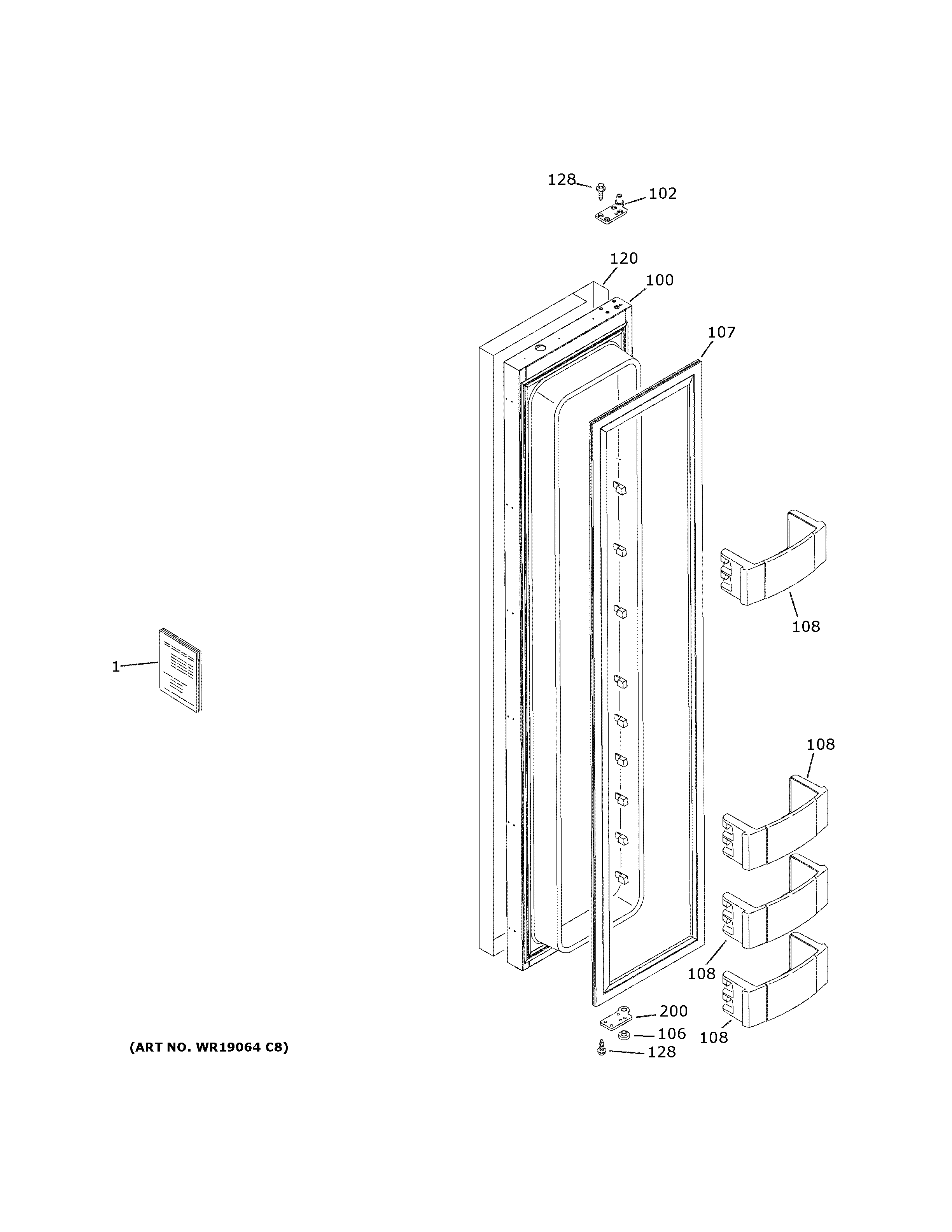

    Freezer door Diagram

    Fz bottom hi

    Part #WR01X10297

    In Stock



    Machine compartment Diagram

    Housing wifi

    Part #WR02X26794

    In Stock

    Cover Qc Dam

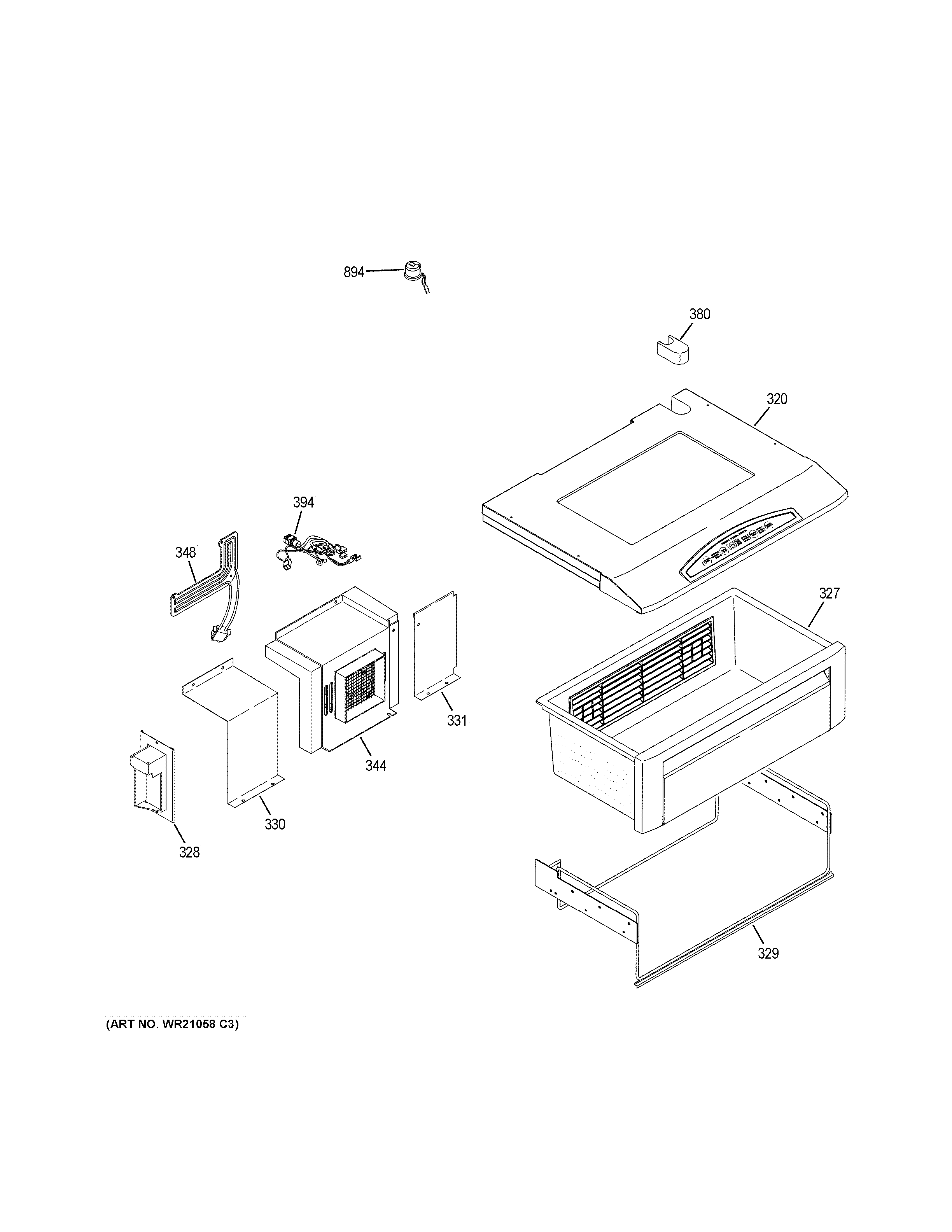

    Quick chill Diagram

    Cover qc dam

    Part #WR13X21087

    In Stock

    Hinge Case

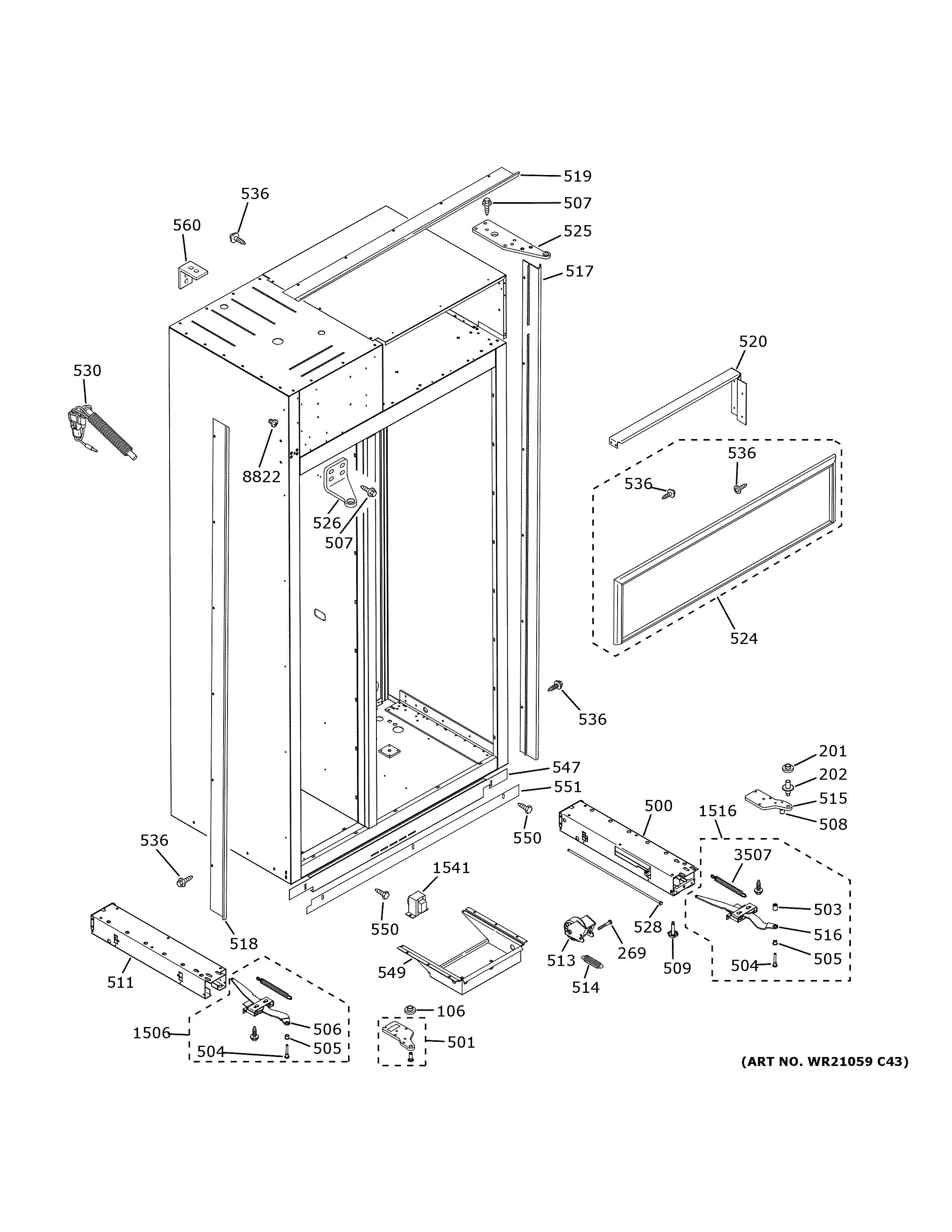

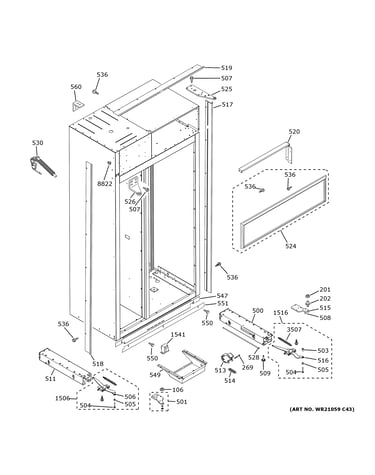

    Case parts Diagram

    Hinge case

    Part #WR13X23350

    In Stock

    Snack Pan Wi

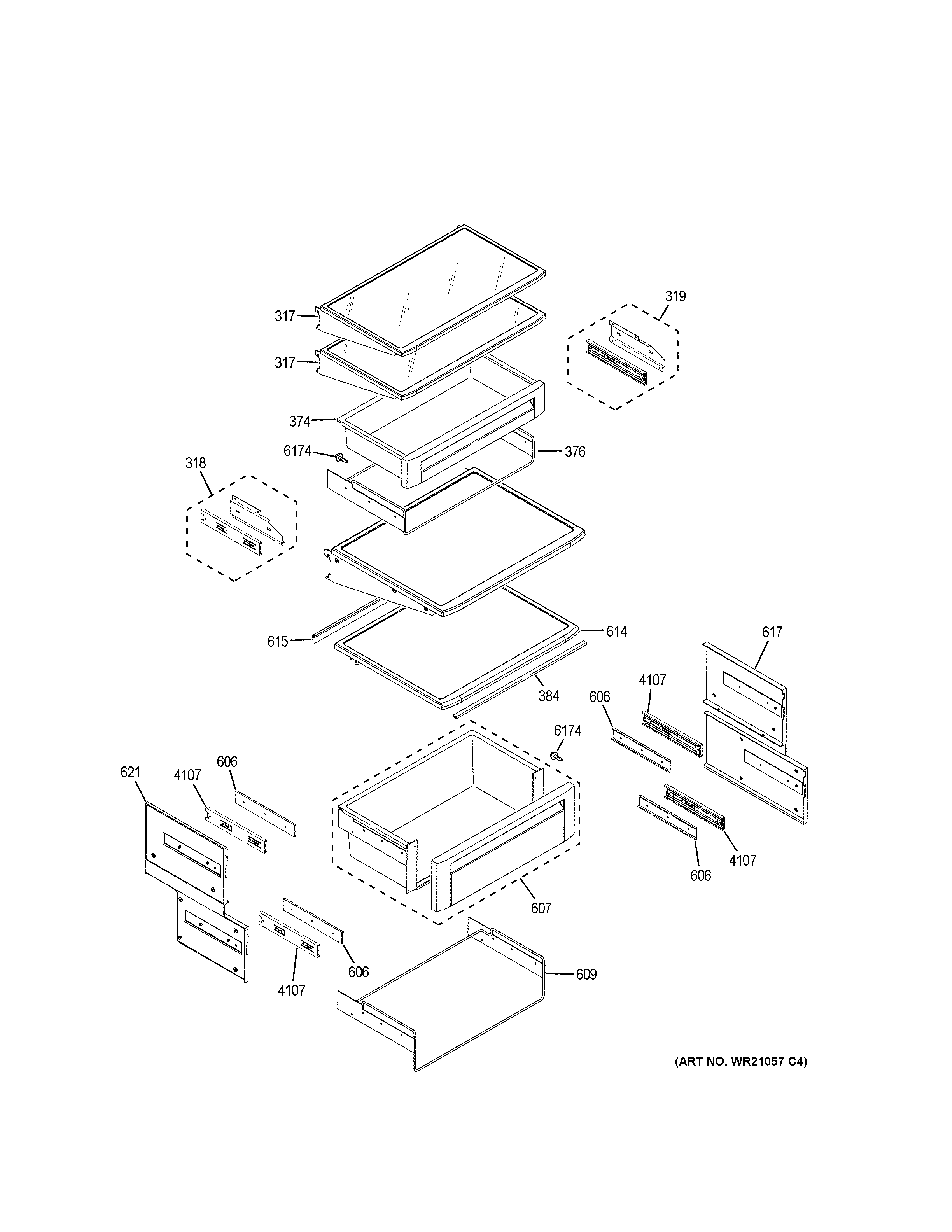

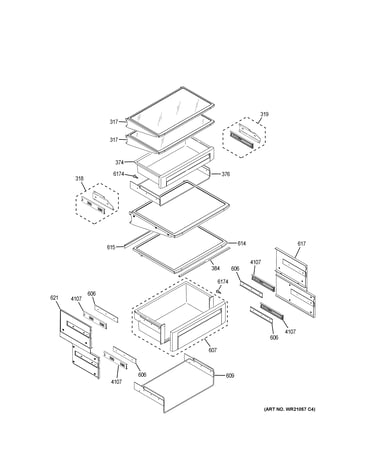

    Fresh food shelves Diagram

    Snack pan wi

    Part #WR02X12855

    In Stock

    Key Pivot


    Case parts Diagram

    Key pivot

    Part #WR01X10809
    This item is not returnable

    In Stock



    Case parts Diagram

    Trim case side ff cafe p

    Part #WR17X25863

    In Stock

    .393" To 5/1

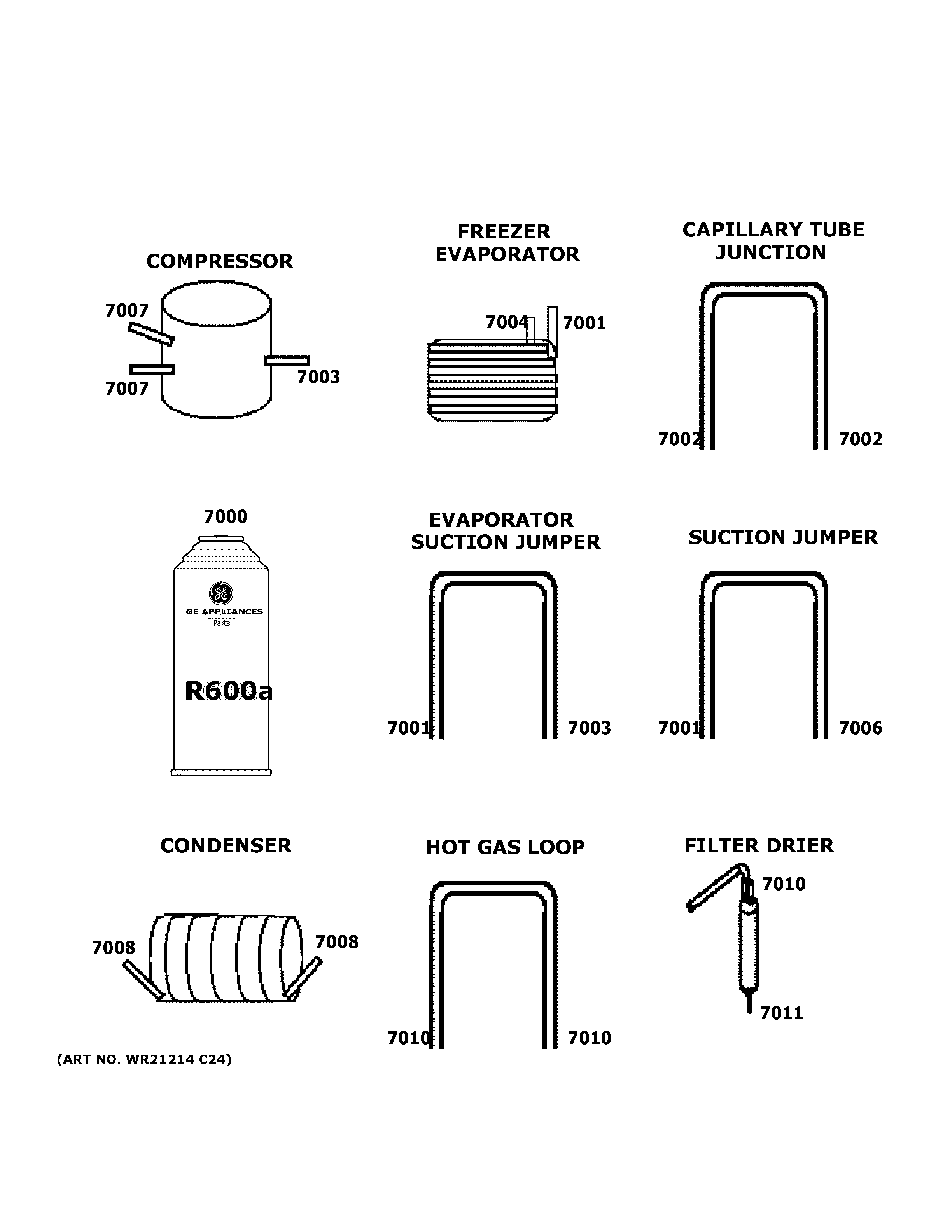

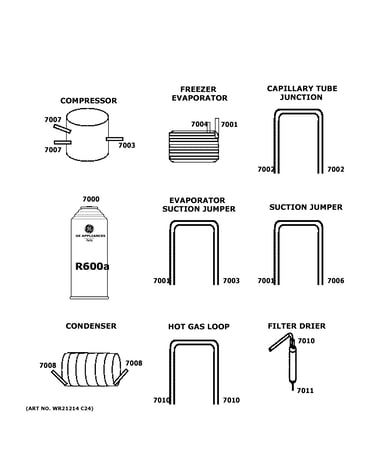

    Lokring connectors Diagram

    .393" to 5/1

    Part #WR97X10142

    In Stock
