Admiral
Top-Mount Refrigerator

Model #NT17E53GH/5D57A Official Admiral refrigerator

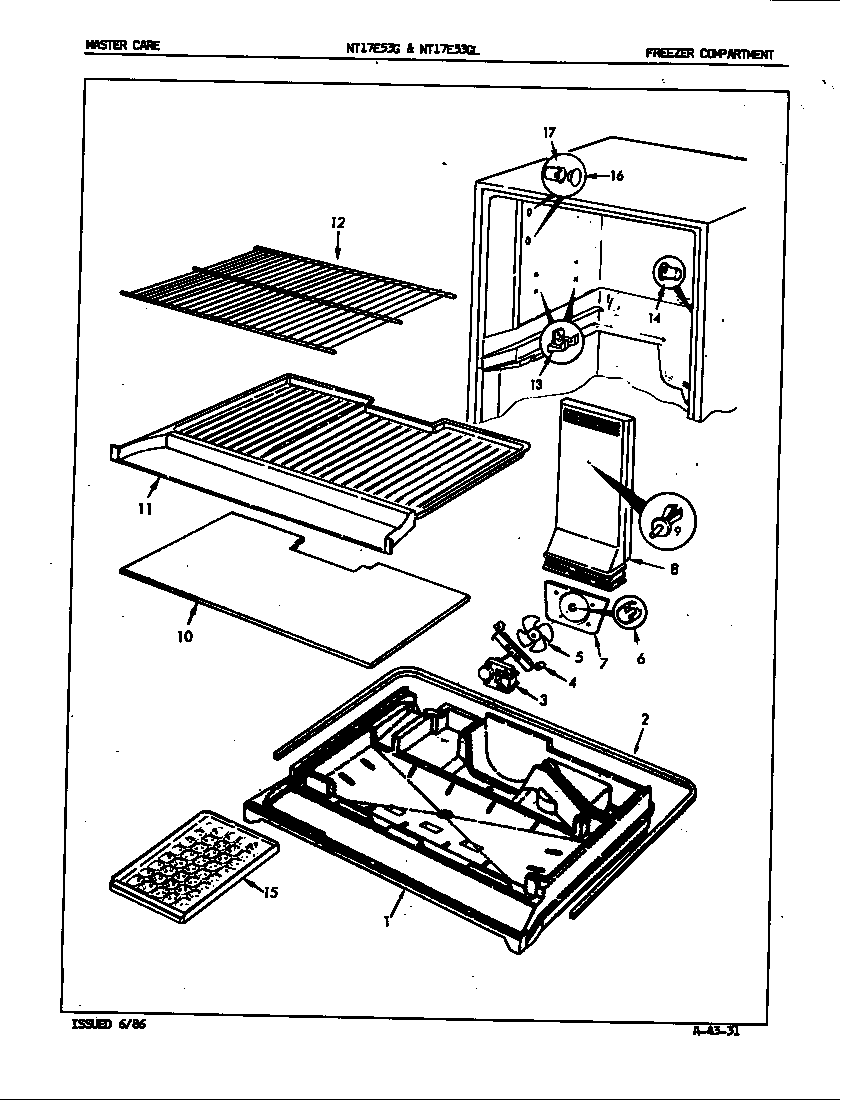

Here are the diagrams and repair parts for Admiral NT17E53GH-5D57A refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 137 parts

    Refrigerator Door Switch#23

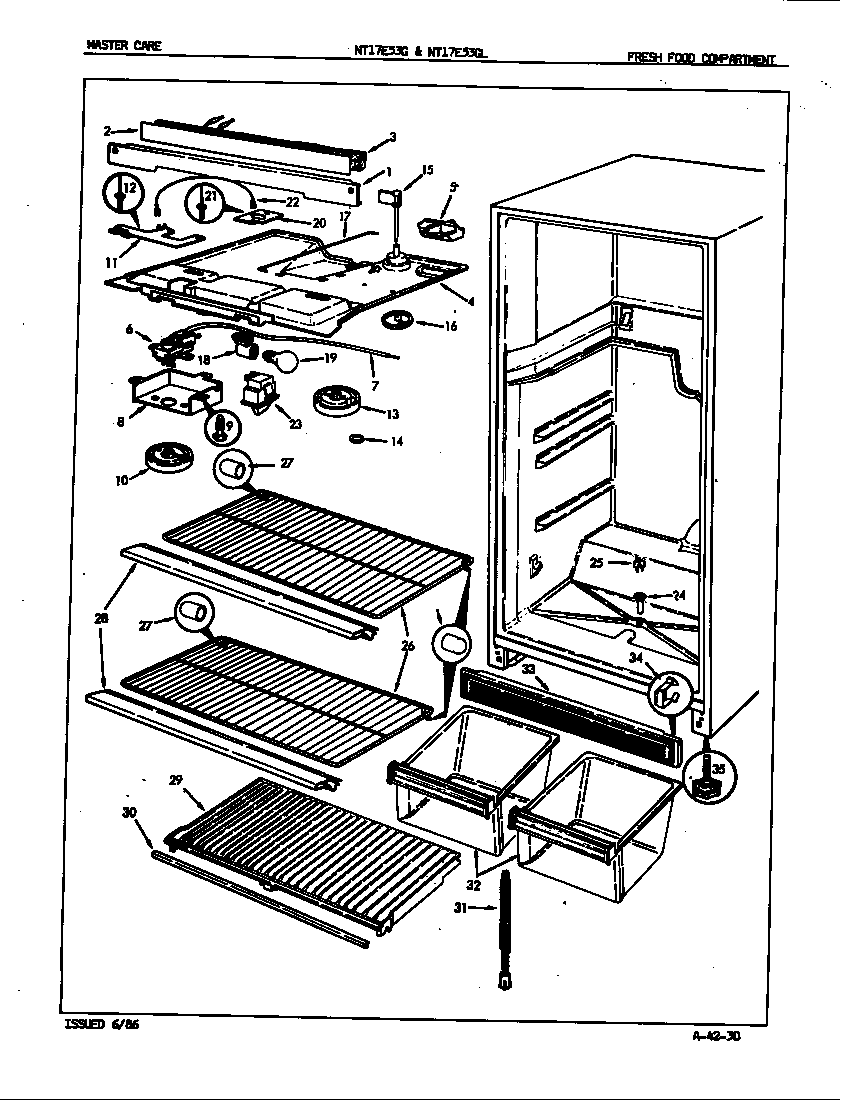

    Fresh food compartment Diagram

    Light switch

    Part #55732-1
    Replaced by #W11384469
    ?
    Manufacturer substitution
    This part replaces 55732-1. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.66 |
    19% OFF
    Phone Price: $26.66
    Refrigerator UV Filter Dryer#13

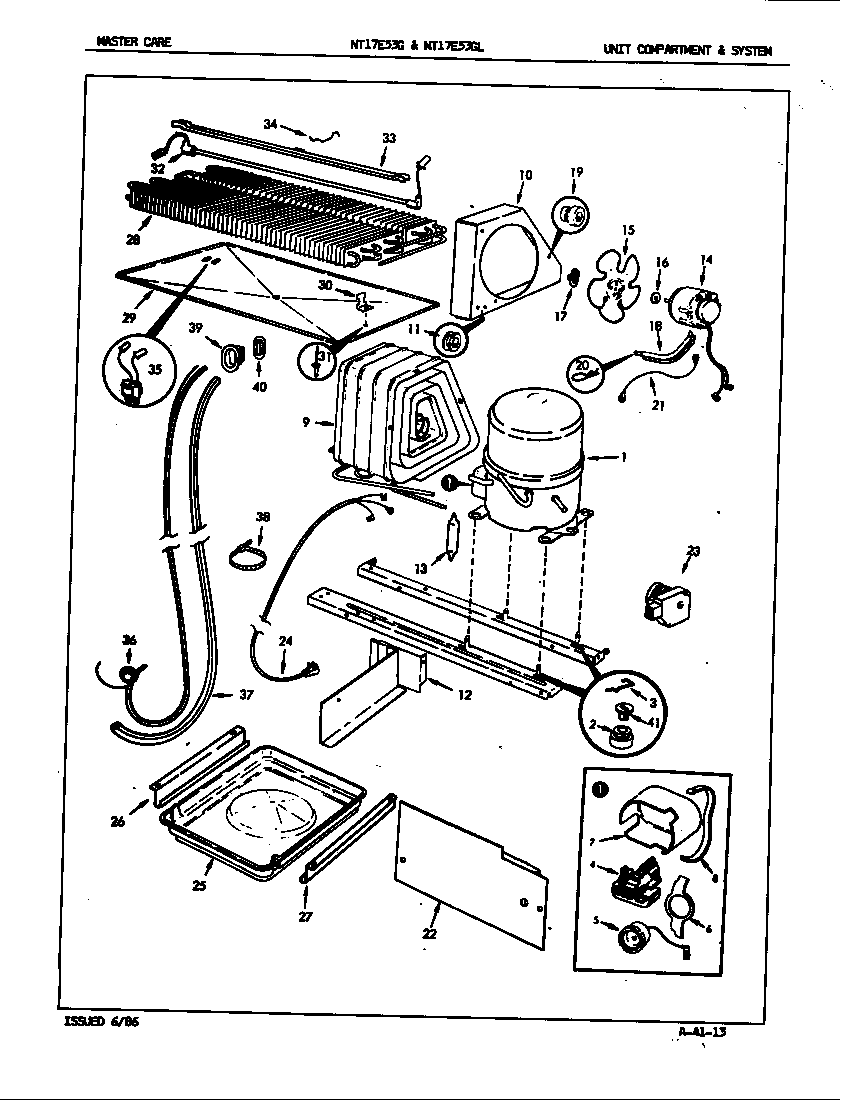

    Unit compartment & system Diagram

    Drier

    Part #13900
    Replaced by #WPW10143759
    ?
    Manufacturer substitution
    This part replaces 13900. Substitute parts can look different from the original.
    In Stock
    $23.19 |
    18% OFF
    Phone Price: $28.19
    Refrigerator Screw

    See All Related Diagrams

    Screw

    Part #400017-1
    Replaced by #WP489478
    ?
    Manufacturer substitution
    This part replaces 400017-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.39 |
    19% OFF
    Phone Price: $5.39
    Refrigerator Temperature Control Thermostat#6

    Fresh food compartment Diagram

    Refrigerator temperature control

    Part #52881-45
    Replaced by #WP68601-6
    ?
    Manufacturer substitution
    This part replaces 52881-45. Substitute parts can look different from the original.
    In Stock
    $129.37 |
    7% OFF
    Phone Price: $139.37
    Refrigerator Defrost Drain Pan#25

    Unit compartment & system Diagram

    Drain pan

    Part #29839-4
    Replaced by #WP68236-1
    ?
    Manufacturer substitution
    This part replaces 29839-4. Substitute parts can look different from the original.
    In Stock
    $99.49 |
    9% OFF
    Phone Price: $109.49
    Refrigerator Leveler#35

    Fresh food compartment Diagram

    Leveling leg

    Part #6012-8
    Replaced by #W11117769
    ?
    Manufacturer substitution
    This part replaces 6012-8. Substitute parts can look different from the original.
    In Stock
    $12.19 |
    14% OFF
    Phone Price: $14.19
    Refrigerator Defrost Bi-Metal Thermostat#35

    Unit compartment & system Diagram

    Refrigerator thermostat

    Part #52085-25
    Replaced by #WP52085-28
    ?
    Manufacturer substitution
    This part replaces 52085-25. Substitute parts can look different from the original.
    In Stock
    $60.29 |
    8% OFF
    Phone Price: $65.29
    Refrigerator Door Shelf Retainer Clip#23

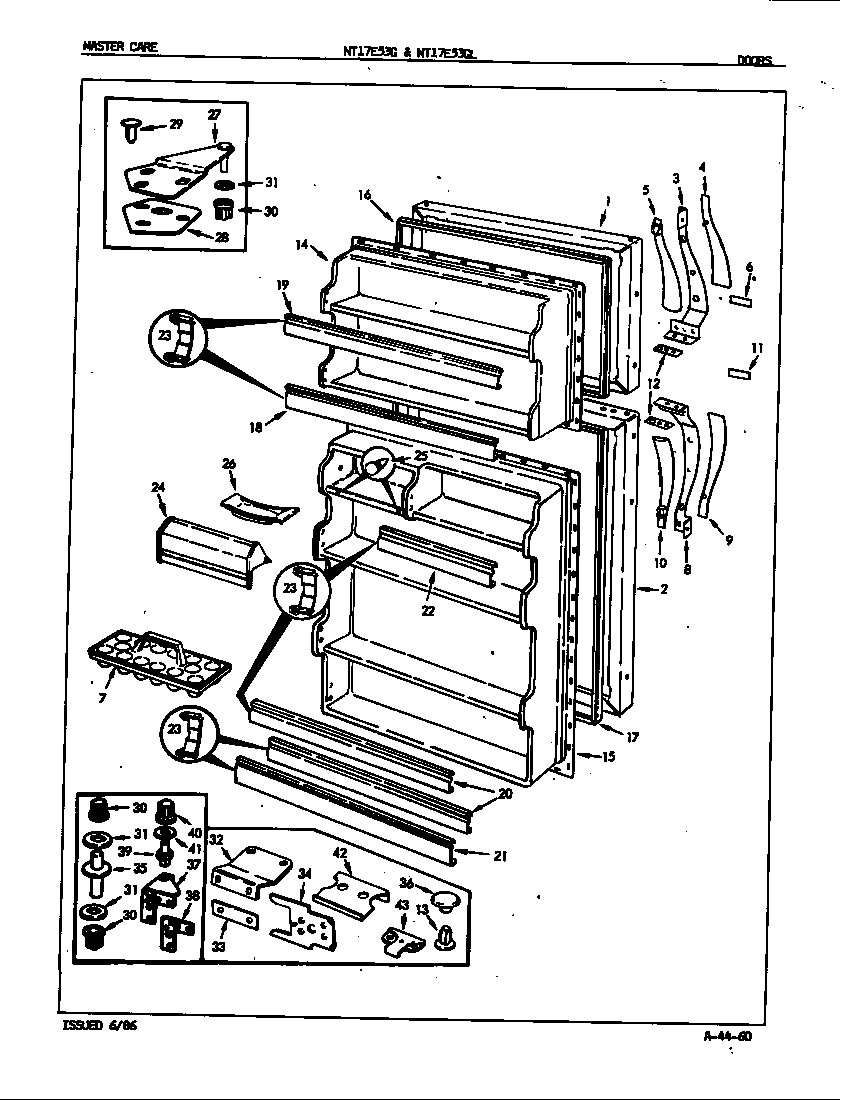

    Doors Diagram

    Refrigerator door shelf retainer clip

    Part #65245-1
    Replaced by #WP65245-1
    ?
    Manufacturer substitution
    This part replaces 65245-1. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.49 |
    12% OFF
    Phone Price: $8.49
    Refrigerator Freezer Door Gasket (White)#16

    Doors Diagram

    Refrigerator door gasket

    Part #60462-3
    Replaced by #WP70047-2
    ?
    Manufacturer substitution
    This part replaces 60462-3. Substitute parts can look different from the original.
    In Stock
    $108.69 |
    9% OFF
    MSRP: $120.00
    Appliance Nut#17

    Unit compartment & system Diagram

    Refrigerator condenser fan motor mounting clip

    Part #19914-0
    Replaced by #WP486692
    ?
    Manufacturer substitution
    This part replaces 19914-0. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.49 |
    13% OFF
    Phone Price: $7.49

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
