Gas Walk-Behind Mower

Model # 917377230 Official Husqvarna lawn mower

Here are the diagrams and repair parts for Official Husqvarna 917377230 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |

Lawn Mower Blade 406712
#31

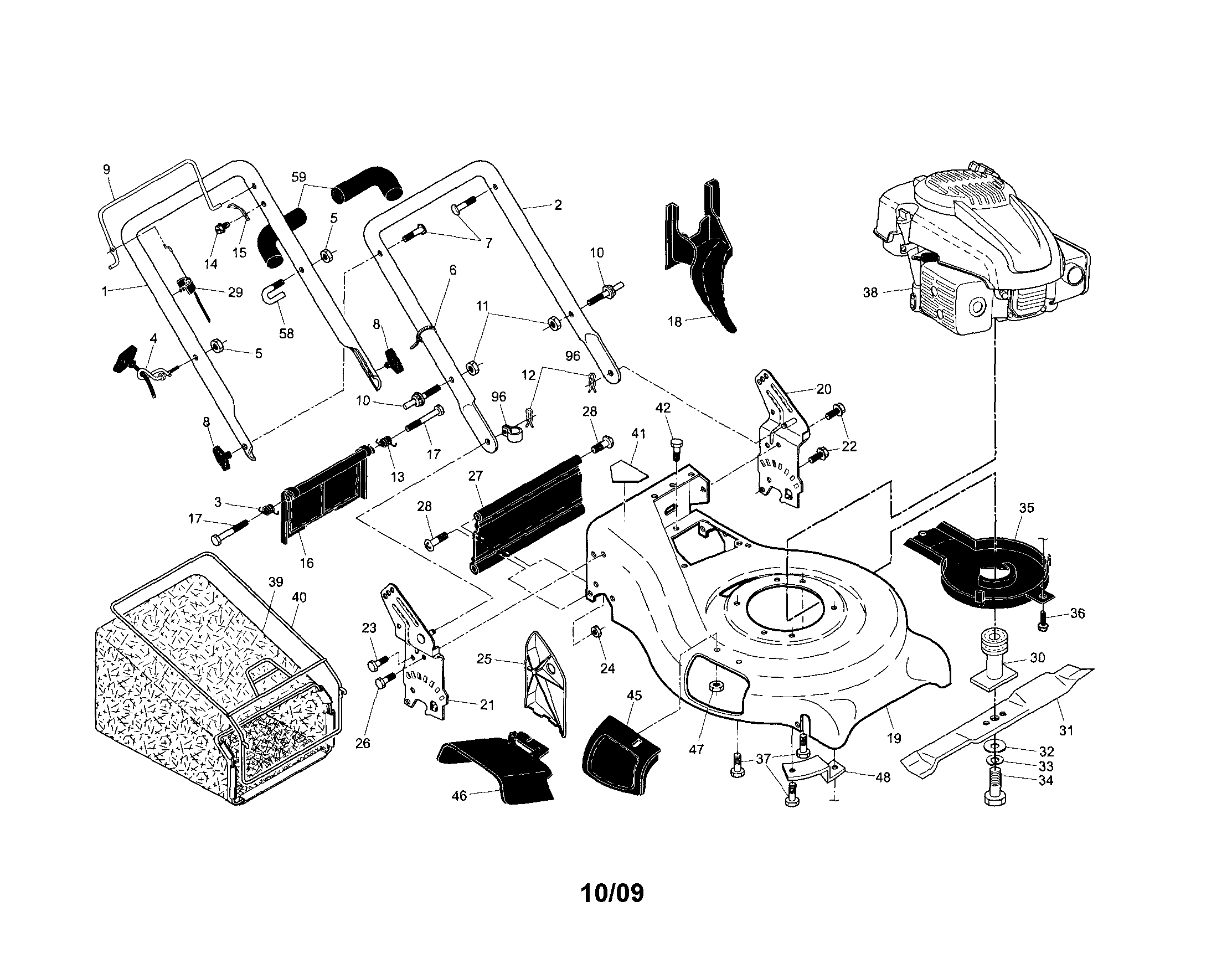

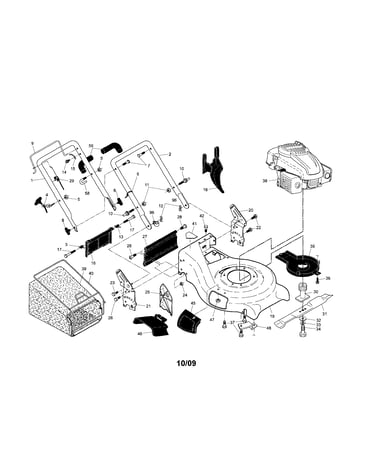

Engine/housing/handle diagram

Lawn mower blade

Part #406712

Replaced by #532406712

?
Manufacturer substitution
This part replaces 406712. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13
21% OFF Phone Price : $28.13
In Stock
Handle Bolt 191574
#7

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98
11% OFF Phone Price : $8.98
In Stock
Lock Nut 73800500
#24

Engine/housing/handle diagram

Lock nut

Part #73800500

Replaced by #596040501

?
Manufacturer substitution
This part replaces 73800500. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Drive Pawl 404845
#31

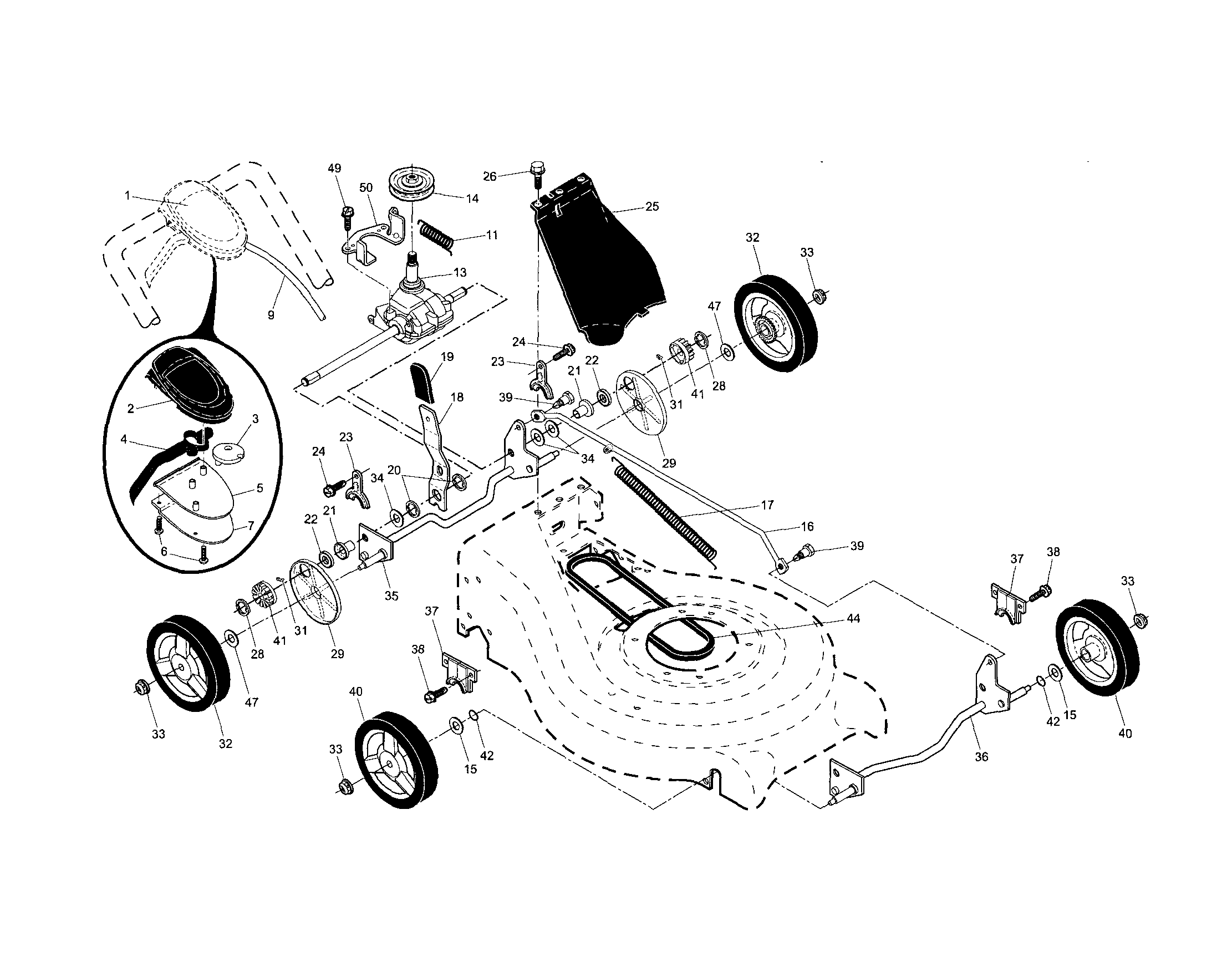

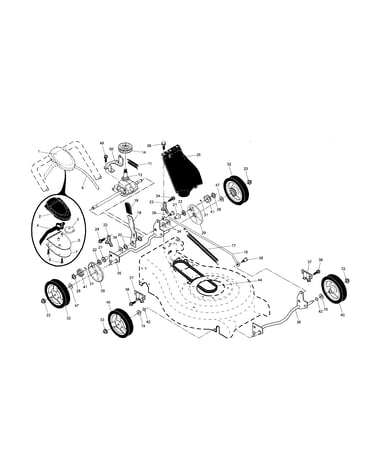

Drive control/gear case/wheels diagram

Drive pawl

Part #404845

Replaced by #532404845

?
Manufacturer substitution
This part replaces 404845. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64
13% OFF Phone Price : $7.64
In Stock
Return Spring 406558
#11

Drive control/gear case/wheels diagram

Return spring

Part #406558

Replaced by #532406558

?
Manufacturer substitution
This part replaces 406558. Substitute parts can look different from the original.
BEST SELLER
$9.31
10% OFF Phone Price : $10.31
In Stock
Nut 132004
#5

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64
27% OFF Phone Price : $3.64
In Stock
Guide.rope.s 194788
#4

Engine/housing/handle diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59
11% OFF Phone Price : $17.59
In Stock
Belt.rgd.vs 406580
#44

Drive control/gear case/wheels diagram

Belt.rgd.vs

Part #406580

Replaced by #532406580

?
Manufacturer substitution
This part replaces 406580. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$27.49
18% OFF Phone Price : $33.49
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Drive control/gear case/wheels diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lawn Mower Wheel 401273X460
#40

Drive control/gear case/wheels diagram

Lawn mower wheel

Part #401273X460

Replaced by #532401273

?
Manufacturer substitution
This part replaces 401273X460. Substitute parts can look different from the original.
This item is not returnable
$29.98
17% OFF Phone Price : $35.98
In Stock
