Kenmore Elite 79574032412 refrigerator Parts

On Kenmore Elite model 79574032412, the model number is typically printed on a rating label inside the fresh food compartment or freezer area. Common spots include the inside wall, the door frame, behind the crisper drawers, or near the lower kick plate; confirm the exact label location in the owner's manual.

Most common places to check

• Inside the refrigerator compartment on a side wall (often near the top)
• On the door frame (open the right door and check the vertical frame)
• Behind or just above the lower crisper drawers (look on the back wall)
• Inside the freezer compartment on an interior wall
• Behind the lower kick plate or toe grille (front bottom area)

What the label looks like

The rating label usually includes:

• Model number (for example, 79574032412)
• Serial number
• Electrical ratings (volts/amps)
• Refrigerant information

Quick tips to find it faster

• Use a flashlight and look for a white or silver sticker
• Wipe dust or condensation off the surface so the print is readable
• Check both compartments; some bottom-mount designs place the label in the fresh food section

Why it matters

We use the model number to match the correct Kenmore parts and diagrams for your refrigerator, especially for fit-critical items like a water filter, ice maker, or control board.

Model vs. serial number (what to write down)

Item	What it tells us	Example format
Model number	Which design and parts list to use	79574032412
Serial number	Production run and date details	Letters and numbers

You can also search parts by model number on Sears PartsDirect.

Last updated: February 2026

Kenmore Elite refrigerators like model 79574032412 typically last 10 to 15 years with normal household use. Consistent maintenance (cleaning coils, keeping door seals tight, and changing filters on schedule) helps you reach the upper end of that range; major sealed-system failures often drive replacement decisions.

Typical lifespan and what affects it

Most of the life of a bottom-mount refrigerator comes down to heat management, airflow, and how hard the sealed system has to work.

• Condenser cleanliness: Dusty coils make the compressor run hotter and longer.
• Door gasket condition: Air leaks cause longer run times and temperature swings.
• Room conditions: Hot garages and tight built-ins shorten life by trapping heat.
• Ice and water system upkeep: Clogs and leaks add stress and can cause damage.
• Defrost performance: Frost buildup reduces airflow and cooling efficiency.

Maintenance that extends life (high impact)

Use these habits to keep your Kenmore Elite 79574032412 running efficiently.

• Vacuum and brush the condenser area regularly.
• Keep vents inside the fresh food section and freezer unblocked.
• Set stable temps (most homes do well around 37°F fridge and 0°F freezer).
• Replace the water filter on schedule; see the owner's manual.
• If you have slow water flow or no ice, inspect the inlet valve and supply line.

Repair vs. replace: a practical guide

When a refrigerator is past the midpoint of its lifespan, the type of failure matters as much as the cost.

Issue type	Common examples	Typical decision driver
Maintenance/consumable	Water filter, minor leaks, door alignment	Usually worth fixing
Cooling airflow	Frost buildup, fan or sensor issues	Often worth fixing
Sealed system	Compressor, refrigerant valve, major cooling loss	Cost can outweigh value

If you are troubleshooting cooling or ice issues, having the right replacement part on hand can speed up the repair. For example, this model uses a refrigerator water filter option like genuine Kenmore refrigerator water filter 9690 AGF80300801.

Why it matters

A refrigerator that is running inefficiently can still “work,” but it typically runs longer, warms food more often during door openings, and puts extra wear on the compressor and evaporator system. Preventive maintenance protects food safety and helps avoid expensive breakdowns.

For replacement parts and model-specific diagrams, order from the parts list for model 79574032412 or search by model on Sears PartsDirect.

Last updated: February 2026

If your Kenmore Elite refrigerator model 79574032412 is warm at the bottom, the most common causes are restricted airflow (blocked vents or overpacked shelves), dirty condenser coils, or a cooling system issue that is preventing cold air from circulating properly. Use the checks below, then confirm control settings in the owner's manual.

Quick checks we recommend first

• Make sure food packages are not blocking air vents; move high-moisture items away from vents.
• Reduce door opening frequency and duration; warm, humid air quickly raises compartment temperature.
• Confirm doors close fully and seal tightly; a door that does not close correctly causes warm spots.
• Adjust the temperature control one increment at a time, then wait for temperatures to stabilize.
• If the unit just finished a defrost cycle, wait about 30 minutes and recheck temperatures.
• Clean dust and pet hair from the condenser area (typically bottom or rear) to improve heat release.

What to check based on the symptom

What you notice	Likely cause	What to do next
Top feels cooler, bottom is warm	Airflow blocked or fan/air channel issue	Clear vents, avoid overpacking, listen for internal fan airflow
Whole fridge is warm	Control setting, door sealing, heavy use	Adjust control gradually; limit door openings; verify door closure
Temps swing up and down	Normal defrost cycle or frequent door openings	Wait 30 minutes after defrost; reduce door-open time
Cooling is weak and runs a lot	Dirty condenser coil	Clean the coil area; restore airflow around the cabinet

When a part is commonly involved

If airflow and settings look good but the bottom still will not cool, a failed component in the cooling system can be involved. Two common items to inspect or test are:

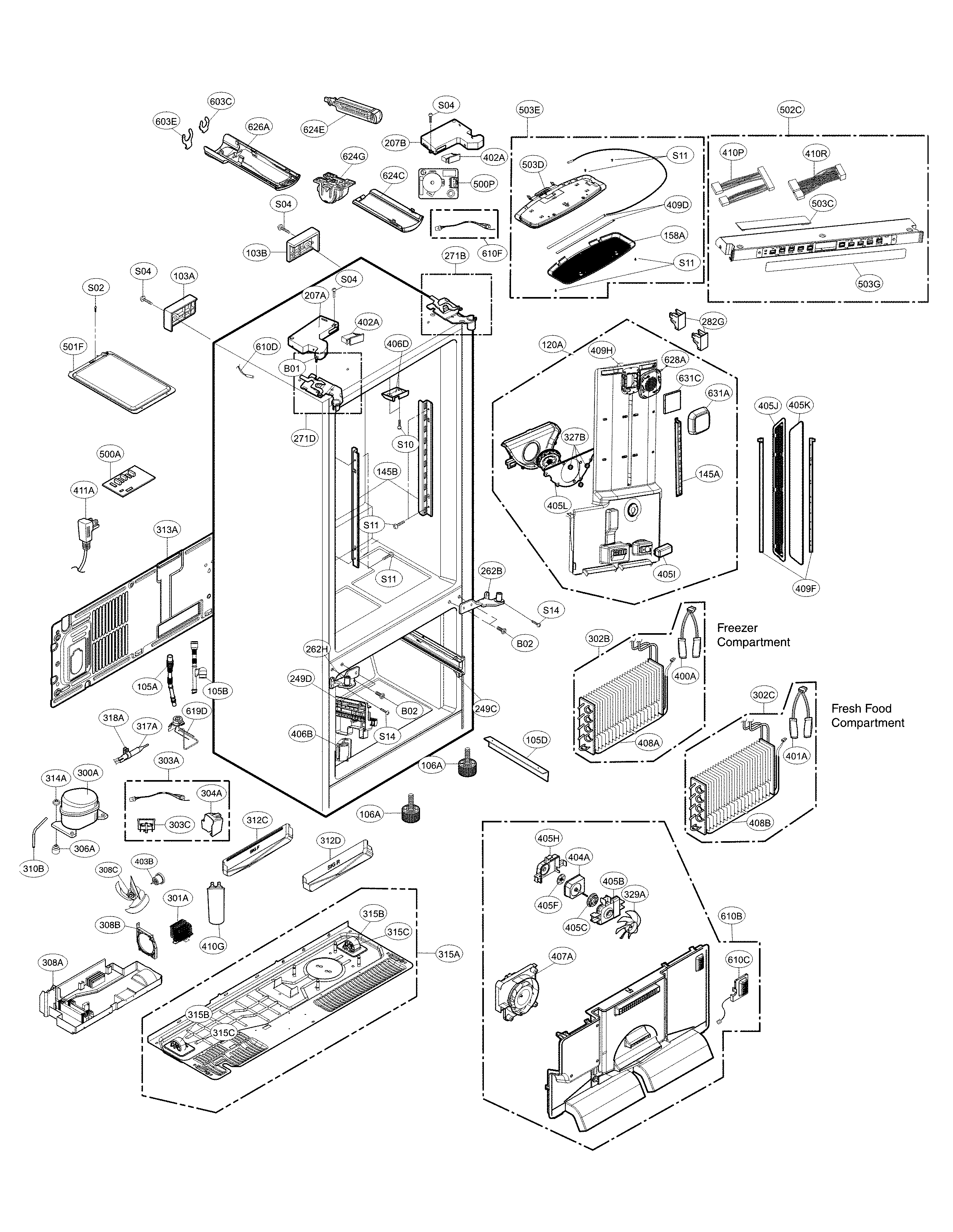

• Refrigerator condenser coil ACG73645004 (heat removal; heavy dust buildup can mimic a failure)
• Refrigerator evaporator ADL73341411 (cooling surface; frost or airflow restriction can reduce cooling)

Why it matters

Bottom-warm conditions usually mean cold air is not circulating correctly. Fixing airflow, door sealing, and condenser cleanliness helps the compressor run less, protects food quality, and prevents temperature swings that can lead to spoilage.

For model-specific control guidance and troubleshooting steps, follow the temperature and door-closure recommendations in the owner's manual. You can also order model-matched replacement parts from the parts list for 79574032412 or search by model on Sears PartsDirect.

Last updated: February 2026

Common problems on the Kenmore Elite 79574032412 bottom-mount refrigerator include warm temperatures from restricted airflow, frost buildup from defrost issues, unusual fan noises, and water or ice dispenser troubles. We use the troubleshooting steps in the owner's manual to narrow the cause before replacing parts.

Most common symptoms and what usually causes them

• Not cooling or weak cooling: dirty condenser coil, evaporator fan airflow problem, sealed system or compressor issue
• Frost buildup on the back wall or in the freezer: defrost sensor or defrost system problem that blocks airflow
• Loud humming, rattling, or buzzing: condenser fan area debris, evaporator fan interference, or compressor strain
• Water leaking or puddles: clogged defrost drain, loose water line connection, or valve seepage

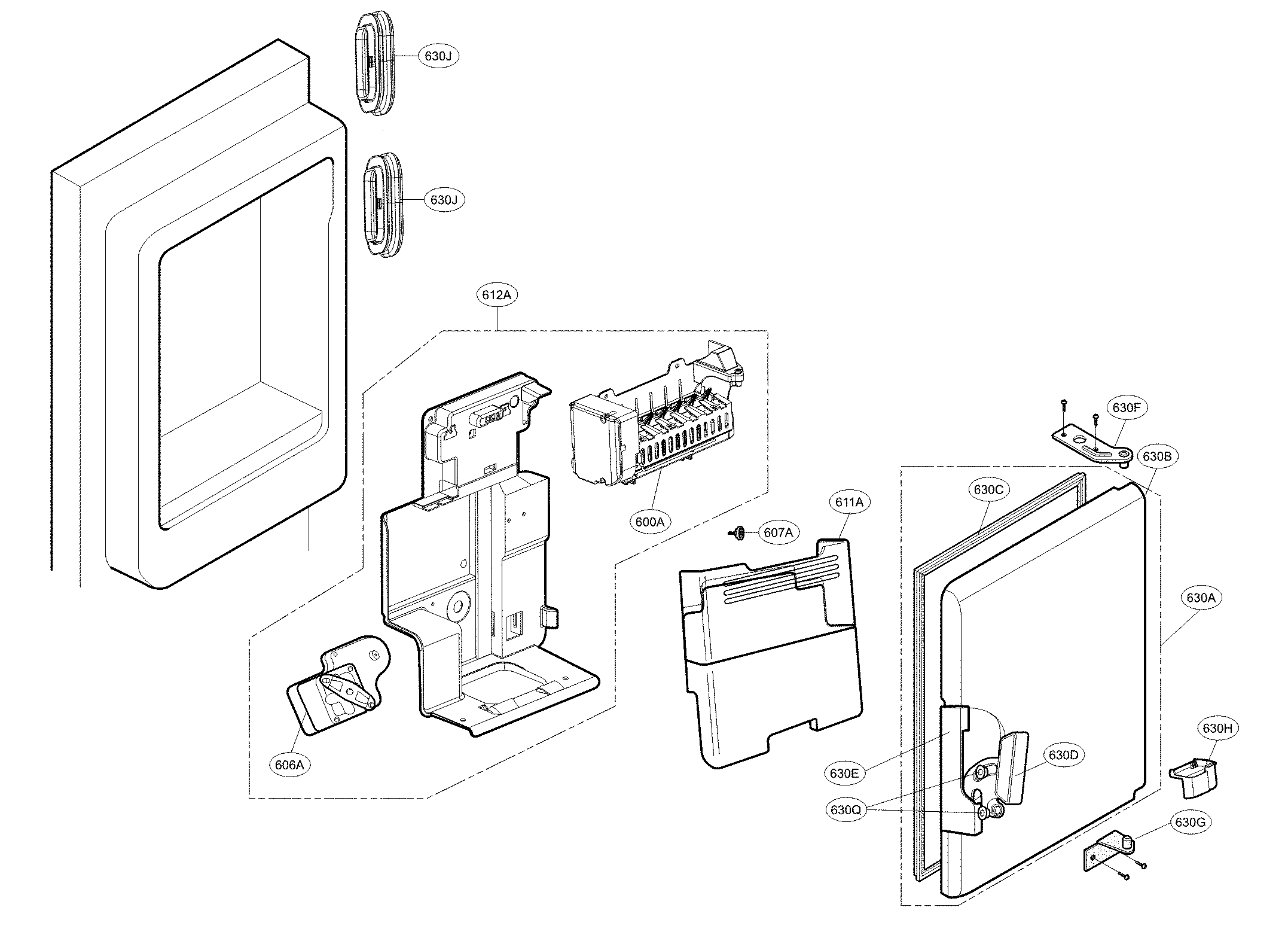

• No ice or slow ice production: restricted water supply, clogged filter, inlet valve problem, or ice maker failure

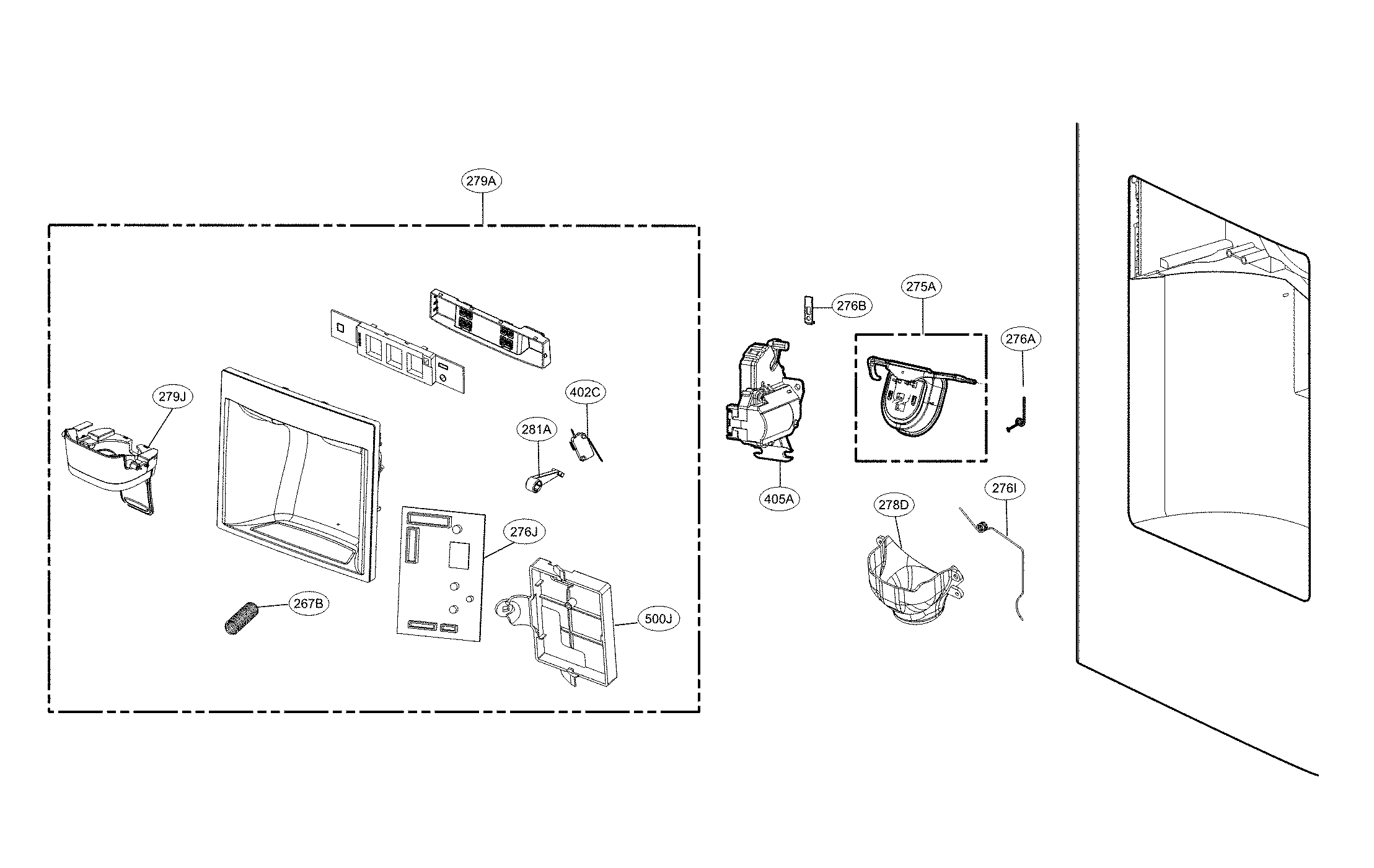

• Water dispenser weak or not dispensing: clogged filter, frozen water line, or dispenser switch issue

Quick checks we recommend before ordering parts

1. Confirm the controls are set correctly and the doors seal tightly.
2. Clean dust from the condenser area and make sure vents inside are not blocked.
3. If you see heavy frost, do a full manual defrost (unplug and leave doors open) and then monitor cooling.
4. For dispenser issues, replace the water filter on schedule and purge air from the line after changes.
5. If the unit recently lost power, follow the power interruption guidance in the manual.

Parts that commonly solve these problems (when symptoms match)

Symptom	Common part to check	Example part for this model
Weak cooling, runs a lot	Condenser coil and airflow	Refrigerator condenser coil ACG73645004
Frost buildup, temp swings	Defrost sensor	Refrigerator defrost sensor assembly 6615JB2005R

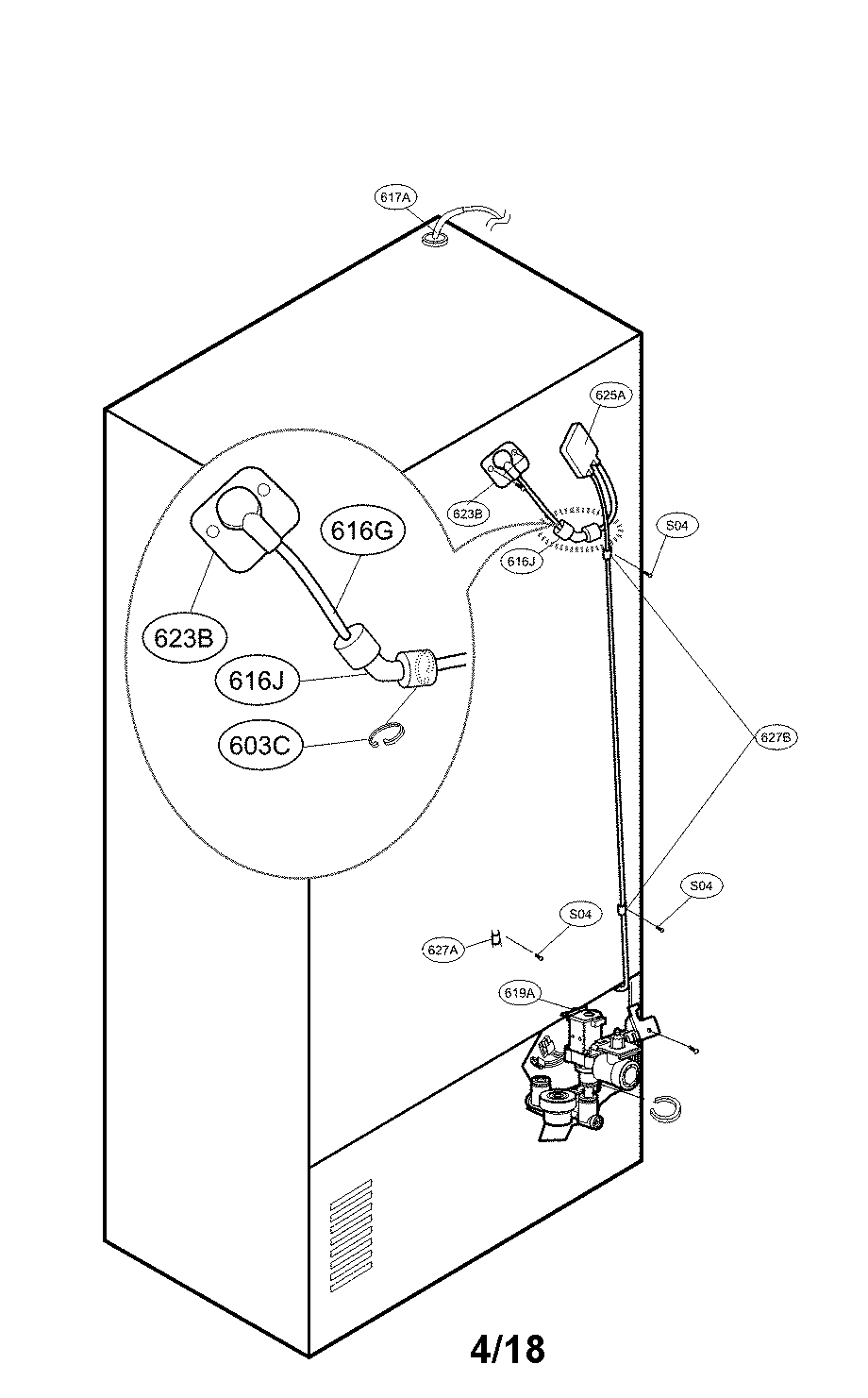

No ice or slow fill	Water inlet valve	Lg refrigerator water inlet valve AJU72992603
Bad tasting water, low flow	Water filter	Genuine Kenmore refrigerator water filter 9690 AGF80300801

Why it matters

Cooling, defrost, and water supply problems often cascade. For example, frost on the evaporator can block airflow and make the refrigerator section warm even when the freezer still seems cold. Catching the root cause early helps protect food and reduces strain on the compressor.

Ordering the right replacement part

We recommend matching parts by model number (79574032412) and symptom. You can order model-matched parts from the list for this refrigerator, or search by model on Sears PartsDirect.
