KitchenAid KESC307HBT5 electric slide-in range Parts
Here are the diagrams and repair parts for KitchenAid KESC307HBT5 electric slide-in range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

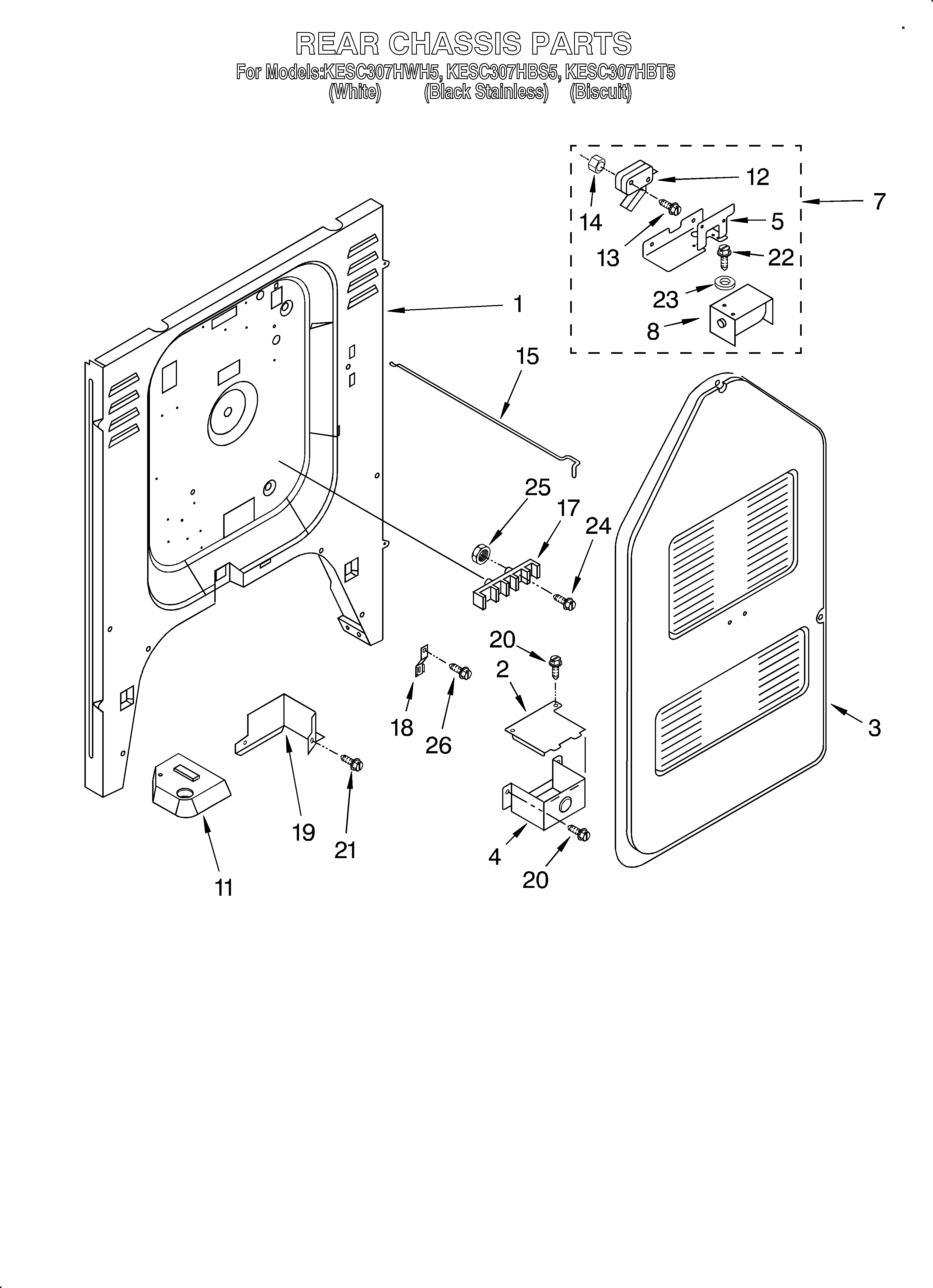

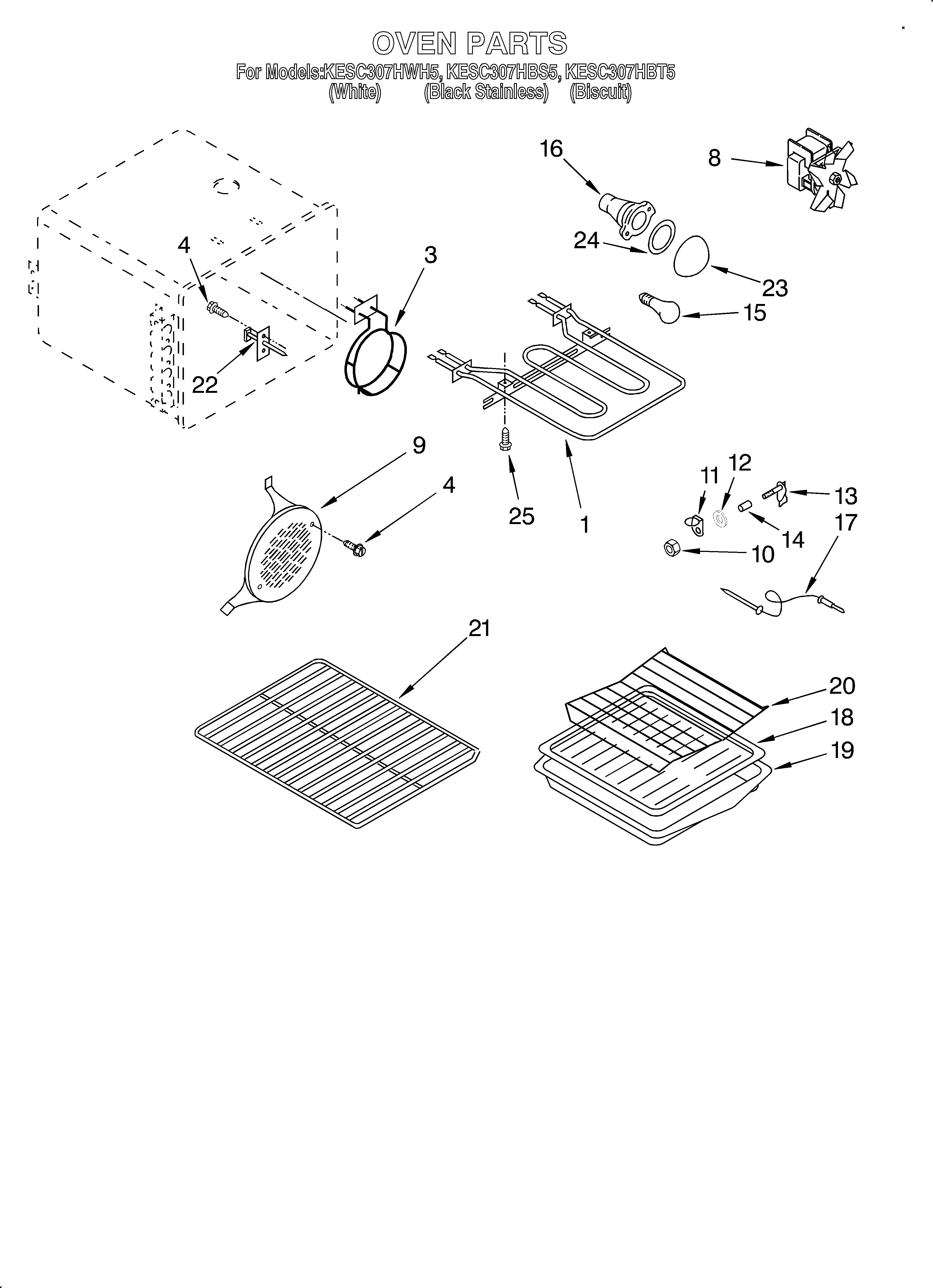

Browse Parts for KESC307HBT5 Ranges

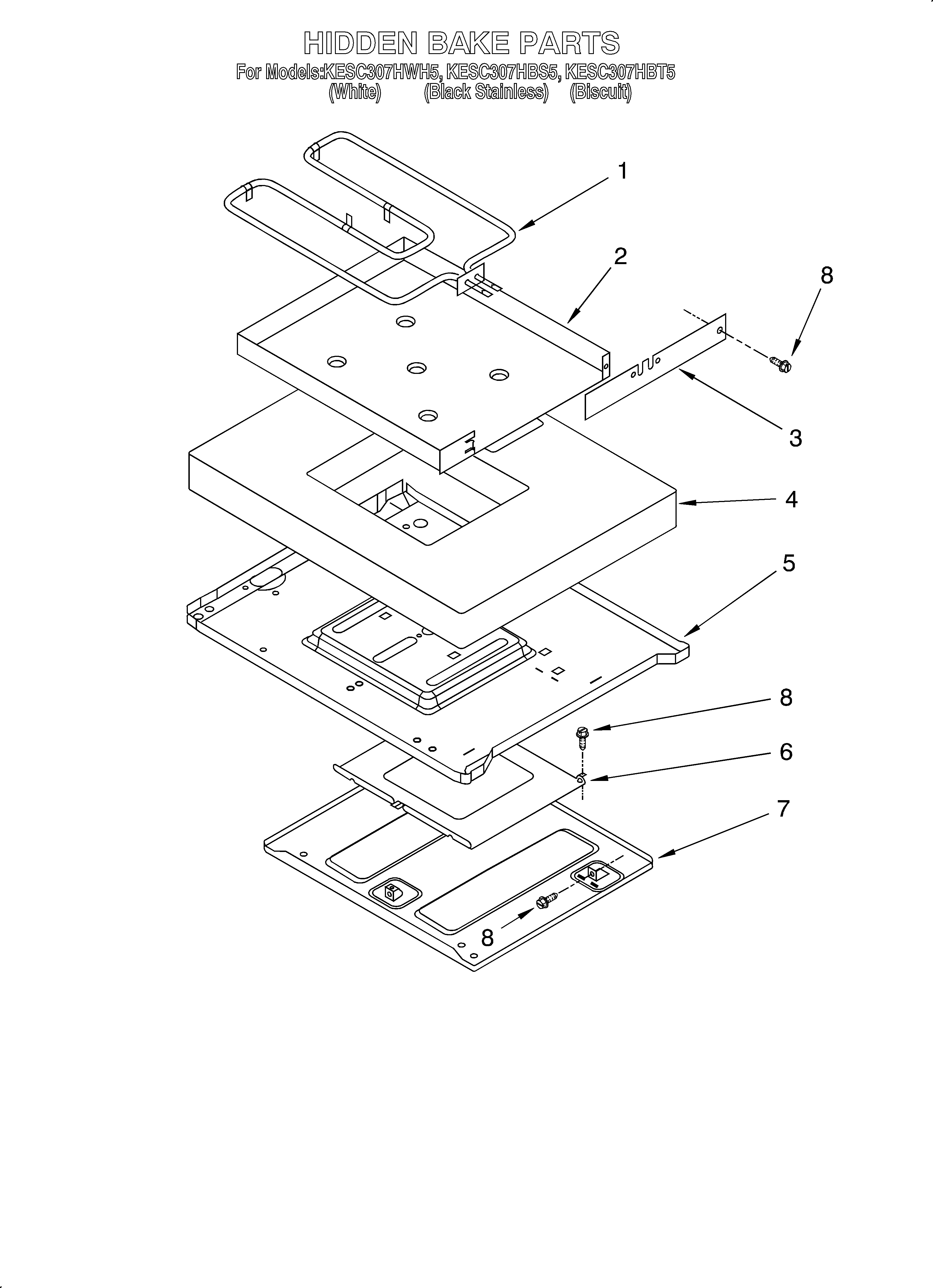

Hidden bake/optional diagram
Porc-white
Part #511873Replaced by #511873
Manufacturer substitutionThis part replaces 511873. Substitute parts can look different from the original.In Stock$31.0216% OFF Phone Price : $37.02
Qty

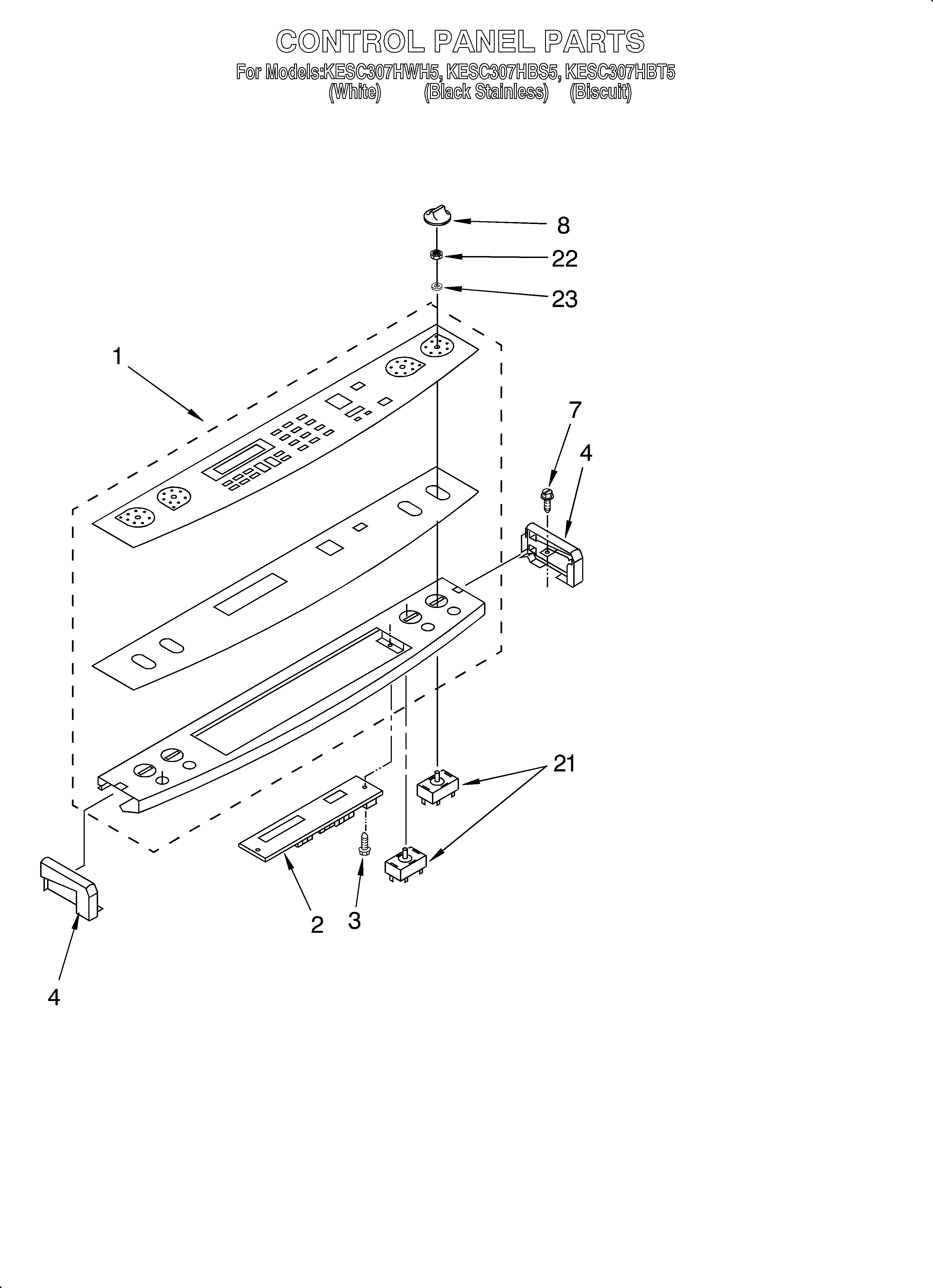

Control panel diagram
Range Surface Element Control Switch
Part #9755175Replaced by #WP9755175
Manufacturer substitutionThis part replaces 9755175. Substitute parts can look different from the original.In Stock$157.03QtyHidden bake/optional diagram
Wire Harness
In Stock$64.85QtyHidden bake/optional diagram
Appliance Touch-up Paint
Part #72017This item is not returnableIn Stock$39.58QtyHidden bake/optional diagram
Appliance Spray Paint (black)
Part #285006This item is not returnableIn Stock$45.0912% OFF Phone Price : $51.09QtyScrew
Part #9780265Replaced by #WP4159387
Manufacturer substitutionThis part replaces 9780265. Substitute parts can look different from the original.In Stock$28.43QtyHidden bake/optional diagram
Spray W
Part #350930Replaced by #350930

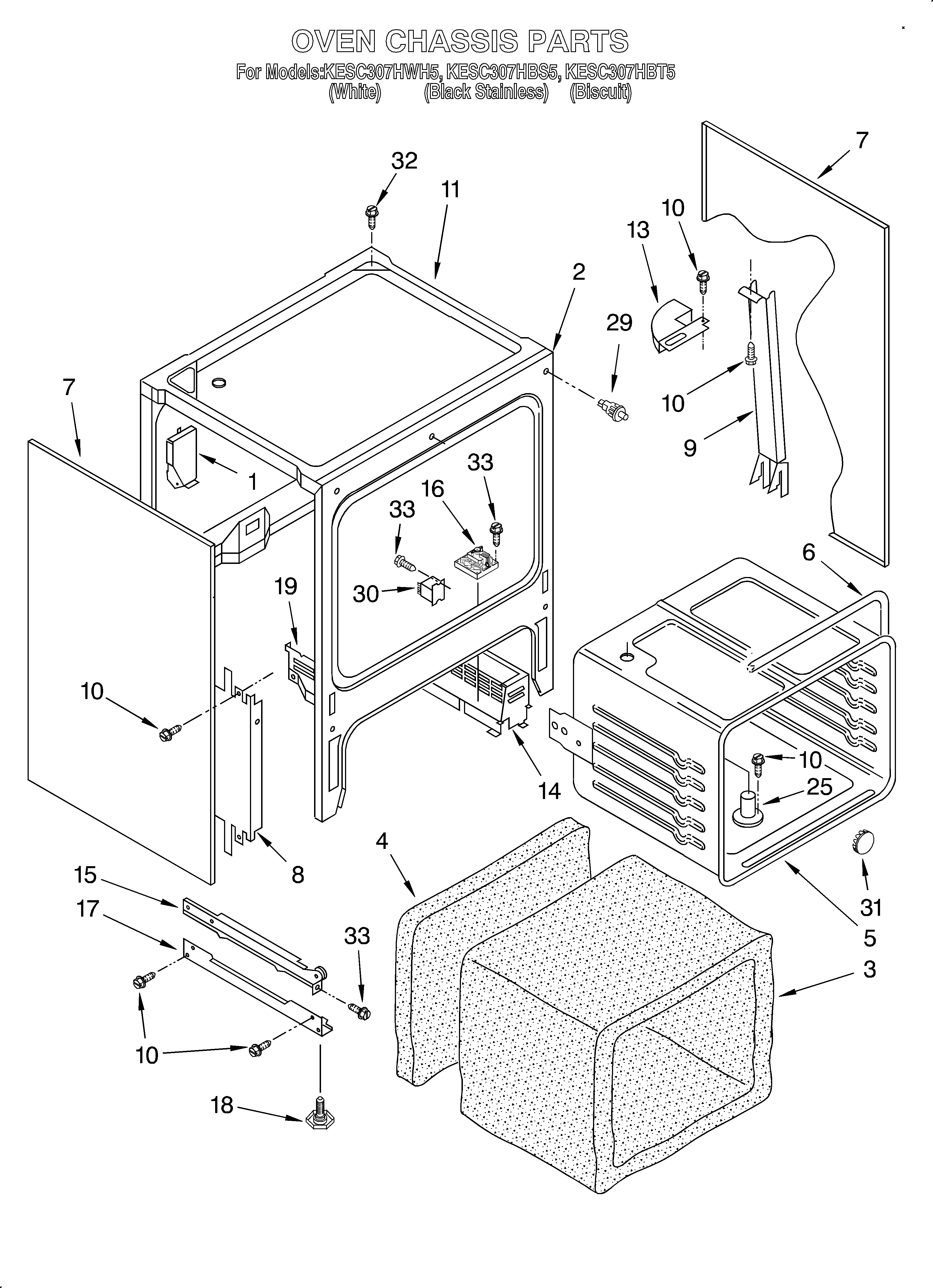

Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.7818% OFF Phone Price : $32.78QtyOven chassis diagram
Level Foot
Part #312701Replaced by #WPW10058460
Manufacturer substitutionThis part replaces 312701. Substitute parts can look different from the original.This item is not returnableIn Stock$6.9513% OFF Phone Price : $7.95QtyHidden bake/optional diagram
Paint Bz
Part #242756Replaced by #8212471

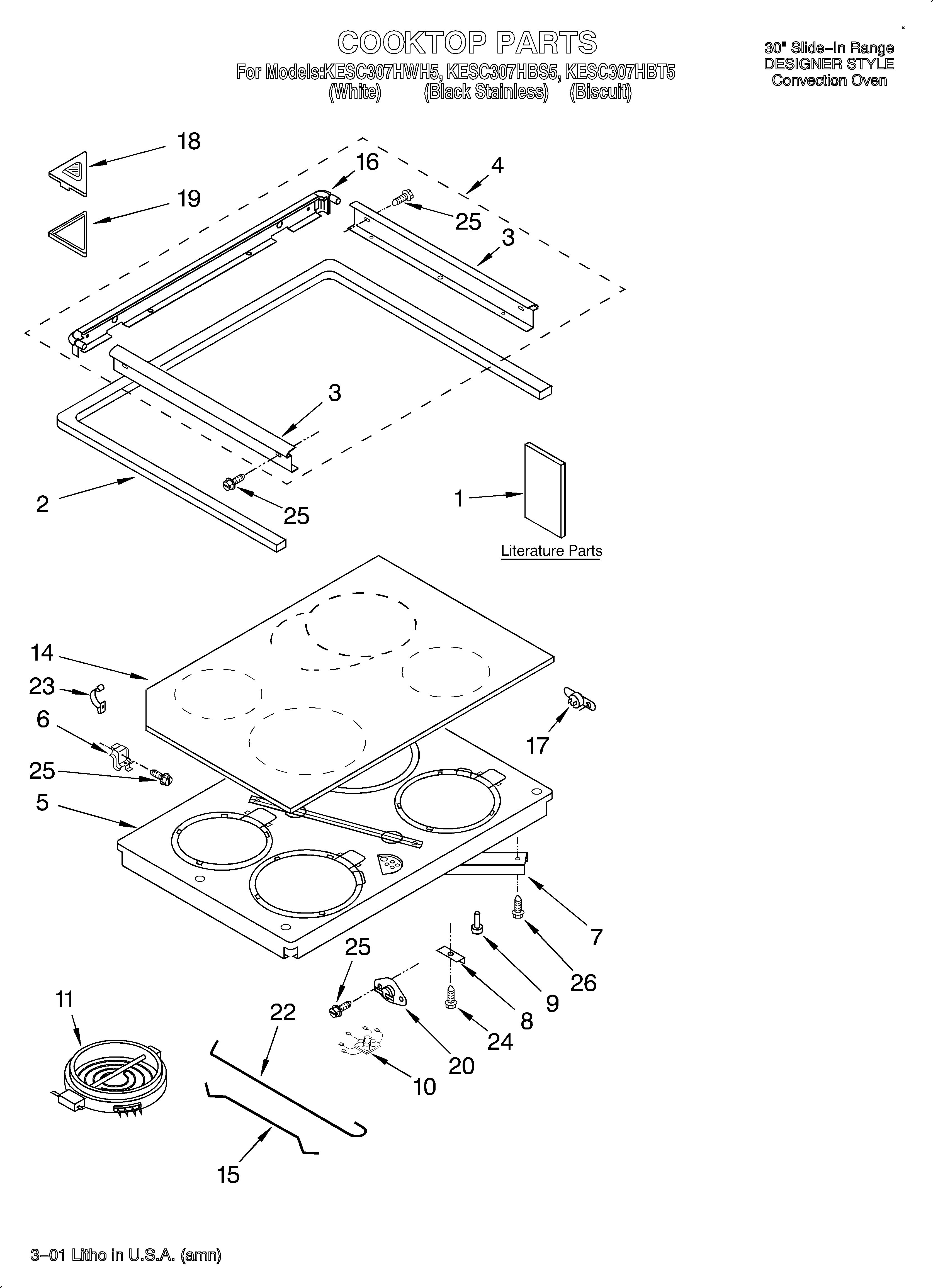

Manufacturer substitutionThis part replaces 242756. Substitute parts can look different from the original.In Stock$100.19QtyCooktop/literature diagram
Thermostat
Part #9751984Replaced by #WP9759944
Manufacturer substitutionThis part replaces 9751984. Substitute parts can look different from the original.In Stock$66.948% OFF Phone Price : $72.94Qty
