Model # SSEZ17QF1500 Official Speed Queen dryer

Here are the diagrams and repair parts for Official Speed Queen SSEZ17QF1500 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

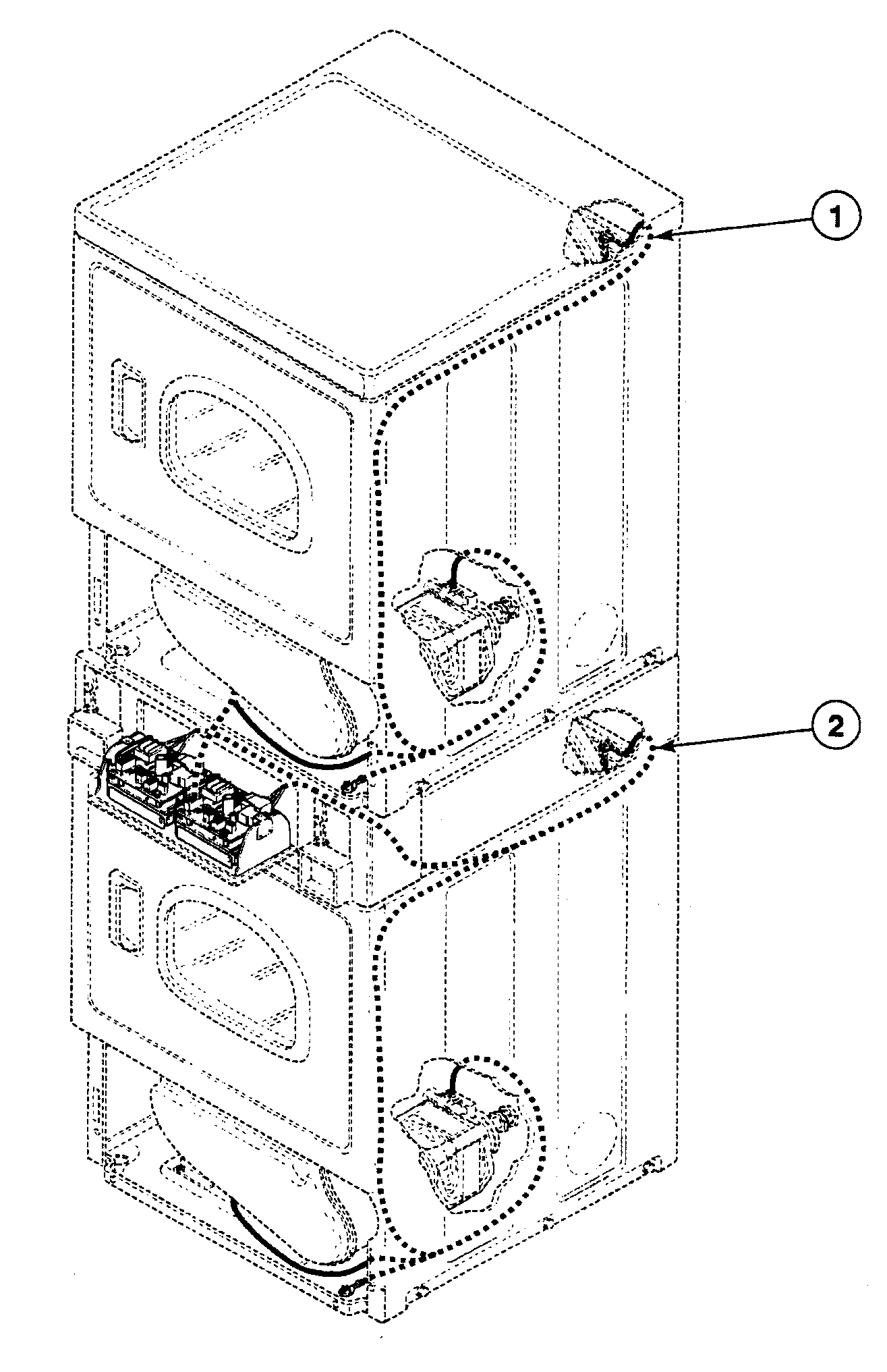

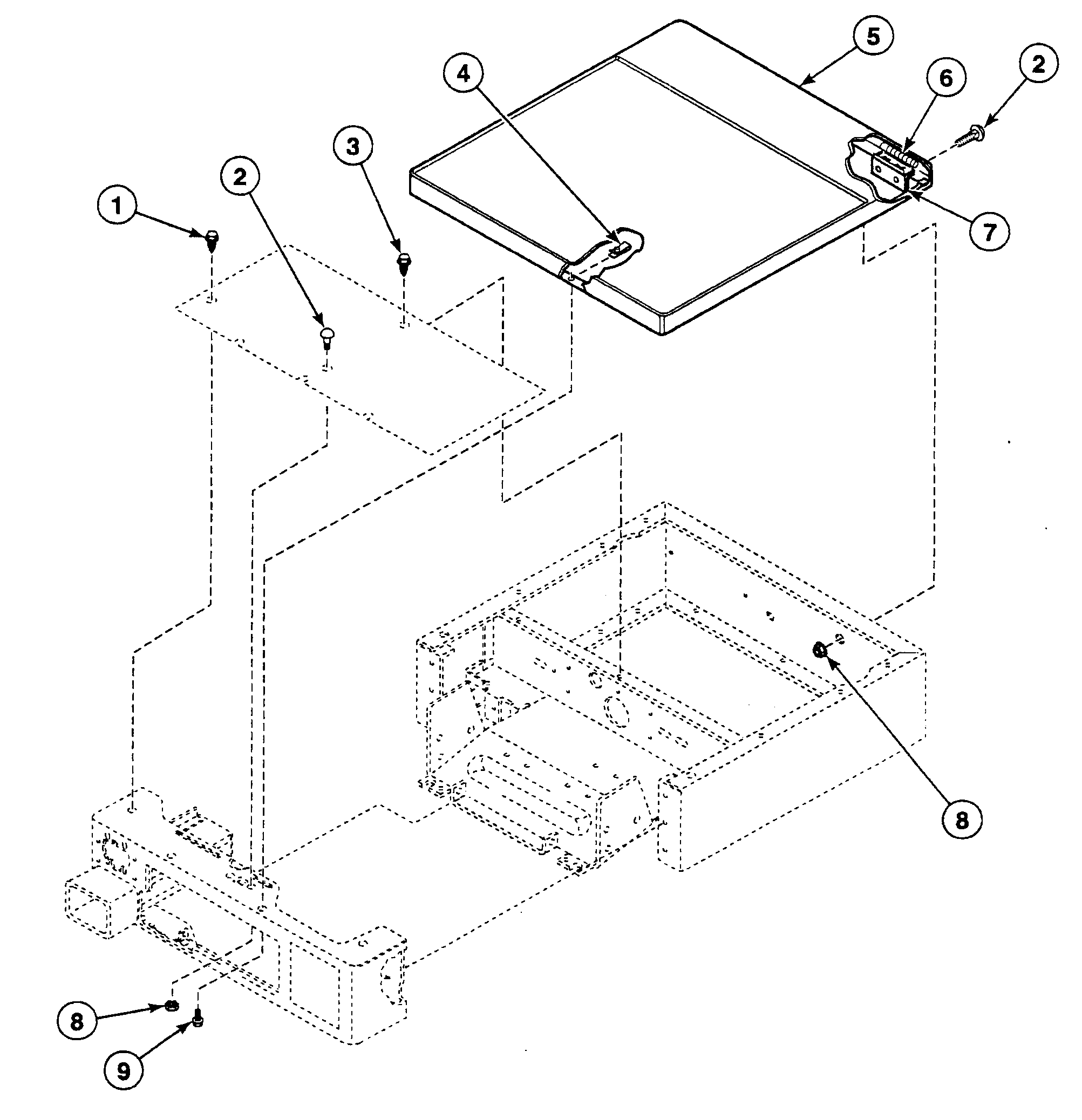

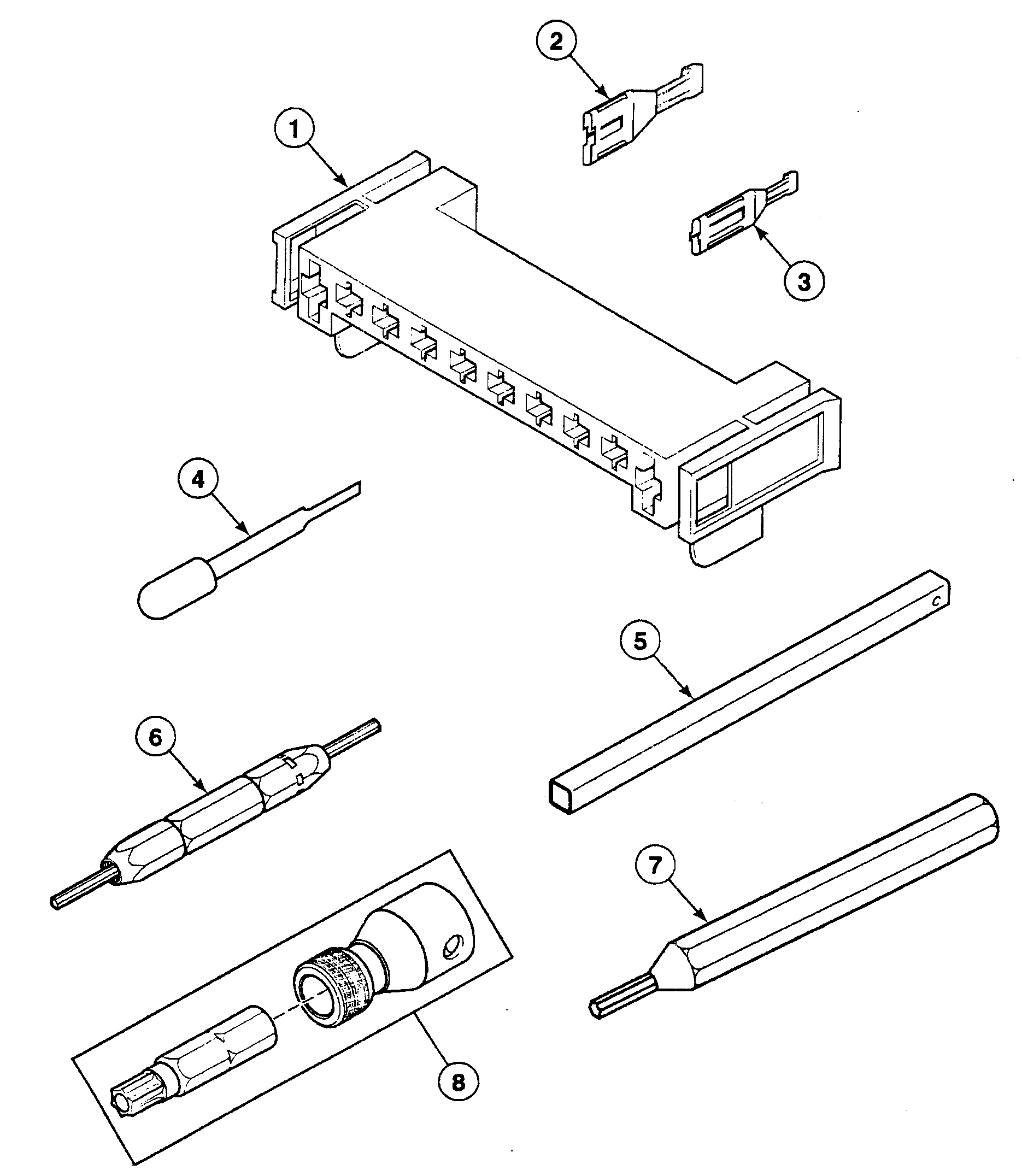

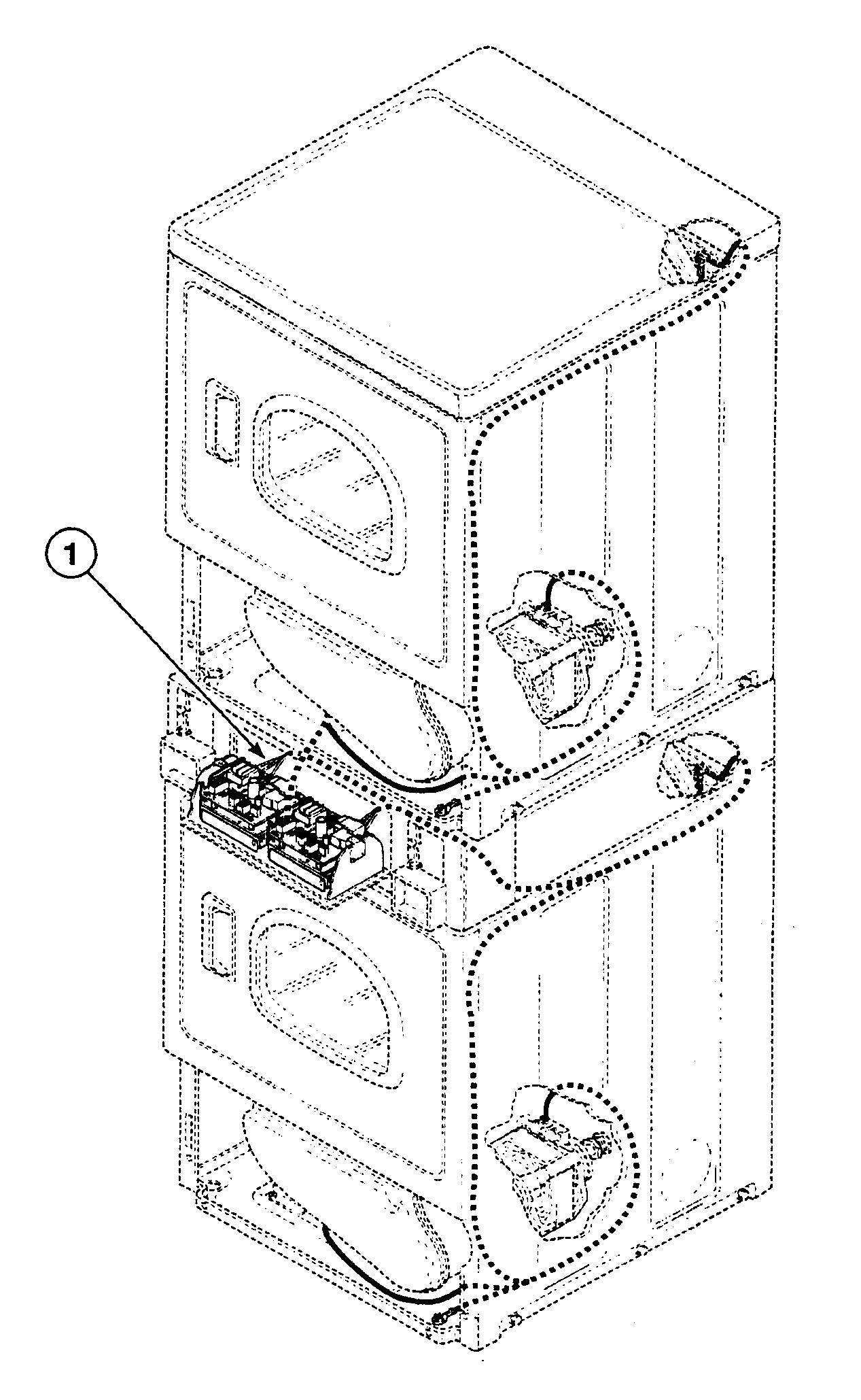

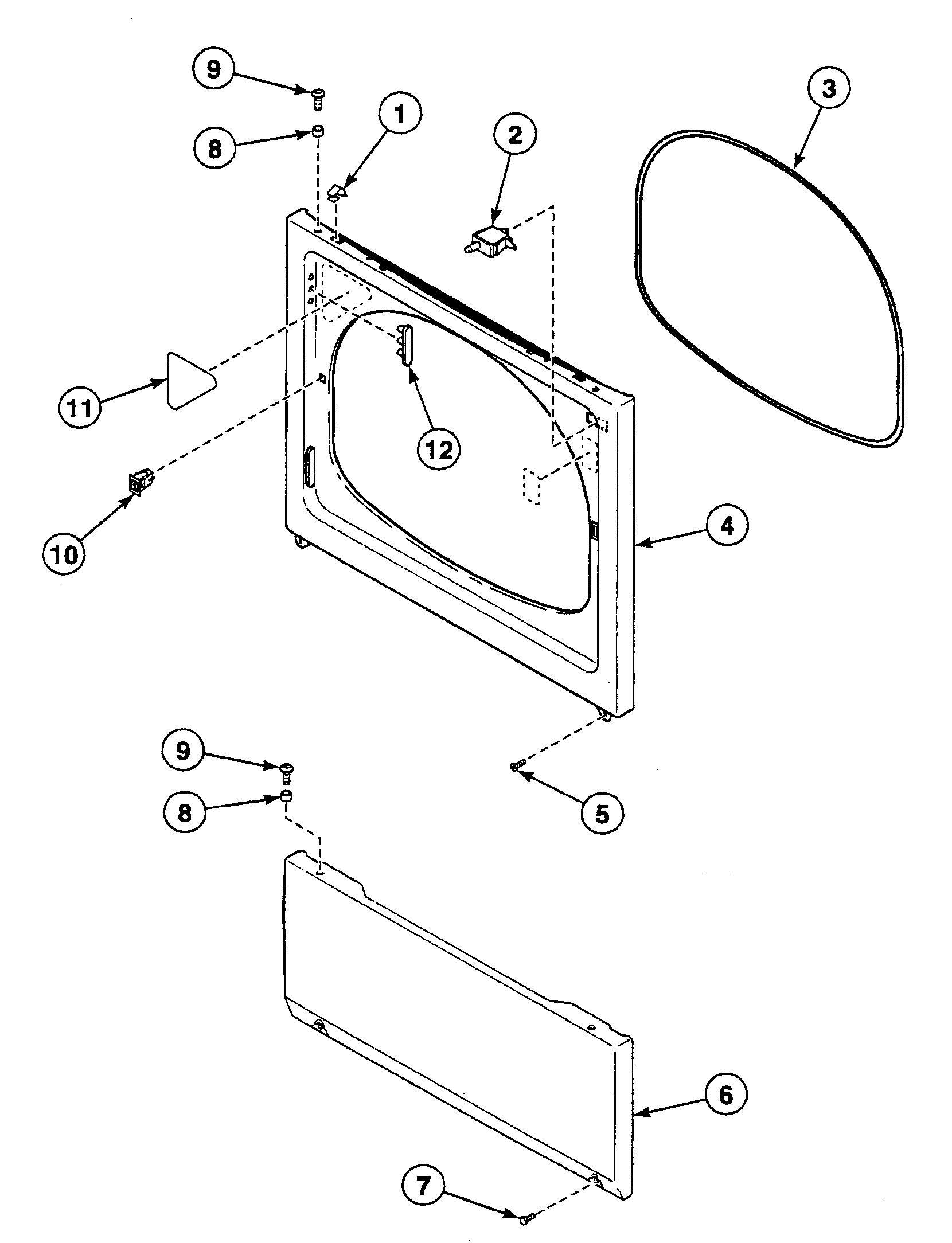

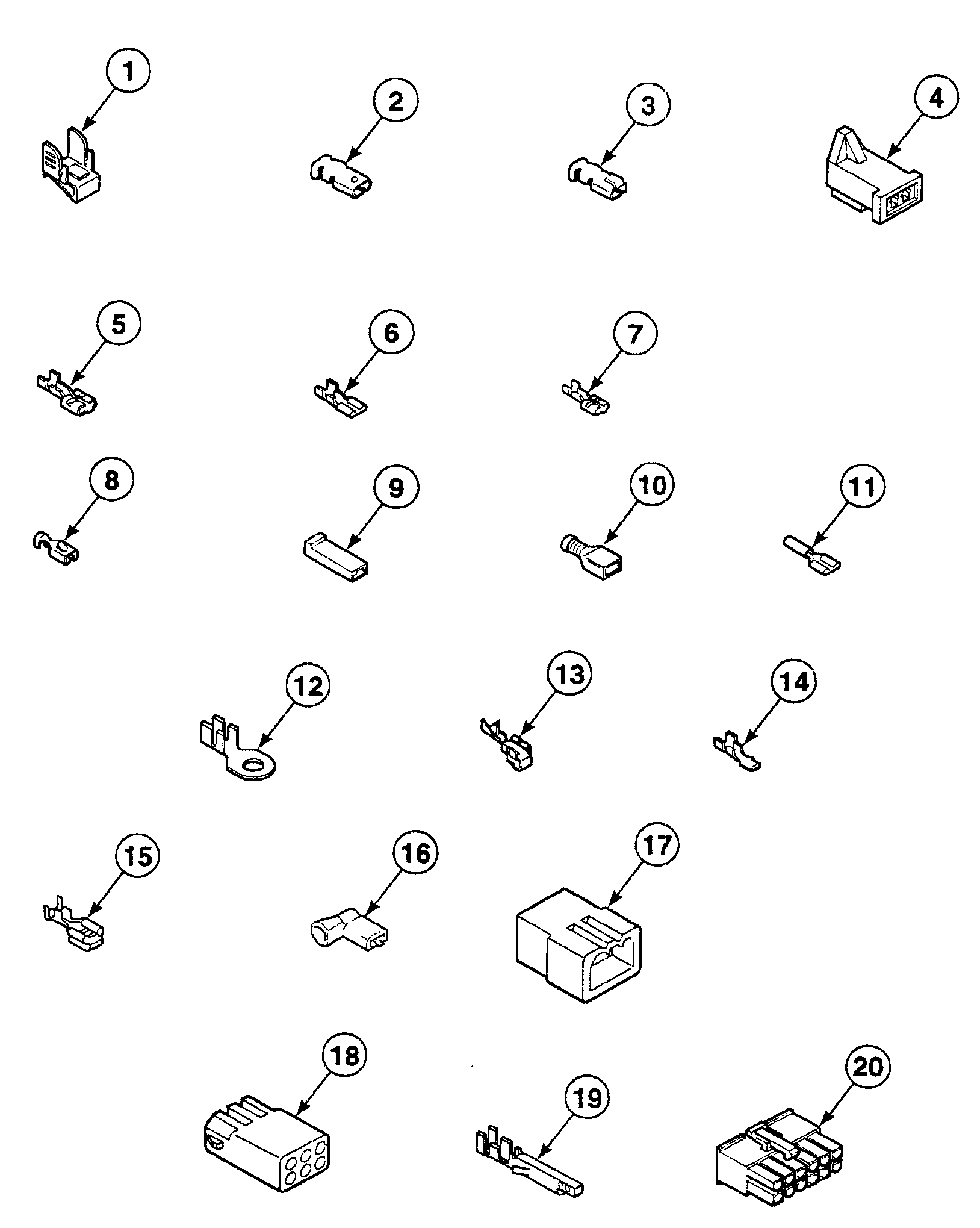

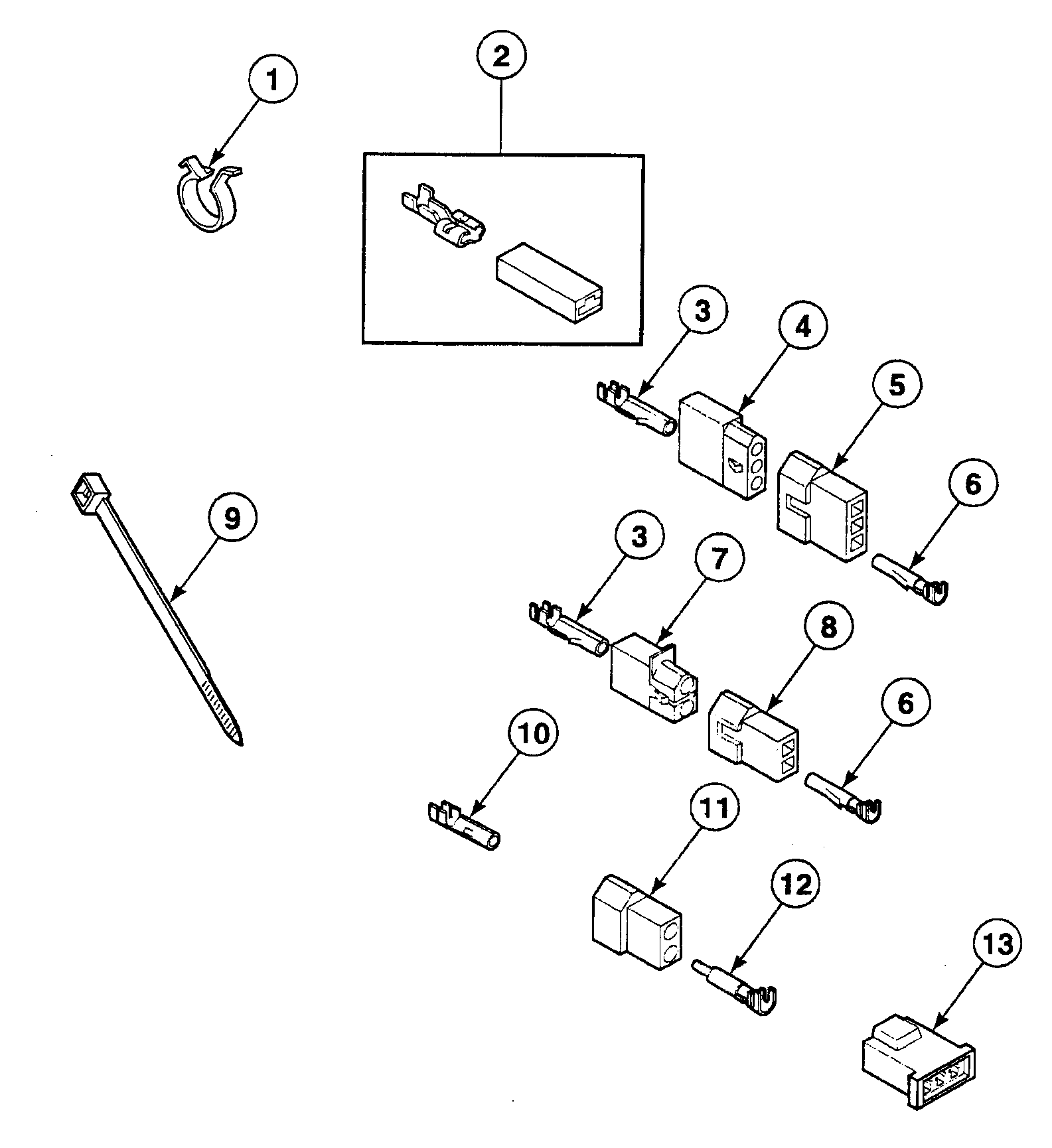

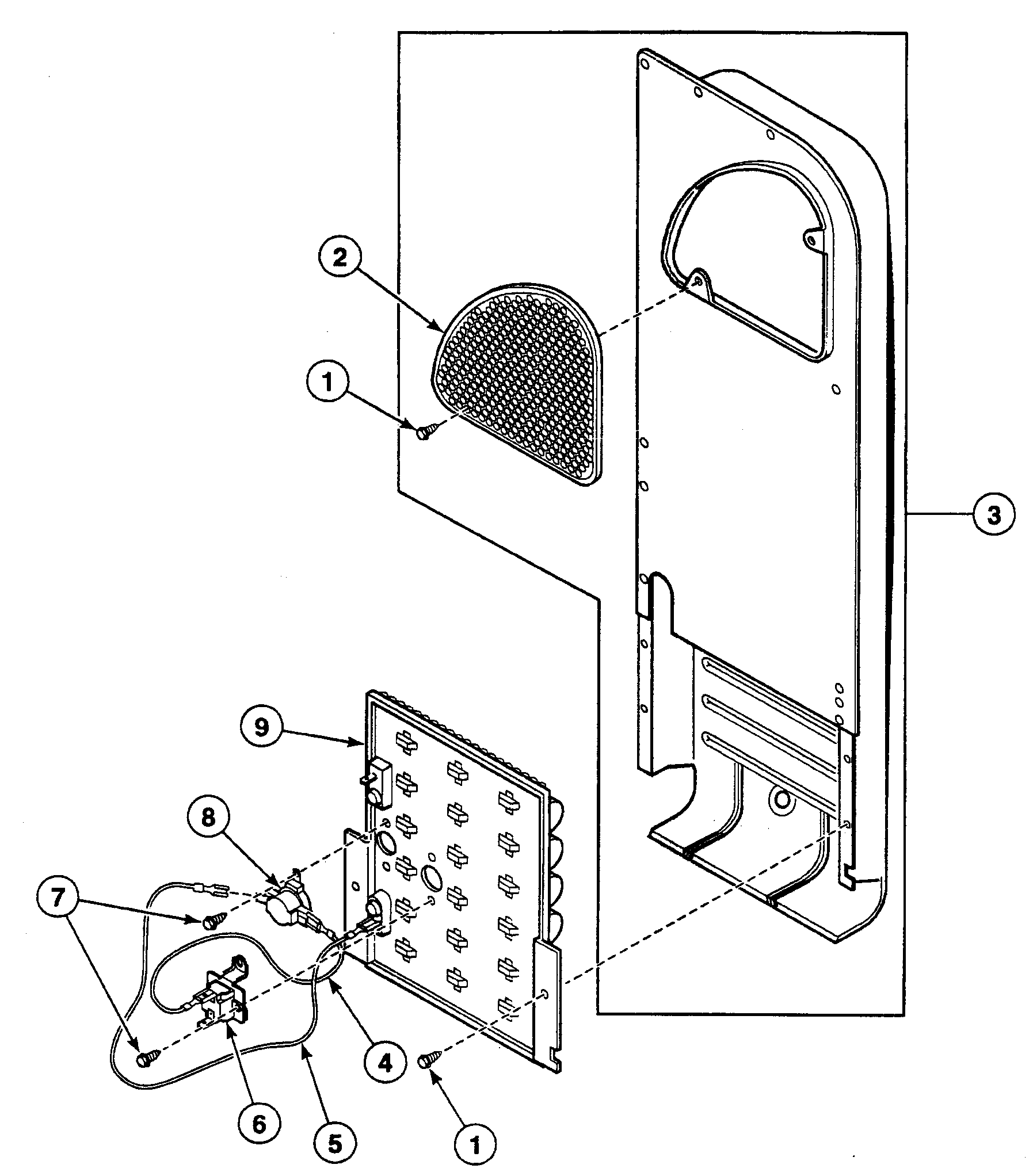

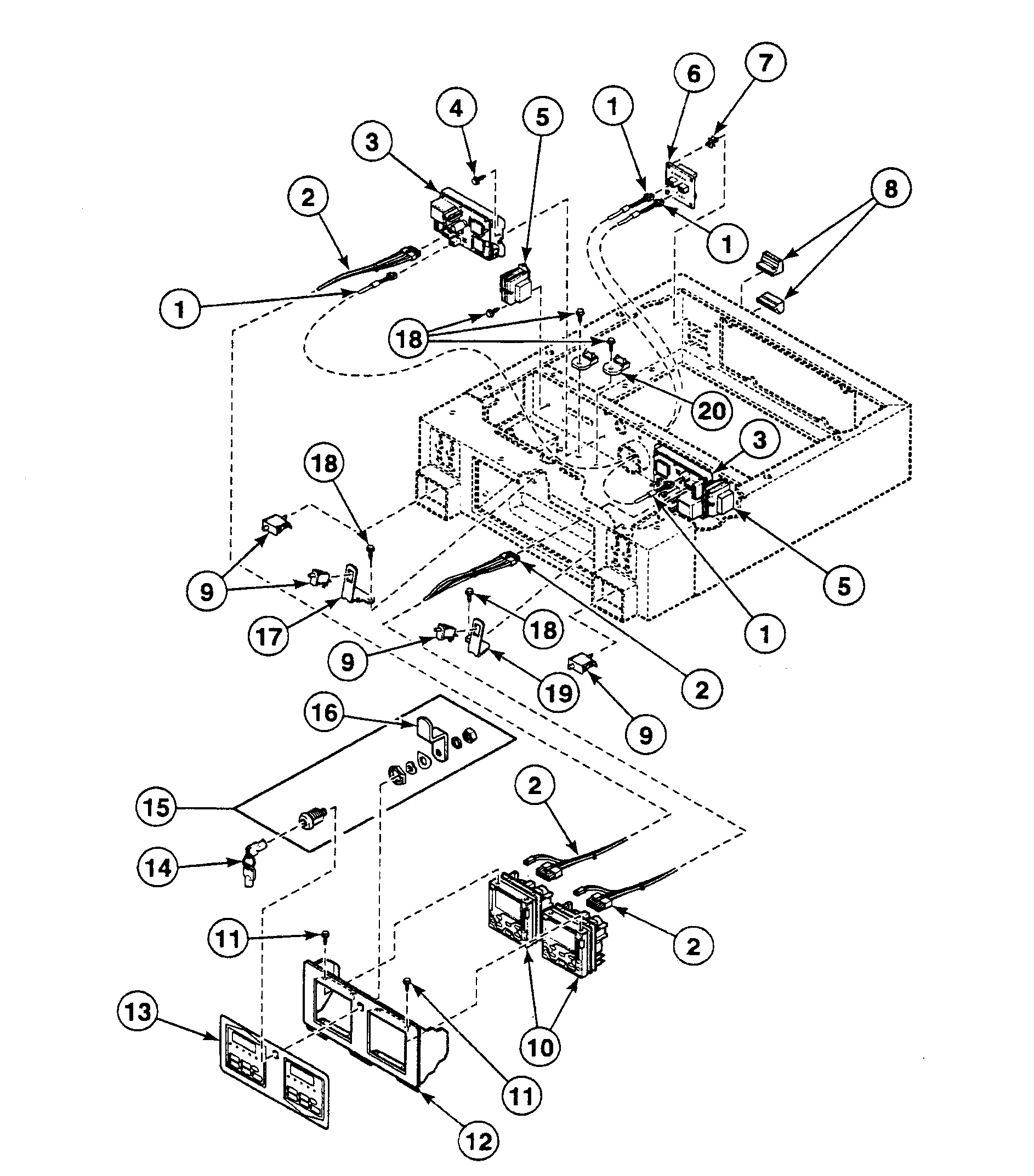

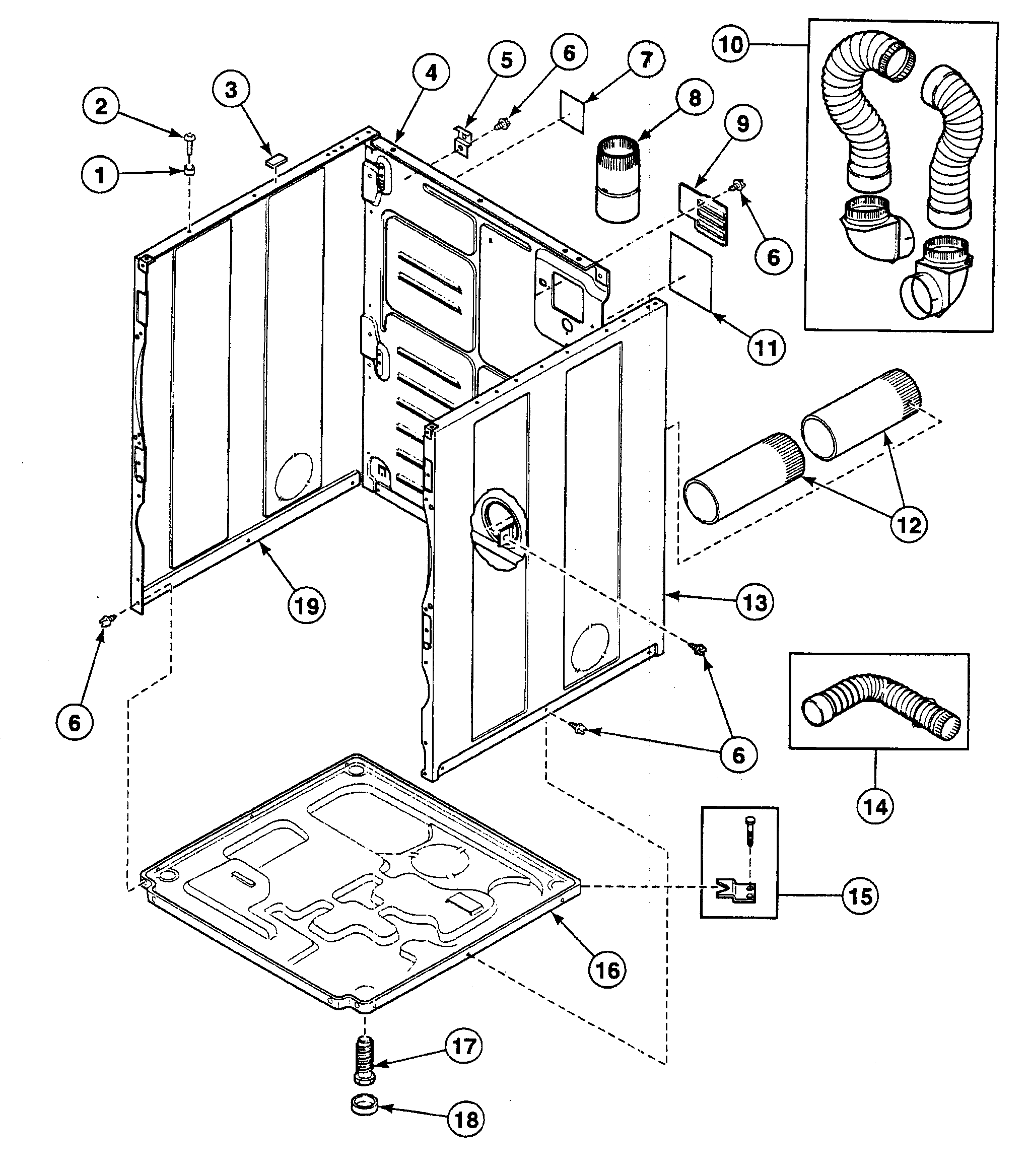

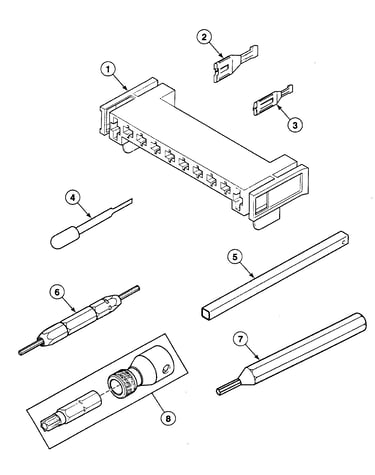

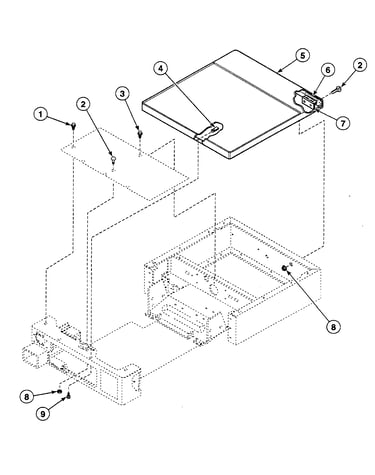

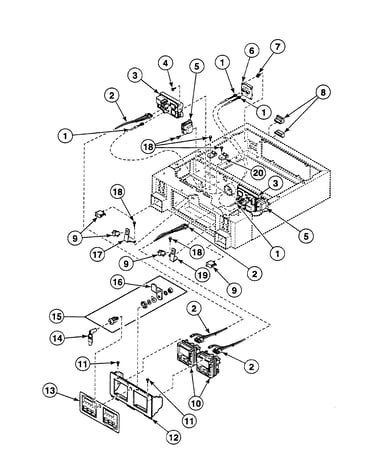

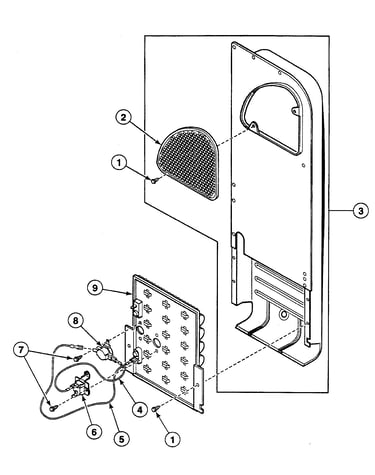

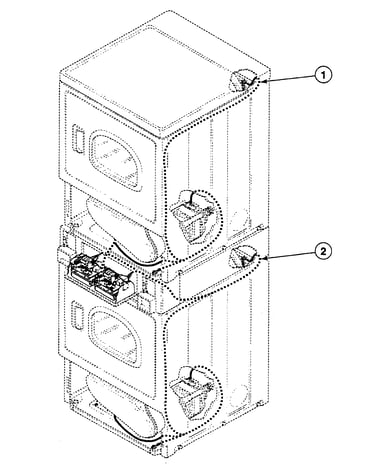

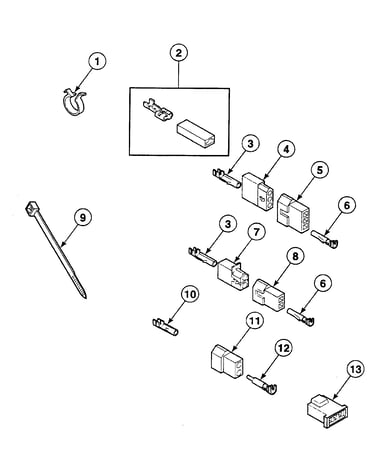

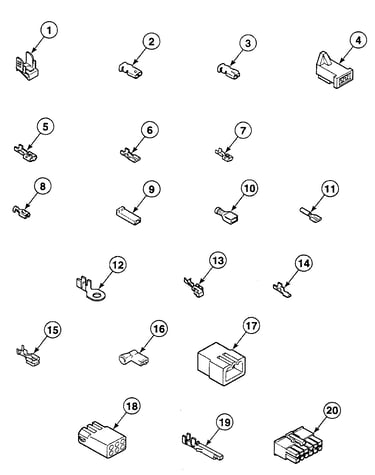

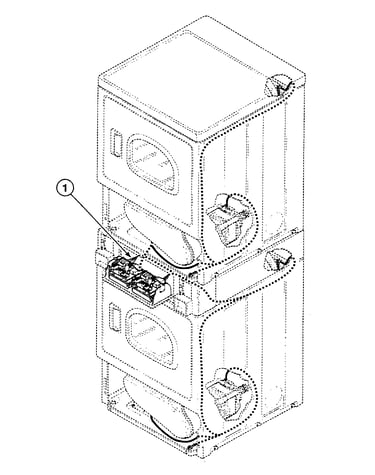

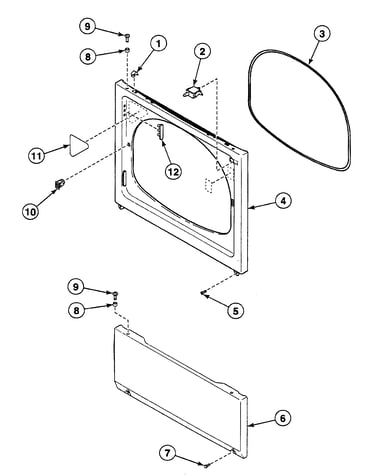

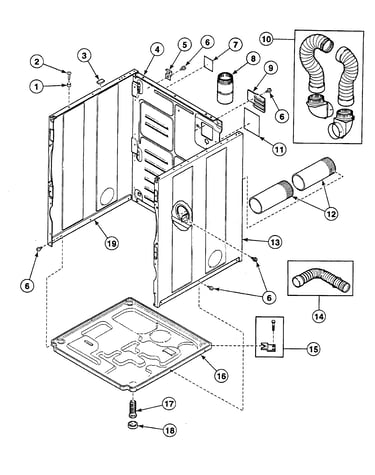

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Screw 503688
Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Door Strike 510181
#5

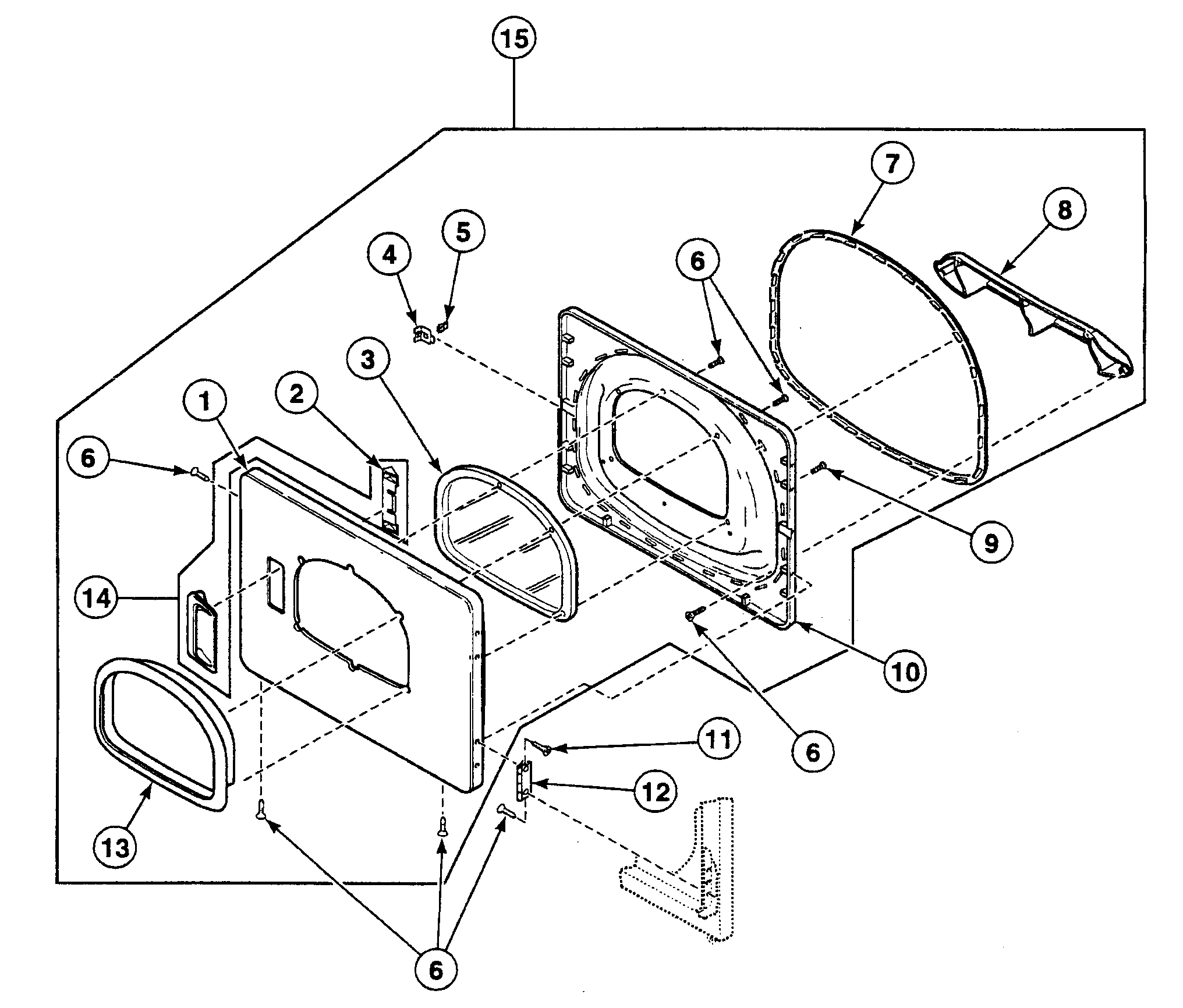

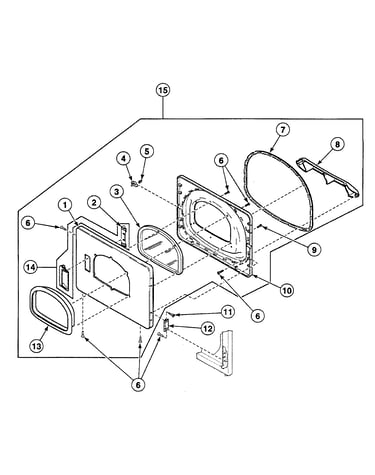

Door assy diagram

Dryer door strike

Part #510181

This item is not returnable
$3.57
In Stock
Dryer Drive Motor 511629P
#4

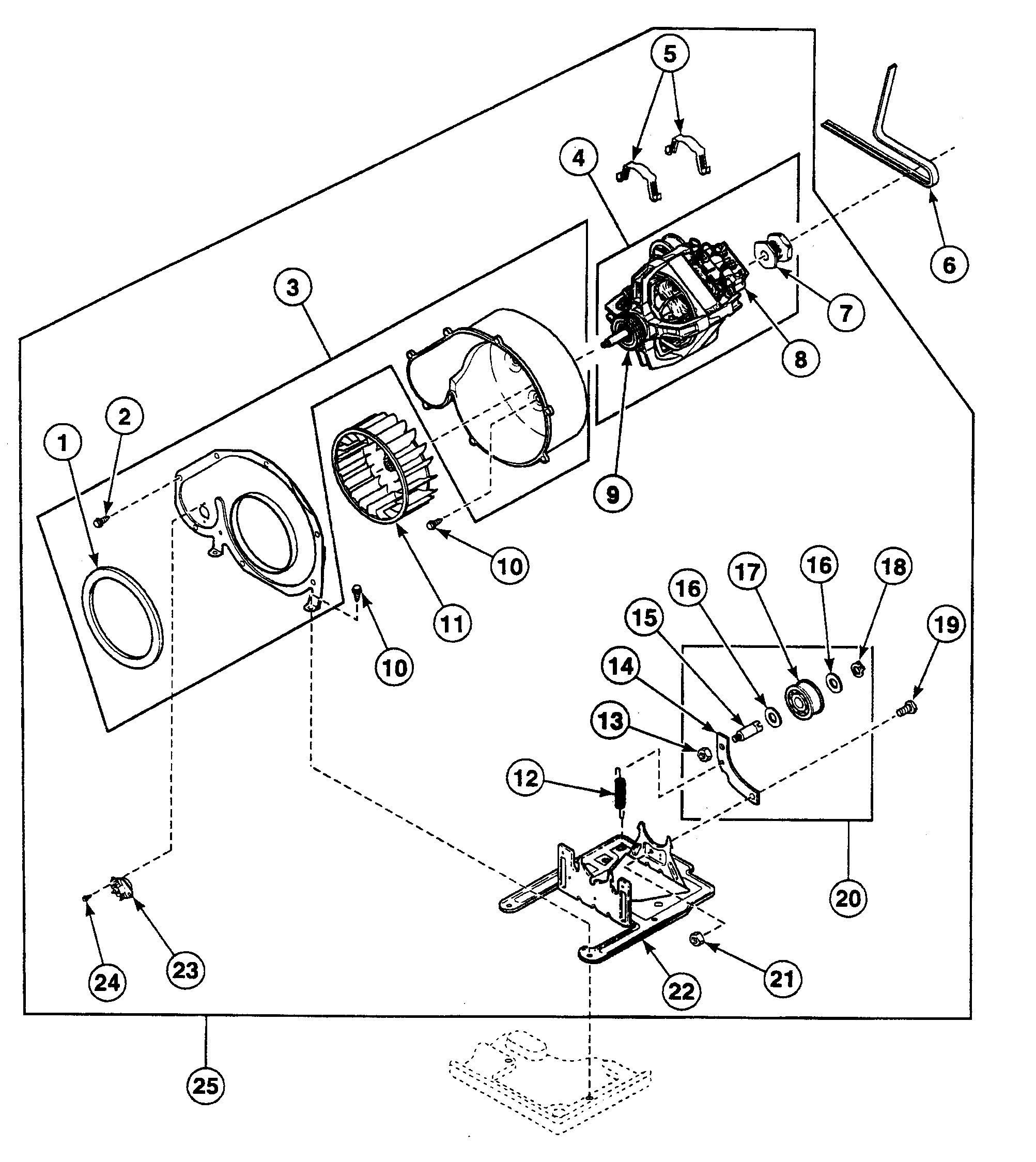

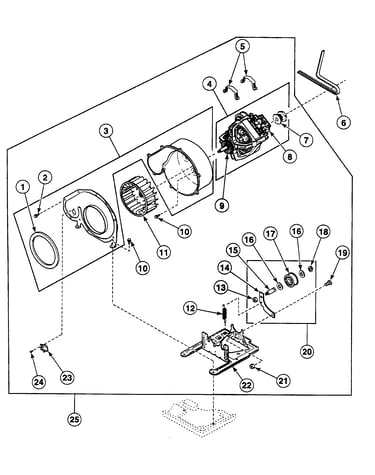

Motor assy diagram

Dryer drive motor

Part #511629P

The manufacturer no longer makes this part, and there's no substitute part

Lint Filter 503980
#8

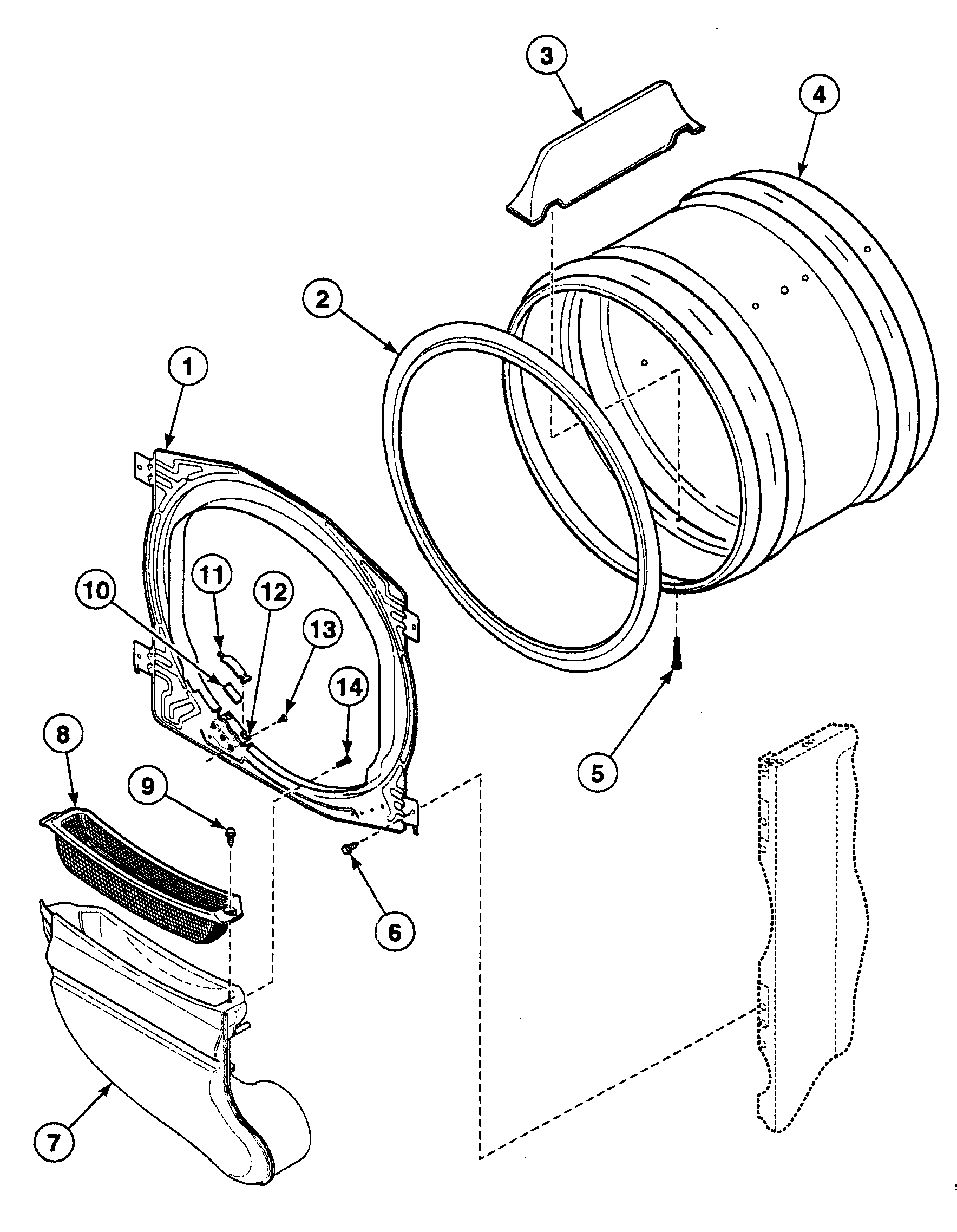

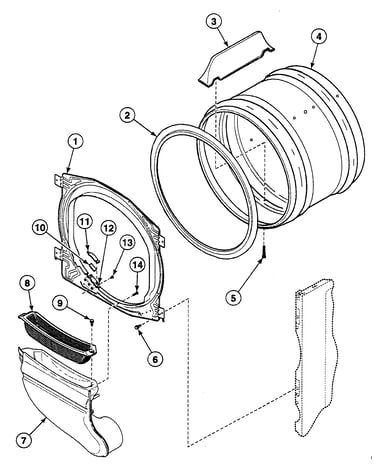

Drum assy diagram

Lint filter

Part #503980

Replaced by #503980W

?
Manufacturer substitution
This part replaces 503980. Substitute parts can look different from the original.
$22.91
In Stock
Nut 52566
#21

Motor assy diagram

Nut

Part #52566

Replaced by #52566

?
Manufacturer substitution
This part replaces 52566. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Switch 504570
Switch

Part #504570

The manufacturer no longer makes this part, and there's no substitute part

Commercial Laundry Appliance Coin Drop Assembly 38462P
#7

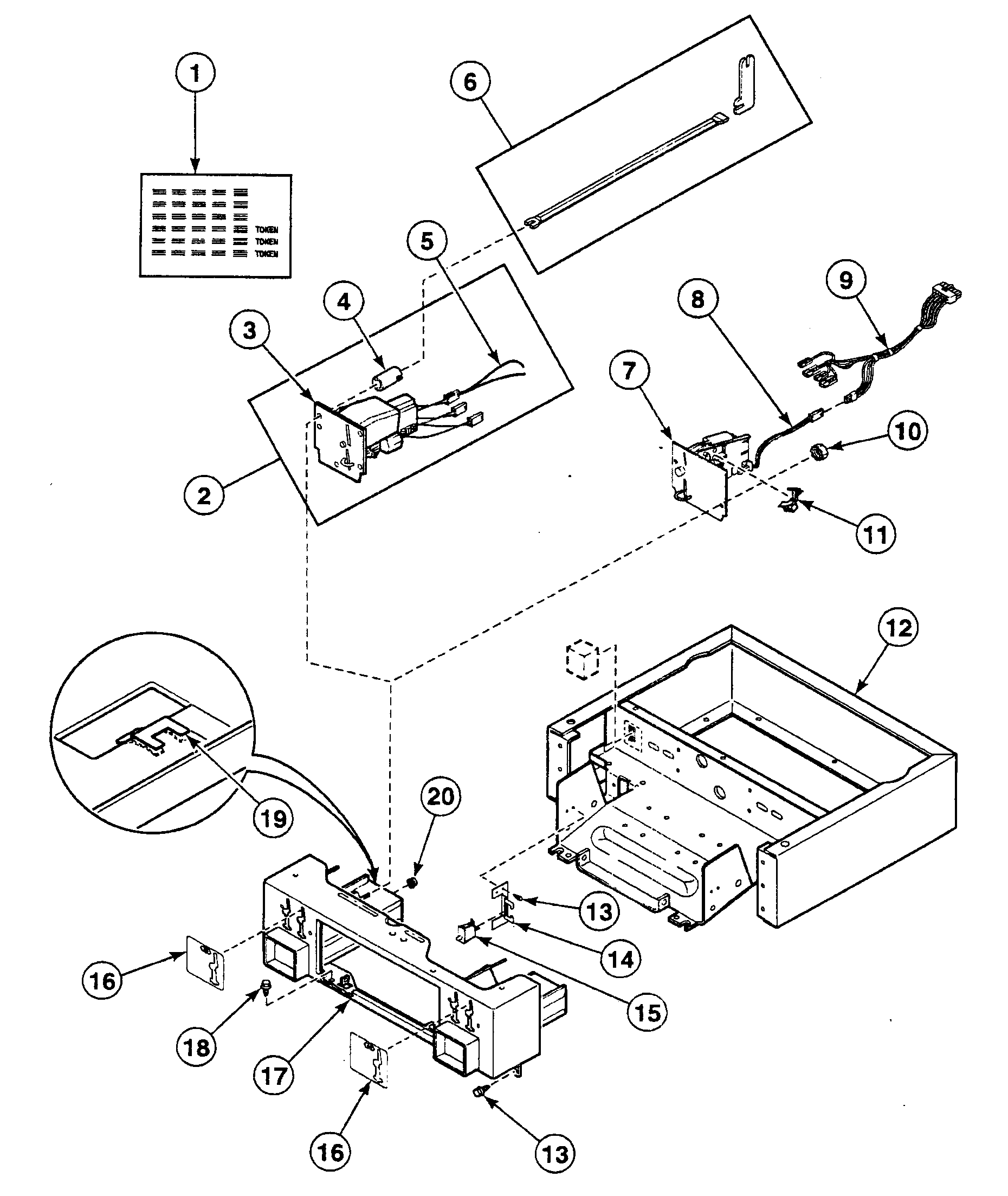

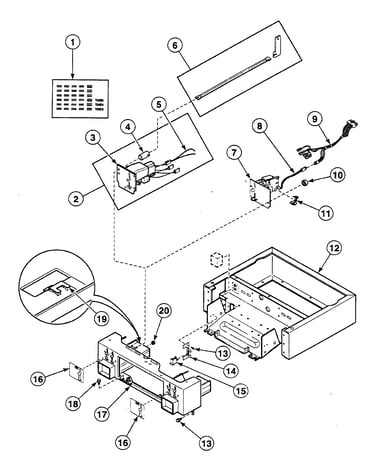

Cabinet control diagram

Commercial laundry appliance coin drop assembly

Part #38462P

$642.12 |
$12.00 OFF Phone Price : $654.12
In Stock
Bulkhead 511082P
#3

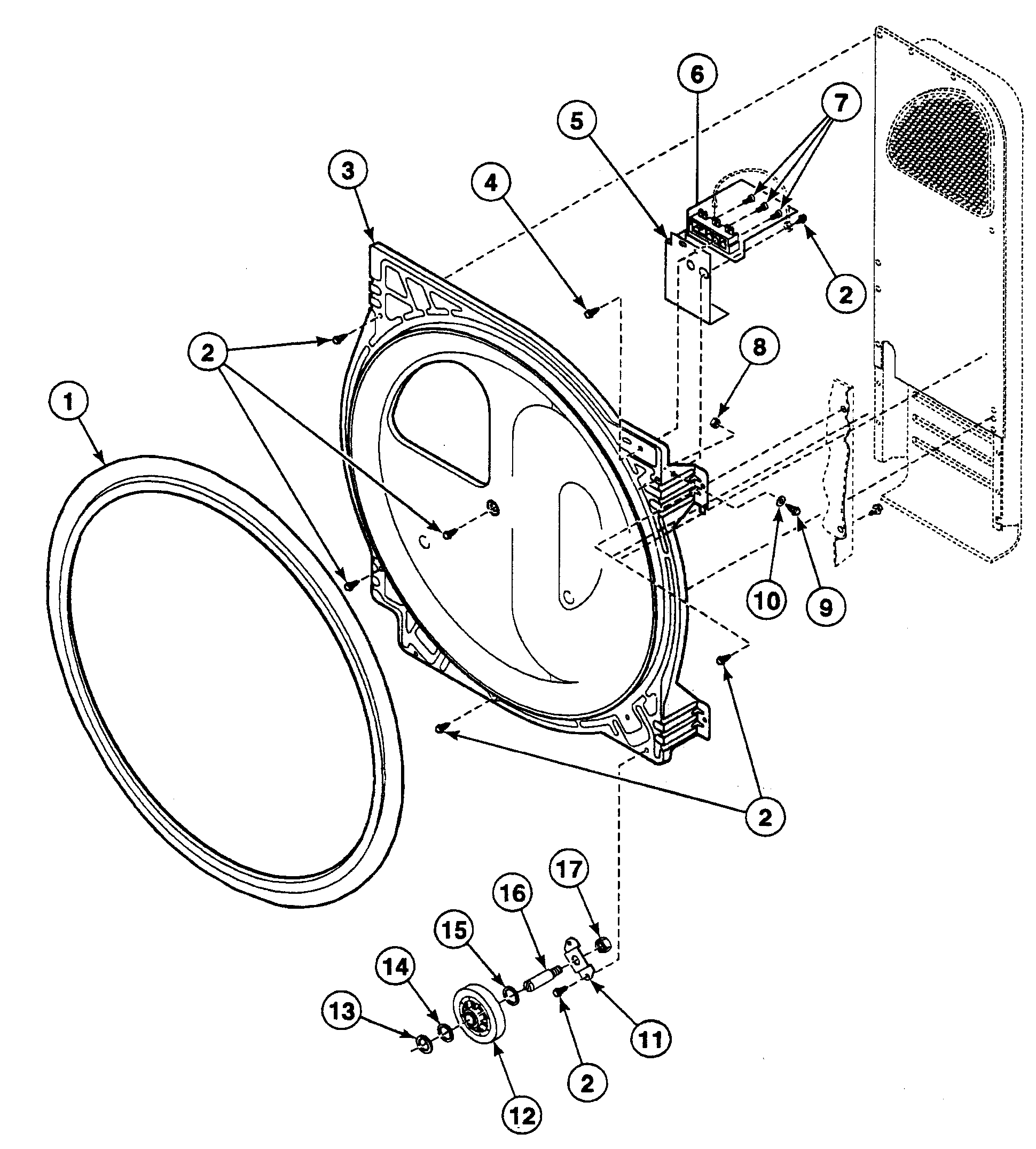

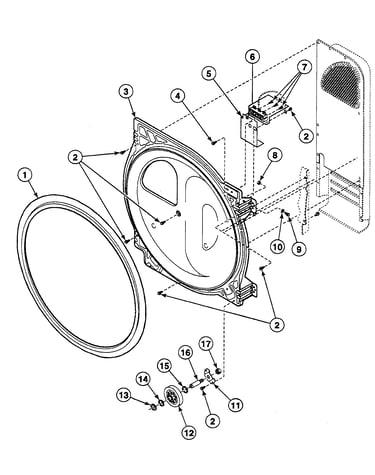

Roller assy diagram

Bulkhead

Part #511082P

$118.18
In Stock
Spring 510185
#12

Motor assy diagram

Spring

Part #510185

This item is not returnable
$2.57
In Stock
Amana Dryer Motor Pulley 500011
#7

Motor assy diagram

Amana dryer motor pulley

Part #500011

$17.03
In Stock
