Frigidaire FFCD2413US5A dishwasher Parts

Most Frigidaire built-in dishwashers, including the FFCD2413US5A size class, fit a standard 24-inch opening and measure about 24 inches wide, 34 to 35 inches tall, and 24 to 25 inches deep (depth varies with the door and handle). For exact fit, we match dimensions to your cabinet opening and installation style.

Typical built-in dishwasher dimensions (what to expect)

These are the common ranges we use when planning a replacement or confirming fit:

• Width: ~23 7/8 to 24 inches
• Height: ~33 1/2 to 35 inches (adjustable leveling legs)
• Depth (cabinet): ~24 inches
• Depth (with door closed): often ~25 inches
• Depth (with door open): often ~49 to 52 inches

Measurement	Typical range	What changes it
Width	23 7/8–24 in.	Side insulation, mounting brackets
Height	33 1/2–35 in.	Leveling legs, flooring thickness
Depth	24–25 in.	Door style, handle, toe-kick

How we recommend measuring your space

Measure the opening first, then compare to the dishwasher’s “box” size.

• Measure opening width between cabinets at the front
• Measure opening height from floor to underside of countertop
• Measure depth from back wall to cabinet face (note any baseboard)
• Confirm door clearance for nearby drawers and an island
• Check for utility clearance (water line, drain hose, power) behind the unit

Why it matters

Dishwashers are designed around a standard 24-inch cutout, but small differences in height adjustment, door depth, and toe-kick clearance can cause rubbing, poor leveling, or a door that will not fully open.

Related DIY help

If you are confirming fit or re-mounting after leveling, use our guide: how to refasten a dishwasher to the cabinet video.

Last updated: February 2026

Yes. Frigidaire dishwashers like model FFCD2413US5A are designed to be energy efficient, especially when you run full loads, use air-dry options when available, and keep the wash system clean so the unit does not need extra time and heat to finish a cycle.

What “energy efficient” means in real use

Energy efficiency comes from using less hot water and less electricity per load while still cleaning well. For most households, the biggest savings come from how you run the dishwasher, not just the label.

• Run full loads (but do not block spray arms)
• Use normal/eco-style cycles for everyday dishes
• Skip pre-rinsing; scrape food instead
• Use heated dry only when you truly need it
• Keep the filter and sump area clean so water circulates properly

Maintenance that helps efficiency

A restricted filter or poor water circulation can lead to longer cycles and more heater run time.

• Clean and re-seat the dishwasher filter 5304532206 regularly
• Check that the spray arms spin freely and holes are not clogged
• Use the right detergent amount for your water hardness
• Run a dishwasher cleaner cycle periodically to reduce buildup

Quick comparison: choices that affect energy use

Choice	Typical impact on energy use	Best time to use
Normal/eco-style cycle	Lower	Daily loads
Heavy cycle	Higher	Baked-on soil, pots
Heated dry	Higher	Plastics, quick put-away
Air dry	Lower	Most loads

Why it matters

An efficient dishwasher can cost less to run than hand-washing with hot water, but only if water flow, heating, and cycle selection stay optimized. Keeping the filter clean and choosing the right cycle helps protect cleaning performance and reduces unnecessary heat time.

For more cycle and run-time context, see how long is a dishwasher cycle.

Last updated: February 2026

The most common Frigidaire dishwasher problem we see on models like FFCD2413US5A is poor wash performance that traces back to restricted water flow: a dirty filter, blocked spray paths, or a weak fill or wash system. Start with cleaning and simple checks before replacing parts.

Quick checks that fix the most issues

• Clean the filter and remove debris (labels, glass, bones) from the sump area.
• Confirm the spray arms spin freely and the holes are not clogged.
• Run hot water at the sink until it is hot, then start the cycle.
• Use fresh detergent and avoid overfilling the detergent cup.
• Load so tall items do not block the detergent door or spray pattern.

If it is not cleaning well: most likely causes

Symptom	Most common cause	What to check next
Grit or food left behind	Clogged filter or spray arm ports	Clean filter, inspect spray arms
Cloudy glassware	Too much detergent or hard water	Reduce detergent, add rinse aid
Detergent not dissolving	Low water temp or blocked cup	Verify hot water, loading
Weak spray sound	Low fill or wash motor issue	Check fill, listen for wash motor

If cleaning and loading do not help, the next most common “parts” causes are a restricted fill (water inlet valve) or a weak wash circulation (pump and motor). For FFCD2413US5A, common replacements include the dishwasher filter 5304532206 and, when wash pressure is low, the crosley dishwasher pump and motor assembly 5304519906.

Why it matters

A restricted filter or weak circulation makes the dishwasher recirculate dirty water, which causes poor cleaning, residue, and longer cycle times. Fixing the restriction early also helps protect the pump, heater, and control system.

Helpful DIY guidance

For step-by-step troubleshooting, use our dishwasher not cleaning dishes video.

Last updated: February 2026

A Frigidaire dishwasher typically lasts 7 to 10 years. For the Frigidaire FFCD2413US5A, consistent cleaning, correct detergent use, and fixing small issues early (drain, fill, heat) are what most often push real-world life closer to the high end.

What affects dishwasher lifespan the most

• Water quality: hard water speeds up mineral buildup on the heating system and internal passages.
• Filter and sump cleanliness: a clogged filter makes the pump work harder and reduces cleaning.
• Drain performance: slow draining leaves soil behind and can strain the pump.
• Heating and drying performance: weak heat can lead to longer cycles and more residue.
• Loading habits: blocked spray paths reduce cleaning and increase rewash frequency.

Maintenance that adds years (simple routine)

• Clean the filter regularly; replace it if it is damaged or won’t come clean (see dishwasher filter 5304532206).
• Run hot water at the sink before starting a cycle so the dishwasher fills with hotter water.
• Use the right amount of detergent; too much can cause filming, too little can leave grit.
• Check the drain hose routing for kinks and proper high loop (see dishwasher drain hose 807117001).
• Do a monthly cleaning cycle using a dishwasher cleaner to reduce grease and mineral buildup.

Quick “repair vs. replace” guide

What you’re seeing	Common cause	Typical fix
Dishes not drying	Heater issue or poor rinse aid use	Check/replace Frigidaire dishwasher heating element 154825001 and use rinse aid
Not draining well	Clog, hose issue, or pump problem	Clear blockage; inspect dishwasher drain hose 807117001
Not cleaning well	Filter clogged or weak wash circulation	Clean/replace dishwasher filter 5304532206
Won’t start or acts erratic	Control or latch circuit issue	Diagnose controls; consider dishwasher electronic control board 5304531745

Why it matters

Most “end of life” dishwashers fail from heat, drain, or wash circulation problems. Keeping the filter and drain path clear reduces stress on the pump and motor, helps cycles finish normally, and prevents repeat washes that wear the unit faster.

Last updated: February 2026

On the Frigidaire FFCD2413US5A dishwasher, a Normal wash cycle typically runs about 1 hour 45 minutes to 2 hours (roughly 105 to 120 minutes). Actual time changes during the cycle based on water temperature, soil level, and whether the unit needs extra heating to reach target temps.

What makes the “Normal” cycle time change

Dishwashers adjust cycle length automatically to improve cleaning and drying. Normal can run longer when:

• Incoming water is cool and the heater must raise temperature
• Dishes are heavily soiled and the control adds wash time
• You select options like heated dry or sanitize (if equipped)
• The dishwasher pauses to heat water during the main wash
• Drain or fill is slow (partial clogs, kinked hose, low water pressure)

Quick time guide (typical ranges)

These are common time ranges for many Frigidaire-built dishwashers; your FFCD2413US5A can vary by settings and conditions.

Cycle type	Typical runtime	Best for
Normal	105 to 120 min	Everyday mixed loads
Light	90 to 110 min	Light soil, quick turnaround
Heavy	120 to 180 min	Pots, baked-on soil
Rinse/hold	10 to 20 min	Preventing odors between loads

If your Normal cycle suddenly got much longer

A big jump in runtime usually points to heating, draining, or filling issues. We recommend checking these in order:

• Run hot water at the sink until it’s hot before starting the dishwasher
• Clean the filter area and remove debris from the sump (helps circulation and draining)
• Inspect the drain path for kinks or restrictions; replace a damaged dishwasher drain hose 807117001
• If water is not heating well, test the heater circuit; a failed Frigidaire dishwasher heating element 154825001 can extend cycles and reduce drying
• If filling is slow, check the supply valve and inlet screen; a sticking crosley dishwasher water inlet valve 5304525044 can cause long fills

Why it matters

Cycle time is a performance signal. When Normal runs longer, the dishwasher is usually compensating to maintain wash temperature and cleaning results. Fixing heat, fill, or drain problems restores normal timing and helps prevent poor drying and residue.

For a deeper walkthrough of timing and what affects it, use our how long is a dishwasher cycle guide.

Last updated: February 2026

Yes, for the Frigidaire FFCD2413US5A dishwasher we see many customers successfully replace common wear parts themselves if they shut off power and water first and work carefully. Simple mechanical items (like a drain hose or filter) are usually DIY-friendly; electrical and leak-related repairs take more skill and testing.

What’s typically DIY vs. better for a technician

Good DIY candidates (most homeowners):

• Dishwasher drain hose 807117001 when the unit will not drain or the hose is cracked
• Dishwasher filter 5304532206 when cleaning performance drops or debris keeps returning

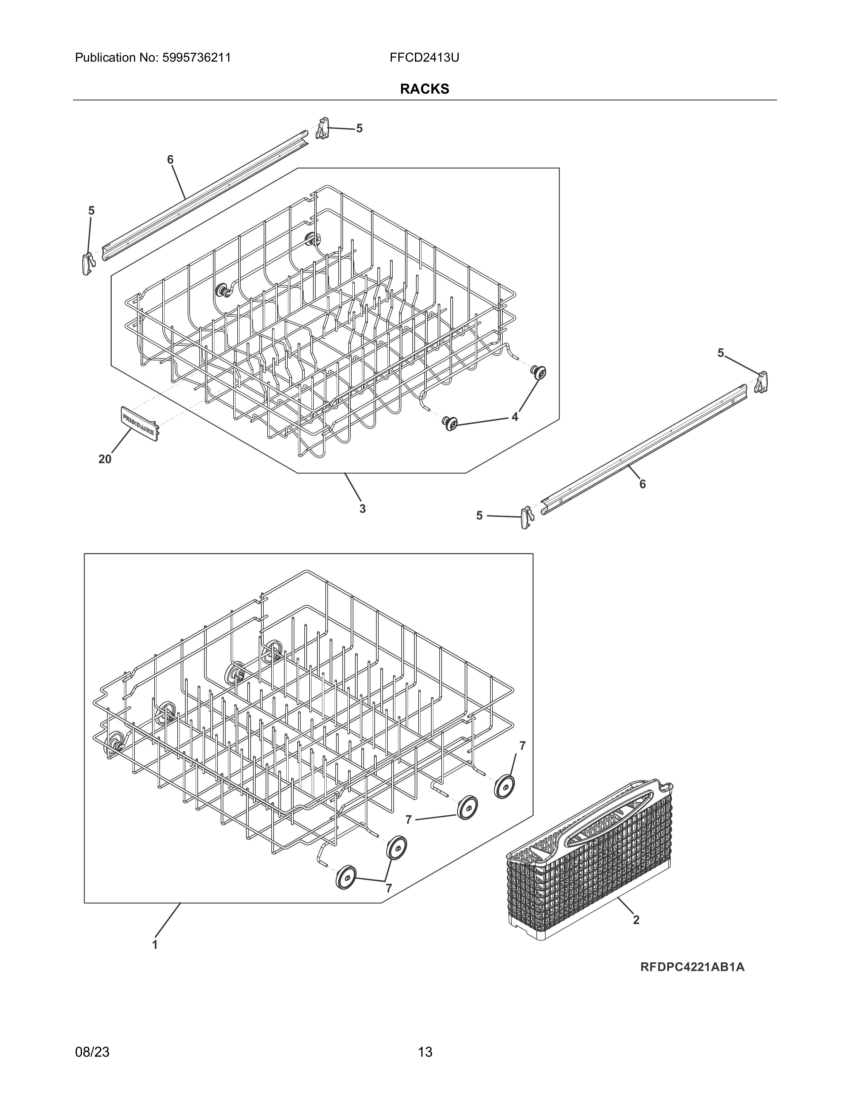

• Crosley dishwasher dishrack roller, lower 5304532229 when the lower rack falls off track

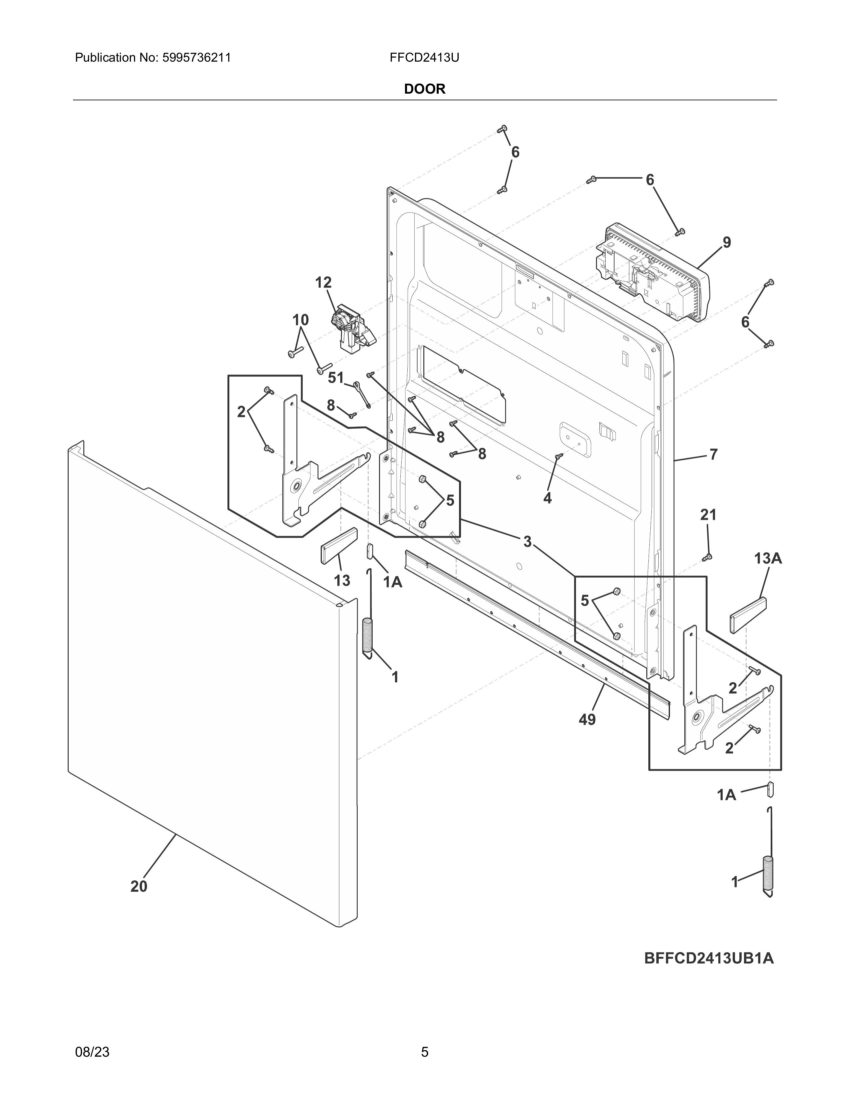

• Dishwasher door hinge arm set 5304513274 when the door won’t balance or drops quickly

Usually advanced (consider a technician if you’re not comfortable):

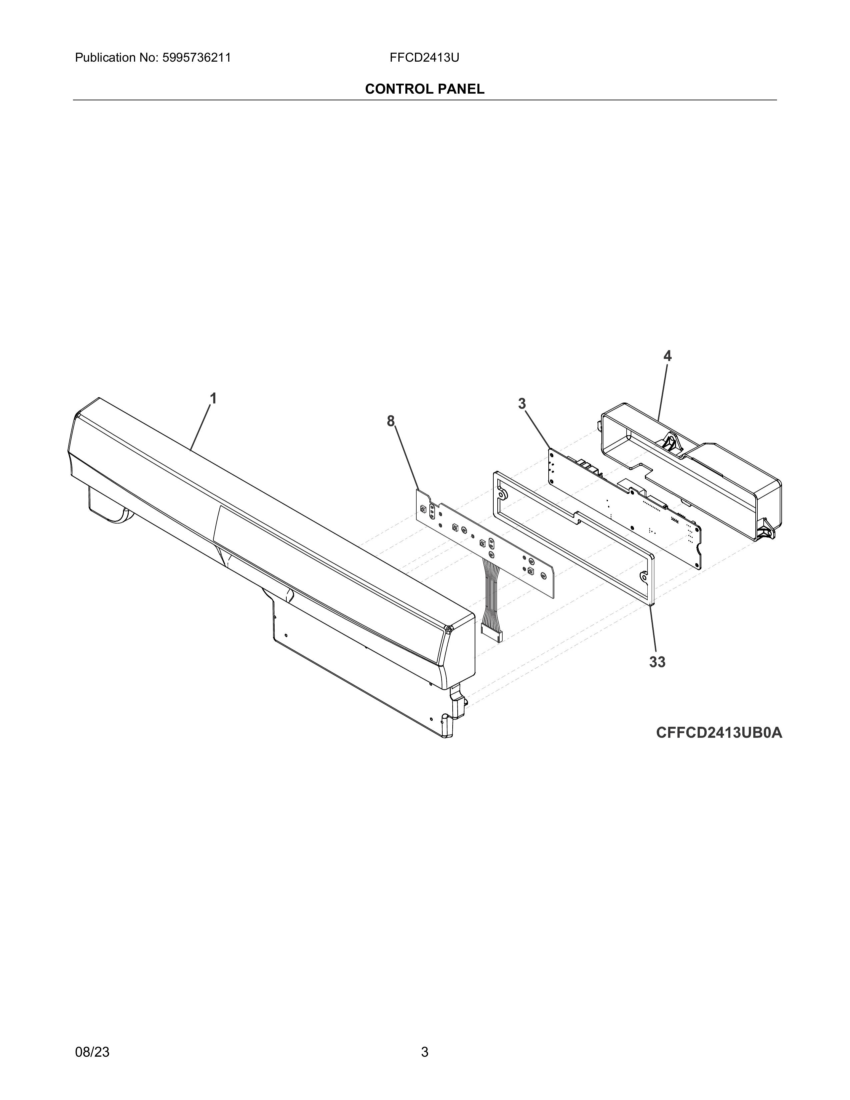

• Dishwasher electronic control board 5304531745 for no-start, dead keypad, or erratic operation
• Crosley dishwasher water inlet valve 5304525044 for no-fill or overfill symptoms (water supply and leak risk)
• Frigidaire dishwasher heating element 154825001 for poor drying or water not heating (electrical testing)

Safety and prep checklist (do this every time)

• Turn off power at the breaker (dishwashers are hardwired or plugged in under the sink).
• Shut off the water supply valve under the sink.
• Pull the dishwasher out only as far as needed; protect the floor.
• Take photos of wire and hose routing before disconnecting anything.
• Keep a towel and shallow pan ready for residual water.

Quick “is this repair worth DIY?” guide

What you’re replacing	Tools usually needed	DIY difficulty
Drain hose or filter	Pliers, screwdriver	Low
Dishrack roller or hinge arm	Screwdriver	Low to medium
Inlet valve or heating element	Multimeter, nut driver	Medium to high
Control board	Screwdriver, careful handling	Medium to high

Why it matters

Dishwasher repairs often fail because power or water is not fully shut off, or because a small leak is missed during reassembly. Starting with simpler parts builds confidence and helps avoid repeat breakdowns.

For step-by-step visuals, we recommend starting with dishwasher not draining video or dishwasher wont start video based on your symptom.

Last updated: February 2026

In a Frigidaire dishwasher like model FFCD2413US5A, the most commonly replaced parts are the ones that control filling, heating, draining, and washing action. We typically see wear, clogs, leaks, or electrical failures affect items like the water inlet valve, heating element, drain hose, and pump assemblies.

Most common dishwasher parts that get replaced

These are the parts we see replaced most often because they directly affect performance and leak risk:

• Water inlet valve (dishwasher will not fill or fills slowly)
• Heating element (poor drying, cool water, weak cleaning)
• Drain hose (won’t drain, leaks under sink)
• Pump and motor or pump assembly (no wash action, loud grinding, poor circulation)
• Filter (cloudy dishes, debris left in tub)
• Detergent dispenser (soap door won’t open, detergent not releasing)

Model-relevant examples for FFCD2413US5A

If you are troubleshooting one of these symptoms, these model-matched parts are common starting points:

Symptom	Likely part to check/replace	Example part for this model
Not filling	Water inlet valve	Crosley dishwasher water inlet valve 5304525044
Not drying / weak cleaning	Heating element	Frigidaire dishwasher heating element 154825001
Not draining / leaking at drain	Drain hose	Dishwasher drain hose 807117001

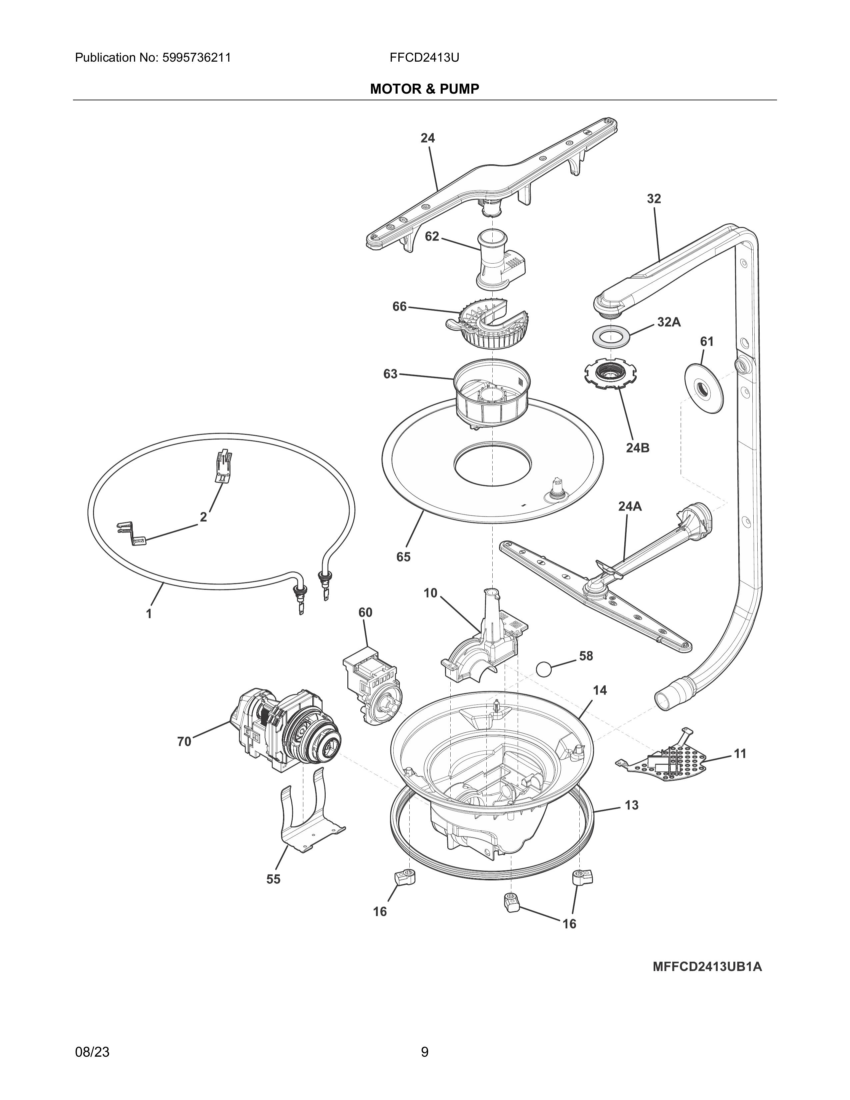

No wash action / loud pump	Pump and motor	Crosley dishwasher pump and motor assembly 5304519906
Detergent not dispensing	Detergent dispenser	Dishwasher detergent dispenser assembly 5304506521

Quick checks before you buy a part

We recommend ruling out simple causes first; it saves time and avoids replacing good parts.

• Clean the filter area and remove any standing debris
• Confirm the water supply valve under the sink is fully open
• Check for a kinked drain hose or a clogged sink/disposer connection
• Make sure spray arms can spin freely and are not blocked by tall items
• Use fresh detergent and avoid overfilling the dispenser

Why it matters

Dishwashers rely on correct water level, strong circulation, and proper heating to clean and dry. When one core component (fill, heat, drain, or pump) is weak, you often see multiple symptoms at once, like poor cleaning plus wet dishes.

For step-by-step symptom-based help, use dishwasher common questions.

Last updated: February 2026
