Model #DCCB330ET0AC GE electric dryer

Here are the diagrams and repair parts for GE DCCB330ET0AC electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

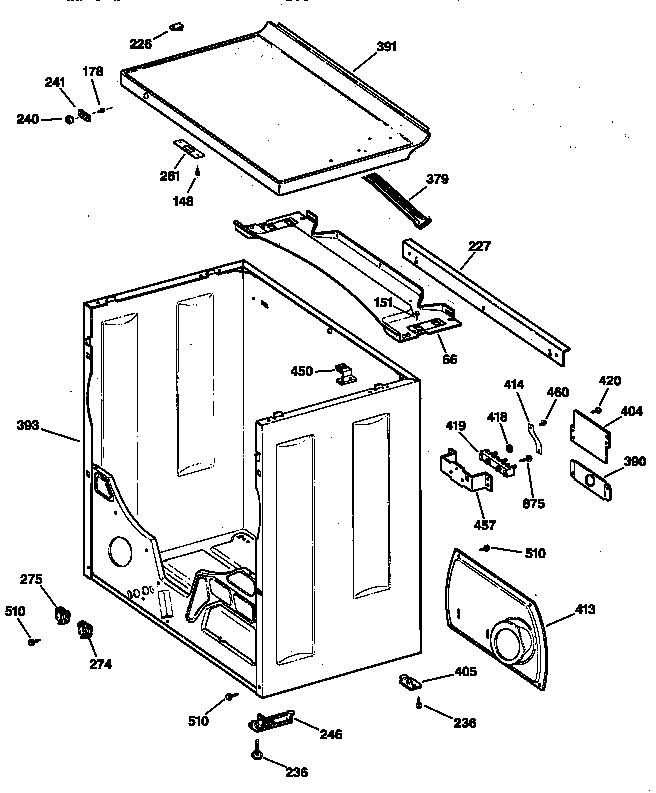

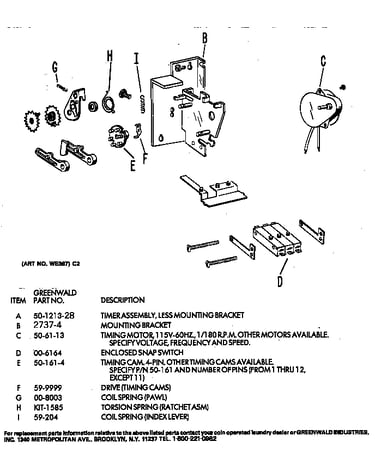

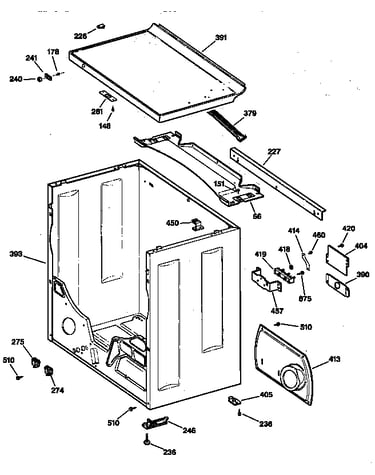

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 109 parts

    Dryer Installation

    #1B

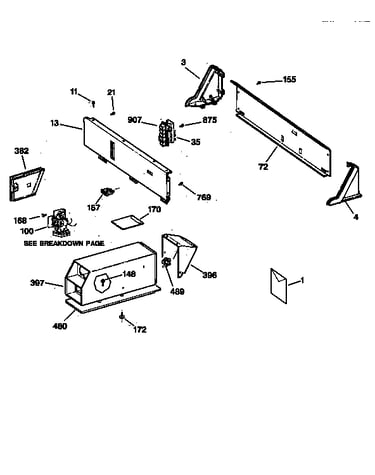

    Control assembly Diagram

    Dryer installation

    Part #31-1745
    This item is not returnable
    $5.99

    In Stock

    Push Button

    #907

    Control assembly Diagram

    Push button

    Part #WD9X206
    ?
    Manufacturer substitution
    This part replaces WD09X0206. Substitute parts can look different from the original.
    This part replaces WD09X0206
    This item is not returnable
    $4.35

    In Stock

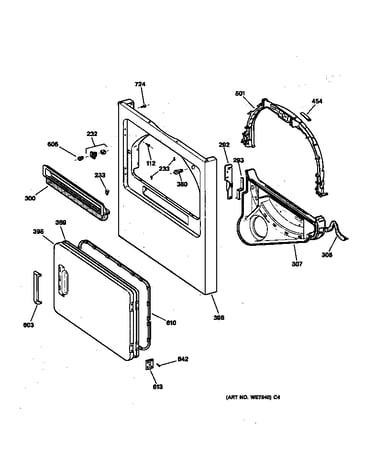

    Dryer Door Hinge

    #613

    Cabinet front Diagram

    Dryer door hinge

    Part #WE1M1033
    ?
    Manufacturer substitution
    This part replaces WE01X1189. Substitute parts can look different from the original.
    This part replaces WE01X1189
    This item is not returnable
    $4.89

    In Stock

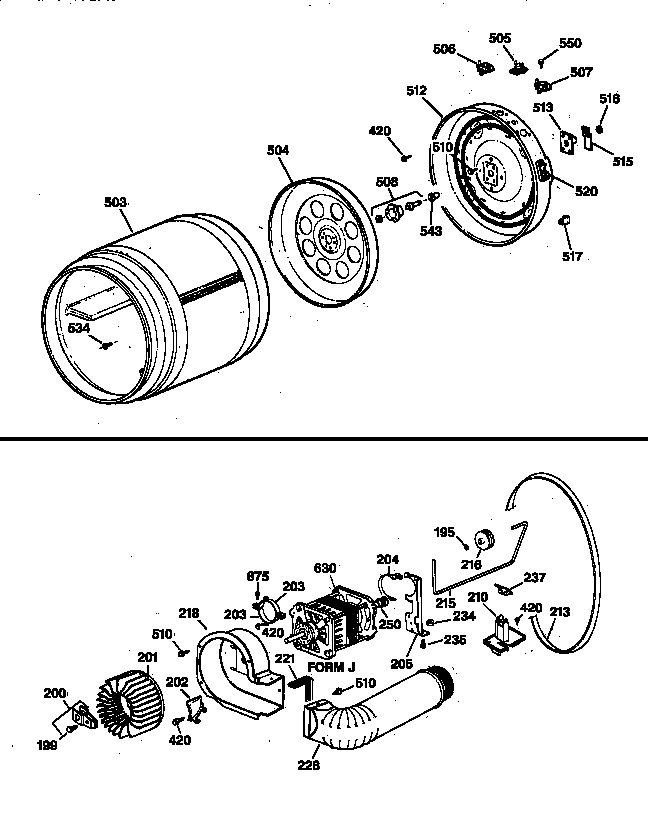

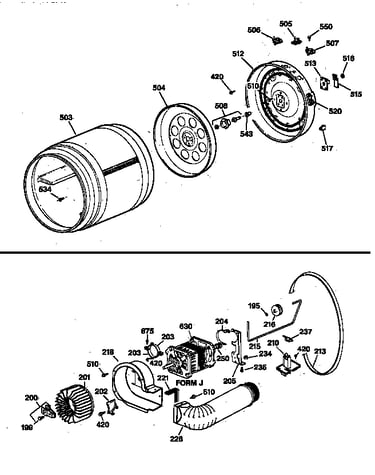

    Dryer Blower Wheel Retainer Assembly

    #200

    Drum,heater asm,blower&drive asm Diagram

    Dryer blower wheel retainer assembly

    Part #WE1X688
    ?
    Manufacturer substitution
    This part replaces WE01X0688. Substitute parts can look different from the original.
    This part replaces WE01X0688
    $9.89

    In Stock

    Dryer Blower Wheel

    #201B

    Drum,heater asm,blower&drive asm Diagram

    Dryer blower wheel

    Part #WE16M15
    ?
    Manufacturer substitution
    This part replaces WE16X0017. Substitute parts can look different from the original.
    This part replaces WE16X0017
    $40.99

    In Stock

    Gr Strap A

    #515

    Drum,heater asm,blower&drive asm Diagram

    Gr strap a

    Part #WE1X1172
    ?
    Manufacturer substitution
    This part replaces WE01X1172. Substitute parts can look different from the original.
    This part replaces WE01X1172
    $14.55

    In Stock

    Dryer Lint Screen

    #300

    Cabinet front Diagram

    Dryer lint screen

    Part #WE18X54
    ?
    Manufacturer substitution
    This part replaces WE18X0054. Substitute parts can look different from the original.
    This part replaces WE18X0054
    $45.99

    In Stock

    Use & Care C

    #1A

    Control assembly Diagram

    Use & care c

    Part #049-90028
    ?
    Manufacturer substitution
    This part replaces 49-9891. Substitute parts can look different from the original.
    This part replaces 49-9891
    $8.49

    In Stock

    Dryer Motor Pulley

    #250

    Drum,heater asm,blower&drive asm Diagram

    Dryer motor pulley

    Part #WE12X41
    ?
    Manufacturer substitution
    This part replaces WE12X0041. Substitute parts can look different from the original.
    This part replaces WE12X0041
    $17.43

    In Stock

    Dryer Drum Glide Bearing

    #454

    Cabinet front Diagram

    Dryer drum glide bearing

    Part #WE3X87
    ?
    Manufacturer substitution
    This part replaces WE03X0087. Substitute parts can look different from the original.
    This part replaces WE03X0087
    This item is not returnable
    $6.09

    In Stock

    Symptoms common to all dryers

    Choose a symptom to see related dryer repairs.

    Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
    Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
    Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
    Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
    Main causes: bad timer or electronic control board, door switch failure
    Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
    Main causes: damaged door strike, worn door catch
    Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
