Kenmore
Countertop Microwave

Model # 72169123010 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72169123010 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

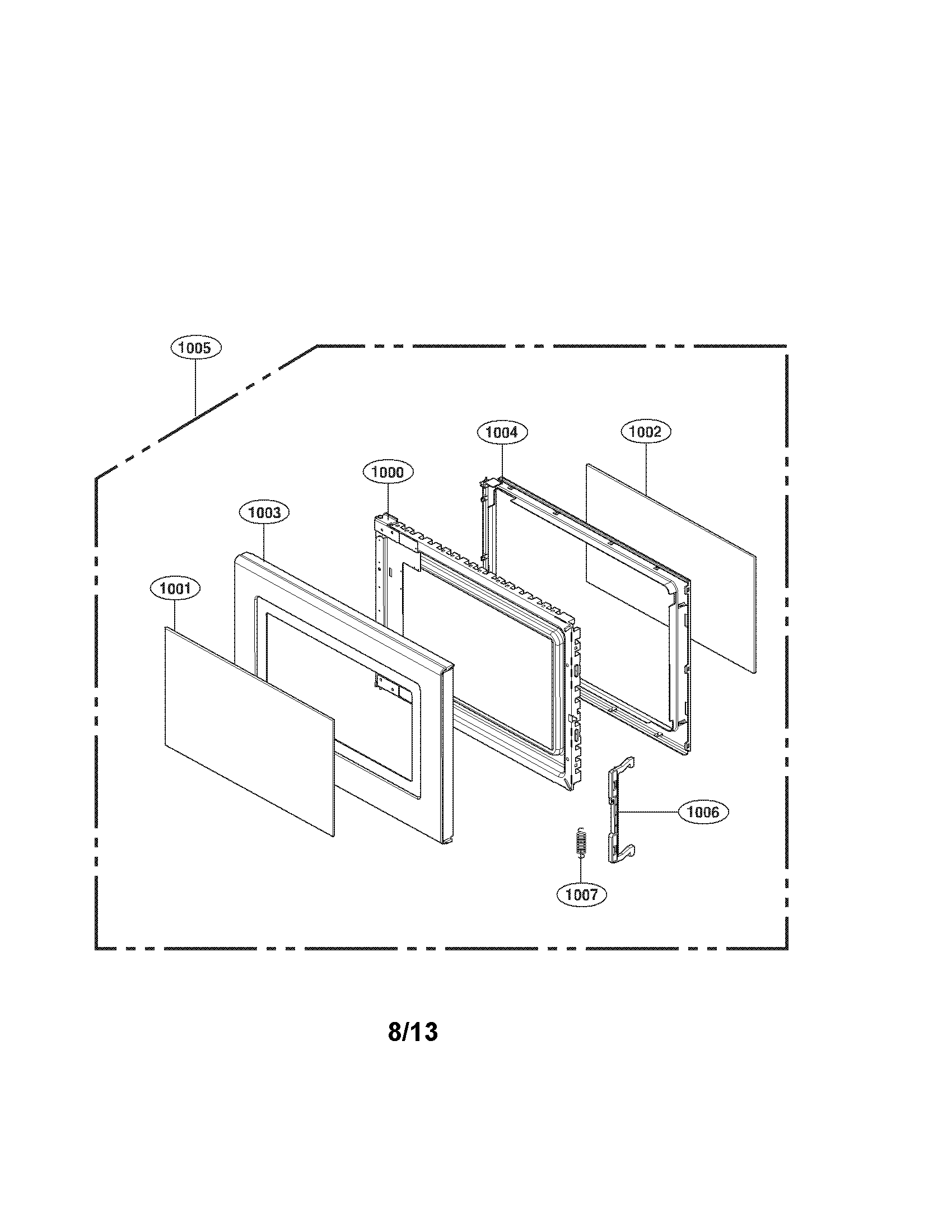

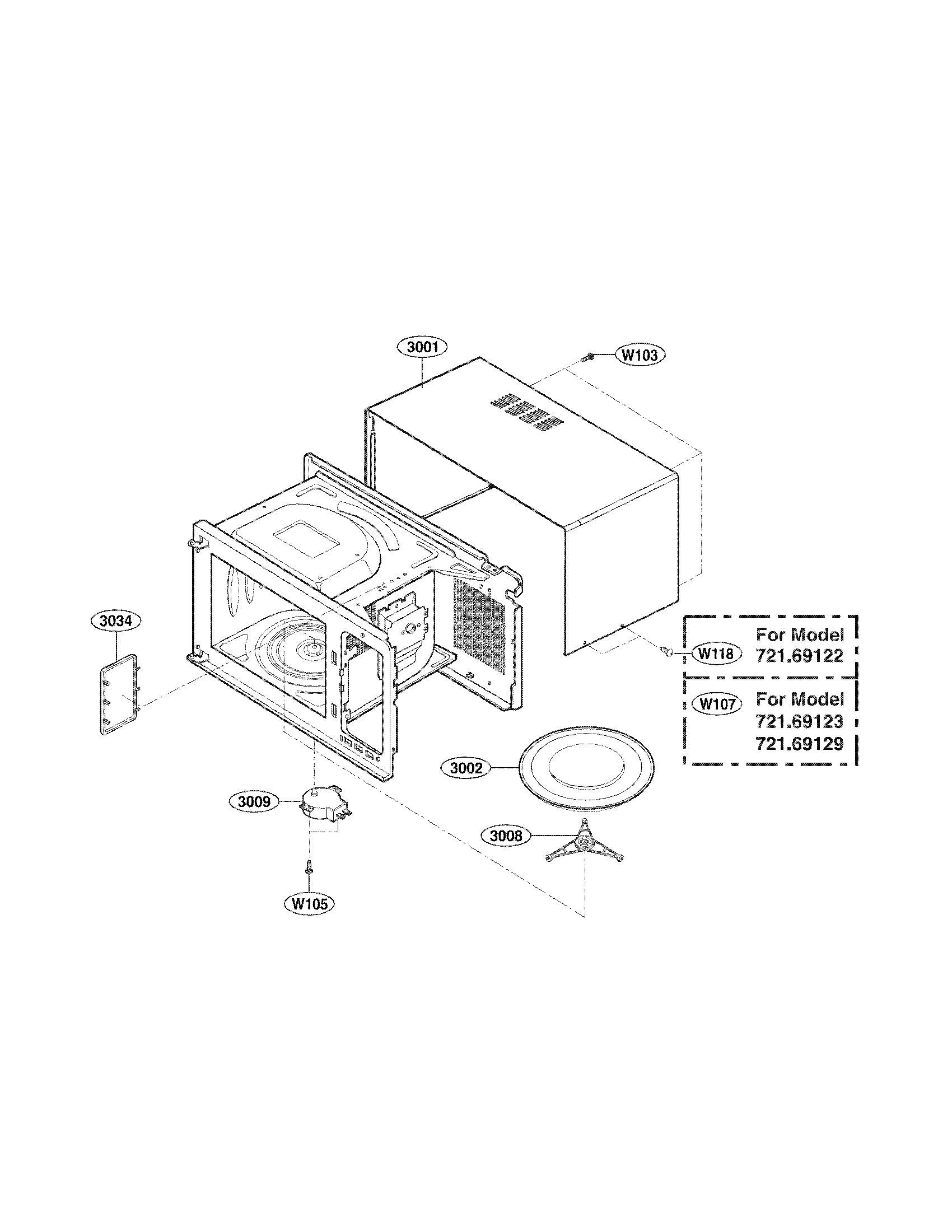

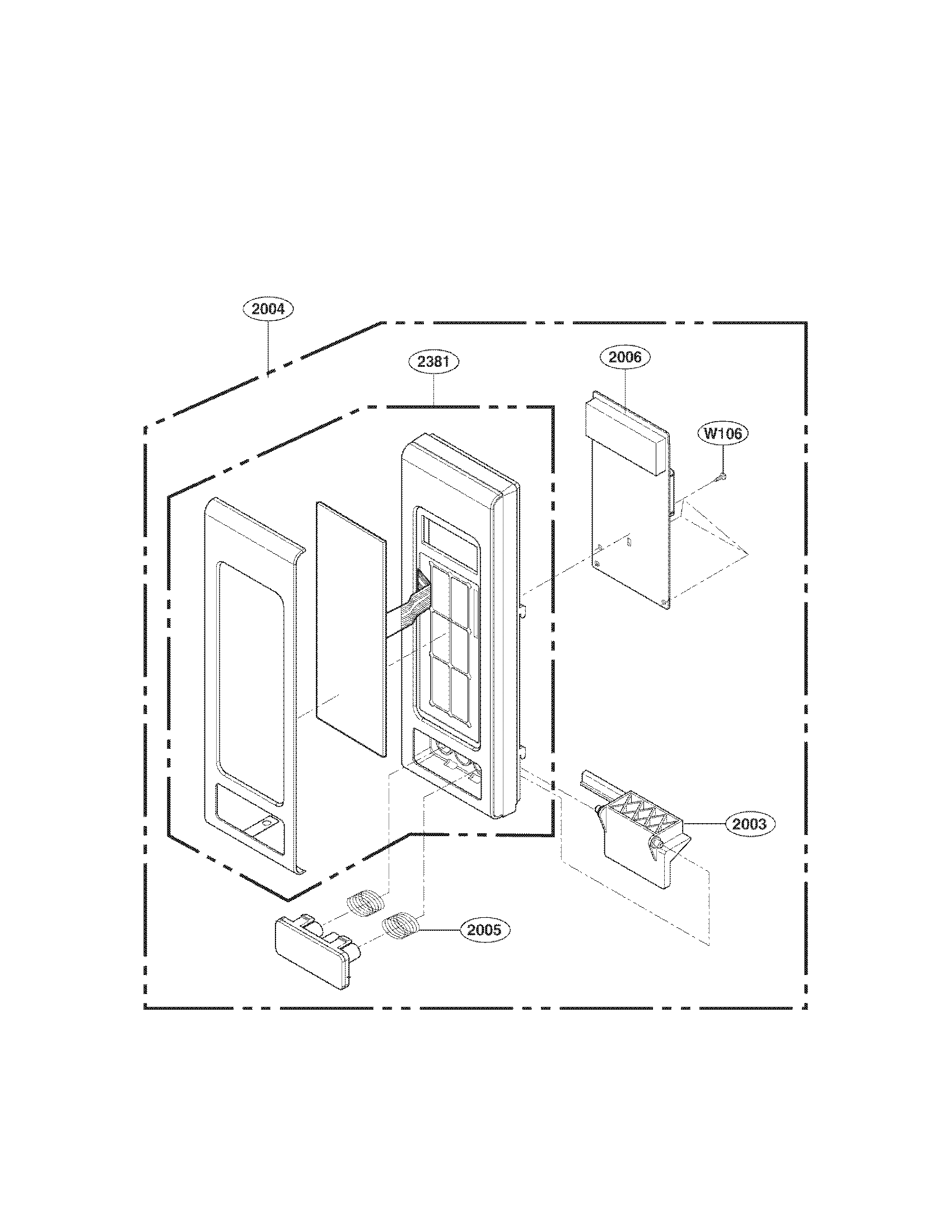

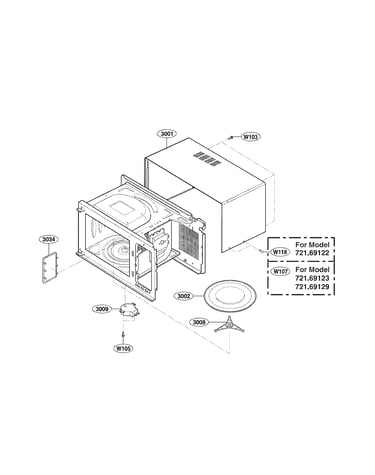

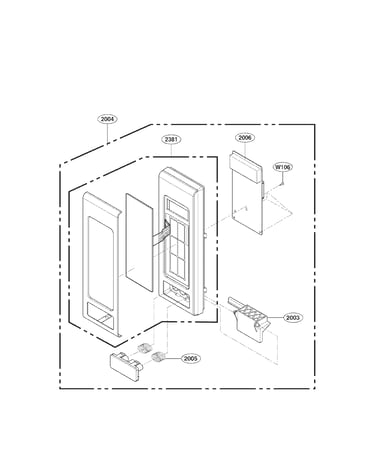

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
#5009

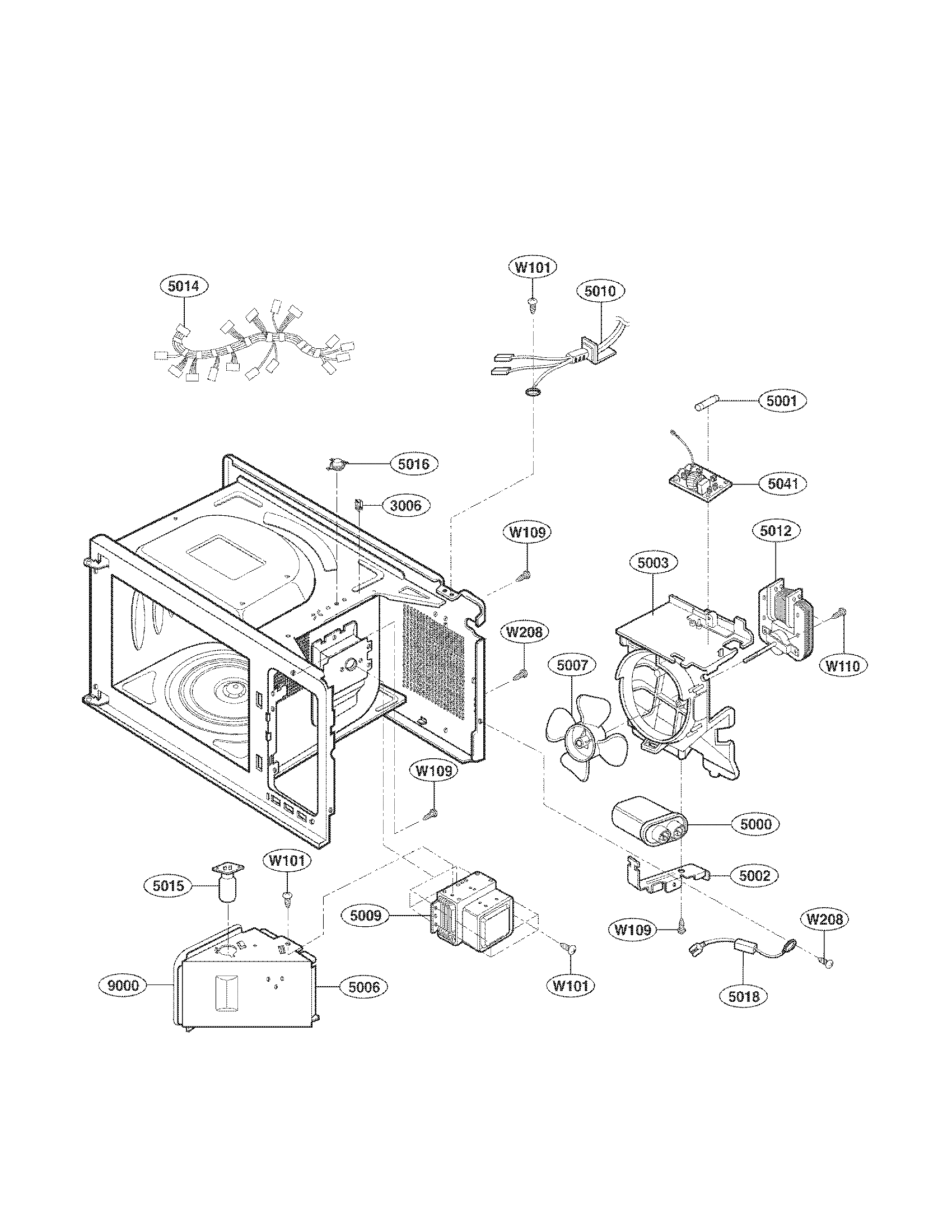

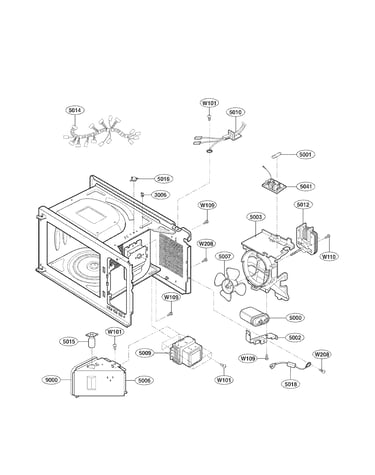

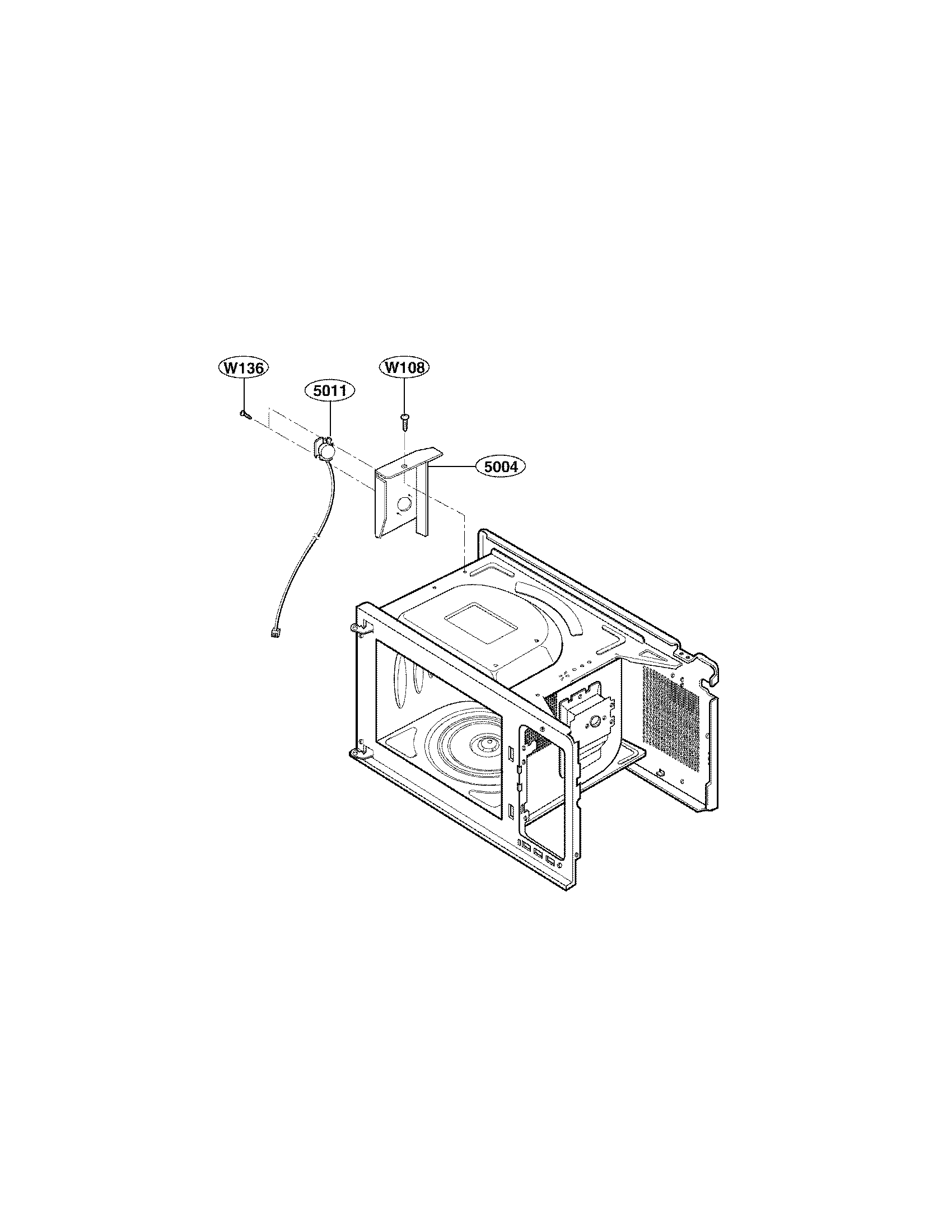

Interior parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

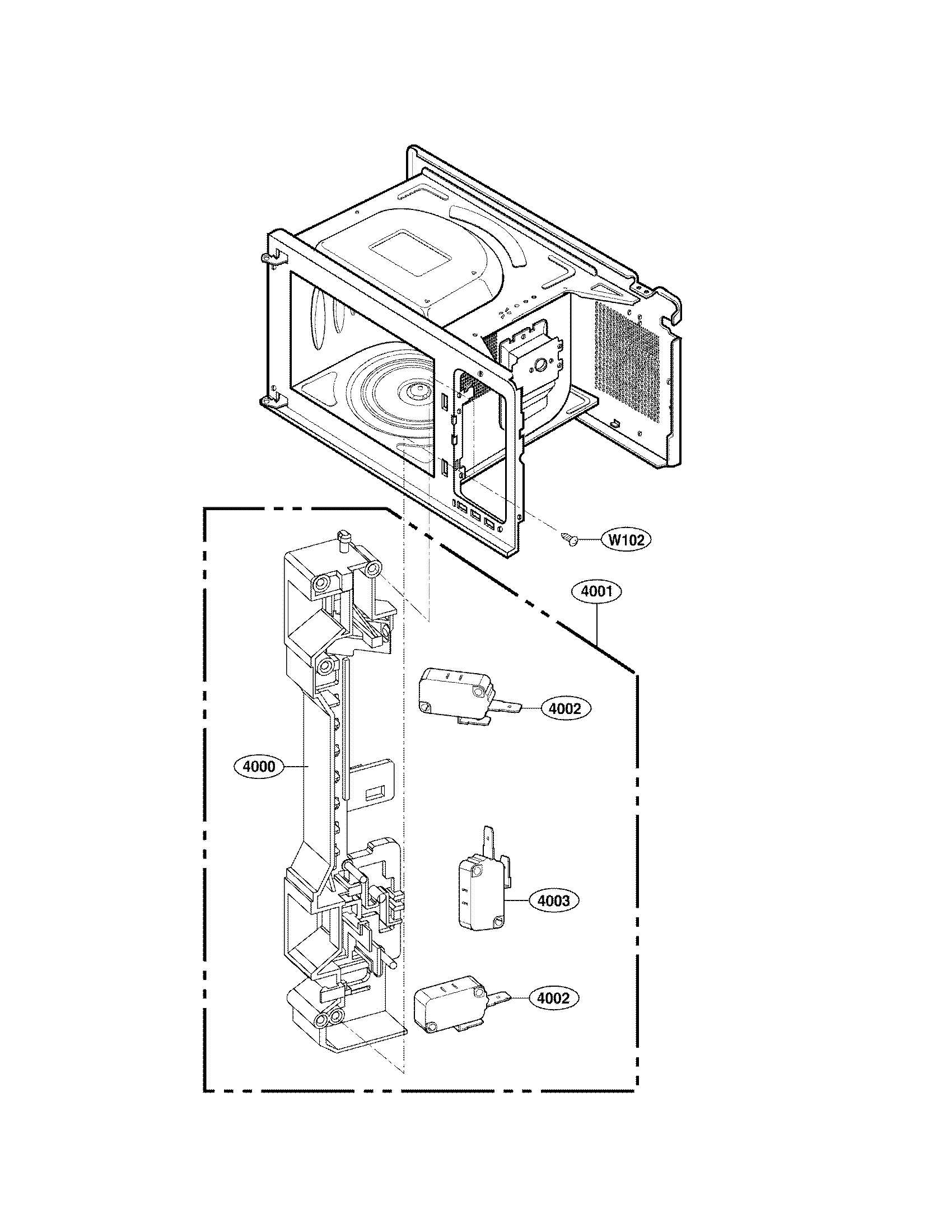

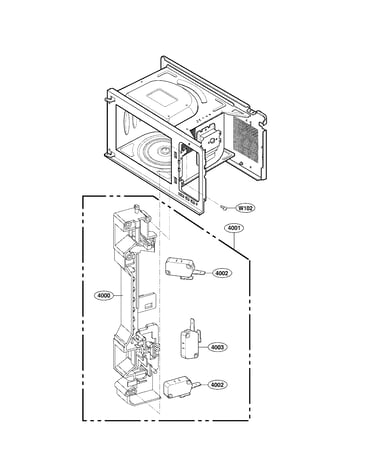

Latch board parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave High-voltage Capacitor 0CZZW1H004P
#5000

Interior parts diagram

Microwave high-voltage capacitor

Part #0CZZW1H004P

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces 0CZZW1H004P. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Diode 6851W1A002D
#5018

Interior parts diagram

Microwave diode

Part #6851W1A002D

BEST SELLER
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly (replaces 3500w1a018a, 3501w1a003u) 3501W1A053A
Microwave door latch housing and interlock switch assembly (replaces 3500w1a018a, 3501w1a003u)

Part #3501W1A053A

$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Latch Board 3500W1A018A
#4000

Latch board parts diagram

Microwave latch board

Part #3500W1A018A

Replaced by #3501W1A053A

?
Manufacturer substitution
This part replaces 3500W1A018A. Substitute parts can look different from the original.
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Microwave Thermostat 6930W1A003B
#5016

Interior parts diagram

Microwave thermostat

Part #6930W1A003B

This item is not returnable
$5.52 |
15% OFF Phone Price : $6.52
In Stock
Microwave Screw 4B70188C
#W102

Latch board parts diagram

Microwave screw

Part #4B70188C

This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
Screw 1TTL0402418
#W108

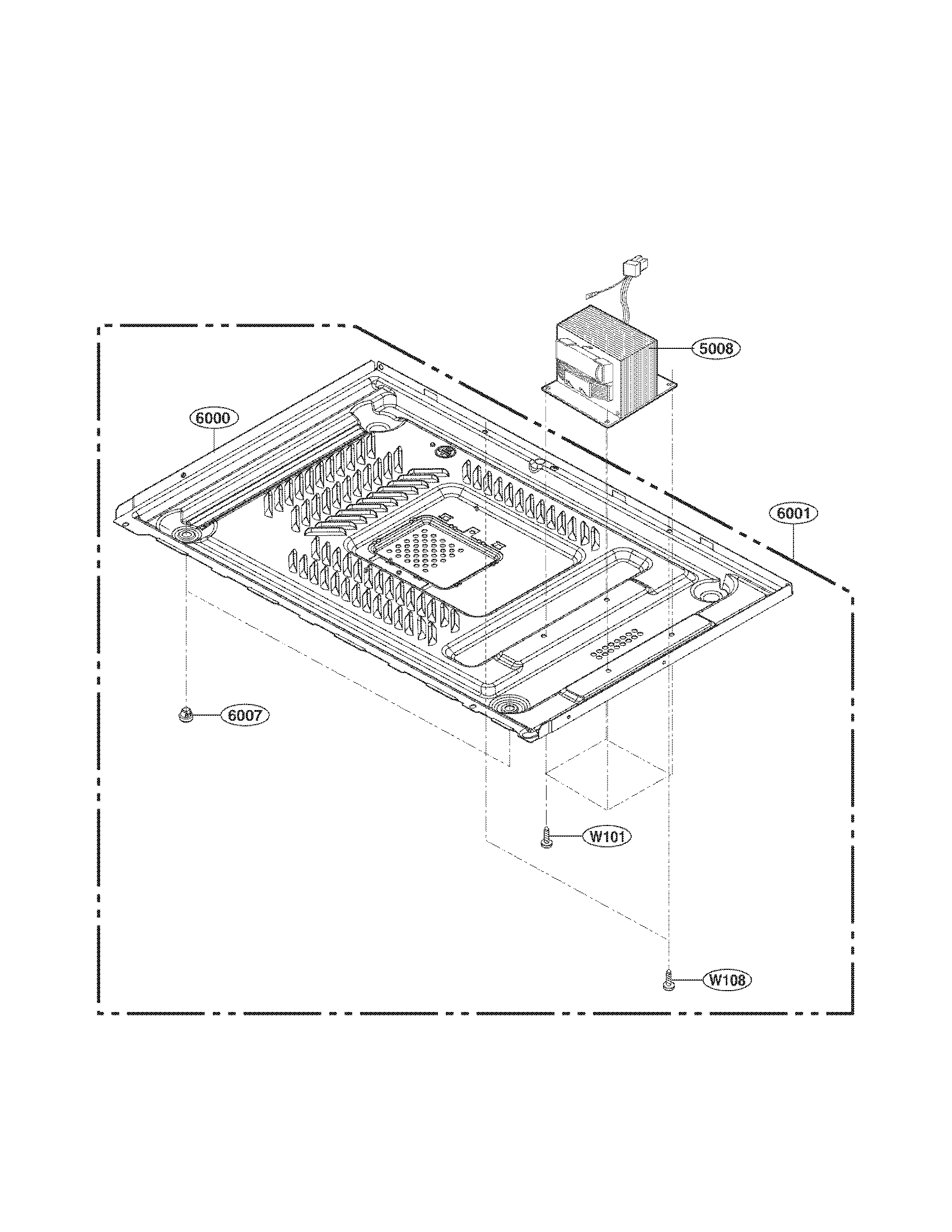

Base plate parts diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$6.06 |
14% OFF Phone Price : $7.06
In Stock
