Model # 30-3053-23-03 Official Tappan gas range

Here are the diagrams and repair parts for Official Tappan 30-3053-23-03 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

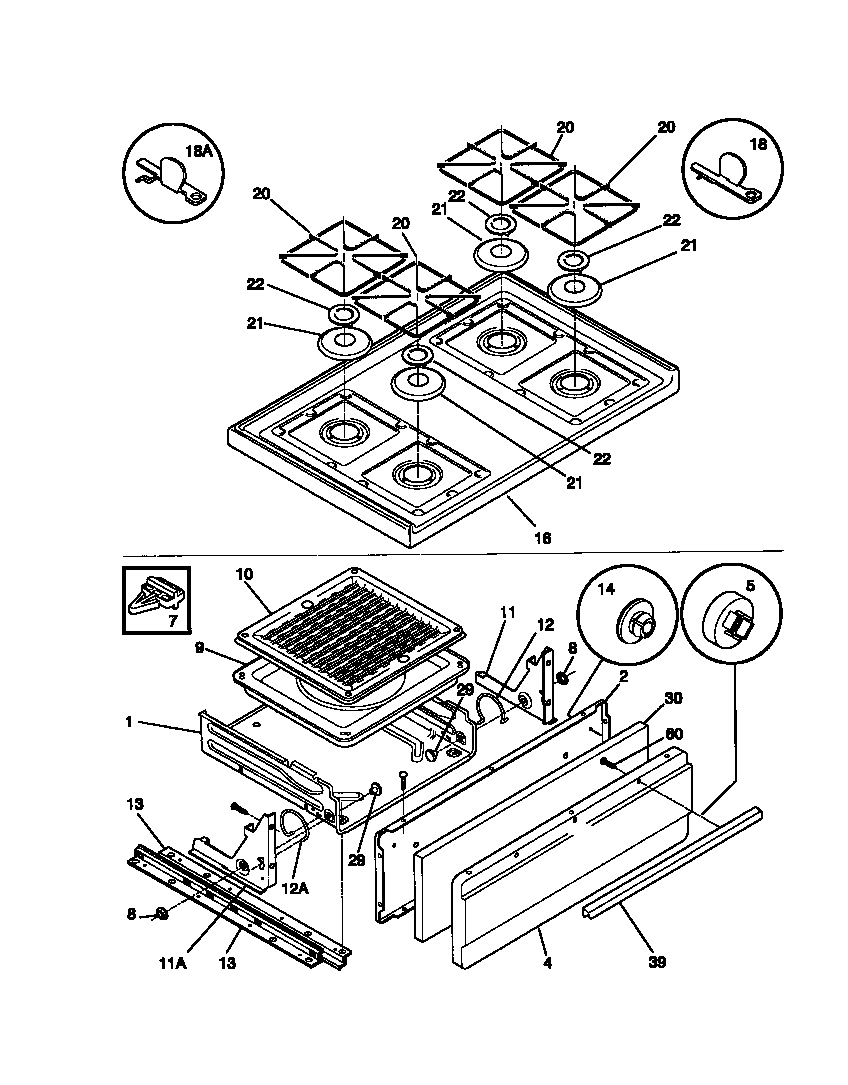

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |

Range Oven Light Bulb 5303013071
#15

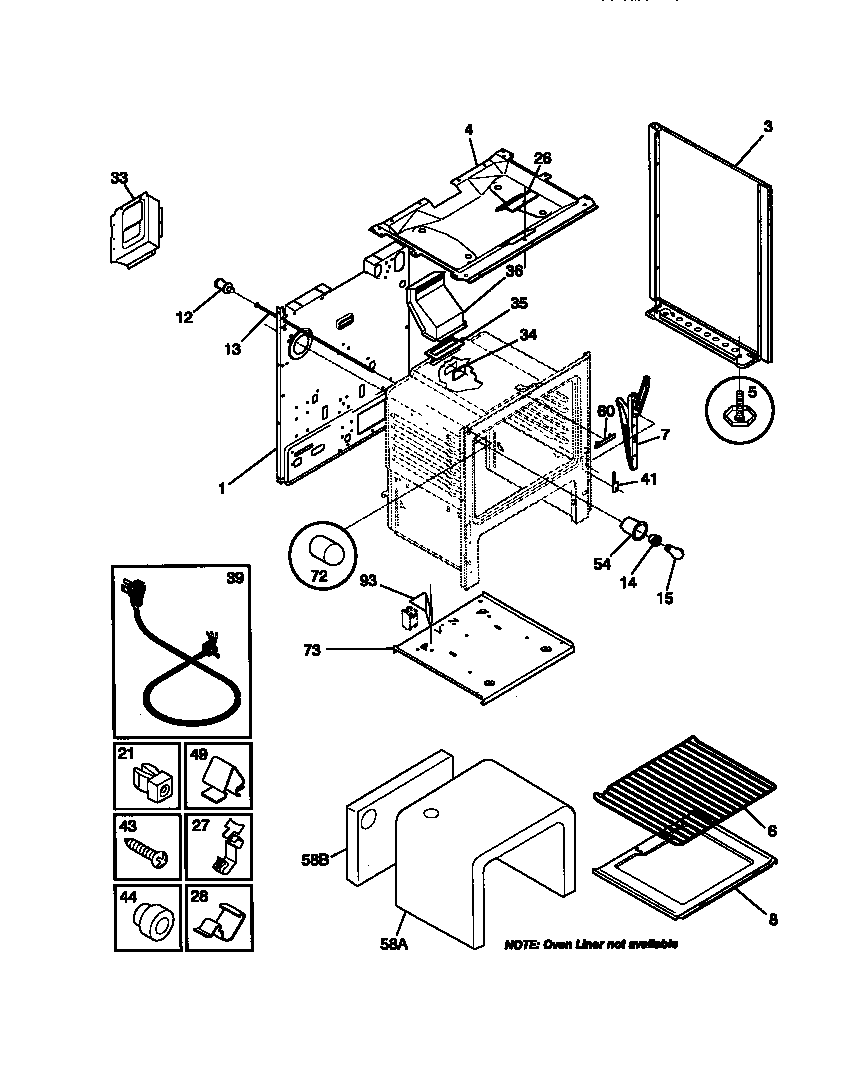

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.78
11% OFF Phone Price : $17.78
In Stock
Igniter 5303131300
#19

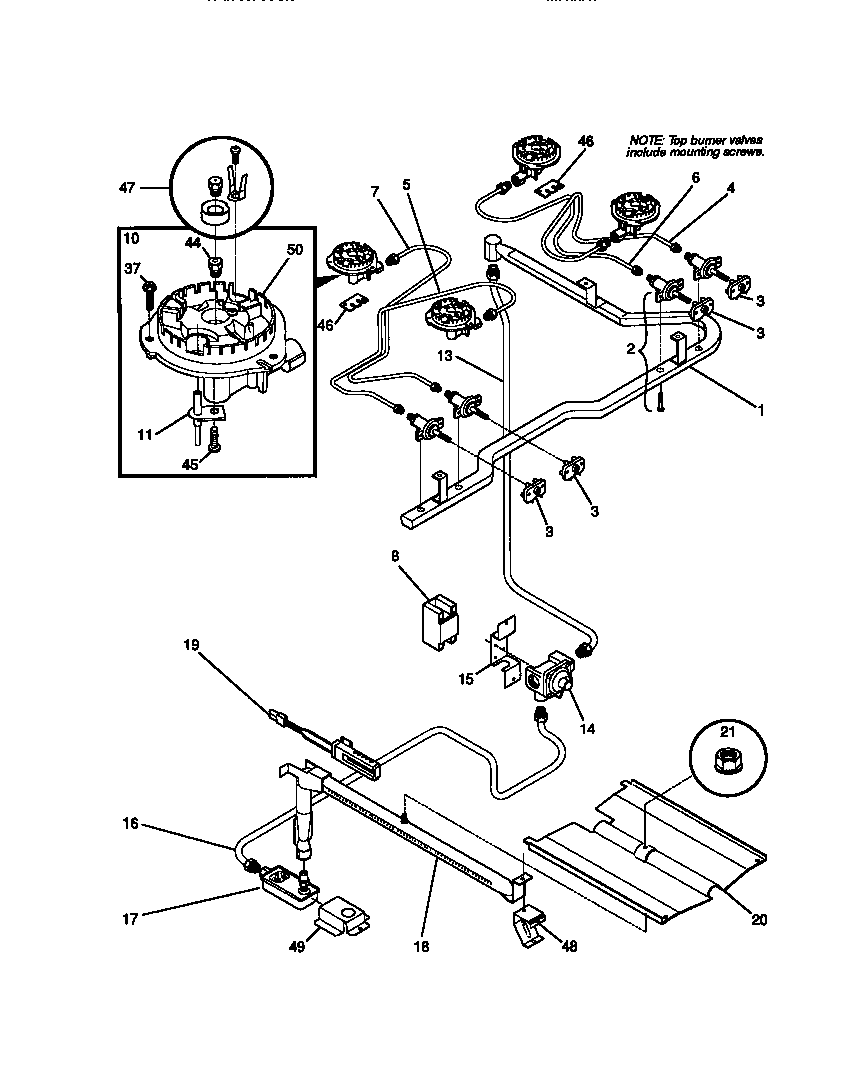

Burner diagram

Igniter

Part #5303131300

Replaced by #5303935066

?
Manufacturer substitution
This part replaces 5303131300. Substitute parts can look different from the original.
BEST SELLER
$34.30
22% OFF MSRP : $44.00
In Stock
Cord 3202006
#39

Body diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
BEST SELLER
$29.60
14% OFF Phone Price : $34.60
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
#60

Backguard diagram

Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
BEST SELLER
$14.89
12% OFF Phone Price : $16.89
In Stock
Socket 3014073
#14

Body diagram

Socket

Part #3014073

Replaced by #316116400

?
Manufacturer substitution
This part replaces 3014073. Substitute parts can look different from the original.
$42.01
11% OFF Phone Price : $47.01
In Stock
Range Surface Burner Igniter (replaces 5303311262) 316011200
#11

Burner diagram

Range surface burner igniter (replaces 5303311262)

Part #316011200

$25.59
16% OFF Phone Price : $30.59
In Stock
Oven Rack 316067901
#6

Body diagram

Oven rack

Part #316067901

Replaced by #5304526378

?
Manufacturer substitution
This part replaces 316067901. Substitute parts can look different from the original.
$36.71
12% OFF Phone Price : $41.71
In Stock
Thermostat 5303271464
#12

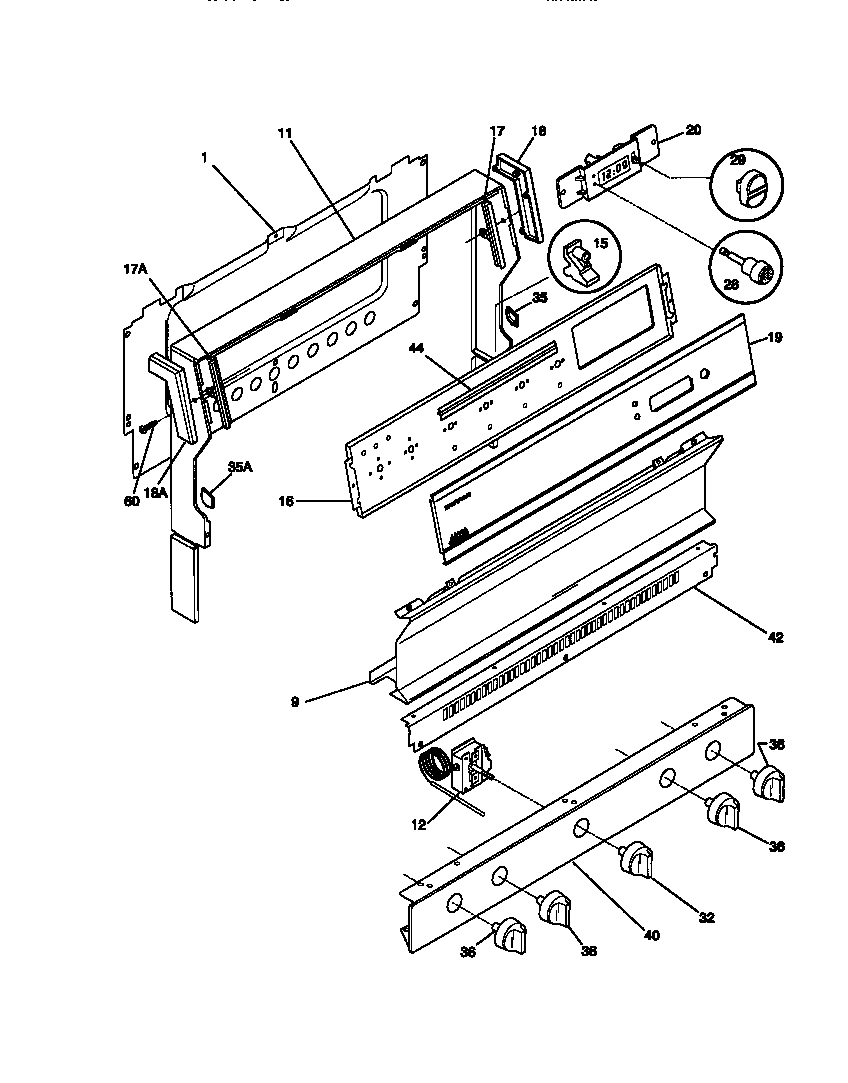

Backguard diagram

Thermostat

Part #5303271464

Replaced by #316032411

?
Manufacturer substitution
This part replaces 5303271464. Substitute parts can look different from the original.
$95.19
10% OFF Phone Price : $105.19
In Stock
Range Screw (replaces 5303270172, 636t142p01, 75303285179) 5303285179

#NI

All parts diagram

Range screw (replaces 5303270172, 636t142p01, 75303285179)

Part #5303285179

This item is not returnable
In Stock
Handle 5303273127
#39

Door diagram

Handle

Part #5303273127

Replaced by #316545300

?
Manufacturer substitution
This part replaces 5303273127. Substitute parts can look different from the original.
$99.47
9% OFF Phone Price : $109.47
Back Order
