Freestanding Ice Maker

Model # ZDI15CCWW Official GE ice cube maker

Here are the diagrams and repair parts for Official GE ZDI15CCWW ice cube maker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

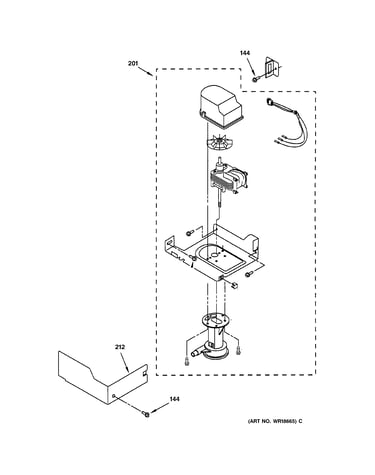

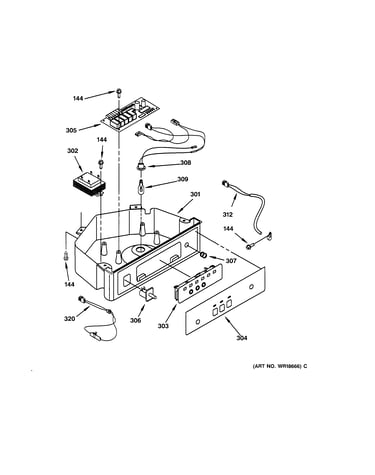

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Dryer Filter WR86X0096
#740

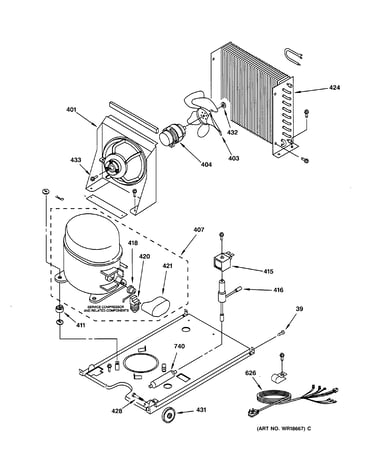

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
$79.18
6% OFF Phone Price : $84.18
In Stock
Refrigerator Door Hinge Pin WR01X10135
#34

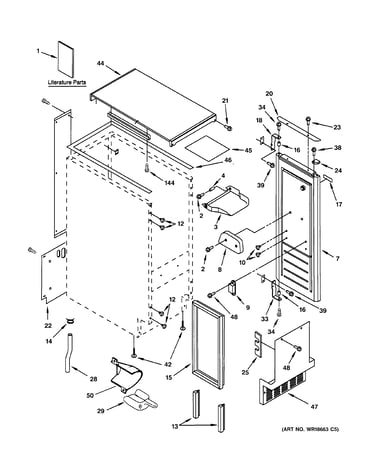

Cabinet, liner & door parts diagram

Refrigerator door hinge pin

Part #WR01X10135

In Stock
Ice Maker Recirculation Tube WR17X10455
#102

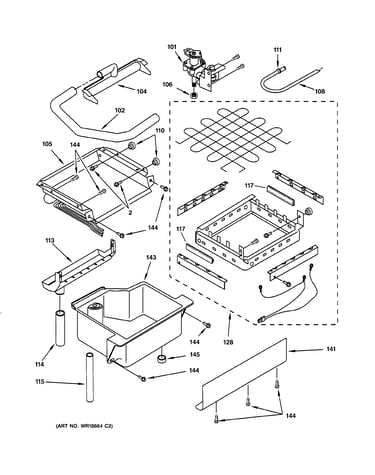

Evaporator, ice cutter grid & water diagram

Ice maker recirculation tube

Part #WR17X10455

Replaced by #WR01X30254

?
Manufacturer substitution
This part replaces WR17X10455. Substitute parts can look different from the original.
In Stock
Screw 8-18 X WR01X10134
Screw 8-18 x

Part #WR01X10134

In Stock
Electronic Shield WR02X10380
#45

Cabinet, liner & door parts diagram

Electronic shield

Part #WR02X10380

In Stock
Spacer WR01X10139
#110

Evaporator, ice cutter grid & water diagram

Spacer

Part #WR01X10139

In Stock
Door Handle WR12X10316
#20

Cabinet, liner & door parts diagram

Door handle

Part #WR12X10316

In Stock
Ice Maker Water Reservoir WR32X10090
#113

Evaporator, ice cutter grid & water diagram

Ice maker water reservoir

Part #WR32X10090

$91.29
5% OFF Phone Price : $96.29
In Stock
Filler End Cap WR02X10389
#24

Cabinet, liner & door parts diagram

Filler end cap

Part #WR02X10389

This item is not returnable
In Stock
Scoop Holder WR02X10388
#50

Cabinet, liner & door parts diagram

Scoop holder

Part #WR02X10388

In Stock

Most common symptoms to help you fix your freestanding ice makers

Choose a symptom to see related ice maker repairs.

Main causes: failing compressor, bad condenser fan motor, faulty drain pump, bad recirculation pump, water supply proble…

Main causes: dirty evaporator plate, untreated water supply, food items being stored in ice storage bin…

Main causes: cracked water supply line, leaky drain line, broken drain pump, cracked water reservoir, leaky ice bin…

Main causes: wiring failure, broken cutting grid, faulty electronic control board…

Main causes: bad electronic control board, water supply problems, faulty recirculation pump, sealed system failure, brok…

Main causes: water supply problems, control board failure, weak recirculation pump, clogged water distributer, faulty cu…

Main causes: bad bin thermistor, condenser fan failure, faulty control board…

Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, faulty bin thermistor, bad eva…
