KitchenAid
Bottom-Mount Refrigerator

Model # KBFC42FTS05 Official KitchenAid 42" built-in refrigerator

Here are the diagrams and repair parts for Official KitchenAid KBFC42FTS05 42" built-in refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

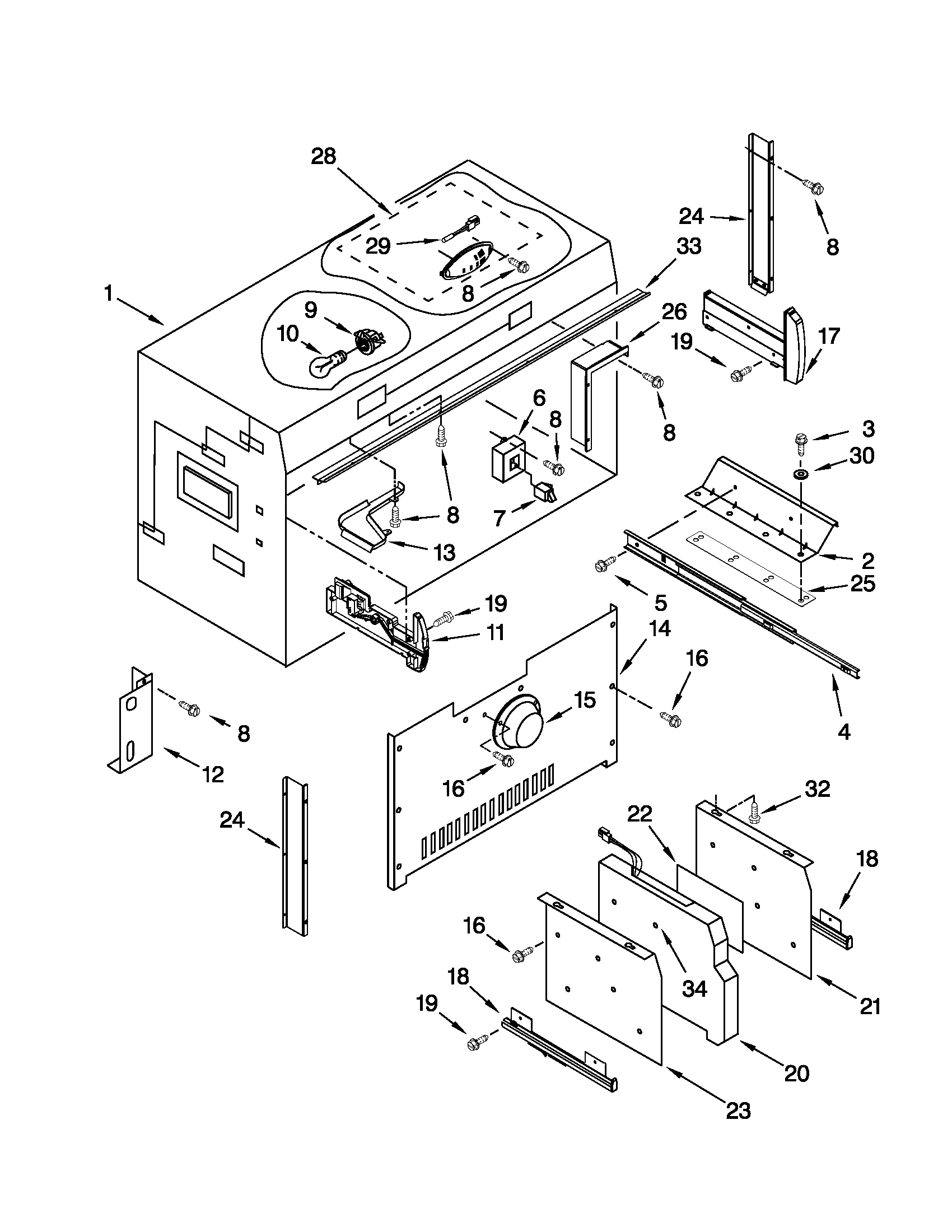

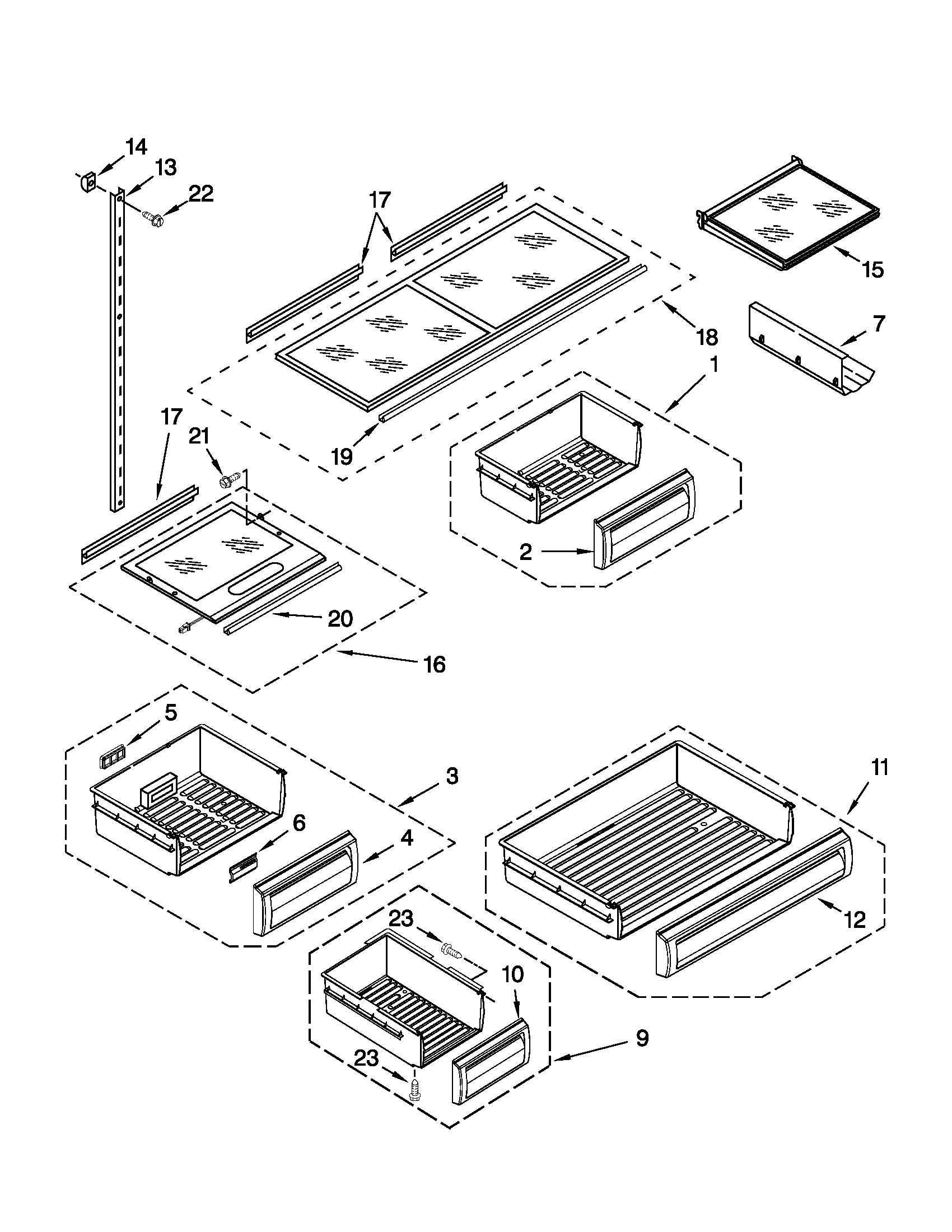

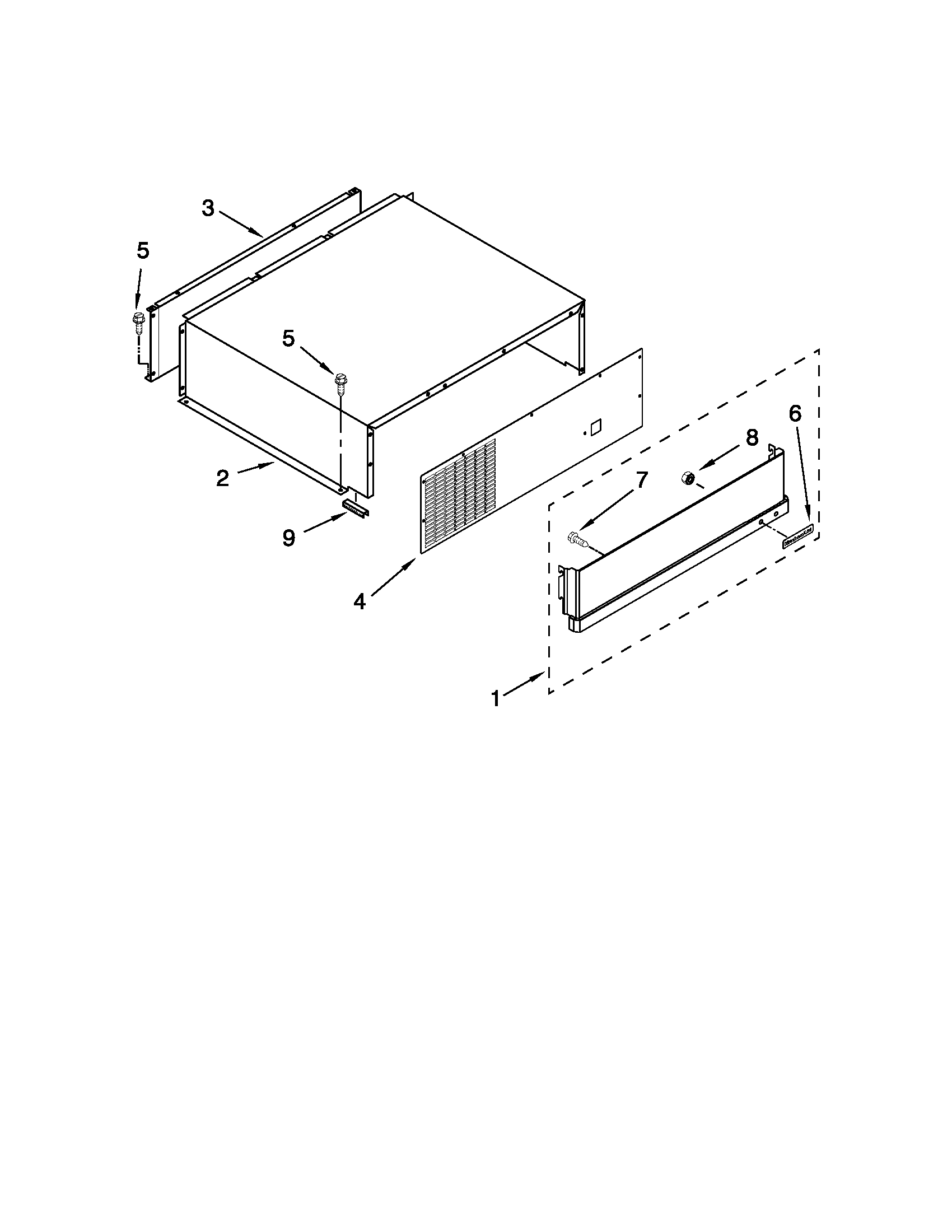

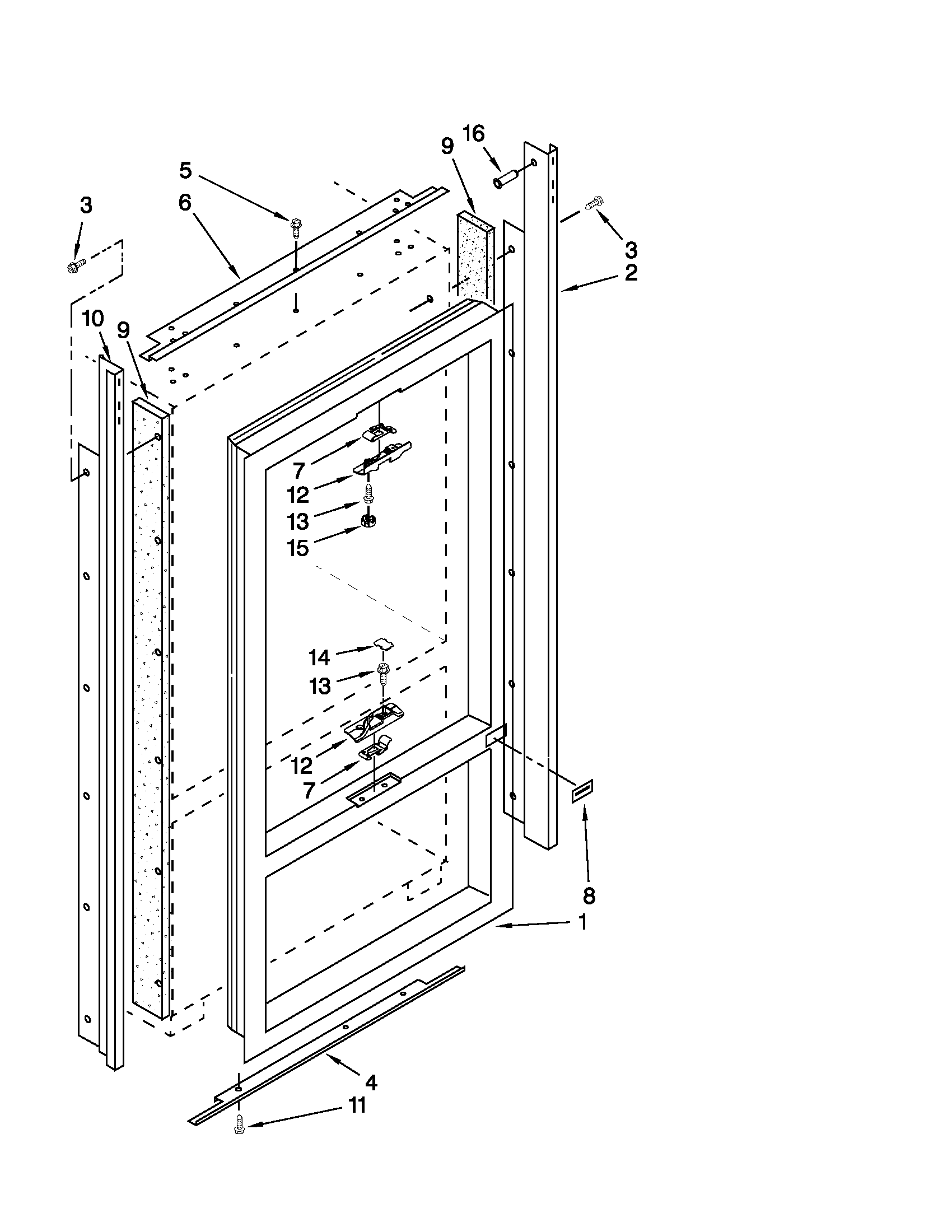

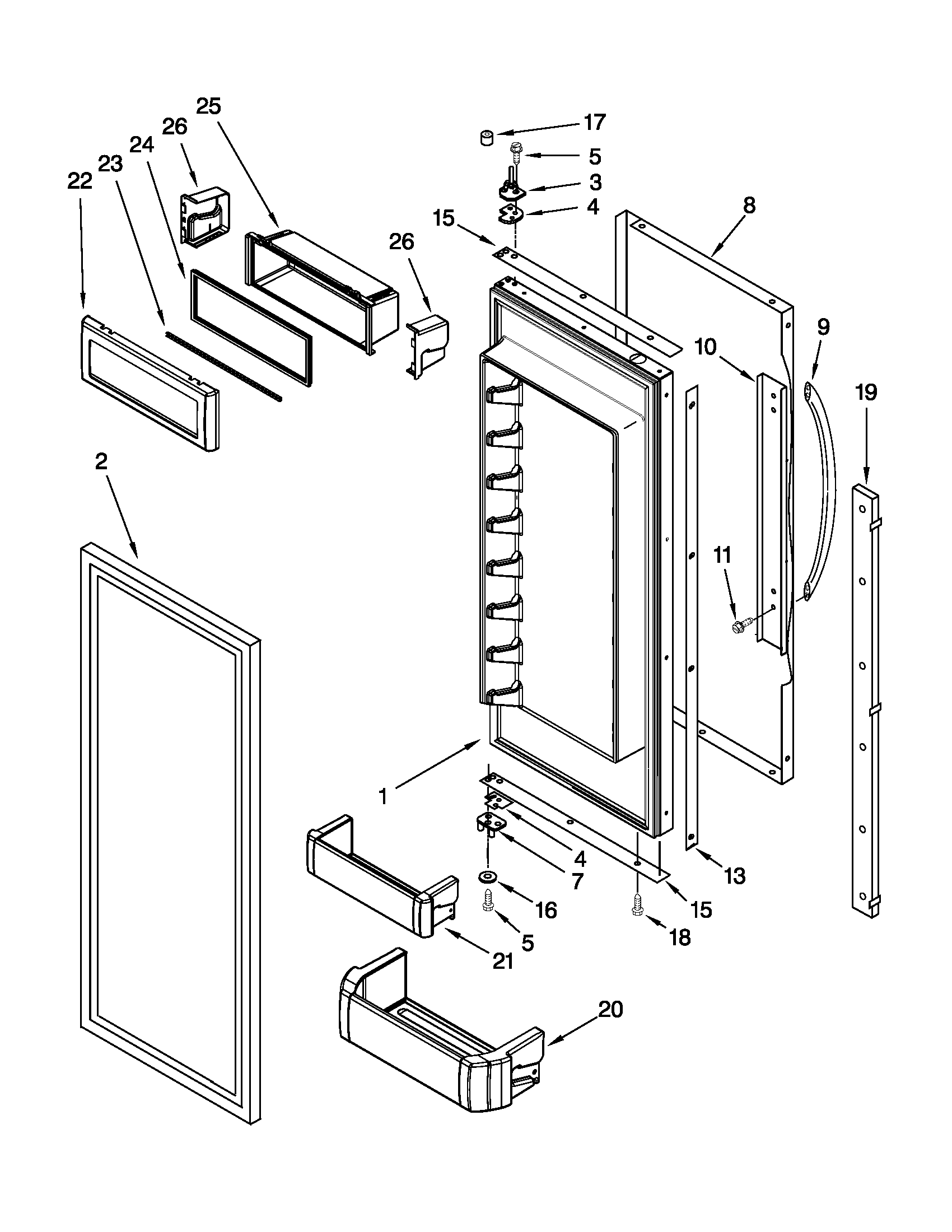

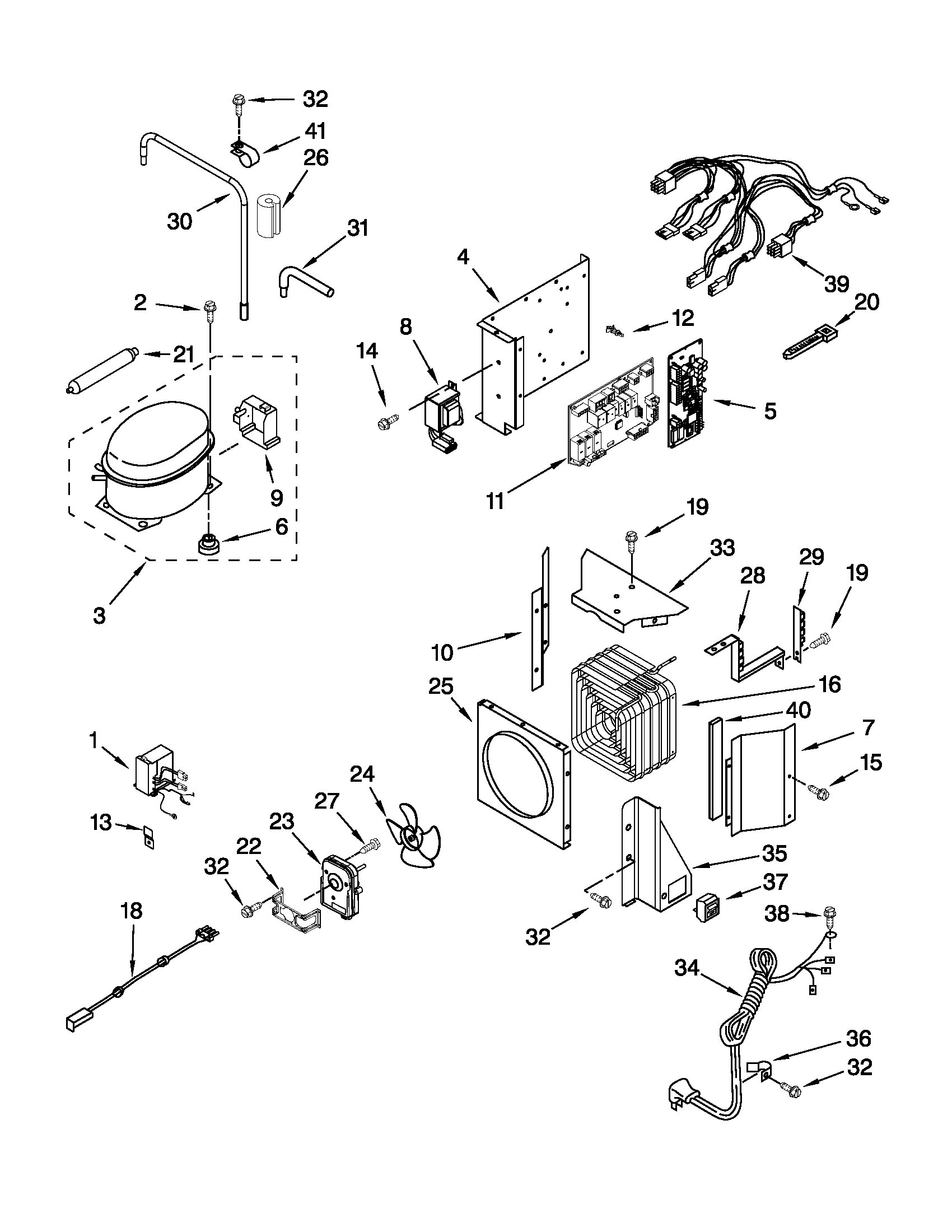

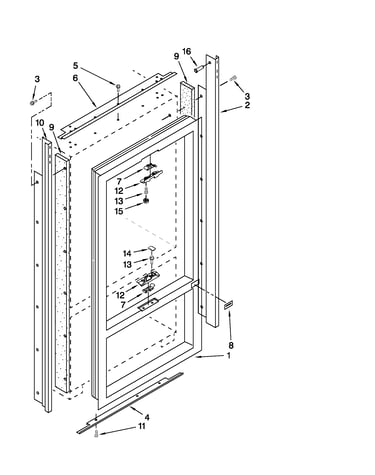

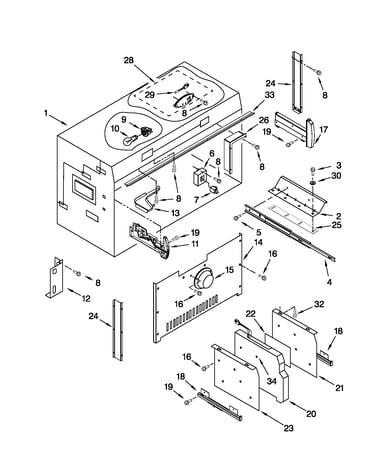

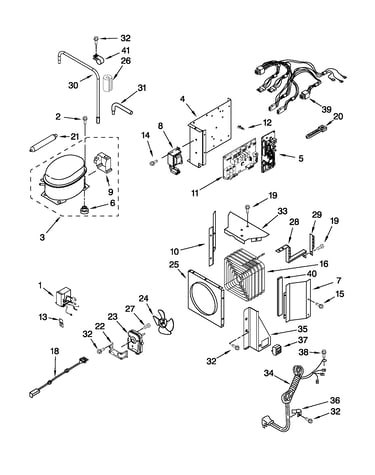

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 299 parts  |

Refrigerator Water Filter 4396841
#26

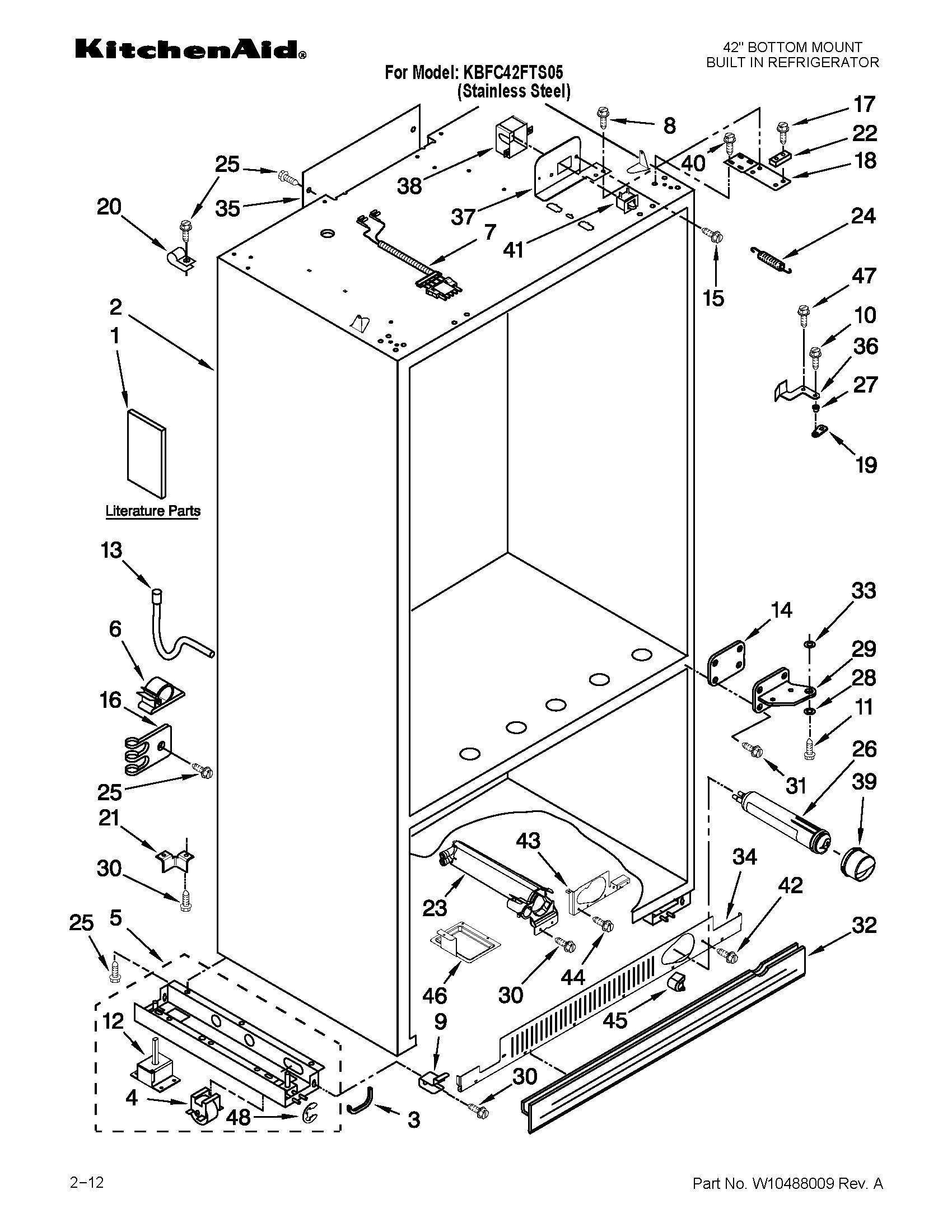

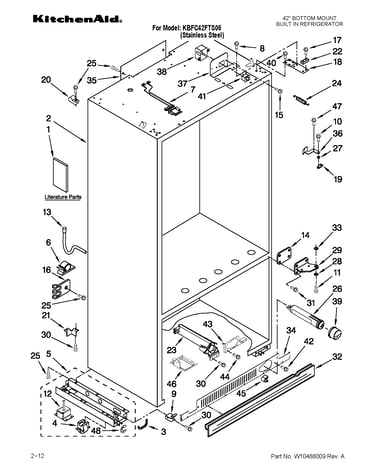

Cabinet parts diagram

Refrigerator water filter

Part #4396841

Replaced by #EDR3RXD1

?
Manufacturer substitution
This part replaces 4396841. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
30% OFF MSRP : $86.00
In Stock
Refrigerator Evaporator Fan Blade 2169142
#12

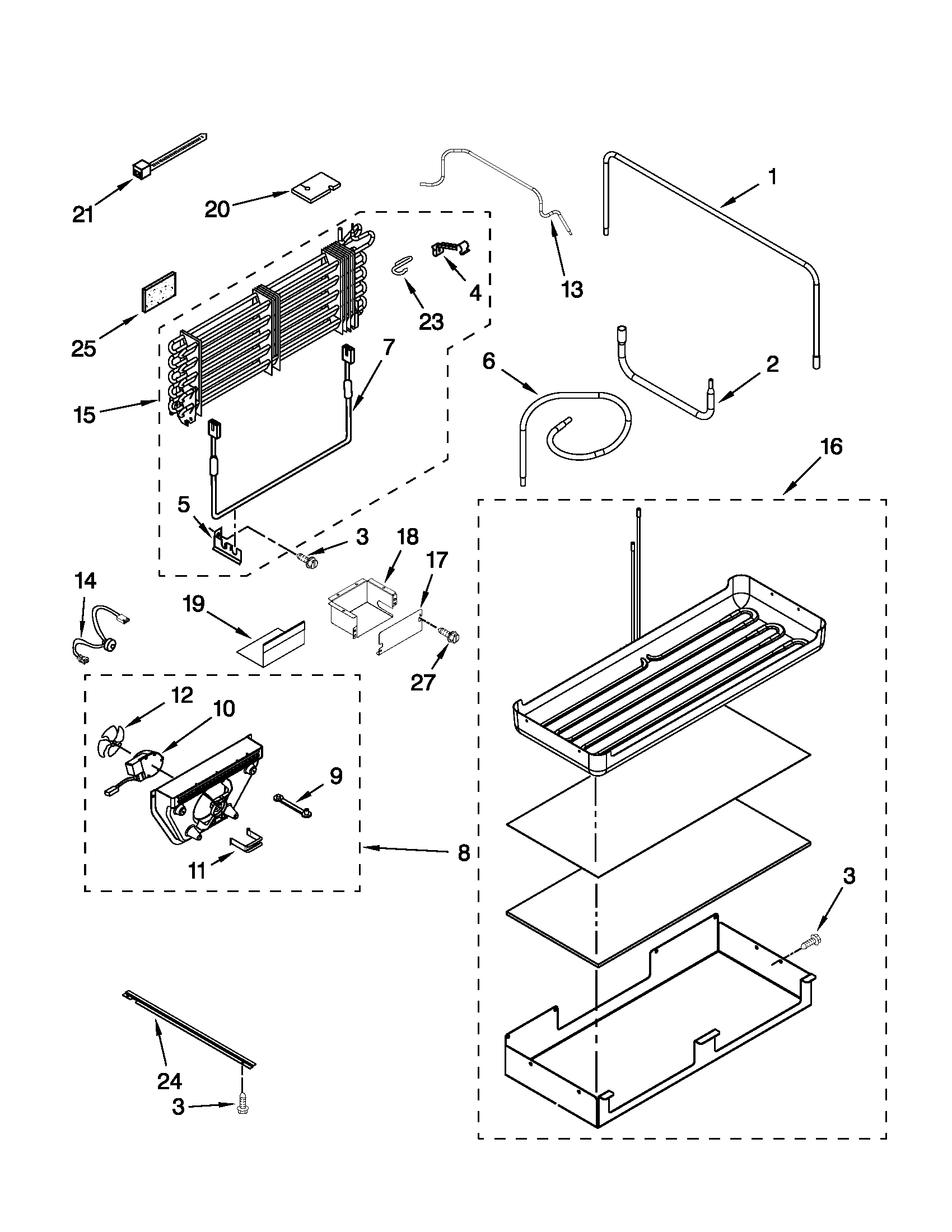

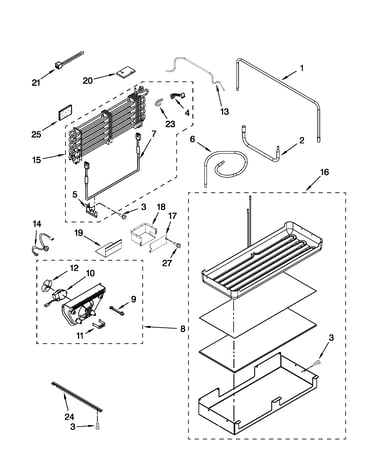

Lower unit and tube parts diagram

Refrigerator evaporator fan blade

Part #2169142

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 2169142. Substitute parts can look different from the original.
BEST SELLER
$37.23
5% OFF MSRP : $39.00
In Stock
Refrigerator Ice Maker Thermostat 627985
#27

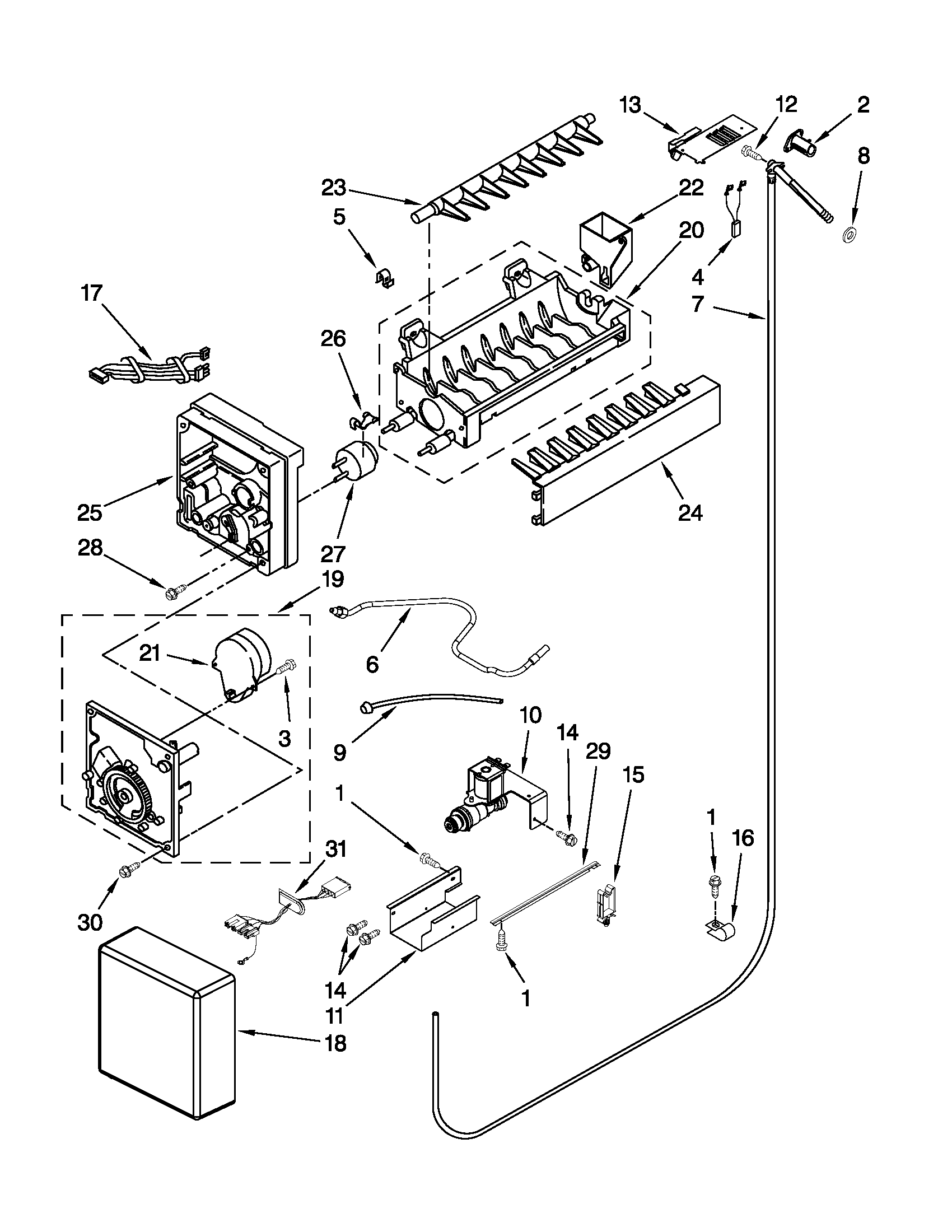

Icemaker parts diagram

Refrigerator ice maker thermostat

Part #627985

Replaced by #WP627985

?
Manufacturer substitution
This part replaces 627985. Substitute parts can look different from the original.
BEST SELLER
$47.98
29% OFF MSRP : $68.00
In Stock
Refrigerator Screw 8281164
#8

Cabinet parts diagram

Refrigerator screw

Part #8281164

Replaced by #WP8281164

?
Manufacturer substitution
This part replaces 8281164. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99
11% OFF Phone Price : $8.99
In Stock
Refrigerator Ice Mold W10122527
#20

Icemaker parts diagram

Refrigerator ice mold

Part #W10122527

Replaced by #WPW10190929

?
Manufacturer substitution
This part replaces W10122527. Substitute parts can look different from the original.
BEST SELLER
$132.48
17% OFF MSRP : $160.00
Back Order
Refrigerator Cover W10289690
#18

Icemaker parts diagram

Refrigerator cover

Part #W10289690

Replaced by #WPW10289690

?
Manufacturer substitution
This part replaces W10289690. Substitute parts can look different from the original.
This item is not returnable
$3.69
21% OFF Phone Price : $4.69
In Stock
Refrigerator Temperature Sensor 2188820
Refrigerator temperature sensor

Part #2188820

Replaced by #WP2188820

?
Manufacturer substitution
This part replaces 2188820. Substitute parts can look different from the original.
$33.56
20% OFF MSRP : $42.00
In Stock
Refrigerator Gasket Panel W10192907
#9

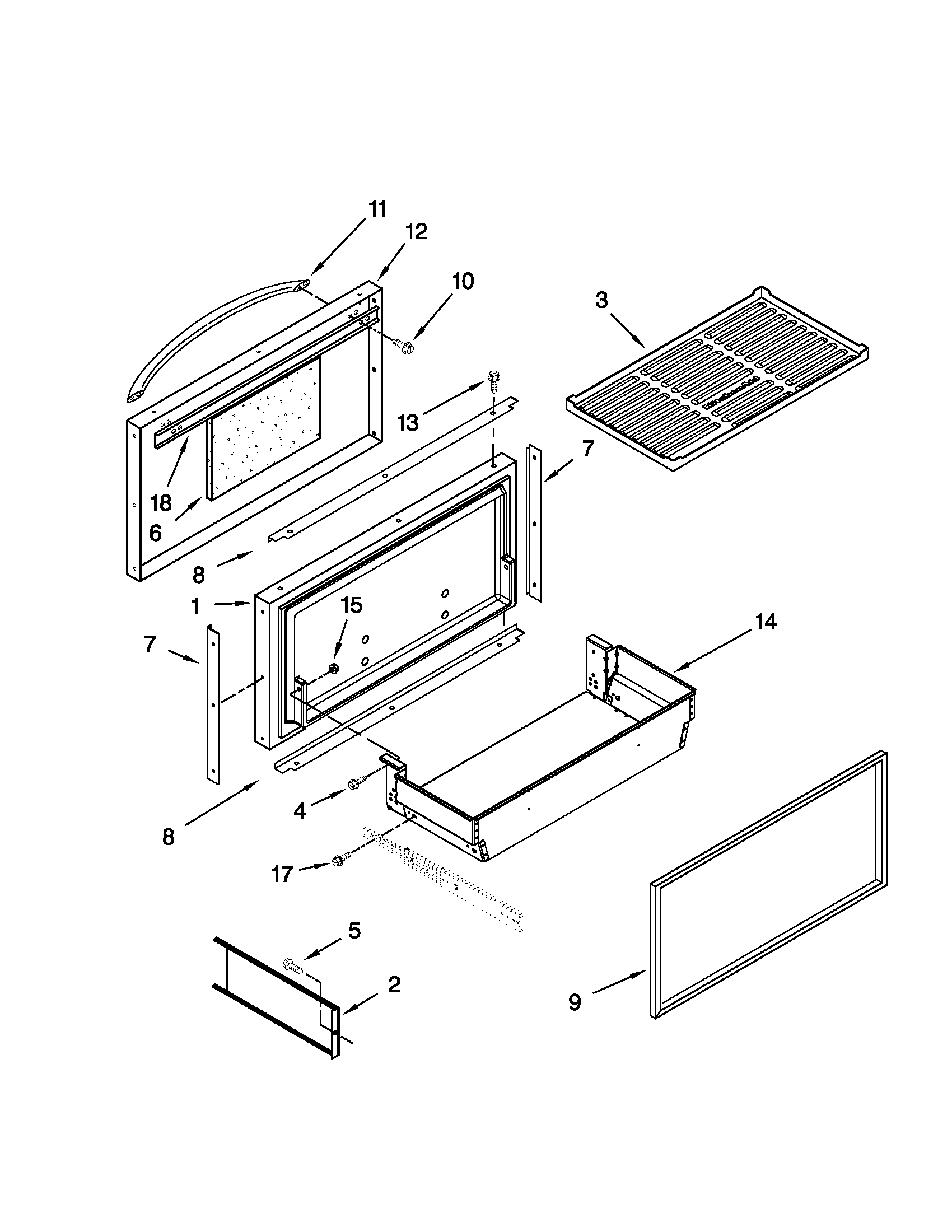

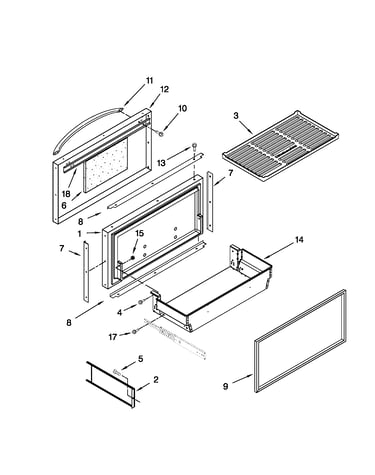

Freezer door and basket parts diagram

Refrigerator gasket panel

Part #W10192907

Replaced by #WPW10192907

?
Manufacturer substitution
This part replaces W10192907. Substitute parts can look different from the original.
$177.19
11% OFF MSRP : $200.00
In Stock
Refrigerator Shelf Stud W10173127
#18

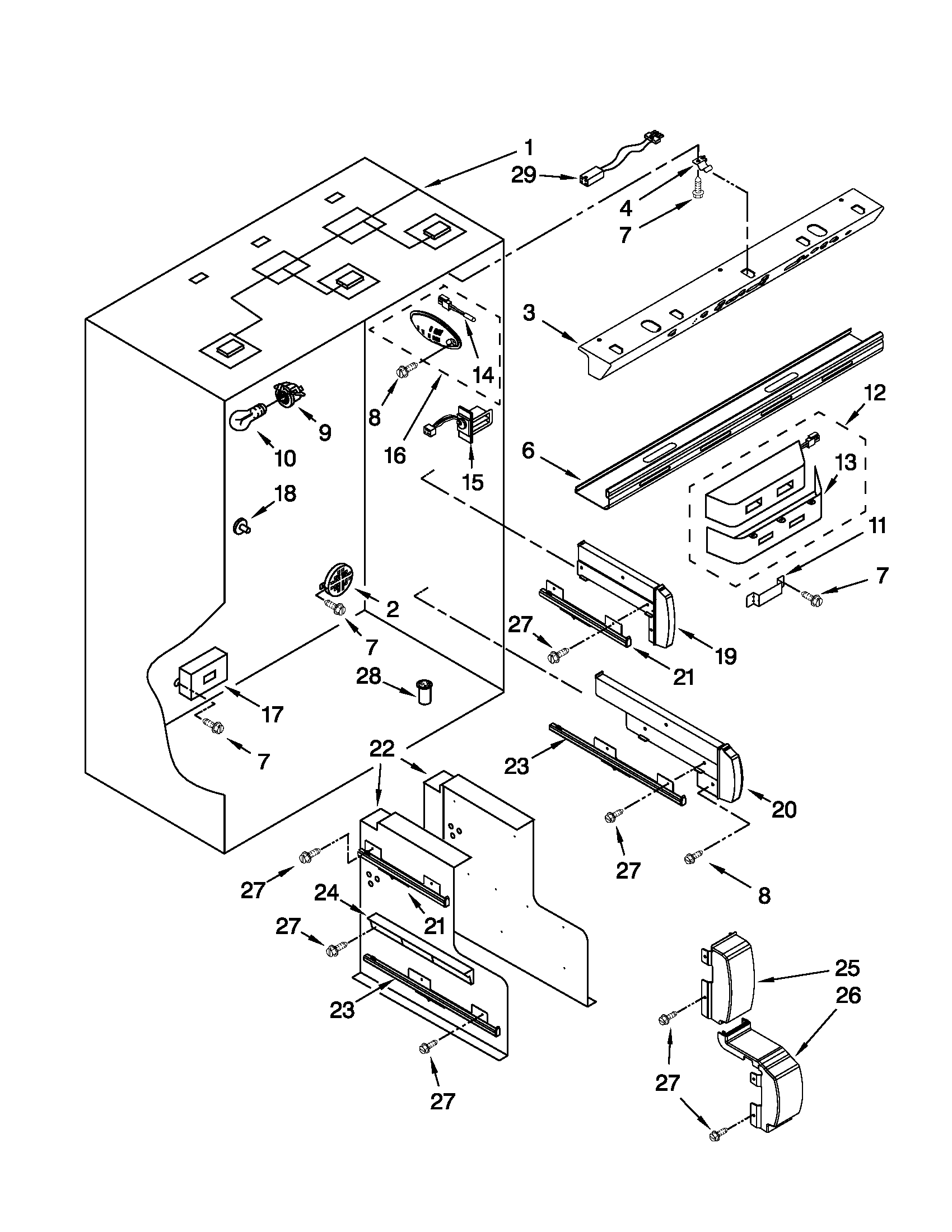

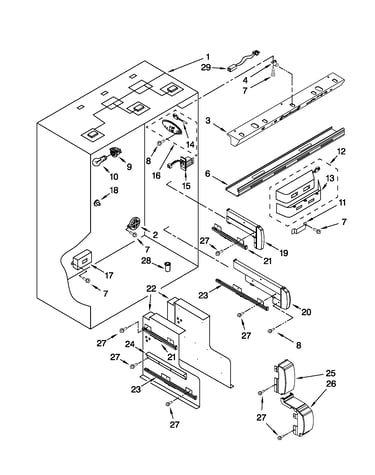

Refrigerator liner parts diagram

Refrigerator shelf stud

Part #W10173127

Replaced by #WP2196483

?
Manufacturer substitution
This part replaces W10173127. Substitute parts can look different from the original.
This item is not returnable
$7.59
12% OFF Phone Price : $8.59
In Stock
Refrigerator Evaporator Fan Motor 2259385
#10

Lower unit and tube parts diagram

Refrigerator evaporator fan motor

Part #2259385

Replaced by #W10822580

?
Manufacturer substitution
This part replaces 2259385. Substitute parts can look different from the original.
$111.69
30% OFF MSRP : $160.00
In Stock
