LG LFX25974SB/03 refrigerator Parts

The most common issue we see with LG refrigerators is a cooling problem: the refrigerator or freezer warms up, temperatures swing, or food spoils. On the LG LFX25974SB, the fastest first checks are Demo Mode, airflow blockage, and fan or defrost-related symptoms; see the owner's manual for model-specific troubleshooting steps.

Quick checks before assuming a major failure

• Confirm the display does not show OFF (Demo Mode disables cooling).
• Make sure air vents inside the fresh food and freezer sections are not blocked by packages.
• Verify the temperature settings are reasonable (typical defaults are 37°F for the refrigerator and 0°F for the freezer).
• Listen for the evaporator fan; if it is not running or is noisy, cooling will suffer.
• Check for heavy frost on the freezer back wall (often points to a defrost problem).

Common causes and what they usually look like

Symptom	Common cause	What to check next
Controls work but no cooling; display shows OFF	Demo Mode	Exit Demo Mode per the manual (button sequence)
Warm temps; fan noise or no airflow	Evaporator fan issue	Inspect fan area; consider refrigerator evaporator fan motor 4681JB1027C
Frost buildup; warming over time	Defrost system issue	Look for frost pattern; consider LG refrigerator defrost heater 5300JK1005D
Clicking, intermittent start, then stops cooling	Compressor start protection tripping	Consider refrigerator compressor overload protector 6750CL0001D
No ice or slow ice; water-related symptoms	Water supply or icemaker issue	Check supply valve, filter, and icemaker; consider LG refrigerator ice maker AEQ73110210

Why it matters

Cooling complaints can come from simple settings (like Demo Mode) or airflow restrictions, but they can also be early signs of a failing fan, defrost component, or compressor protection issue. Catching the cause early helps prevent food loss and reduces strain on the sealed system.

Last updated: February 2026

Ice building up under the bottom drawer in your LG LFX25974SB is almost always caused by defrost water not draining properly. When the drain path clogs or freezes, water backs up during defrost, then refreezes on the freezer floor and forms a sheet of ice.

Most common causes

• Drain tube clogged with food debris, sludge, or ice
• Drain opening frozen over from repeated partial defrosting
• Freezer door not sealing well, letting humid air in (creates excess frost and meltwater)
• Items blocking the interior air vents, causing uneven temperatures and icing
• Refrigerator not level, so water does not flow to the drain as designed

A common repair for this symptom is clearing or replacing the drain tube; for this model, see the refrigerator drain tube 5251JA3003D.

What we recommend you do first

1. Unplug the refrigerator.

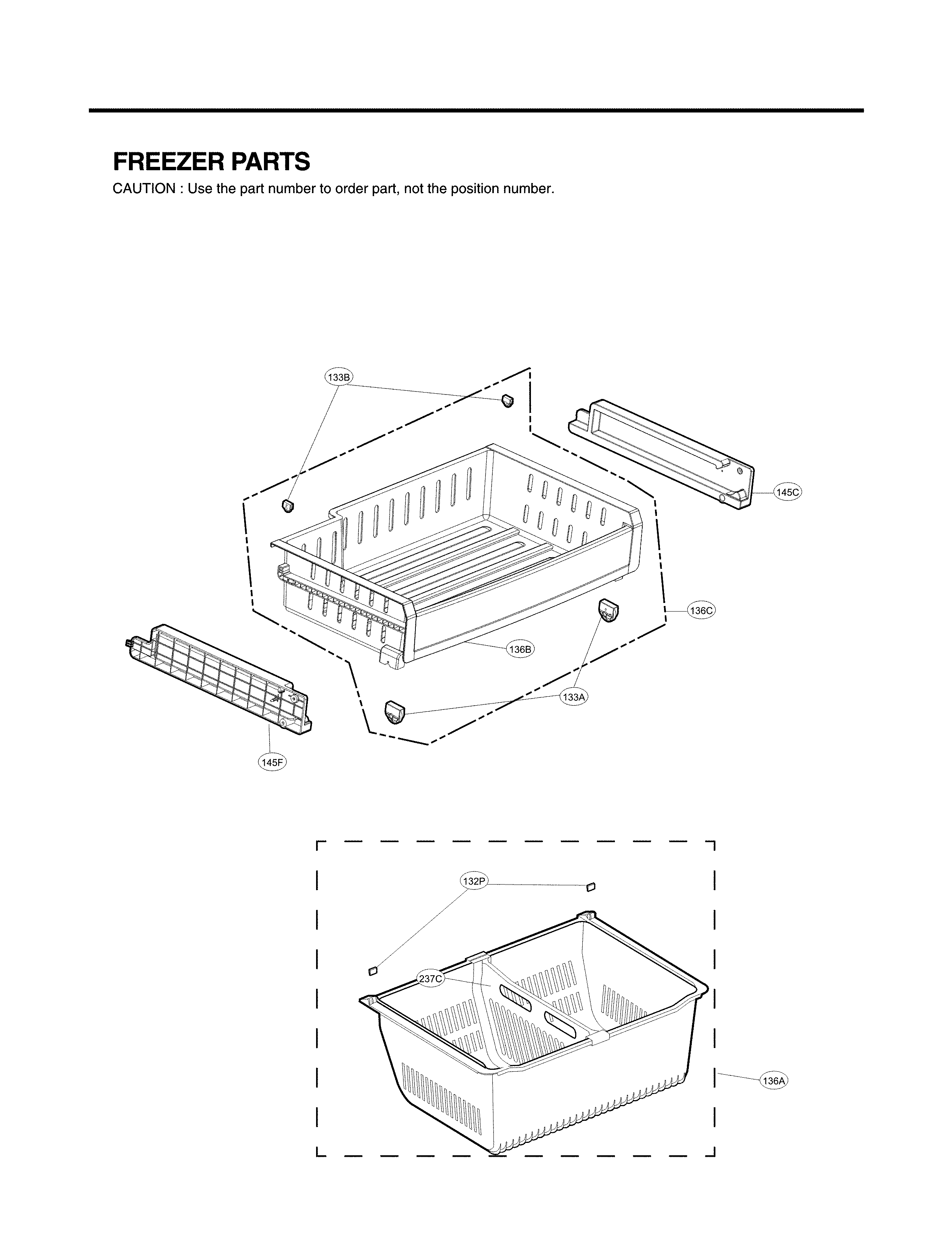

2. Remove the freezer drawer/bins to expose the ice on the bottom.
3. Melt the ice with a hair dryer on low or by placing towels and letting it thaw (do not chip ice with sharp tools).
4. Locate the drain opening under/behind the evaporator cover area and flush it with hot water (a turkey baster works well).
5. Pull the unit out and check the drain outlet at the back; make sure the drain tube is not kinked or blocked.

For diagrams and access steps specific to LG LFX25974SB, use the owner's manual.

Quick symptom-to-cause guide

What you notice	Most likely cause	What to check
Solid ice sheet on freezer floor	Frozen/clogged defrost drain	Drain opening and drain tube for blockage
Water puddles, then ice returns in days	Partial clog or slow drain	Flush drain; confirm steady flow to drain pan

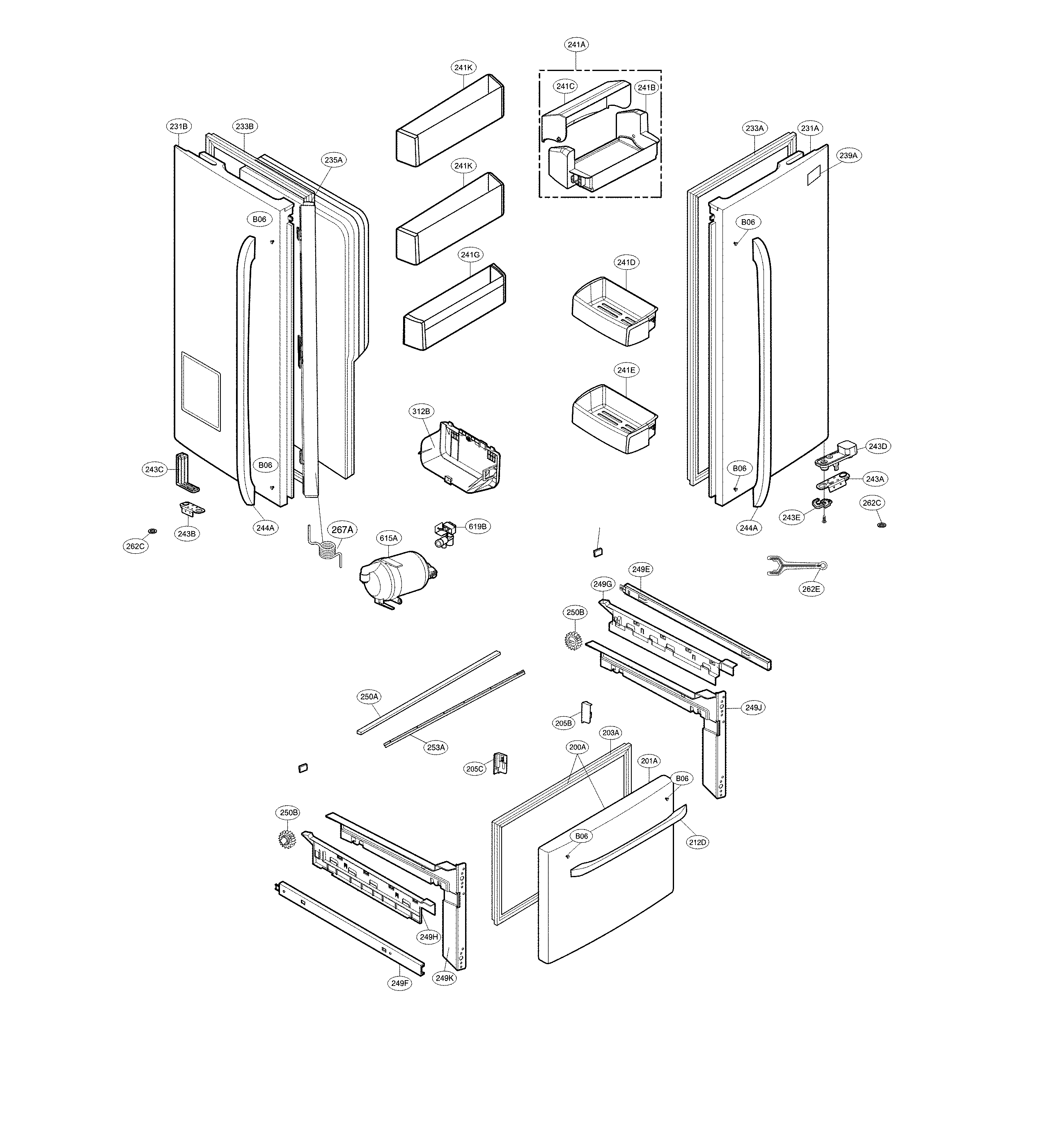

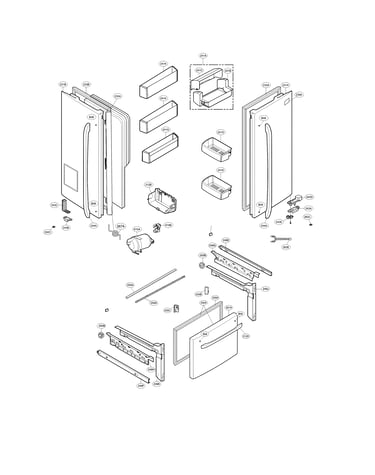

Heavy frost plus ice on bottom	Door seal leak or door left ajar	Gasket contact, door alignment, obstructions
Gurgling plus intermittent icing	Normal refrigerant sounds plus drain issue	Focus on drain, not the sealed system

Why it matters

When defrost water cannot drain, it refreezes and can eventually interfere with the freezer drawer operation, restrict airflow, and contribute to warmer temperatures or recurring leaks.

Last updated: February 2026

A bottom leak on an LG LFX25974SB is usually caused by a clogged/iced defrost drain that overflows into the base, or by a water supply issue feeding the ice maker or dispenser (tubing or inlet valve). Use the owner's manual for access and safety guidance before servicing.

Quick checks that solve most bottom leaks

• Look for a sheet of ice or standing water under the freezer drawer; this points to a defrost drain problem.

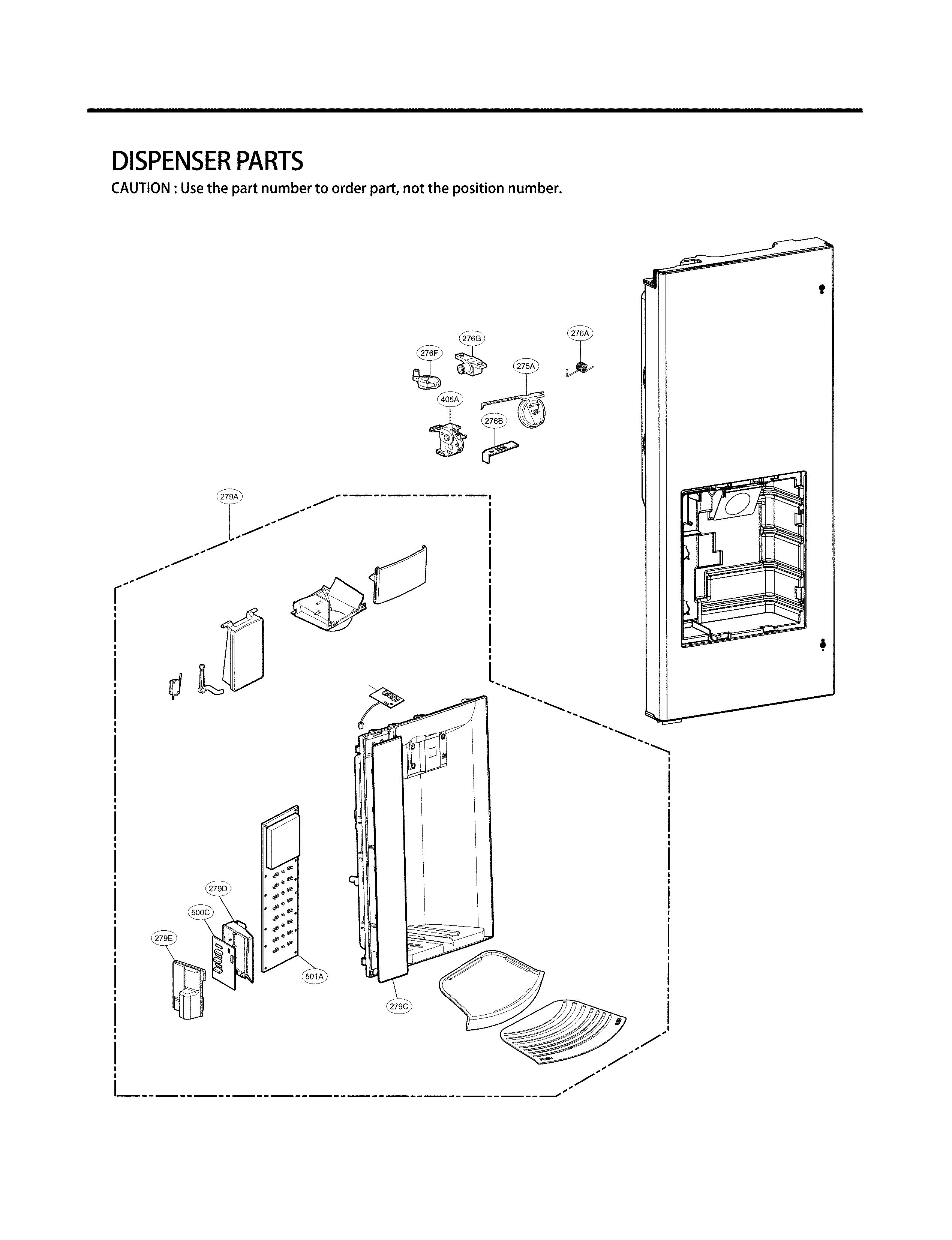

• Check the water filter area and dispenser line for drips after dispensing.

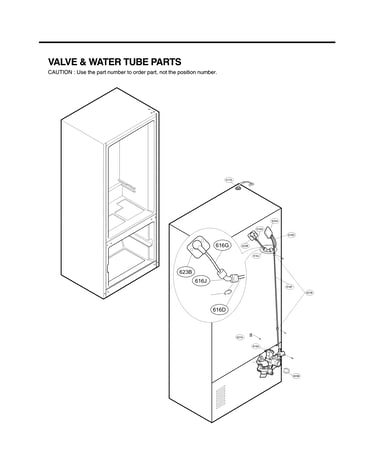

• Inspect the water line connection at the back for slow seepage.
• If the leak happens only when the ice maker fills, suspect the inlet valve or fill tube.
• If the leak is clear water and appears after door openings, check for condensation and door sealing issues.

Most common causes and what to do

What you notice	Most likely cause	What we recommend
Water pooling under freezer, then leaking out	Defrost drain clogged with ice/debris	Clear the drain path; flush with warm water and remove ice buildup
Drips behind fridge or near lower rear	Water line connection or cracked tubing	Tighten fittings; replace damaged line sections

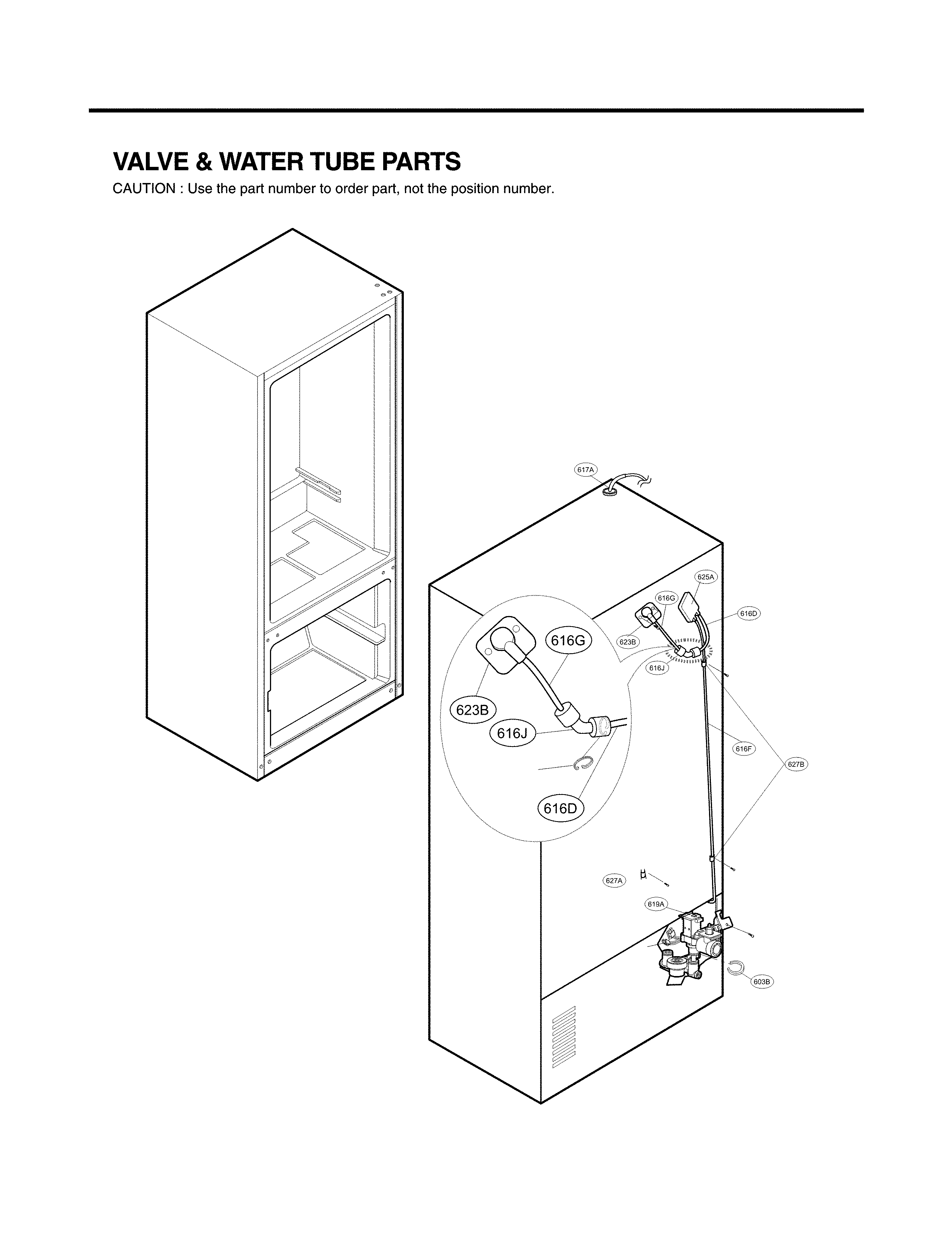

Leak during ice maker fill cycles	Water inlet valve not closing fully	Test/replace the LG refrigerator water inlet valve AJU72992601
Intermittent puddles, sometimes with odor	Drain tube restricted or misrouted	Inspect/replace the refrigerator drain tube 5251JA3003D

Step-by-step: clear a clogged defrost drain

1. Unplug the refrigerator.
2. Remove the freezer drawer/bins as needed to access the drain trough area.
3. Melt visible ice with warm air (hair dryer on low) or warm towels.
4. Flush the drain with warm water until it flows freely to the drain pan.
5. Reassemble and monitor for 24 hours.

Why it matters

A small drain restriction can turn into repeated ice buildup, water damage to flooring, and temperature swings in the freezer. Fixing the drain or water supply leak early helps protect the evaporator area, fan airflow, and food temperatures.

Helpful DIY guidance

For water system related leaks (slow drips, ice maker issues, dispenser problems), follow the prevention and inspection tips in how to prevent water dispenser and ice maker problems.

Last updated: February 2026
