Whirlpool EH101FXMQ00 chest freezer

Whirlpool EH101FXMQ00 chest freezer Parts

Here are the diagrams and repair parts for Whirlpool EH101FXMQ00 chest freezer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

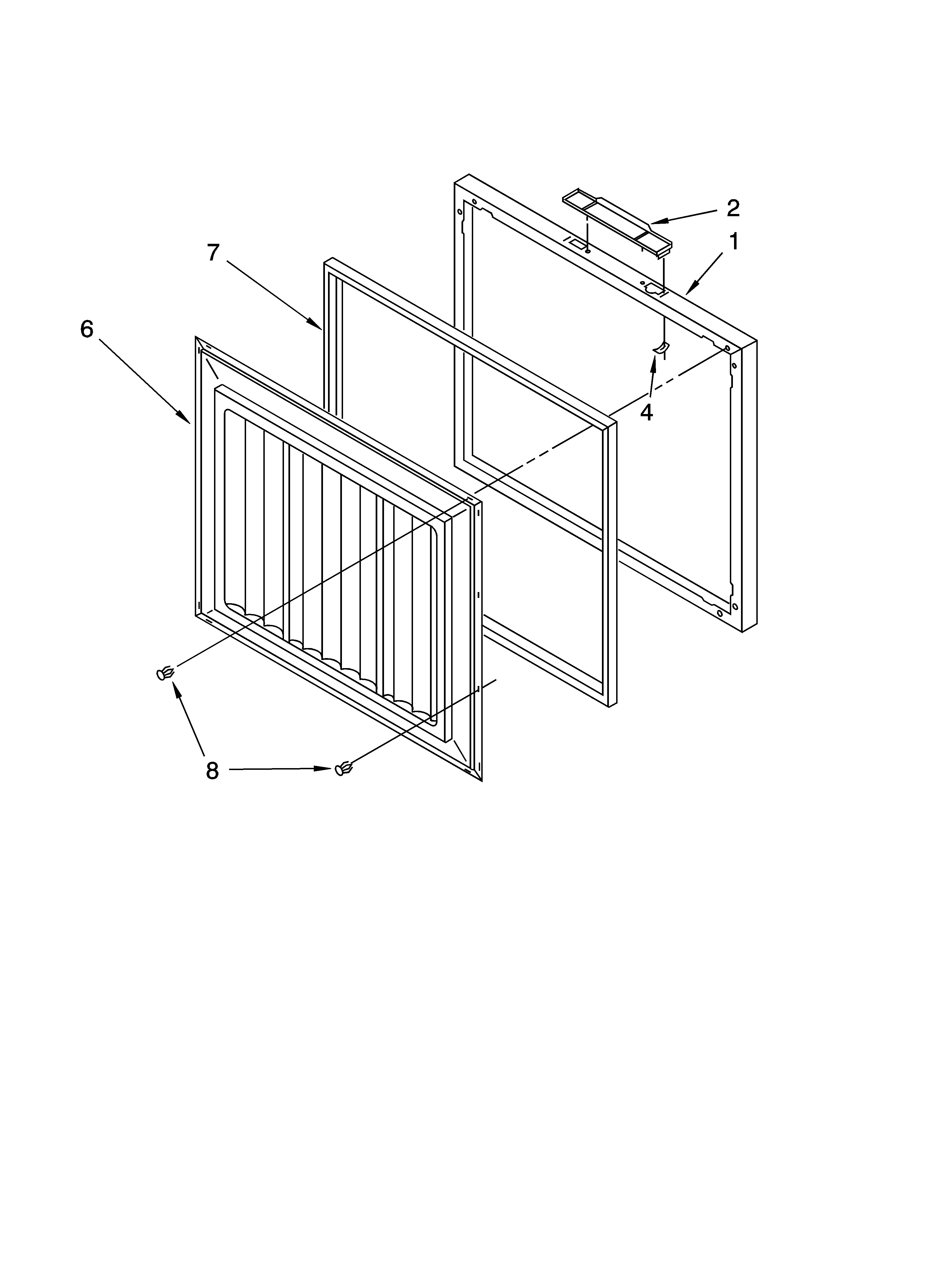

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for EH101FXMQ00 Freestanding Freezers

  • Whirlpool Refrigerator Run Capacitor for Whirlpool EH101FXMQ00 - Part WPW10662129

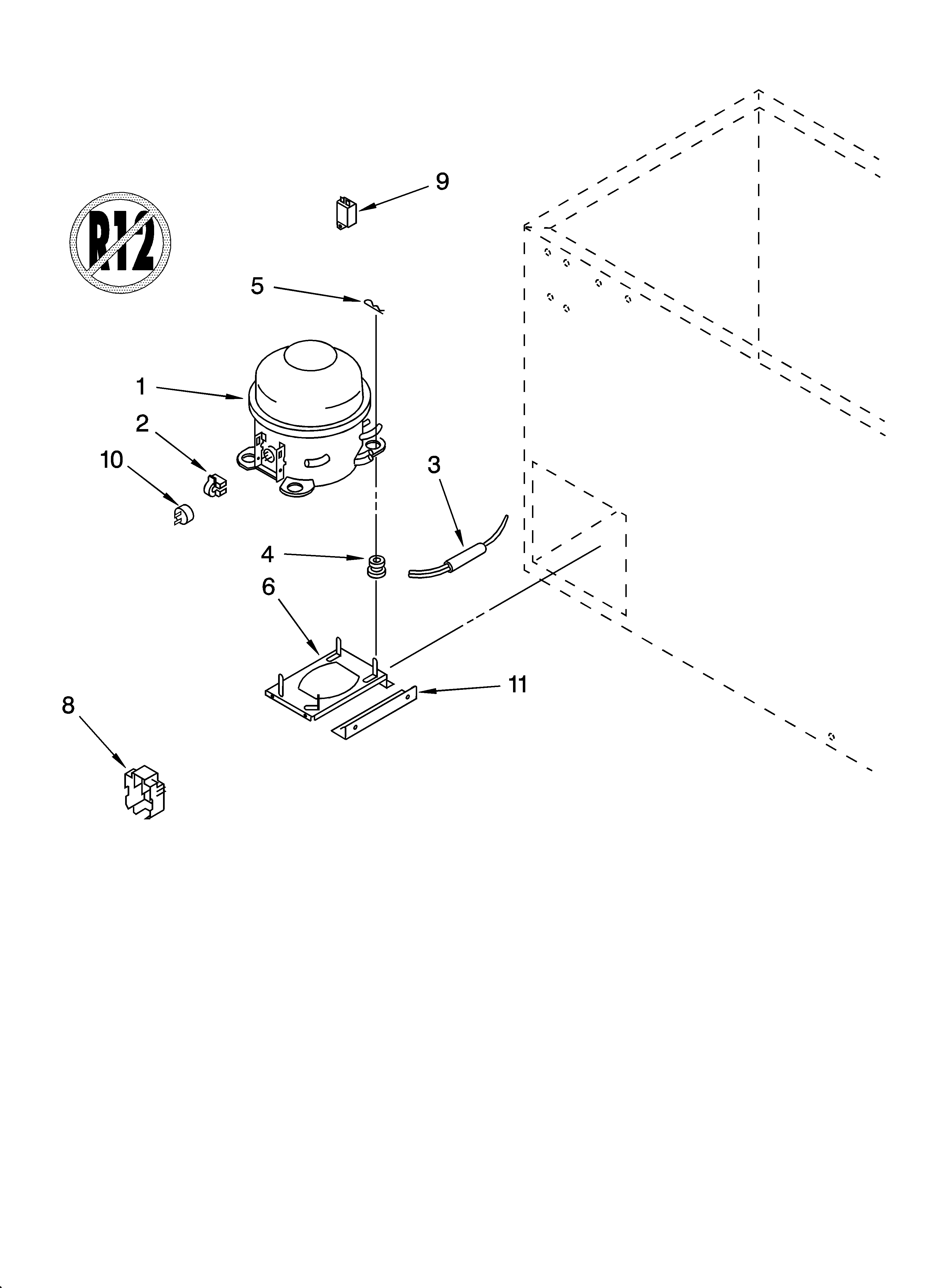

    Unit parts diagram

    Run Capacitor

    Part #4390503

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 4390503. Substitute parts can look different from the original.
    In Stock
    $45.09
    12% OFF Phone Price : $51.09Info Icon
    Minus Item
    Qty
    Plus Item
  • Danby Appliance Touch-up Paint, 0.6-oz (white) for Whirlpool EH101FXMQ00 - Part 72017

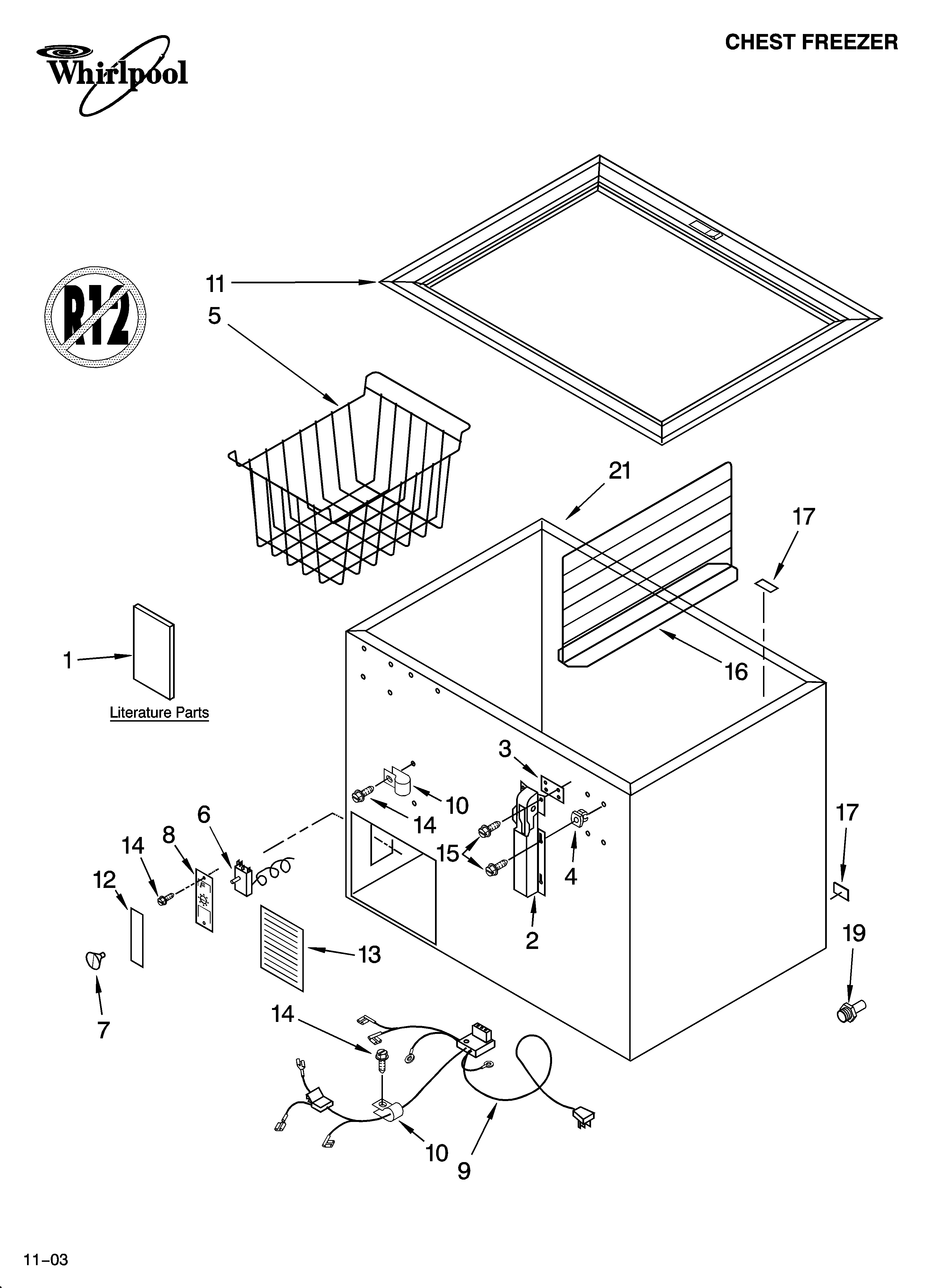

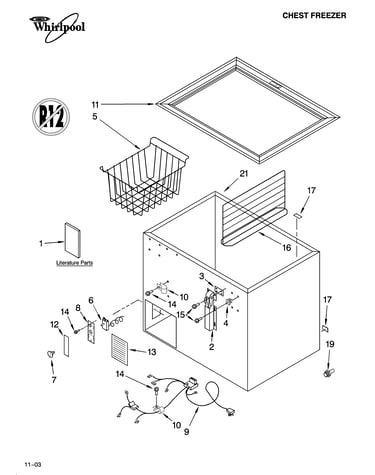

    Cabinet parts diagram

    Danby Appliance Touch-up Paint, 0.6-oz (white)

    Part #72017
    In Stock
    $8.46
    11% OFF Phone Price : $9.46Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Porcelain Touch-up Paint, 1-qt (white) for Whirlpool EH101FXMQ00 - Part 799344

    Cabinet parts diagram

    Appliance Porcelain Touch-up Paint, 1-qt (white)

    Part #799344
    In Stock
    $131.86
    8% OFF Phone Price : $143.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Frame for Whirlpool EH101FXMQ00 - Part 4356590

    Unit parts diagram

    Frame

    Part #4356590
    In Stock
    $64.18
    Minus Item
    Qty
    Plus Item
  • Screw for Whirlpool EH101FXMQ00 - Part 4356491

    Cabinet parts diagram

    Screw

    Part #4356491
    In Stock
    $15.49
    Minus Item
    Qty
    Plus Item
  • Grommet for Whirlpool EH101FXMQ00 - Part 4356321

    Cabinet parts diagram

    Grommet

    Part #4356321
    In Stock
    $16.47
    11% OFF Phone Price : $18.47Info Icon
    Minus Item
    Qty
    Plus Item
  • Relay-start for Whirlpool EH101FXMQ00 - Part W11673287

    Unit parts diagram

    Start Relay

    Part #4356784

    Replaced by #W11673287

    Info Icon
    Manufacturer substitution
    This part replaces 4356784. Substitute parts can look different from the original.
    In Stock
    $96.57
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Overload And Start Relay Cover for Whirlpool EH101FXMQ00 - Part WP2162358

    Unit parts diagram

    Terminal Cover

    Part #4356599

    Replaced by #WP2162358

    Info Icon
    Manufacturer substitution
    This part replaces 4356599. Substitute parts can look different from the original.
    In Stock
    $30.60
    33% OFF Was : $45.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Brace for Whirlpool EH101FXMQ00 - Part 3-81556-001

    Unit parts diagram

    Brace

    Part #4356672

    Replaced by #3-81556-001

    Info Icon
    Manufacturer substitution
    This part replaces 4356672. Substitute parts can look different from the original.
    In Stock
    $35.85
    Minus Item
    Qty
    Plus Item
  • Control Box for Whirlpool EH101FXMQ00 - Part W10682894

    Cabinet parts diagram

    Control Box

    Part #4356674

    Replaced by #W10682894

    Info Icon
    Manufacturer substitution
    This part replaces 4356674. Substitute parts can look different from the original.
    In Stock
    $28.30
    17% OFF Phone Price : $34.30Info Icon
    Minus Item
    Qty
    Plus Item
