Craftsman
Lawn Tractor Attachment

Model # 917251860 Official Craftsman roto-spader attachment

Here are the diagrams and repair parts for Official Craftsman 917251860 roto-spader attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |

Thrust Bearing 1370H
Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Nut 545P
#40

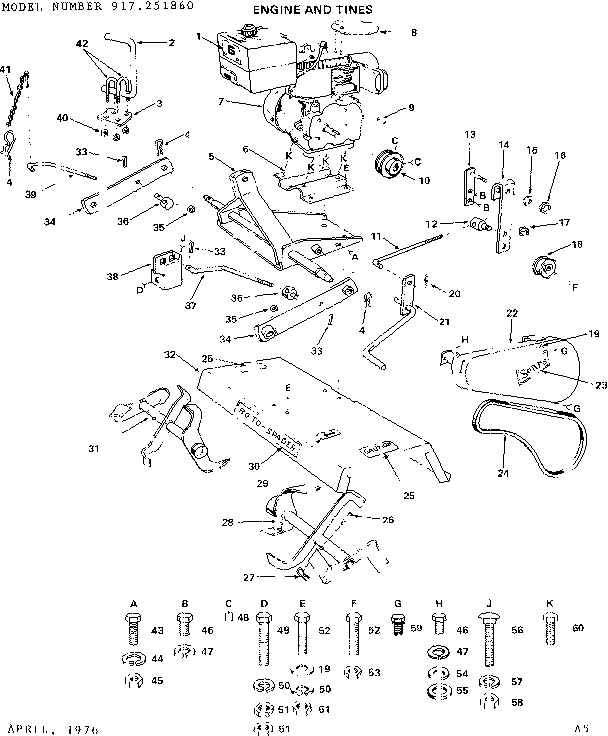

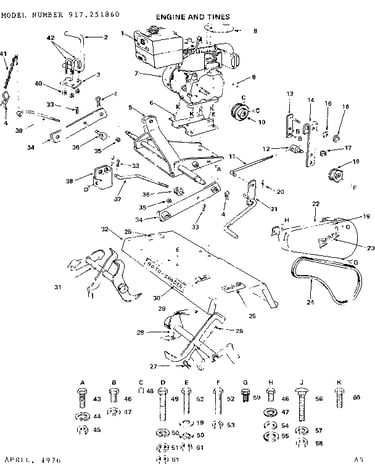

Engine and tines diagram

Nut

Part #545P

Replaced by #596322601

?
Manufacturer substitution
This part replaces 545P. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
In Stock
Bearing Seal 3136R
Bearing seal

Part #3136R

Replaced by #532005020

?
Manufacturer substitution
This part replaces 3136R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.59
14% OFF Phone Price : $14.59
In Stock
Hitch Pin, 2-pack 4939M
#2

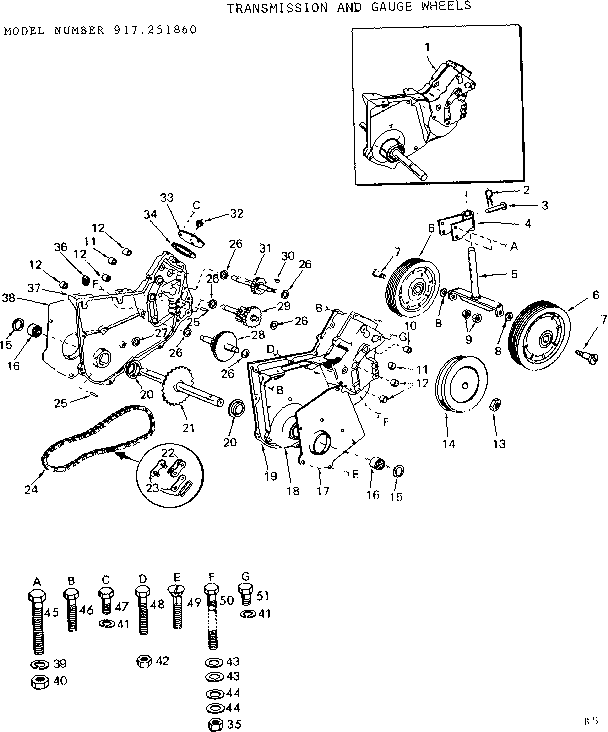

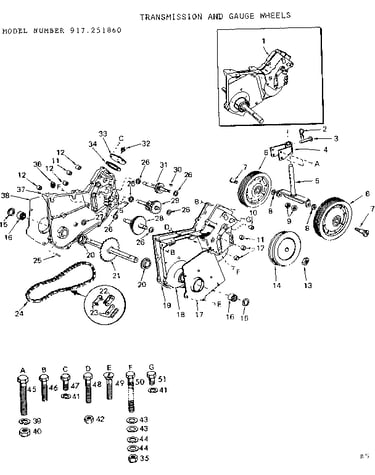

Transmission and gauge wheels diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Cap Screw 3323P
#60

Engine and tines diagram

Cap screw

Part #3323P

Replaced by #596322201

?
Manufacturer substitution
This part replaces 3323P. Substitute parts can look different from the original.
This item is not returnable
In Stock
Tiller Clevis Pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, L-5042, L-5069, L-5078) 4929H
Tiller clevis pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, l-5042, l-5069, l-5078)

Part #4929H

This item is not returnable
$6.60
13% OFF Phone Price : $7.60
Back Order
Needle Bearing 6677H
Needle bearing

Part #6677H

Replaced by #532004895

?
Manufacturer substitution
This part replaces 6677H. Substitute parts can look different from the original.
This item is not returnable
$12.79
14% OFF Phone Price : $14.79
In Stock
Gripco Nut 1685H
Gripco nut

Part #1685H

The manufacturer no longer makes this part, and there's no substitute part

Shldr Bolt 4898H
#7

Transmission and gauge wheels diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Spring Retainer 3146R
#27

Engine and tines diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
This item is not returnable
$3.97
20% OFF Phone Price : $4.97
In Stock
