Model #DX4500GA1WW Official GE gas dryer
Here are the diagrams and repair parts for GE DX4500GA1WW gas dryer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:

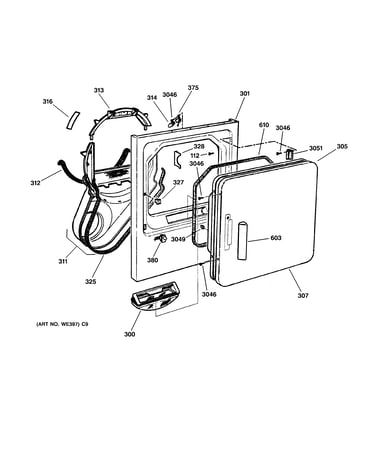

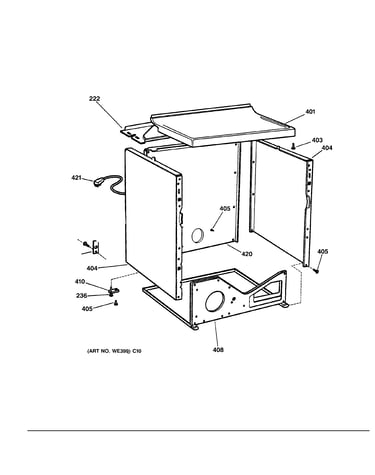

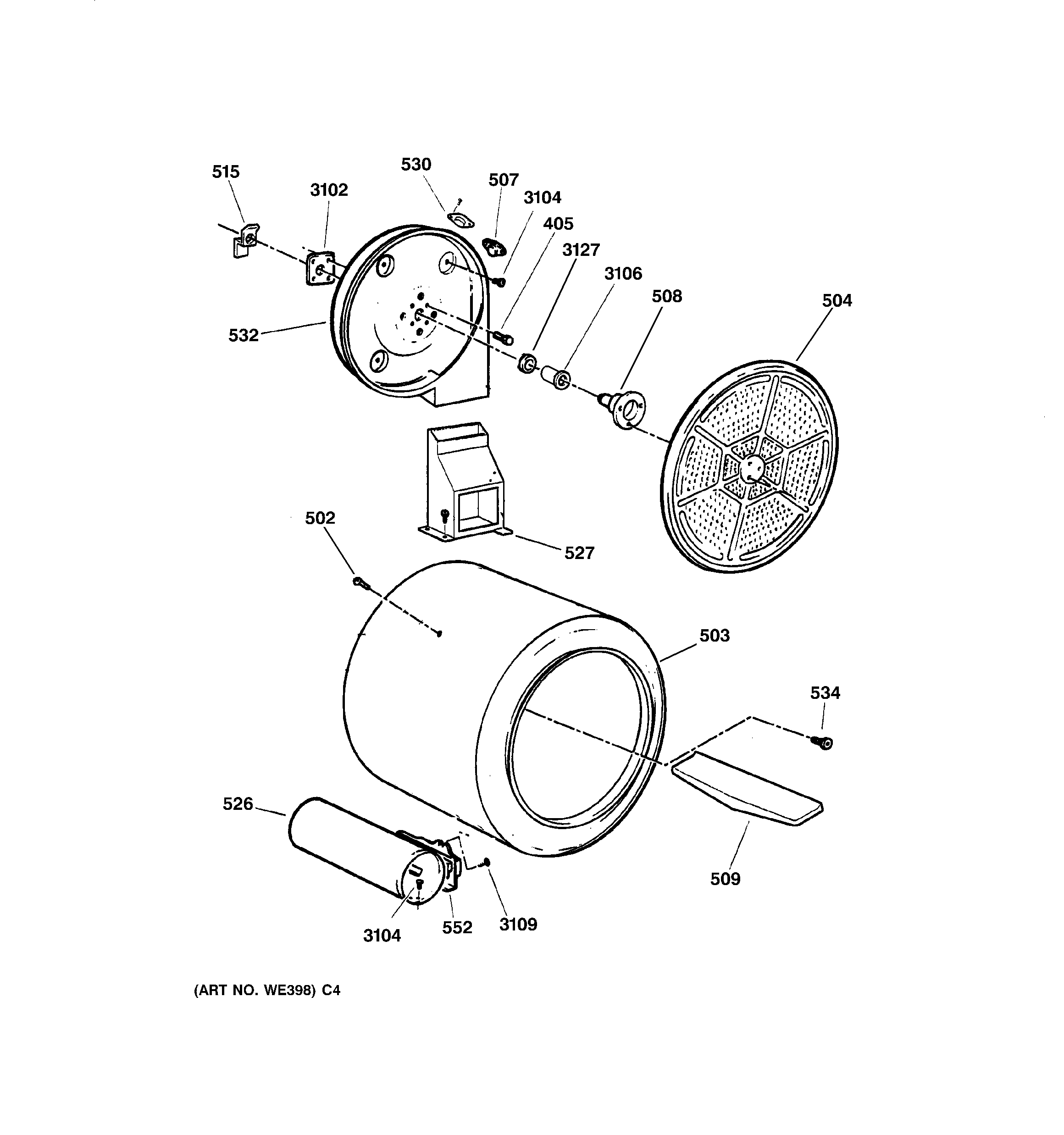

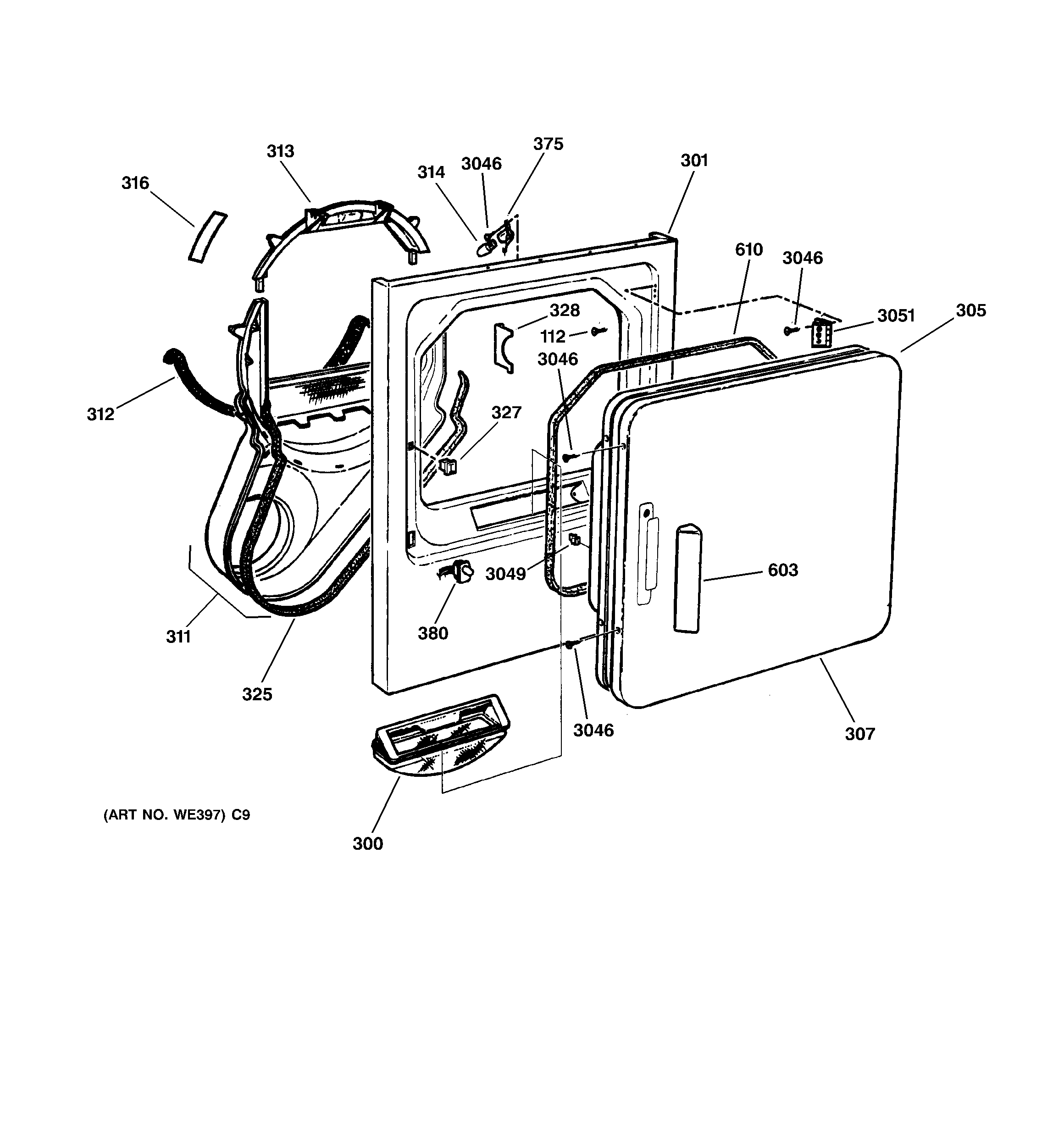

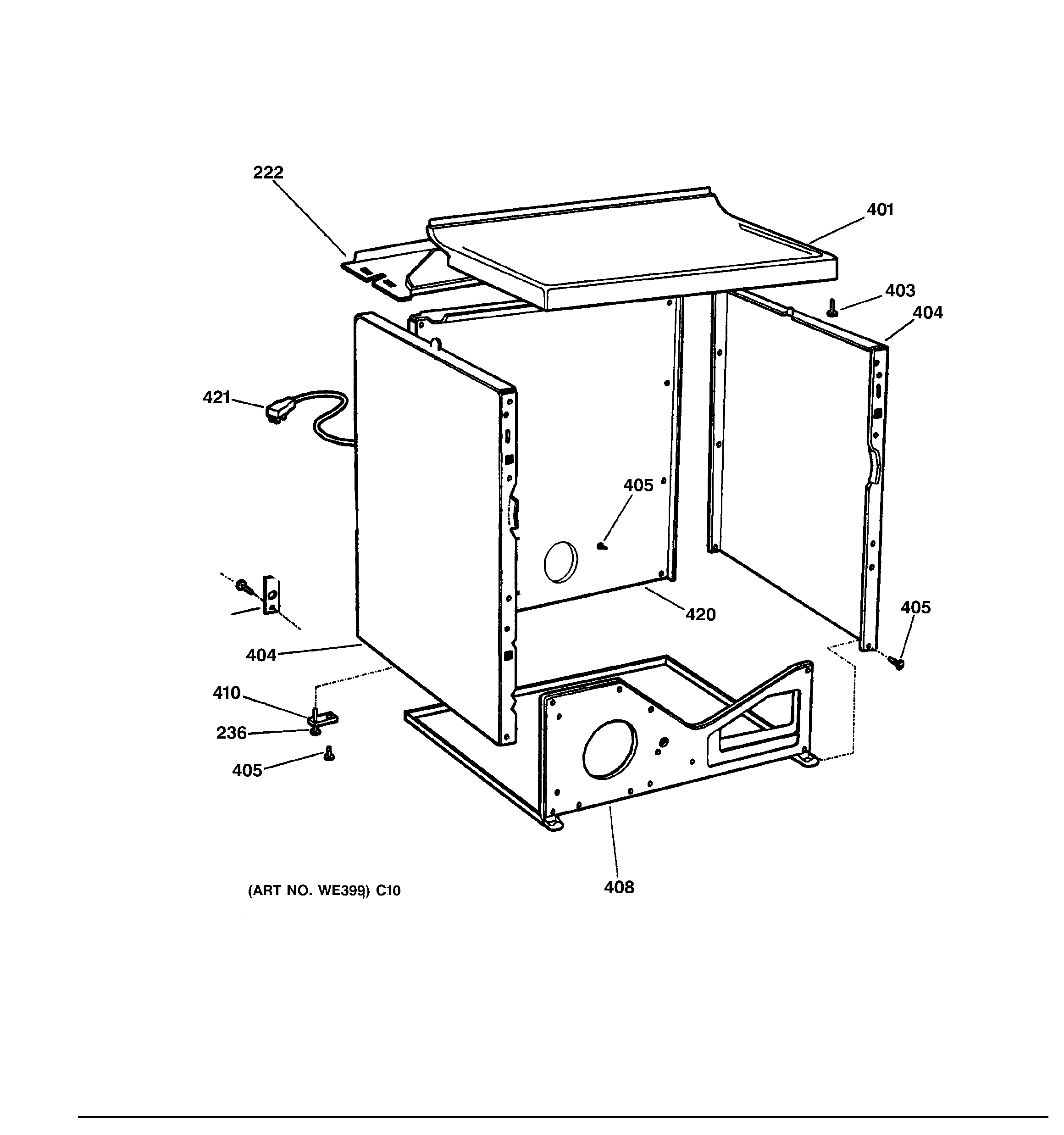

- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Showing 10 of 110 parts

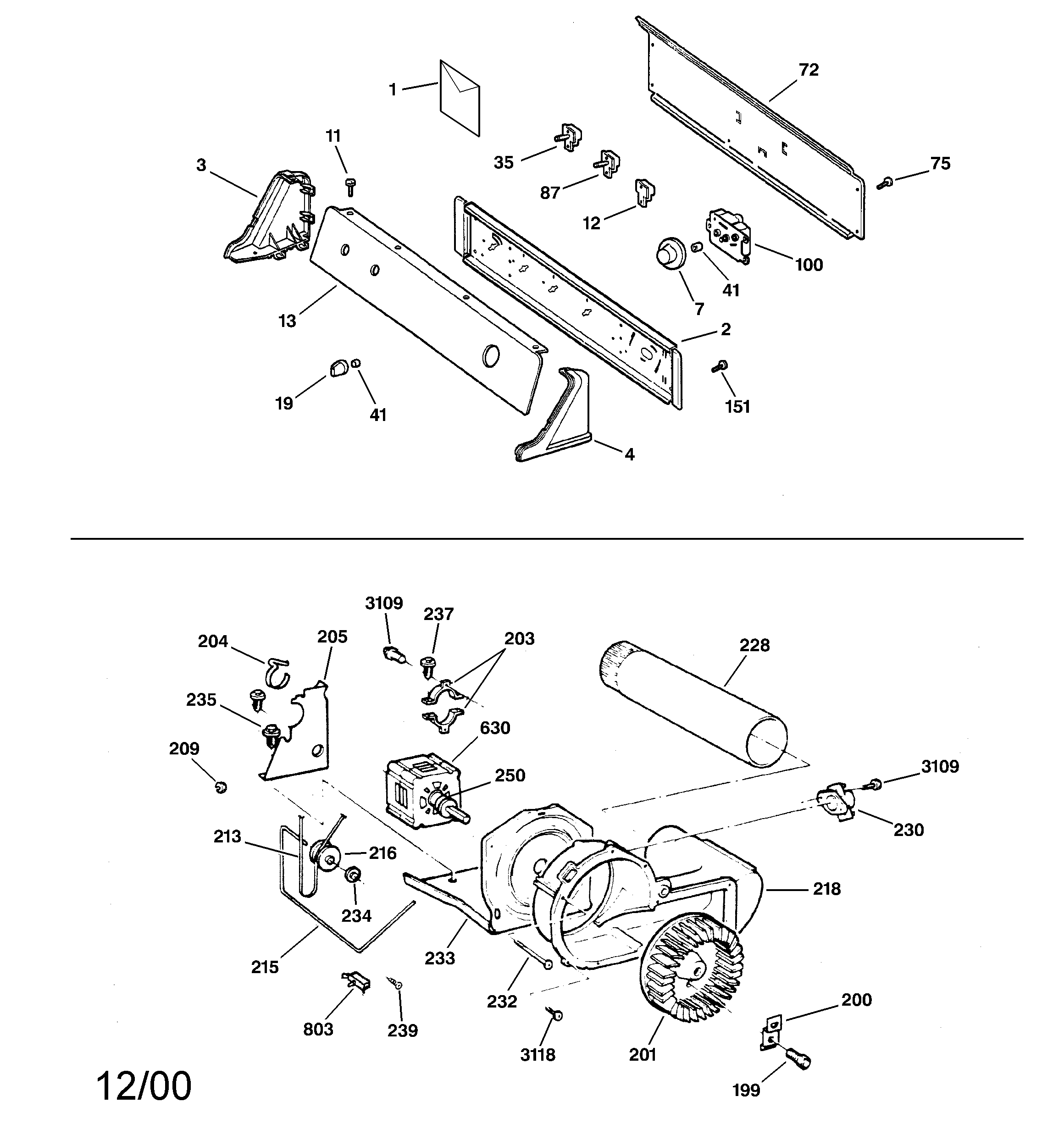

Drive belt

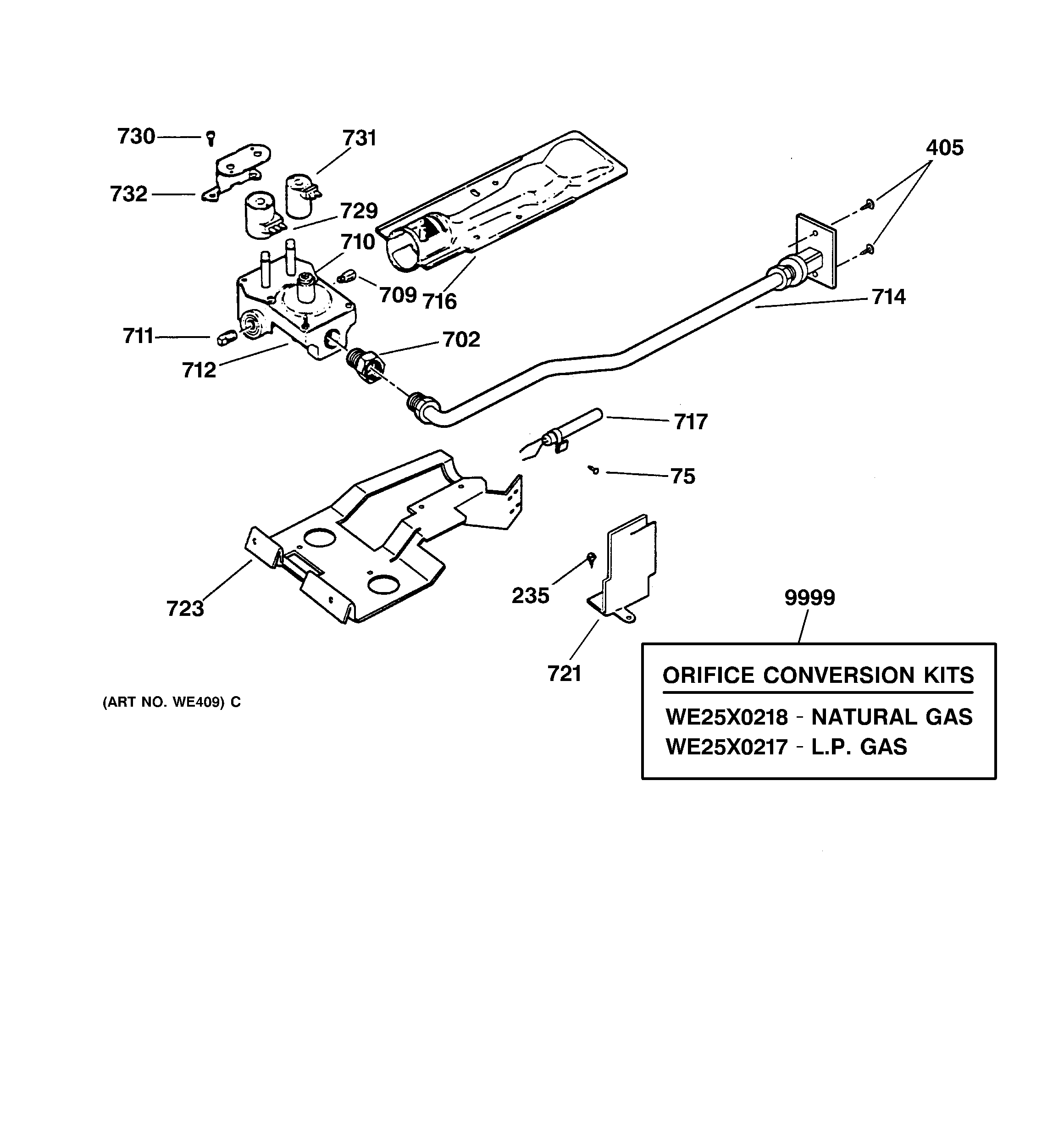

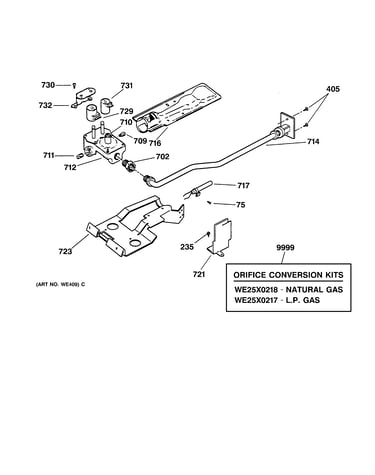

Conversion kit orifice

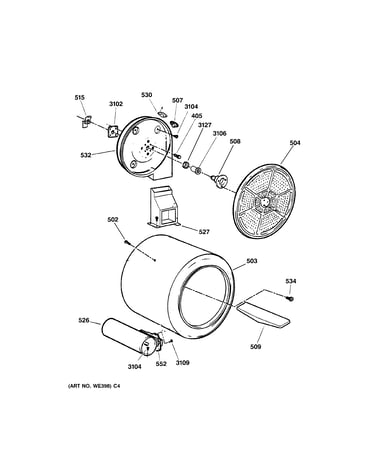

Dryer rear bearing
Timer knob

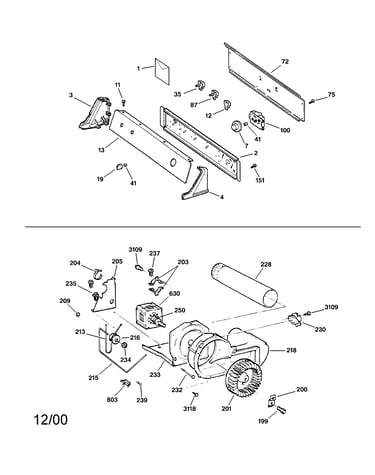

Idler pulley
Latch clip
Sw rotary st
Symptoms common to all dryers
Repair guides common to all dryers
If your dryer thumps or squeals, replace the drum support roller to restore quiet to your home.
The thermistor senses the air temperature in the dryer. If your dryer overheats or doesn't heat at all, the thermistor could be the problem.
The idler pulley exerts pressure keeps the drive belt tight so it can rotate the drum. A worn idler pulley squeals or squeaks when the dryer is running. Follow these instructions to replace it.
Articles and videos common to all dryers
Get advice on simple DIY fixes for appliances that you can safely do on your own.
Learn how to replace a Maytag dryer heating element
Learn how to decipher symbols so you can buy the right part for your problem.
