Kenmore
Canister Vacuum

Model #1162430081 Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Kenmore 1162430081 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 41 parts

Screw

#8

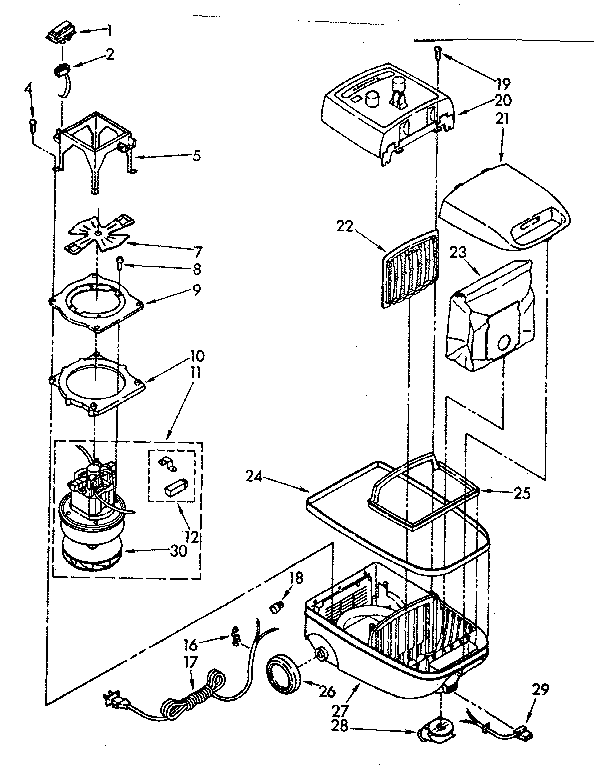

Vacuum cleaner parts Diagram

Screw

Part #681546

The manufacturer no longer makes this part, and there's no substitute part

Brush

#9

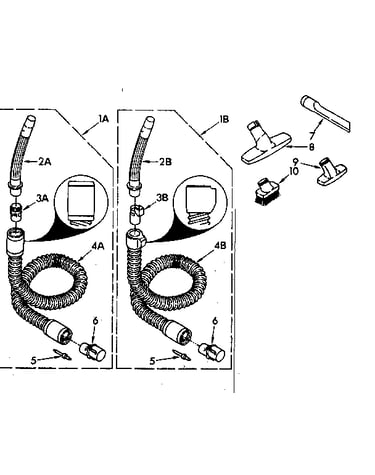

Hose and attachment parts Diagram

Brush

Part #52651
?
Manufacturer substitution
This part replaces 744321. Substitute parts can look different from the original.
This part replaces 744321
This item is not returnable
$5.49

In Stock

Vacuum Floor Brush

#8

Hose and attachment parts Diagram

Vacuum floor brush

Part #5268
?
Manufacturer substitution
This part replaces 744391. Substitute parts can look different from the original.
This part replaces 744391
$14.53

In Stock

Thread-Forming Screw, 8-pack

#19

Vacuum cleaner parts Diagram

Thread-forming screw, 8-pack

Part #STD610805
?
Manufacturer substitution
This part replaces 681315. Substitute parts can look different from the original.
This part replaces 681315
This item is not returnable
$2.55

In Stock

Vacuum Twist-On Wire Connector

#18

Vacuum cleaner parts Diagram

Vacuum twist-on wire connector

Part #KS4154460
?
Manufacturer substitution
This part replaces 596564. Substitute parts can look different from the original.
This part replaces 596564
This item is not returnable
$2.49

In Stock

Hose

#1

Hose and attachment parts Diagram

Hose

Part #744328

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter (White)

#22

Vacuum cleaner parts Diagram

Vacuum filter (white)

Part #744444

The manufacturer no longer makes this part, and there's no substitute part

Base

#27

Vacuum cleaner parts Diagram

Base

Part #744494

The manufacturer no longer makes this part, and there's no substitute part

Terminal

#6

Hose and attachment parts Diagram

Terminal

Part #744331

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster

#28

Vacuum cleaner parts Diagram

Vacuum caster

Part #744415

The manufacturer no longer makes this part, and there's no substitute part
