Model #FWX414RGS1 Frigidaire washer

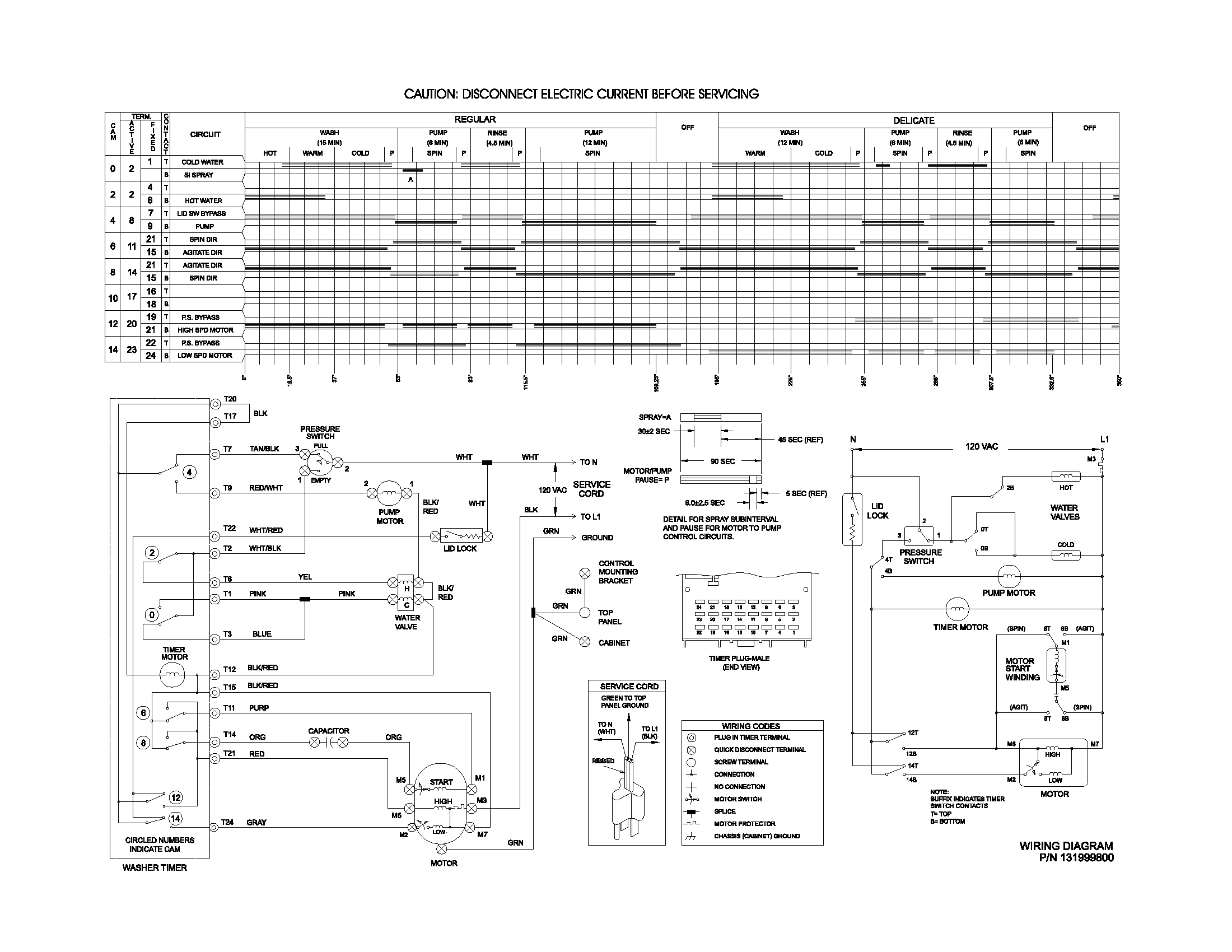

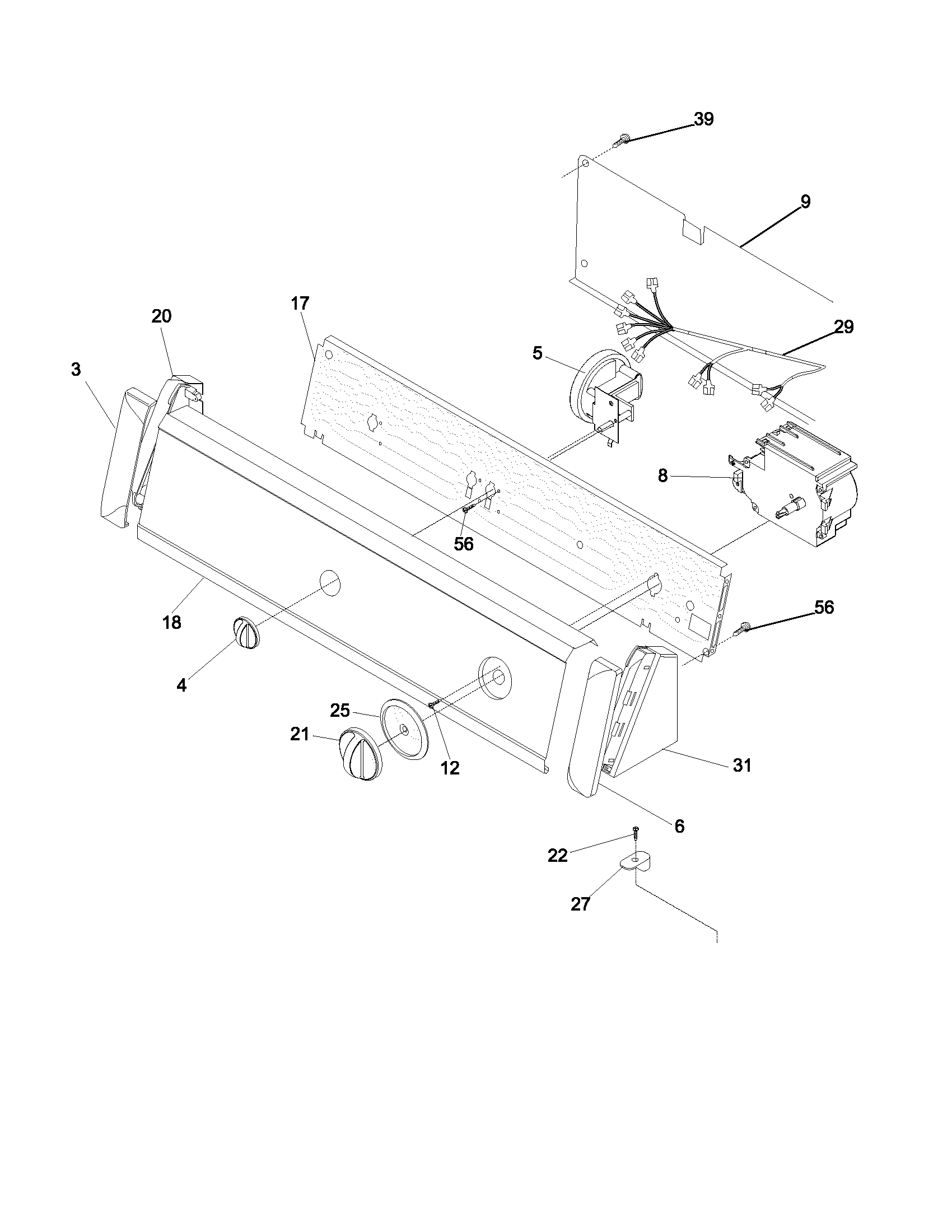

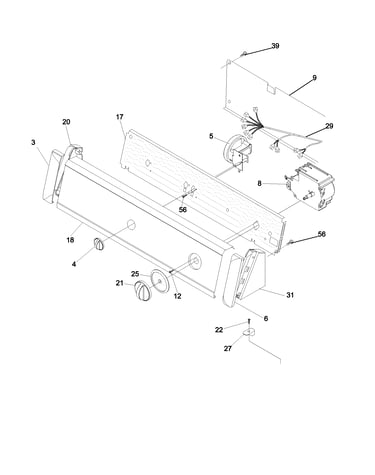

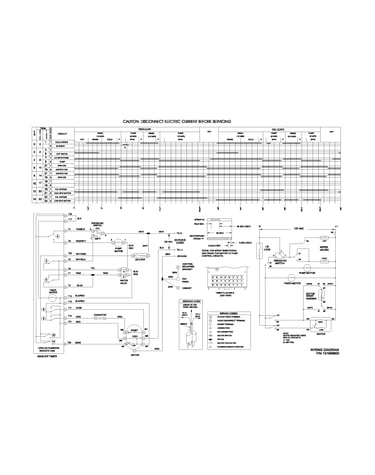

Here are the diagrams and repair parts for Frigidaire FWX414RGS1 washer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 105 parts

Laundry Appliance Screw, #8-18 x 31/100-in

#2

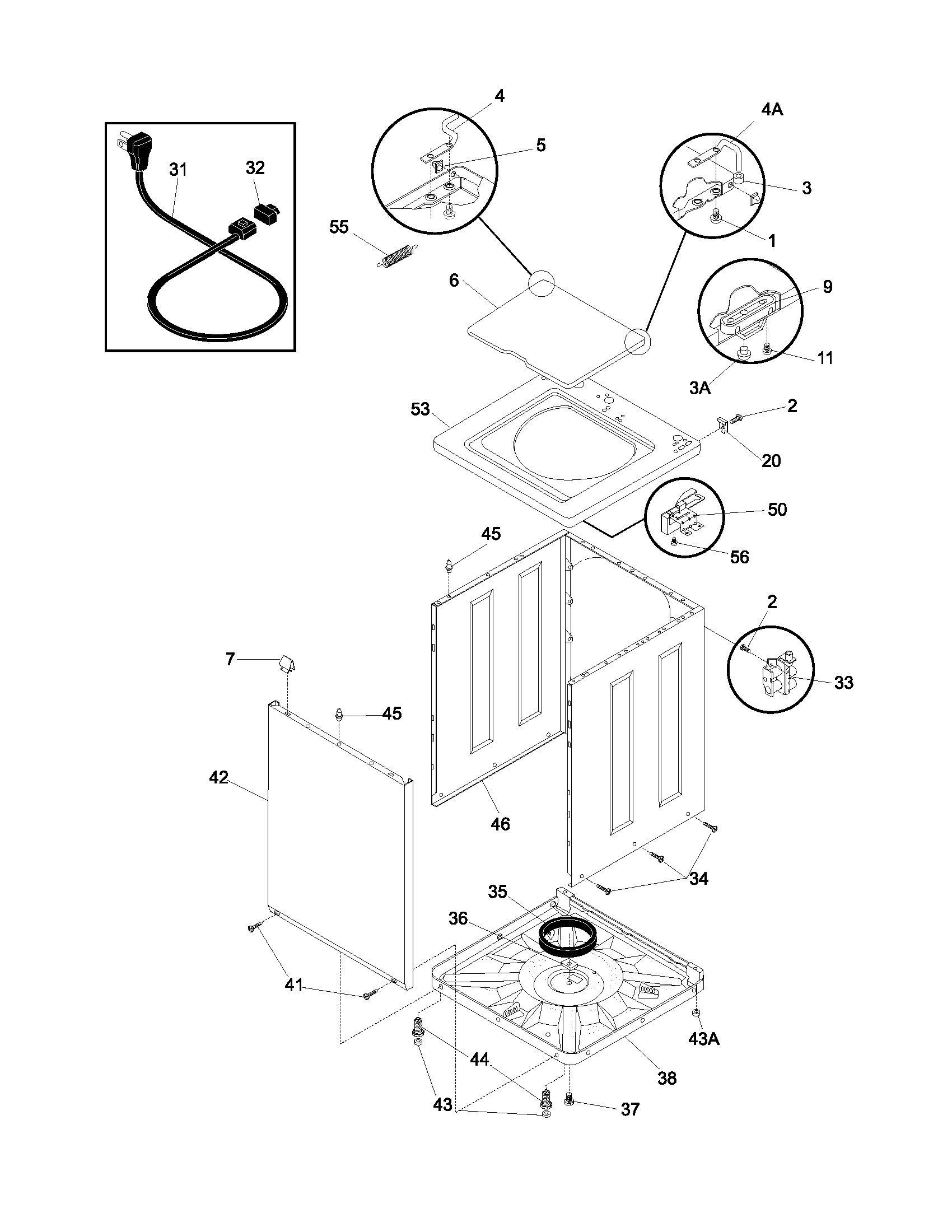

Wshr cab,top Diagram

$8.08 |
12% OFF MSRP:$9.20

In Stock

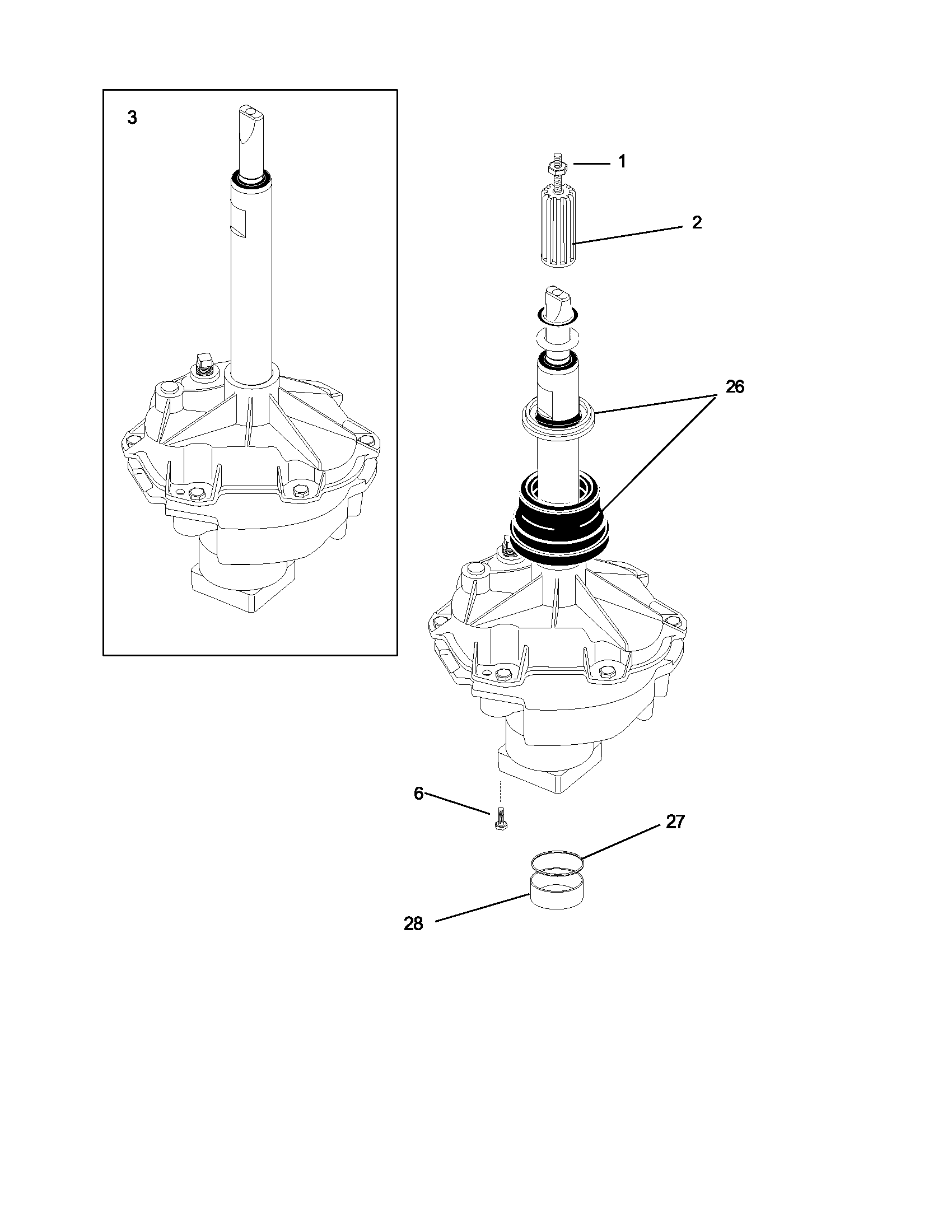

Washer Spin Bearing

#26

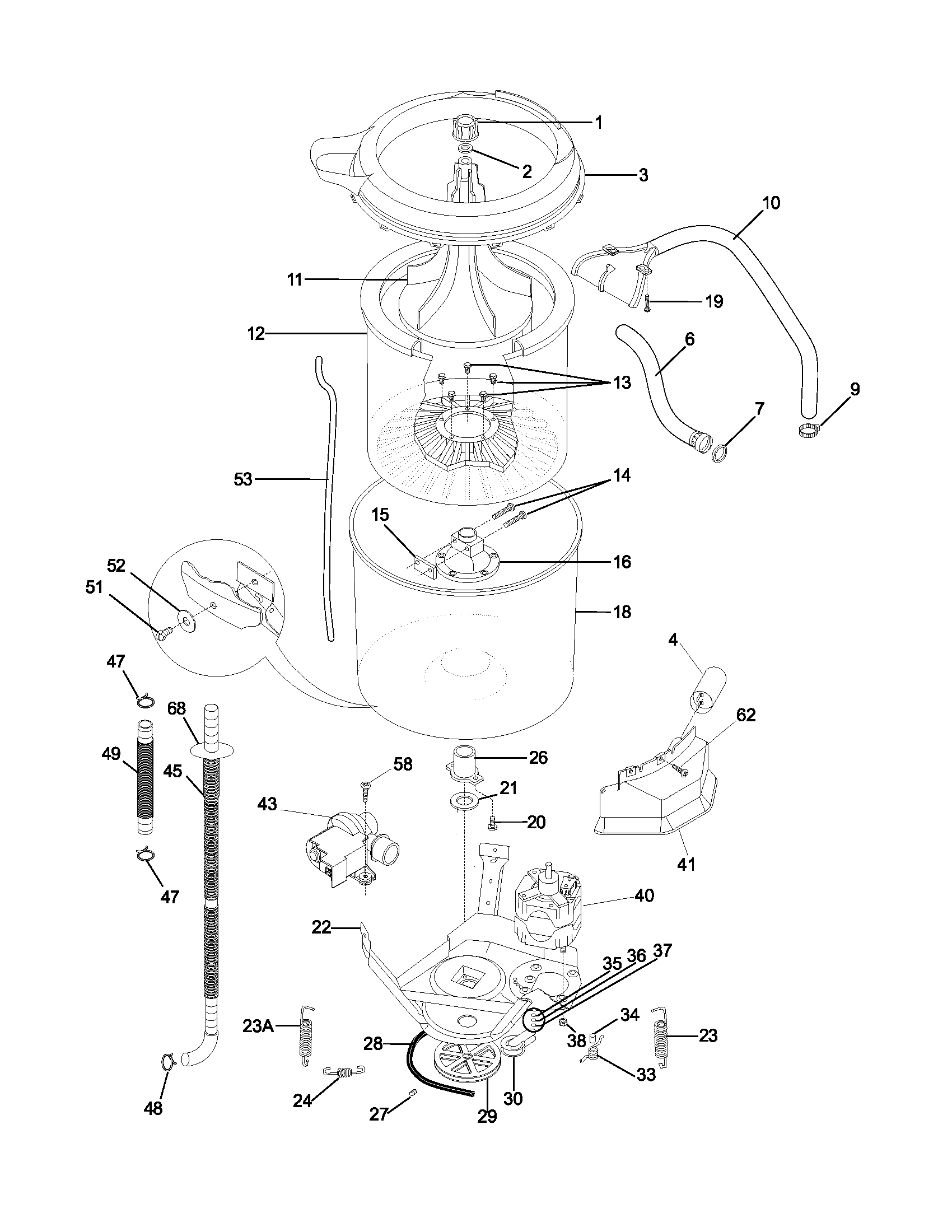

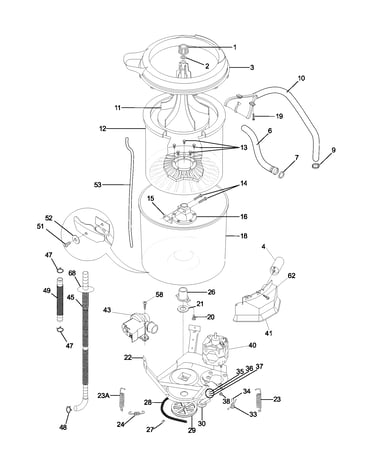

Wshr mtr,hose Diagram

Washer spin bearing

Part #3204405
$53.53 |
16% OFF MSRP:$64.00

In Stock

Washing Machine Washer

#21

Wshr mtr,hose Diagram

Washing machine washer

Part #5308002401
$11.46

In Stock

Laundry Center Washer Suspension Spring Adjuster Insert

#NI

Wshr mtr,hose Diagram

$9.73 |
19% OFF MSRP:$12.00

In Stock

Laundry Center Washer Trunnion

#16

Wshr mtr,hose Diagram

$70.58 |
26% OFF MSRP:$95.00

In Stock

Washer Drain Hose

#45

Wshr mtr,hose Diagram

Washer drain hose

Part #131461200
$18.16 |
38% OFF MSRP:$29.44

In Stock

Washer Snubber Ring

#35

Wshr cab,top Diagram

Washer snubber ring

Part #5308002385
$26.16 |
54% OFF MSRP:$57.00

In Stock

Washer Tub-to-Pump Hose

#49

Wshr mtr,hose Diagram

Washer tub-to-pump hose

Part #131494800
$34.94 |
29% OFF MSRP:$49.00

In Stock

Washer Hose Clamp

#48

Wshr mtr,hose Diagram

Washer hose clamp

Part #131306234
$19.15 |
36% OFF MSRP:$30.00

In Stock

Laundry Center Washer Horizontal Spring

#24

Wshr mtr,hose Diagram

$26.72 |
26% OFF MSRP:$36.00

In Stock
