Kenmore 58714013405 dishwasher Parts

The Kenmore dishwasher model 58714013405 is a standard built-in dishwasher designed to fit a typical 24-inch-wide cabinet opening, with an adjustable height to match common countertop-to-floor openings. For the exact fit range and leveling guidance, use the 58714013405 installation guide.

Typical fit dimensions (what to expect)

Most built-in Kenmore dishwashers in this series are sized for standard kitchen cutouts:

• Width: about 24 inches (standard built-in)
• Height: adjustable using leveling legs to match the cabinet opening
• Depth: varies by installation (door style and how far the unit sits back)
• Minimum opening height: commonly around 33-3/4 inches or more (with levelers adjusted)

How to measure your opening correctly

Measure before ordering parts or planning a replacement:

• Measure width between cabinet sides at the front and back
• Measure height from the underside of the countertop to the finished floor
• Measure depth from the cabinet front to the back wall (account for hoses and wiring)
• Confirm the dishwasher can be leveled so the tub sits square in the opening

Quick measurement checklist

What to measure	Where to measure	Why it matters
Opening width	Inside cabinet walls	Confirms standard 24-inch fit
Opening height	Countertop underside to floor	Ensures the unit can slide in
Opening depth	Cabinet front to back wall	Prevents hose and cord pinching

Why it matters

Correct sizing prevents installation problems like a door that rubs, a unit that will not slide fully into the opening, or leaks caused by strained drain and water lines. If you are also addressing leaks at the bottom of the door, the lower door seal is a common wear item; see the gasket 809006501 if you need the model-matched part.

Last updated: February 2026

Yes, repairing a Kenmore dishwasher model 58714013405 is usually worth it when the problem is a wear item or a straightforward leak, drain, or heat issue. If the repair involves multiple major components, replacement makes more sense, especially if performance has been declining.

Quick way to decide (cost vs. value)

Use this simple rule: if the repair is under about 50% of the cost of a comparable new dishwasher, repair is the better value. Also factor in whether the issue is a single failed part or a chain of problems.

• Repair is typically worth it when:
• The dishwasher still washes well and the issue is isolated (leak, no drain, no heat)
• You can replace a common part in one visit
• The tub and racks are in good shape (no heavy rust, cracks, or severe wear)
• The unit fills and drains normally but has a symptom like poor drying
• You can confirm correct operation and maintenance steps in the 58714013405 owner’s manual

Common repairs that are usually cost-effective

These are frequent fixes on dishwashers like the Kenmore 58714013405 that often restore normal operation without replacing the whole unit.

Symptom	Common cause	Example part for this model
Water leaking at the bottom of the door	Worn lower door seal	Gasket 809006501

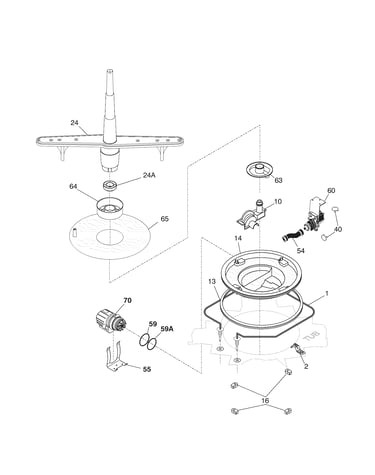

Not draining or draining slowly	Kinked/clogged drain path or weak pump	Hose 807117001 or dishwasher drain pump A00126501
Not heating or poor drying	Heater circuit issue	Heater 154665201

Why it matters

A dishwasher is designed for years of dependable operation with routine care and occasional repair. Fixing a single failed component (like a drain hose, door seal, or heater) often restores cleaning performance and prevents water damage from leaks.

Before you spend money on parts

These checks prevent unnecessary repairs and align with common performance guidance in the manual.

• Verify incoming water is hot enough (typically 120°F / 49°C) and pressure is adequate (about 20 to 120 psi)
• Make sure spray arms can rotate and aren’t blocked by tall items
• Avoid nesting dishes; load so water can reach all surfaces
• Use fresh dishwasher detergent and the correct cycle for soil level
• Disconnect electrical power before servicing; repairs should be done by a qualified technician

Last updated: February 2026

Yes. You can still get replacement parts for Kenmore dishwashers, including model 58714013405, as long as the specific part is still being manufactured or has compatible substitutes. The key is matching the exact model number to the correct door, drain, heating, and rack components listed for your dishwasher.

How to make sure you order the right part

Use your model number 58714013405 and confirm the part’s name and ID before ordering. We recommend:

• Match the full model number from the rating label to the parts list
• Compare the part description to the symptom (leak, no drain, won’t fill, poor cleaning)
• Check whether you need a seal, hose, valve, latch, or rack component
• Use the diagrams and part callouts in the 58714013405 owner's manual
• Follow installation notes in the 58714013405 installation guide (especially for drain hose routing and leveling)

Common Kenmore 58714013405 parts customers replace

These are examples of parts available for this model that cover frequent repairs:

Symptom	Likely part type	Example part for this model

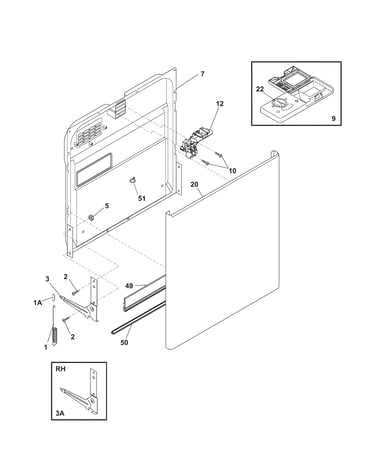

Water leaking at the door	Door seal/gasket	Gasket 809006501
Dishwasher won’t drain or drains slowly	Drain hose or drain pump	Hose 807117001, dishwasher drain pump A00126501
Dishwasher won’t fill or fills poorly	Water inlet valve	Dishwasher water inlet valve 154637401
Dishes not drying well	Heating element	Heater 154665201

Why it matters

Ordering by brand alone is risky because Kenmore dishwashers were produced across multiple design platforms. Using the exact model number (58714013405) helps you avoid returns, prevents fit issues, and speeds up repairs like fixing leaks, restoring draining, or improving wash performance.

Helpful DIY references

If you’re troubleshooting an error display or blinking pattern, use our model-family error code resources to narrow the failure down before ordering parts:

• Kenmore 665 model dishwasher error codes

Last updated: February 2026

Your Kenmore dishwasher’s model number is printed on the model and serial number label; for Kenmore model 58714013405, the manual shows it’s recorded as 587. plus additional digits. The label is typically found around the door opening or on the tub edge when you open the door; confirm the exact location in the 58714013405 owner’s manual.

Where to look on the dishwasher

Check these common label locations first (in order):

• Along the inner door frame (left or right side)
• On the top edge of the door (visible when the door is open)
• On the tub rim near the latch area
• On the side wall of the tub (near the front)
• Behind the toe-kick or kickplate area (sometimes near wiring and connections)

What the model number looks like (Kenmore 587 series)

Kenmore dishwashers in this family often show the model in a 587.XXXXXXXXX format.

What you see on the label	What it means	What to do with it
587.14013405 (or similar)	Full model number	Use it to match parts and diagrams
Serial number	Production identifier	Useful for service history and age
Color code (if shown)	Finish variant	Helps match door and trim parts

Why the exact model number matters

Using the full model number prevents ordering the wrong part when troubleshooting issues like leaks, no-drain, or no-fill. For example, parts such as the dishwasher water inlet valve 154637401 and hose 807117001 can vary by model revision even within the same Kenmore series.

Quick tips before you write it down

• Copy the model number exactly, including the 587. prefix and all digits
• Take a clear photo of the label for reference
• If the label is worn, try a flashlight at an angle to make the print easier to read

Last updated: February 2026
