GE JBP19GS2 electric range Parts
Here are the diagrams and repair parts for GE JBP19GS2 electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for JBP19GS2 Ranges

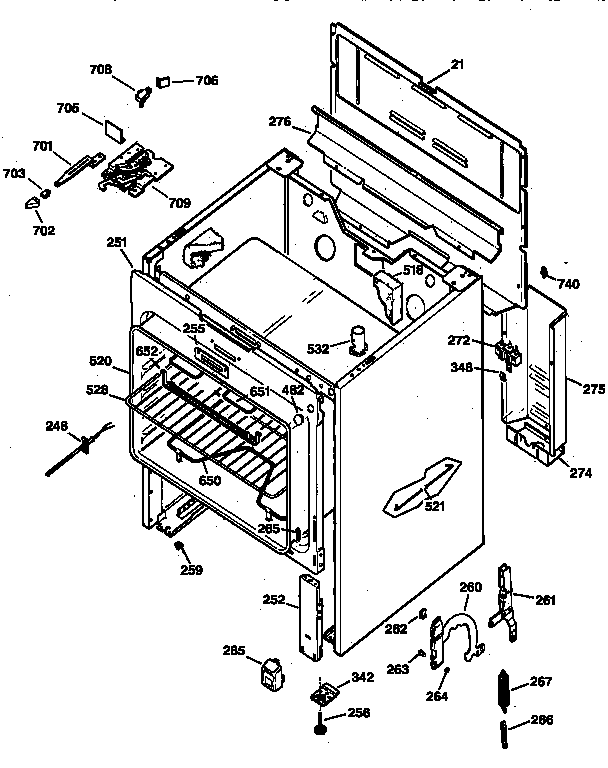

Body parts diagram
Button Plug
Part #WB02X1126Replaced by #WB2X1126
Manufacturer substitutionThis part replaces WB02X1126. Substitute parts can look different from the original.In Stock$27.95
Qty

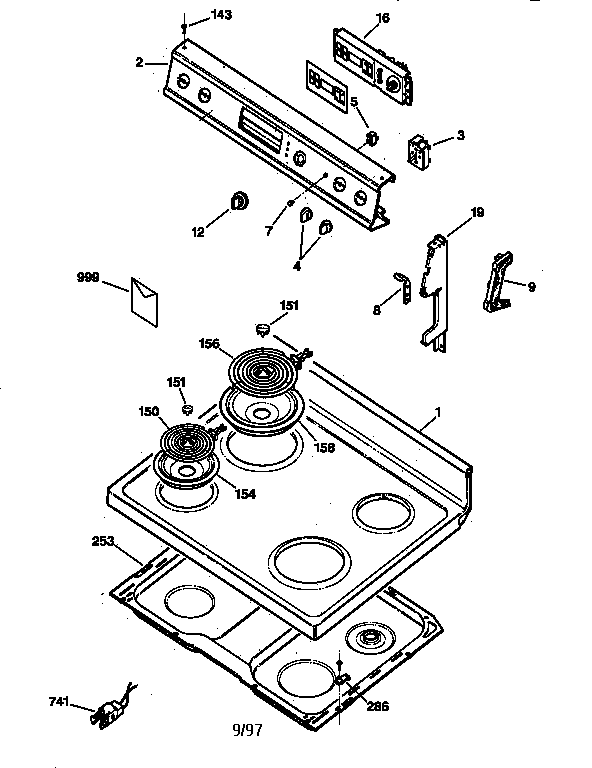

Control panel & cooktop diagram
8"surf Elem
Part #WB30X5122Replaced by #WB30M2
Manufacturer substitutionThis part replaces WB30X5122. Substitute parts can look different from the original.In Stock$59.199% OFF Phone Price : $65.19

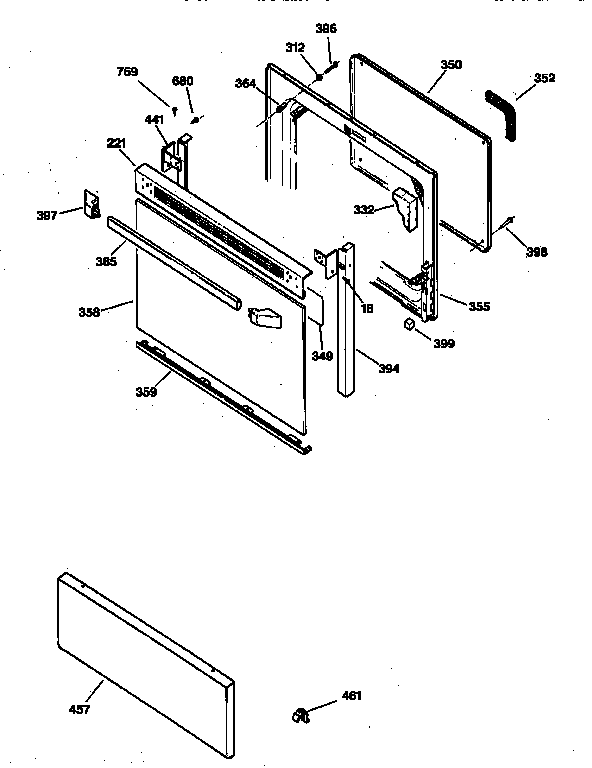

QtyDoor diagram
Screw
Part #WB01X0500Replaced by #WB1X500D
Manufacturer substitutionThis part replaces WB01X0500. Substitute parts can look different from the original.This item is not returnableIn Stock$9.3210% OFF Phone Price : $10.32QtyControl panel & cooktop diagram
Cooktop Box
Part #WB49X5499Replaced by #WB49X5566
Manufacturer substitutionThis part replaces WB49X5499. Substitute parts can look different from the original.In Stock$110.74QtyDoor diagram
Handle
Part #WB15X5203Replaced by #WB15K5076
Manufacturer substitutionThis part replaces WB15X5203. Substitute parts can look different from the original.In Stock$40.2713% OFF Phone Price : $46.27QtyControl panel & cooktop diagram
Infinite Control Switch
Part #WB24X5333Replaced by #WB21X36771
Manufacturer substitutionThis part replaces WB24X5333. Substitute parts can look different from the original.In Stock$36.0014% OFF Phone Price : $42.00QtyDoor diagram
Screw
Part #WR01X1768Replaced by #WR1X5762
Manufacturer substitutionThis part replaces WR01X1768. Substitute parts can look different from the original.In Stock$26.64QtyDoor diagram
Screw
Part #WB01X0536Replaced by #WB1X536
Manufacturer substitutionThis part replaces WB01X0536. Substitute parts can look different from the original.In Stock$10.3216% OFF Phone Price : $12.32QtyControl panel & cooktop diagram
End Plate Ad
Part #WB07X7162Replaced by #WB07X10129
Manufacturer substitutionThis part replaces WB07X7162. Substitute parts can look different from the original.In Stock$36.61QtyBody parts diagram
Broil Unit F
Part #WB44X0185Replaced by #WB44X173
Manufacturer substitutionThis part replaces WB44X0185. Substitute parts can look different from the original.In Stock$36.1914% OFF Phone Price : $42.19Qty
