Kenmore 1106117800 gas dryer Parts
Here are the diagrams and repair parts for Kenmore 1106117800 gas dryer, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 1106117800 Gas Dryer

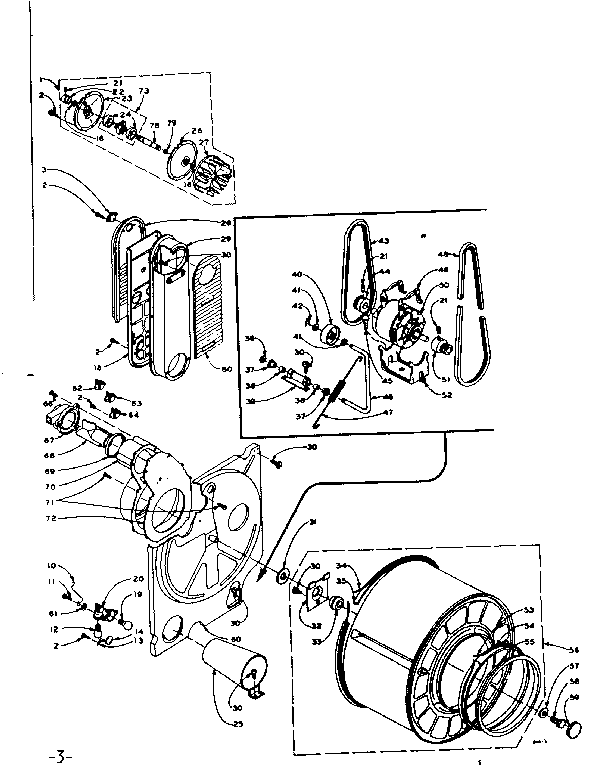

Bulkhead assembly diagram
Bulb
Part #233056Replaced by #8009
Manufacturer substitutionThis part replaces 233056. Substitute parts can look different from the original.In Stock$35.61
Qty

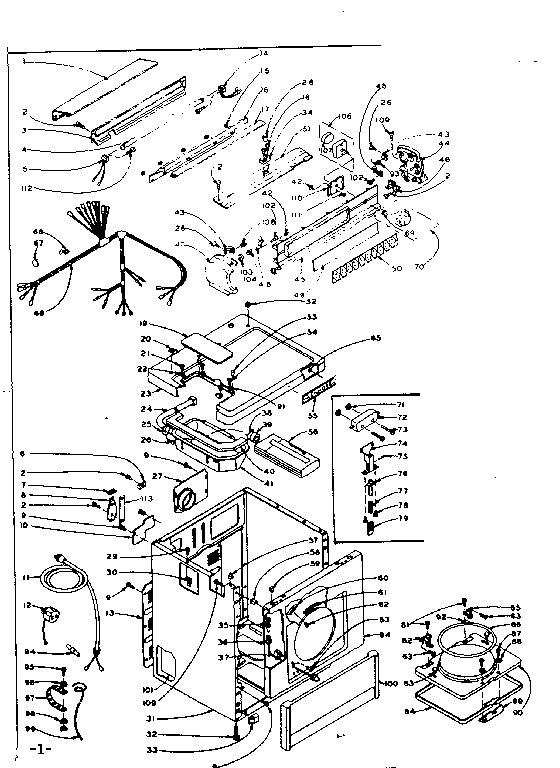

Machine sub-assembly diagram
Hex Nut
Part #120361Replaced by #W10080180
Manufacturer substitutionThis part replaces 120361. Substitute parts can look different from the original.In Stock$18.6110% OFF Phone Price : $20.61
QtyMachine sub-assembly diagram
Timer Motor
Part #238816
The manufacturer no longer makes this part, and there's no substitute part
Bulkhead assembly diagram
Lamp Socket
Part #238247
The manufacturer no longer makes this part, and there's no substitute part

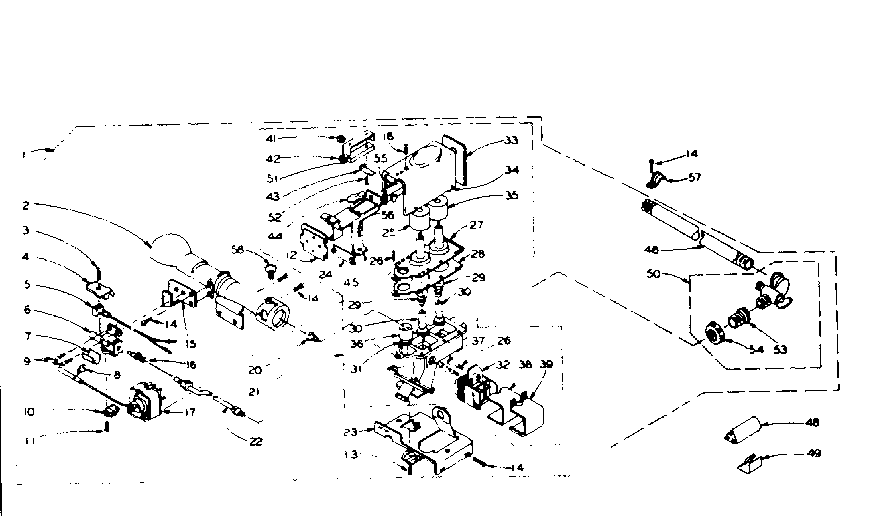

White rodgers burner assembly diagram
Dual Valve
Part #236771
The manufacturer no longer makes this part, and there's no substitute part
White rodgers burner assembly diagram
Pilot Bracket
Part #239950
The manufacturer no longer makes this part, and there's no substitute part
White rodgers burner assembly diagram
Frame
Part #239936
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Ballast
Part #99726
The manufacturer no longer makes this part, and there's no substitute part

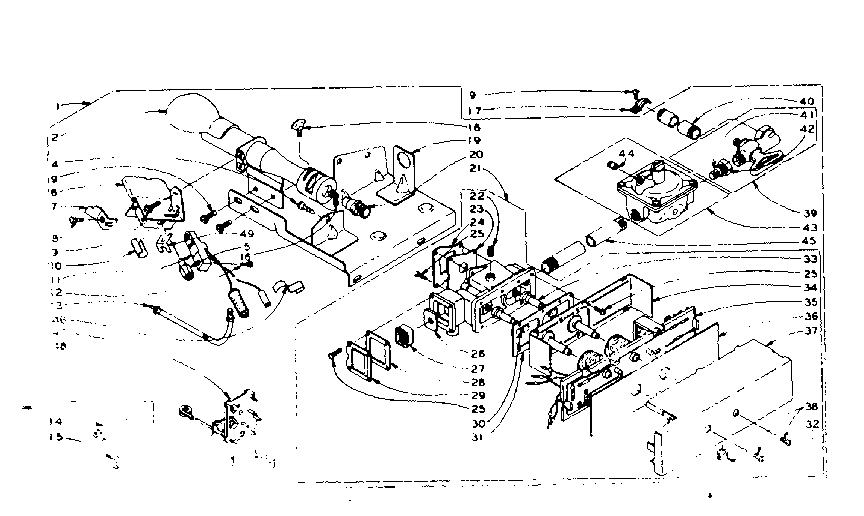

Dole burner assembly diagram
Cover Plate
Part #239907
The manufacturer no longer makes this part, and there's no substitute part
Machine sub-assembly diagram
Nut
Part #232226
The manufacturer no longer makes this part, and there's no substitute part
