Samsung WF42H5600AP/A2-00 washer Parts

The Samsung WF42H5600AP front-load washer has a 4.8 cu. ft. capacity, which is considered a large-capacity drum for everyday mixed loads, towels, and bedding. For cycle and loading guidance specific to this model, use the WF42H5600AP owner's manual.

What 4.8 cu. ft. means for real-world loads

A 4.8 cu. ft. washer is designed to handle larger loads efficiently when you load it correctly.

• Wash bulky items (like bedding) one load at a time to keep the drum balanced
• Load loosely; do not pack items down
• Mix large and small items to improve tumbling action
• Use HE detergent and measure carefully to reduce oversudsing
• Choose the cycle that matches fabric type (Normal, Heavy Duty, Bedding, Towels, Quick Wash)

Quick capacity guide (typical)

These examples help you visualize what a 4.8 cu. ft. front-load washer commonly handles.

Load type	Typical fit in 4.8 cu. ft.	Best practice
Everyday mixed laundry	Large load	Fill drum about 3/4 full, loosely
Towels	Medium to large load	Avoid overloading to prevent vibration
Bedding/comforter	1 bulky item load	Use Bedding cycle; keep it balanced

Why it matters

Capacity affects cleaning performance, rinse quality, and spin balance. Overloading a large-capacity Samsung washer can lead to poor tumbling, longer cycle times, and out-of-balance spinning, even when the drum seems like it has room.

Last updated: February 2026

Yes. Samsung 4.5 cu. ft. front-load washers are a strong choice when you want large capacity, efficient cleaning, and a quieter wash experience; for the Samsung WF42H5600AP specifically, proper leveling and calibration after installation are key to keeping vibration and spin performance under control (see the WF42H5600AP owner's manual).

What “good” looks like for this washer

We judge a washer like the WF42H5600AP by cleaning results, spin-out (how dry clothes feel), noise, and how consistently it runs without shaking.

Common strengths for Samsung front-loaders in this size:

• Large capacity for bedding, towels, and family loads
• Efficient water and energy use compared to many top-load designs
• High spin speeds that typically reduce dryer time
• Useful cycle options for heavily soiled loads (cycle-dependent)

The biggest make-or-break factor: vibration control

Front-load washers can shake if they are not installed and set up correctly. Samsung’s guidance for this model emphasizes leveling on all four corners and running Calibration Mode after installation.

Setup checklist we recommend

• Level the washer on all four corners using a carpenter’s level
• Recheck level after about 12 washes
• Run a Rinse+Spin test cycle after installation
• Run Calibration Mode with an empty tub
• Load items loosely and avoid overfilling

Calibration Mode (WF42H5600AP)

Step	What to do	What you should see
1	Power on	Display lights up
2	Press Temp + Delay End for 3 seconds	Calibration starts
3	Empty tub, close door	Door locked
4	Press Start/Pause	Drum rotates about 3 minutes
5	Wait for completion	“En/End”, then unit powers off

Quick specs that help set expectations

These model-specific specs help you plan fit and performance:

Spec	WF42H5600AP value
Width	27 in.
Height	38.7 in.
Depth	33.4 in.
Depth with door open	51.2 in.
Max spin speed	1200 rpm

Why it matters

Most “bad washer” complaints on front-load models trace back to installation and loading: an out-of-level cabinet, skipped calibration, or bulky loads can cause vibration, noise, and less effective spin-out. Getting setup right helps the washer clean well and spin smoothly for years.

Last updated: February 2026

Yes. The Samsung WF42H5600AP front-load washer is designed to be stackable when it is paired with the correct Samsung stacking kit and a compatible Samsung dryer. For the approved stacking method and hardware, follow the WF42H5600AP owner's manual.

How to confirm your exact stack setup

Use these checks before you buy a stacking kit or start installation:

• Match the washer model number exactly: WF42H5600AP
• Confirm the dryer is a compatible Samsung front-load dryer (model-specific)
• Use a Samsung stacking kit made for your washer and dryer pairing
• Verify you have the required clearances for the closet or alcove
• Level the washer first; stacking on an unlevel washer increases vibration

What “stackable” means in practice

A stackable washer is built to support a dryer above it, but only when the units are secured with the correct bracket kit. Do not stack by simply placing the dryer on top without the kit.

Setup	What you need	Result
Side-by-side	No kit	Standard installation
Stacked	Correct stacking kit + compatible dryer	Safe, stable installation
“Dryer on top” without kit	No kit	Not recommended (movement and noise risk)

Why it matters

Stacking the right way helps prevent excessive vibration, walking, and cabinet damage during high-speed spin. If your washer is already shaking or banging, addressing suspension issues first can also help; worn shocks are a common cause (example replacement: Samsung washer shock absorber DC66-00470A).

Last updated: February 2026

A Samsung front load washer typically lasts 10 to 15 years in normal household use. For the Samsung WF42H5600AP, lifespan depends most on installation, load size, and routine cleaning; consistent maintenance helps you reach the upper end of that range.

What affects lifespan the most

• Overloading (stresses the tub, bearings, and suspension)
• Poor leveling (increases vibration and wear)
• Detergent misuse (too much HE detergent can cause residue and odors)
• Infrequent cleaning (debris filter and door boot area build up)
• Hard water (can increase scale and valve issues)

Maintenance that extends life (high impact)

We recommend following the care steps in the WF42H5600AP owner's manual, especially the cleaning items called out for this model.

• Clean the debris filter on a regular schedule
• Wipe and dry the door diaphragm (door boot) after laundry days
• Run Self Clean+ as recommended

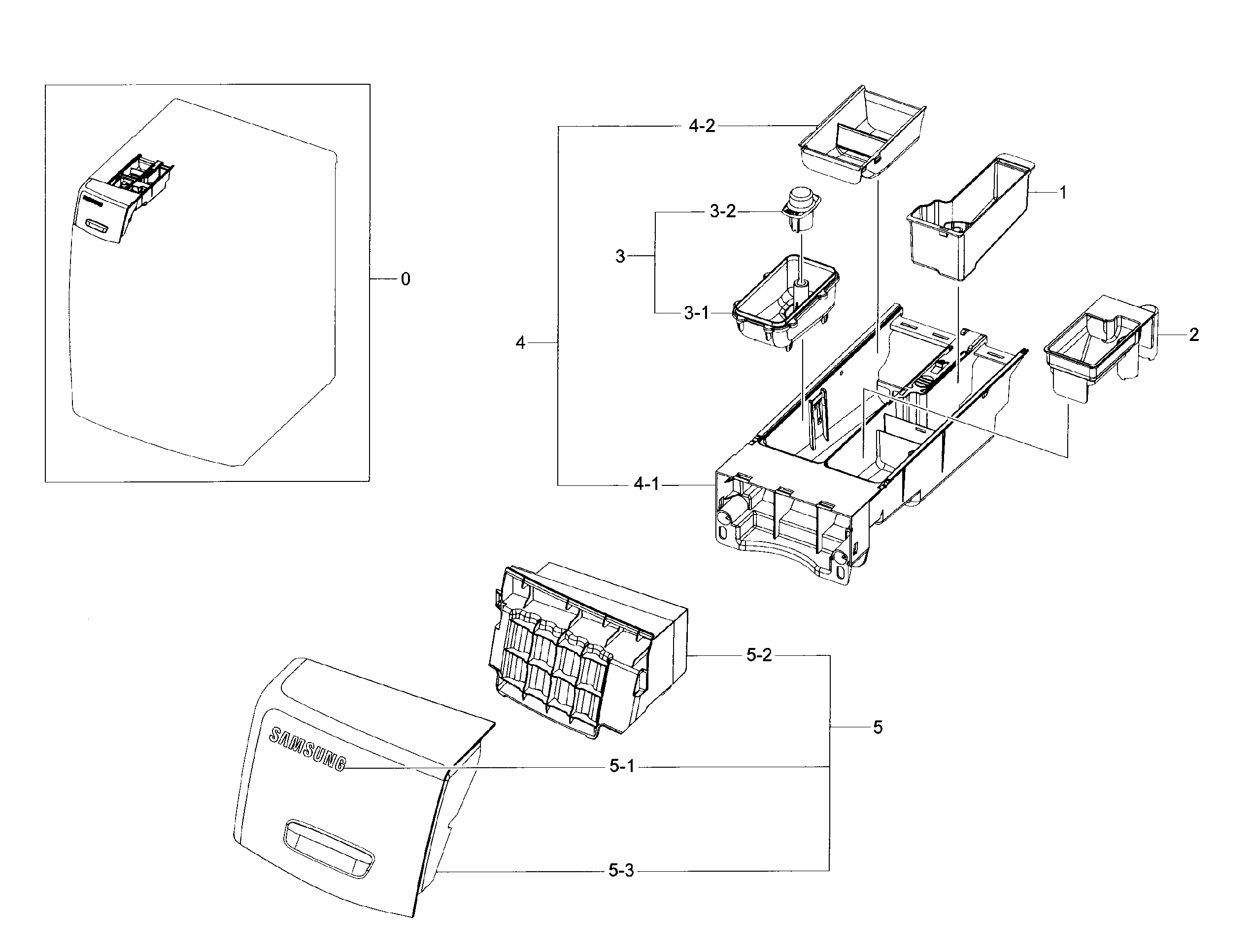

• Clean the detergent dispensers to prevent buildup
• Leave the door slightly open between loads to reduce moisture

Common wear items and what they usually mean

If the washer is getting loud, shaking, not draining, or not filling, these parts are frequent suspects:

Symptom	Common cause	Example part for WF42H5600AP
Banging, walking, heavy vibration	Worn suspension	Samsung washer shock absorber DC66-00470A
Won’t drain, drains slowly	Clogged filter or failing pump	(Drain pump motor is a common repair)
Won’t fill or fills slowly	Inlet valve or supply issue	Washer water inlet valve DC62-30314K

Why it matters

A front load washer can run for years past the “average” when vibration is controlled and moisture is managed. Those two factors reduce stress on the drive system, tub components, and seals, which are the repairs that most often end a washer’s service life.

Last updated: February 2026

The Samsung WF42H5600AP is a 27-inch class front-load washer with about 4.2 cu. ft. capacity. For the exact cabinet width, height, and depth (including door and hoses), we recommend confirming the specification table in the WF42H5600AP owner's manual.

What “size” usually means for this washer

Most customers mean one of these:

• Width class (commonly 27 inches for full-size front-load washers)
• Capacity (how much laundry it holds; commonly around 4.2 cu. ft. for this model family)
• Overall dimensions (height and depth for fit in a laundry closet)
• Clearance needs (space for door swing, ventilation, and hoses)

Typical fit planning guidelines (front-load washers)

Even when the washer is “27-inch class,” the installed footprint depends on clearances.

• Leave space behind the washer for water hoses and drain hose routing
• Allow room in front for full door swing and loading/unloading
• Keep the washer level to reduce vibration and out-of-balance movement
• If stacking, confirm the stacking kit requirements in the manual

Quick reference: size terms

Term	What it tells you	Why you care
27-inch class	Approximate cabinet width	Fit between cabinets or in an alcove
4.2 cu. ft.	Drum volume	Load size and cycle performance
Depth (installed)	Front-to-back with hoses	Closet door clearance

Why it matters

Correct sizing prevents installation headaches like a washer that will not slide into the space, a door that cannot open fully, or hoses that kink and restrict filling or draining.

Last updated: February 2026

If your Samsung WF42H5600AP isn’t filling, the most common causes are closed water faucets, kinked supply hoses, clogged inlet screens, or a failed water inlet valve. This model may also display a fill-related information code when it cannot reach the proper water level.

Quick checks (fastest fixes first)

• Confirm both hot and cold faucets are fully open.
• Straighten any bent or kinked fill hoses behind the washer.
• Remove the hoses and clean the inlet screen filters at the washer connections.
• If you use a flood safety device, remove it and connect hoses directly (these devices can restrict flow).
• Make sure the door closes completely; an open door can stop operation.

What the washer may be telling you (codes and symptoms)

Your WF42H5600AP can show information codes when it tries to fill but cannot.

What you see	What it usually means	What to do next
Fill attempt fails	Water is not reaching the washer fast enough	Check faucets, hoses, inlet screens
dE / door open	Door not fully closed	Close door firmly, restart
Fill-related message persists	Possible valve or control issue	Test/replace inlet valve, then check wiring

When a part is likely needed

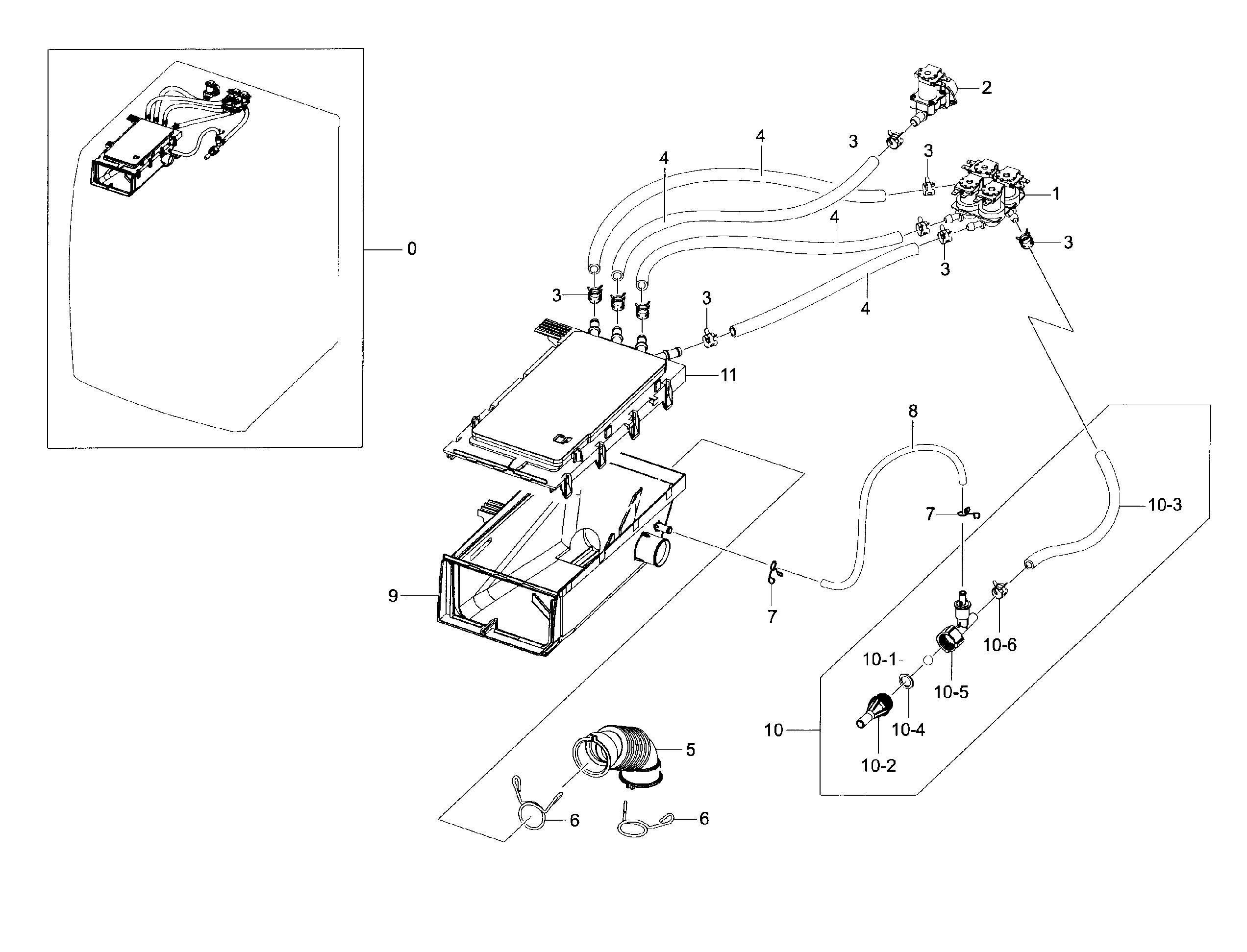

If water supply and screens are good but the tub still won’t fill, the inlet valve solenoids can fail electrically or stick mechanically. For this model, the correct replacement is the washer water inlet valve DC62-30314K.

Typical signs the inlet valve is failing:

• No water enters even though faucets are on
• Only hot or only cold fills
• Very slow fill with good household water pressure
• Humming at the valve with little or no water flow

Why it matters

A washer that cannot fill will not wash correctly and can stop mid-cycle. Fixing the water supply restriction early helps prevent repeated cycle interruptions and reduces strain on components like the electronic control.

Reference for model-specific steps

For safety notes and operating guidance (including checking hose connections and proper setup), use the WF42H5600AP owner's manual.

Last updated: February 2026

To force-drain a Samsung WF42H5600AP washer, we recommend using Spin Only first; if it will not drain, manually empty it through the front drain tube and then clean the debris filter. This safely removes standing water and often clears a small clog.

Fast method: drain using the controls

1. Turn the washer off for 10 seconds, then turn it back on.
2. Select Spin Only.
3. Press Start/Pause to begin draining.

If the washer shows a drain error (often 5E) or still will not drain, move to the manual drain steps below.

Manual method: emergency drain and debris filter cleanout

Before you start, unplug the washer and protect the floor.

• Unplug the washer from the power supply.
• Open the front filter cover (use a coin or key).
• Place towels and a shallow pan under the opening.
• Pull the drain tube forward carefully (do not yank it).
• Remove the drain cap and let water flow into the container.
• After draining, remove and rinse the debris filter; reinstall it securely.

For the exact panel location and the step-by-step filter procedure for this model, follow the WF42H5600AP manual.

What to check if it still will not drain

A drain problem is usually a clog, a kink, or a failed drain component.

What to check	What it affects	What to do
Kinked/blocked drain hose	Slow or no drain	Straighten hose; clear restriction
Clogged debris filter	5E, standing water	Clean filter and confirm cap seals
Excess suds (non-HE detergent)	Drain pauses, poor spin	Use HE detergent; reduce amount
Drain pump issue	Hums, no water movement	Inspect pump area after filter cleanout

If you suspect the pump is not moving water after the filter is clear, the washer drain pump motor and impeller DC31-00178A is the common drain component to evaluate for replacement.

Why it matters

Forcing a drain the right way prevents water damage, reduces odor and mold risk, and helps you avoid repeat drain errors by clearing the most common restriction point (the debris filter).

Last updated: February 2026

For a Samsung washer like model WF42H5600AP, most repairs typically land in the $200 to $265 range for parts and labor, with higher costs when major electronics or drive components are involved. Your total depends on the failure (drain, fill, door lock, control) and whether the repair is covered under the warranty terms in the WF42H5600AP owner's manual.

What usually drives the price

Repair cost is mainly a mix of diagnosis, labor time, and which part failed.

• Service call/diagnosis fee (often applied toward repair)
• Labor time (simple access vs. full disassembly)
• Part cost (valves and locks are usually less than control boards)
• Secondary damage (leaks can affect wiring, bearings, or the tub)
• Warranty status (some components may have longer parts-only coverage)

Common repair scenarios and typical cost range

These are practical ranges we see for front-load washers; your local labor rates and the exact symptom can move the total up or down.

Repair type	What you might notice	Typical total cost
Drain problem	Won’t drain, stops mid-cycle	$200 to $350
Fill problem	Slow fill, no fill, NF-type symptoms	$200 to $350
Door lock issue	Door won’t lock/unlock, won’t start	$200 to $325
Control/electronics	Dead panel, random errors, won’t run	$300 to $500
Vibration/out-of-balance	Banging, walking, DC-type symptoms	$200 to $450

Parts that commonly affect repair cost on WF42H5600AP

If your washer is not draining, not filling, or not locking, these model-matched parts are frequent suspects:

• Washer drain pump motor and impeller DC31-00178A (drain failures, humming pump, water left in tub)
• Washer water inlet valve DC62-30314K (no fill, slow fill, hot/cold fill issues)

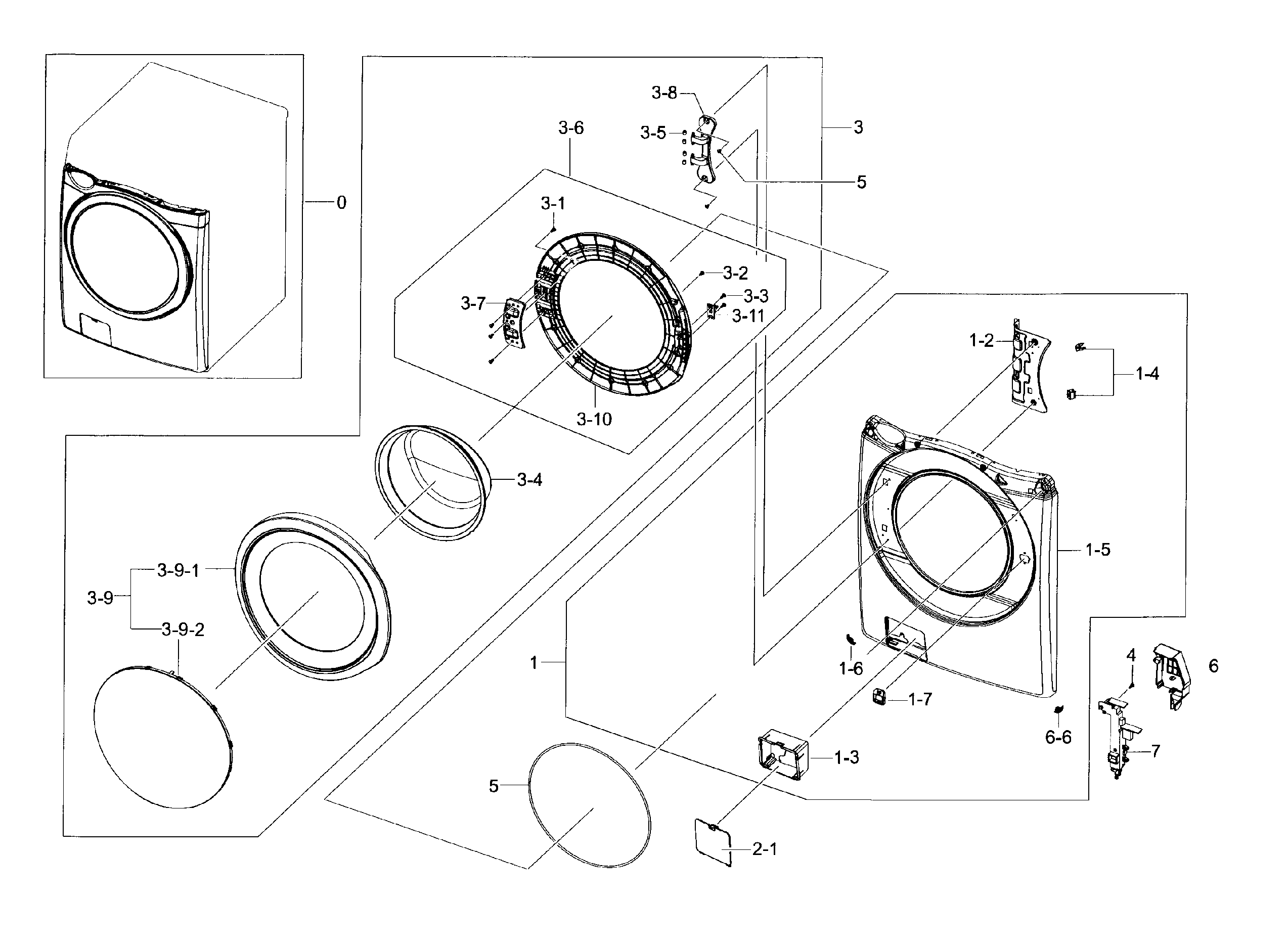

• Washer door lock DC64-00519B (won’t start, door lock errors)

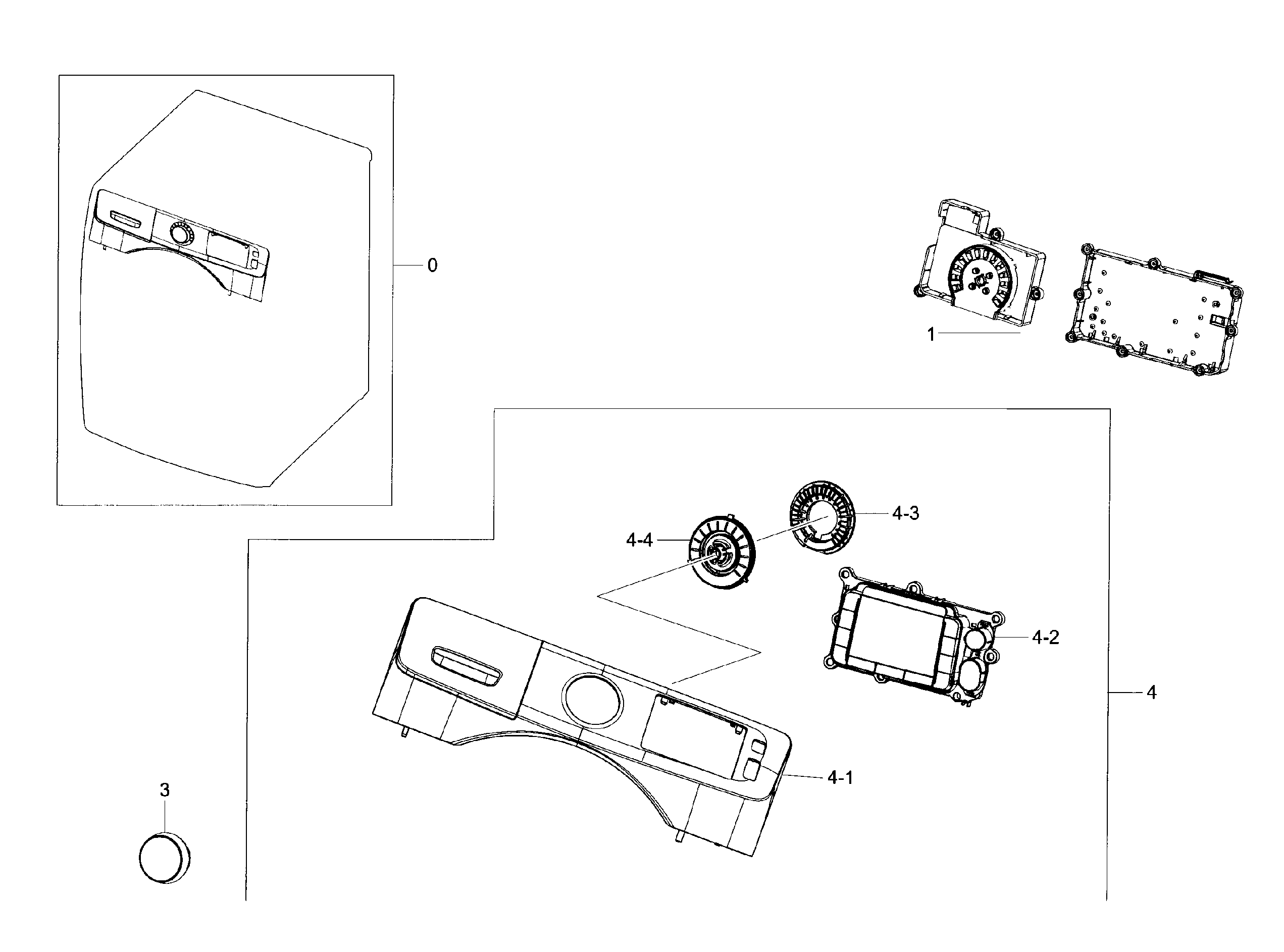

• Washer electronic control board DC92-01621C (no power, erratic operation, repeated error codes)

Why it matters

Getting the failure type right prevents paying for the wrong part. For example, a “no drain” complaint can be a clogged filter or hose, but it can also be a failing drain pump motor; the labor and parts cost are very different.

Last updated: February 2026
