Model # KEBI101DBL1 Official KitchenAid electric range
Here are the diagrams and repair parts for Official KitchenAid KEBI101DBL1 electric range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts forKEBI101DBL1 Wall Ovens
- #3

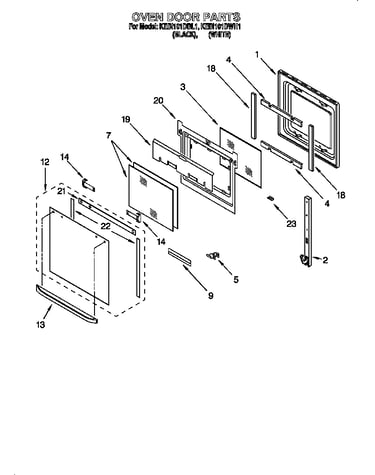

Oven door diagram
Wall oven door inner glassPart #4449259
Replaced by #WP4449259
?Manufacturer substitutionThis part replaces 4449259. Substitute parts can look different from the original.$89.91 |6% OFF Phone Price : $95.91In Stock - #7
Oven door diagram
Wall oven door inner glassPart #4449263
Replaced by #WP4449263
?Manufacturer substitutionThis part replaces 4449263. Substitute parts can look different from the original.$89.74 |6% OFF Phone Price : $95.74In Stock - #15

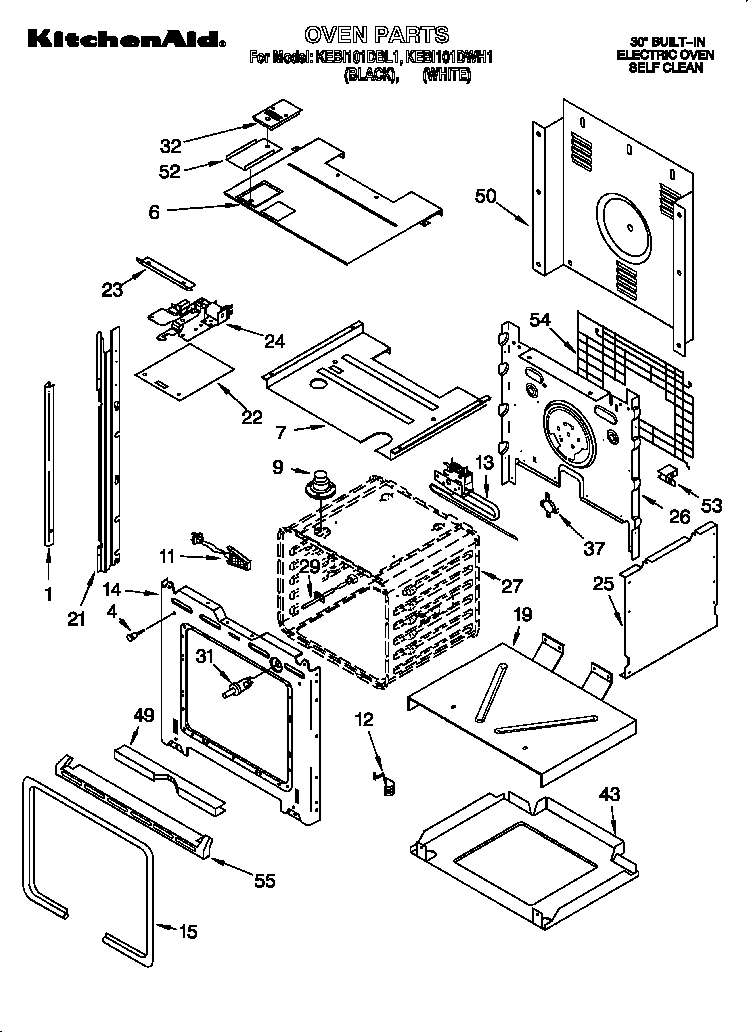

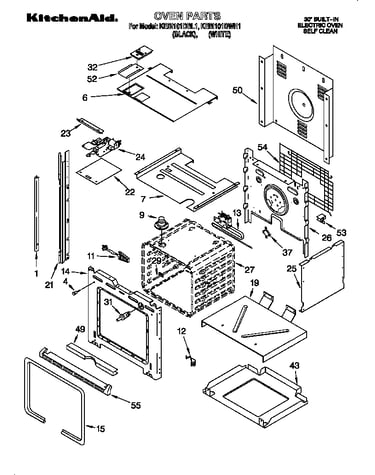

Oven diagram
Door gasketPart #4449372
Replaced by #W11675844
?Manufacturer substitutionThis part replaces 4449372. Substitute parts can look different from the original.$33.83 |15% OFF Phone Price : $39.83In Stock - #12A
Oven door diagram
Door glassPart #4450699
Replaced by #WP9759641
?Manufacturer substitutionThis part replaces 4450699. Substitute parts can look different from the original.$147.82 |8% OFF Phone Price : $159.82In Stock - #7

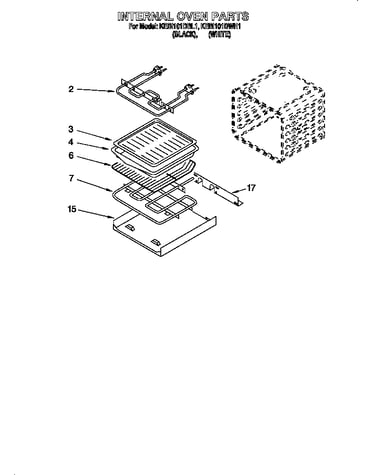

Internal oven diagram
Bake elementPart #4448695
Replaced by #4451175
?Manufacturer substitutionThis part replaces 4448695. Substitute parts can look different from the original.$93.90 |6% OFF Phone Price : $99.90In Stock - #2
Oven door diagram
Door hingePart #4451174
Replaced by #WP4455525
?Manufacturer substitutionThis part replaces 4451174. Substitute parts can look different from the original.$56.14 |10% OFF Phone Price : $62.14In Stock - #11

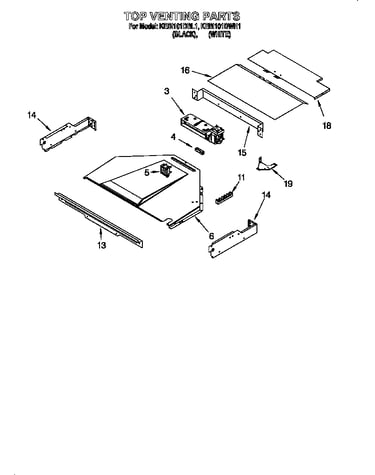

Top venting diagram
Terminal blockPart #4449868
Replaced by #WP8203546
?Manufacturer substitutionThis part replaces 4449868. Substitute parts can look different from the original.This item is not returnable$17.40 |10% OFF Phone Price : $19.40In Stock - #12
Oven diagram
Clip bulbPart #313382
Replaced by #98005642
?Manufacturer substitutionThis part replaces 313382. Substitute parts can look different from the original.$68.72In Stock - #37
Oven diagram
Range high-limit thermostatPart #4450934
Replaced by #WP4450934
?Manufacturer substitutionThis part replaces 4450934. Substitute parts can look different from the original.$90.70 |6% OFF Phone Price : $96.70In Stock #NI
All parts diagram
NutPart #112432
Replaced by #WP112432
?Manufacturer substitutionThis part replaces 112432. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock
