Model #SMU4056UC/14 (FD7402-7902) Bosch dishwasher

Here are the diagrams and repair parts for Bosch SMU4056UC-14-FD7402-7902 dishwasher, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

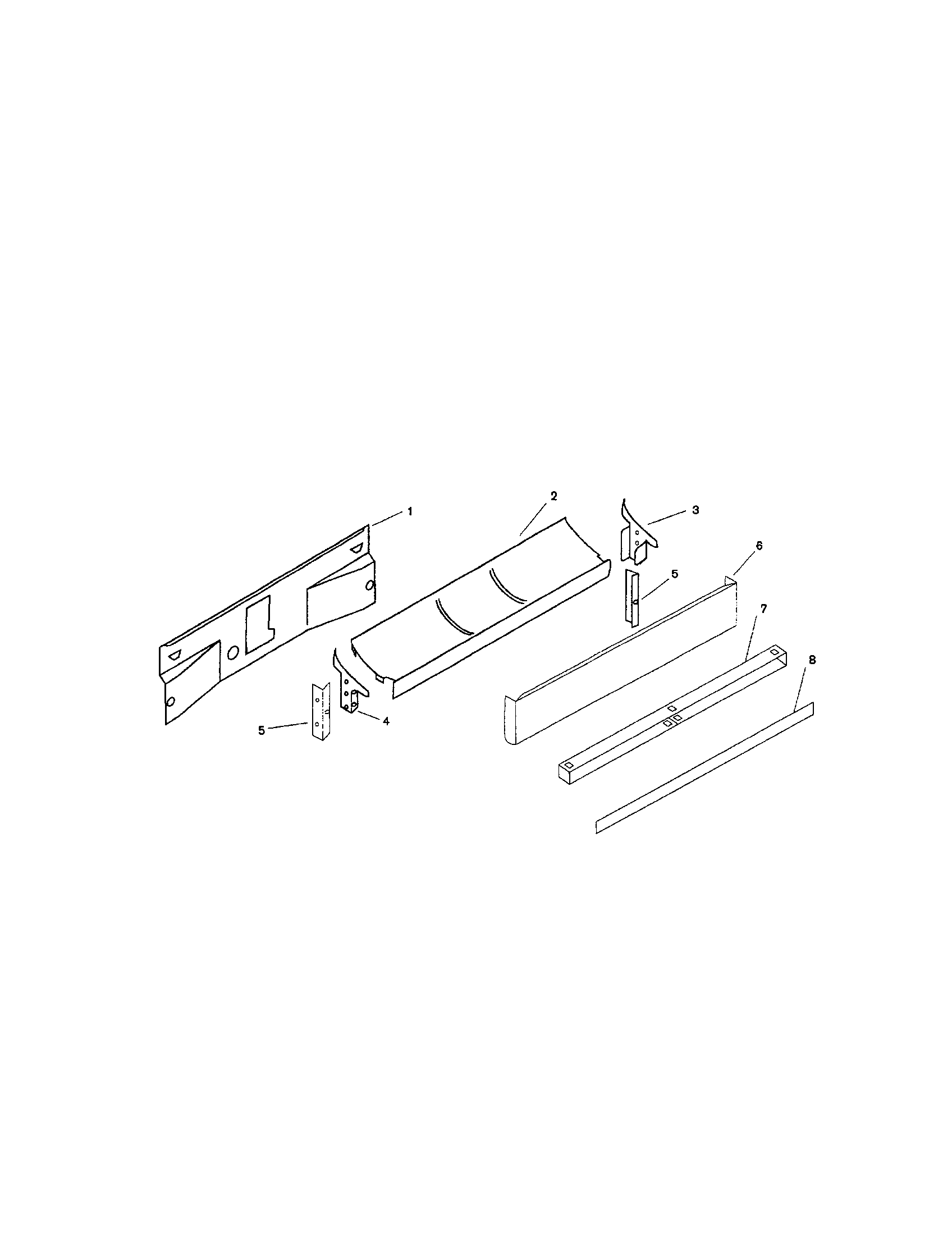

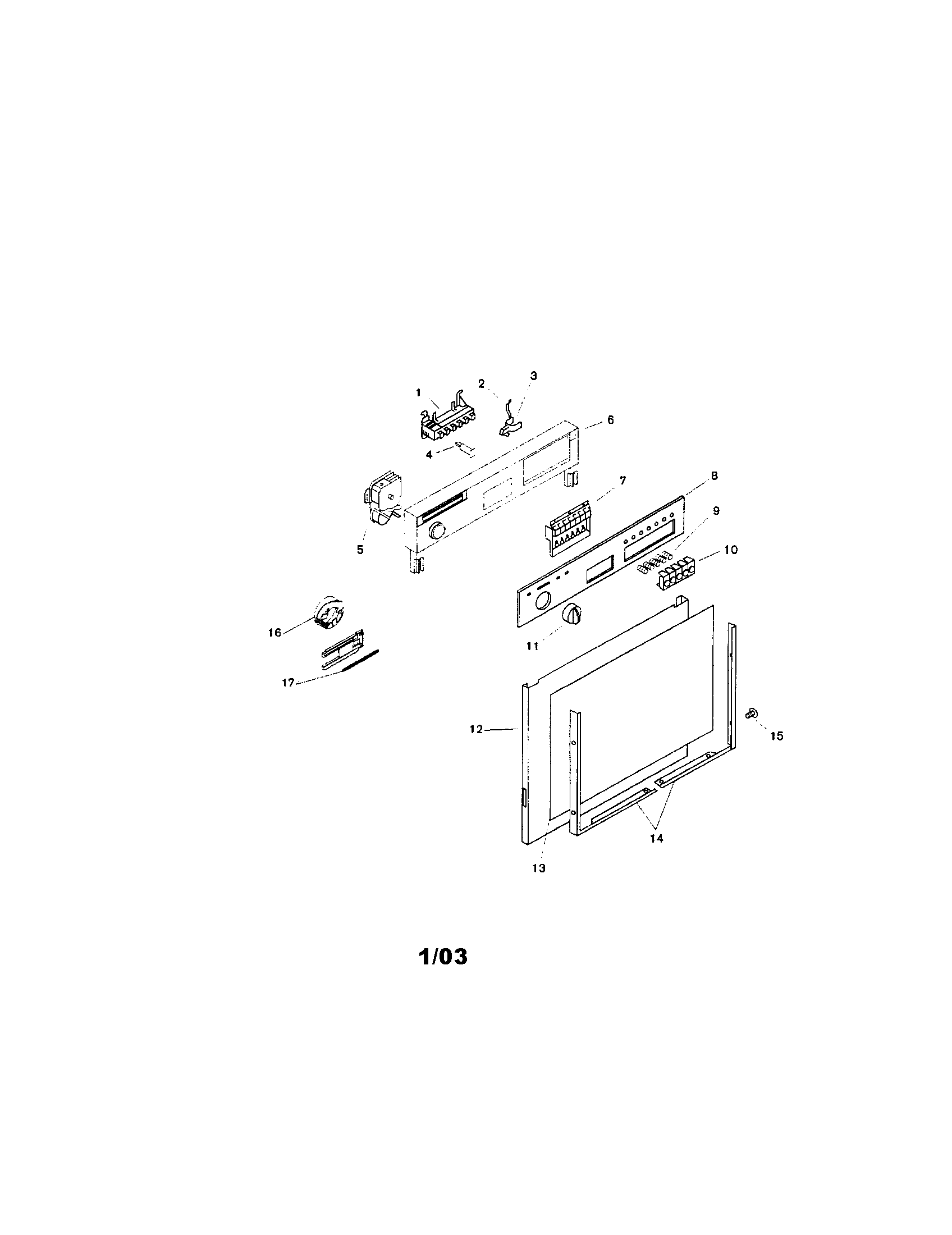

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 136 parts

Dishwasher Rinse-Aid Dispenser Cap

#9

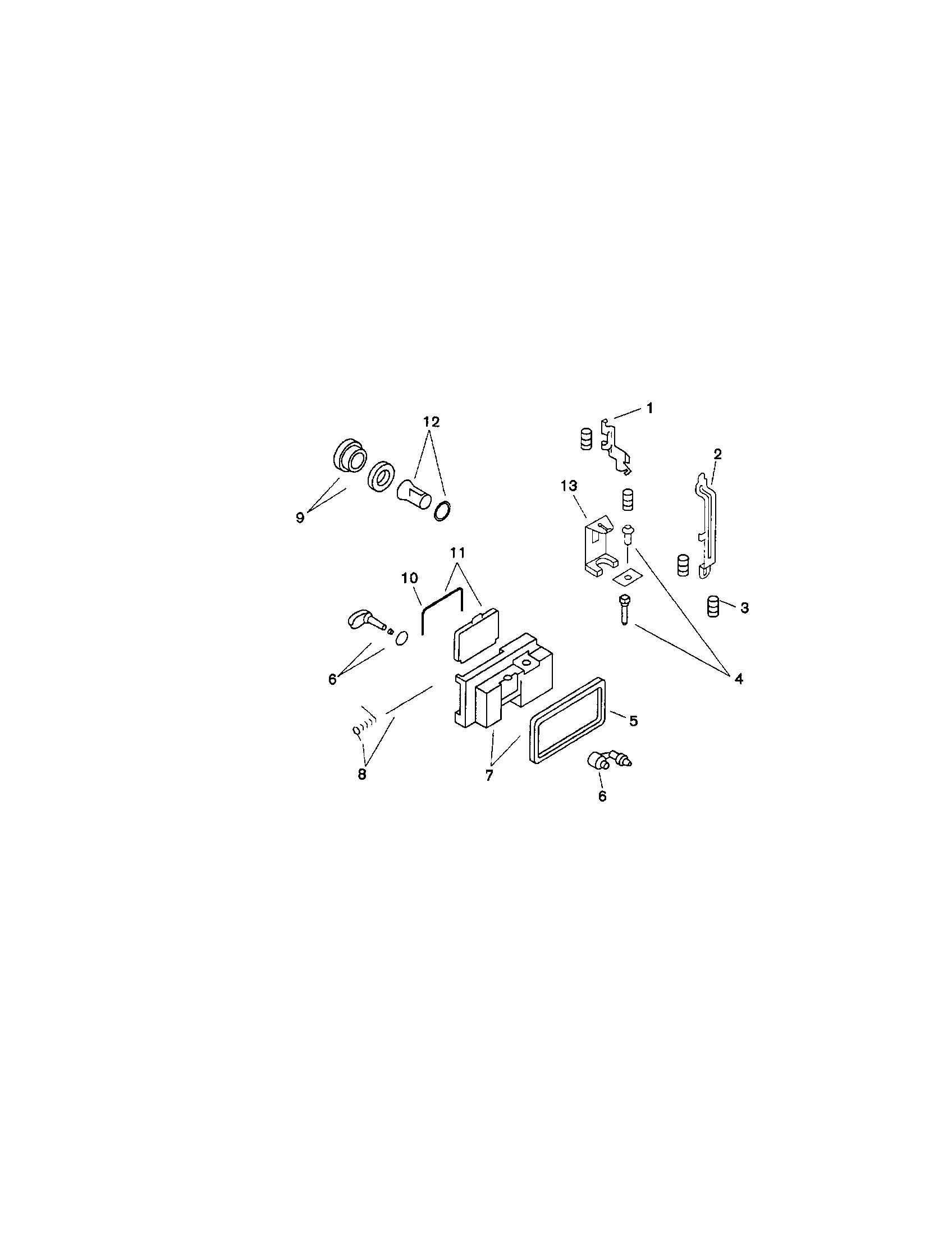

Dispenser Diagram

Dishwasher rinse-aid dispenser cap

Part #00066323
?
Manufacturer substitution
This part replaces 066323. Substitute parts can look different from the original.
This part replaces 066323
$15.00

In Stock

Fixture

#12

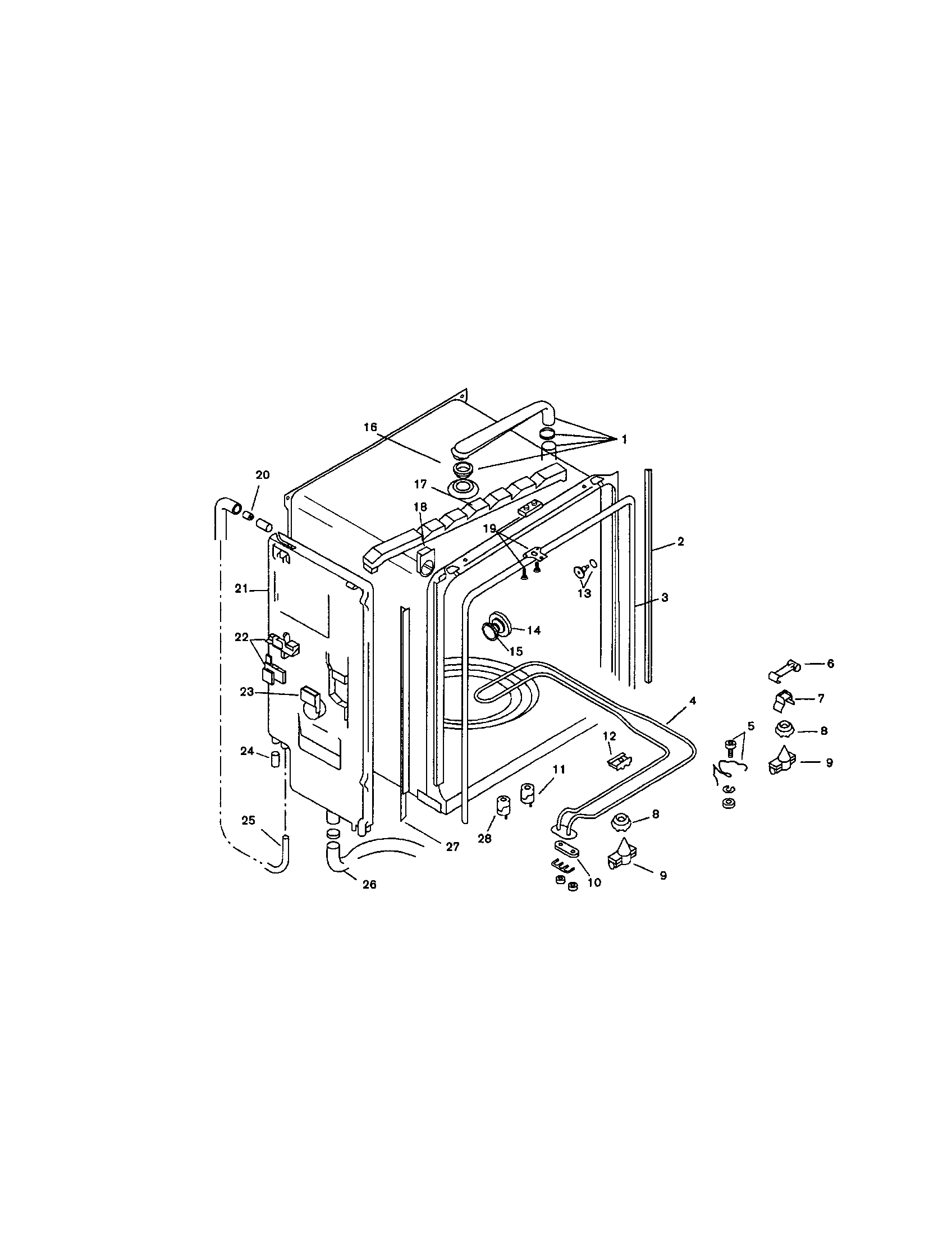

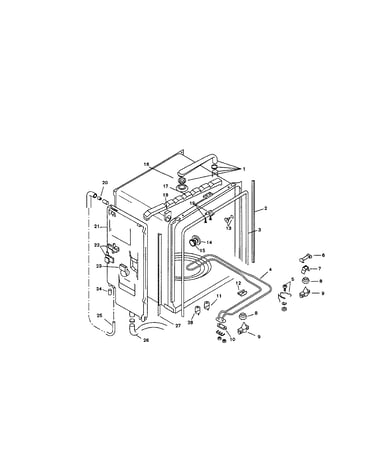

Inner liner Diagram

Fixture

Part #00022482
?
Manufacturer substitution
This part replaces 022482. Substitute parts can look different from the original.
This part replaces 022482
$8.76

In Stock

Spring

#3

Dispenser Diagram

Spring

Part #00029002
?
Manufacturer substitution
This part replaces 029002. Substitute parts can look different from the original.
This part replaces 029002
$11.87

In Stock

Holder

#5

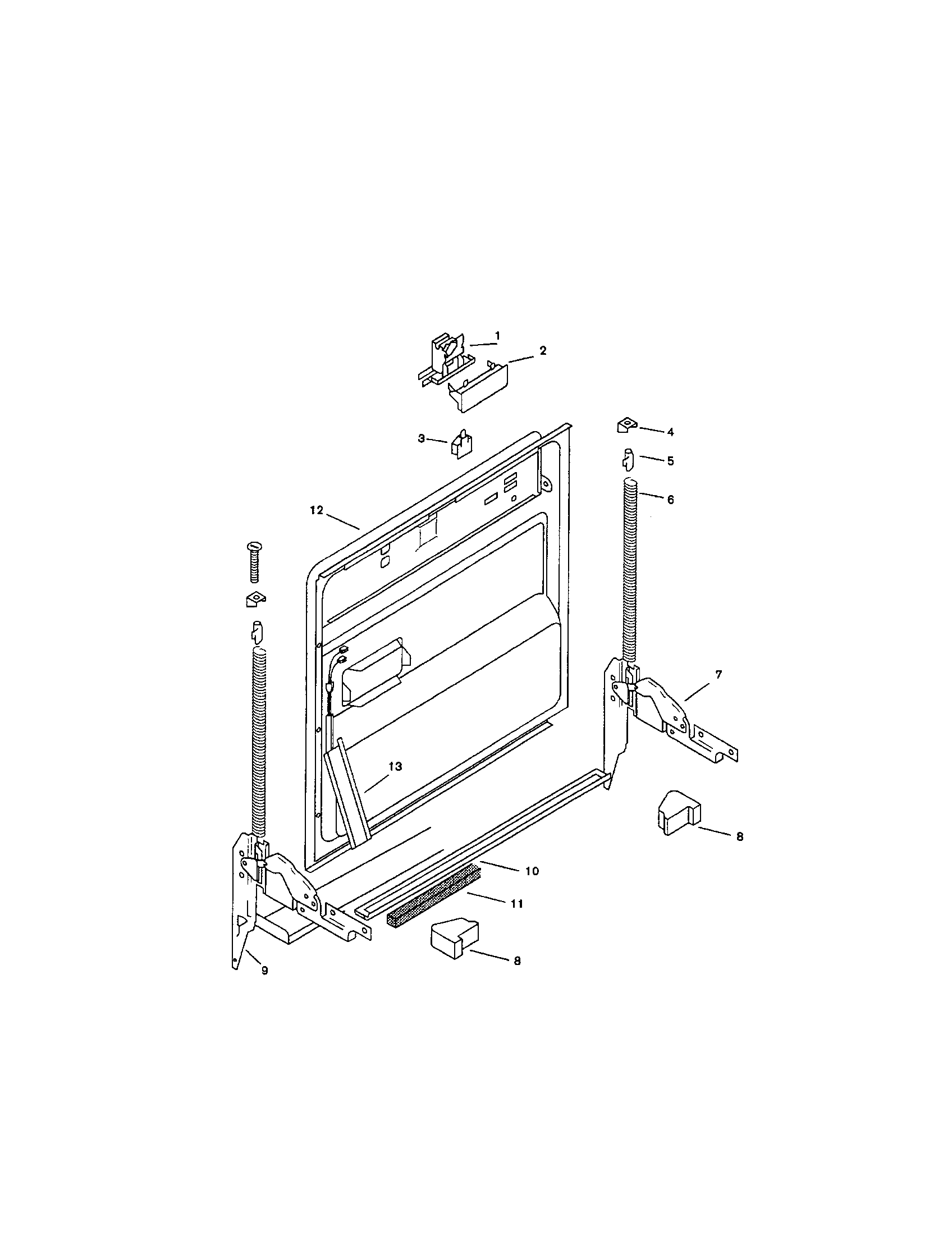

Inner door Diagram

Holder

Part #00029029
?
Manufacturer substitution
This part replaces 029029. Substitute parts can look different from the original.
This part replaces 029029
This item is not returnable
$3.55

In Stock

Hose

#14

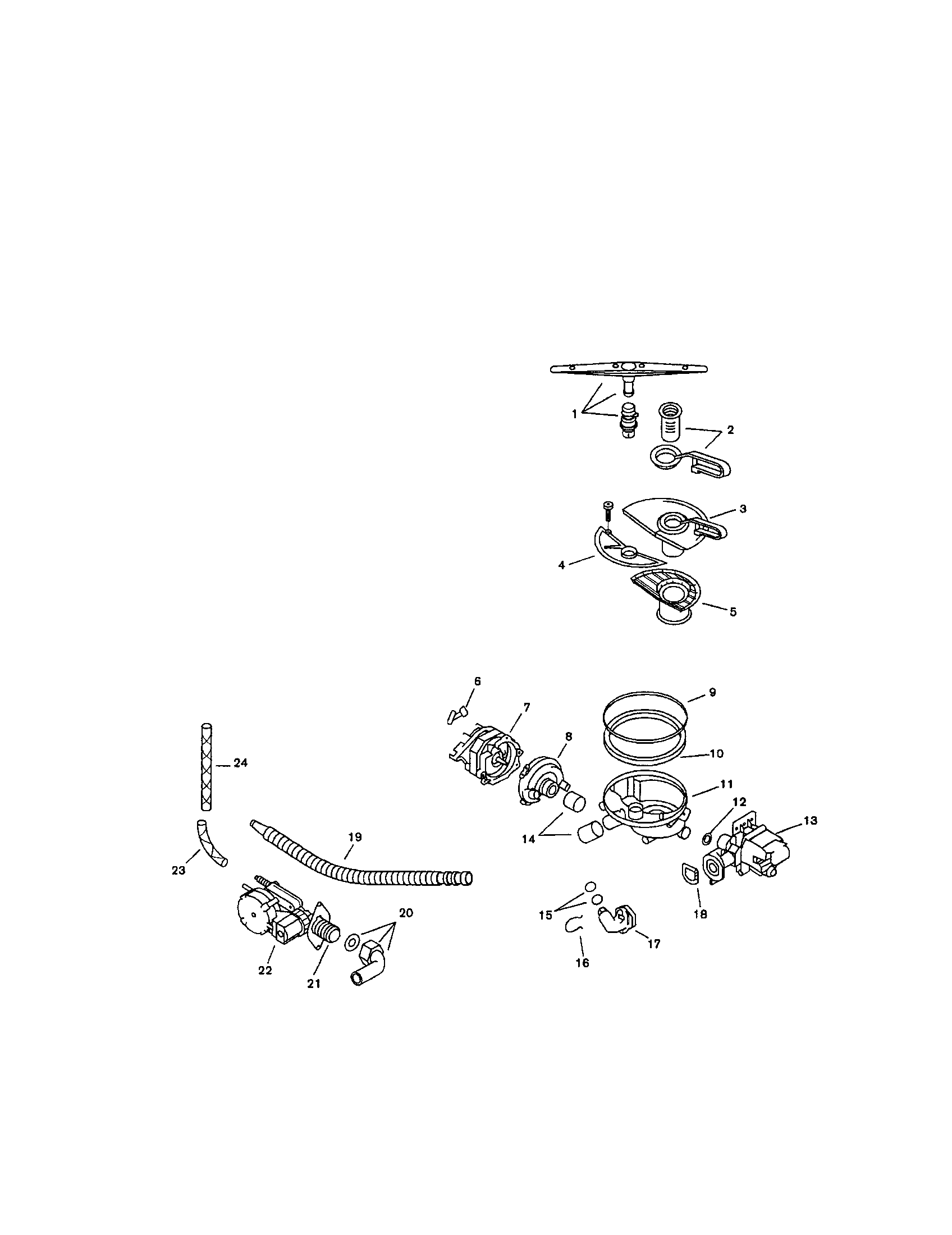

Component assemblies Diagram

Hose

Part #00051876
?
Manufacturer substitution
This part replaces 051876. Substitute parts can look different from the original.
This part replaces 051876
$20.19

In Stock

Dishwasher Dishrack Grid, Lower

#10

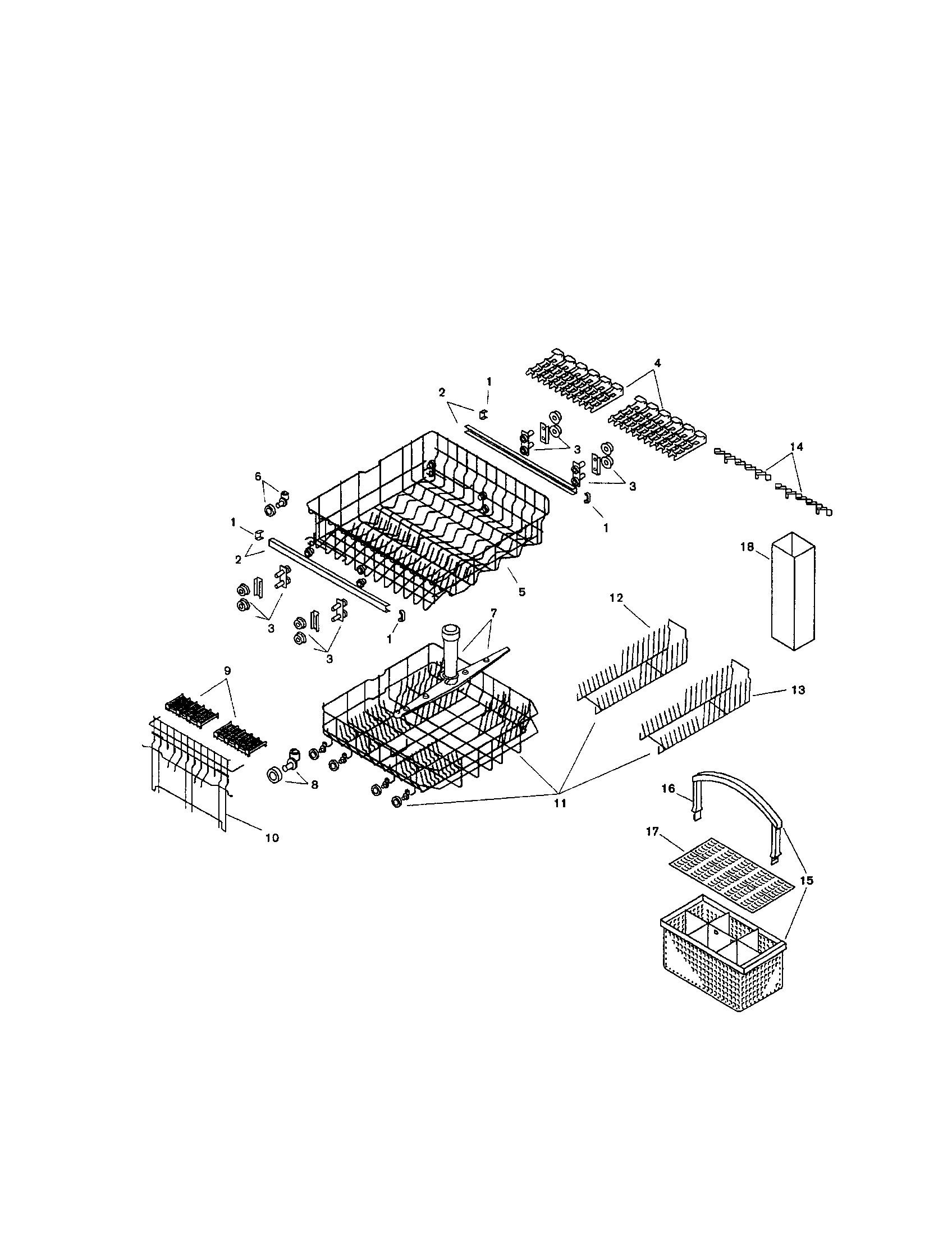

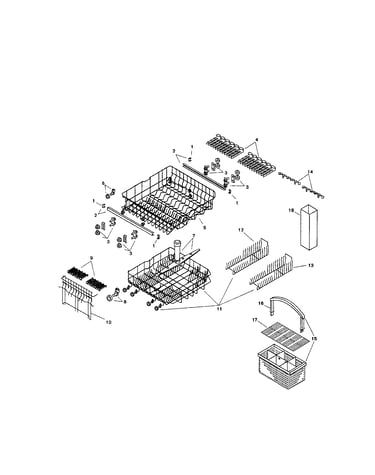

Racks Diagram

Dishwasher dishrack grid, lower

Part #00282977
?
Manufacturer substitution
This part replaces 282977. Substitute parts can look different from the original.
This part replaces 282977
$45.15

In Stock

Insert

#23

Inner liner Diagram

Insert

Part #00056824
?
Manufacturer substitution
This part replaces 056824. Substitute parts can look different from the original.
This part replaces 056824
This item is not returnable
$6.00

In Stock

Dishwasher Door Latch Handle

#2

Inner door Diagram

Dishwasher door latch handle

Part #00057264
?
Manufacturer substitution
This part replaces 057264. Substitute parts can look different from the original.
This part replaces 057264
$16.15

In Stock

Sheet

#1

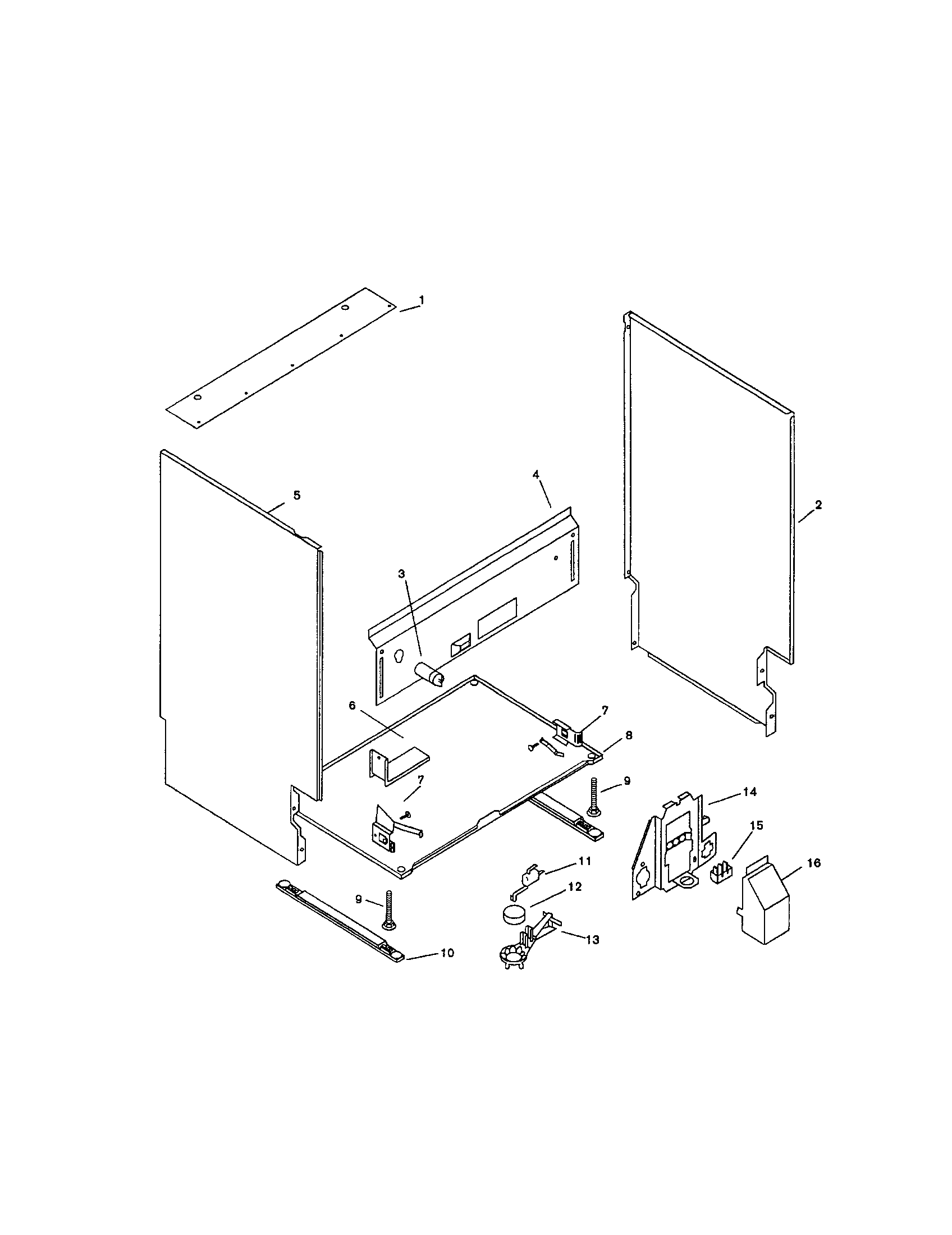

Body Diagram

Sheet

Part #00114294
?
Manufacturer substitution
This part replaces 114294. Substitute parts can look different from the original.
This part replaces 114294
$20.96

In Stock

Hose

#26

Inner liner Diagram

Hose

Part #00118994
?
Manufacturer substitution
This part replaces 118994. Substitute parts can look different from the original.
This part replaces 118994
$20.19

In Stock
