GE
Range Hood

Model # JVE40DT1WW Official GE range hood

Here are the diagrams and repair parts for Official GE JVE40DT1WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 36 parts  |

Recirc Duct WB06X10899
#13

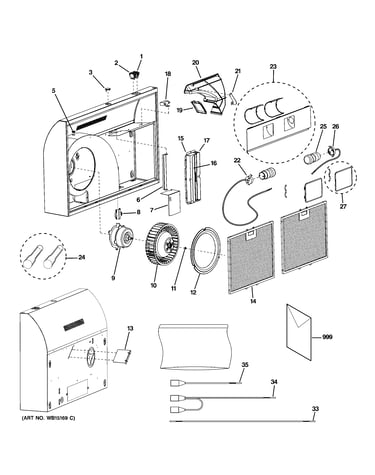

Hood parts diagram

Recirc duct

Part #WB06X10899

In Stock
Junction Cover WB06X10904
#7

Hood parts diagram

Junction cover

Part #WB06X10904

In Stock
Lamp Switch WB24X10196
#1

Hood parts diagram

Lamp switch

Part #WB24X10196

In Stock
Wire WB18X10502
#35

Hood parts diagram

Wire

Part #WB18X10502

This item is not returnable
In Stock
Collar WB02X11030
#16

Hood parts diagram

Collar

Part #WB02X11030

In Stock
Lamp Panel WB56X10970
#23

Hood parts diagram

Lamp panel

Part #WB56X10970

In Stock
Wire Cover WB06X10895
#6

Hood parts diagram

Wire cover

Part #WB06X10895

In Stock
Fan Orifice WB06X10898
#12

Hood parts diagram

Fan orifice

Part #WB06X10898

In Stock
Capacitor WB27X11163
#18

Hood parts diagram

Capacitor

Part #WB27X11163

In Stock
Socket Assembly WB08X10068
#22

Hood parts diagram

Socket assembly

Part #WB08X10068

In Stock

Most common symptoms to help you fix your range hoods

Choose a symptom to see related range hood repairs.

Main causes: bad fan switch, electronic control board failure, faulty user interface control, wiring failure…

Main causes: bad light bulb, broken light switch, bad electronic control, user interface control failure, bad light sock…

Main causes: sentry feature trips due to high cooktop temperature, bad temperature sensor, electronic control board fail…

Main causes: lack of electrical power, bad electronic control board, faulty user interface, fan and light switch failure…

Main causes: clogged air filters, air duct problems, fan motor failure, broken fan blade…

Main causes: loose mounting screws, bad fan motor, damaged fan blade, worn fan motor bearings…

Main causes: electronic control board failure, bad user interface control, light and fan switch failures, wiring failure…
