Kenmore Elite
Electric Wall Oven

Model #79049064401 Kenmore Elite wall oven

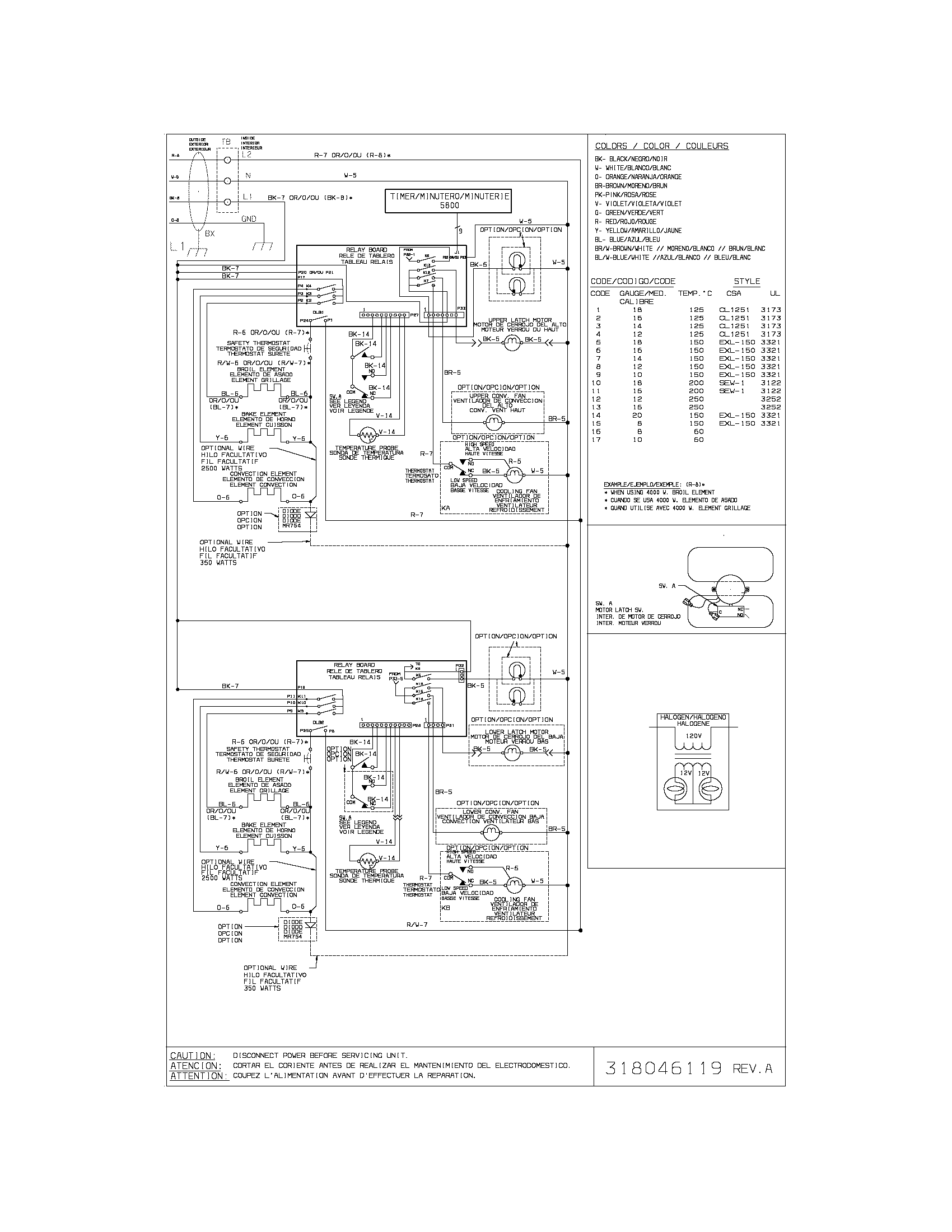

Here are the diagrams and repair parts for Kenmore Elite 79049064401 wall oven, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 128 parts

|

Range Oven Temperature Sensor

#37

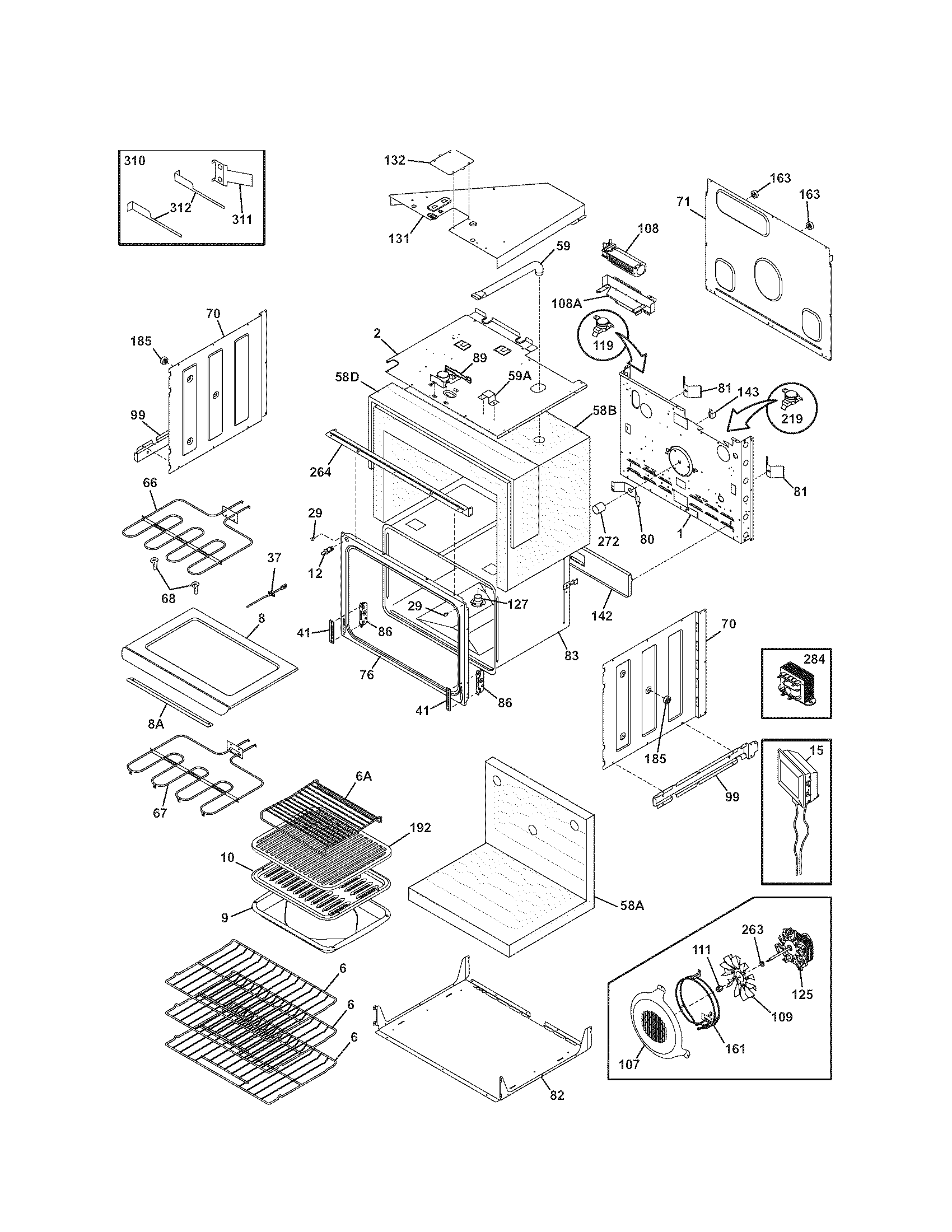

Upper oven Diagram

$47.11

In Stock

Wall Oven Thermal Fuse

#119

Upper oven Diagram

Wall oven thermal fuse

Part #318004900
$116.45 |
32% OFF MSRP:$170.00

In Stock

Wall Oven Removal Tool, Right

#312

Upper oven Diagram

Wall oven removal tool, right

Part #318246702
This item is not returnable
$6.99 |
8% OFF MSRP:$7.60

In Stock

Range Oven Door Spacer

#64

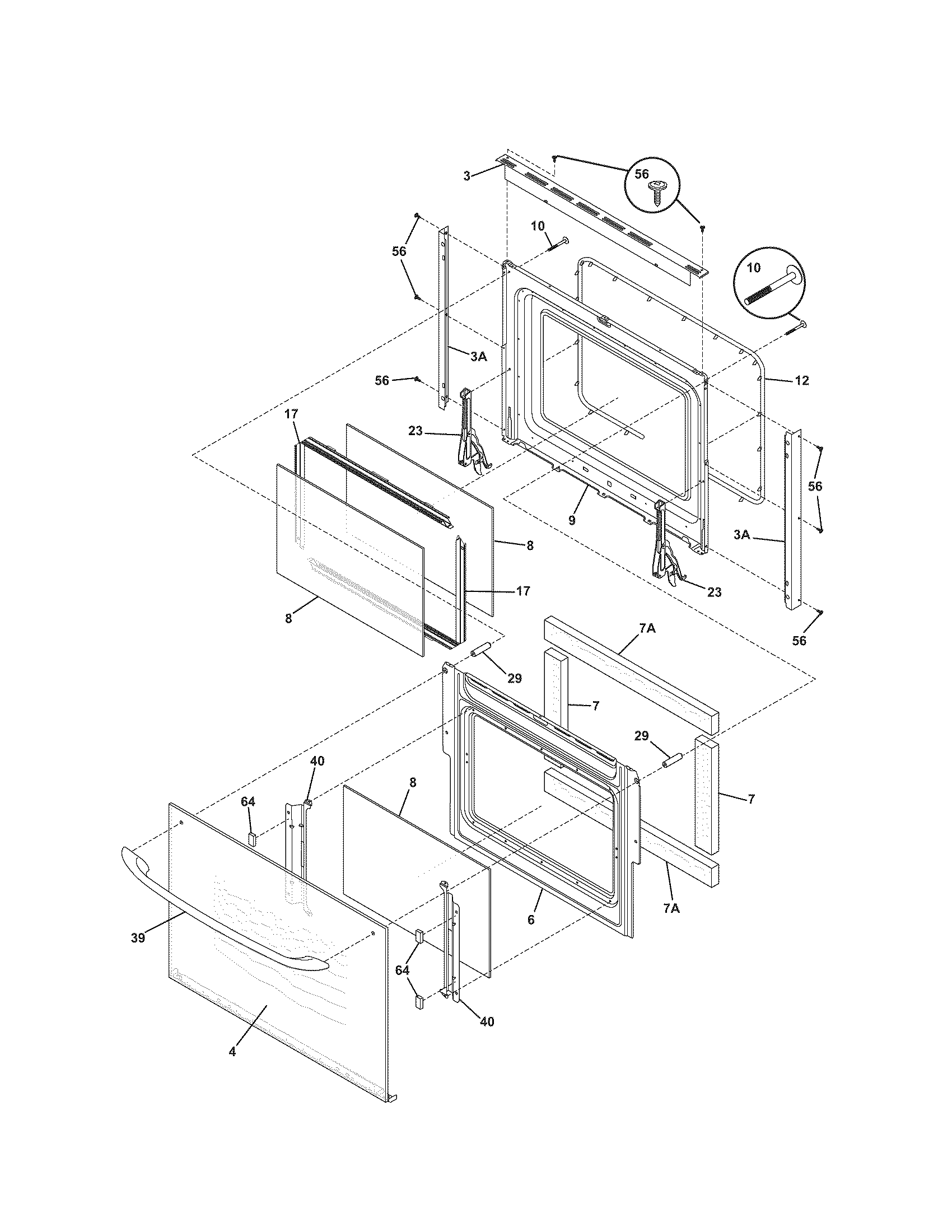

Doors Diagram

Range oven door spacer

Part #318165800
$10.34 |
14% OFF MSRP:$12.00

In Stock

Range High-Limit Thermostat

#219

Upper oven Diagram

$41.83 |
34% OFF MSRP:$63.00

In Stock

Range Oven Door Trim

#3A

Doors Diagram

Range oven door trim

Part #318260401
$35.15 |
20% OFF MSRP:$44.00

In Stock

Wall Oven Light Assembly

#15

Upper oven Diagram

Wall oven light assembly

Part #318241000
$109.15 |
27% OFF MSRP:$150.00

In Stock

Range Screw

#NI

Upper oven Diagram

Range screw

Part #5303300265
$7.58 |
20% OFF MSRP:$9.50

In Stock

Wall Oven Owner's Manual

#NI

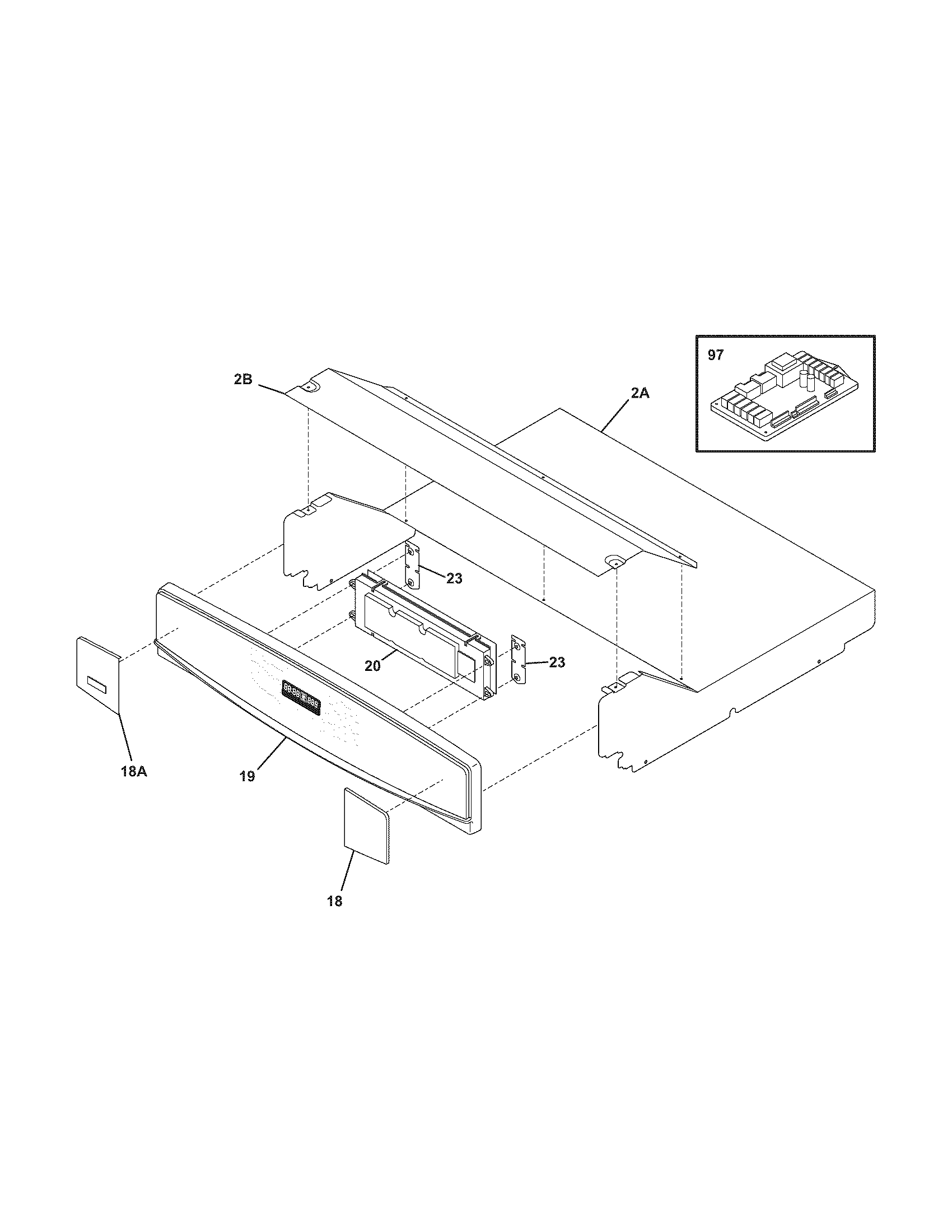

Control panel Diagram

Wall oven owner's manual

Part #318201512
This item is not returnable
$3.32

In Stock

Wall Oven Trim, Lower (White)

#90

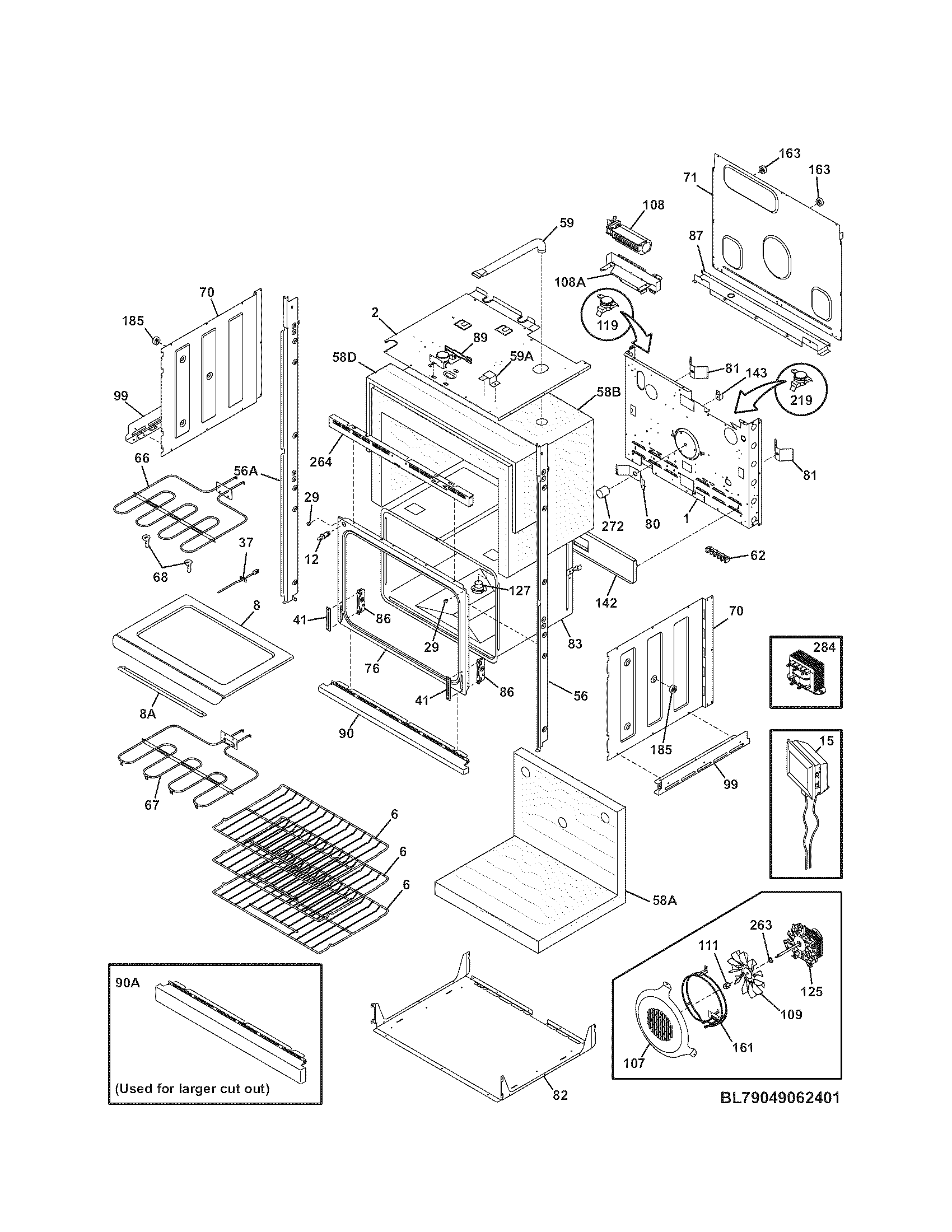

Lower oven Diagram

$153.96

In Stock

Showing 10 of 128 parts

Symptoms common to all wall oven

Choose a symptom to see related wall oven repairs.

Main causes: broken broil element, faulty broil burner igniter, control system failure
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, control system failure
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element
