Frigidaire
Electric Cooktop

Model # GLEC30S8CSA Official Frigidaire electric cooktop

Here are the diagrams and repair parts for Official Frigidaire GLEC30S8CSA electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

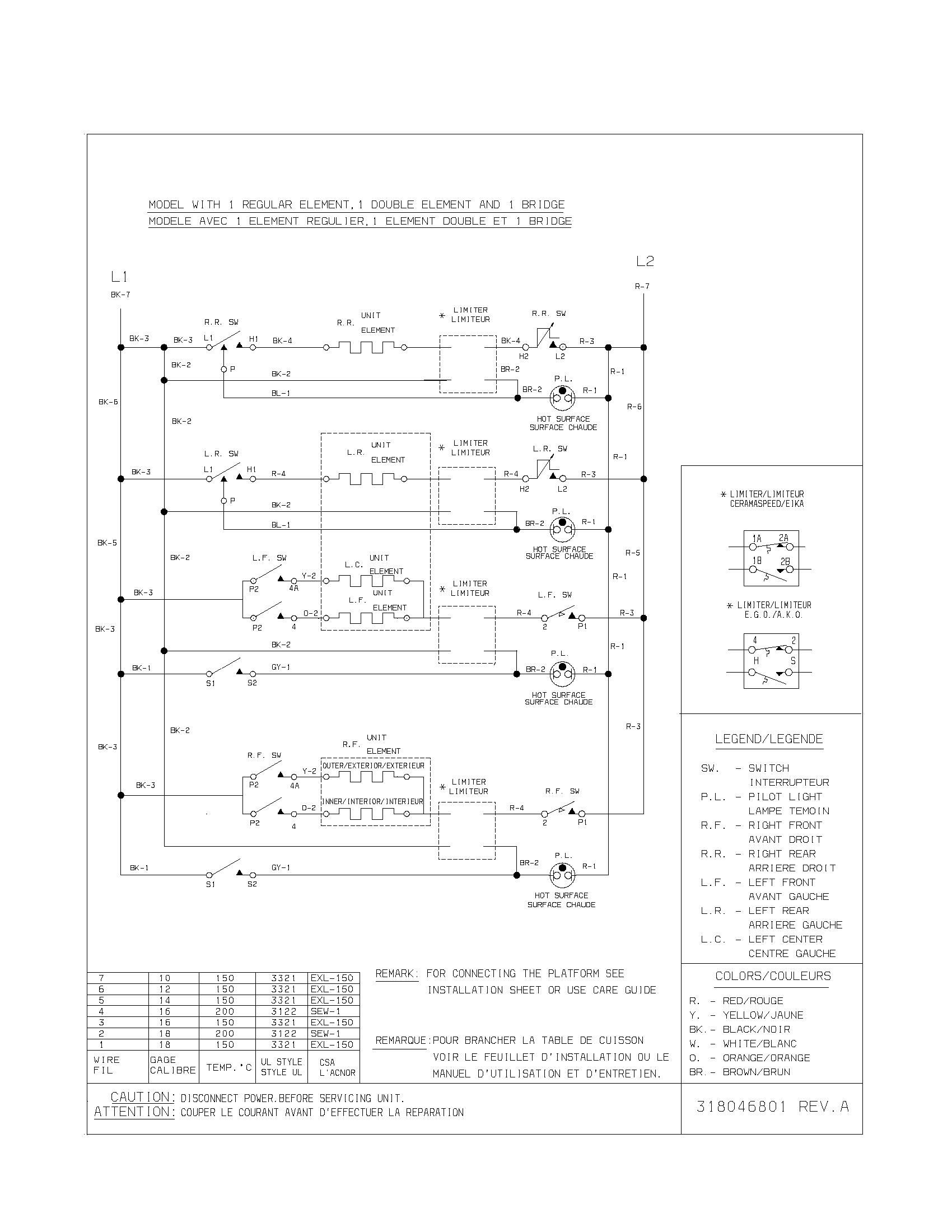

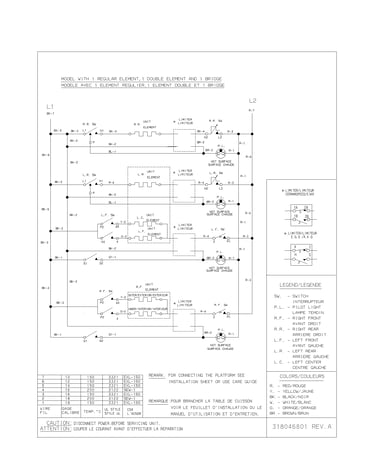

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 35 parts  |
Element-su 316224300
#15B

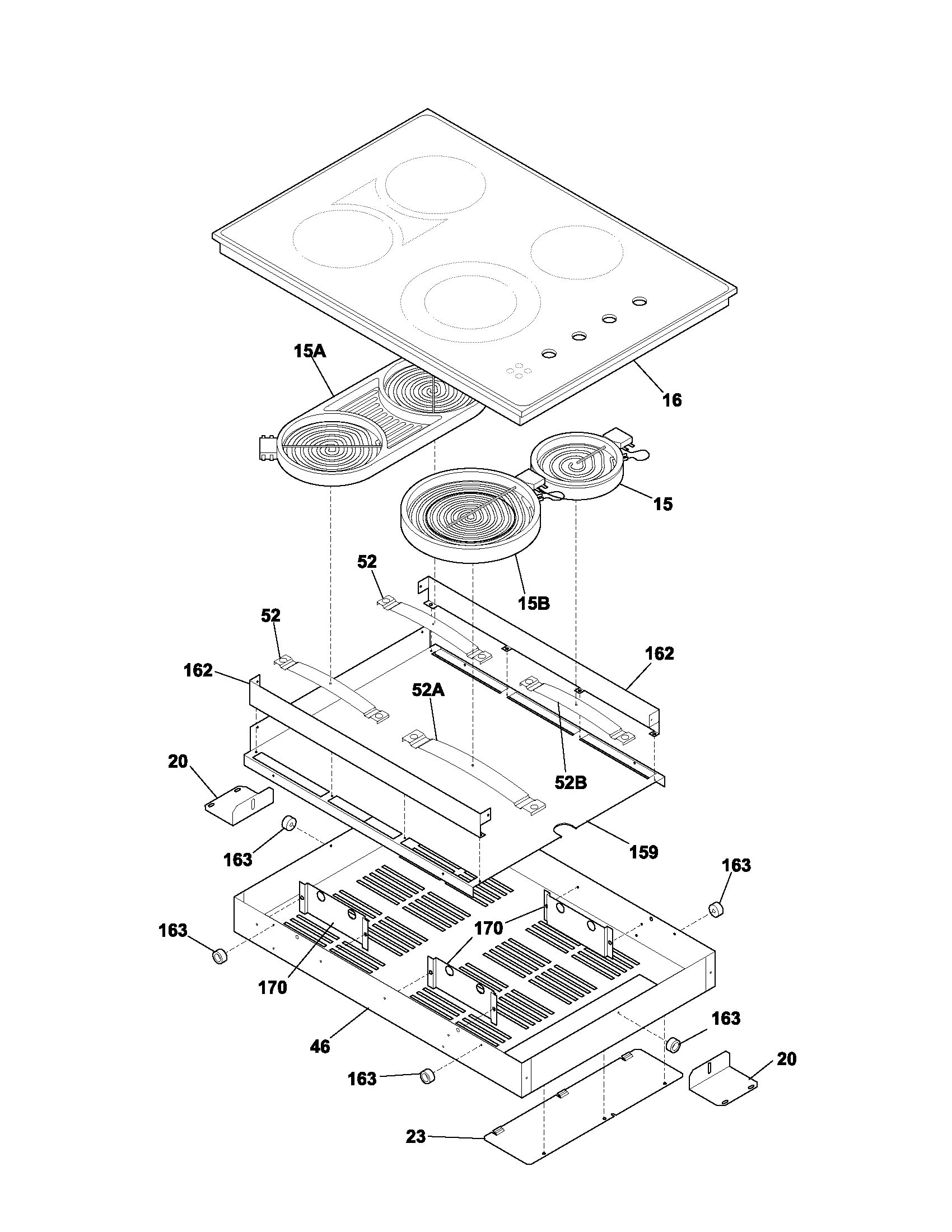

Main top diagram

Element-su

Part #316224300

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316224300. Substitute parts can look different from the original.
BEST SELLER
$162.16 |
7% OFF Phone Price : $174.16
In Stock
Range Surface Element Control Switch (replaces 903097-9050) 318191000
#54B

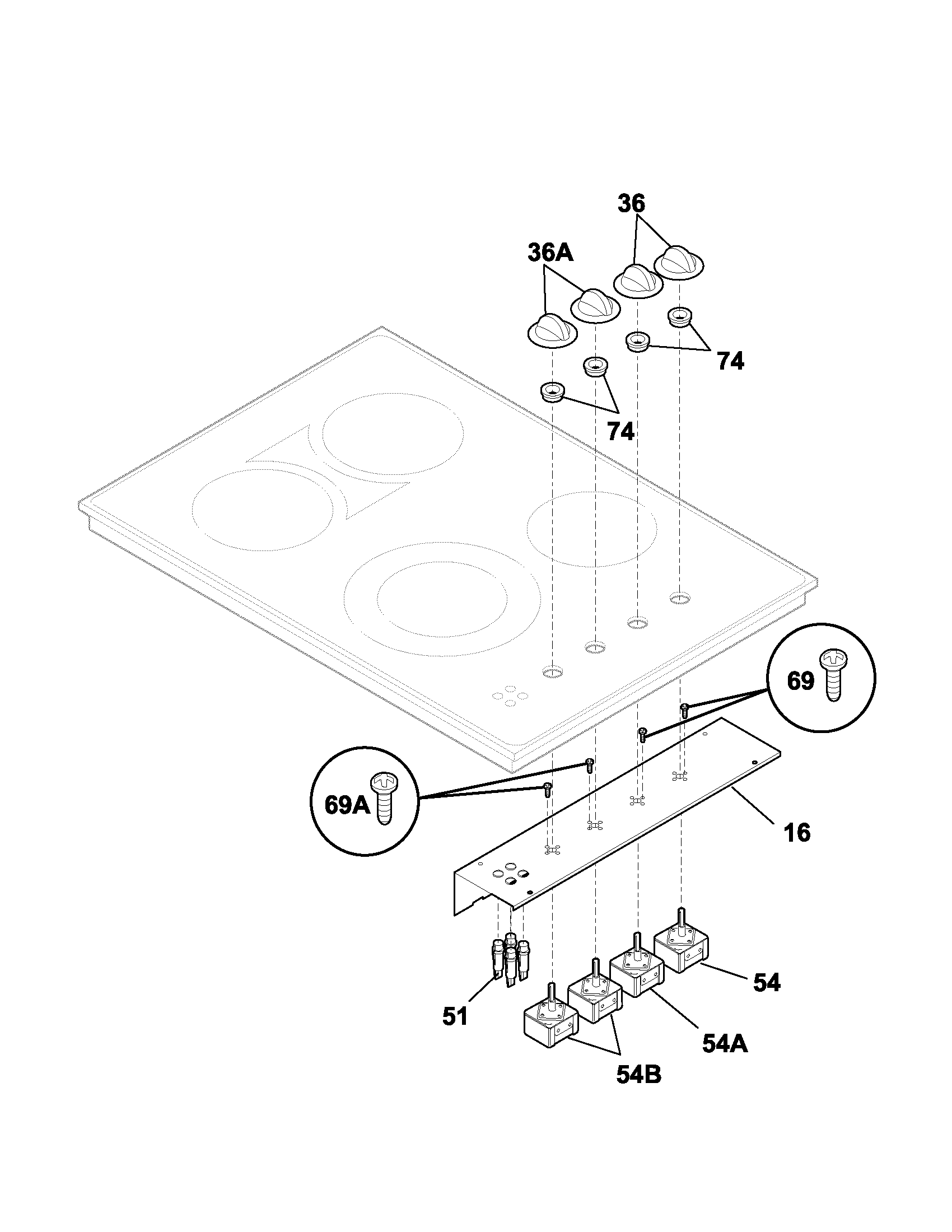

Control panel diagram

Range surface element control switch (replaces 903097-9050)

Part #318191000

BEST SELLER
$67.09 |
8% OFF Phone Price : $73.09
In Stock
Switch 318220011
#54

Control panel diagram

Switch

Part #318220011

Replaced by #318293824

?
Manufacturer substitution
This part replaces 318220011. Substitute parts can look different from the original.
BEST SELLER
$70.51 |
8% OFF Phone Price : $76.51
In Stock
Element 318177900
#15A

Main top diagram

Element

Part #318177900

Replaced by #318258201

?
Manufacturer substitution
This part replaces 318177900. Substitute parts can look different from the original.
$342.13 |
$12.00 OFF Phone Price : $354.13
In Stock
Range Screw 5303323134
#69

Control panel diagram

Range screw

Part #5303323134

Replaced by #5303288565

?
Manufacturer substitution
This part replaces 5303323134. Substitute parts can look different from the original.
$14.71
In Stock
Range Surface Burner Knob (replaces 318196603) 318196633
#36

Control panel diagram

Range surface burner knob (replaces 318196603)

Part #318196633

$47.34 |
11% OFF Phone Price : $53.34
In Stock
Range Surface Burner Knob 318196634
#36

Control panel diagram

Range surface burner knob

Part #318196634

$52.80 |
10% OFF Phone Price : $58.80
Back Order
Pilot Light 318044820
#51

Control panel diagram

Pilot light

Part #318044820

Replaced by #318044827

?
Manufacturer substitution
This part replaces 318044820. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Indicator Light 318044822
#51

Control panel diagram

Indicator light

Part #318044822

Replaced by #318044827

?
Manufacturer substitution
This part replaces 318044822. Substitute parts can look different from the original.
$48.99 |
11% OFF Phone Price : $54.99
In Stock
Switch 318220013
#54A

Control panel diagram

Switch

Part #318220013

Replaced by #318293826

?
Manufacturer substitution
This part replaces 318220013. Substitute parts can look different from the original.
$65.19 |
8% OFF Phone Price : $71.19
In Stock
