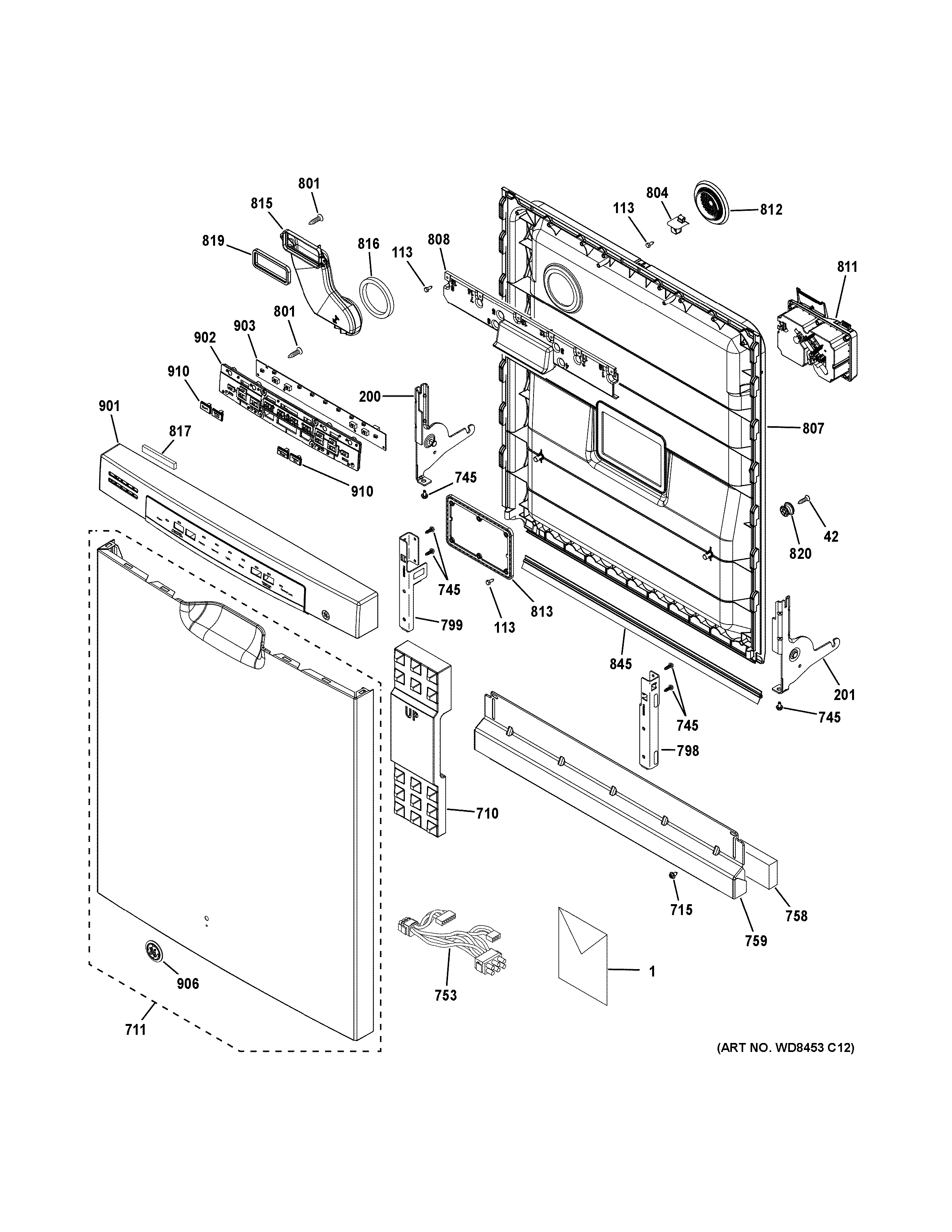

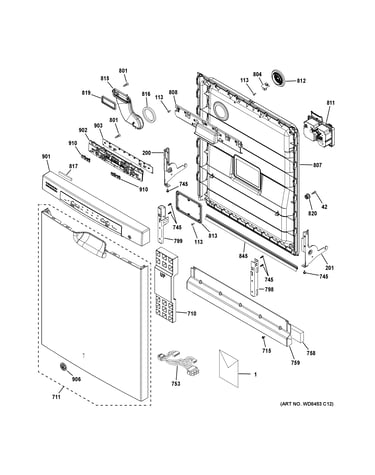

On the GE GDF510PGD4WW dishwasher, “door adjustment” is usually done by leveling and aligning the dishwasher in the cabinet, then correcting door spring tension if the door drops or won’t stay in position. Use the steps in the GDF510PGD4WW installation guide to level the unit and verify door clearance.

• Level the dishwasher left-to-right and front-to-back by turning the 4 leveling legs; a dishwasher that is too high, low, or twisted can make the door rub the tub or cabinet.
• Check door alignment with the tub; if the door hits the tub, re-level the dishwasher.
• Check door alignment with the cabinet; if the door hits the cabinet frame, reposition the dishwasher in the opening.
• Verify mounting brackets are not contacting the door; brackets should be bent up as needed so they do not touch the top of the door.
• Inspect the door spring cable routing; if the door drops or closes when released, adjust spring tension.

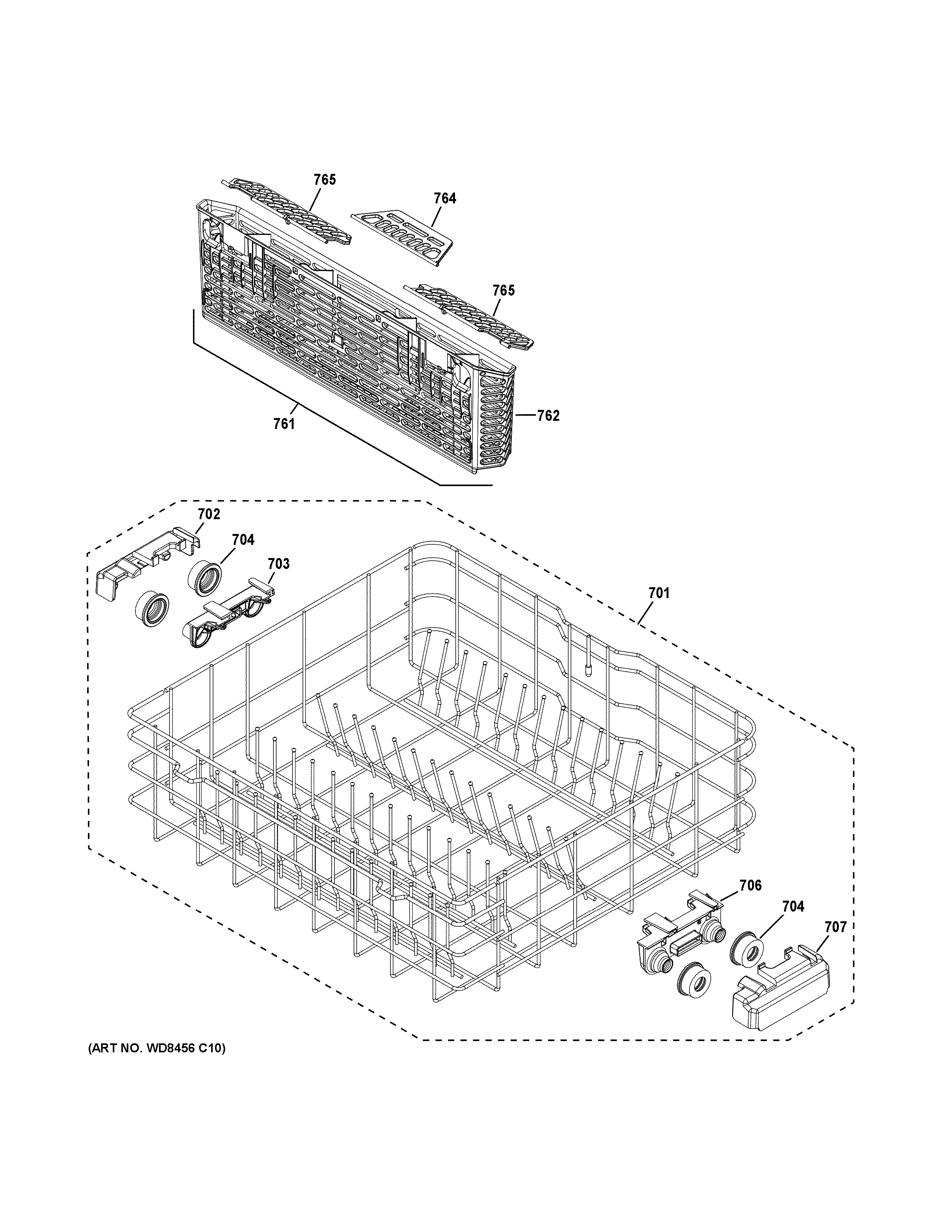

1. Pull the lower rack halfway out; it should stay put (if it rolls, re-level the legs).
2. Open and close the door; it should close without hitting the side of the tub.
3. Look for cabinet-frame contact marks on the door edges.
4. Confirm the dishwasher is secured properly to the countertop or cabinet sides.
5. If the door feels heavy or slams, check the spring and cable hardware.

A dishwasher that is out of level can affect more than the door; it can cause racks to roll, reduce wash performance, and lead to rubbing that damages the door or cabinet over time.

Last updated: February 2026

To manually reset your GE GDF510PGD4WW dishwasher, we cancel the current cycle by pressing and holding Start for 3 seconds, then closing the door so the unit drains and clears the cycle. This is the built-in reset method described in the GDF510PGD4WW owner’s manual.

• Press and hold Start for 3 seconds.
• Close the door to let the dishwasher drain.
• Wait until draining stops and the cycle light turns off.
• Reopen the door, choose a new cycle.
• Press Start, then close the door within about 10 seconds to begin.

These checks fix the most common “has power but won’t run” situations.

• Confirm the door is fully latched (a weak latch can prevent starting).
• Make sure you pressed Start, then closed the door promptly.
• Turn the breaker off for 1 minute, then back on (power reboot).
• Verify the sink hot water is running 120°F to 140°F before starting a cycle.
• If the dishwasher is stuck draining or not draining, inspect the drain path and hose.

A “reset” on this GE dishwasher is really a cycle cancel and drain. It clears a stuck cycle, lets the control accept a new selection, and helps you confirm the door-latch safety circuit is working.

If you are seeing blinking lights or a code, we use GE’s code list to pinpoint the failure faster: GE electronic dishwasher error codes.

Last updated: February 2026

On a GE dishwasher like model GDF510PGD4WW, an E4 code points to a water fill problem (the dishwasher is not getting enough water, or it is detecting an abnormal fill condition). Start by confirming the water supply is fully on and the dishwasher can fill normally.

• Make sure the shutoff valve under the sink is fully open.
• Confirm the supply line is not kinked or pinched behind the dishwasher.
• Run the kitchen faucet hot for 30 to 60 seconds before starting a cycle (helps fill and wash performance).
• Check that the dishwasher door closes and latches firmly (a poor latch can interrupt operation).
• Cancel the cycle and restart after correcting the water supply.

1. Power off the dishwasher at the breaker for safety.
2. Verify the home water supply to the dishwasher is on and steady.
3. Inspect the inlet hose routing for kinks.
4. Check the overfill protection: lift and release the float (it should move freely). If the float switch is stuck, the unit may stop filling.
5. Restore power and try a normal cycle.

If the float system is not working correctly, the dishwasher float switch may be the fix: dishwasher float switch WD21X10519.

If you hear some water enter but cleaning is weak or the code returns, focus on circulation and spray:

Model-specific operating and troubleshooting steps are in the GDF510PGD4WW owner's manual.

A dishwasher that under-fills can leave detergent undissolved, reduce spray pressure, and cause poor cleaning. Correct fill also helps the heating and drying portions of the cycle perform as designed.
