Yes, you can usually determine the build year from a lawn tractor’s serial number, but the exact format depends on the manufacturer. For Craftsman model 917270613, the most reliable approach is to match the serial number format and any date code guidance shown in the 917270613 owner's manual.

Where to find the serial number on a riding mower

On most Craftsman front-engine lawn tractors, the serial number is on a product ID label on the frame (often under the seat, near the rear fender, or on the engine compartment area).

• Look for a sticker or metal tag labeled Model and Serial
• Clean the label so every digit is readable
• Write the serial number exactly as shown (including letters)
• Record the engine model and type (engine serial formats are different)
• Take a photo before the label fades further

How serial numbers typically encode the year

Serial number date coding varies widely by supplier, even within the Craftsman brand (many Craftsman tractors were built by different manufacturers over the years). Common patterns include:

What you see in the serial	What it often means	What to do next
A clear 2-digit year (example: 99, 05, 14)	Year of manufacture	Confirm with the manual’s ID section
A 6-digit block that looks like a date	Often month/day/year or year/month/day	Compare to other date-like groups
Letters mixed with numbers	Plant/line code plus date code	Use the manual and parts list to confirm the tractor family

Quick checks that help confirm the year

Use these cross-checks so you do not rely on one digit group alone:

• Compare the tractor’s features (deck size, transmission type) to what’s listed in the manual
• Check whether the mower deck parts list matches your deck (for example, the 42-inch deck uses items like the husqvarna lawn tractor mulching blade, 21-in 532134149)
• Verify the transaxle and deck configuration shown in the manual diagrams
• If the engine has its own date code, use it as a secondary clue (engine date can be close to tractor build date)

Why it matters

Knowing the correct year helps you order the right Craftsman parts (belts, blades, mandrel parts, steering parts) and avoid mismatches caused by mid-year design changes.

Last updated: February 2026

To identify your Craftsman riding mower, find the product identification label and record the full model number. For Craftsman model 917270613, the owner’s manual lists the model as 917.270613, which confirms you have a Craftsman front-engine lawn tractor.

Where to find the model number on the tractor

On most Craftsman riding mowers, the model/serial label is located under the seat area. Use these quick checks:

• Flip the seat forward and look on the underside of the seat or the seat pan
• Check the frame directly under the seat (near the fender pan)
• Look near the rear hitch plate area if you do not see it under the seat
• Wipe dirt and grass off the label so every digit is readable
• Write down the full model number and any serial number exactly as shown

For model-specific identification details and diagrams, use the 917270613 owner’s manual.

What the model number should look like

Craftsman riding mower model numbers are commonly formatted in one of these ways:

Where you see it	Example format	What it means
ID label on tractor	917270613	Full model number (no punctuation)
Printed in manual	917.270613	Same model number with a dot

Why it matters

The exact model number is what we use to match the correct parts and specifications for your mower deck, drive system, and steering. Even small model-number differences can change belt routing, blade style, or mandrel parts.

If you are ordering cutting-deck parts, matching by model number helps ensure you get the correct items such as the husqvarna lawn tractor mulching blade, 21-in 532134149 or the lawn tractor drive belt 532144200.

Last updated: February 2026

To look up the model number on your Craftsman riding mower, we recommend finding the model and serial tag on the tractor itself first; for model 917270613, the identification label is typically on the frame under the seat area. Use that exact model number when searching parts and manuals.

Where to find the model and serial number tag

Check these common locations on Craftsman front-engine lawn tractors:

• On the frame under the seat (lift the seat and look on the chassis rails)
• Under the seat pan or on the underside of the seat
• Near the rear fender area, close to the seat mounting points
• On the frame near the engine compartment (less common)

For diagrams and model-specific information, use the 917270613 owner's manual.

How to use the model number once you find it

After you locate the tag, use the model number exactly as printed (including all digits).

• Enter the full model number to pull up the correct parts list and diagrams
• Match parts by description and application (mower deck, drive, steering, wheels)
• Keep the serial number handy for production variations
• Record the model and serial in your manual for future reference

Quick check: model number vs. part number

Item	What it identifies	Example
Model number	The tractor version	917270613
Part number / part ID	A specific replacement part	532138255
Serial number	Production run details	Printed on the same tag

Why it matters

Craftsman tractors often have multiple versions that look similar. Using the exact model number helps ensure you get the right belt, blade, tire, or steering parts the first time, and it also matches the correct maintenance and repair procedures.

Last updated: February 2026

On Craftsman lawn tractors like model 917270613, the serial number is typically a date code; many units use a MMDDYY pattern (month, day, year) to show when the tractor was built. Use the format shown in your 917270613 owner's manual to match your exact serial tag.

Where to find the serial number on a 917270613

We recommend checking these common locations first:

• Under the seat on the fender pan or seat bracket area
• On the frame rail near the engine compartment
• Near the rear axle area on the frame
• On a sticker or metal tag with the model number and serial number together
• In the documentation section of the 917270613 owner's manual

How to decode the date code (most common format)

Many Craftsman riding mowers use a 6-digit date-style serial number.

Serial number example	How we read it	Build date
072811	07 = month, 28 = day, 11 = year	July 28, 2011
031905	03 = month, 19 = day, 05 = year	March 19, 2005

Quick checks to avoid misreading

• If your tag has letters mixed with numbers, it may not be a pure date code.
• If the serial number is longer than 6 digits, look for a 6-digit block that matches a valid month (01-12) and day (01-31).
• If the “month” portion is higher than 12, you are likely looking at a different code on the tag.

Why it matters

Reading the serial number correctly helps us match the right parts and diagrams for your tractor, especially for wear items like deck belts, blades, and mandrel components.

Last updated: February 2026

Replacing the engine on your Craftsman lawn tractor model 917270613 is worth it when the tractor’s deck, transmission, steering, and frame are still solid and you want more years of reliable mowing. If multiple major systems are worn, putting that money toward a replacement tractor is the better value.

Quick decision checklist

• The mower deck is structurally sound (no major rust-through or cracks)
• The tractor still drives strongly (no slipping, weak pull, or overheating)
• Steering and front axle feel tight (no severe play or wandering)
• You can do the work safely (or have a shop install the engine)
• The total engine-swap cost stays well below the cost of a comparable replacement tractor

What to inspect before you spend money

Use your 917270613 owner’s manual to review maintenance and safety guidance, then check these high-impact areas:

Area to check	What “good” looks like	What pushes you toward replacement
Mower deck and blade system	Even cut, no heavy vibration	Bent/worn blades, noisy mandrels, chronic poor discharge
Belts and pulleys	Belts track correctly, no glazing	Frequent belt failures, squealing, wobbling pulleys
Muffler and heat management	No heavy corrosion, engine runs cool	Corroded muffler, overheating signs, heavy debris buildup
Tires and chassis	Holds air, stable stance	Chronic low pressure, uneven stance affecting cut quality

If your cut quality is already poor, address the deck first. Worn blades, belt issues, and mandrel wear can mimic “engine weakness.” For example, a worn blade drive belt or damaged mandrel can reduce blade tip speed and discharge.

Parts that commonly matter when the deck is the real problem

• Husqvarna lawn tractor mulching blade, 21-in 532134149 (dull or bent blades hurt cut quality)
• Lawn tractor drive belt 532144200 (worn belt can slip under load)
• Husqvarna lawn tractor mandrel assembly 532130794 (noisy or loose mandrels cause vibration and poor cut)

Why it matters

An engine swap only pays off when the rest of the tractor can safely deliver good mowing performance afterward. The manual’s maintenance schedule (oil, air filter, cooling fins, blades, belts) is what keeps a replacement engine from failing early.

Last updated: February 2026

On the Craftsman 917270613 front-engine lawn tractor, the main parts are typically grouped into the engine and fuel system, cutting deck and blade drive, drivetrain and controls, steering and wheels, and safety systems. Our 917270613 owner's manual also names key operator controls such as the attachment clutch lever, clutch/brake pedal, gearshift lever, and attachment lift lever.

Common riding lawn tractor part names (by system)

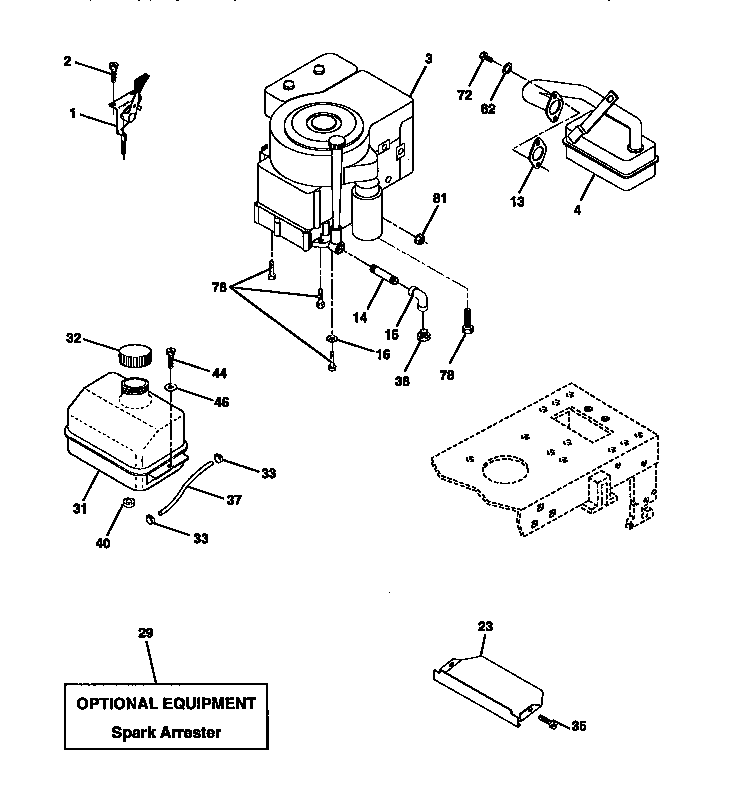

Engine and fuel

• Fuel tank and fuel line
• Carburetor (air and fuel mixing)
• Air filter and engine air screen
• Spark plug and ignition system (switch, wiring)
• Muffler and exhaust

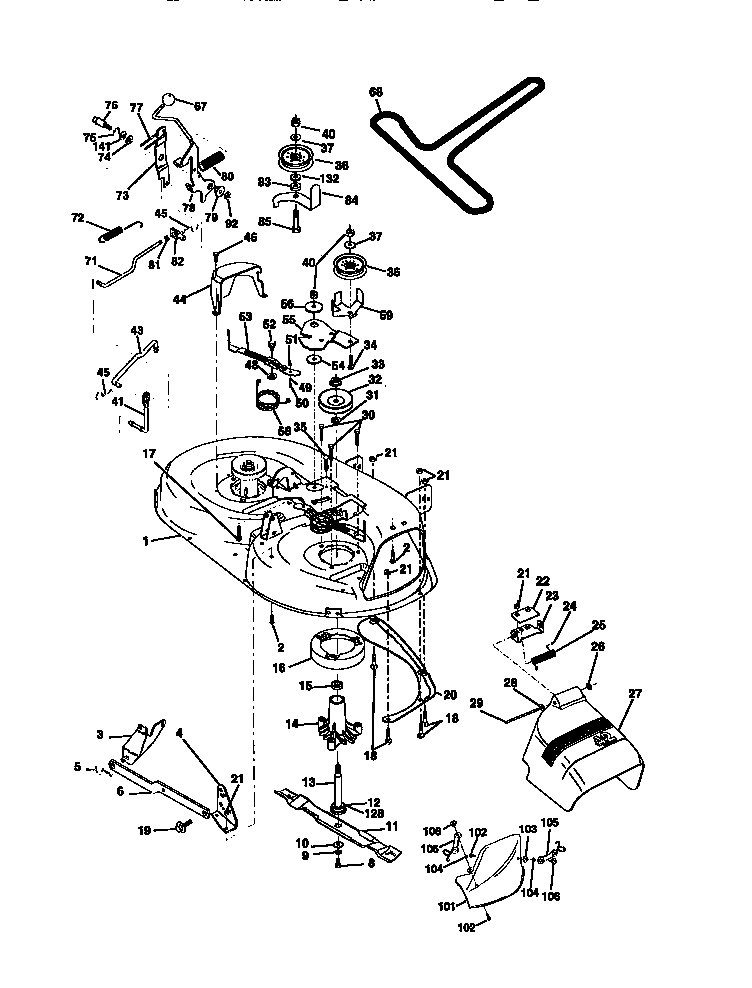

Cutting deck and blade drive

• Mower deck (housing)
• Blades (mulching or standard)
• Mandrel (spindle) assemblies and pulleys
• Blade drive belt and idler pulleys

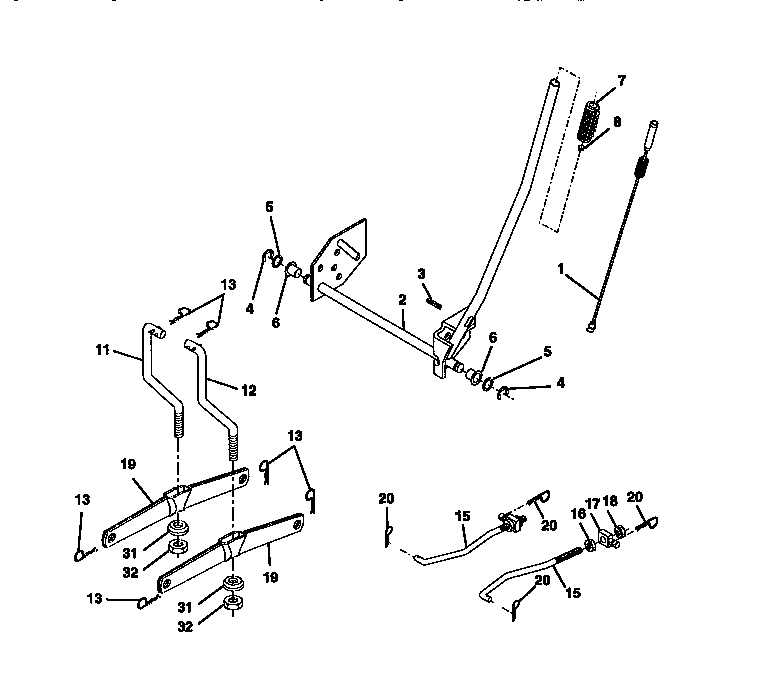

• Deck lift linkage (raises and lowers the deck)

Drivetrain and controls

• Clutch/brake pedal and parking brake
• Gearshift lever (speed and direction)
• Ground drive belt (on many belt-driven tractors)

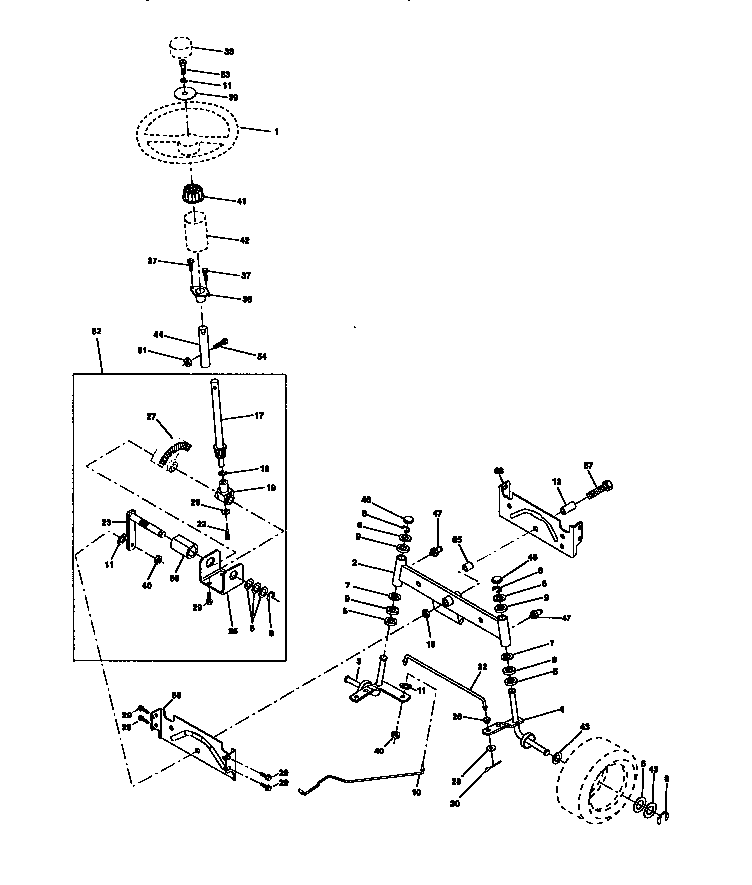

Steering and wheels

• Steering gear/sector gear
• Drag link and front axle components

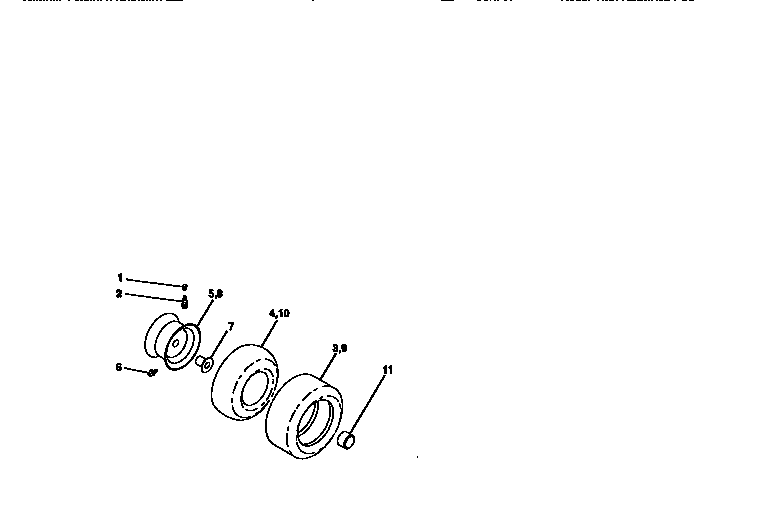

• Tires, rims, hub caps, bearings

Examples of parts you can order for model 917270613

These are real, commonly replaced items for this tractor model:

Area	Example part name	Part ID
Cutting	Mulching blade, 21-in	532134149
Deck spindle	Mandrel assembly	532130794
Blade drive	Lawn tractor drive belt	532144200
Ground drive	V-belt	532138255
Steering	Steering assembly service kit	584371701

Why it matters

Knowing the correct part names helps you match symptoms to the right system. For example, uneven cutting often points to blades, deck leveling, or mandrels; slipping or no blade engagement often points to the blade drive belt, idler pulley, or clutch mechanism.

Last updated: February 2026

For Craftsman riding lawn tractor model 917270613, the exact engine brand and horsepower are listed on the tractor’s engine ID label and in the 917270613 owner's manual. This model’s manual confirms key engine-related service specs such as fuel type, oil type/capacity, and spark plug.

How to identify the engine on model 917270613

Use these quick checks to get the correct engine make and model (needed for tune-up parts and service info):

• Look for the engine ID label on the blower housing, valve cover, or near the starter; write down model, type, and code.
• Check the hood or side panel decals for engine family clues (some tractors list HP or engine series).
• Match the engine ID to the correct air filter, fuel filter, and starter parts.
• Use the manual’s maintenance and troubleshooting sections to confirm settings and procedures.
• If the tractor has been repowered, always trust the engine label, not the tractor model number.

Engine service specs we use for this model

The manual for Craftsman 917270613 lists these specifications (useful for maintenance regardless of engine brand):

Item	Spec (from manual)
Fuel	Unleaded regular; 1.25 gallon capacity
Oil type	SAE 30 (above 32°F); SAE 5W-30 (below 32°F)
Oil capacity	3.0 pints
Spark plug	Champion RC12YC; gap 0.030 in

Why it matters

The tractor model number (917270613) identifies the chassis and deck parts, but the engine ID determines the correct ignition, fuel, and air-intake service parts. Using the engine label prevents ordering the wrong tune-up items and helps avoid hard-start and poor-running issues.

Last updated: February 2026

For Craftsman model 917270613 front-engine lawn tractor, we use SAE 30 engine oil for temperatures above 32°F, and SAE 5W-30 for temperatures below 32°F; the oil should meet API service classification SF, SG, or SH. Confirm the exact viscosity chart and fill procedure in the 917270613 owner's manual.

Recommended oil by temperature

Use the oil grade that matches your typical mowing conditions:

• Above 32°F (0°C): SAE 30
• Below 32°F (0°C): SAE 5W-30
• Use 4-cycle engine oil (do not mix oil with gasoline)
• Choose oil labeled API SF/SG/SH (or newer equivalents that meet those specs)
• Check oil level on level ground before each use day

Capacity and service interval (model 917270613)

The manual lists these key specs for this tractor:

Item	Specification
Engine oil capacity	3.0 pints
Oil change interval	Every 25 hours or at least once per year
Oil level checks	Before starting and about every 8 hours of operation

Quick tips to avoid common oil problems

These steps prevent hard starting, smoking, and premature engine wear:

• Let the engine warm briefly so oil drains more completely (then shut it off)
• Catch used oil in a suitable container and reinstall the drain plug securely
• Refill slowly through the dipstick tube; do not overfill
• Keep the oil at the FULL mark on the dipstick for accurate readings
• For cold weather, switch to the lighter viscosity before temperatures drop

Why it matters

Correct viscosity keeps the engine properly lubricated across temperature changes. SAE 30 protects well in warm weather, while 5W-30 flows faster in cold weather for easier starting and reduced wear.

Last updated: February 2026

On the Craftsman lawn tractor model 917270613, the engine model number is listed in the engine section of the parts breakdown; this tractor uses a Briggs & Stratton engine model 28U707 with type number 1174-E1. We recommend matching those numbers to the ID tag or stamping on the engine before ordering engine-specific parts.

Where to look on the tractor

Use these common locations to find the engine identification information:

• Check the engine shroud (blower housing) area for an ID label or tag
• Look near the valve cover or cylinder head area for a stamped model/type code
• Inspect the top and sides of the engine block for stamped characters
• Clean off grass and oil residue so the numbers are readable
• Compare what you find to the engine listing shown in the 917270613 owner's manual

What numbers you should record

For accurate parts matching, write down all of these (exactly as shown):

• Engine model number (example for this tractor: 28U707)
• Type number (example for this tractor: 1174-E1)
• Code/date number (often used to identify production run)

Quick reference (what the manual shows)

Item	What it identifies	Example for 917270613
Engine model	Engine family/design	28U707
Type number	Specific build/spec	1174-E1
Tractor model	Whole machine	917270613

Why it matters

The tractor model number (917270613) helps match chassis and deck parts, but the engine model and type numbers are what ensure you get the correct Briggs & Stratton engine parts (carburetor, starter, ignition, gaskets) for the exact engine build.

Last updated: February 2026
