Eureka
Upright Vacuum

Model #5191AT-1 Eureka cyclonic self-propelled vacuum

Here are the repair parts and diagrams for your Eureka 5191AT-1 cyclonic self-propelled vacuum.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 106 parts

Vacuum Spring

#18

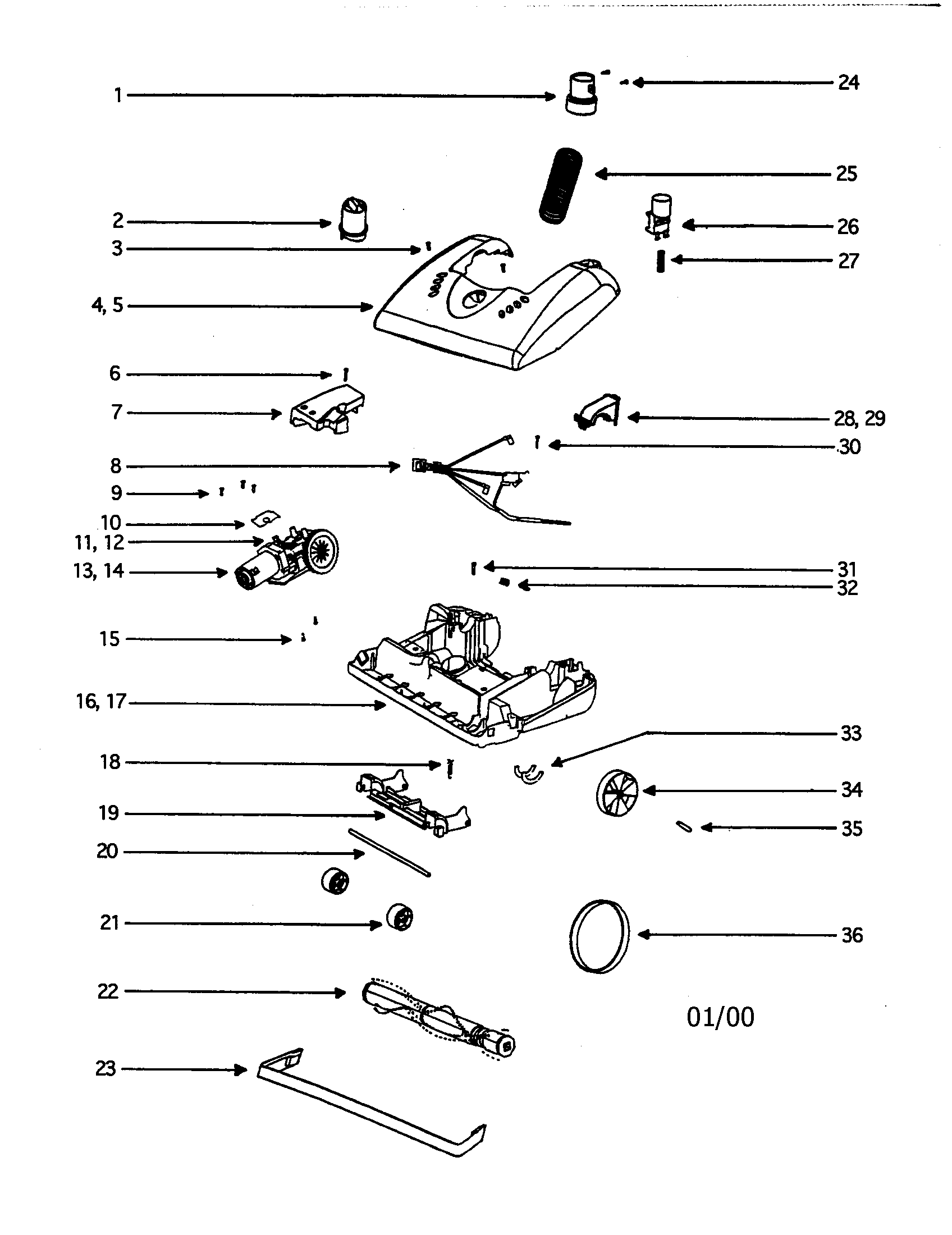

Hood Diagram

Vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly

#NI

All parts Diagram

Vacuum hose assembly

Part #60038-6

The manufacturer no longer makes this part, and there's no substitute part

Tube

#3A

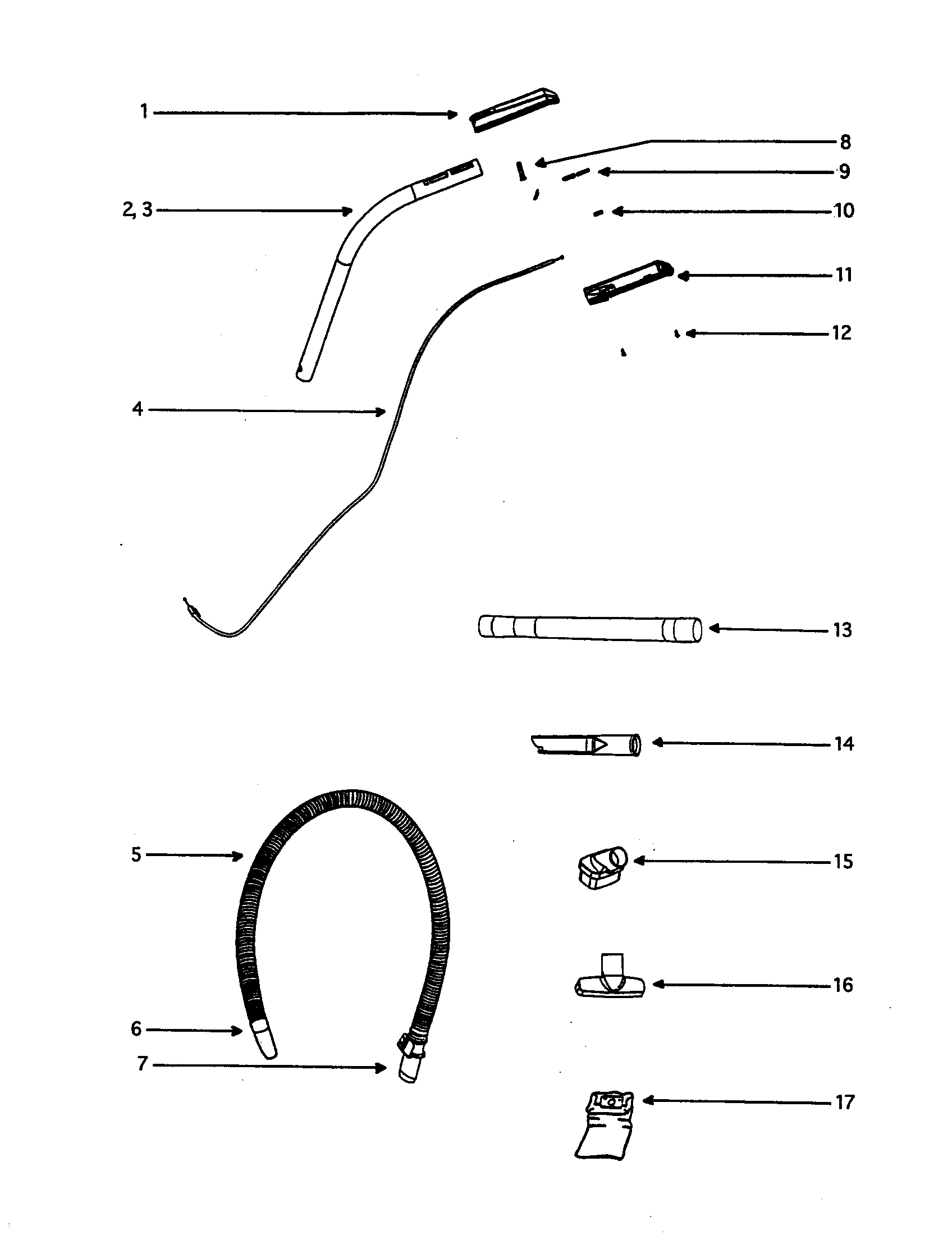

Accessories Diagram

Tube

Part #15615-1

The manufacturer no longer makes this part, and there's no substitute part

Rear Housing

#25

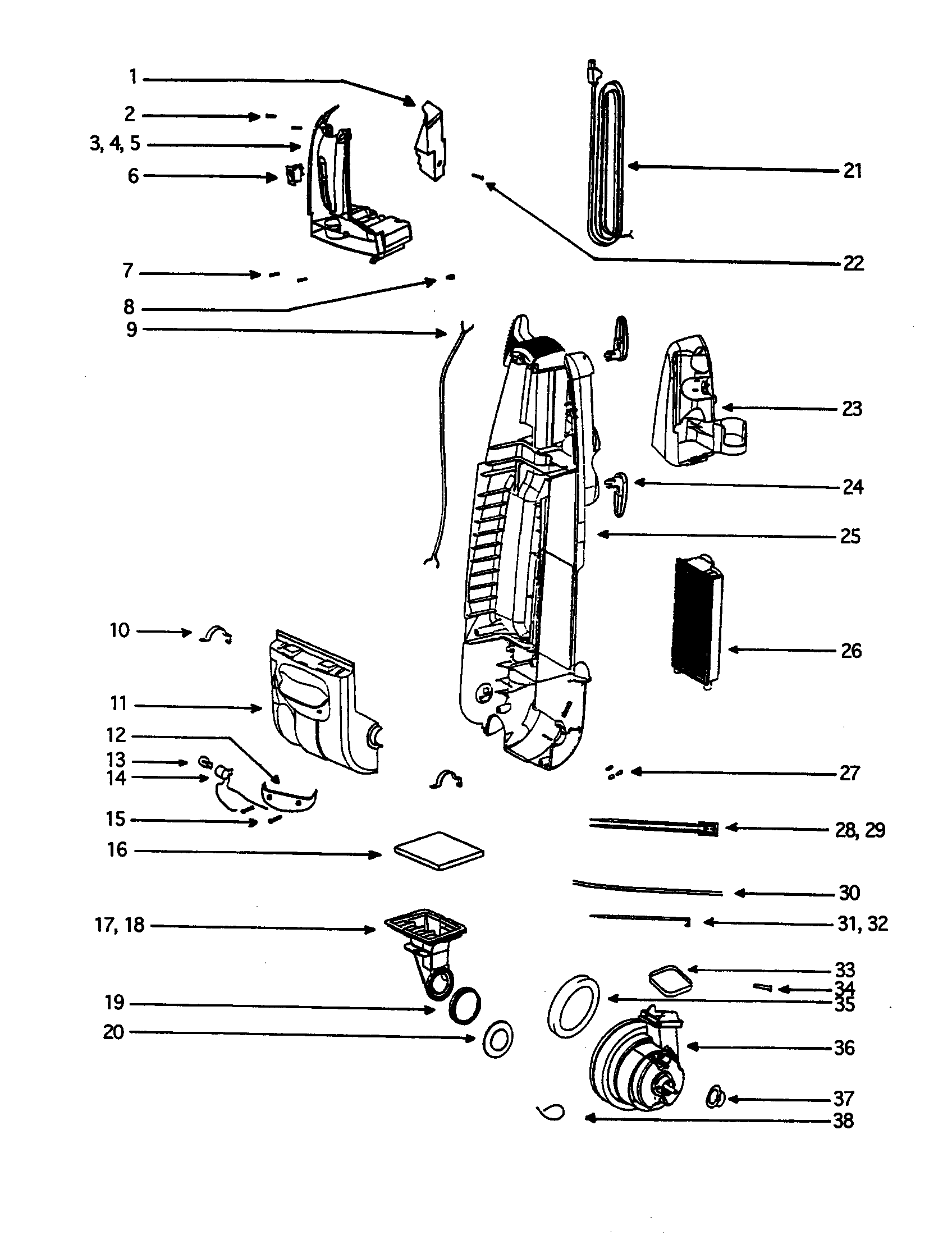

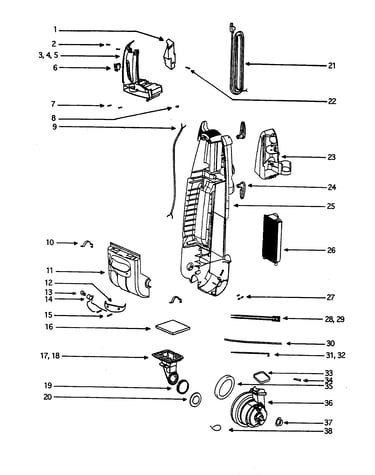

Body Diagram

Rear housing

Part #15660

The manufacturer no longer makes this part, and there's no substitute part

Seal

#10

Hood Diagram

Seal

Part #39034

The manufacturer no longer makes this part, and there's no substitute part

Gasket

#12

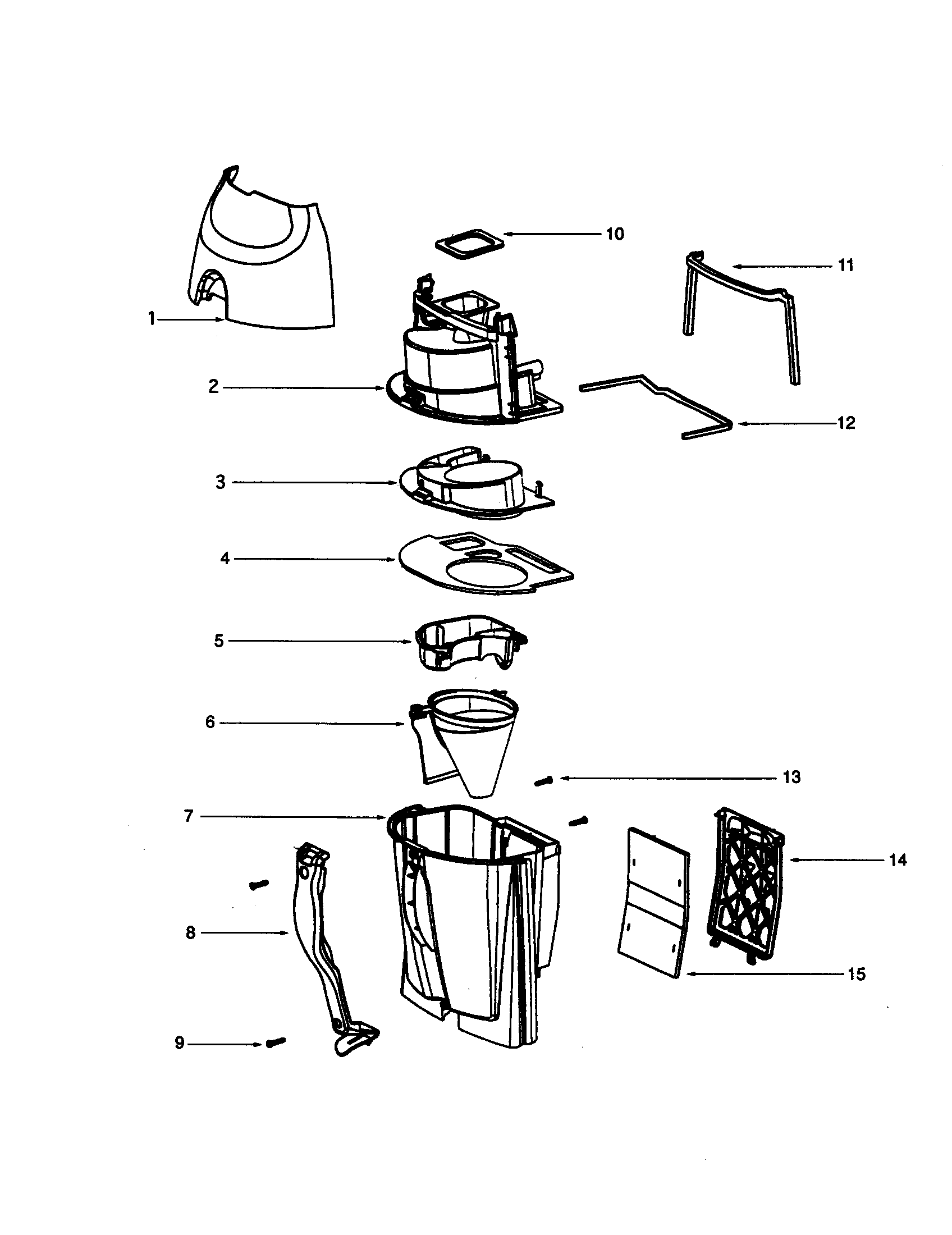

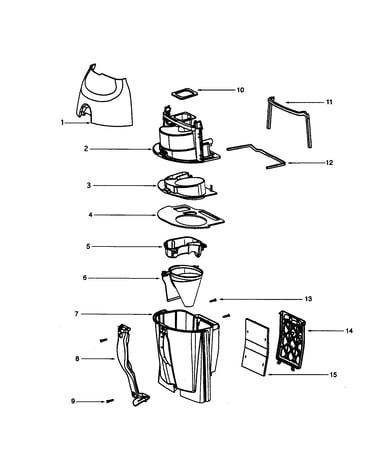

Cyclone Diagram

Gasket

Part #59297-3SV

The manufacturer no longer makes this part, and there's no substitute part

Gasket

#32

Hood Diagram

Gasket

Part #59552

The manufacturer no longer makes this part, and there's no substitute part

Gasket

#11

Cyclone Diagram

Gasket

Part #59595-2

The manufacturer no longer makes this part, and there's no substitute part

Rocker Switch

#6

Body Diagram

Rocker switch

Part #28073A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb

#13

Body Diagram

Vacuum light bulb

Part #48815

The manufacturer no longer makes this part, and there's no substitute part

Symptoms common to all vacuum cleaners

Choose a symptom to see related vacuum cleaner repairs.

Main causes: damaged vacuum hose, clogged motor air filter, bad suction motor
Main causes: lack of power, bad power cord, drive motor failure, wiring failure
Main causes: weak suction motor, vacuum bag is full, clog in suction air path, dirty exhaust filter, leaky vacuum hose
Main causes: broken drive belt, damaged brush roll, tripped brush roll motor overload, bad brush roll motor, wiring failure
