Model # 58075051200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58075051200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

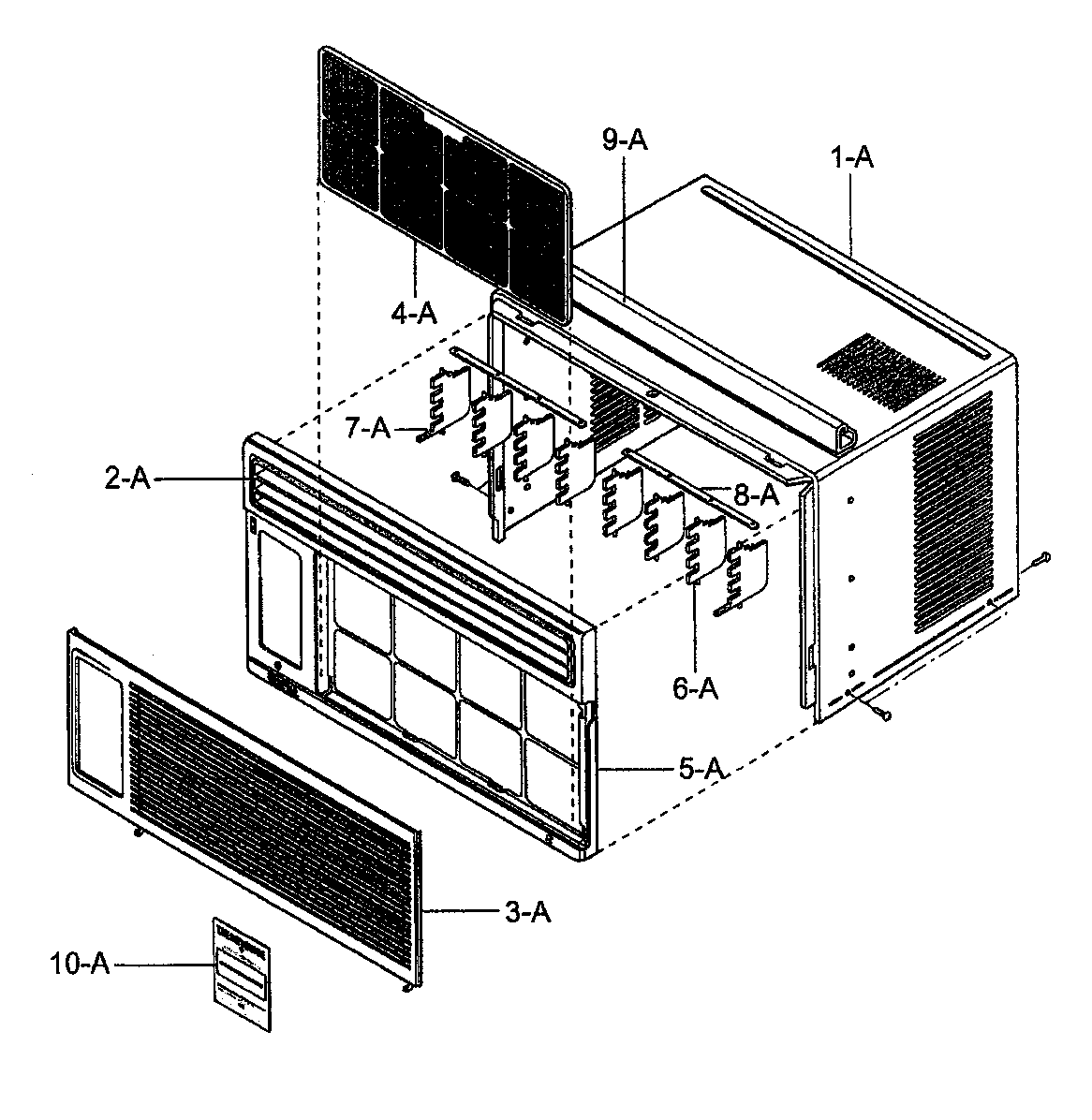

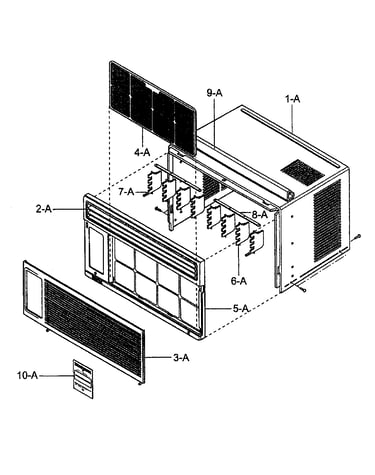

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Thermistor 6323A20003D
#5-B

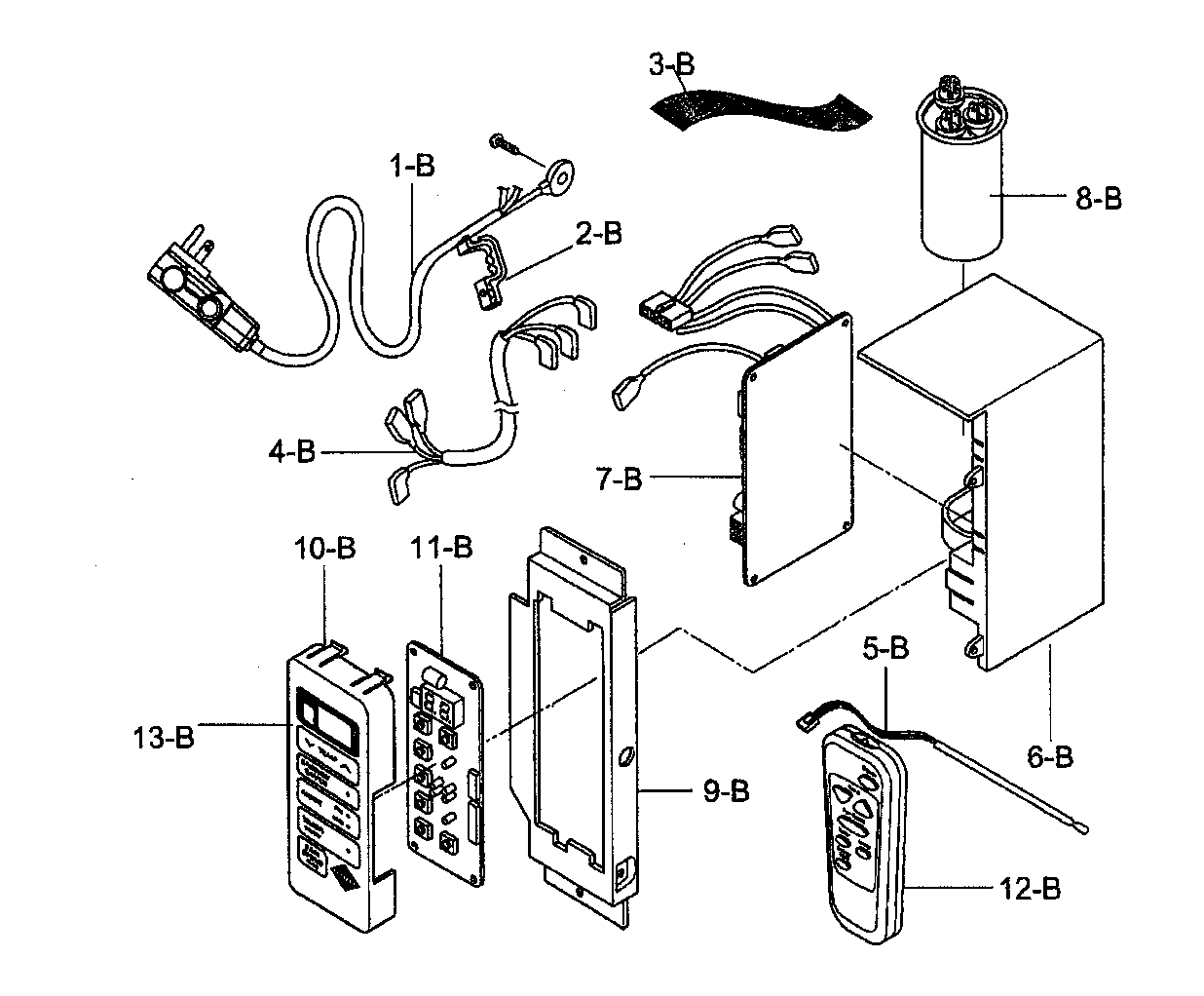

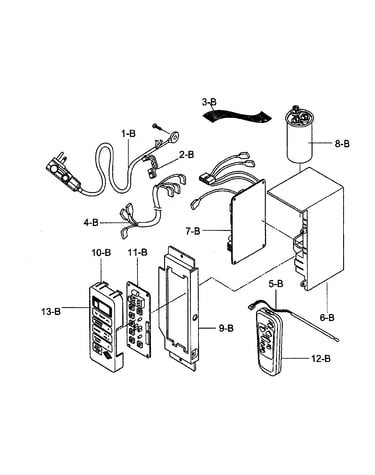

Control box diagram

Thermistor

Part #6323A20003D

Replaced by #6323A20003S

?
Manufacturer substitution
This part replaces 6323A20003D. Substitute parts can look different from the original.
This item is not returnable
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Capacitor 6120AR2359V
#8-B

Control box diagram

Capacitor

Part #6120AR2359V

Replaced by #0CZZA20005B

?
Manufacturer substitution
This part replaces 6120AR2359V. Substitute parts can look different from the original.
$29.57 |
14% OFF Phone Price : $34.57
In Stock
Room Air Conditioner Screw 1TTG0402618
#5-E

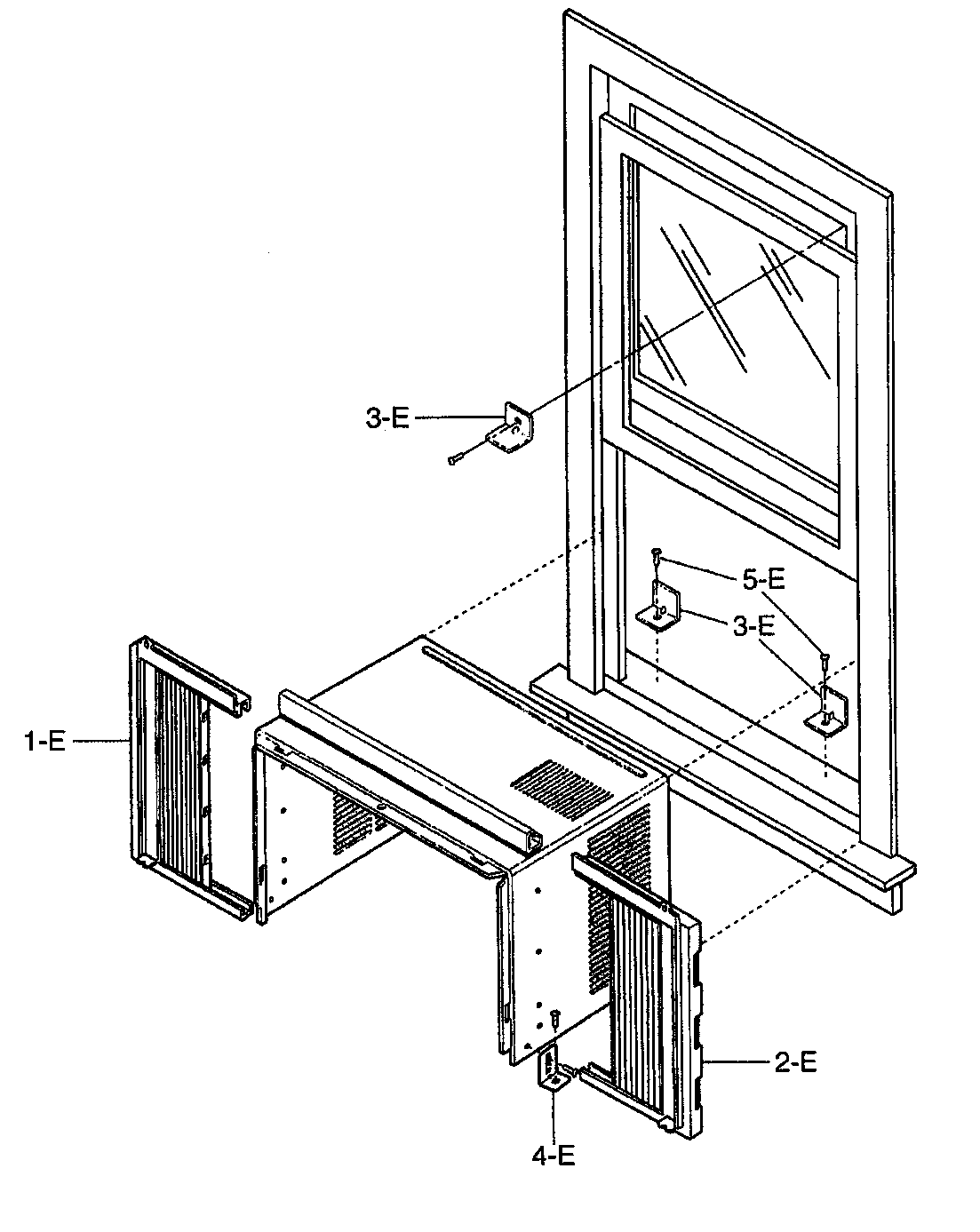

Instalation kit diagram

Room air conditioner screw

Part #1TTG0402618

This item is not returnable
$4.51
In Stock
Power Cord 6411A20048Y
#1-B

Control box diagram

Power cord

Part #6411A20048Y

Replaced by #6411A20056A

?
Manufacturer substitution
This part replaces 6411A20048Y. Substitute parts can look different from the original.
$62.92 |
7% OFF Phone Price : $67.92
In Stock
Room Air Conditioner Compressor Grommet 5040AR4195A
#9-D

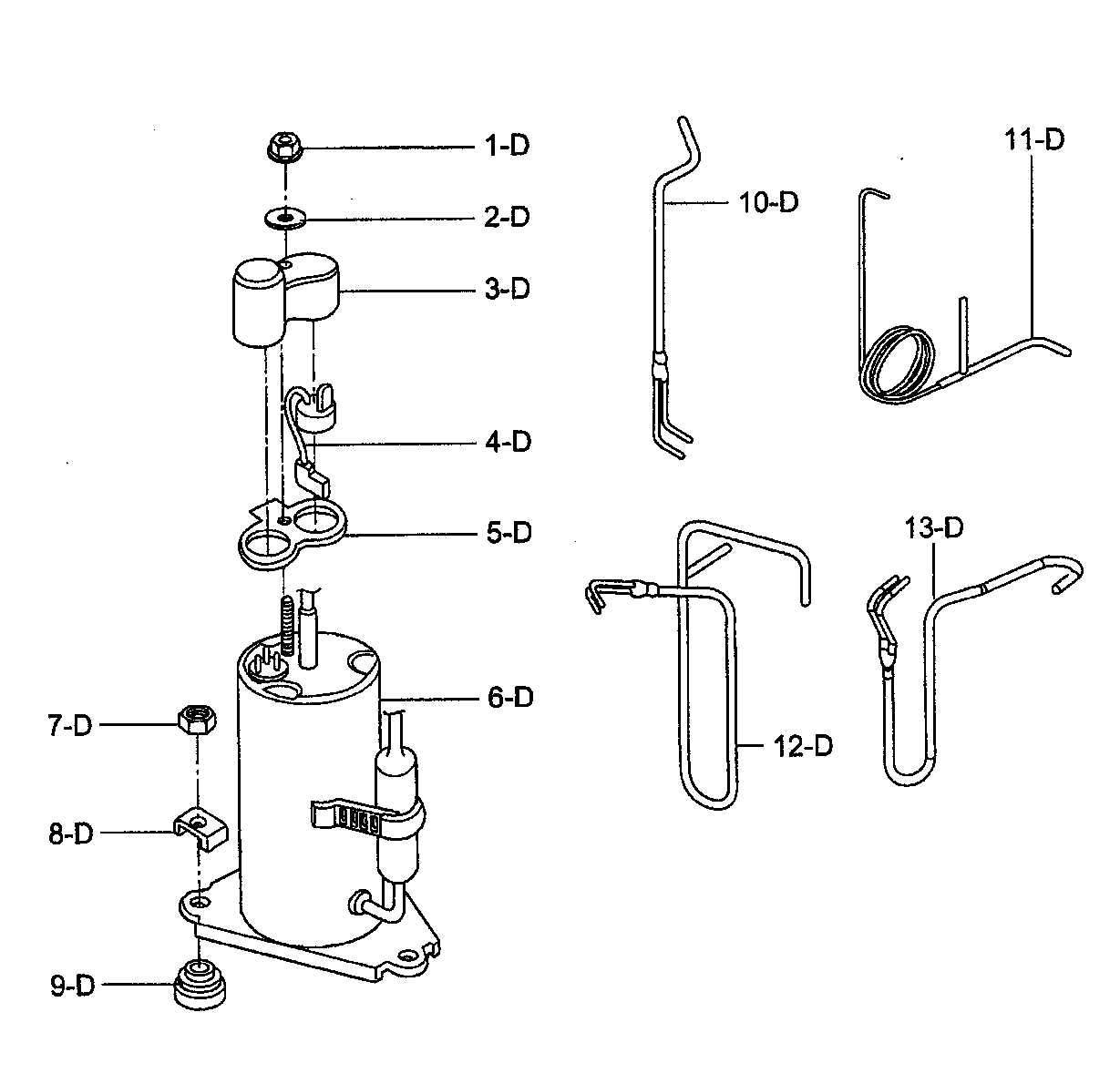

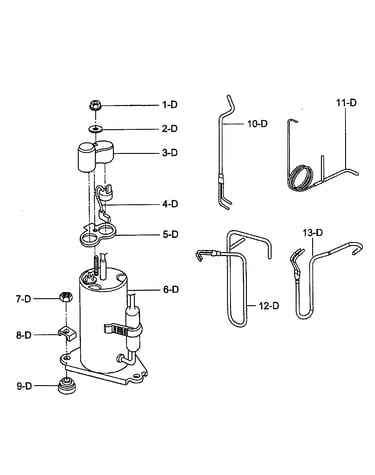

Compressor diagram

Room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#2-C

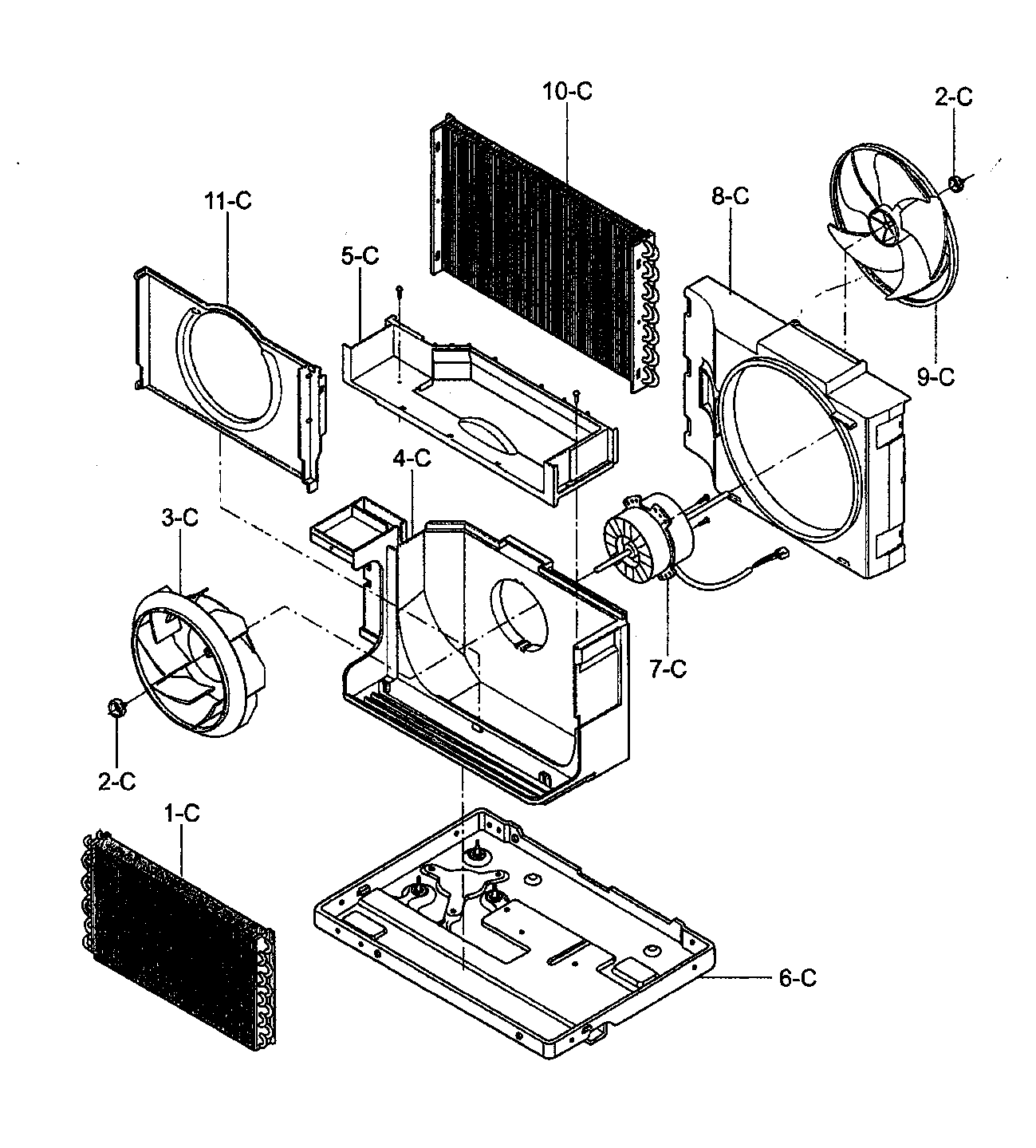

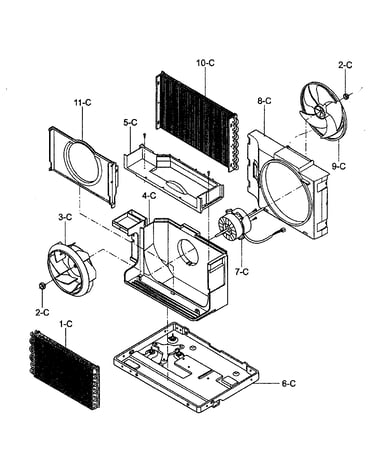

Air handling diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Lead Wire 6850A90001F
#3-B

Control box diagram

Lead wire

Part #6850A90001F

This item is not returnable
$4.06
In Stock
Hex Nut 1NHA0801206
#1-D

Compressor diagram

Hex nut

Part #1NHA0801206

This item is not returnable
$4.51
In Stock
Tube 5211A10063C
#10-D

Compressor diagram

Tube

Part #5211A10063C

$14.51
In Stock
Brkt,wshr 4810AR4155A
#8-D

Compressor diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable
$4.51
In Stock
