Top-Mount Refrigerator

Model #25377174501 Official Kenmore refrigerator

Here are the diagrams and repair parts for Kenmore 25377174501 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

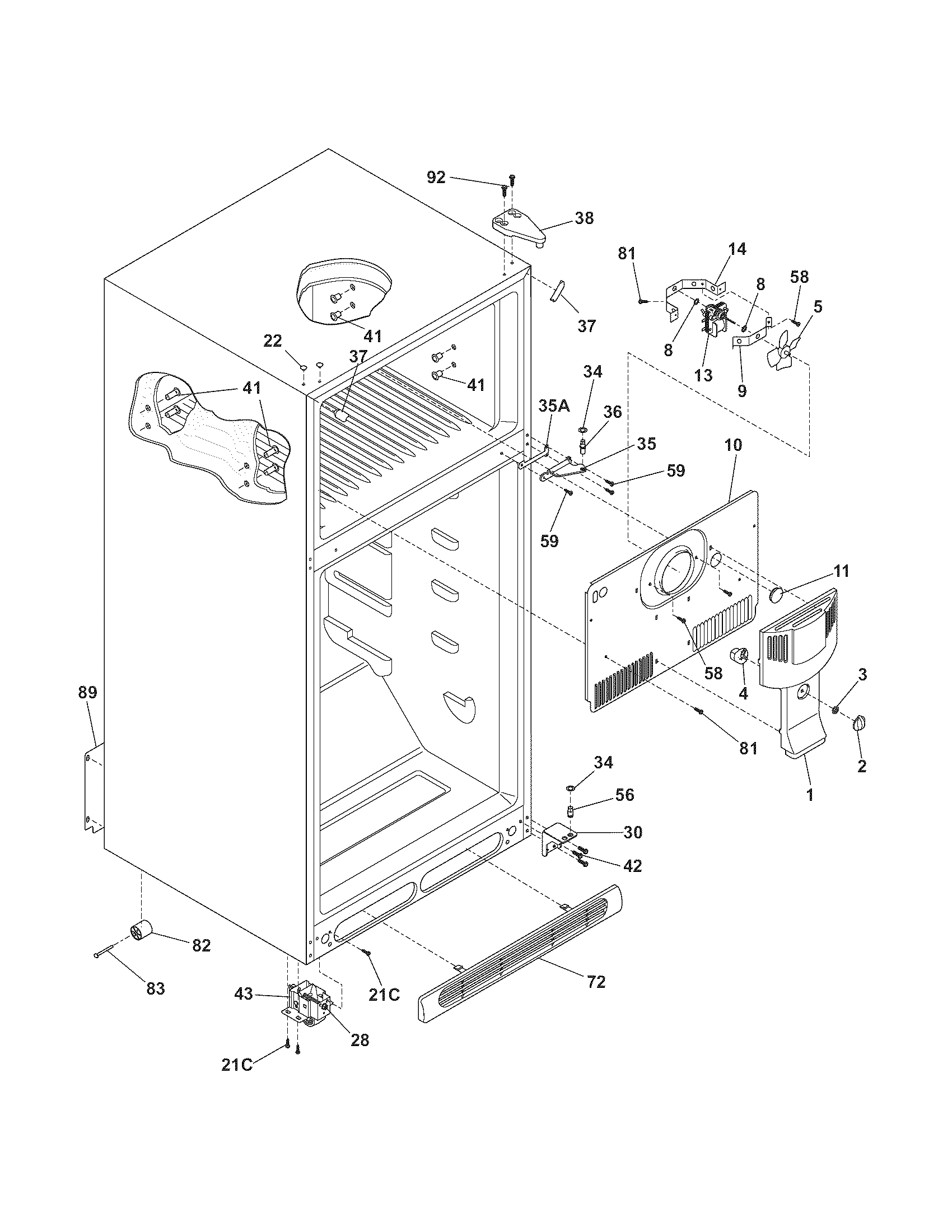

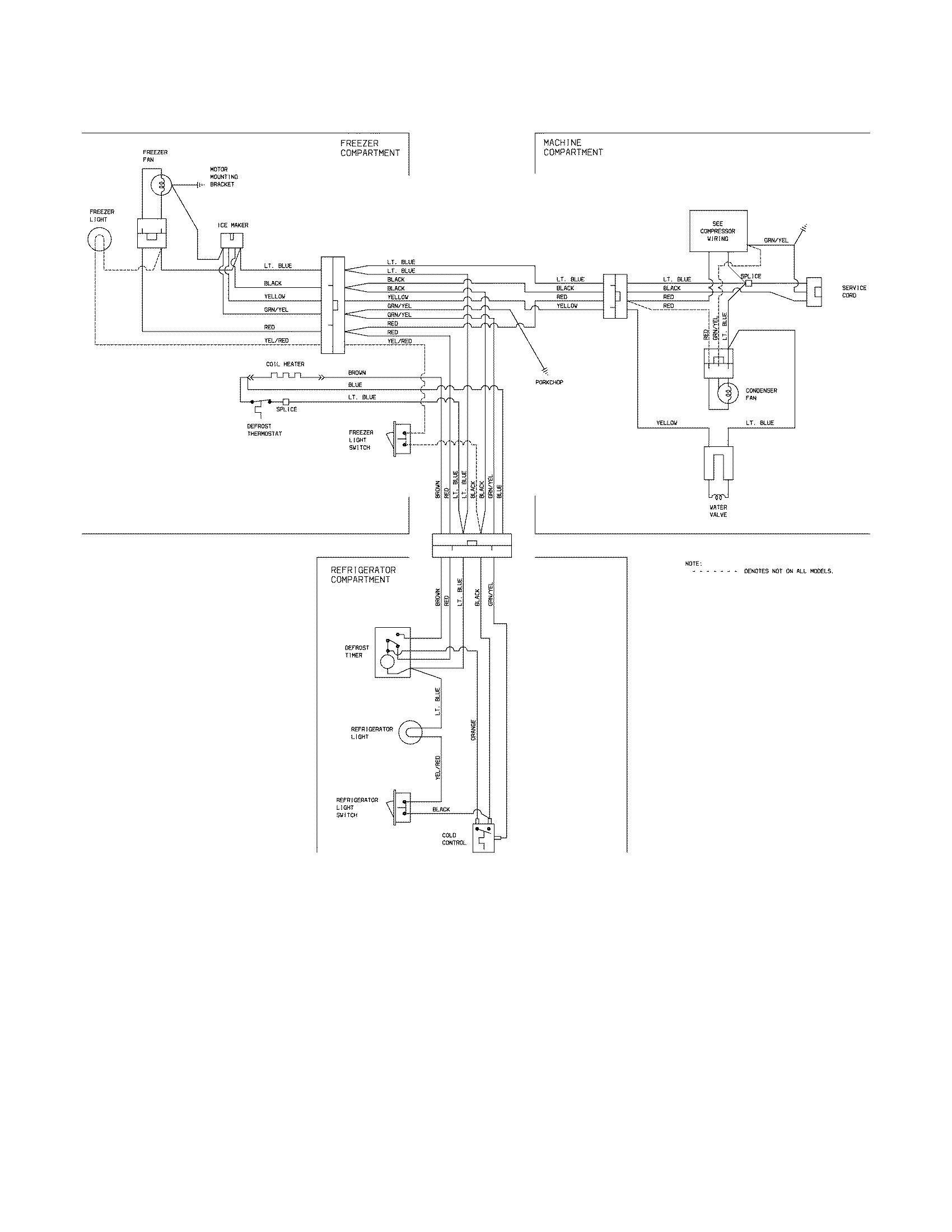

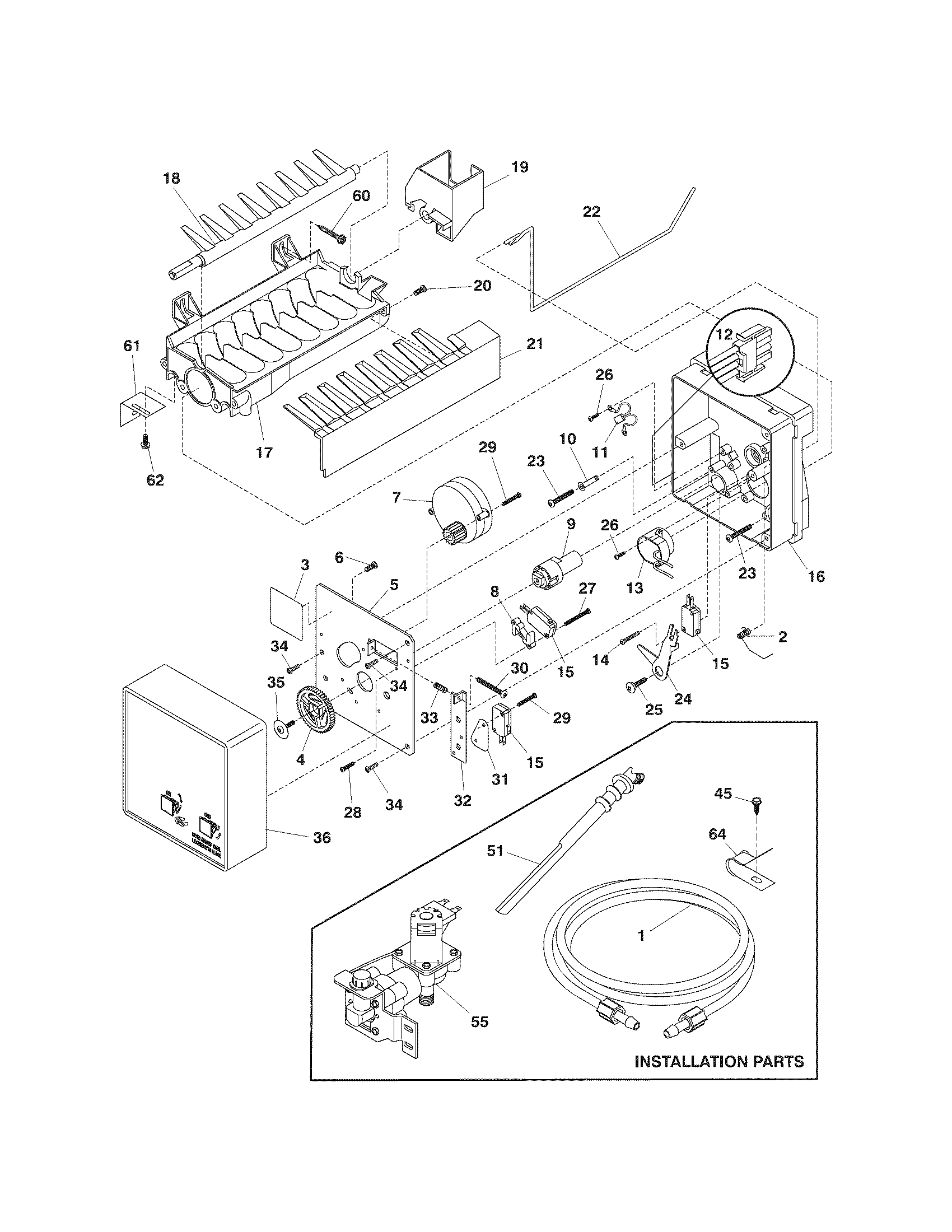

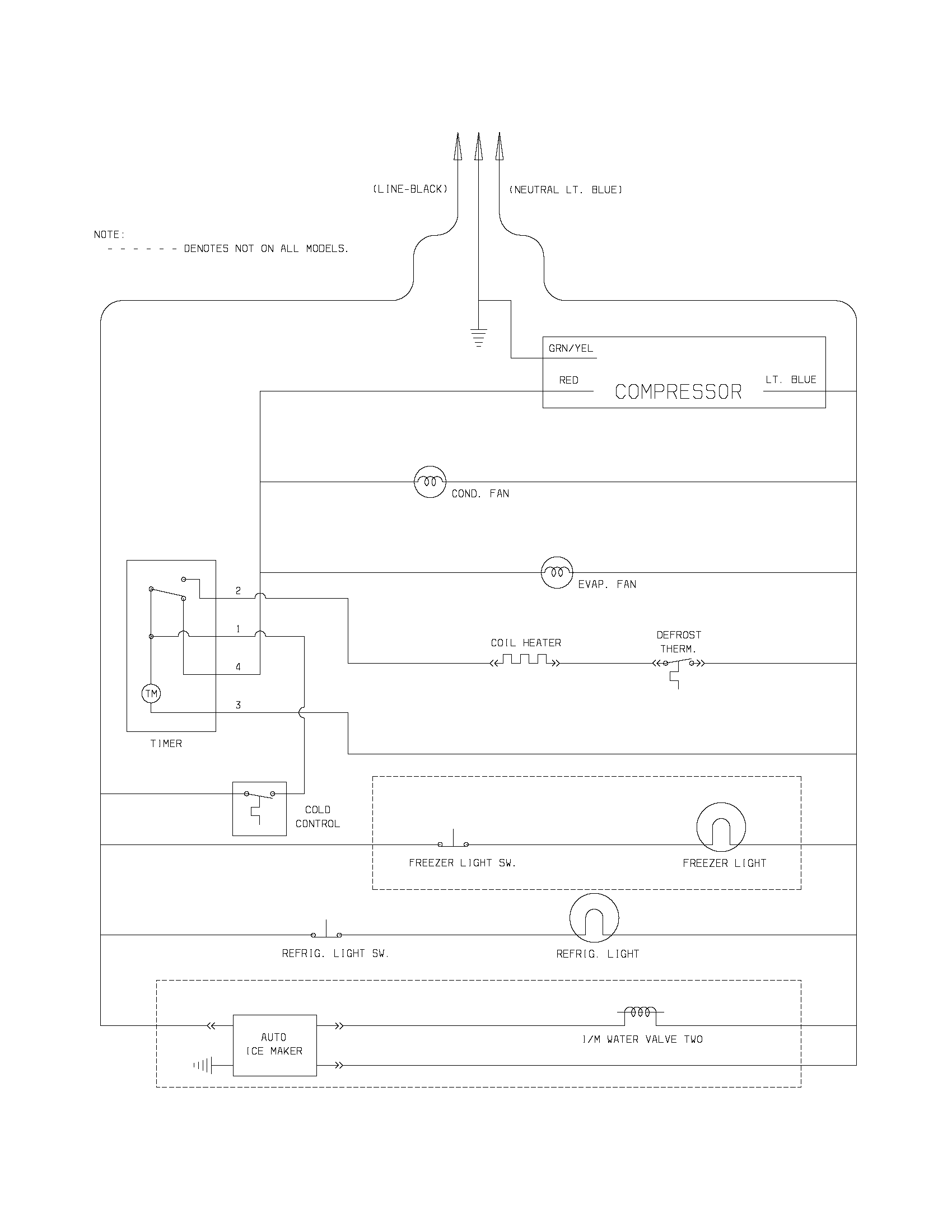

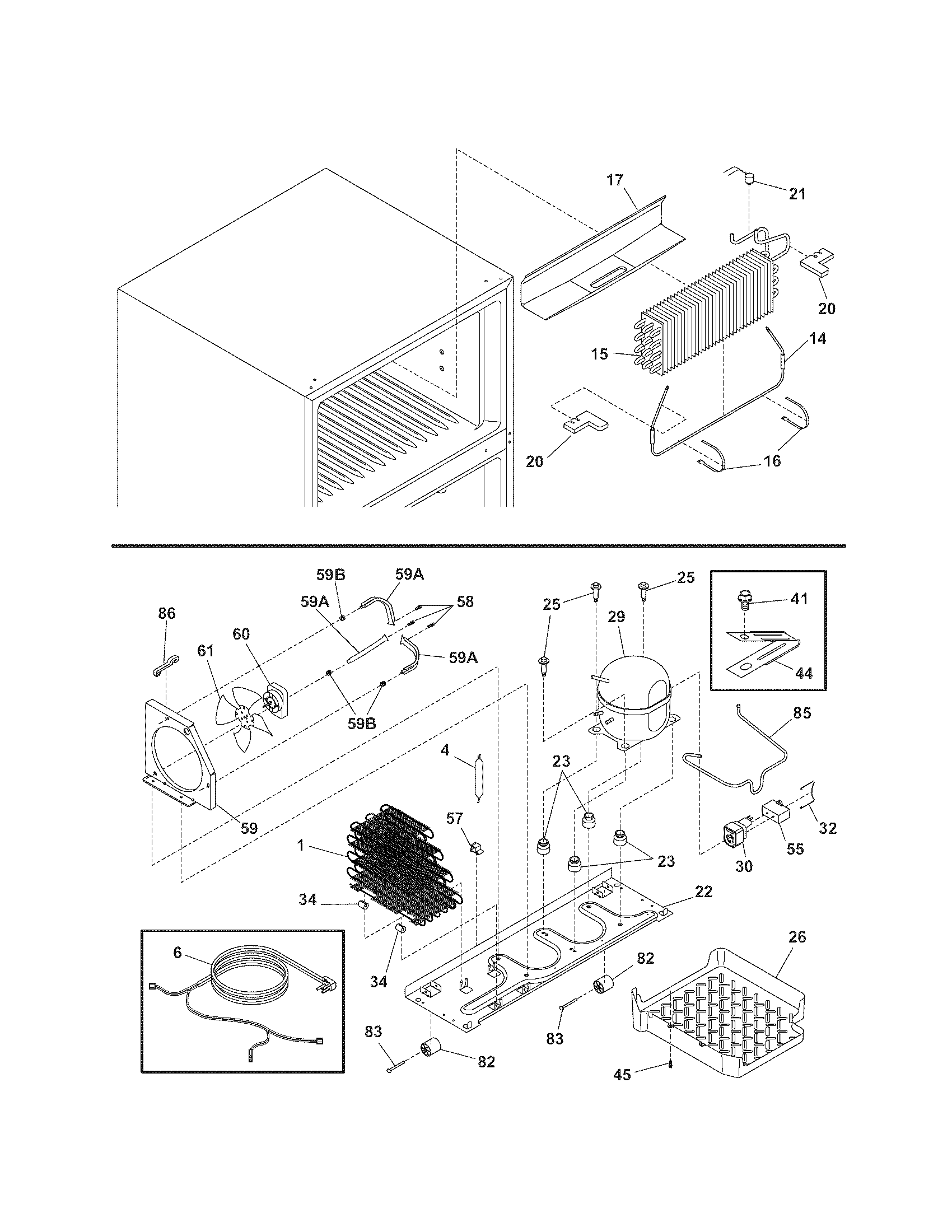

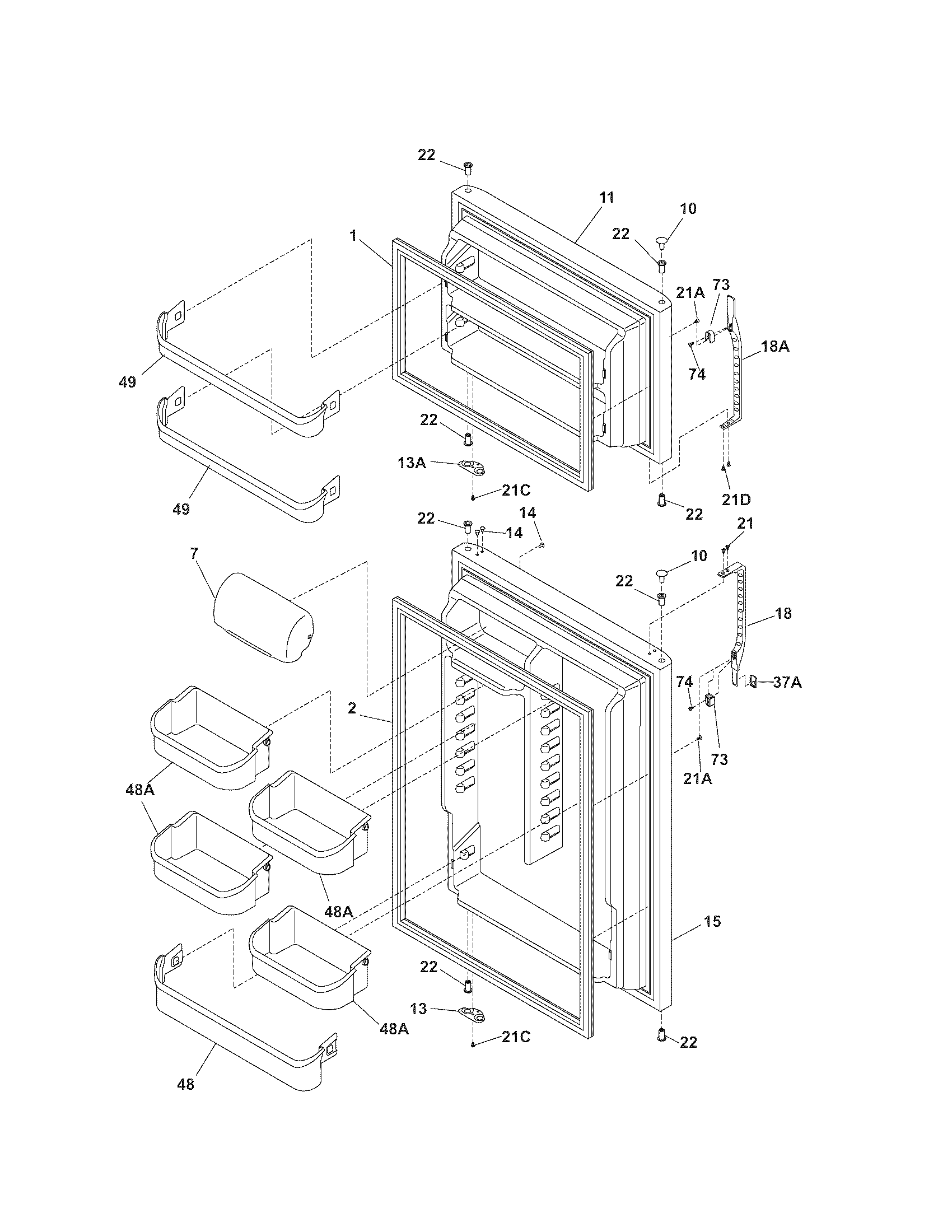

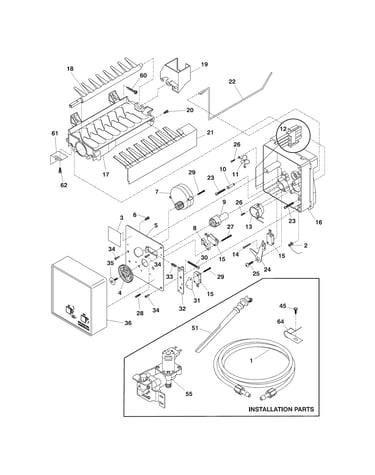

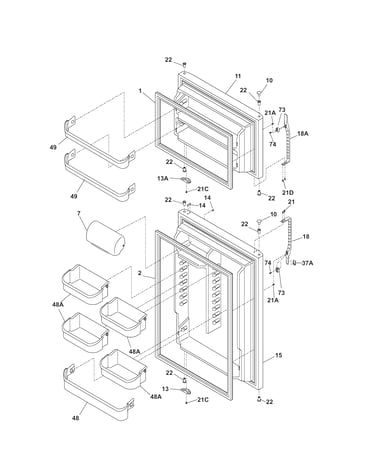

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Search within this model
Parts List

Showing 10 of 211 parts

Range Oven Light Bulb (replaces 241555401, 316538901)#15

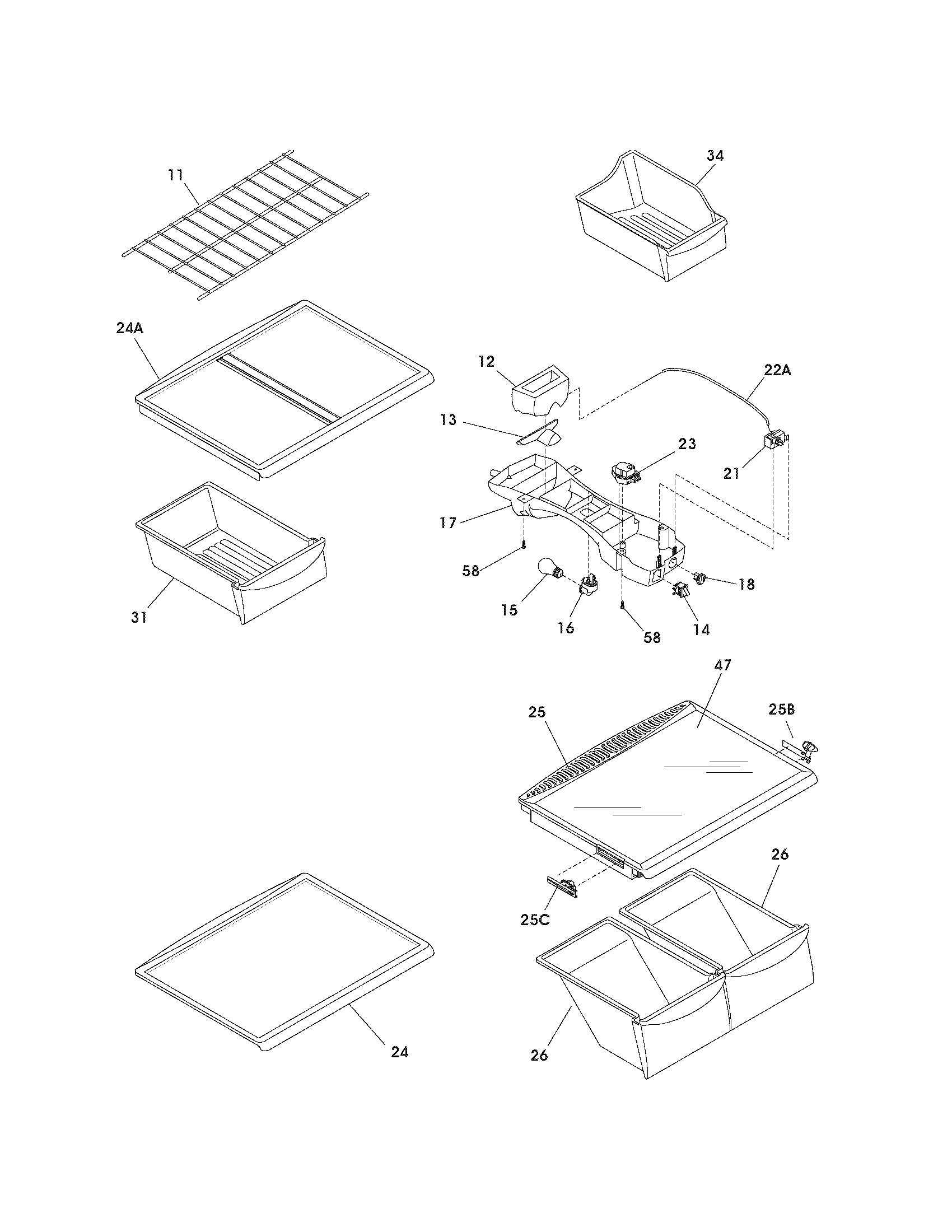

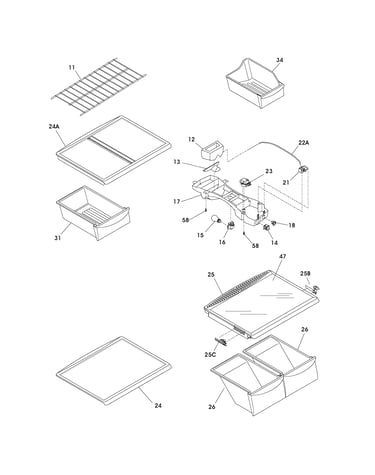

Shelves Diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401
Replaced by #316538904
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
In Stock
$17.32 |
10% OFF
Phone Price: $19.32
