GE JB625DK1BB electric range Parts

For your GE JB625DK1BB electric range, the fastest way to get the right GE part number is to match the model number from the ID label (behind the oven door or storage drawer) to the parts diagram and part listing; that ensures the replacement part fits your exact production design.

• Locate the model and serial label behind the door or drawer (GE calls this out in the JB625DK1BB owner’s manual).
• Write down the full model number exactly: JB625DK1BB.
• Identify the failed area: cooktop surface element, oven heat, door, light, or controls.
• Use the model-based parts diagram to select the exact part; then confirm the part number and part ID.
• Compare your old part to the listing (shape, terminals, mounting points) before ordering.

On Sears PartsDirect, you may see both a manufacturer part number and a Sears PartsDirect part ID. Either can help you confirm you are looking at the correct item.

• Oven not heating or acting erratic: range oven control board WB27X45466
• Cooktop burner not heating: range radiant surface element, 8-in WB30T10132 or range radiant surface element, 5-1/2-in WB30T10145
• Oven light not working: range oven light bulb 40A15 and (if needed) range light socket WB08T10026
• Door not sealing well: range oven door gasket WB04T10086

GE ranges can have multiple versions of similar-looking parts (especially radiant surface elements and control components). Using the JB625DK1BB model number to drive the lookup prevents ordering a part that mounts differently or has the wrong electrical connections.

Last updated: February 2026

For your GE JB625DK1BB electric range, we recommend ordering parts using the complete model number and serial number so you get the correct fit. If you need help identifying the right part or checking availability, contact Sears PartsDirect support.

• Complete model number: JB625DK1BB
• Serial number (from the rating label)
• The part name and, if available, the part ID or part number
• A quick description of the symptom (helps confirm the right part)

These are examples of parts frequently replaced on electric ranges like the JB625DK1BB:

• Electronic control parts (for display, keypad, or heating control issues), such as the range oven control board WB27X45466
• Oven light components, such as the range oven light bulb 40A15
• Cooktop radiant elements (when a burner will not heat), such as the range radiant surface element, 8-in WB30T10132

Using the exact model number (JB625DK1BB) and serial number prevents ordering a GE range part that will not mount correctly, connect correctly, or work with your control system.

Last updated: March 2026

To reset your GE JB625DK1BB electric range oven, press Cancel/Off to stop the current function and clear many control issues. If an “F-” error code returns, disconnect power for at least 30 seconds, then restore power and try the oven again (this is the control’s recommended reset).

• Press Cancel/Off once to stop baking, broiling, or self-clean.
• If the display shows an “F-” code, let the oven cool for 1 hour, then try using it again.
• If the code repeats, turn the range power off at the breaker for at least 30 seconds, then turn it back on.
• After power is restored, set the clock and reselect your cooking mode.
• If the control panel seems unresponsive, confirm the oven is not in Sabbath mode (see the special features section in the manual).

A proper reset clears a stuck cooking cycle, unlocks the control after a heat-related lock condition, and can clear temporary electronic glitches. It also helps you confirm whether you are dealing with a one-time control hiccup or a repeating fault that needs repair.

If the oven repeatedly throws function codes or won’t respond after a correct power reset, the issue often points to the electronic control. For this model, the control is the range oven control board WB27X45466.

For model-specific button sequences and special features (including Sabbath mode behavior), use the JB625DK1BB owner’s manual.

Last updated: February 2026

On the GE JB625DK1BB electric range, the most commonly replaced parts are the oven light bulb, surface heating elements, door gasket, and electronic controls. These parts see the most heat and daily wear, so they are the first to cause symptoms like no heat, uneven cooking, or a dark oven cavity.

• Oven light bulb: oven interior is dark even though the range works (use the correct bulb type and wattage listed in the JB625DK1BB owner’s manual).

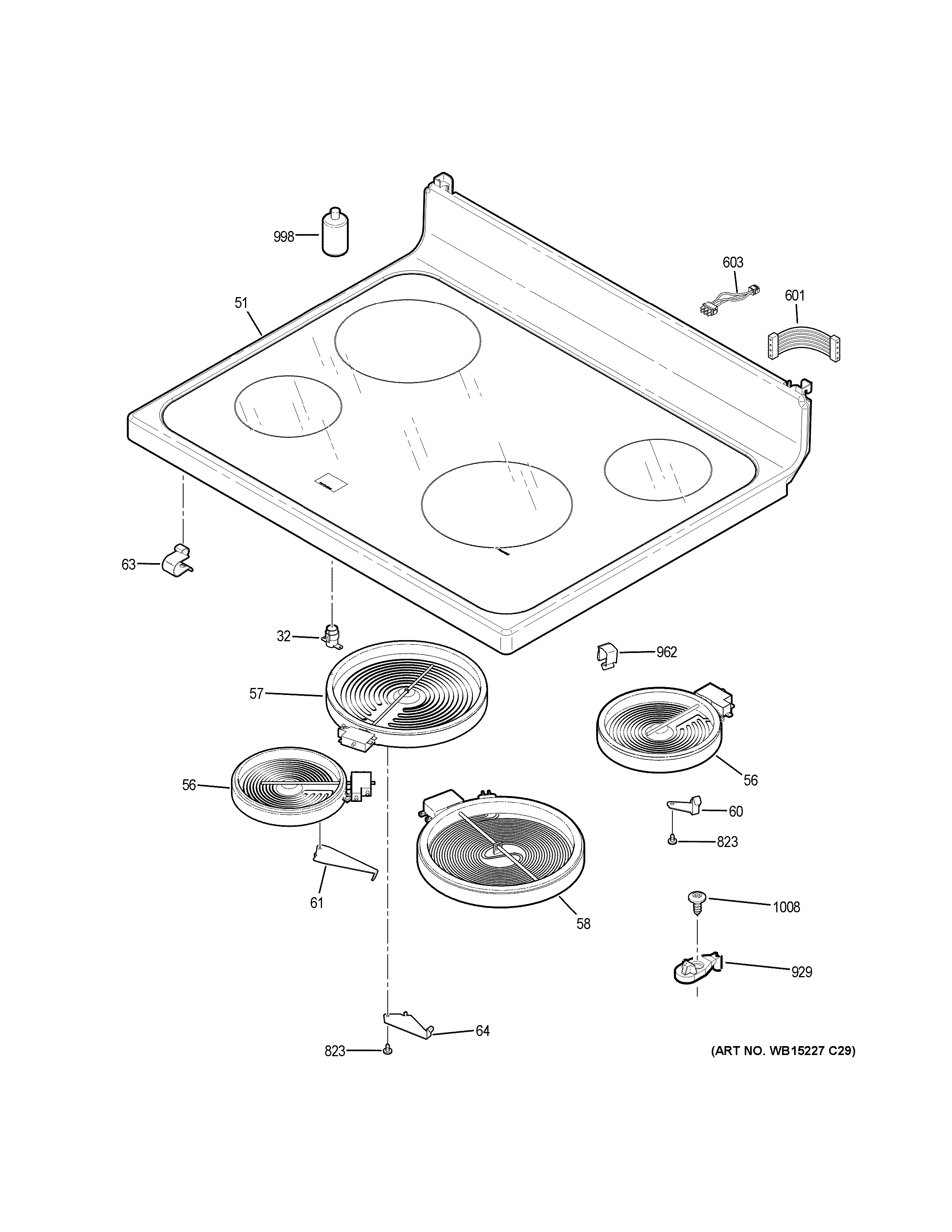

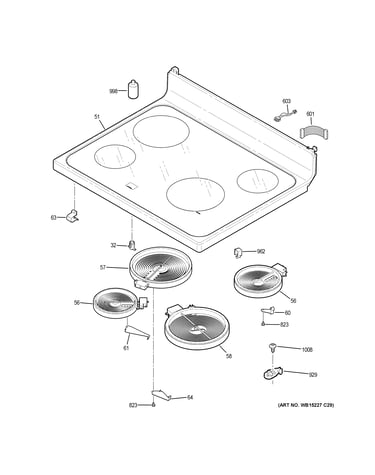

• Radiant surface element: one cooktop burner will not heat, heats intermittently, or heats unevenly (examples include range radiant surface element, 8-in WB30T10132 and range radiant surface element, 5-1/2-in WB30T10145).

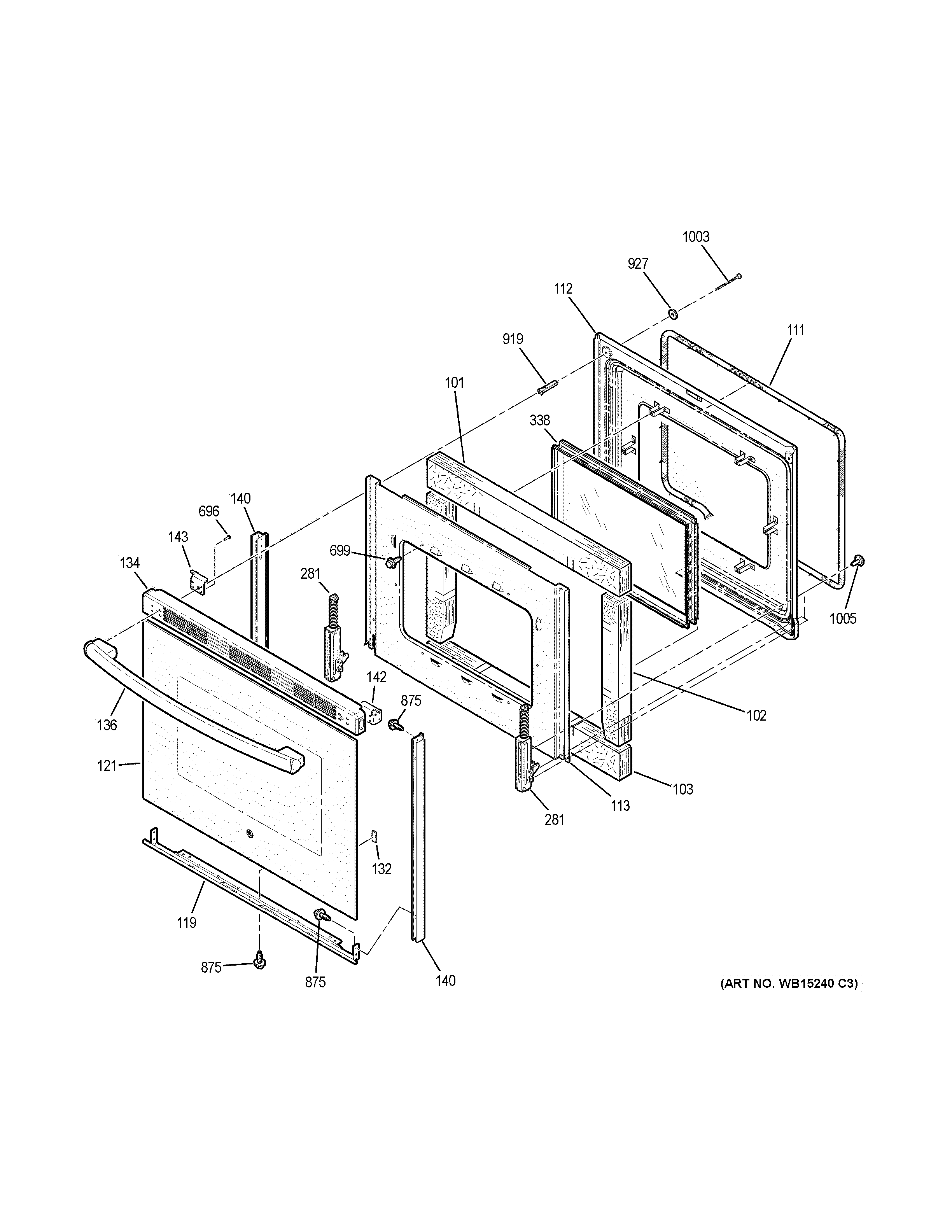

• Oven door gasket: heat leaks around the door, longer preheat times, or uneven baking (see range oven door gasket WB04T10086).

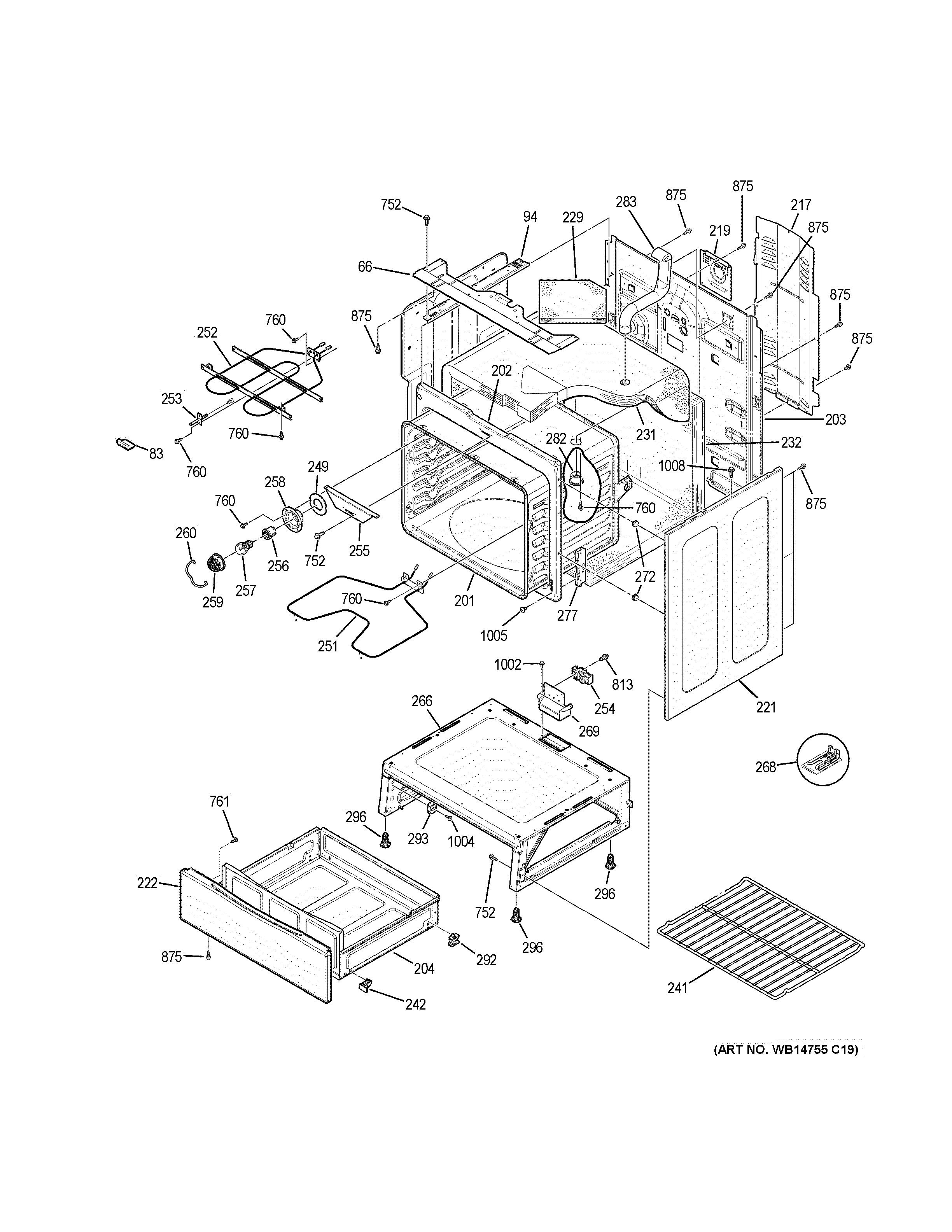

• Broil element: broil does not heat or browns poorly (see range broil element WB44X45497).

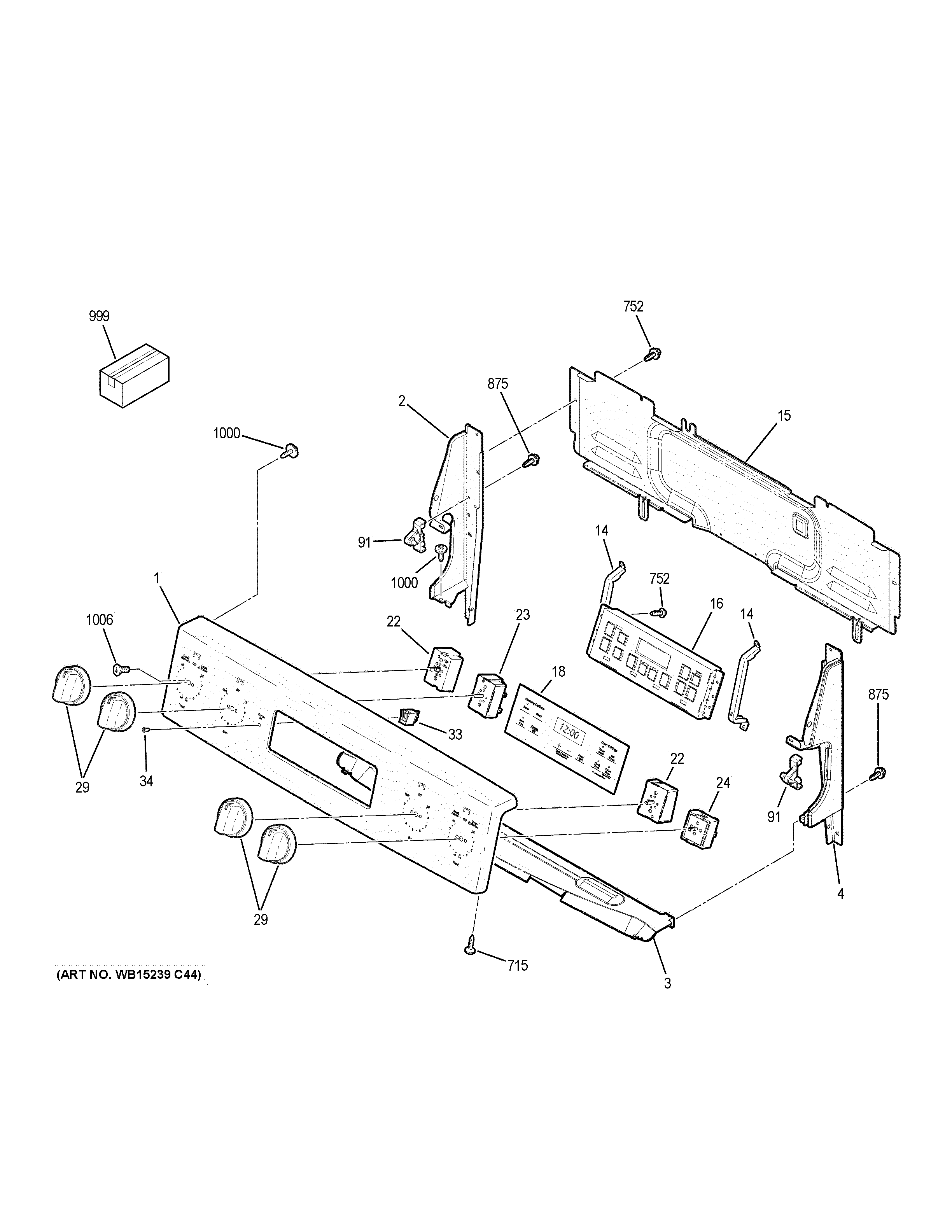

• Control board or overlay: dead display, unresponsive keypad, or erratic oven operation (see range oven control board WB27X45466 and range oven control overlay WB07X26647).

Replacing the right part restores safe, consistent heating and helps prevent secondary damage (for example, a leaking door gasket can force longer bake times and stress other components).

• If you’re seeing an error code, use GE freestanding range error codes to narrow the failure to a specific circuit or component.

Last updated: February 2026

A GE electric oven like model JB625DK1BB typically lasts 12 to 15 years with normal household use. Consistent cleaning, avoiding heavy slamming of the oven door, and fixing heating or control issues early helps you get the full service life.

• Usage frequency (daily baking vs. occasional use)
• Heat stress from frequent self-clean cycles or high-temp broiling
• Power quality (surges can damage electronic controls)
• Door seal condition (heat leaks make components work harder)
• Cooktop and oven maintenance (spills, blocked vents, poor airflow)

These are common ranges we see for electric ranges; your results depend on use and care.

• Follow cleaning and care guidance in the JB625DK1BB owner’s manual.
• Keep the oven cavity and door area clean so the door seals fully.
• Use cookware that sits flat on the radiant glass cooktop to reduce element stress.
• Address symptoms early (slow preheat, uneven baking, error codes, hot surface light issues).
• Use a surge protector rated for ranges only if approved for your installation; otherwise focus on stable power and proper wiring.

We typically recommend repair when the range is heating safely and the fix is limited to a common service part.

• Use GE freestanding range error codes to interpret display faults and decide what to test next.

Knowing the expected 12 to 15-year lifespan helps you plan: you can prioritize maintenance, budget for a control or element repair, and avoid replacing the range prematurely when a single part is the real issue.

Last updated: February 2026
