Why does my Whirlpool bottom freezer leak out of the bottom right side front?
Water leaking from the bottom right front of your Whirlpool WRF555SDFZ15 bottom-mount refrigerator is usually caused by defrost water missing the drain path and ending up on the freezer floor, then running out the front. The most common fix is clearing a clogged defrost drain and making sure the drain tube is open.
- Clogged defrost drain: Ice and debris block the drain, so meltwater overflows into the freezer.
- Frozen drain trough: The drain opening is clear, but the channel is iced over.
- Drain tube restriction at the back: The tube can be pinched, dirty, or blocked where it exits near the bottom rear.
- Door not sealing well: Warm air creates excess frost, which creates excess defrost water.

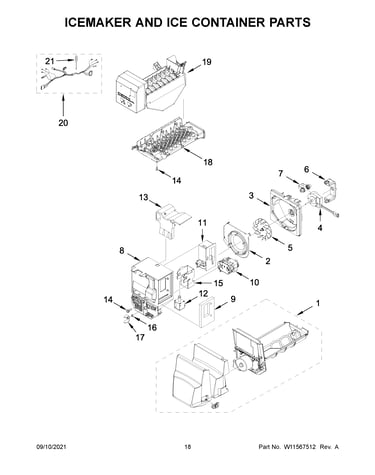

- Ice maker or water line seep: A slow drip can track forward and look like a drain leak.
- Unplug the refrigerator and remove the freezer drawer/bins.
- Look for a sheet of ice on the freezer floor or water pooled under the bottom basket.

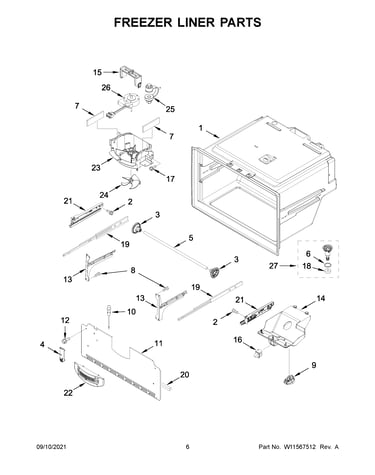

- Find the drain area at the back of the freezer compartment (behind the rear panel on many bottom-mount designs).
- Melt ice with a hair dryer on low or warm towels; then flush the drain with hot water using a turkey baster.
- Pull the unit out and inspect the external drain area; if the outlet tube is damaged or not draining, replace the drain extension.
If you suspect the drain outlet is the issue, the extension-dr W10619951 is the drain tube extension used on this model.
A poor seal can create heavy frost, which overwhelms the drain during defrost.
| What you notice | Likely issue | What to do |
|---|---|---|
| Frost around door edges | Door not sealing | Clean gasket, warm and reshape gasket, level unit |
| Water only after defrost cycle | Drain clogged/frozen | Clear and flush drain |
| Water near ice maker area | Water line/ice maker seep | Inspect tubing and fittings |
For gasket-related fixes and alignment tips, use how to fix a fridge door seal.
A recurring leak can freeze drawers shut, cause odors, and lead to ice buildup that reduces airflow and cooling performance. Fixing the drain path early prevents repeat icing and protects the evaporator area.
Last updated: February 2026
What is the bottom part of the fridge called?
On a Whirlpool WRF555SDFZ15 refrigerator, the “bottom part” most people mean is the compressor compartment (the machinery area underneath or behind the lower rear cover). If you mean the bottom door, that is the freezer door on this bottom-mount model.
Use these quick descriptions to match what you’re looking at:
- Compressor compartment: where the compressor, condenser fan, and coils are located (usually lower rear).
- Freezer compartment: the bottom section that holds frozen food.
- Freezer door: the exterior bottom door you pull open.
- Toe grille / base grille: the vented trim at the very bottom front on many refrigerators.
- Drain area: where defrost water routes to a drain tube and evaporates.
| What you see | What it’s usually called | Why you’d look for it |
|---|---|---|
| Warm, humming “motor” area at lower back | Compressor compartment | No cooling, loud buzzing, overheating |
| Bottom drawer area inside | Freezer compartment | Frost buildup, not freezing |
| Bottom exterior door panel | Freezer door | Door not sealing, alignment issues |
| Water pooling under fridge | Drain system | Clogged drain, frozen drain line |
If your question is tied to a symptom, these WRF555SDFZ15 parts are commonly involved:

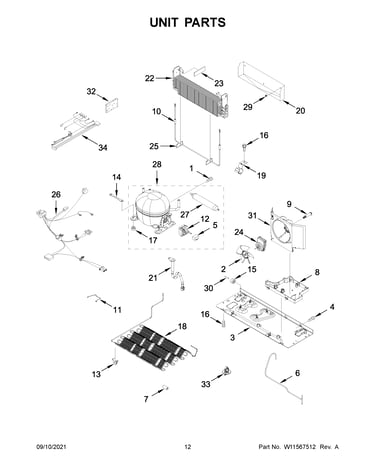

- Compressor (also order lokring parts) W11547313: main sealed-system pump that drives cooling.
- Evaporator (also order the following lokring parts) W11550396: cold-side coil (freezer/refrigerator cooling source).
- Extension-dr W10619951: drain tube extension that can affect puddles and drain flow.
Using the right name helps you order the correct Whirlpool refrigerator parts and troubleshoot faster. For example, a “bottom not cooling” complaint can point to the freezer/evaporator side, while “bottom humming” often points to the compressor compartment.
Last updated: February 2026
Can I use a generic filter in my Whirlpool?
Yes, you can use a generic water filter in your Whirlpool WRF555SDFZ15 refrigerator as long as it is truly compatible and properly certified. The biggest risks with off-brand filters are poor fit (leaks), reduced water flow, and weaker contaminant reduction compared with a correctly matched filter.
- Match the filter to the exact refrigerator model: WRF555SDFZ15
- Look for NSF/ANSI certification claims (commonly for chlorine taste/odor and particulate reduction)
- Confirm the filter is designed for your filter housing style (twist-in vs push-in)
- Avoid “universal fit” filters that list dozens of models without specifics
- Replace on schedule (most refrigerator filters are changed about every 6 months)
| Check | What “good” looks like | What causes problems |
|---|---|---|
| Fit | Locks in smoothly, no wobble | Hard to seat, loose, or cross-threaded |
| Flow | Steady stream at dispenser | Slow flow, sputtering, or no water |
| Sealing | No drips after install | Leaks at the filter head or housing |
| Certification | NSF/ANSI listed on packaging | No certification details or vague claims |
- Dispense and discard several batches of water to flush carbon fines.
- Check for leaks around the filter area over the next hour.
- If the dispenser sputters, purge trapped air; use how to purge air from a refrigerator water dispenser video.
- Reinstall the filter and make sure it is fully seated
- Inspect the filter O-rings for nicks or twisting
- If problems continue, switch to a better-matched filter or inspect the filter head and tubing
- For water delivery issues beyond the filter, use how to diagnose a faulty refrigerator water inlet valve
A correctly matched, certified filter protects water quality and helps prevent dispenser leaks that can damage shelves, drawers, and internal components over time.
Last updated: February 2026
Which is better, top mount or bottom mount fridge?
A bottom-mount refrigerator like the Whirlpool WRF555SDFZ15 is better when you want everyday fresh-food items at eye level and more freezer organization; a top-mount is better when you want the simplest layout and typically the lowest purchase and repair costs. The “best” choice depends on how you shop and use the freezer.
| Feature | Top mount (freezer on top) | Bottom mount (freezer on bottom) |
|---|---|---|
| Fresh-food access | You bend more often | More convenient, eye-level shelves |
| Freezer organization | Basic shelf, less visibility | Pull-out drawers, better visibility |
| Energy use (typical) | Often slightly lower | Often slightly higher |
| Repair complexity (typical) | Simpler | More features, more parts |
| Best for | Budget, simplicity | Convenience, organization |
Bottom-mount models are built around how most households use a refrigerator: the fresh-food section gets opened the most. With WRF555SDFZ15-STYLE layouts, you usually get easier access to produce drawers, deli items, and frequently used condiments.
Common advantages:
- Fresh-food shelves sit higher, so you bend less
- Freezer drawers help separate meats, frozen meals, and ice
- Better visibility, so food is less likely to get forgotten
- Often more door storage and adjustable shelving
Top-mount refrigerators still win for many kitchens because they stay straightforward.
Common reasons to choose top mount:
- Lower upfront cost in many lineups
- Fewer convenience features to maintain
- Often lighter doors and simpler hinges
- Great fit for garages, rentals, and secondary fridges
If you already own a bottom-mount like the WRF555SDFZ15, keeping airflow and sealing in top shape protects temperature stability and efficiency.
A few parts and topics that matter:

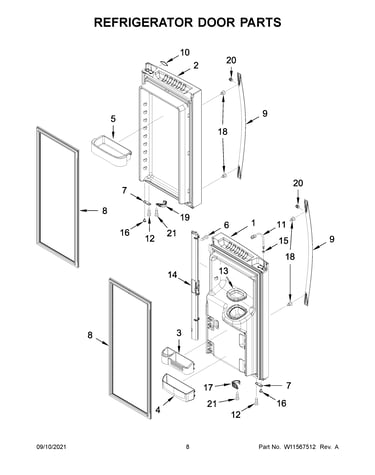

- Door sealing issues: consider a right-side gasket such as Whirlpool refrigerator door gasket, right (gray) W10830055
- Cooling balance between sections: the refrigerator damper control assembly WPW10196393 helps regulate cold air flow
- Water and ice reliability: follow how to prevent water dispenser and ice maker problems
Choosing the right mount style affects daily comfort (bending and reaching), food organization, and long-term maintenance. Bottom-mount designs usually feel more convenient day to day; top-mount designs usually stay simpler.
Last updated: February 2026
