Kenmore Elite 79579752900 refrigerator

Kenmore Elite 79579752900 refrigerator Parts

Here are the diagrams and repair parts for Kenmore Elite 79579752900 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 79579752900 Refrigerators

  • Refrigerator Condenser Coil for Kenmore Elite 79579752900 - Part ACG73964501

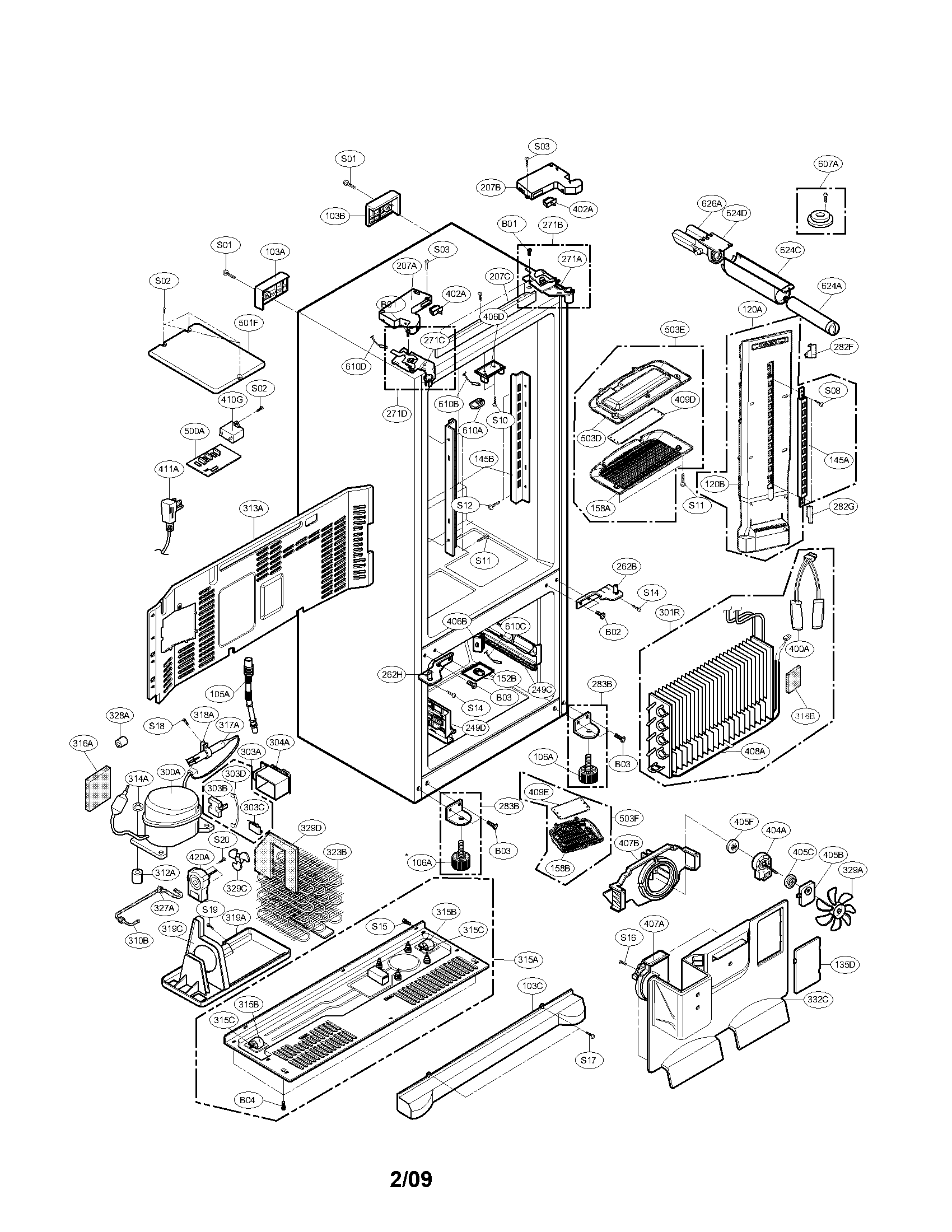

    Case parts diagram

    Refrigerator Condenser Coil

    Part #ACG36653801

    Replaced by #ACG73964501

    Info Icon
    Manufacturer substitution
    This part replaces ACG36653801. Substitute parts can look different from the original.
    In Stock
    $207.58
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor for Kenmore Elite 79579752900 - Part TCA37091209

    Case parts diagram

    Refrigerator Compressor

    Part #TCA32194301

    Replaced by #TCA37091209

    Info Icon
    Manufacturer substitution
    This part replaces TCA32194301. Substitute parts can look different from the original.
    In Stock
    $467.32
    $12.00 OFF Phone Price : $479.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Handle Mounting Bolt for Kenmore Elite 79579752900 - Part MJB63190001

    Refrigerator Door Handle Mounting Bolt

    Part #4620JJ2010C

    Replaced by #MJB63190001

    Info Icon
    Manufacturer substitution
    This part replaces 4620JJ2010C. Substitute parts can look different from the original.
    In Stock
    $12.17
    14% OFF Phone Price : $14.17Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Temperature Sensor for Kenmore Elite 79579752900 - Part 6500JB2002T

    Case parts diagram

    Refrigerator Sensor

    Part #6500JB2002B

    Replaced by #6500JB2002T

    Info Icon
    Manufacturer substitution
    This part replaces 6500JB2002B. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $33.00
    15% OFF Phone Price : $39.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Air Duct And Cover Assembly for Kenmore Elite 79579752900 - Part ADJ73852107

    Case parts diagram

    Refrigerator Multi-duct

    Part #ADJ36702004

    Replaced by #ADJ73852107

    Info Icon
    Manufacturer substitution
    This part replaces ADJ36702004. Substitute parts can look different from the original.
    In Stock
    $115.21
    9% OFF Phone Price : $127.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Freezer Tray Slide Rail Assembly, Right for Kenmore Elite 79579752900 - Part AEC73877602

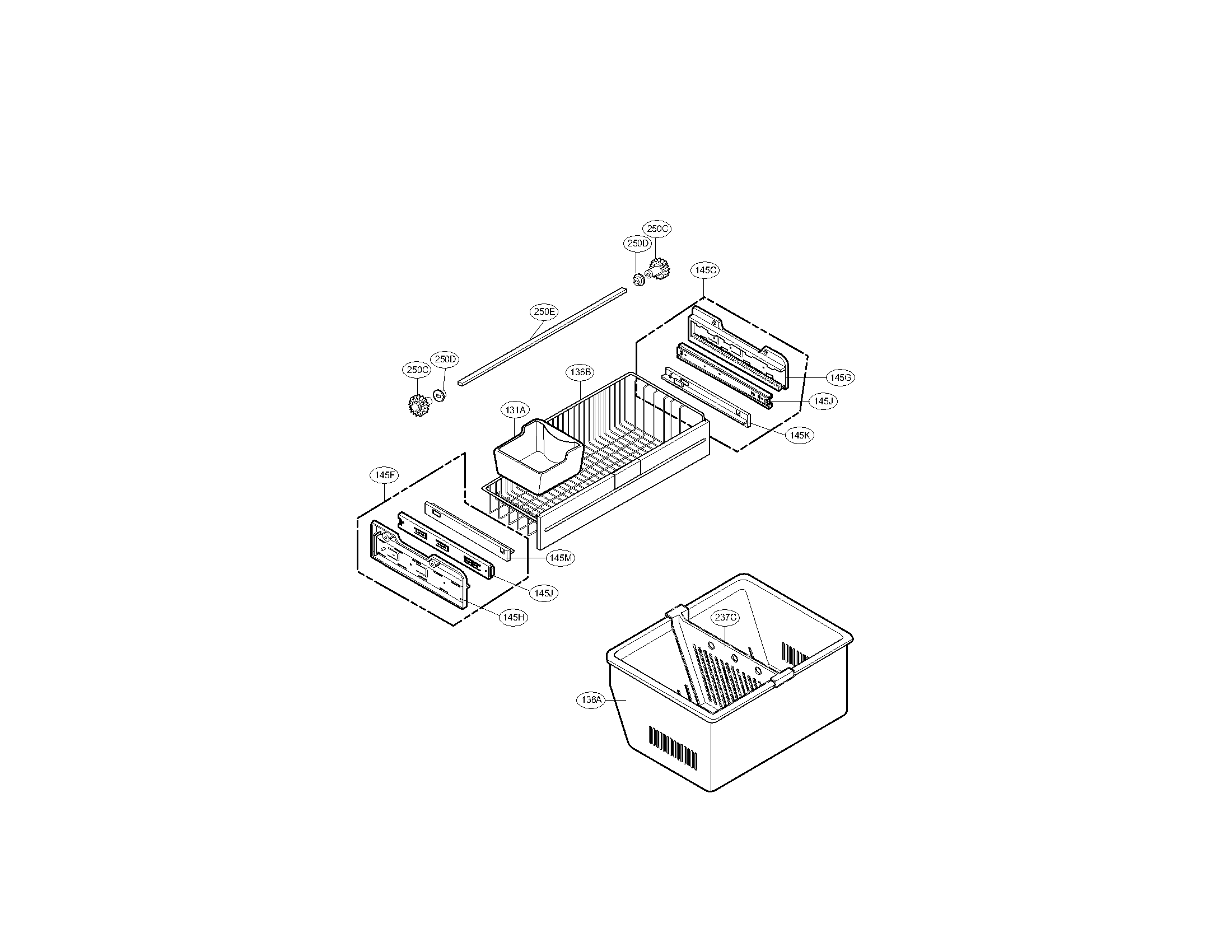

    Freezer parts diagram

    Refrigerator Guide Rail

    Part #4975JA1040B

    Replaced by #AEC73877602

    Info Icon
    Manufacturer substitution
    This part replaces 4975JA1040B. Substitute parts can look different from the original.
    In Stock
    $65.37
    8% OFF Phone Price : $71.37Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Filter Dryer for Kenmore Elite 79579752900 - Part 5851JA2007E

    Case parts diagram

    Refrigerator Filter Dryer

    In Stock
    $119.44
    9% OFF Phone Price : $131.44Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Tube Fitting for Kenmore Elite 79579752900 - Part 4932JA3002A

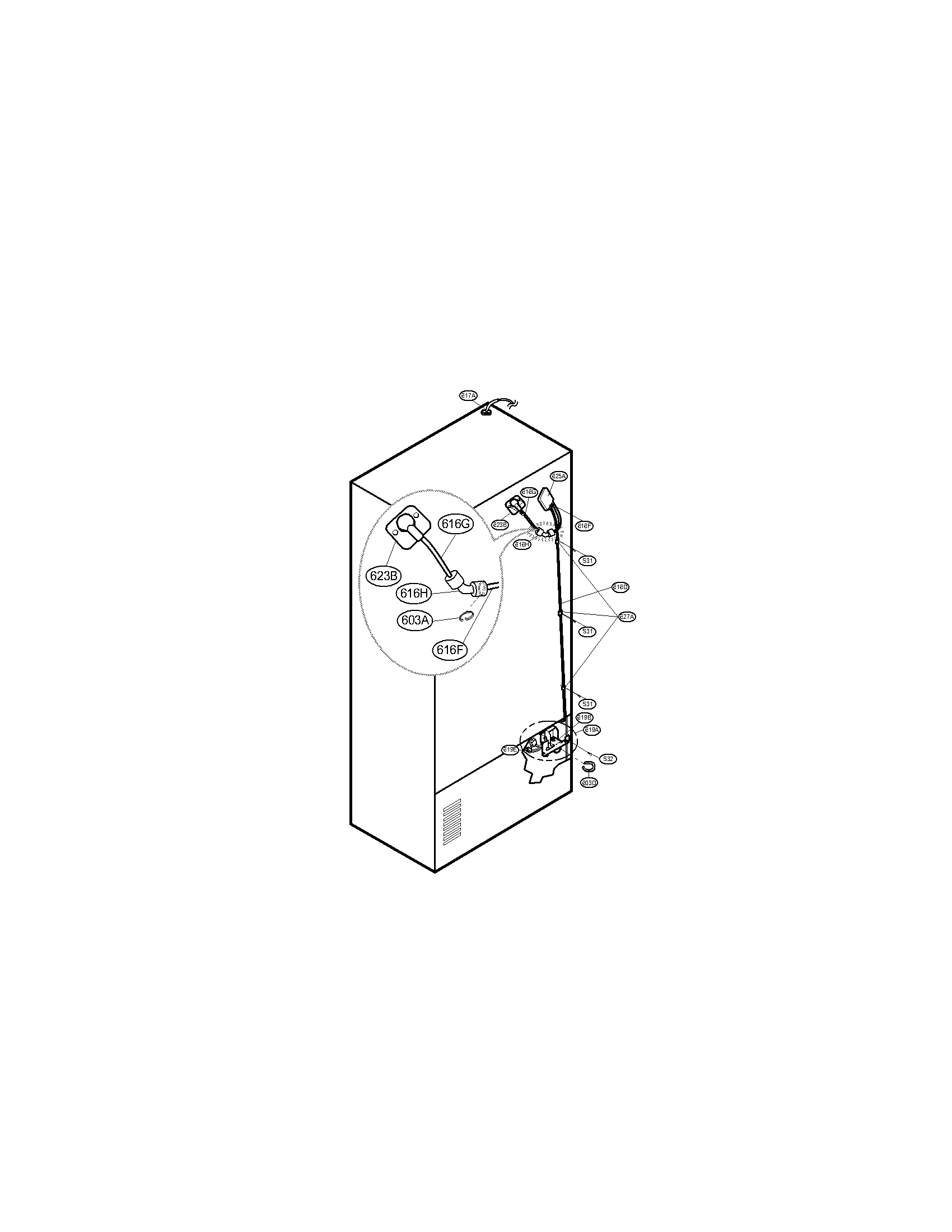

    Valve and water parts diagram

    Refrigerator Water Tube Fitting

    Part #MCD38280801

    Replaced by #4932JA3002A

    Info Icon
    Manufacturer substitution
    This part replaces MCD38280801. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.15
    19% OFF Phone Price : $32.15Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Fan Assembly for Kenmore Elite 79579752900 - Part 5901JQ1004A

    Case parts diagram

    Refrigerator Condenser Fan Blade

    Part #ADP36665701

    Replaced by #5901JQ1004A

    Info Icon
    Manufacturer substitution
    This part replaces ADP36665701. Substitute parts can look different from the original.
    In Stock
    $40.36
    Minus Item
    Qty
    Plus Item
  • Refrigerator Dispenser Lever Bracket for Kenmore Elite 79579752900 - Part 4930JA3043A

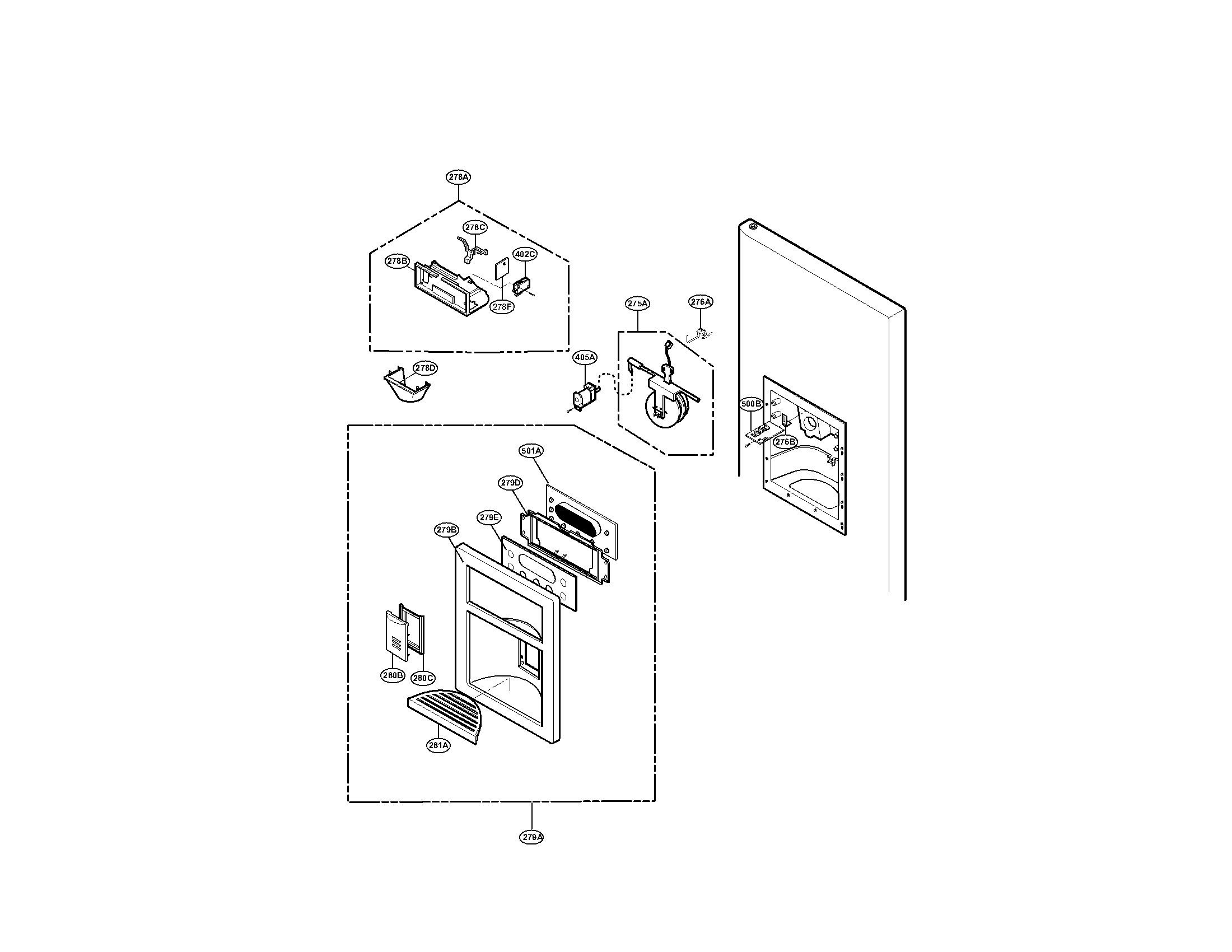

    Dispenser parts diagram

    Refrigerator Dispenser Lever Bracket

    Part #4930JA3043A
    This item is not returnable
    In Stock
    $11.33
    15% OFF Phone Price : $13.33Info Icon
    Minus Item
    Qty
    Plus Item

Kenmore Elite Refrigerator 79579752900 FAQs

Most Kenmore Elite refrigerators, including model 79579752900, typically last 10 to 15 years with normal household use. Regular maintenance (especially keeping airflow clear and cleaning dust buildup) helps you reach the high end of that range and reduces cooling-system strain.

Typical lifespan and what affects it

A refrigerator’s life is usually determined by how hard the sealed cooling system and fans have to work day to day.

  • Maintenance habits: cleaning condenser area, keeping door gaskets sealing, and avoiding overpacking vents
  • Environment: hot garages, tight built-ins, and poor ventilation shorten life
  • Usage patterns: frequent door openings and warm food loads increase run time
  • Water and ice system upkeep: clogged filters and valve issues can create nuisance failures
  • Major component condition: compressor, evaporator fan motor, and defrost system health

For model-specific care and cleaning guidance, follow the 79579752900 owner’s manual.

What “end of life” usually looks like

Many refrigerators do not fail all at once; they show repeat symptoms that become more frequent.

Symptom Common cause area What to check first
Warm fresh food section Airflow or evaporator fan Listen for fan noise; clear blocked vents
Frost buildup, poor cooling Defrost system Inspect for heavy frost behind rear freezer panel
Water under fridge Drain system Check/clear the drain path and tube
Lights stay off or on Door switch Test the door switch operation

If you’re troubleshooting airflow or noise issues, our how to fix your evaporator cooling fan guide is a good starting point.

Parts that commonly extend usable life

Replacing a worn, inexpensive part can prevent bigger problems (like overheating or icing).

  • Clean and maintain the condenser area; replace damaged airflow-related parts as needed
  • Address door-closing issues early (misalignment, obstructions, worn stops)
  • Fix water leaks promptly to prevent ice buildup and floor damage
  • Consider replacing a failed switch such as the refrigerator door switch 6600JB1010A if the interior lights or fan behavior is inconsistent

Why it matters

A well-maintained refrigerator holds safer food temperatures, runs more efficiently, and avoids the “domino effect” where restricted airflow or icing forces the compressor to run longer and wear faster.

Last updated: January 2026

Kenmore Elite refrigerator model 79579752900 is a bottom-mount style refrigerator; most units in this class are about 33 inches wide, 30 to 34 inches deep, and 67 to 70 inches tall, with roughly 22 to 24 cu. ft. total capacity. For the exact dimensions and capacity for your configuration, use the 79579752900 owner's manual.

How to confirm the exact size for your 79579752900

We recommend verifying the size two ways: by measuring the cabinet opening and by checking the published specs.

  • Measure width at the front of the opening (left to right)
  • Measure height from floor to the lowest overhead cabinet/trim point
  • Measure depth from the back wall to the front edge of the countertop
  • Add clearance for door swing and drawer pull-out
  • Include space for airflow behind and above the refrigerator

Typical size ranges (what most owners see)

These are common ranges for Kenmore bottom-mount refrigerators similar to model 79579752900.

Spec Typical range What affects it most
Width 32 to 34 in. Cabinet class (33-in. vs 36-in.)
Height 67 to 70 in. Hinges, leveling legs, top trim
Depth 30 to 34 in. Handles, door design, rear clearance
Capacity 22 to 24 cu. ft. Interior layout and insulation

Why it matters

Getting the correct size prevents installation headaches like doors hitting walls, drawers not opening fully, or poor cooling from blocked airflow. It also helps when ordering fit-sensitive parts such as a shelf assembly or door basket.

If you are checking size because of a display issue or control panel message, use Kenmore 795 model bottom freezer refrigerator error codes to identify what the refrigerator is reporting before you start repairs.

Last updated: January 2026

Common problems on the Kenmore Elite 79579752900 bottom-mount refrigerator include weak or no cooling, frost buildup, water leaks, dispenser or ice maker issues, and unusual fan or compressor noises. Most fixes start with airflow, defrost, and water-supply checks, then move to testing key parts.

Most common symptoms and what usually causes them

  • Not cooling or warm fridge/freezer: dirty condenser area, failed evaporator fan, or sealed-system/compressor trouble
  • Frost or ice buildup: door not sealing, frequent door openings, or a defrost system problem
  • Water under the fridge or in the freezer: clogged/iced drain path or a damaged drain tube
  • No ice or slow water dispensing: restricted filter, low house water pressure, or a failing inlet valve
  • Clicking, buzzing, or rattling: fan blade hitting ice, worn fan motor, or compressor start issues

Quick checks we recommend before replacing parts

  1. Set temps to typical targets: 37°F fresh food and 0°F freezer.
  2. Make sure vents inside are not blocked by food packages.
  3. Listen for the evaporator fan when the doors are closed; if airflow is weak, inspect the fan area.
  4. Check door closure and gasket contact all the way around.
  5. If you see water, inspect the drain opening and drain tube for ice or debris.

Parts that commonly solve these problems on model 79579752900

Symptom Part to suspect Example part for this model
Warm temps, poor airflow Evaporator fan motor Refrigerator evaporator fan motor 4681JB1027C
Frost/ice on evaporator Defrost heater Lg refrigerator defrost heater 5300JK1005D
No ice/slow water Water inlet valve Refrigerator water inlet valve MJX41178908
Lights not responding to door Door switch Refrigerator door switch 6600JB1010A
Puddles/leaks Drain path components Refrigerator drain tube 5251JA3003D

Why it matters

Cooling, defrost, and water systems are connected. A failed evaporator fan can mimic a sealed-system problem, and a clogged drain can create ice that interferes with airflow and causes temperature swings. Catching the root cause early helps prevent food spoilage and repeat failures.

Helpful references for this model

Last updated: January 2026
