Kenmore Elite 66513193K901 undercounter dishwasher Parts

To identify your Kenmore Elite dishwasher model, open the door and look for the rating label on the inside edge of the tub, typically along the left side. That label lists the model number and serial number for your exact unit (such as 66513193K901). See the 66513193K901 owner's manual for label location details and model-specific information.

Where to look on the dishwasher

Check these common spots first (with the door open):

• Inside the tub opening on the left side (most common)
• Along the top edge of the tub opening
• Along the right side of the tub opening
• On the frame behind the door, near the hinges

What to write down (and why)

Record both numbers exactly as shown:

• Model number: identifies the correct parts list and diagrams
• Serial number: helps match production series and revisions
• Brand line: confirms Kenmore Elite vs. other Kenmore models

Quick guide: model number vs. serial number

Item on label	What it’s used for	Example format
Model number	Matching parts and manuals	66513193K901
Serial number	Manufacturing date/series reference	Letters and numbers

Why it matters

Using the exact model number prevents ordering the wrong dishwasher drain hose, control panel, or pump assembly. Even small model-number differences can change fit, wiring, and mounting.

Last updated: January 2026

Common Kenmore dishwasher problems include not starting, not draining, poor cleaning, and leaks. On Kenmore Elite model 66513193K901, many “won’t run” complaints trace back to the door not latching, a paused cycle, or a tripped breaker or blown fuse; the troubleshooting steps in the 66513193K901 owner's manual cover these checks.

Most common symptoms we see

• Dishwasher does not run or stops mid-cycle
• Water left in the bottom (drain problem)
• Dishes come out dirty (spray or filtration problem)
• Detergent remains in the dispenser
• Leaks or water under the unit
• Door won’t stay balanced or feels heavy

Quick checks you can do first (no parts)

• Confirm the door is fully closed and latched; if the Start/Resume light is blinking, close the door and press Start/Resume.
• Verify a cycle is selected and the cycle has time to complete (pauses during a cycle can be normal).
• Check house power: reset the breaker, then check the dishwasher fuse if your setup uses one.
• If detergent is left behind, make sure large items are not blocking the dispenser door.
• For standing water, check the sink/disposer connection and look for a kinked drain hose.

Common parts that match these problems

If the basic checks do not fix it, these model-compatible parts are frequent culprits:

Symptom	Often involved part	Example from this model

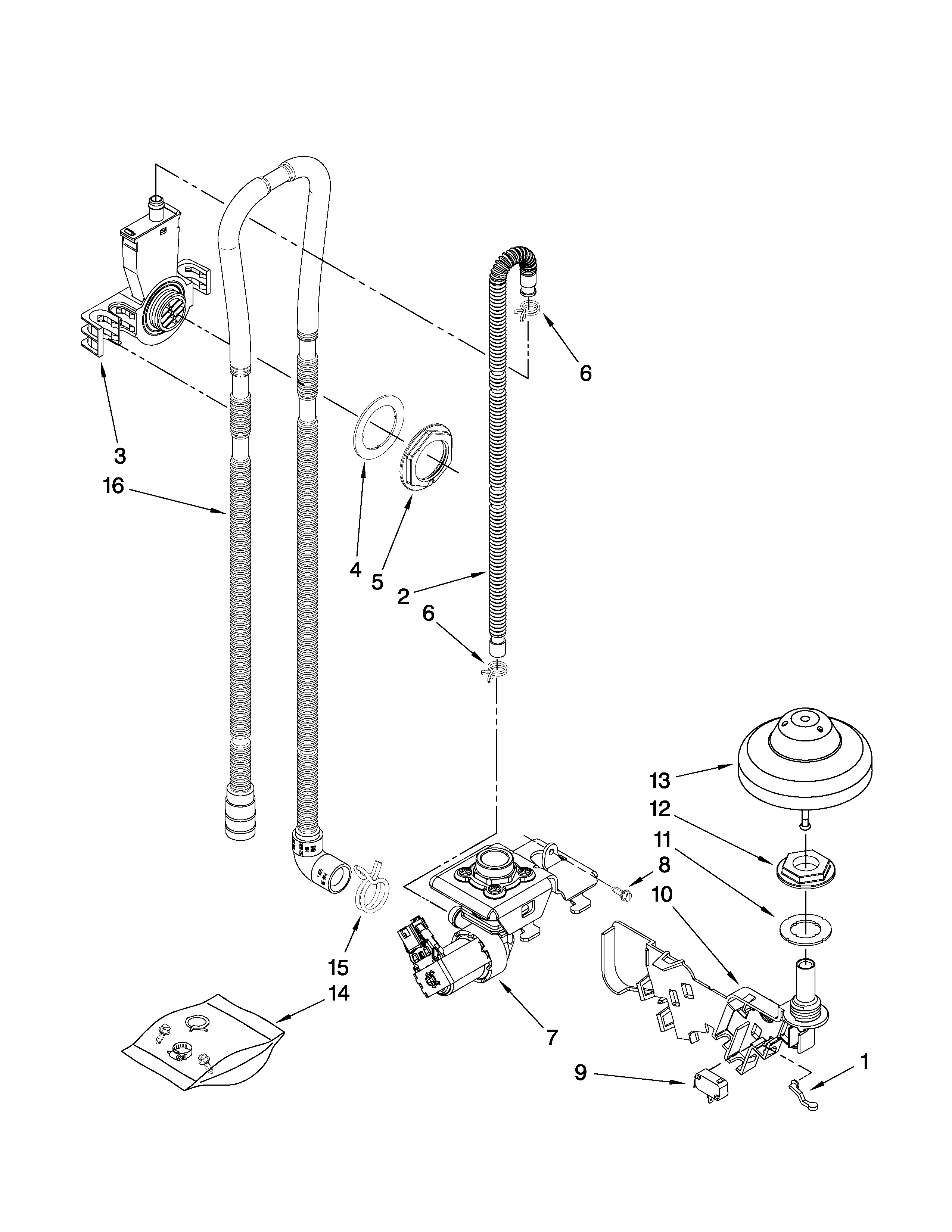

Won’t drain / water left in tub	Drain pump or drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A

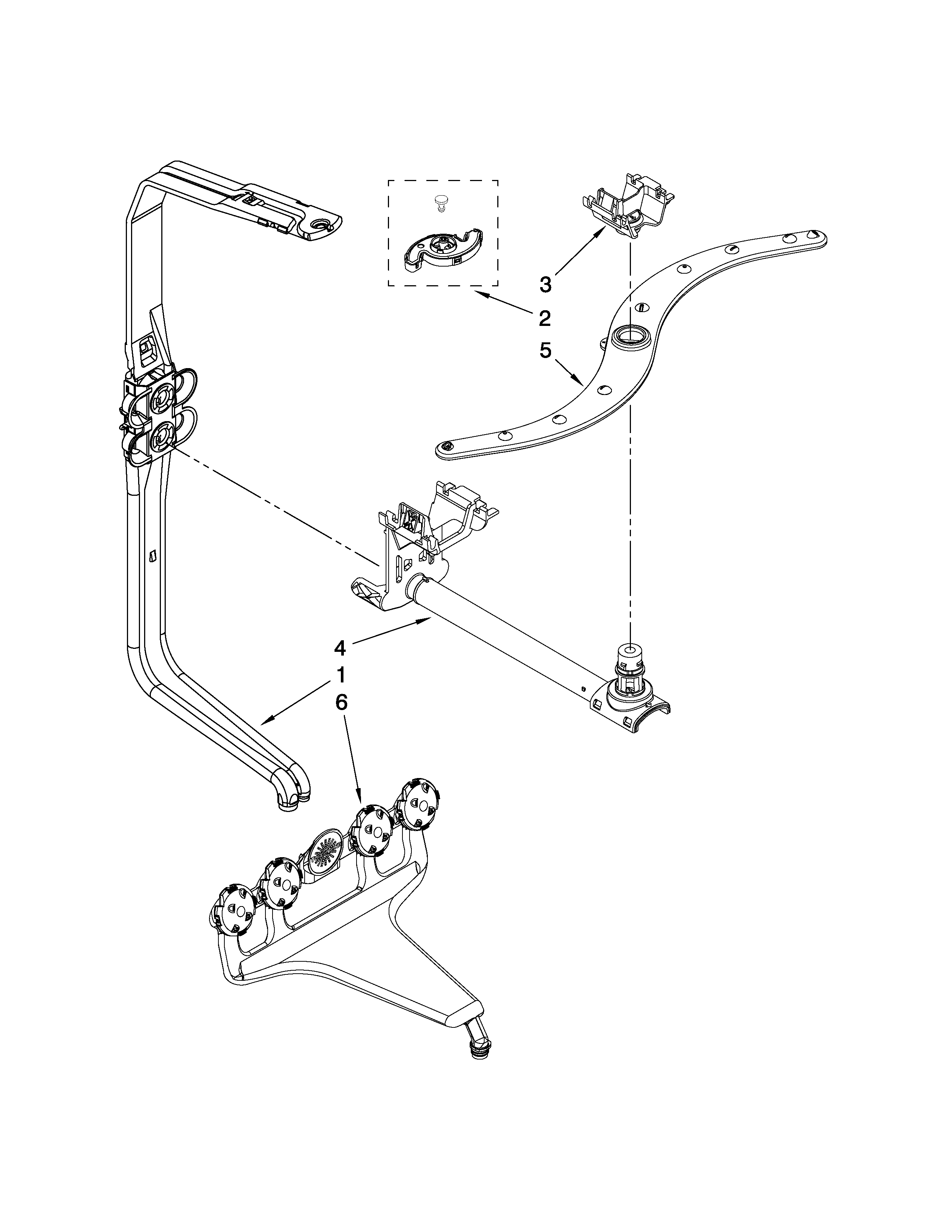

Poor cleaning	Spray arm or filter	Dishwasher spray arm WPW10491331, dishwasher filter W10872845
Dead/no power	Fuse	Fuse W10258275

Why it matters

Catching the root cause early helps prevent repeat cycle failures, water damage from leaks, and premature wear on the pump and motor assembly. It also keeps wash performance consistent, especially when filtration or spray coverage is reduced.

Last updated: January 2026

On a Kenmore Elite dishwasher, an F4E1 code points to a wash system problem, most commonly a wash motor or circulation issue that prevents proper water movement through the spray arms. For model 66513193K901, start with a reset and basic checks, then test the wash motor circuit if the code returns (see the 66513193K901 owner’s manual).

What to do first (quick checks)

• Turn off power at the breaker for 1 minute, then restore power and try a cycle.
• Cancel and drain the dishwasher; confirm it drains fully.
• Check that the spray arms spin freely and are not blocked by tall dishes.
• Clean the filter area; restricted flow can trigger wash performance faults.
• Verify the unit is filling; low water level can mimic a wash motor problem.

Likely causes and what they look like

What’s happening	Common cause	What you’ll notice
Little or no spraying	Wash motor not running	Dishes stay dirty, quiet wash sound
Weak spray	Clogged filter or spray arm	Grit, poor cleaning, intermittent spray
Stops mid-cycle with code	Electrical interruption	Code returns after reset
Drains but won’t wash	Motor or control issue	Fills, then little action

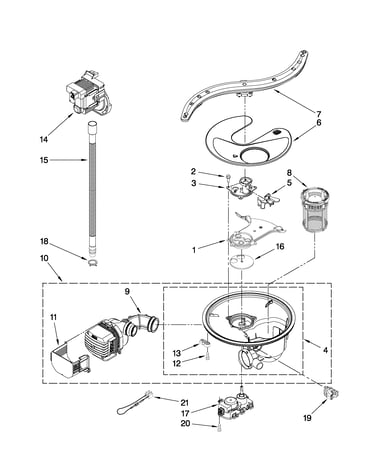

Parts that commonly relate to wash and circulation

If you confirm the dishwasher fills but does not circulate water, these model-matched parts are often involved:

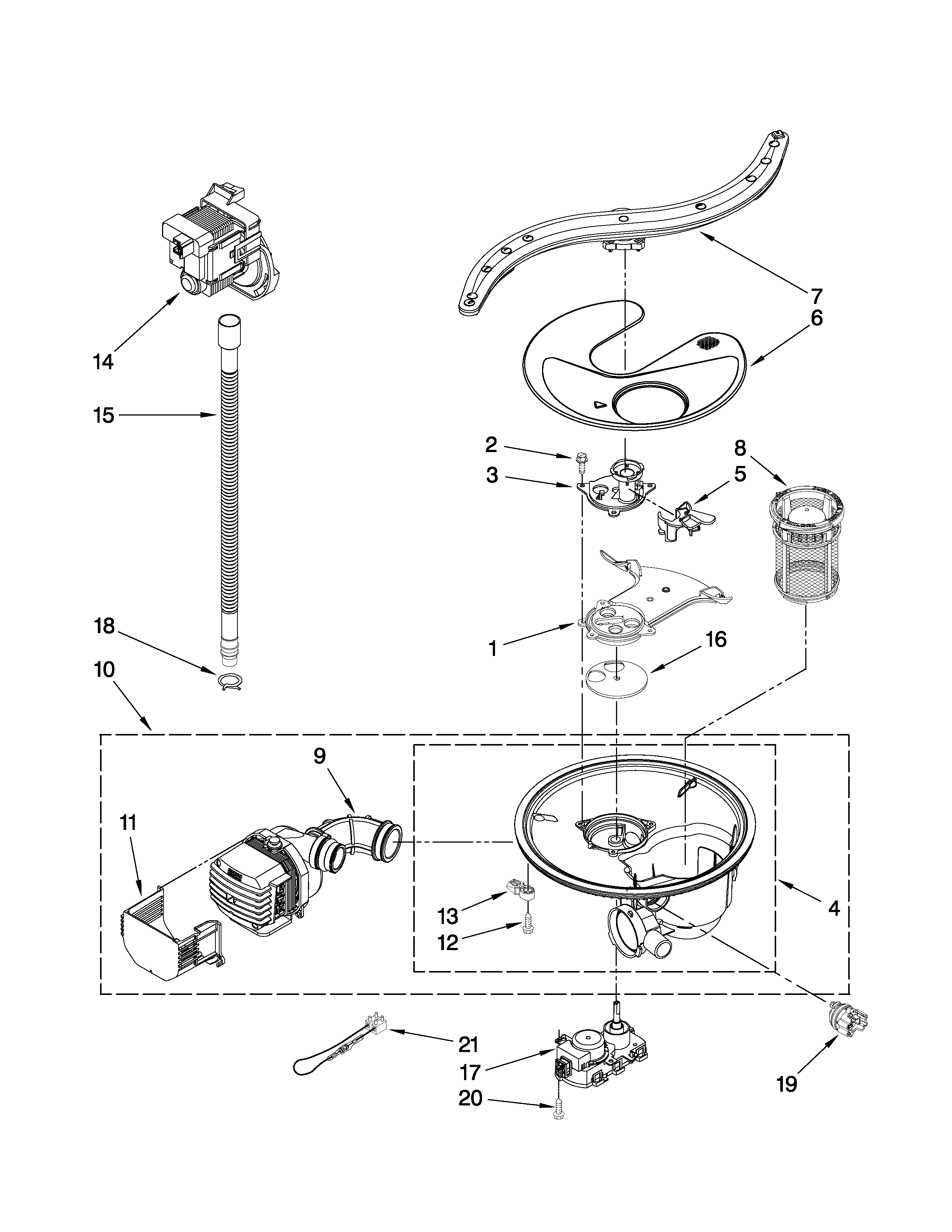

• Dishwasher pump and motor assembly WPW10056309 (main circulation motor assembly)
• Dishwasher turbidity sensor WPW10705575 (soil sensing that can affect cycle behavior)
• Dishwasher filter W10872845 (restricted filtration can reduce flow)

Why it matters

The dishwasher can fill and drain normally but still fail to clean if the wash motor cannot circulate water. Addressing the root cause prevents repeat error codes and protects the pump system from overheating.

Last updated: January 2026
