Frigidaire
Side-By-Side Refrigerator

Model # FRS22ZRGD3 Official Frigidaire refrigerator - p5995319364

Here are the diagrams and repair parts for Official Frigidaire FRS22ZRGD3 refrigerator - p5995319364, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

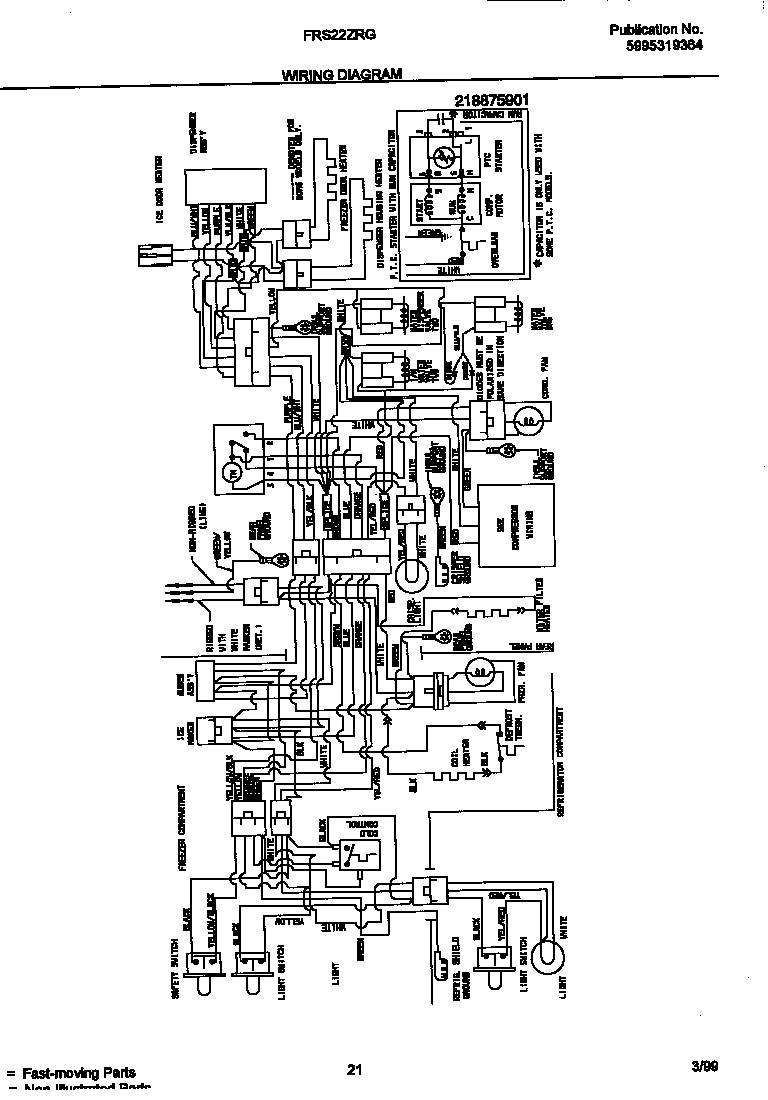

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 382 parts  |
Ice Maker Mold 5303320545
#17

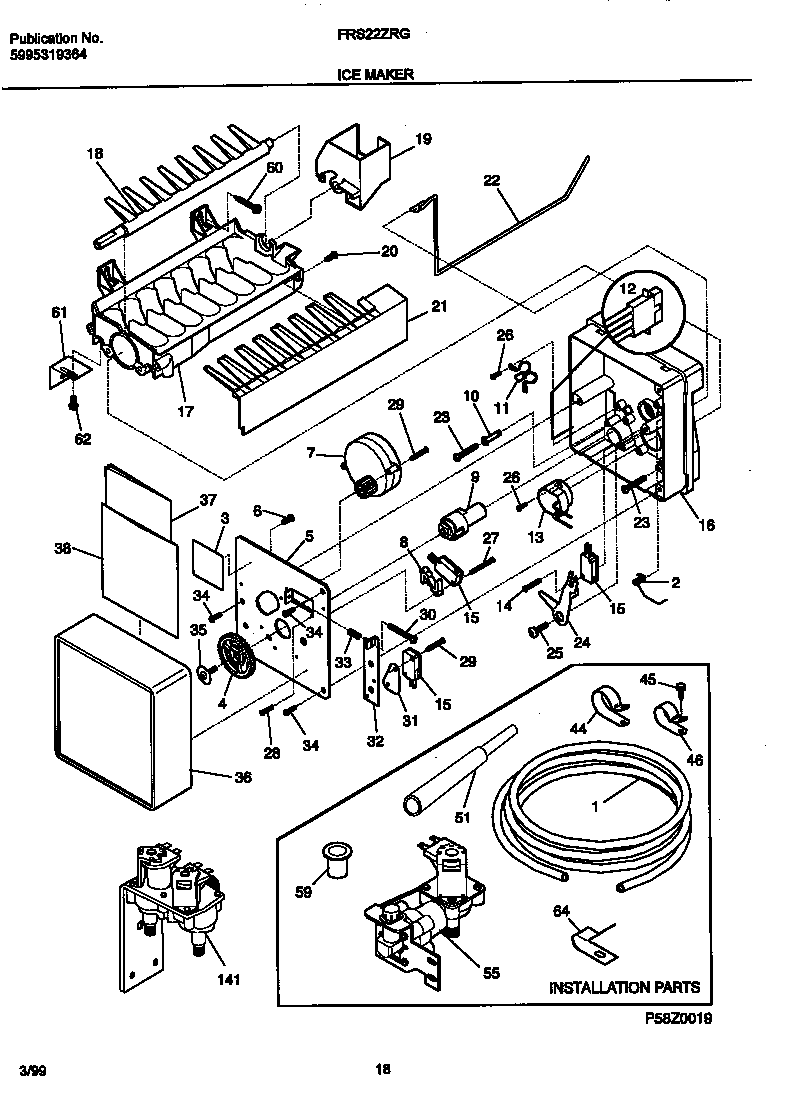

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$145.73 |
5% OFF Phone Price : $153.49
In Stock
Drier-r12 218541000
#4

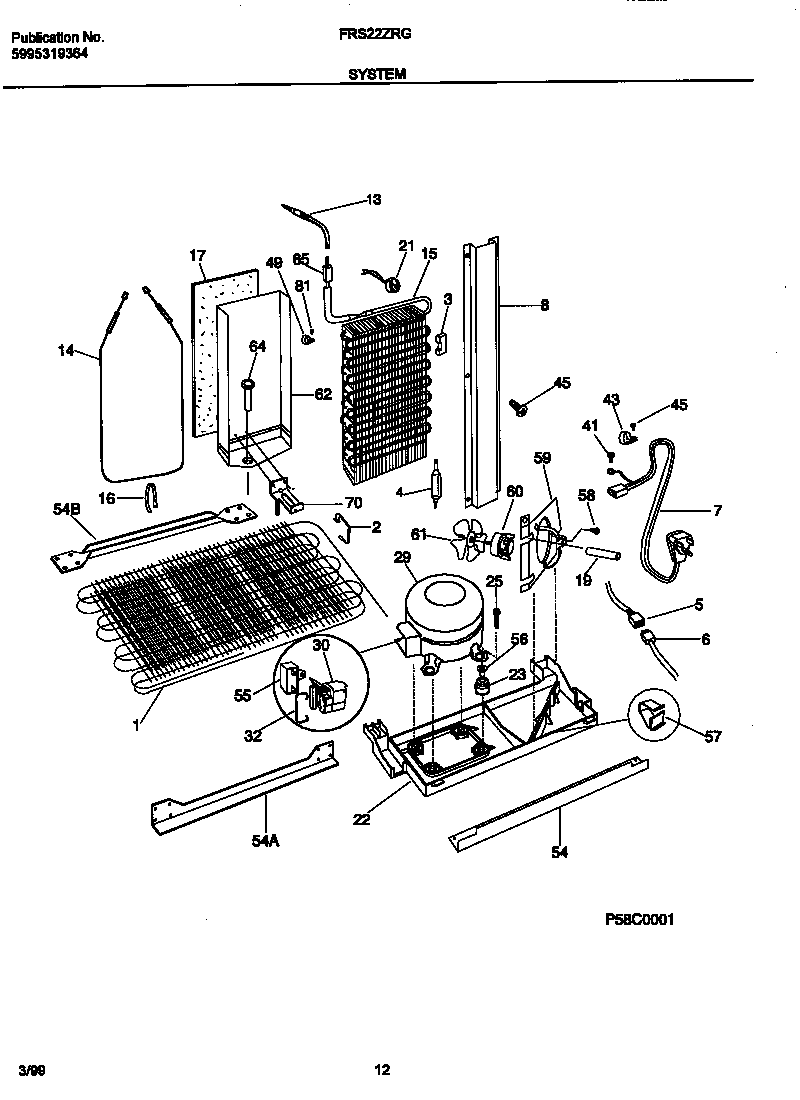

System diagram

Drier-r12

Part #218541000

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218541000. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.33 |
16% OFF Phone Price : $17.07
In Stock
Frigidaire Puresource Plus Refrigerator Water Filter (replaces Wf1cb) WFCB
#137

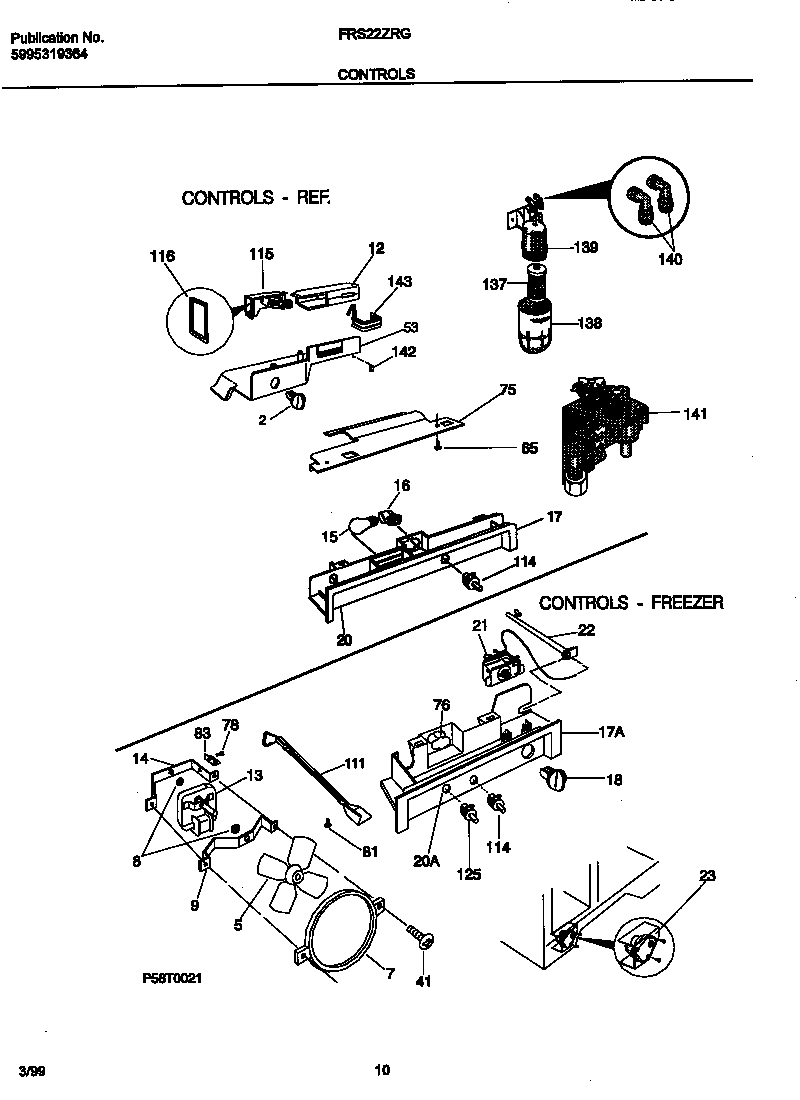

Controls diagram

Frigidaire puresource plus refrigerator water filter (replaces wf1cb)

Part #WFCB

BEST SELLER

Get free shipping with Automatic Reorder

$34.98
In Stock
Refrigerator Bucket 218842802
#21

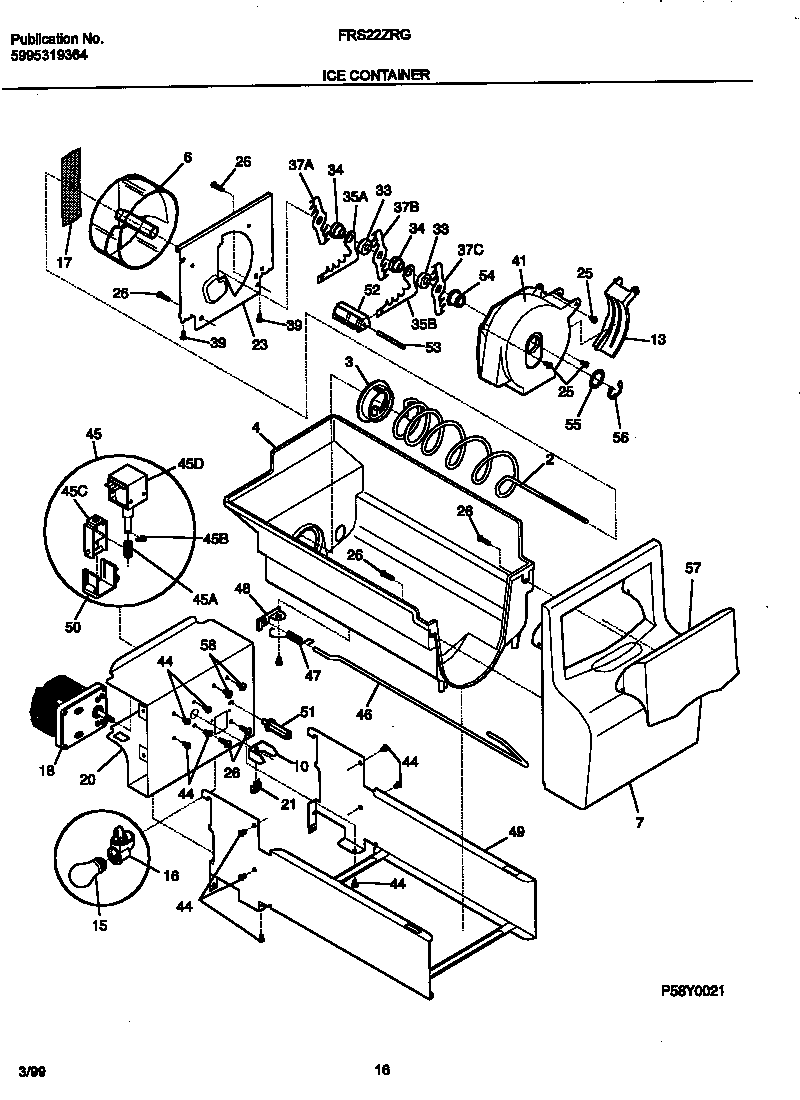

Ice container diagram

Refrigerator bucket

Part #218842802

Replaced by #241860803

?
Manufacturer substitution
This part replaces 218842802. Substitute parts can look different from the original.
BEST SELLER
$162.71 |
$7.26 OFF Phone Price : $169.97
In Stock
Crosley Refrigerator Defrost Timer 215846602
#23

Controls diagram

Crosley refrigerator defrost timer

Part #215846602

BEST SELLER
$29.92 |
15% OFF Phone Price : $35.05
In Stock
Refrigerator Solenoid 5304404333
#45

Ice container diagram

Refrigerator solenoid

Part #5304404333

Replaced by #241675704

?
Manufacturer substitution
This part replaces 5304404333. Substitute parts can look different from the original.
BEST SELLER
$75.50 |
7% OFF Phone Price : $81.50
In Stock
Compressor-a 218374515
#29

System diagram

Compressor-a

Part #218374515

Replaced by #5304475098

?
Manufacturer substitution
This part replaces 218374515. Substitute parts can look different from the original.
BEST SELLER
$374.70 |
$12.00 OFF Phone Price : $386.70
In Stock
Drive Bar 5304404337
#10

Ice container diagram

Drive bar

Part #5304404337

Replaced by #241726501

?
Manufacturer substitution
This part replaces 5304404337. Substitute parts can look different from the original.
BEST SELLER
$49.31 |
11% OFF Phone Price : $55.31
In Stock
Refrigerator Thermostat 5316269001
#21

System diagram

Refrigerator thermostat

Part #5316269001

Replaced by #5303917954

?
Manufacturer substitution
This part replaces 5316269001. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
