Sears 11077409230 gas dryer Parts
Here are the diagrams and repair parts for Sears 11077409230 gas dryer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

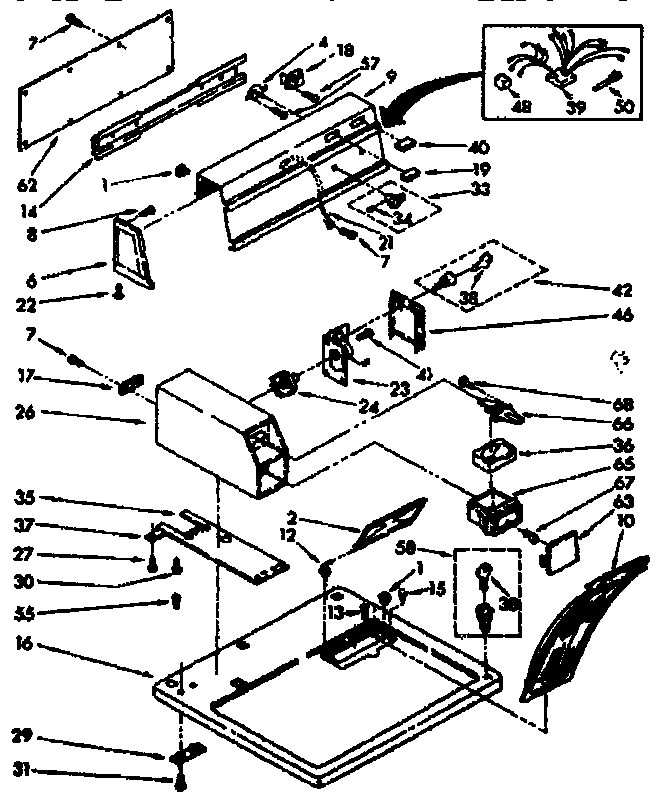

SELECT DIAGRAM
Browse Parts for 11077409230 Gas Dryer

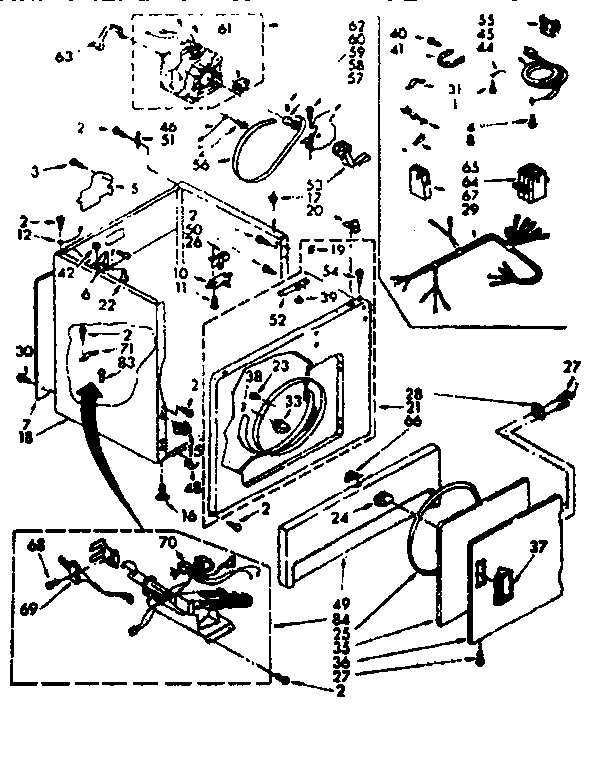

Cabinet diagram
Drum Belt
Part #349533Replaced by #341241
Manufacturer substitutionThis part replaces 349533. Substitute parts can look different from the original.In Stock$10.0217% OFF Phone Price : $12.02
Qty
Cabinet diagram
Igniter
Part #686590Replaced by #279311
Manufacturer substitutionThis part replaces 686590. Substitute parts can look different from the original.In Stock$28.2818% OFF Phone Price : $34.28QtyCabinet diagram
Dryer Idler Pulley
Part #691366Replaced by #WP691366
Manufacturer substitutionThis part replaces 691366. Substitute parts can look different from the original.In Stock$14.6812% OFF Phone Price : $16.68QtyCabinet diagram
Strike
Part #693717Replaced by #279570
Manufacturer substitutionThis part replaces 693717. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7617% OFF Phone Price : $5.76QtyCabinet diagram
Catch
Part #690081Replaced by #279570
Manufacturer substitutionThis part replaces 690081. Substitute parts can look different from the original.This item is not returnableIn Stock$4.7617% OFF Phone Price : $5.76QtyCabinet diagram
Dryer Door Switch
Part #347207Replaced by #W10820036
Manufacturer substitutionThis part replaces 347207. Substitute parts can look different from the original.In Stock$24.2520% OFF Phone Price : $30.25QtyCabinet diagram
Lever
Part #295998Replaced by #WP691581
Manufacturer substitutionThis part replaces 295998. Substitute parts can look different from the original.This item is not returnableIn Stock$7.7211% OFF Phone Price : $8.72QtyTap Screw
Part #90767Replaced by #WP90767
Manufacturer substitutionThis part replaces 90767. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88Qty#NI
All parts diagram
Danby Appliance Touch-up Paint, 0.6-oz (white)
In Stock$8.4611% OFF Phone Price : $9.46QtyCabinet diagram
