What engine is on a Craftsman edger?

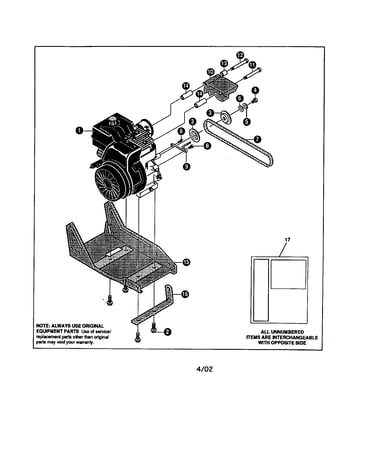

For Craftsman lawn edger model 536797571, the engine is a 3.5 HP, 156 cc (9.52 cu. in.) gas engine. Our 536797571 owner's manual lists these engine specifications along with fuel capacity, oil type, and spark plug details.
Engine specs for model 536797571
Here are the key specifications we use for parts matching and tune-ups:
- Horsepower: 3.5 HP
- Displacement: 156 cc (9.52 cu. in.)
- Gasoline capacity: 2.0 qt (regular unleaded)
- Engine oil: SAE 30W, 20 oz
- Spark plug: Champion CJ-8 (or equivalent), gap 0.030 in.
Quick reference table
| Spec | What to use |
|---|---|
| Fuel | Regular unleaded gasoline |
| Oil | SAE 30W |
| Spark plug gap | 0.030 in. |
| Displacement | 156 cc |
Why it matters
Knowing the exact engine specs helps us point you to the right maintenance items (spark plug, oil) and prevents hard-starting, poor edging performance, and premature wear.
Safety note before any engine or blade work
Before you service the edger, we follow these basics from the manual:
- Stop the engine and wait for all moving parts to stop
- Disconnect the spark plug wire before adjustments or repairs
- Never adjust the unit while the engine is running (unless the manufacturer specifically says to)
Last updated: February 2026
Where can I buy Craftsman replacement parts?
For Craftsman lawn edger model 536797571, you can buy replacement parts from Sears PartsDirect and other major retailers that carry Craftsman parts. The most reliable way to get the right fit is to match parts to your exact model number and confirm the part callouts in the 536797571 owner's manual.
Best places to buy Craftsman parts
- Sears PartsDirect: model-based diagrams and part lookups for the edger
- Craftsman retailers (in-store and online): common maintenance items and hardware
- Large online marketplaces: broad selection, but verify model fit carefully
- Local small-engine and lawn equipment shops: helpful for cross-referencing and fast pickup
How to make sure you get the correct part
Use this checklist before ordering:
- Confirm the model number on the frame decal (behind the engine) matches 536797571
- Use the exploded-view diagrams and part lists in the manual to identify the exact item
- Match the part ID when available (best for avoiding look-alikes)
- Replace worn fasteners with the correct type (lock nuts, spacers, bolts) to keep the blade area secure
- For drive issues, verify belt routing and size before ordering a replacement belt
Common parts customers replace on this model
| What you’re fixing | What to check first | Example part for this model |
|---|---|---|
| Blade will not drive or slips | Belt condition, glazing, cracking | V-belt 32668MA |
| Loose adjustments or vibration | Missing/stripped hardware | Lock nut 41529MA |

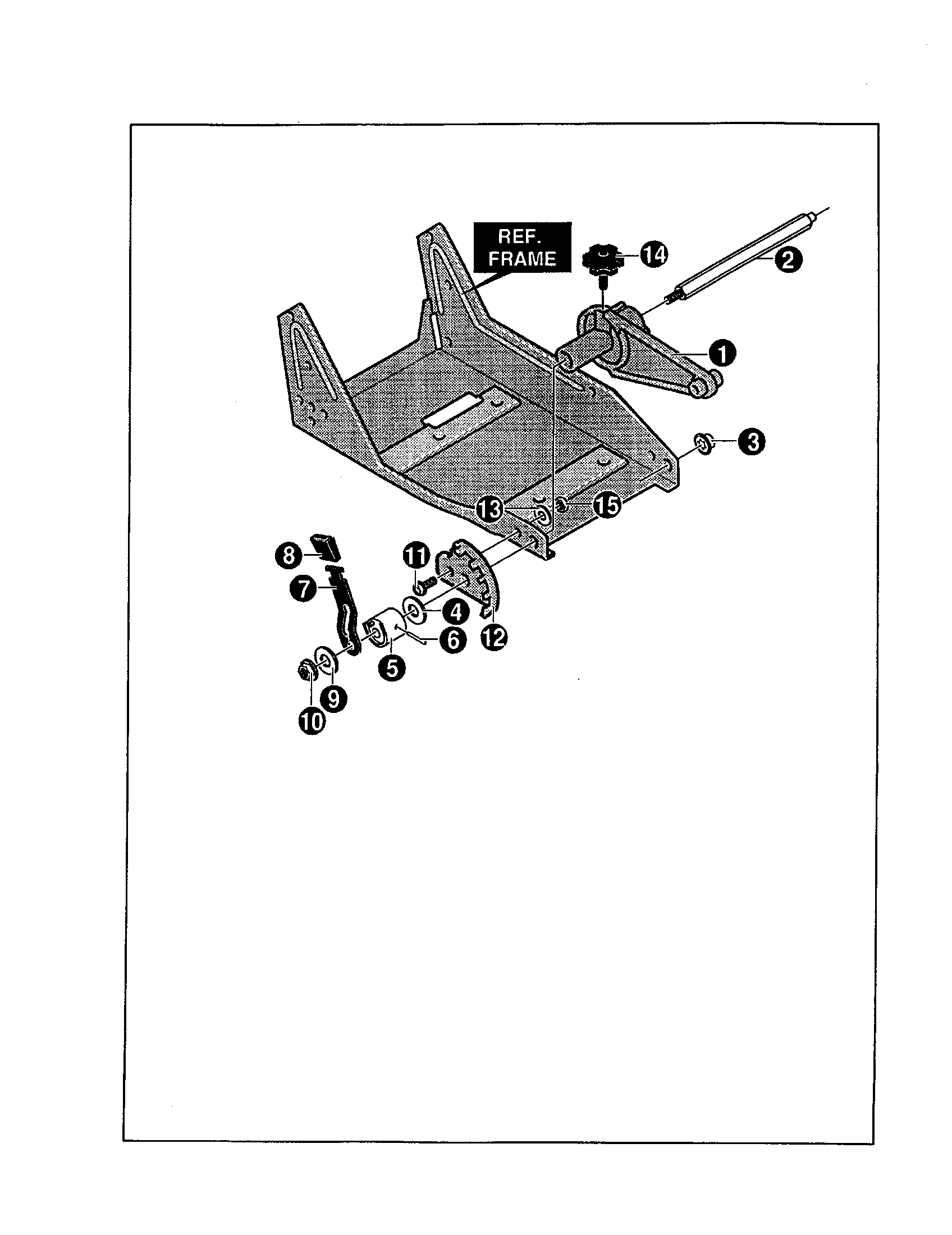

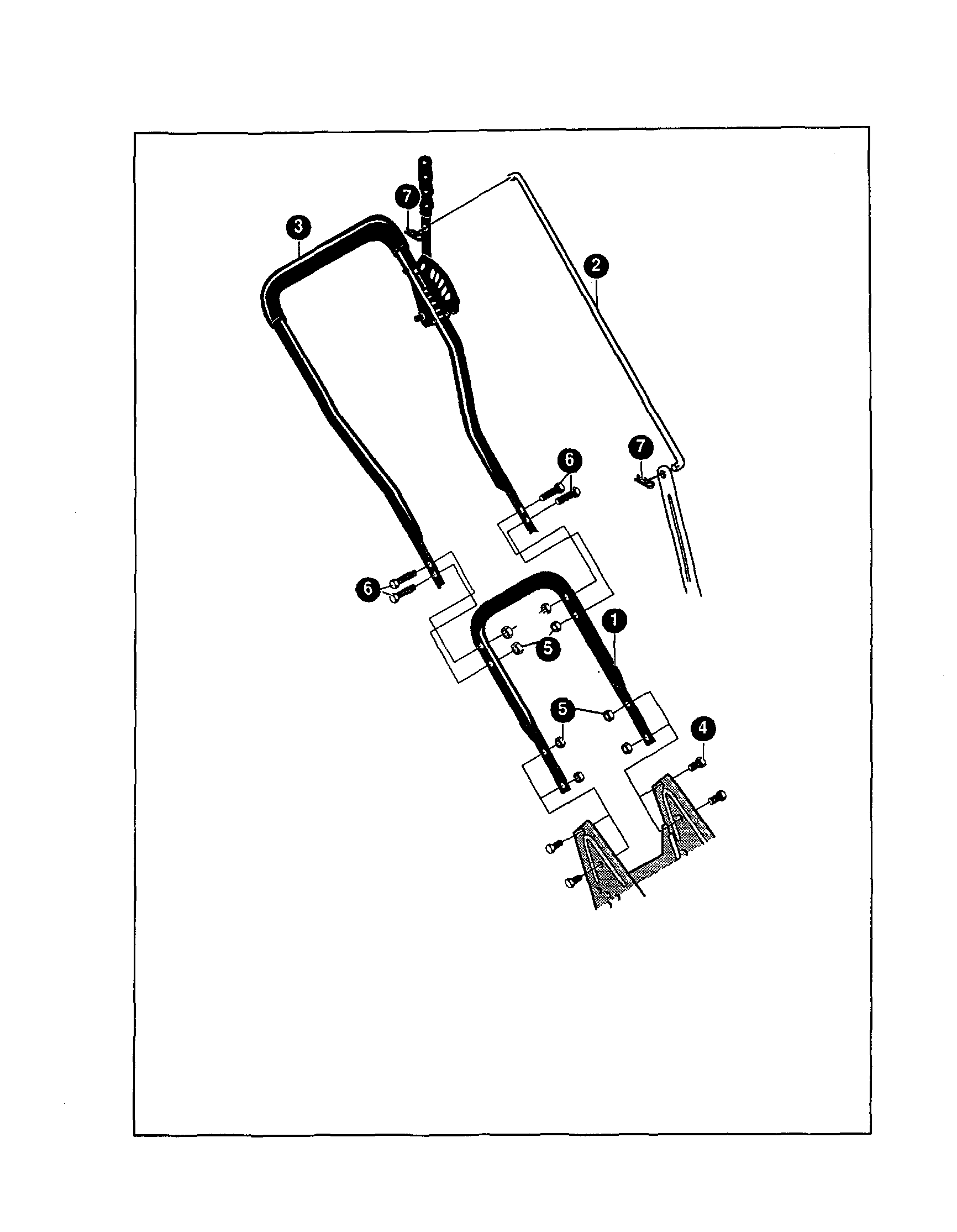

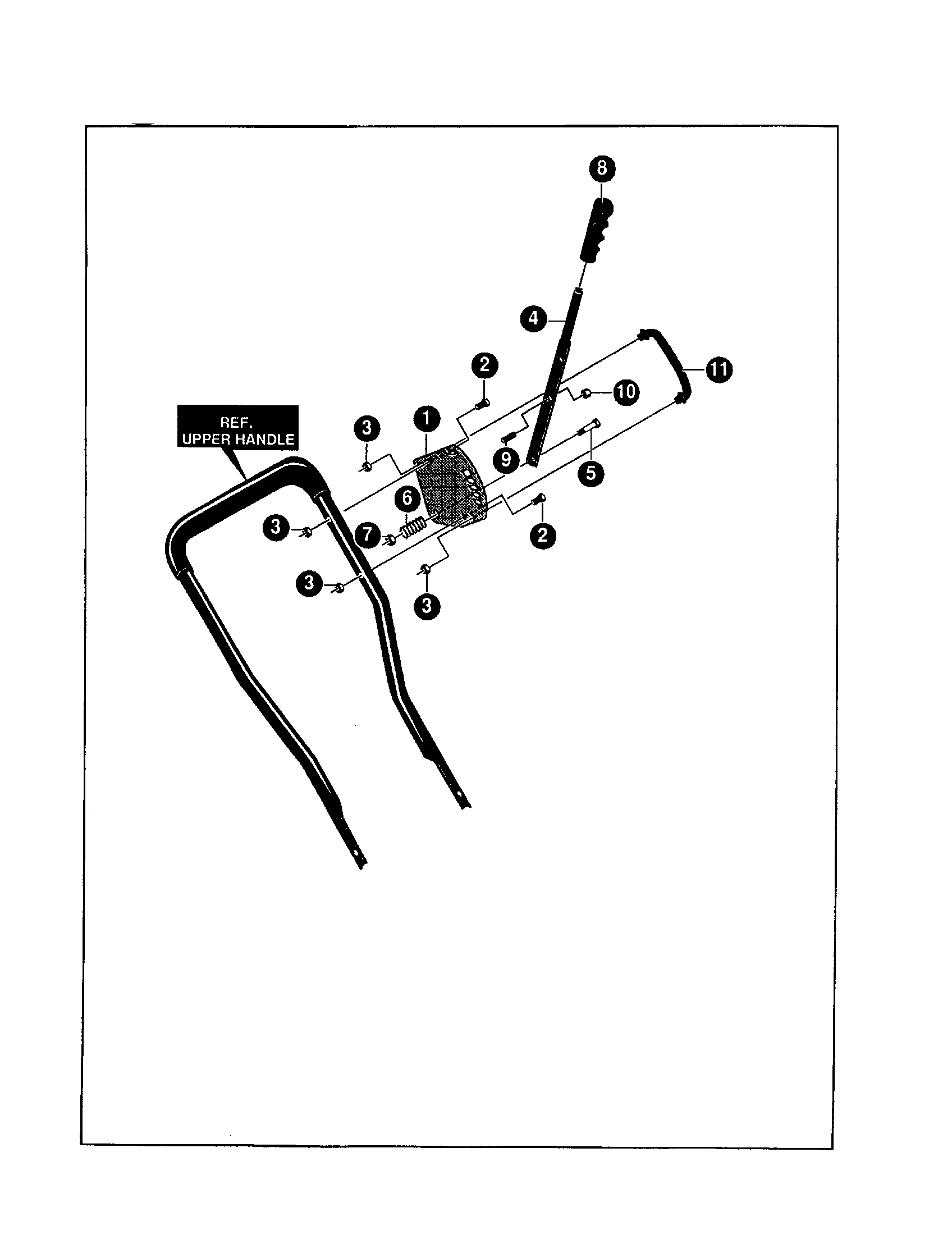

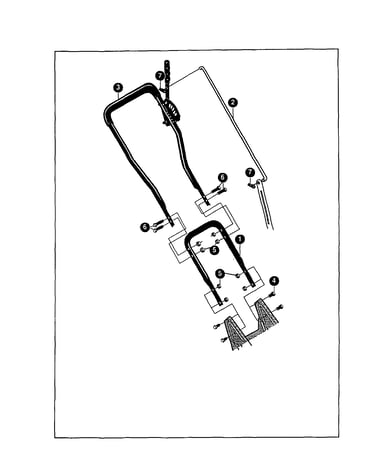

| Handle or depth setting won’t hold | Worn knob or fastener | Knob kit 1501260MA |
Why it matters
Ordering by model number prevents returns and downtime. It also helps you keep the edger safe to operate, especially around the blade and drive system.
Safety reminder before repairs
The manual directs you to stop the engine and disconnect the spark plug wire before unclogging the blade or making repairs or adjustments. Follow those steps any time you service the belt, blade hardware, or depth control.
Last updated: February 2026
What is the average lifespan of 536797571?
A Craftsman 536797571 3.5 HP edger typically lasts 10 to 15 years with normal homeowner use and on-time maintenance (oil changes, belt checks, and blade inspections). Consistent upkeep matters more than hours alone for overall engine and drive life.
What most affects lifespan on the 536797571
- Engine oil care: change oil after the first 2 hours, then about every 25 hours of use (more often in dusty conditions).
- Drive system condition: inspect belt tension and wear regularly.
- Blade wear and hardware tightness: check blade condition and tighten nuts and bolts to prevent vibration damage.
- Lubrication: oil pivot points and wheel axles on schedule.
- Storage habits: clean the unit and store it dry to reduce corrosion.
For the exact maintenance intervals and checklist for this model, follow the owner's manual.
Maintenance schedule snapshot (typical for this model)
| Task | When to do it | Why it matters |
|---|---|---|
| Change engine oil | After first 2 hours; then every 25 hours | Prevents premature engine wear |
| Check drive belt | Regularly (per checklist) | Avoids slipping and loss of drive |
| Check blade wear/damage | Regularly (per checklist) | Keeps edging clean; reduces strain |
| Tighten screws and nuts | Regularly (per checklist) | Reduces vibration-related failures |
Signs your edger is nearing end-of-life (or needs major service)
- Hard starting even with fresh fuel and a good spark plug
- Noticeable loss of power under load
- Excessive vibration or repeated loosening of fasteners
- Belt slipping, burning smell, or inconsistent wheel/blade drive
- Oil consumption or persistent oil leaks
Why it matters
A well-maintained edger holds its cutting depth, tracks straighter, and avoids expensive secondary damage (like worn pulleys, bent hardware, or accelerated engine wear). Replacing wear items early often adds years of reliable service.
Last updated: March 2026
