Whirlpool GBS277PRQ01 electric built-in oven Parts
Here are the diagrams and repair parts for Whirlpool GBS277PRQ01 electric built-in oven, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

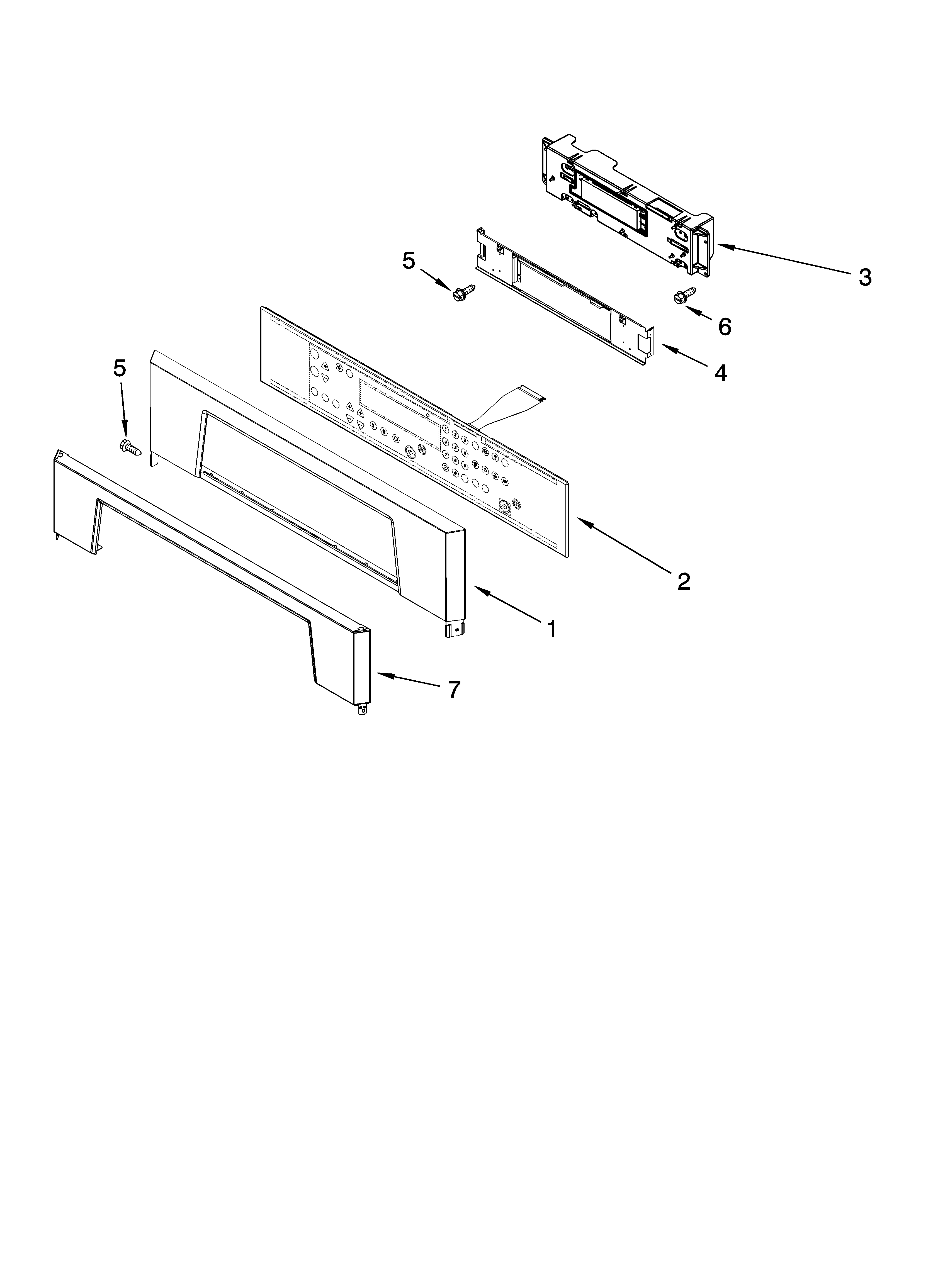

SELECT DIAGRAM
Browse Parts for GBS277PRQ01 Wall Ovens

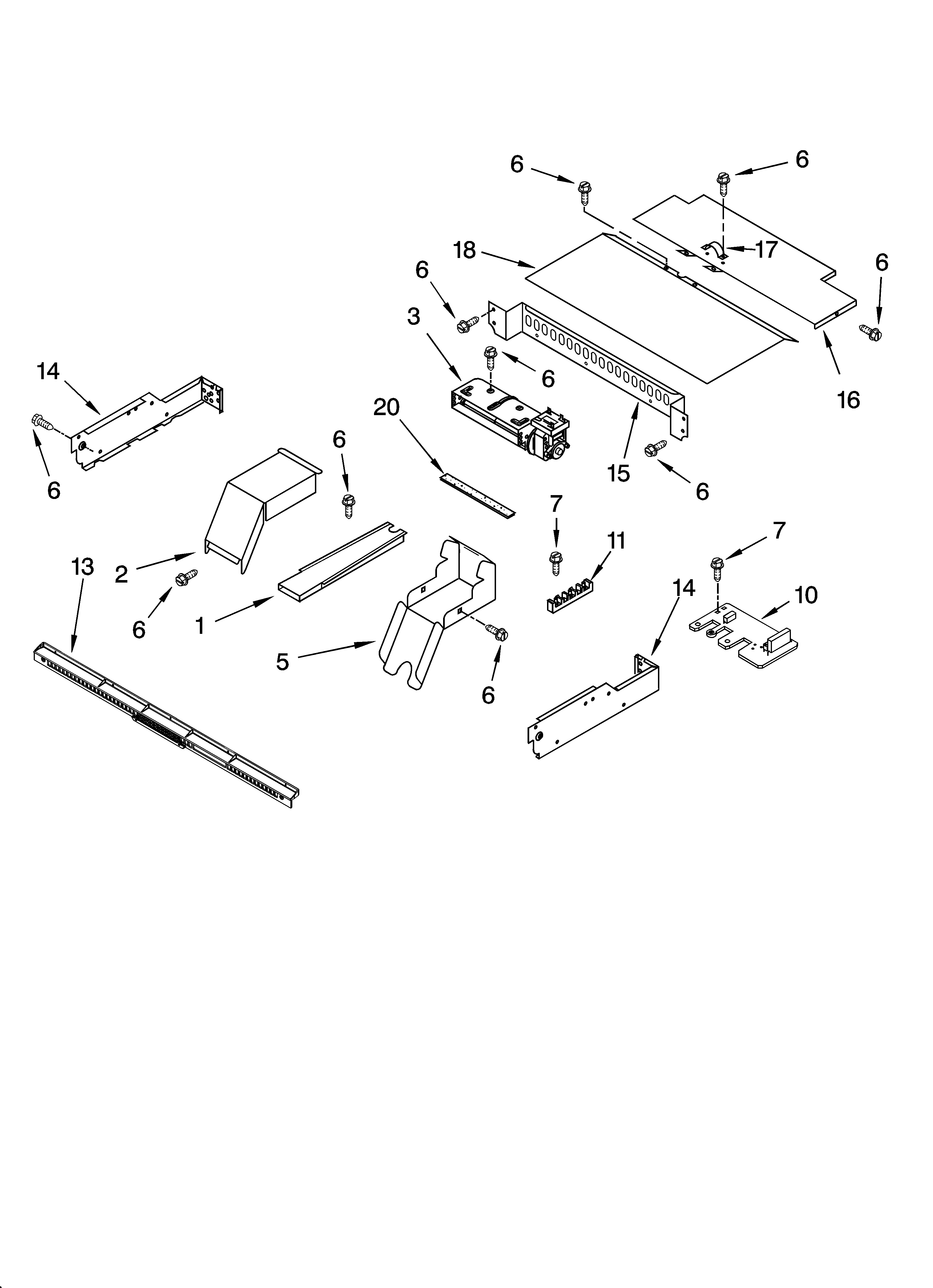

Top venting parts, optional parts diagram
Wire Tie
Part #4454835Replaced by #WPW10339879
Manufacturer substitutionThis part replaces 4454835. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty

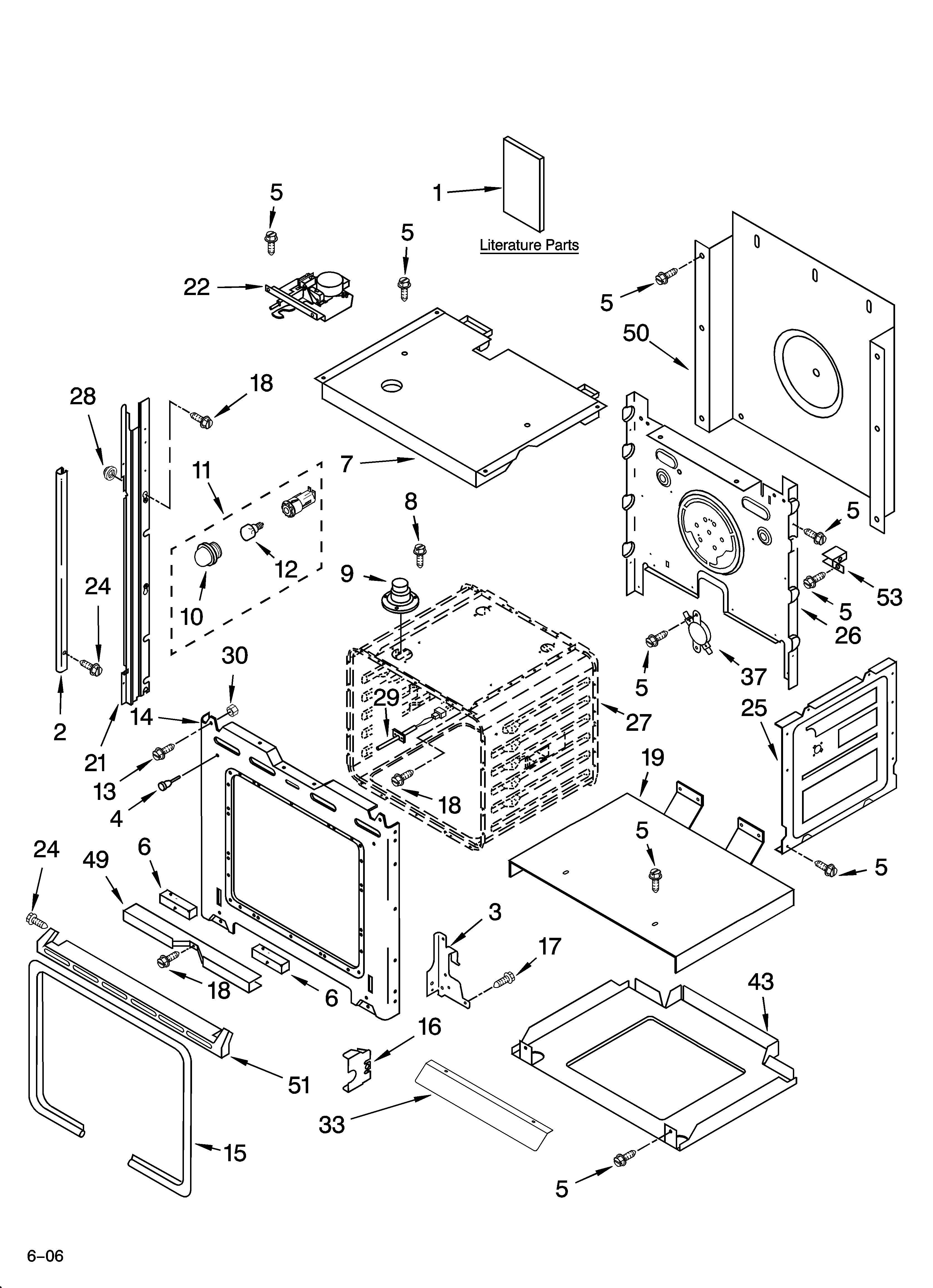

Oven parts diagram
Side-compt
Part #4455641Replaced by #W10782197

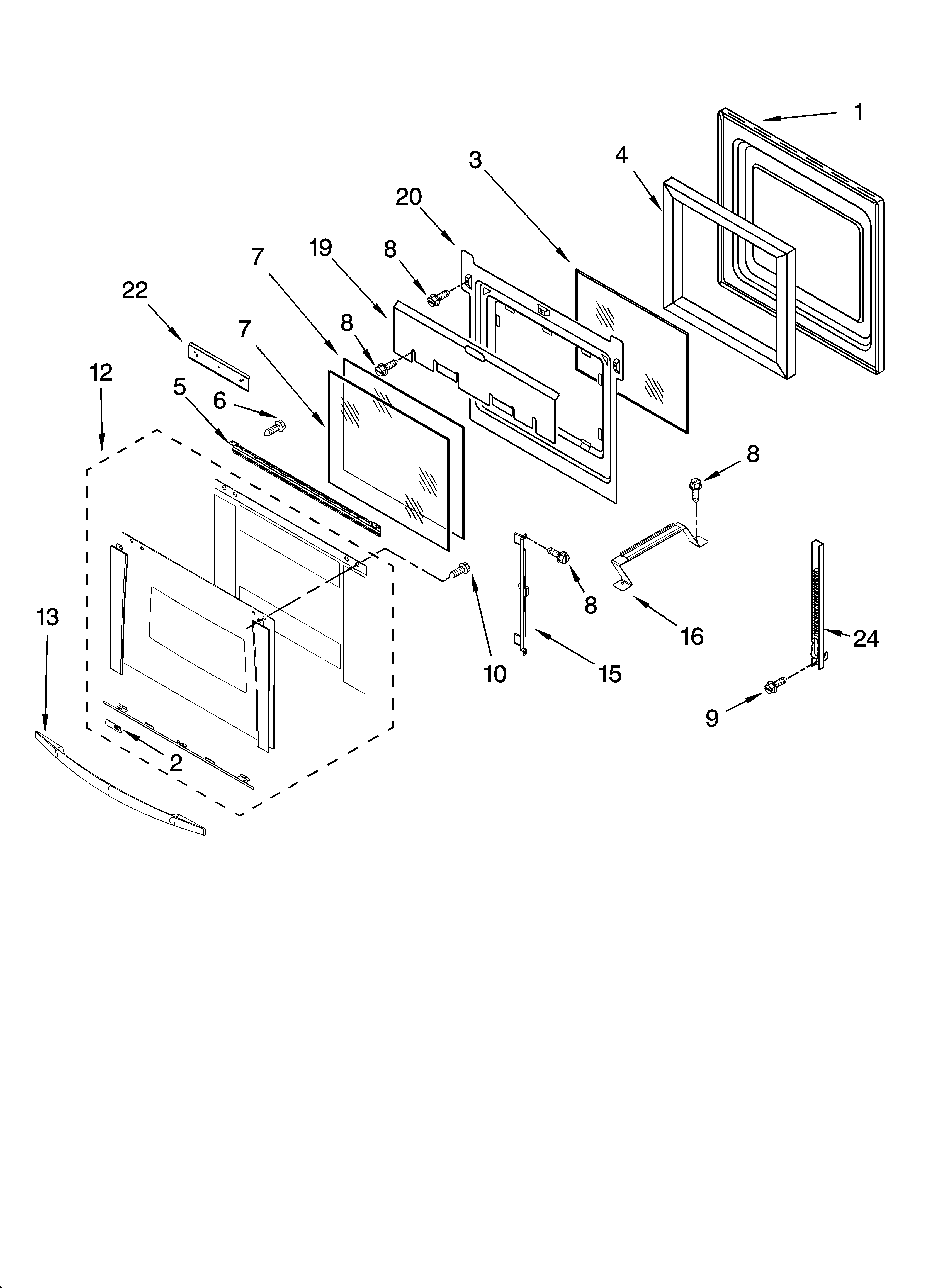

Manufacturer substitutionThis part replaces 4455641. Substitute parts can look different from the original.In Stock$122.64QtyOven door parts diagram
Screw (black)
Part #4451040Replaced by #W10276642
Manufacturer substitutionThis part replaces 4451040. Substitute parts can look different from the original.In Stock$31.95QtyTop venting parts, optional parts diagram
Screw
Part #3400080Replaced by #W11684512
Manufacturer substitutionThis part replaces 3400080. Substitute parts can look different from the original.In Stock$43.49QtyTop venting parts, optional parts diagram
Wire Tie
Part #4454842Replaced by #WPW10339879

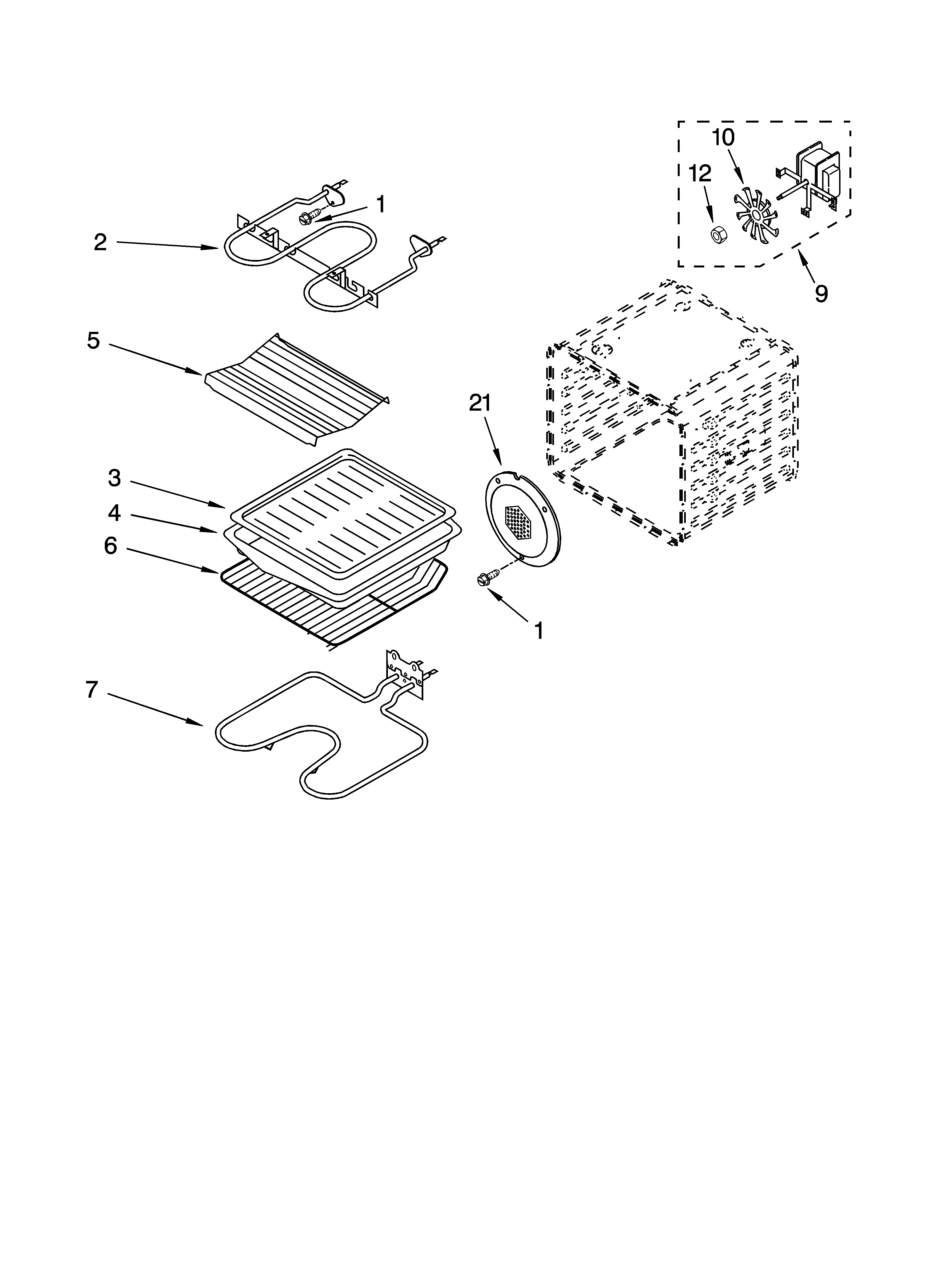

Manufacturer substitutionThis part replaces 4454842. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyInternal oven parts diagram
Broiler Pan
Part #4457276Replaced by #W10737569
Manufacturer substitutionThis part replaces 4457276. Substitute parts can look different from the original.In Stock$131.90QtyOven parts diagram
Hinge Receiver
Part #4455605Replaced by #WP4455605
Manufacturer substitutionThis part replaces 4455605. Substitute parts can look different from the original.In Stock$70.088% OFF Phone Price : $76.08QtyOven parts diagram
Rear Cover
Part #4451747Replaced by #WP4451747
Manufacturer substitutionThis part replaces 4451747. Substitute parts can look different from the original.In Stock$128.46QtyTop venting parts, optional parts diagram
Foam Seal
Part #4451758Replaced by #W10491987
Manufacturer substitutionThis part replaces 4451758. Substitute parts can look different from the original.This item is not returnableIn Stock$23.87QtyInternal oven parts diagram
Fan Cover
Part #4448988Replaced by #WPW10160821
Manufacturer substitutionThis part replaces 4448988. Substitute parts can look different from the original.In Stock$206.74Qty
