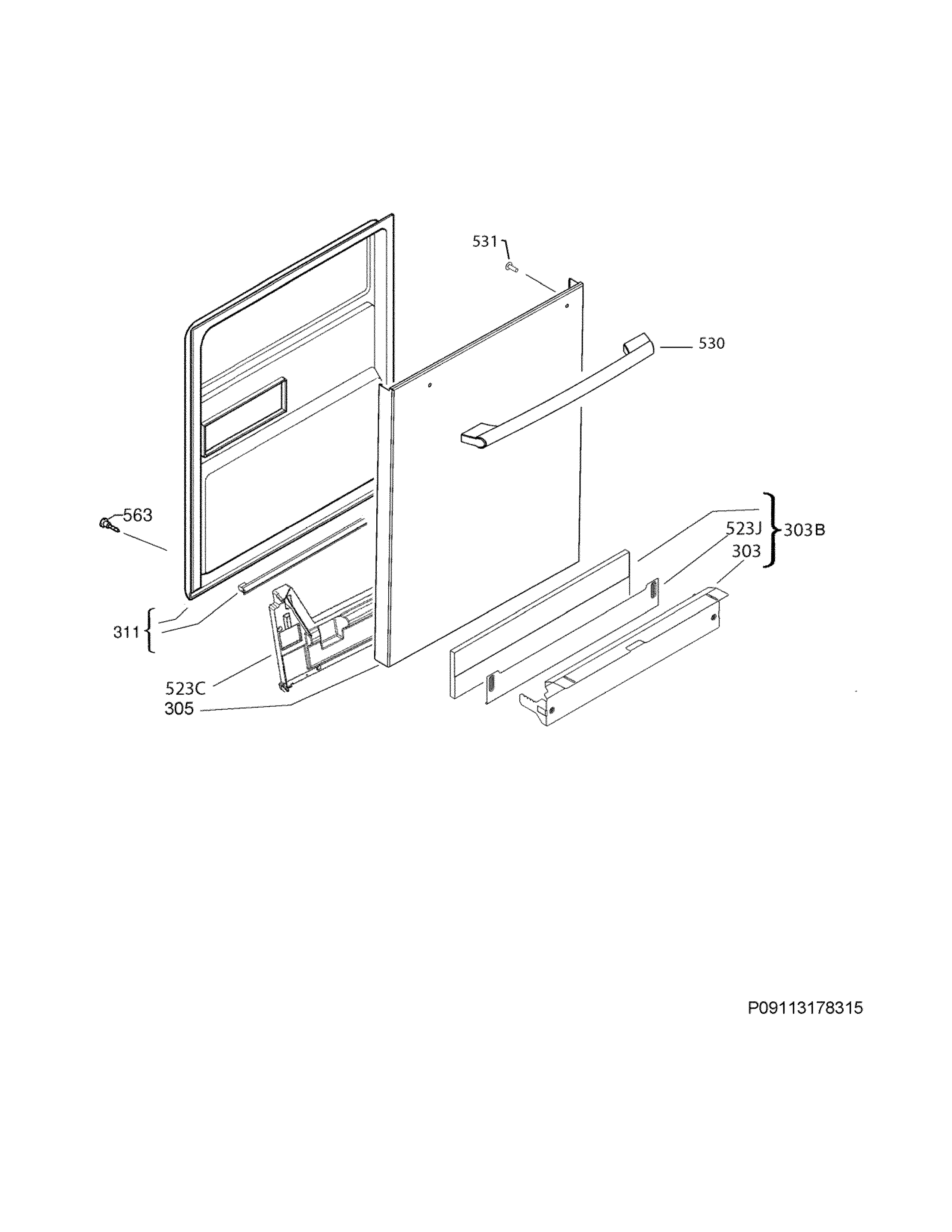

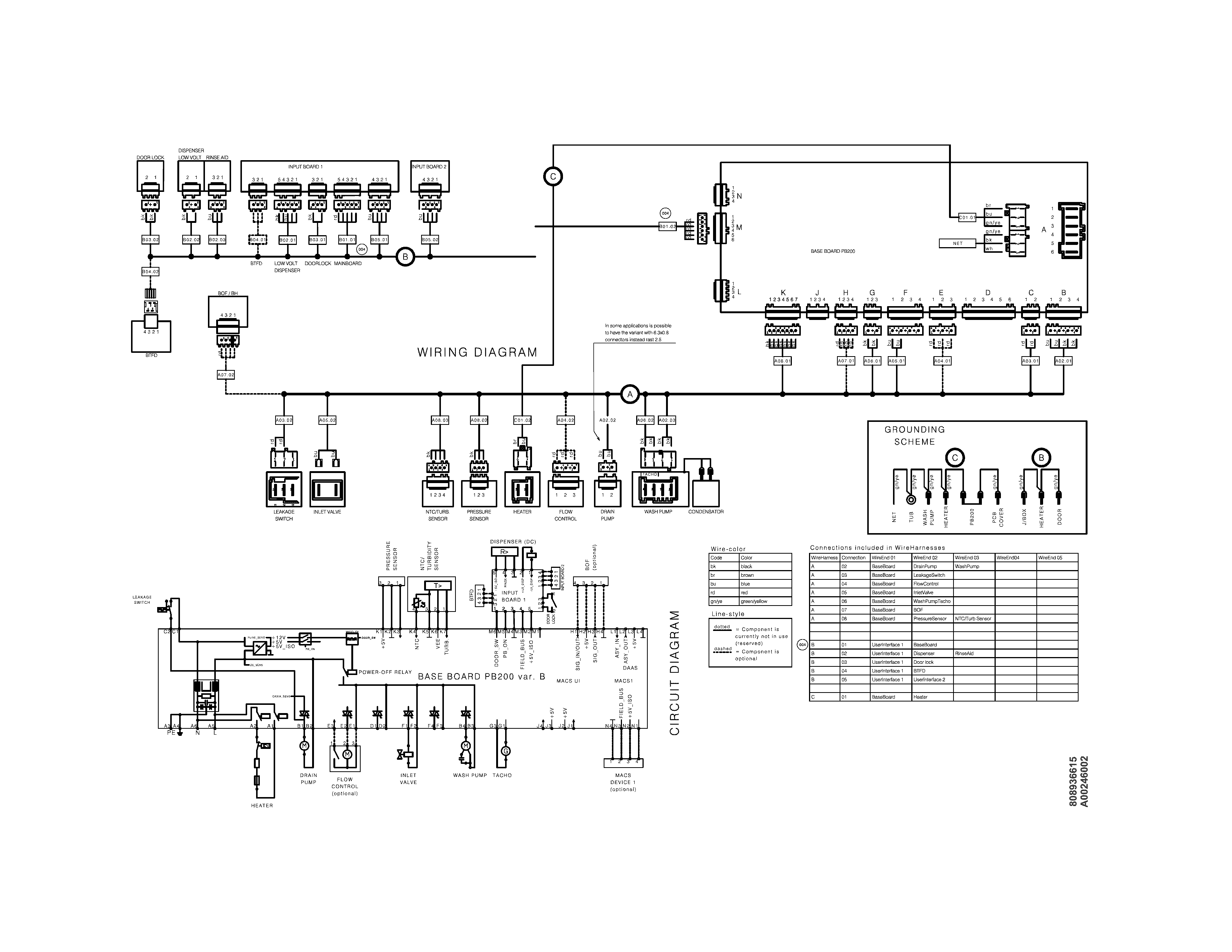

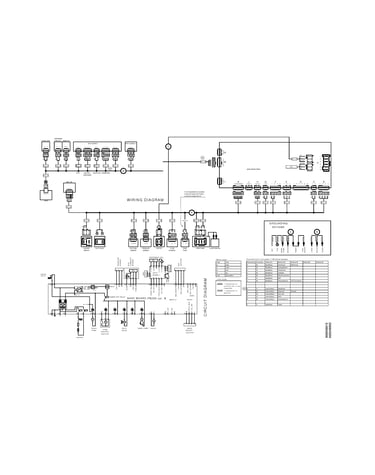

Model #EI24ID30QS0A Electrolux dishwasher

Here are the diagrams and repair parts for Electrolux EI24ID30QS0A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 101 parts

    Dishwasher Spray Arm, Lower#139

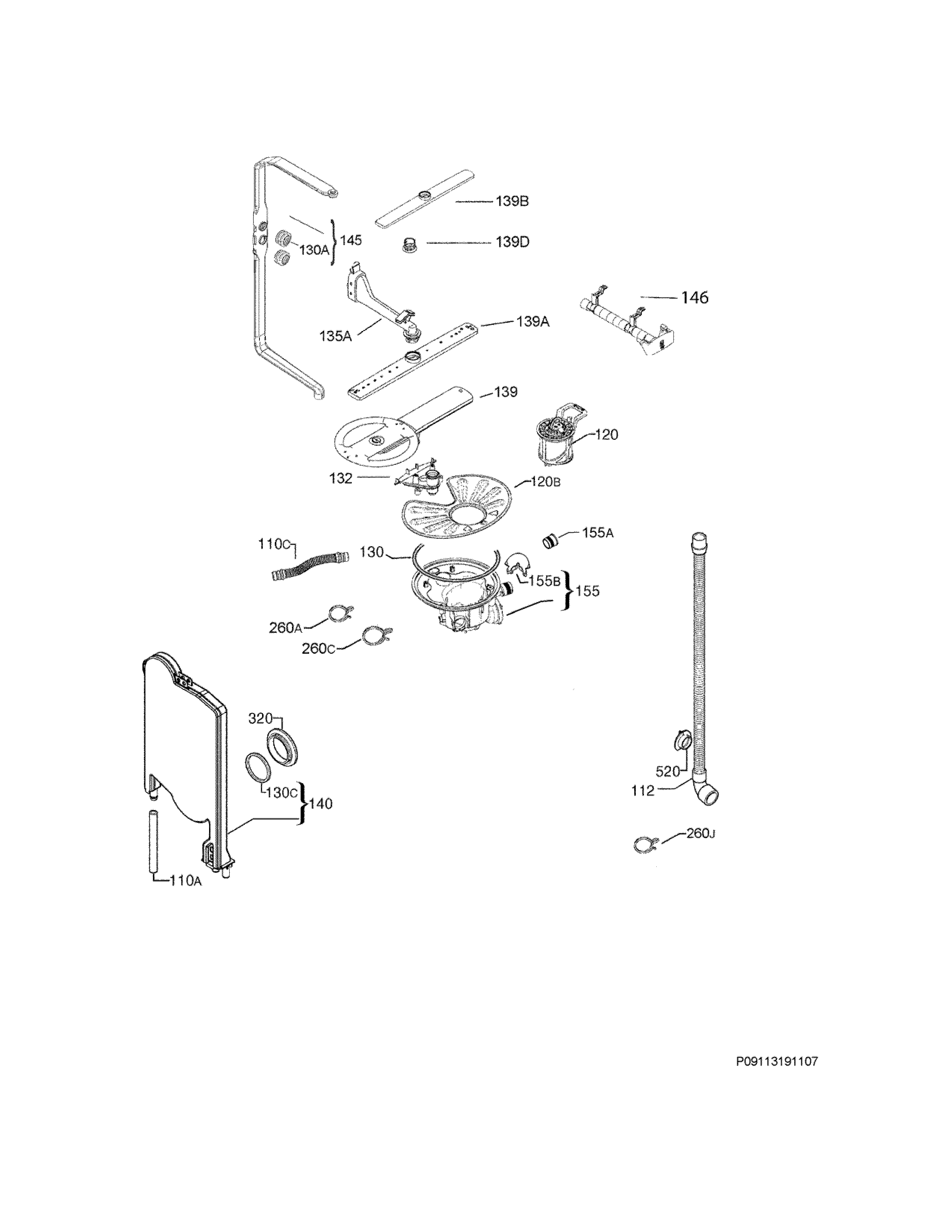

    Wash system Diagram

    Spray arm

    Part #111920836
    Replaced by #111920868
    ?
    Manufacturer substitution
    This part replaces 111920836. Substitute parts can look different from the original.
    In Stock
    $46.24
    Dishwasher Pressure Sensor#12

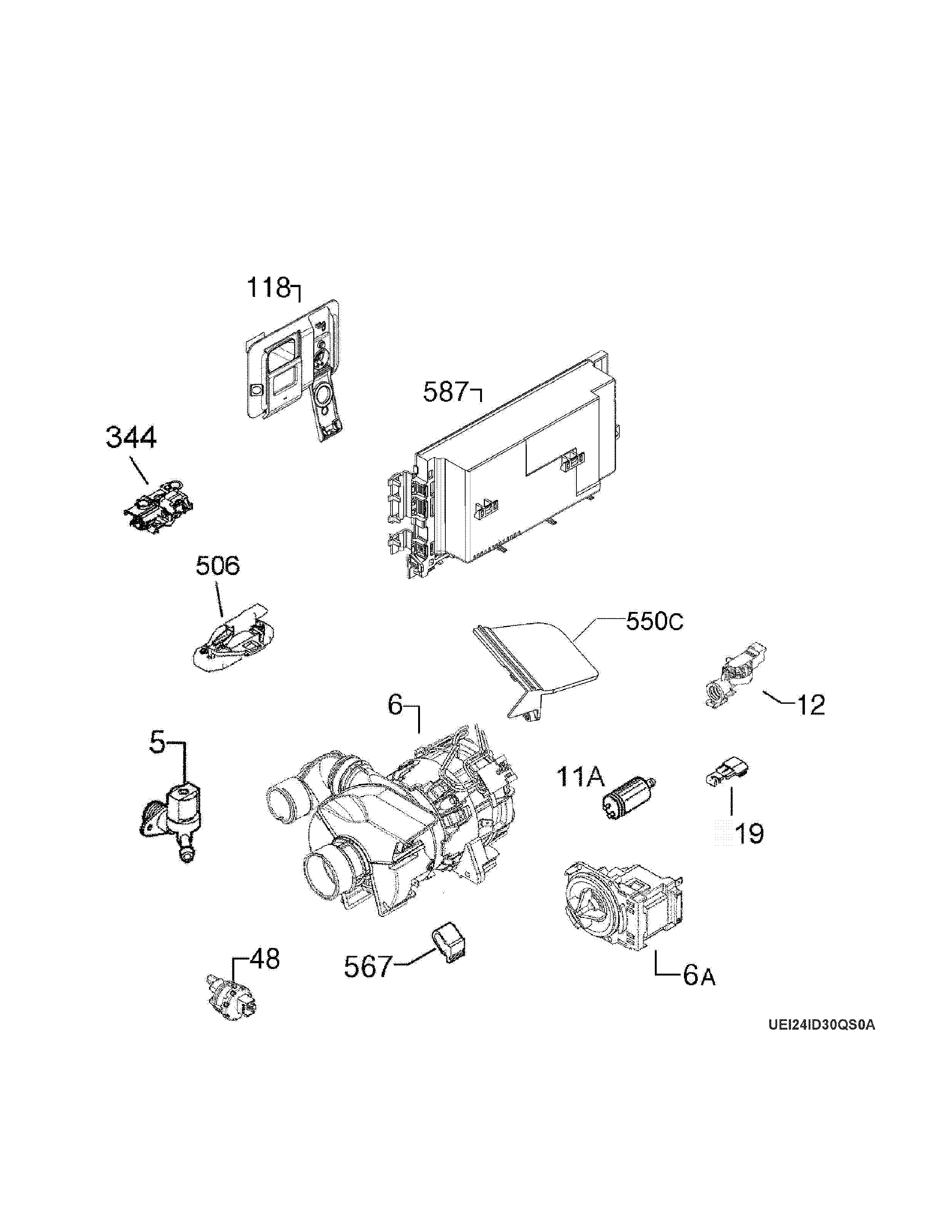

    Electrical parts Diagram

    In Stock
    $78.59
    Dishwasher Water Inlet Valve#5

    Electrical parts Diagram

    In Stock
    $95.27
    Dishwasher Dishrack Adjuster, Right#143

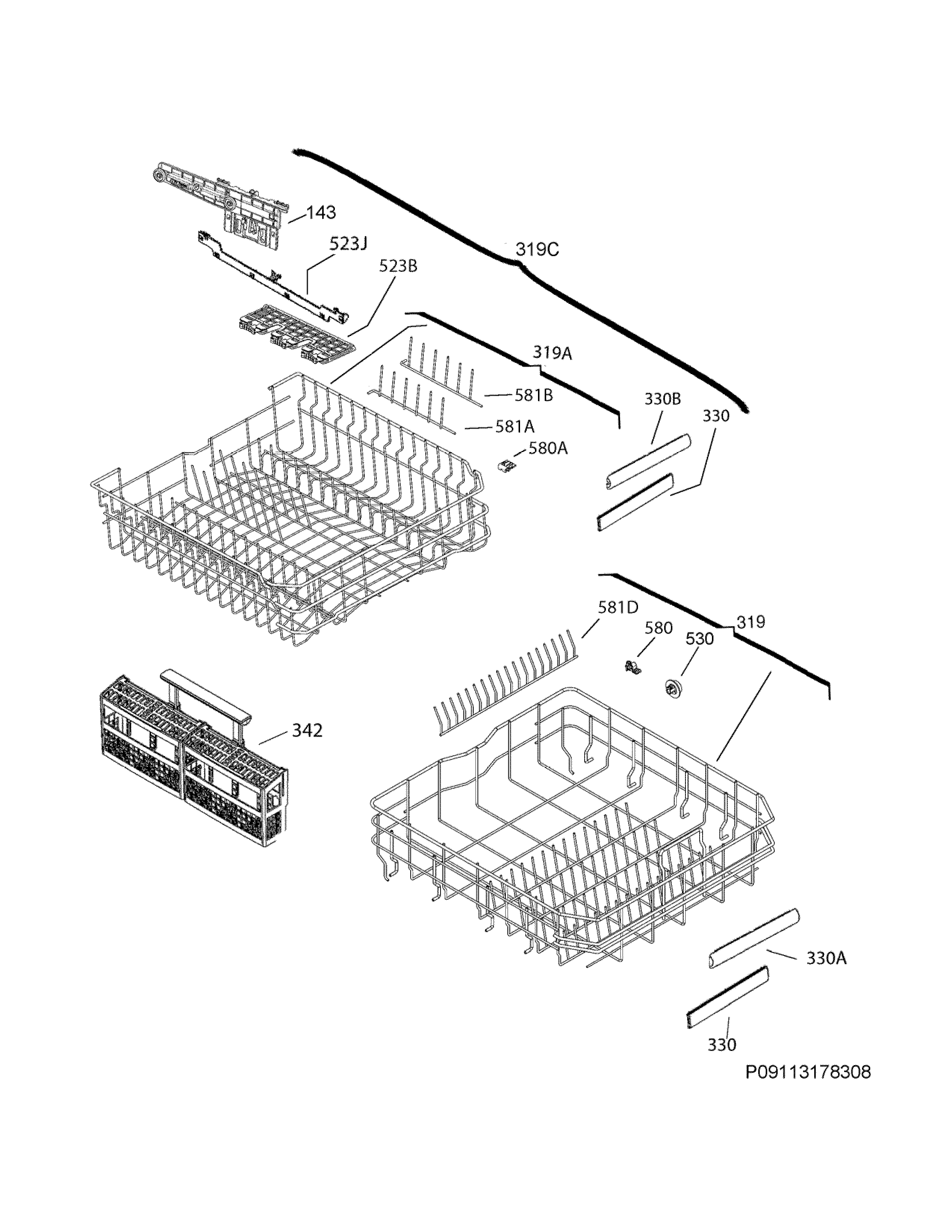

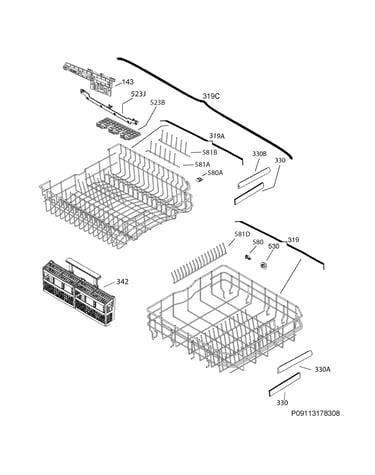

    Racks Diagram

    Dishwasher dishrack adjuster, right

    Part #808092514
    Replaced by #808092538
    ?
    Manufacturer substitution
    This part replaces 808092514. Substitute parts can look different from the original.
    In Stock
    $47.91
    Dishwasher Dishrack Track Roller Kit#523

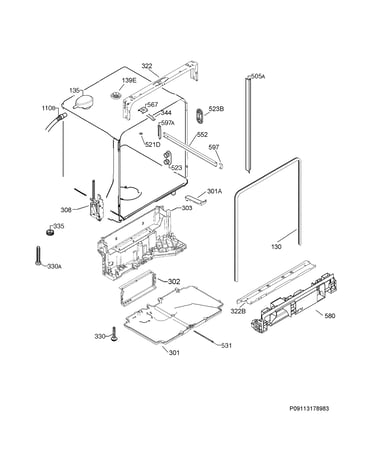

    Tub & frame Diagram

    In Stock
    $93.62
    Dishwasher Door Seal#130

    Tub & frame Diagram

    Dishwasher door seal

    Part #117158011
    In Stock
    $31.56
    Dishwasher Door Latch Assembly#344

    Electrical parts Diagram

    In Stock
    $164.64
    Dishwasher Drain Pump#6A

    Electrical parts Diagram

    Dishwasher drain pump

    Part #A00044305
    In Stock
    $112.06 |
    14% OFF
    MSRP: $130.00
    Dishwasher Spray Arm Hub Nut#139

    Tub & frame Diagram

    In Stock
    $40.81
    Dishwasher Control Panel#510

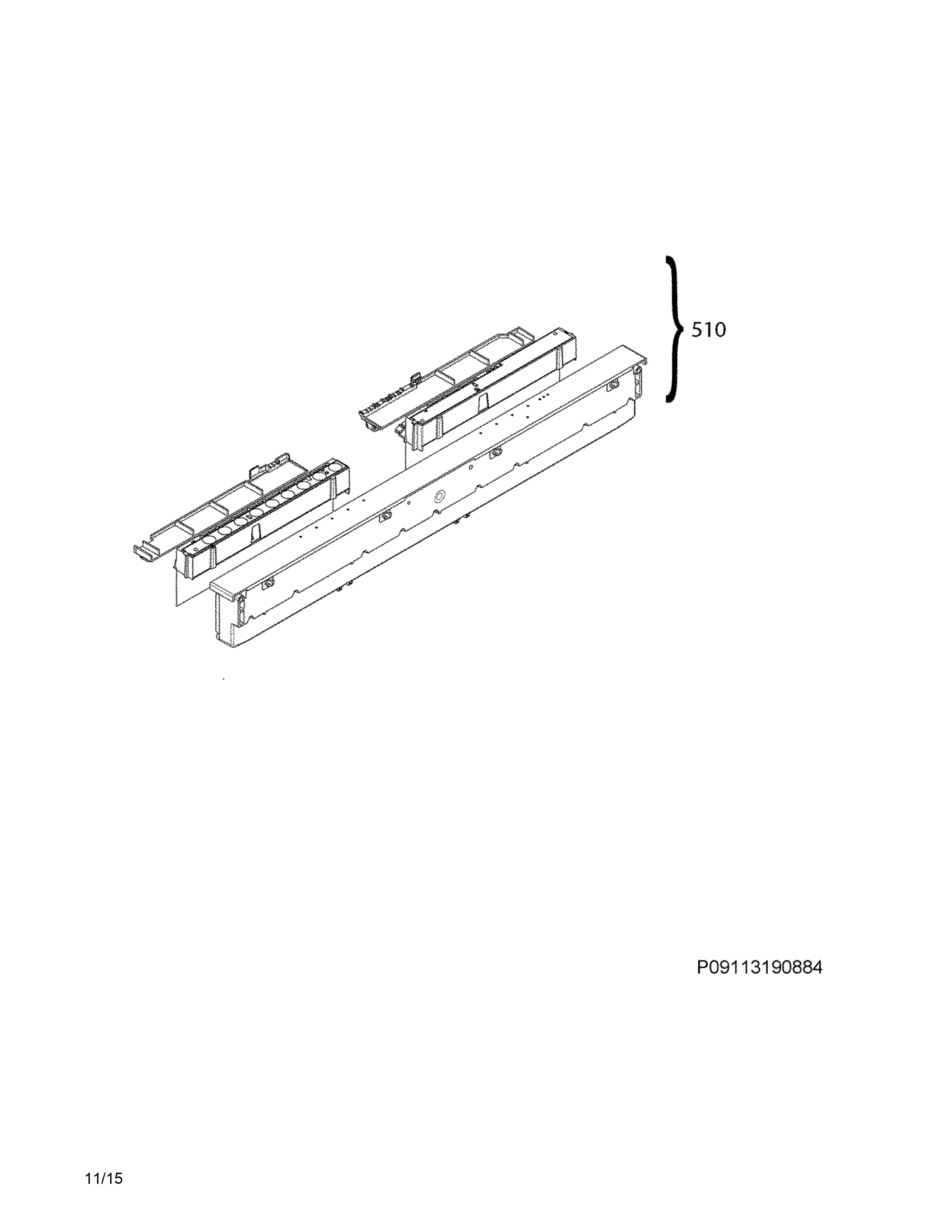

    Control panel Diagram

    Dishwasher control panel

    Part #117494830
    Replaced by #117494831
    ?
    Manufacturer substitution
    This part replaces 117494830. Substitute parts can look different from the original.
    In Stock
    $496.13 |
    10% OFF
    MSRP: $550.00

    Symptoms common to all dishwashers

    Choose a symptom to see related dishwasher repairs.

    Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, control system problem
    Main cause: damaged rack height adjuster
    Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracked water supply line
    Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control system problem
    Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure
    Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in wash pump or drain pump
    Main causes: broken door spring, damaged or broken door hinge
    Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan failure
    Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure, wiring problem
