GE GBSC0HBXARWW bottom-mount refrigerator Parts
Here are the diagrams and repair parts for GE GBSC0HBXARWW bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part

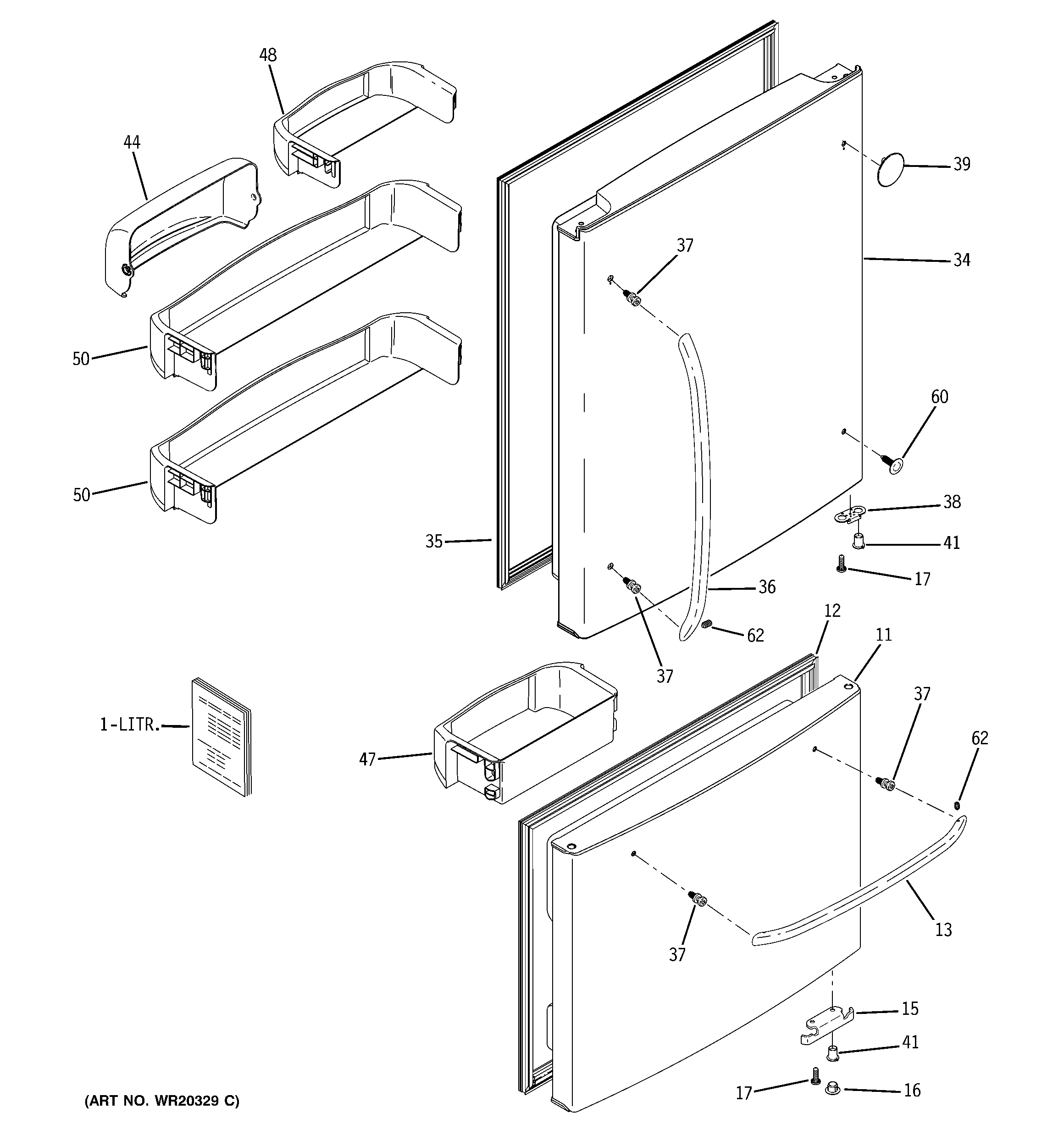

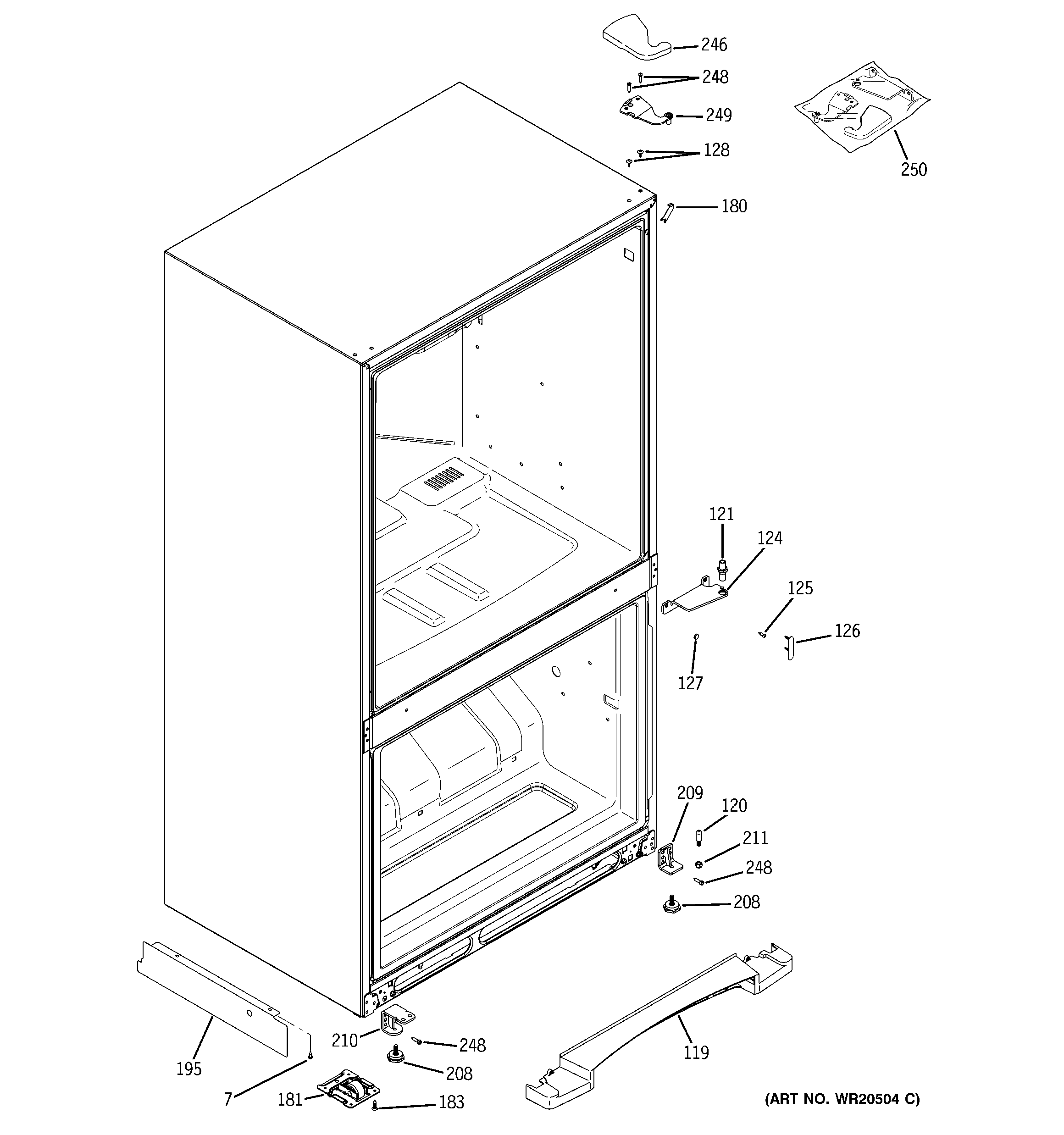

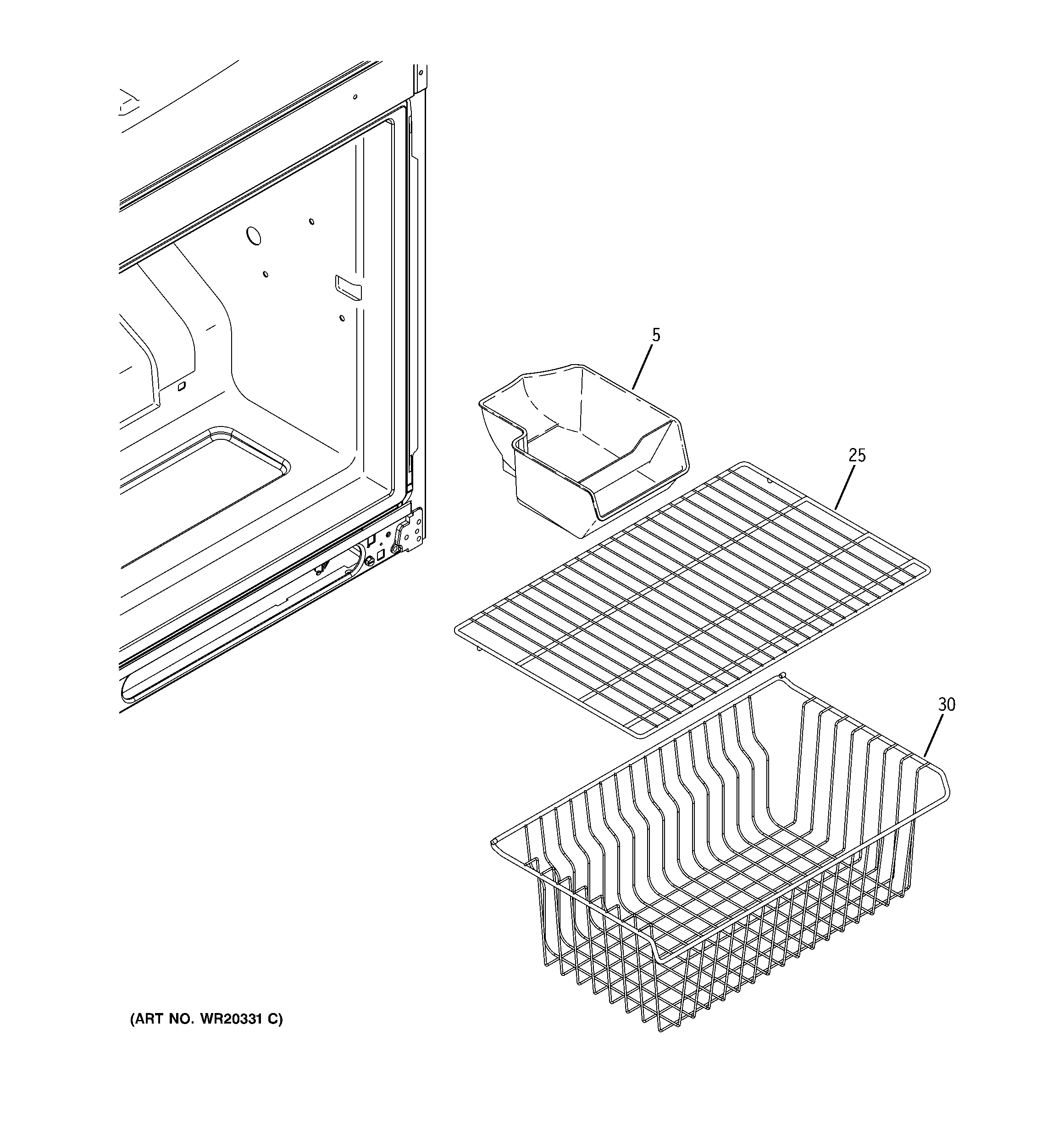

SELECT DIAGRAM
Browse Parts for GBSC0HBXARWW Refrigerators
Refrigerator Lamp
Part #WR02X12328Replaced by #40A15
Manufacturer substitutionThis part replaces WR02X12328. Substitute parts can look different from the original.In Stock$15.4011% OFF Phone Price : $17.40
Qty

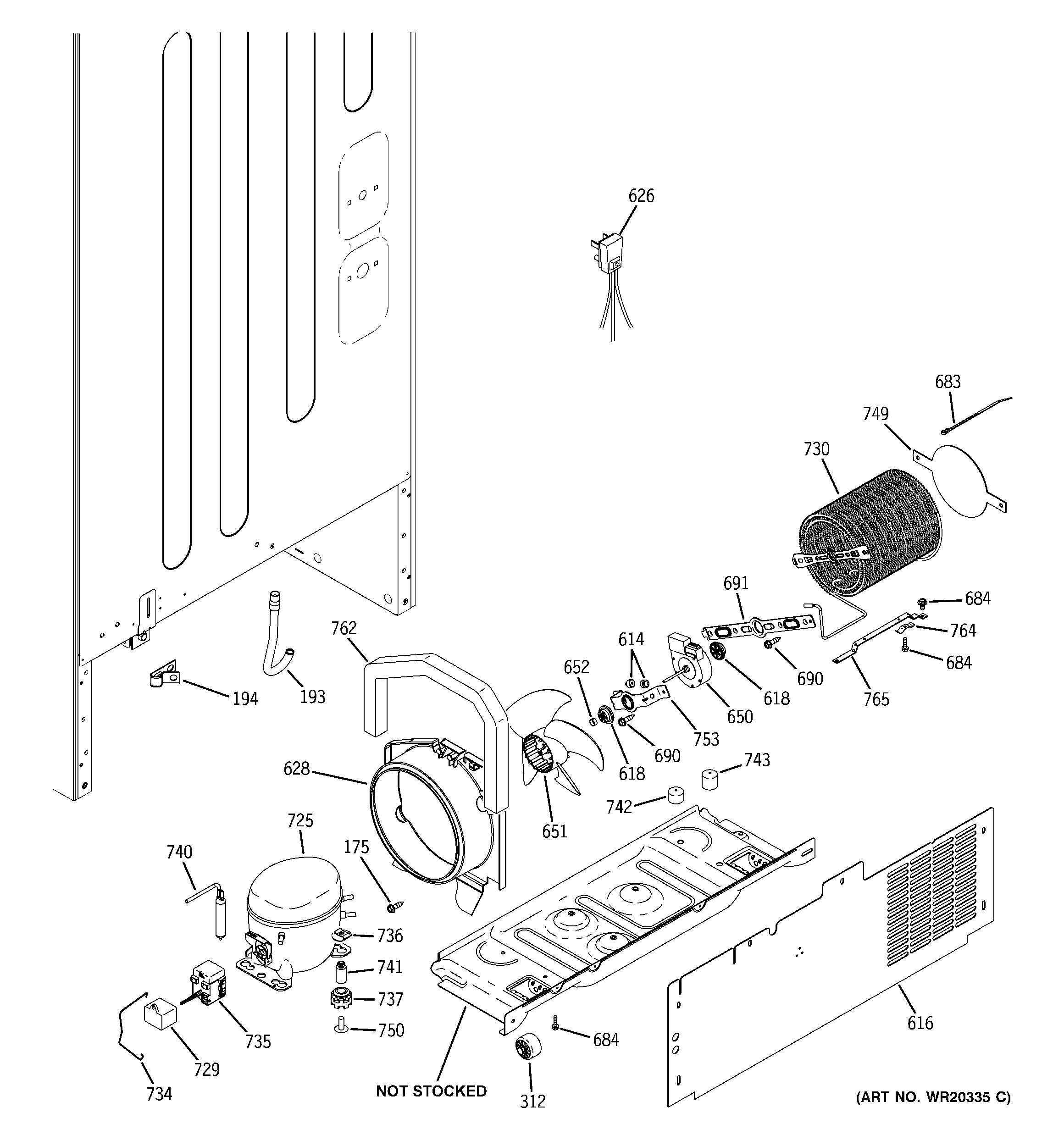

Machine compartment diagram
Combo Tsd
Part #WR08X10089Replaced by #WR07X10131

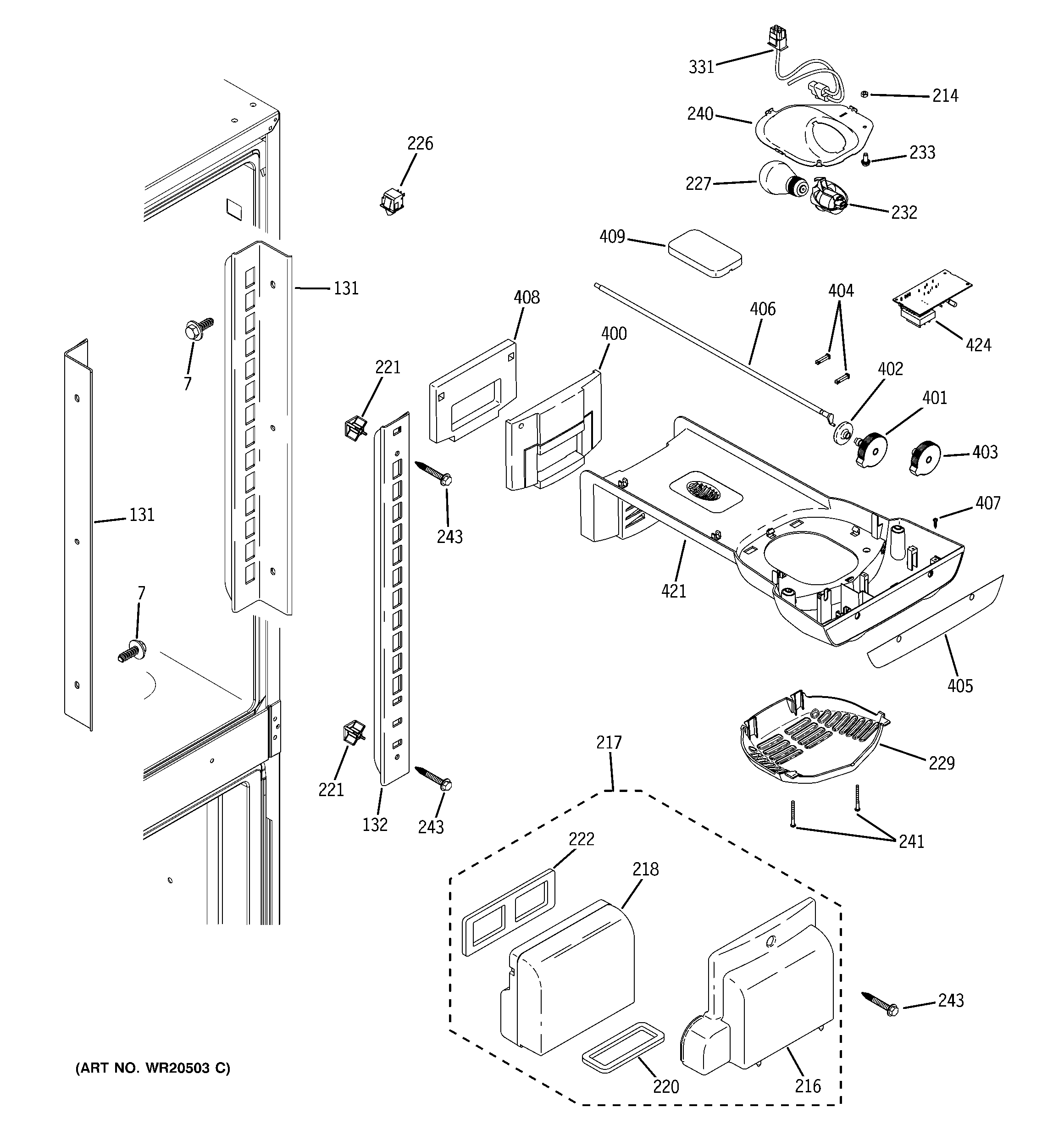

Manufacturer substitutionThis part replaces WR08X10089. Substitute parts can look different from the original.In Stock$44.1412% OFF Phone Price : $50.14QtyFresh food section diagram
Refrigerator Light Switch
Part #WR23X10143
The manufacturer no longer makes this part, and there's no substitute part
Machine compartment diagram
Refrigerator Condenser Fan Blade
Part #WR60X10206Replaced by #WR60X24484
Manufacturer substitutionThis part replaces WR60X10206. Substitute parts can look different from the original.This item is not returnableIn Stock$33.1115% OFF Phone Price : $39.11QtyRefrigerator Fan Blade Retainer Ring

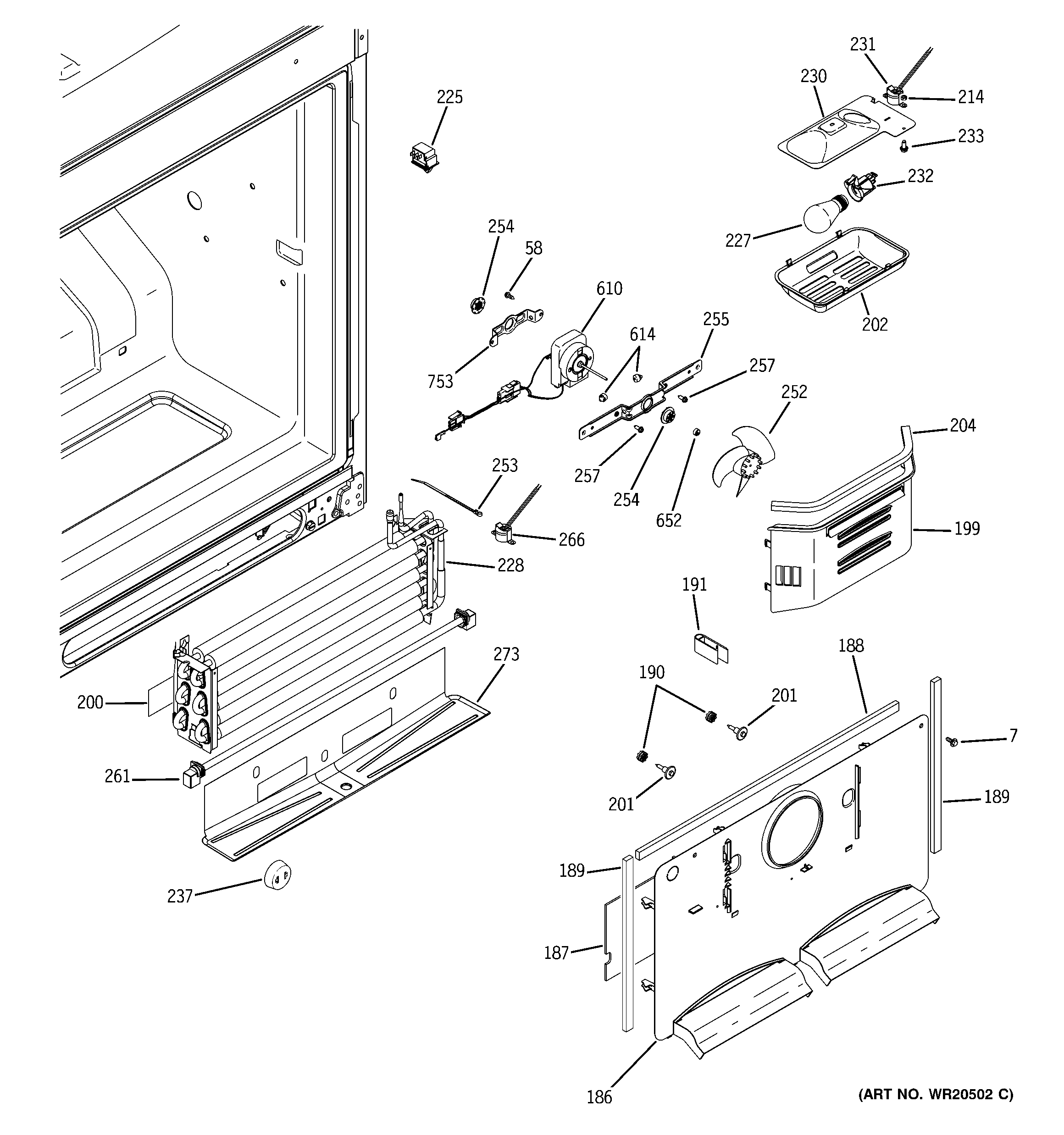

Part #WR02X12149This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyFreezer section diagram
Refrigerator Evaporator Fan Motor Grommet
Part #WR02X11331This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyFreezer section diagram
Grommet Evaporator
Part #WR17X12252Replaced by #WR02X11331
Manufacturer substitutionThis part replaces WR17X12252. Substitute parts can look different from the original.This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyMachine compartment diagram
Ground Screw
Part #WR01X1466Replaced by #WZ5X158D

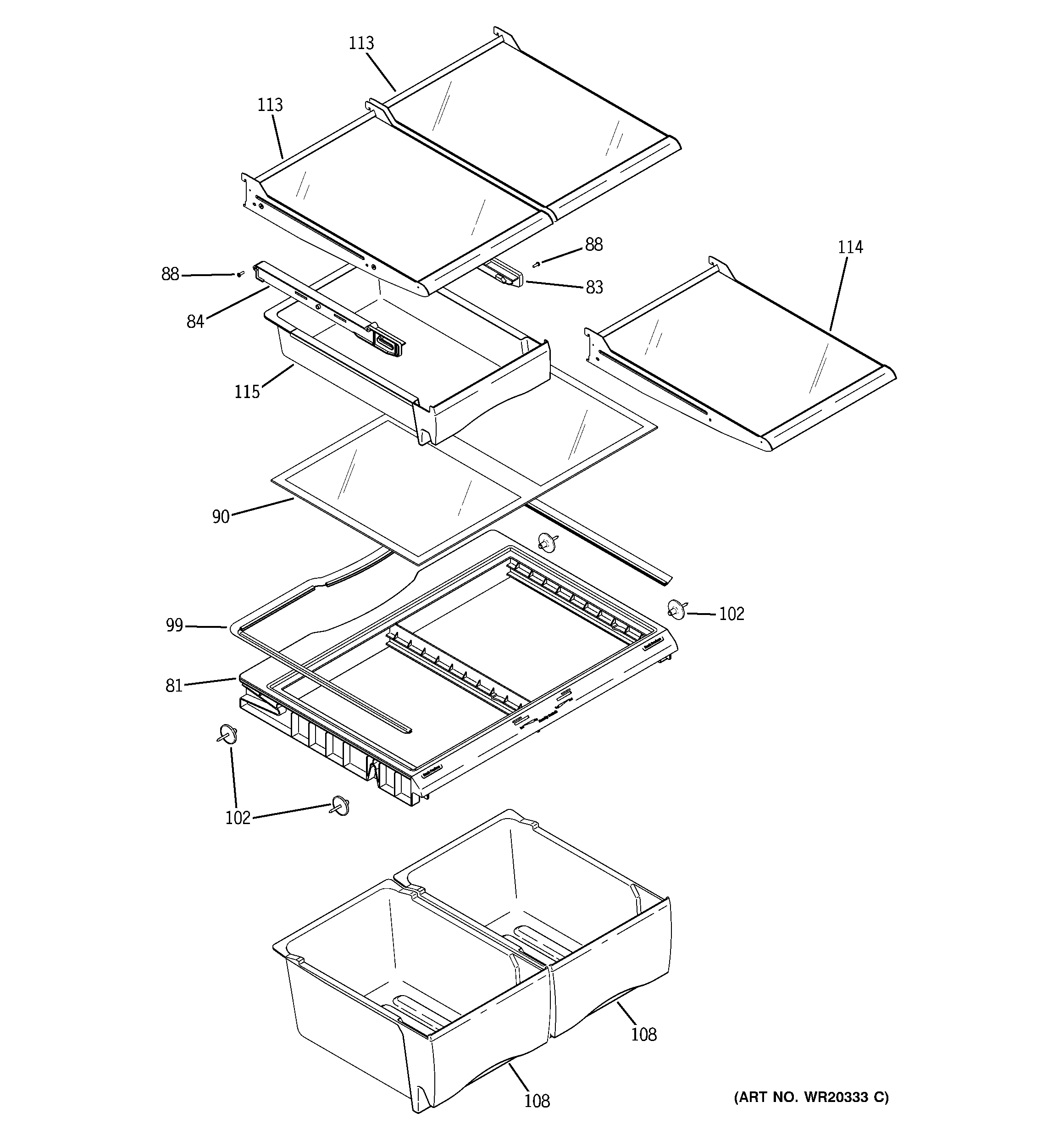

Manufacturer substitutionThis part replaces WR01X1466. Substitute parts can look different from the original.In Stock$19.579% OFF Phone Price : $21.57QtyFresh food shelves diagram
Refrigerator Crisper Drawer
In Stock$136.388% OFF Phone Price : $148.38QtyMachine compartment diagram
Ge Profile Refrigerator Evaporator Fan Motor Grommet
Part #WR02X10520This item is not returnableIn Stock$10.2416% OFF Phone Price : $12.24Qty
