LG
Bottom-Mount Refrigerator

Model # LFC21770ST/05 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFC21770ST-05 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

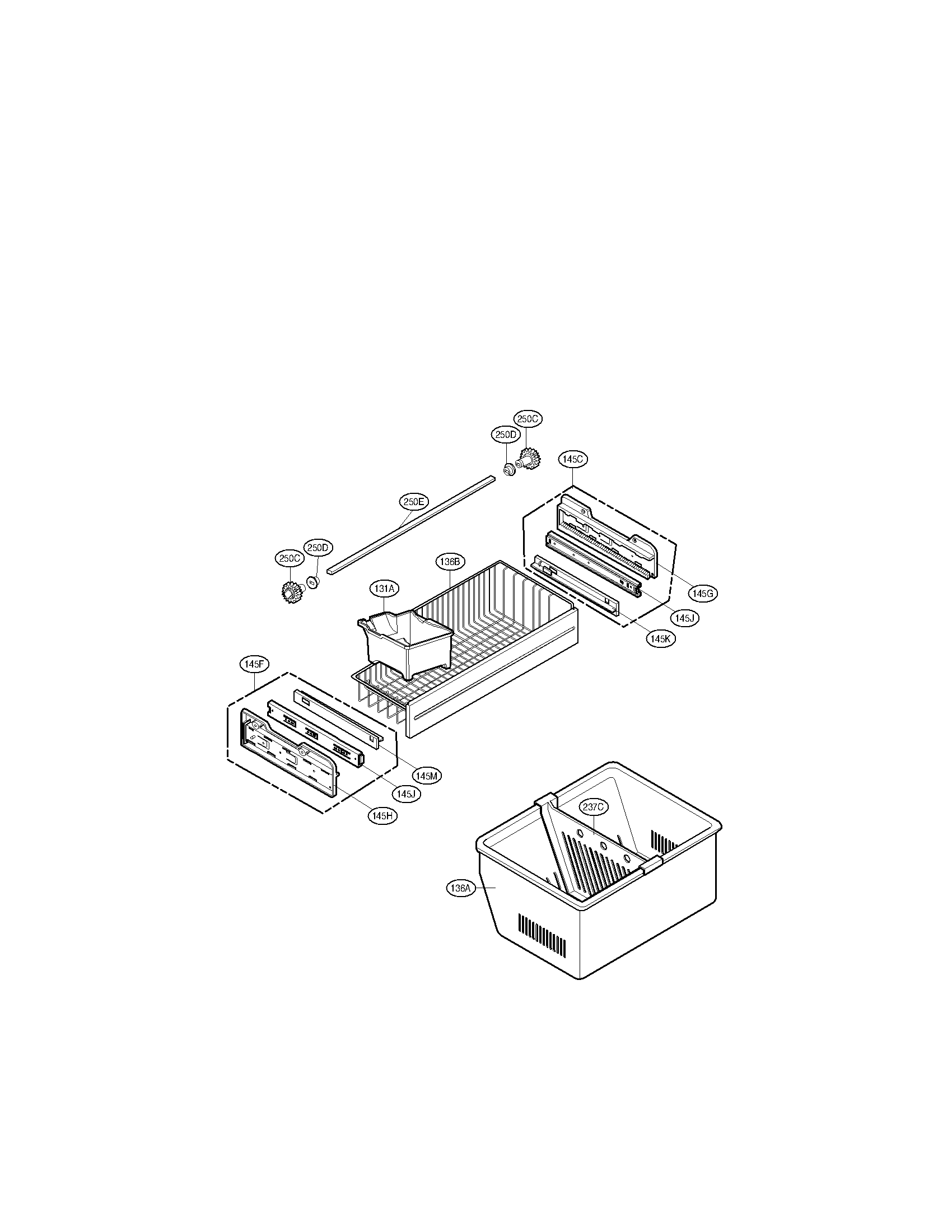

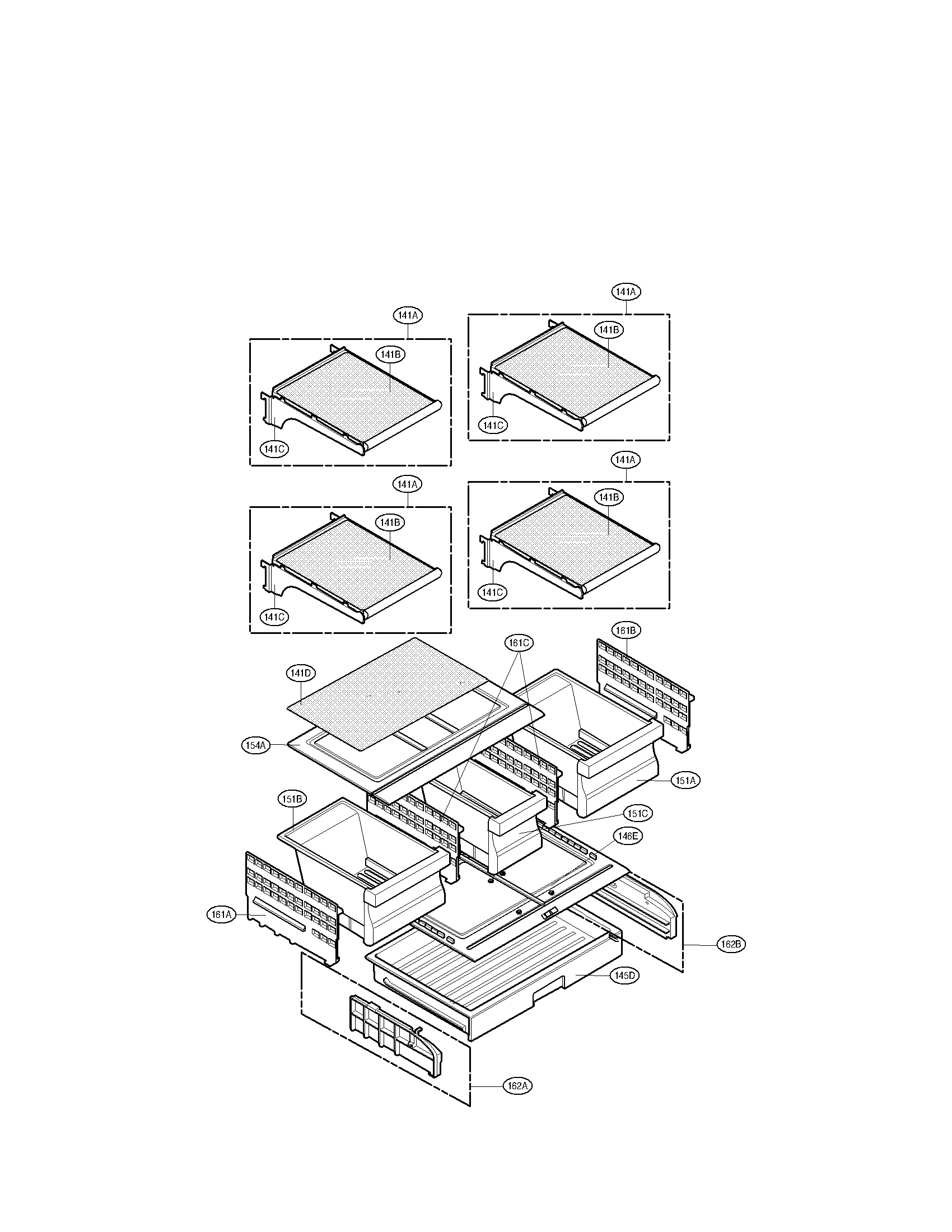

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |

Refrigerator Filter Dryer 5851JA2007E
#317A

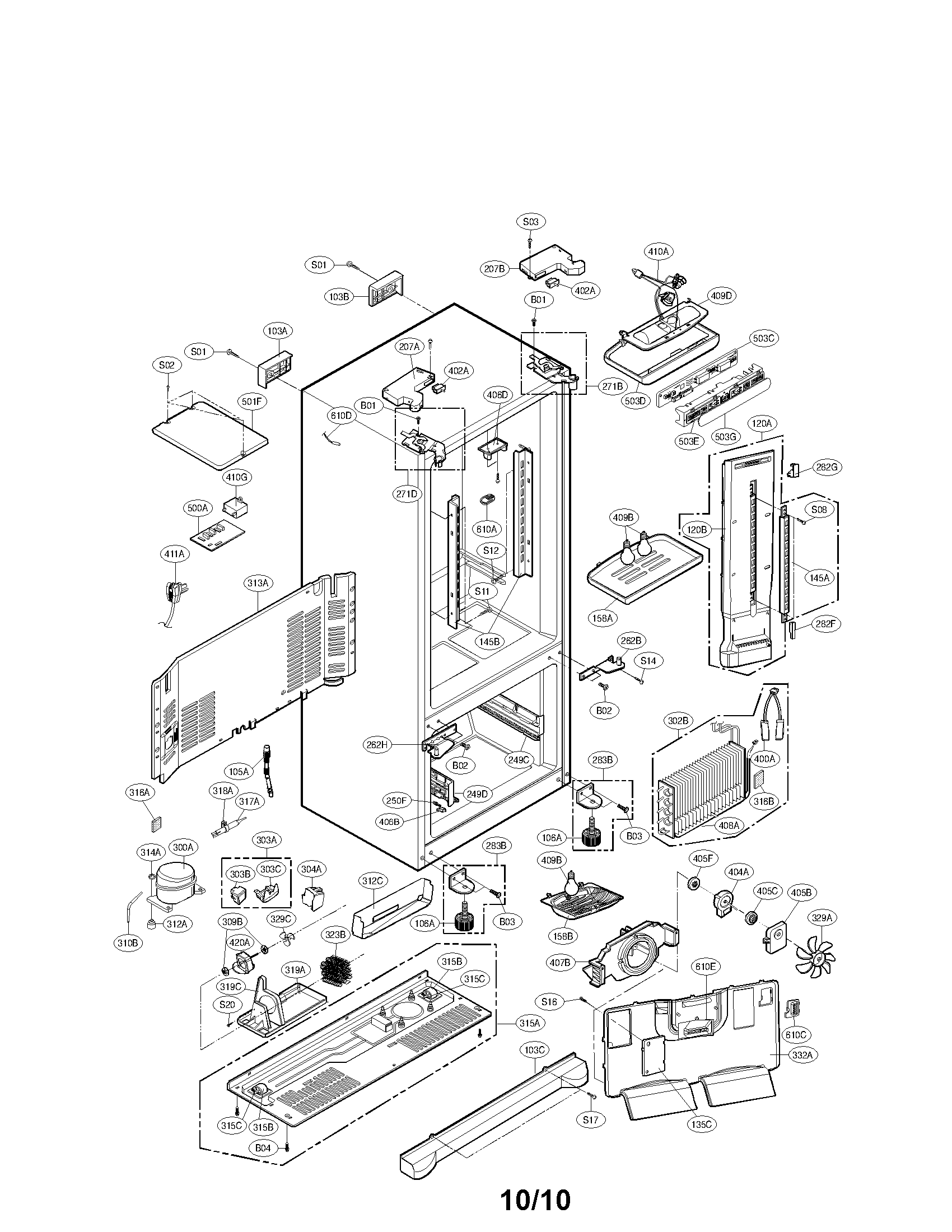

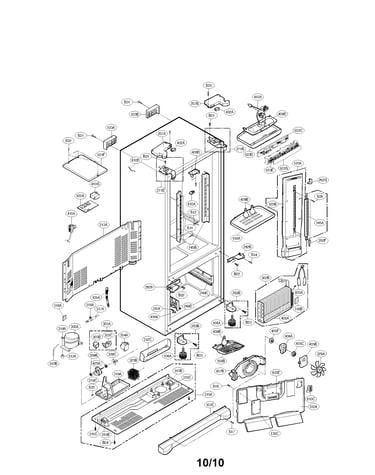

Case assembly parts diagram

Refrigerator filter dryer

Part #5851JA2007E

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007E. Substitute parts can look different from the original.
BEST SELLER
$69.25
7% OFF Phone Price : $74.25
In Stock
Ice Maker Kit AEQ72909601
#600A

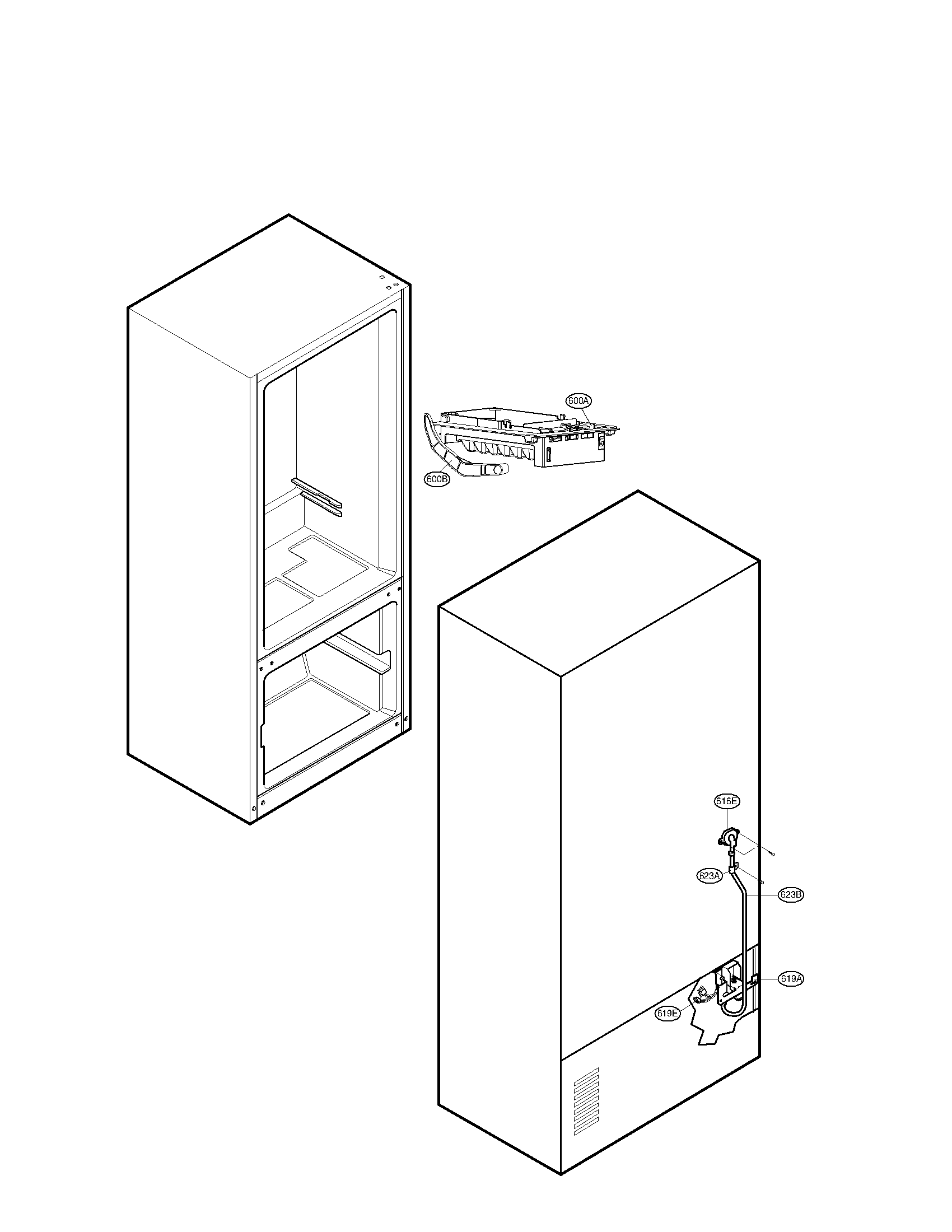

Water and ice maker parts diagram

Ice maker kit

Part #AEQ72909601

Replaced by #AEQ72909602

?
Manufacturer substitution
This part replaces AEQ72909601. Substitute parts can look different from the original.
BEST SELLER
$99.94
9% OFF Phone Price : $109.94
In Stock
Refrigerator Door Switch 6600JB1010K
#406B

Case assembly parts diagram

Refrigerator door switch

Part #6600JB1010K

Replaced by #6600JB1010A

?
Manufacturer substitution
This part replaces 6600JB1010K. Substitute parts can look different from the original.
BEST SELLER
$21.73
19% OFF Phone Price : $26.73
In Stock
Refrigerator Door Gasket MDS38201406
#203A

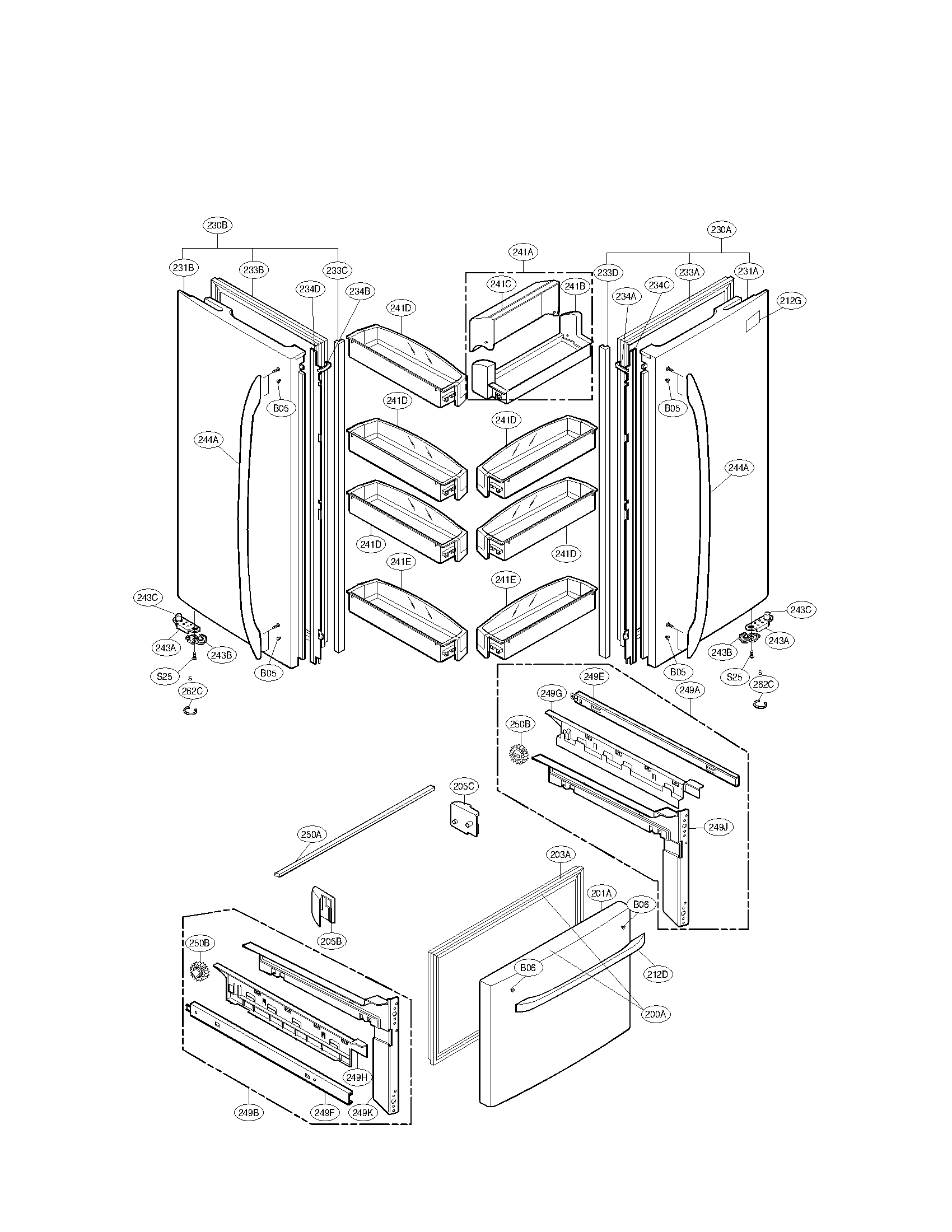

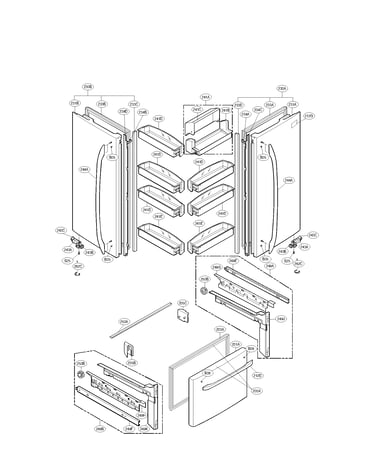

Door parts assembly diagram

Refrigerator door gasket

Part #MDS38201406

Replaced by #MDS64172919

?
Manufacturer substitution
This part replaces MDS38201406. Substitute parts can look different from the original.
BEST SELLER
$62.71
7% OFF Phone Price : $67.71
In Stock
Refrigerator Door Basket AAP36817401
#241D

Door parts assembly diagram

Refrigerator door basket

Part #AAP36817401

Replaced by #AAP73871501

?
Manufacturer substitution
This part replaces AAP36817401. Substitute parts can look different from the original.
BEST SELLER
$37.36
12% OFF Phone Price : $42.36
In Stock
Refrigerator Evaporator Fan Motor (replaces 4681jb1027v, 4681jk1004e, Eau52096201, Eau60694512) 4681JB1027C
#404A

Case assembly parts diagram

Refrigerator evaporator fan motor (replaces 4681jb1027v, 4681jk1004e, eau52096201, eau60694512)

Part #4681JB1027C

BEST SELLER
$84.57
6% OFF Phone Price : $89.57
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P
#310B

Case assembly parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

BEST SELLER
This item is not returnable
$7.22
12% OFF Phone Price : $8.22
In Stock
Refrigerator Temperature Sensor And Cover ACQ73244001
#610C

Case assembly parts diagram

Refrigerator temperature sensor and cover

Part #ACQ73244001

BEST SELLER
$28.29
15% OFF Phone Price : $33.29
In Stock
Refrigerator Door Handle Mounting Bolt 4620JJ2010C
Refrigerator door handle mounting bolt

Part #4620JJ2010C

Replaced by #MJB63190001

?
Manufacturer substitution
This part replaces 4620JJ2010C. Substitute parts can look different from the original.
BEST SELLER
$9.32
10% OFF Phone Price : $10.32
In Stock
Refrigerator Defrost Sensor Assembly (replaces 6007ja3006r, 6615jb2005m) 6615JB2005H
#400A

Case assembly parts diagram

Refrigerator defrost sensor assembly (replaces 6007ja3006r, 6615jb2005m)

Part #6615JB2005H

BEST SELLER
$24.31
17% OFF Phone Price : $29.31
In Stock
