Model # KVWB406DSS2 Official KitchenAid range hood

Here are the diagrams and repair parts for Official KitchenAid KVWB406DSS2 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 22 parts  |
Range Hood Flue Extension Kit
#NI

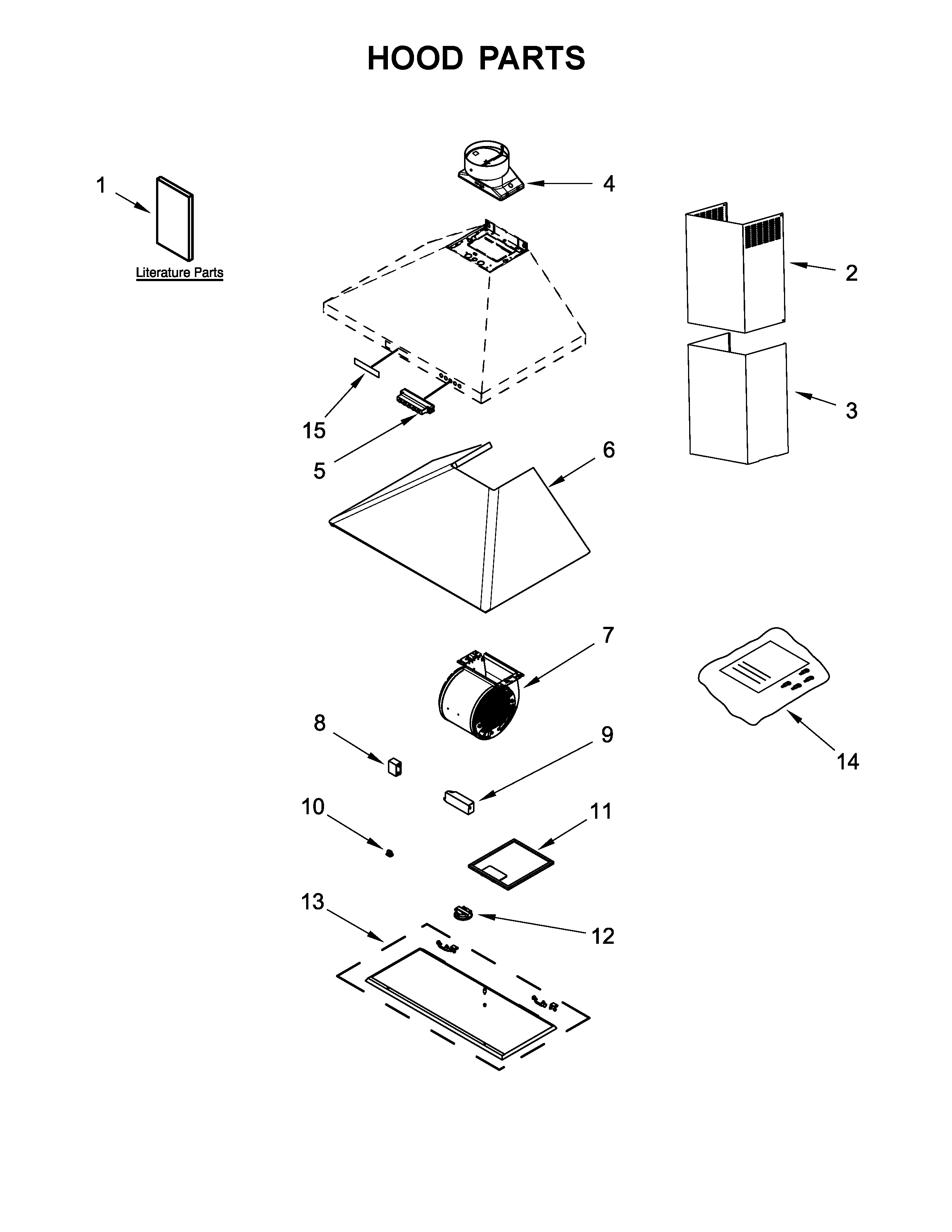

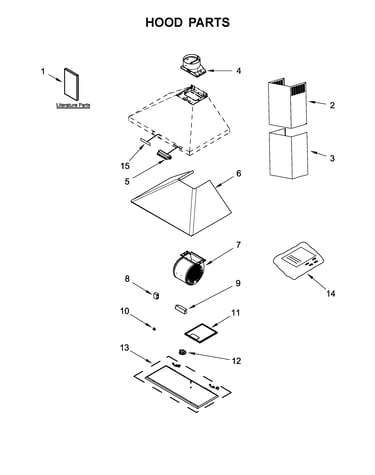

Hood parts diagram

Range hood flue extension kit

Part #W10337357

$318.99 |
$10.00 OFF Phone Price : $328.99
In Stock
KitchenAid Appliance Nameplate (replaces W10518672, W10518673, W10754513)
#15

Hood parts diagram

Kitchenaid 2

Part #W10518673

Replaced by #W10909682

?
Manufacturer substitution
This part replaces W10518673. Substitute parts can look different from the original.
$50.59 |
9% OFF Phone Price : $55.59
In Stock
Range Hood Exterior Blower Kit
#NI

Hood parts diagram

Range hood exterior blower kit

Part #W10692945

$366.36 |
$13.64 OFF MSRP : $380.00
In Stock
Range Hood Flue Assembly
#2

Hood parts diagram

Range hood upper flue cover

Part #W10350865

Replaced by #W11417192

?
Manufacturer substitution
This part replaces W10350865. Substitute parts can look different from the original.
$123.66 |
18% OFF MSRP : $150.00
In Stock
Range Hood Flue Assembly
#3

Hood parts diagram

Range hood lower flue panel

Part #W10350864

Replaced by #W11417192

?
Manufacturer substitution
This part replaces W10350864. Substitute parts can look different from the original.
$123.66 |
18% OFF MSRP : $150.00
In Stock
Installation Hardware
#14

Hood parts diagram

Installation hardware

Part #W11038859

$55.07
In Stock
Base Cover
#13A

Hood parts diagram

Base cover

Part #W10735373

$148.09
In Stock
Base Cover
#13

Hood parts diagram

Base cover

Part #W10735352

$144.07
In Stock
Range Hood Power Cord
#NI

Hood parts diagram

Range hood power cord

Part #W10613691

$60.39 |
8% OFF Phone Price : $65.39
In Stock
Insulation
#6A

Hood parts diagram

Insulation

Part #W10735407

$81.31
In Stock
