Model #79631463411 Kenmore Elite washer

Here are the diagrams and repair parts for Kenmore Elite 79631463411 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 74 parts

Washer Water-Level Pressure Switch

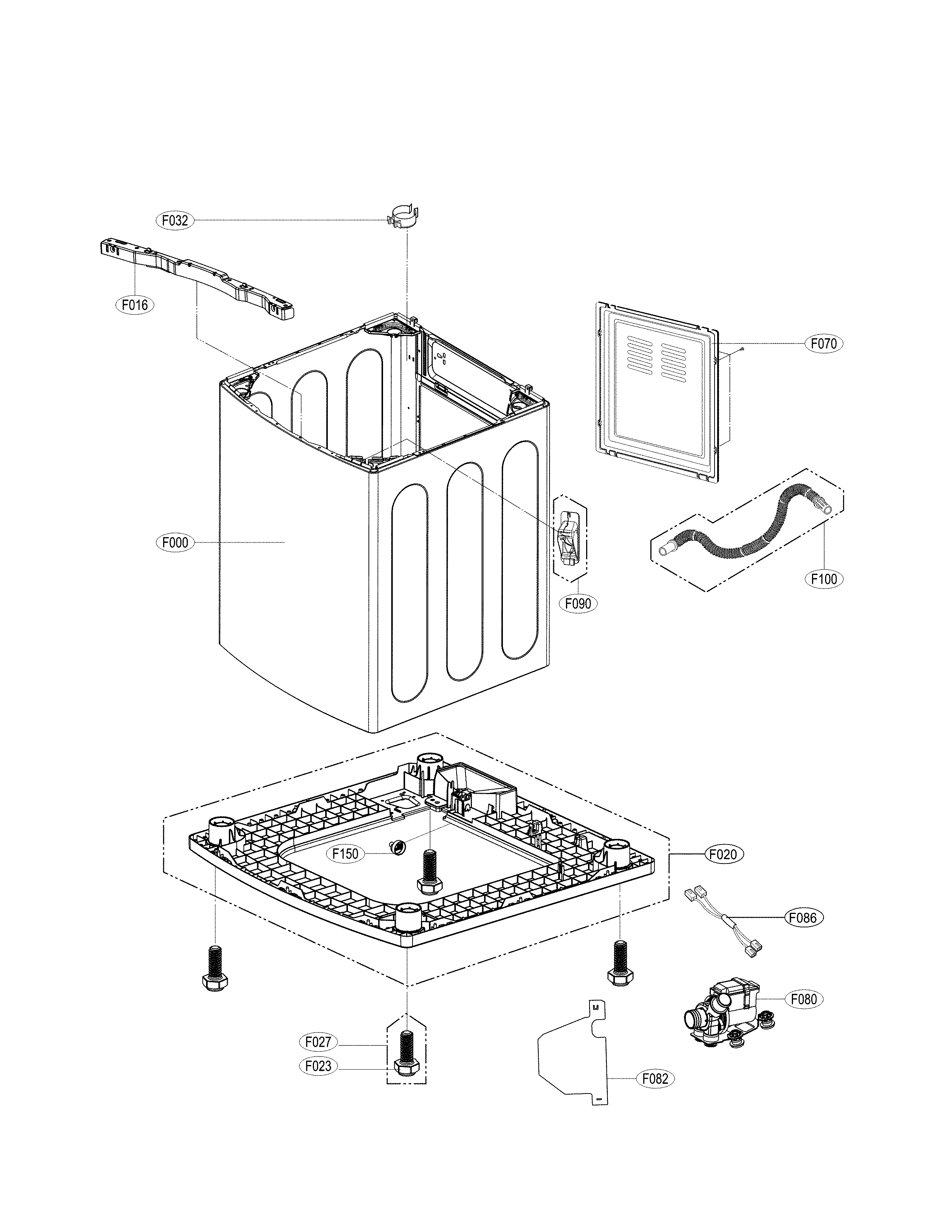

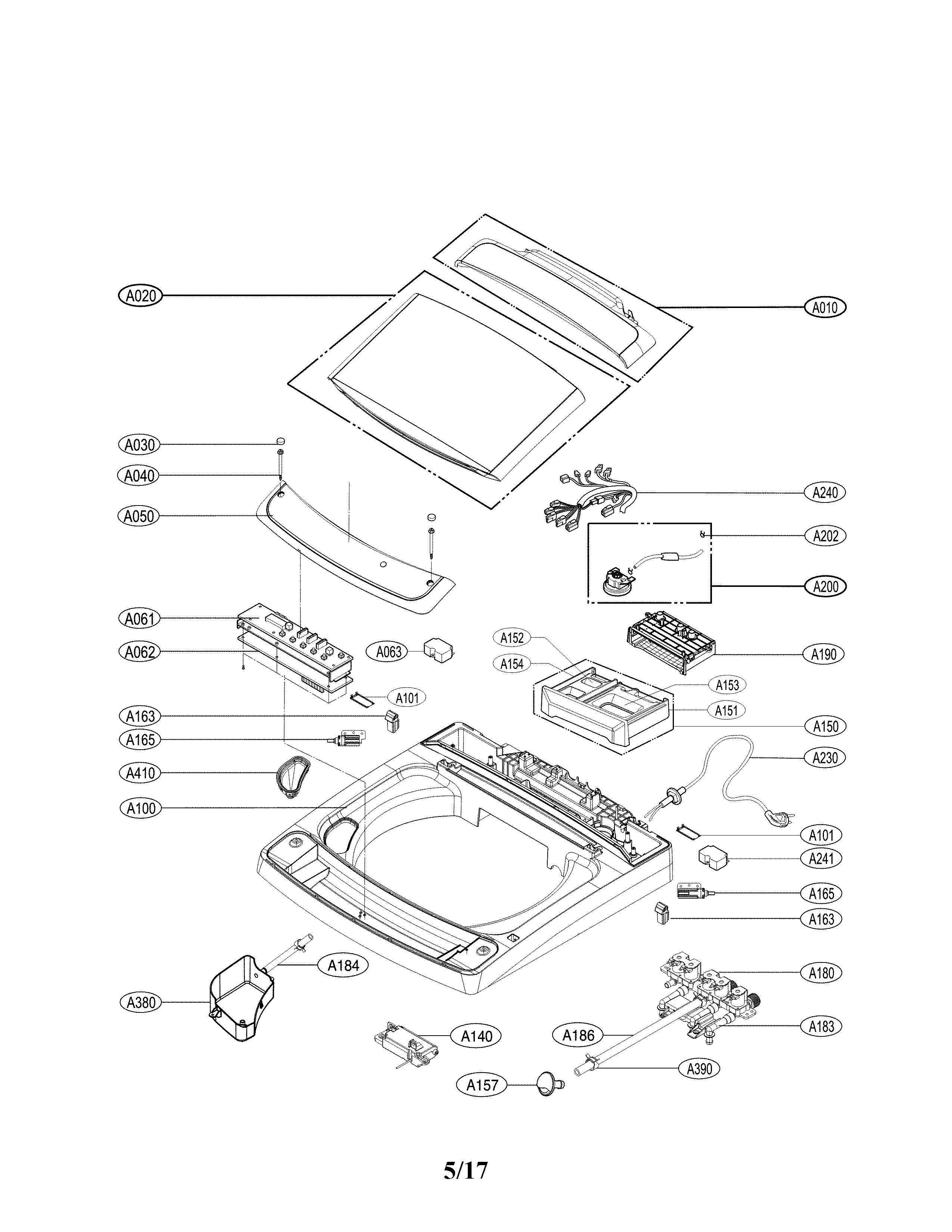

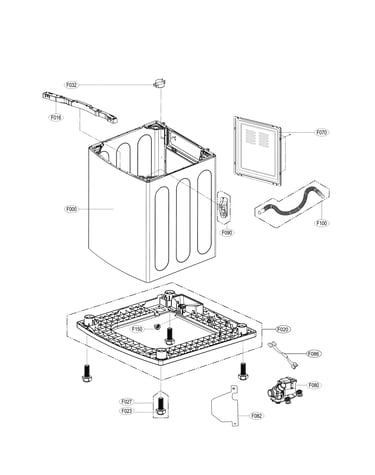

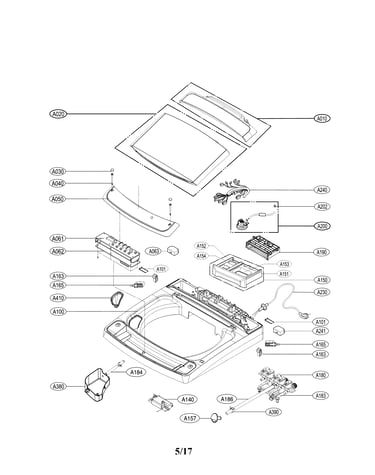

Case parts Diagram


In Stock

Washer Drive Shaft and Shifter Assembly

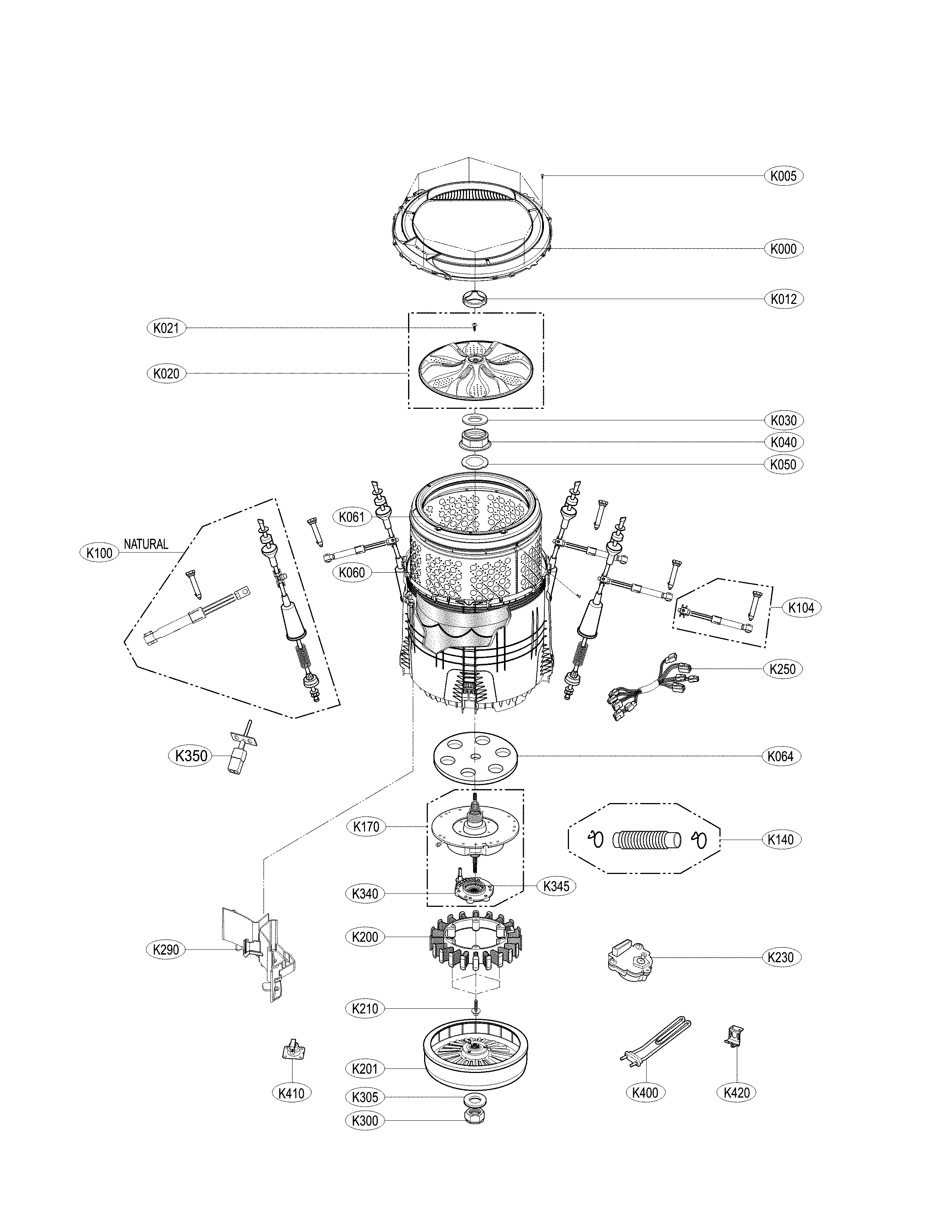

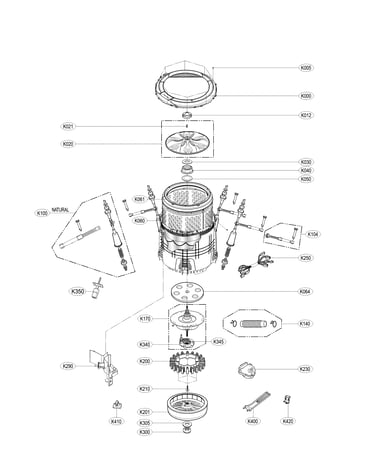

Tub parts Diagram


In Stock

Washer Drain Hose


Case parts Diagram

Washer drain hose

Part #AEM73732901

In Stock

Washer Water Inlet Valve


Case parts Diagram

Washer water inlet valve

Part #5221EA1008F

In Stock

Washer Motor Stator


Tub parts Diagram

Washer motor stator

Part #AJB73816004

In Stock

Washer Screw


Tub parts Diagram

Washer screw

Part #FAB31741301
This item is not returnable

In Stock

Washer Lid Hinge


Case parts Diagram

Washer lid hinge

Part #MEF62462101
This item is not returnable

In Stock

Washer Overfill Sensor


Case parts Diagram

Washer overfill sensor

Part #EBD50360202

In Stock

Washer Thermistor


Tub parts Diagram

Washer thermistor

Part #6322FR2046G

In Stock

Washer Rotor Assembly


Tub parts Diagram

Washer rotor assembly

Part #AHL72914404

In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
